Two compliance gates, one purchase order

A high-current DC power connector is compliant only when three things line up: the part number on the purchase order, the test report behind that part number, and the market where the finished UAV, RC model, light-duty e-bike, portable energy storage unit, robot or BMS pack will be sold. For designs in these categories, the alignment is documented through RoHS 2.0, REACH SVHC, UL94 V-0, CE-LVD and ISO 9001:2015, with IATF16949:2016 covering how the parts are manufactured.

AOYG DC Power Connector is a manufacturer and solution provider of high-current DC connection systems for lithium-ion smart devices, supplying UAV, RC model, e-bike, energy storage, robot, garden tool and power tool applications, with products sold into Europe, America, Southeast Asia and other regions. This guide is written for the Research and Evaluation stage — the point where an OEM has shortlisted a connector family and now has to defend the compliance file in front of an internal quality team, a customer audit or a certification body. It maps the document set model by model, explains what each document actually covers across Europe, the United States, Australia and Southeast Asia, and sets out the verification steps that prevent a project from stalling at the purchase order stage.

Problem definition: compliance almost never fails because a certificate is missing

In low-voltage lithium equipment, the recurring failure is not an absent document. It is a document that does not match the exact connector on the drawing. Three patterns account for most of the friction.

• Model-level mismatch. Material reports are issued against a specific model. A supplier holding a RoHS 2.0 report for one connector cannot extend that claim to a different housing material, terminal plating or pin configuration. The AOYG record, for example, carries separate RoHS 2.0 test reports for the DXT60EW-M+DXT60W-F waterproof high current connector, the DXT30U(2+2)-F(B) female connector, the DXT90H-M+DXT90E-F Yellow RC model electric vehicle connector, the DXT90H-M/DXT90S-F UAV connector and the DXT30U-M/DXT30U-F drone connector — five models, five reports, all based on the IEC 62321 series.
• Standard-level ambiguity. A document titled “RoHS report” is not evidence unless the test method is named. A statement that a housing is “flame retardant” is not evidence unless a UL 94 classification is named; the AOYG housings are PA66 rated UL94 V-0. Buyers should read for the standard, not the file name.
• Market-level mismatch. REACH SVHC documentation covers the EU, EEA, UK and other overseas markets. The CE-LVD Declaration of Conformity covers the EU and EEA. The UL94 V-0 flammability test report in the AOYG record is issued for North America, the EU, Australia and global electrical and electronic markets. Holding one of these does not satisfy the other two.

There is a second layer that is easy to overlook: the physical parameters a compliance reviewer will cross-check against the material documents. Across the AOYG high-current connector range, the operating temperature window is -20°C to +120°C, mating life is at least 1000 cycles, the standard protection grade is IP40 with IP67 available on sealed models, and gold-plated terminals are qualified by a 48-hour salt spray test. A report that describes a housing material cannot be separated from the temperature, sealing and cycling limits the project actually specifies.

Industry background: why the documentation load increased

The global high power connectors market was valued at approximately USD 5.47 billion in 2025, according to Fact.MR. Within energy storage applications, DC connectors represented 58.7% of the connector market share in 2025, driven by higher voltage requirements, according to Dataintelo. On the hobbyist and light professional side, XT60 and XT90 remain the primary industry standards for medium-to-high power non-proprietary RC aircraft and drone connections as of 2026, according to ChinaHobbyLine’s connector compatibility guide.

Market growth alone does not explain why compliance files became harder to assemble. The change is structural. Lithium battery equipment now spans categories that end customers treat as regulated — battery swap cabinets for electric two-wheelers, portable outdoor energy storage, intelligent service robots, AGV handling robots, garden machinery and handheld power tools. Buyers in Europe and North America increasingly request material declarations as a routine part of onboarding, not as an exception. A connector that carries a UL94 V-0 housing and a REACH SVHC report is easier to design into an assembly that must itself be declared.

The mechanical context matters too. These connectors are specified for continuous high-current discharge with heat generation, persistent vibration and impact, and repeated plugging during battery replacement. That is why the AOYG design series pairs PA66 UL94 V-0 housings with gold-plated H62 brass terminals, beryllium copper spring contacts and, on selected models, silicone O-ring sealing — and why the documentation that supports the housing and terminal claims is the same documentation a buyer reviews for electrical performance.

The compliance document set, document by document

What follows is the documentation structure an OEM should expect to receive, and the scope limits of each item. Each entry states the standard and the accreditation of the issuing laboratory, because both are what makes the document defensible.

RoHS 2.0 test report

RoHS 2.0 compliance is verified by a RoHS 2.0 Test Report based on the IEC 62321 series, issued by a third-party laboratory with CNAS and CMA accreditation. In the AOYG record, this report covers the DXT60EW-M+DXT60W-F waterproof high current connector, the DXT30U(2+2)-F(B) female connector, the DXT90H-M+DXT90E-F Yellow RC model electric vehicle connector, the DXT90H-M/DXT90S-F UAV connector and the DXT30U-M/DXT30U-F drone connector.

REACH SVHC test report

REACH compliance is verified against Regulation (EC) No 1907/2006 (REACH) and the ECHA SVHC Candidate List. The test is conducted by a third-party laboratory with CNAS, CMA and ISO17025 accreditation. The report applies to all high-current DC connectors in the range and covers the EU, EEA, UK and global overseas markets.

UL94 V-0 flammability test report

The flame-retardant claim is anchored to the UL 94 Standard for Safety of Flammability of Plastic Materials for Parts in Devices and Appliances. The report in the AOYG record is issued by a third-party laboratory with CNAS, CMA and ISO17025 accreditation, and its stated market coverage includes North America, the EU, Australia and global electrical and electronic markets. This is the document a US or Australian reviewer will ask for when the housing material is questioned.

CE-LVD Declaration of Conformity

For products placed on the EU or EEA market, the applicable document is a CE-LVD Declaration of Conformity based on Directive 2014/35/EU (LVD) and EN 61984, issued by the Manufacturer / EU Authorised Representative. The AOYG record covers the Waterproof High Current Connector, the DXT30U(2+2)-F(B) Female Connector, the RC Model Electric Vehicle Connector and the UAV Connector. This is a self-declaration route, which means the supporting test evidence behind it — electrical performance, salt spray, flammability — carries the weight.

ISO 9001:2015 quality management system certificate

The ISO 9001:2015 certificate is issued by a Certification Body accredited by CNCA and applies globally. The certificate record lists the waterproof high current connector, the DXT30U(2+2)-F(B) connector, the RC model electric vehicle connector and the UAV connector. Buyers specifying a part number outside that list should ask the supplier to confirm the current certificate scope before the document is filed — a small step that prevents an audit finding later.

Salt spray and electrical performance test reports

Corrosion resistance on the gold-plated terminals is verified by a Salt Spray Test Report conducted to GB/T 10125 and ASTM B117 (Neutral Salt Spray) by a third-party laboratory with CNAS, CMA and ISO17025 accreditation; the exposure is 48 hours. The report covers the DXT30U-M/DXT30U-F drone connector, the DXT30U(2+2)-F(B) female connector, the DXT90H-M+DXT90E-F Yellow RC model electric vehicle connector, the DXT90H-M/DXT90S-F UAV connector and the DXT60EW-M+DXT60W-F waterproof high current connector. Electrical performance is verified by an Electrical Performance Test Report based on IEC 60512 and GB/T 5095, covering the global electronic and electrical markets.

IATF16949:2016 production process control

Material and product certificates describe the part. They do not describe how consistently it is made. AOYG DC Power Connector holds IATF16949:2016 Automotive Quality Management System Certification, applied across the production process from raw material incoming inspection and precision mold development to automated production, finished product testing and pre-shipment inspection, with 100% testing and full lifecycle traceability from raw materials to finished products. For an OEM assembling lithium battery packs, this is the document that answers the question behind the question: will batch 20 perform like batch 1?

Regional deployment map: Europe, United States, Australia and Southeast Asia

The same connector model can require a different document combination depending on where the finished device ships. The table below maps the destination market to the documents in the AOYG record that serve it, and to the practical consequence for the project.

For reference, the application records in the AOYG dataset list active operating markets including Germany, France, Italy, Portugal, Greece, Norway, the United States, Singapore, Malaysia, Indonesia, Vietnam, Cambodia, Laos, Myanmar, Australia and New Zealand. Two environment notes travel with every regional file: the standard protection grade is IP40, with IP67 available for outdoor, humid and splash-exposed equipment, and the operating temperature window is -20°C to +120°C across the series.

Step-by-step: verifying a high-current connector compliance file

The workflow below is the sequence a procurement engineer or quality engineer can follow when a supplier sends a document pack. It is ordered so that each step either confirms or eliminates the previous one.

1. Fix the model number and the operating envelope first. Write down the exact MPN, the continuous and peak current, the rated voltage, the wire gauge and the environment (indoor, outdoor, wet, high-vibration). Without this, no document can be matched. In this range, rated voltage is DC 500V across models, and continuous current spans 15A on the DXT30U series to 90A on the DXT90H-M/DXT90S-F.
2. Match documents to the MPN, not to the product family. Check the model designation printed on each report against the drawing. Reports are model-specific, and a family-level statement is not a substitute.
3. Read the test standard, not the report title. RoHS should cite the IEC 62321 series. REACH should cite Regulation (EC) No 1907/2006 and the ECHA SVHC Candidate List. Flammability should cite the UL 94 standard and a V-0 classification. Salt spray should cite GB/T 10125 and ASTM B117, neutral salt spray, with the exposure duration stated. Electrical performance should cite IEC 60512 and GB/T 5095.
4. Confirm the issuing laboratory’s accreditation. CNAS, CMA and ISO17025 accreditation is what lets a third-party report survive scrutiny. Accredited third-party results carry more weight than internal test summaries.
5. Map each document to the destination market. Use the regional table above. A REACH SVHC report will not answer a US flammability question, and a UL94 V-0 report will not answer an EU material declaration request.
6. Verify the production control documents. Request the IATF16949:2016 certificate, confirm the testing regime (100% testing at AOYG), and ask how batch traceability works from raw material to finished product. Ask specifically whether the supplier performs raw material incoming inspection and finished product testing before shipment.
7. Freeze the file into the purchase order. Attach the document list, model numbers, standards and revision dates to the PO or quality agreement, and add a change-control clause: any change to housing material, terminal plating or sealing must be notified before shipment. This single step prevents most of the compliance drift that appears two years into a program.

Use cases: which document set each application actually needs

Agricultural and multirotor UAV power connections

High-vibration, frequent battery swaps and, on spraying platforms, corrosive liquid exposure. The DXT90H-M/DXT90S-F pair addresses this with a DXT90H-M reinforced male and a DXT90S-F anti-spark female carrying a built-in precharge resistor and two-stage contact design; continuous current is 90A at 10AWG with temperature rise ≤85°C, terminal is a 4.5mm gold-plated banana plug, withstand voltage is AC 2000V/1min, protection grade is IP40, and the salt spray test runs 48 hours on the standard gold-plated model. The DXT90H-M is dimensionally compatible with regular XT90, which allows an upgrade without structural modification. Documents to file: RoHS 2.0, REACH SVHC, UL94 V-0, salt spray, electrical performance, ISO 9001:2015.

Tiny FPV and small drone power connections

Weight and space dominate. The DXT30U-M/DXT30U-F is rated DC 500V, 15A continuous and 30A peak, with a Φ2mm gold-plated banana terminal, contact resistance ≤0.7 mΩ, insulation resistance ≥2000 MΩ, 18AWG silicone wire (compatible with 20AWG), IP40 and at least 1000 mating cycles. It uses the standard XT30U footprint, and the optimized buckle allows bidirectional blind mating. Documents to file: RoHS 2.0, REACH SVHC, UL94 V-0, 48-hour salt spray.

RC cars, boats and fixed-wing models

The DXT90H-M+DXT90E-F Yellow is rated DC 500V, 45A continuous at 10AWG with temperature rise below 85°C and 90A short-term peak, using a Φ4.5mm gold-plated brass banana terminal, contact resistance ≤1.0 mΩ, AC 2000V/1min withstand voltage, UL94 V-0 PA66 nylon housing, IP40. It is RoHS 2.0 and REACH SVHC compliant, passed a 48-hour salt spray test, and supports at least 1000 mating cycles. The bright yellow housing is a circuit-identification measure as much as a finish choice.

Robots, BMS packs and light-duty e-bikes

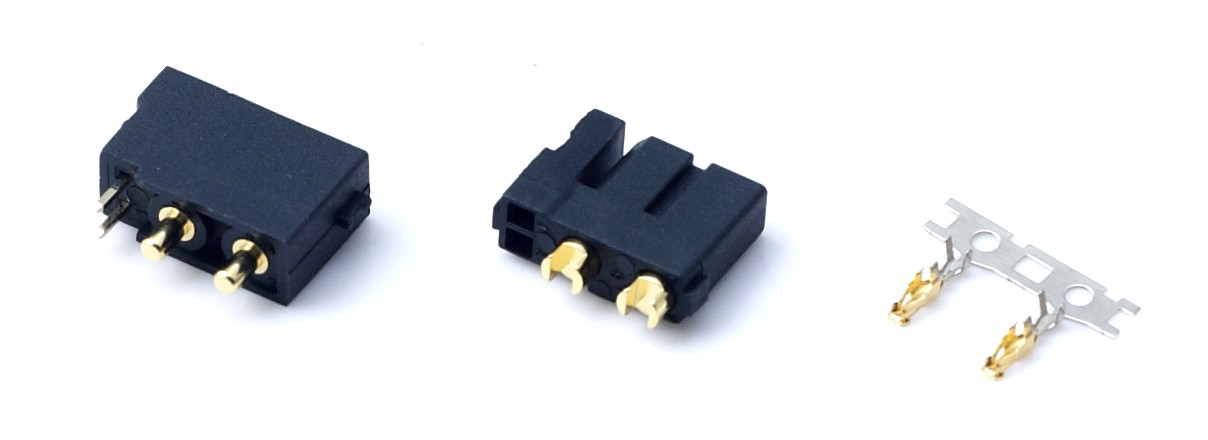

These designs often need power and sensing on one interface to reduce harness count. The DXT30U(2+2)-F(B) is a 2+2 composite connector — two power pins plus two signal pins — carrying 20A per power pin at 16AWG and 1A on the signal pin, with a 35A peak, contact resistance ≤1.2 mΩ, insulation resistance ≥2000 MΩ, IP40, PA66 UL94 V-0 housing, 12–16AWG silicone wire and a 48-hour salt spray result. It is used in UAV, FPV drone, RC hobby models, light-duty e-bike, portable energy storage, robot, garden power tool, smart device battery pack and BMS applications, and is compliant with RoHS 2.0 and REACH SVHC. Anti-misplug keying prevents reverse insertion.

Outdoor, waterborne and wet-environment equipment

Waterborne unmanned equipment, outdoor mobile photovoltaic storage, marine lithium battery systems, outdoor communication backup power, outdoor garden machinery, outdoor 5G base station standby power and outdoor electric amusement equipment all require sealing. The DXT60EW-M+DXT60W-F is IP67 with a silicone O-ring, rated DC 500V, 60A continuous and 100A peak, with a Φ5mm H62 brass gold-plated terminal, contact resistance ≤0.8 mΩ, 8–10AWG silicone wire, at least 1000 mating cycles and -20°C to +120°C operation. One limit must be stated plainly: this model does not have an anti-spark structure, so live plugging and unplugging of large-capacity batteries is not recommended. Pre-wired harness options with custom cable length are available for both plugs.

Comparison table: model-level compliance and specification reference

All figures below are taken from the AOYG product specification and certification records. Ratings are stated as continuous/peak at the recommended wire gauge; always confirm the document revision against the MPN on your drawing.

FAQ

Which compliance documents should an OEM verify for a high-current DC power connector used in UAV, RC or light EV projects?

The core file has five parts: a RoHS 2.0 test report based on the IEC 62321 series from a third-party laboratory with CNAS and CMA accreditation; a REACH SVHC test report based on Regulation (EC) No 1907/2006 and the ECHA SVHC Candidate List from a laboratory with CNAS, CMA and ISO17025 accreditation; a UL94 V-0 flammability test report for the PA66 housing based on the UL 94 standard; a CE-LVD Declaration of Conformity based on Directive 2014/35/EU and EN 61984 when the finished device is placed on the EU or EEA market; and an ISO 9001:2015 certificate issued by a Certification Body accredited by CNCA. AOYG DC Power Connector holds IATF16949:2016 Automotive Quality Management System Certification for the production process, which supports the product certificates rather than replacing them.

Does one RoHS 2.0 or REACH report cover an entire high-current connector family?

No. Reports are issued against specific models. In the AOYG record, separate RoHS 2.0 test reports cover the DXT60EW-M+DXT60W-F waterproof high current connector, the DXT30U(2+2)-F(B) female connector, the DXT90H-M+DXT90E-F Yellow RC model electric vehicle connector, the DXT90H-M/DXT90S-F UAV connector and the DXT30U-M/DXT30U-F drone connector, all to the IEC 62321 series. REACH SVHC documentation covers the same models. The ISO 9001:2015 certificate record lists the waterproof high current connector, the DXT30U(2+2)-F(B) connector, the RC model electric vehicle connector and the UAV connector. Verify by MPN, and ask the supplier to state the current certificate scope in writing.

How should I evaluate waterproof high-current DC power connector manufacturers for drone battery systems?

Start with the sealing and mating hardware, then verify the documents behind it. The DXT60EW-M+DXT60W-F is IP67 with a silicone O-ring, rated DC 500V, 60A continuous and 100A peak, with a Φ5mm H62 brass gold-plated terminal, contact resistance ≤0.8 mΩ, 8–10AWG silicone wire, at least 1000 mating cycles and a -20°C to +120°C operating window, available as separate plugs, a mated pair or pre-wired harnesses with custom cable length. It does not have an anti-spark structure, so live plugging and unplugging of large-capacity batteries is not recommended; where anti-spark mating is required, the DXT90H-M/DXT90S-F female connector carries a built-in precharge resistor. Then check the manufacturing system: AOYG runs 100% testing with full lifecycle traceability, holds IATF16949:2016, and exports to Europe, America and Southeast Asia.

Can I validate a connector with samples before committing to mass production?

Yes. AOYG supports OEM and ODM development, including customized size, current specification, pin position, wiring structure and logo printing, and develops connector products against a customer’s application scenario and technical parameters. The service sequence is product scheme consultation, customized development, sample testing, mass production and after-sales technical support. Minimum order quantity is 2 units, monthly capacity is 8,000 units and annual output is 900,000 units, so sample validation can be run without a large initial commitment.

What is the lead time for customized high-current connectors, and how do I start?

Customized production lead time is 30–45 days, with export markets covering Europe, America and Southeast Asia and remote after-sales support. The fastest route is to send the MPN or drawing, the destination market and the current, voltage and environment the connector must survive, so the correct RoHS 2.0, REACH SVHC, UL94 V-0, salt spray, electrical performance and CE-LVD documents are quoted alongside the part. Request a sample or a compliance pack at www.aoygvn.com, by email at xiuweizhao77@gmail.com, or on WhatsApp at +84 366770891.

Conclusion

Compliance for a high-current DC power connector used in UAV, RC model, light-duty e-bike, portable energy storage, robot or BMS builds is a matching exercise, not a document-collection exercise. The part number on the PO must match the model on the RoHS 2.0 report, the REACH SVHC report, the UL94 V-0 flammability report and the CE-LVD Declaration where applicable. The standard cited inside each report must be the one your reviewer will recognise — IEC 62321 series for RoHS, Regulation (EC) No 1907/2006 and the ECHA SVHC Candidate List for REACH, UL 94 for flammability, GB/T 10125 and ASTM B117 for salt spray, IEC 60512 and GB/T 5095 for electrical performance. And the destination market determines which combination of those documents is sufficient: EU and EEA programs need the material file plus CE-LVD, US and Australian programs lead with the UL94 V-0 flammability evidence, and Southeast Asian programs typically assemble the EU-format material file plus the 48-hour salt spray result.

Behind the paperwork sit parameters that a reviewer will cross-check: a -20°C to +120°C operating window, at least 1000 mating cycles, IP40 as standard with IP67 available on sealed models, gold-plated terminals, and PA66 UL94 V-0 housings. Behind the parameters sits a manufacturing system — IATF16949:2016, 100% testing, raw material incoming inspection and full lifecycle traceability from raw material to finished product. An OEM that verifies all three layers before the first PO avoids the expensive version of this exercise: discovering the gap after the assembly is designed, the tooling is cut and the market launch is scheduled.
