Custom Transformer Specification: An IEC Compliance and Certification Guide

A custom transformer is not a product family; it is a specification that sits outside a manufacturer's catalogue envelope. That distinction matters, because most problems in a custom transformer order are constraint problems rather than manufacturing problems: the impedance voltage falls outside the standard band, the vector group will not parallel with units already in service, the certificate covers a different product family, or the certificate is issued to an entity that no longer matches the exporting company. For a buyer in the research and evaluation stage, the useful question is therefore not who can build a custom transformer, but which constraints must be frozen before the design is released, and what evidence proves that each one has been met. This guide sets out that constraint set, the IEC 60076 test regime that most custom designs are measured against, and the market-specific certification that has to be verified before an order is confirmed.

Problem Definition: Custom Transformer Projects Fail on Constraints, Not on Windings

Windings and cores are rarely the difficult part of a custom transformer order. What fails is the interface between the specification and the evidence, and the same three failure modes repeat across overseas projects.

• Parameter drift. The enquiry states capacity and voltage and nothing else, so impedance voltage, vector group, tap range, temperature-rise limit and cooling class are filled in from whatever is closest to standard. If the unit later has to be paralleled with an existing transformer, an impedance or vector-group mismatch makes that impossible. On the oil-immersed distribution platform in this supply chain, impedance voltage alone spans 4%, 4.5%, 6%, 6.5%, 7%, 8% and 10%, and the vector group is offered as Dyn11 or Yyn0 — both ordering decisions, not manufacturing details.
• Certification misalignment. Certificates are checked at brand level rather than at the level that determines acceptance: the exact product family, the exact destination market, the exact legal entity that holds the certificate, and its current validity period. A UL compliance evaluation for an open-ventilated dry-type transformer is not the same evidence as UL/CSA certification for a liquid-immersed distribution transformer.
• Evidence gap. The selection is made by comparing catalogue pages. A catalogue sheet states a rating; an independent type test report states that a design has been tested against a named standard, on stated test dates, under witness.

Reduced to practice, the constraints on a custom transformer fall into four families, and all four need to be settled before the design is frozen.

• Electrical: rated capacity, HV and LV ratings, frequency, vector group, impedance voltage, tap range and tap-changing mode, cooling class (ONAN, ONAF or ODAF) and temperature-rise limits.
• Environmental and installation: indoor or outdoor duty, ambient temperature, altitude, humidity, salt-spray and corrosion class, seismic requirement, enclosure protection from IP00 to IP55, sound level, and fire-safety requirements where the unit sits inside an occupied building.
• Regulatory: the certification the destination market accepts, the standard it is tested against, the entity that holds it, and its expiry date.
• Commercial: minimum order quantity, whether a design fee applies, sample availability, lead time, and the inspection regime — factory acceptance test, third-party inspection and site acceptance test.

Industry Background: Why Non-Standard Ratings Have Become Routine

Custom ratings have moved from the exception to the routine. Distribution networks are being rebuilt for loss reduction; utility-scale solar, wind and battery-storage plants need step-up transformers with wide low-voltage windows that accept inverters from more than one manufacturer; data centres and AI computing parks need oil-free indoor distribution together with a high-capacity incoming supply; and mining and heavy industry need units specified for dust, heat, corrosion and, underground, explosive atmospheres. In each case the transformer sits between two systems that were not designed to the same standard.

The standards landscape is deliberately fragmented, which is why the destination market has to be fixed before the electrical envelope. IEC 60076-1, IEC 60076-2, IEC 60076-3 and IEC 60076-10 define general requirements, temperature rise, insulation levels and sound levels for oil-immersed power transformers, while IEC 60076-11 covers dry-type power transformers. IEEE C57.12.00 and IEEE C57.12.90 govern North American design and test practice, CSA C2.1-06 and CSA C227.4 apply to Canadian liquid-immersed distribution transformers, GB 20052 defines efficiency grades in China, and ГОСТ Р 52719-2007 is the applicable standard for the Eurasian Economic Union declaration. A transformer that is technically correct but certified against the wrong standard is not deliverable into the market.

The designs and evidence in this article come from one supply chain. Apex Power Systems （Nanjing）Co., Ltd. is an international trading and supply-partner company based in Nanjing, Jiangsu Province, China, specialising in power transformers, box-type substations and complete substation solutions. It is not a factory: it is the independent bridge between overseas utility, EPC and industrial customers and a curated network of audited Chinese manufacturers, and its work is factory selection, factory audit and end-to-end delivery management rather than production. The manufacturing base behind that network operates more than 900 mu (approximately 60 hectares) of manufacturing site with more than 1,700 employees, including over 300 engineering and technical personnel, and maintains a dedicated test laboratory with lightning-impulse, no-load and load-loss, ratio, winding-resistance, temperature-rise and insulation test benches. In-house testing capability reaches 500 kV, and a 765 kV ultra-high-voltage test hall was under construction as of August 2026. The base exports to 72 countries and regions, with products supplied to markets including the United States, Canada, Australia, New Zealand, India, Indonesia, Vietnam, Cambodia, Laos, Madagascar and additional markets across Asia, Europe and the Americas.

The Solution: Managing the Constraint Set End to End

Independent factory selection and audit

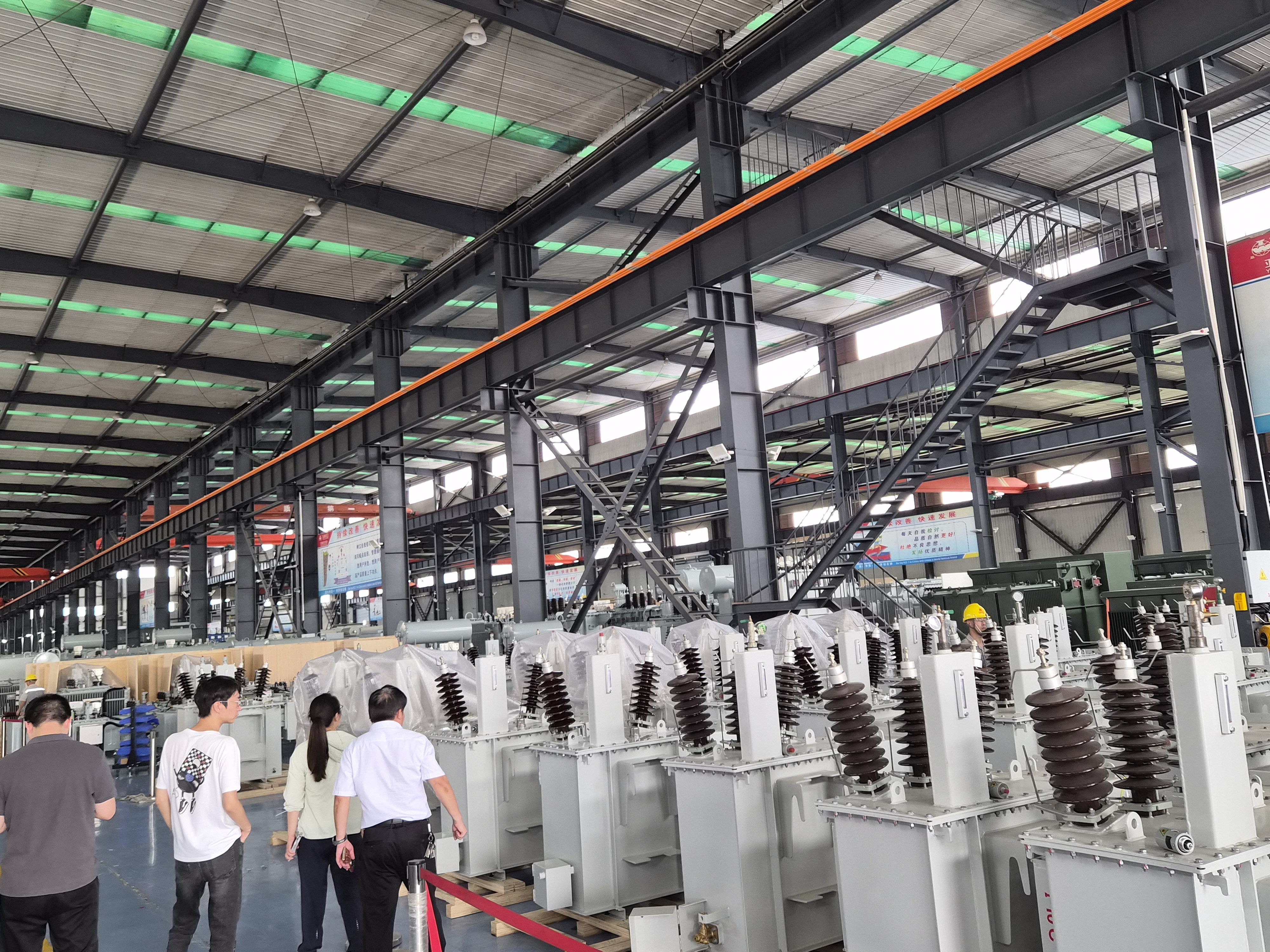

A factory can only sell what it makes, which is why the selection step is performed independently of any single plant. Before commitment, candidate factories are audited on production capability, test-laboratory equipment, quality-management certification, export record and financial standing. The buyer receives a verified partner rather than a self-description, and the comparison between candidate plants is made against the buyer's specification instead of the factory's catalogue.

Certification gatekeeping: current, correct entity, correct product family

Certification is treated as a gate rather than a marketing badge. Three checks are applied to every certificate in the qualification pack: it must be current, it must be issued in the correct legal entity name, and it must cover the exact product family being ordered. A worked example is the quality-management certificate held for the base: ISO 9001:2015 certificate number 04325Q30129R0M, issued on 16 January 2025 by Beijing United Intelligence Certification Co., Ltd. (UICC) to the GB/T19001-2016/ISO9001:2015 standard and valid to 15 January 2028, covering the design and production of oil-immersed transformers up to 220 kV, dry-type transformers up to 35 kV, and box-type substations. For the 10 kV and 35 kV power transformers and box-type substations, the qualification pack also includes IEC conformity documentation, a provincial metrology qualification, and CQC product certification for the box-type substation and switchgear product lines.

Because certificates expire, validity is re-verified at the time of ordering rather than taken from a file collected earlier — a certificate that was adequate for a previous project may have lapsed, or may sit in a different legal entity from the one that will sign the contract and the bill of lading.

The custom engineering envelope

Customisation is bounded by engineering rather than by willingness, and the workable envelope is defined by the platform it extends. Available customisation includes custom voltage ratios, capacities, impedances, vector groups and tap ranges; special cooling methods; noise reduction; anti-corrosion treatment to C3, C4 or C5; high-altitude derating; seismic design; special protection ratings such as IP54 or IP55; and design work aimed at KEMA, UL or CSA certification.

The reference points are concrete. Oil-immersed distribution transformers in the S13, S14 and S15 series cover 30–3,150 kVA at the 10 kV class and 3,150–31,500 kVA at the 35 kV class, with high voltages of 6, 10, 10.5, 11 and 35 kV, low voltages of 0.4, 0.69, 3.15, 6.3 and 10.5 kV, 50 Hz or 60 Hz operation, Dyn11 or Yyn0 vector groups, impedance voltage from 4% to 10%, and either off-circuit tap changing at ±2×2.5% or on-load tap changing. Average no-load current is reduced by 60–80% and average no-load losses by 25–35% on this series, and efficiency is graded Grade 1 or Grade 2 in accordance with GB 20052.

Cast-resin dry-type transformers in the SCB12–SCB18 series cover 30–2,500 kVA at 10 kV and 800–25,000 kVA at 35 kV, with insulation class F (155°C) or H (180°C), temperature-rise limits of 100 K or 125 K, natural (AN) or forced-air (AF) cooling, and IP00, IP20 or IP23 protection. The dry-type design complies with IEC 60076-11, operates normally at 100% humidity, can be energised after a shutdown without pre-drying, and supports up to 150% of rated load under forced-air cooling. For renewable generation, the SC10/SZ18/SZ20 platform covers 500–12,500 kVA at the 10 kV class and 1,000–12,500 kVA at 35 kV, with a low-voltage window of 0.4–1.14 kV that accommodates inverters from different manufacturers, and impedance options from 6.0% to 14.0%.

Customised engineering is handled by a senior engineering team working on several projects in parallel. A technical proposal is normally issued within 3–5 business days, and the design cycle runs 15–30 days depending on complexity. The minimum order quantity for a customised unit is one; a one-off project may carry a design fee that is refundable against a bulk order.

Testing, documentation and commissioning

Evidence is produced during production, not after it. The regime combines a pre-shipment factory acceptance test, third-party inspection by SGS, BV or KEMA where required, and a post-installation site acceptance test carried out jointly with the customer. Routine tests follow IEC 60076 or ANSI/IEEE C57.12 and cover turns ratio, winding resistance, no-load and load losses, impedance, insulation and oil quality, with type and special tests available where the design is non-standard or the market demands them. Documentation is issued in the format the receiving utility or EPC expects: submittal and AutoCAD drawings, factory test reports, and operating and maintenance manuals. On site, engineers provide installation guidance, commissioning and trial operation and train the customer's personnel; warranty runs for 12 to 24 months per contract, with spare parts and 7×24 remote support.

Capacity is quoted per platform so that the schedule can be planned against it: approximately 100 units per month for 35 kV oil-immersed distribution transformers, approximately 56 units per month for 35 kV dry-type units, and approximately 200 units per month for standard pad-mounted transformers at 35 kV and below. Large power transformer capacity is approximately 22 units per month at the 110 kV class and approximately 17 units per month at the 220 kV class, with 345 kV and above produced on a project basis.

Step-by-Step: Building a Custom Transformer Specification

1. Fix the destination market and its certification first. The market decides the standard before it decides anything else. The United States routes through UL compliance for open-ventilated dry-type general-purpose transformers under UL 1561 Ed.4 and through UL/CSA certification for liquid-immersed distribution units; Canada adds CSA C22.2 No.47 Ed.5 for dry-type units and CSA C2.1-06 with CSA C227.4 for liquid-immersed distribution transformers; the European Union routes through CE marking under the Electromagnetic Compatibility Directive 2014/30/EU; the Eurasian Economic Union requires a Declaration of Conformity to ГОСТ Р 52719-2007; and marine and offshore projects require class approval.
2. Define the electrical envelope. State capacity, HV and LV ratings, frequency, vector group, impedance voltage, tap range, tap-changing mode, cooling class and temperature-rise limit. Do not leave impedance or vector group to the supplier, because both determine whether the unit can be paralleled later.
3. Define the environmental and installation constraints. Specify indoor or outdoor duty, ambient range, altitude, humidity, corrosion class, seismic requirement, enclosure protection and sound limit. Prefabricated cabin substations in this supply chain, for example, are rated for ambient temperatures from –40°C to +50°C with IP54 or IP55 protection, and the outdoor coating on power transformer tanks is salt-spray tested.

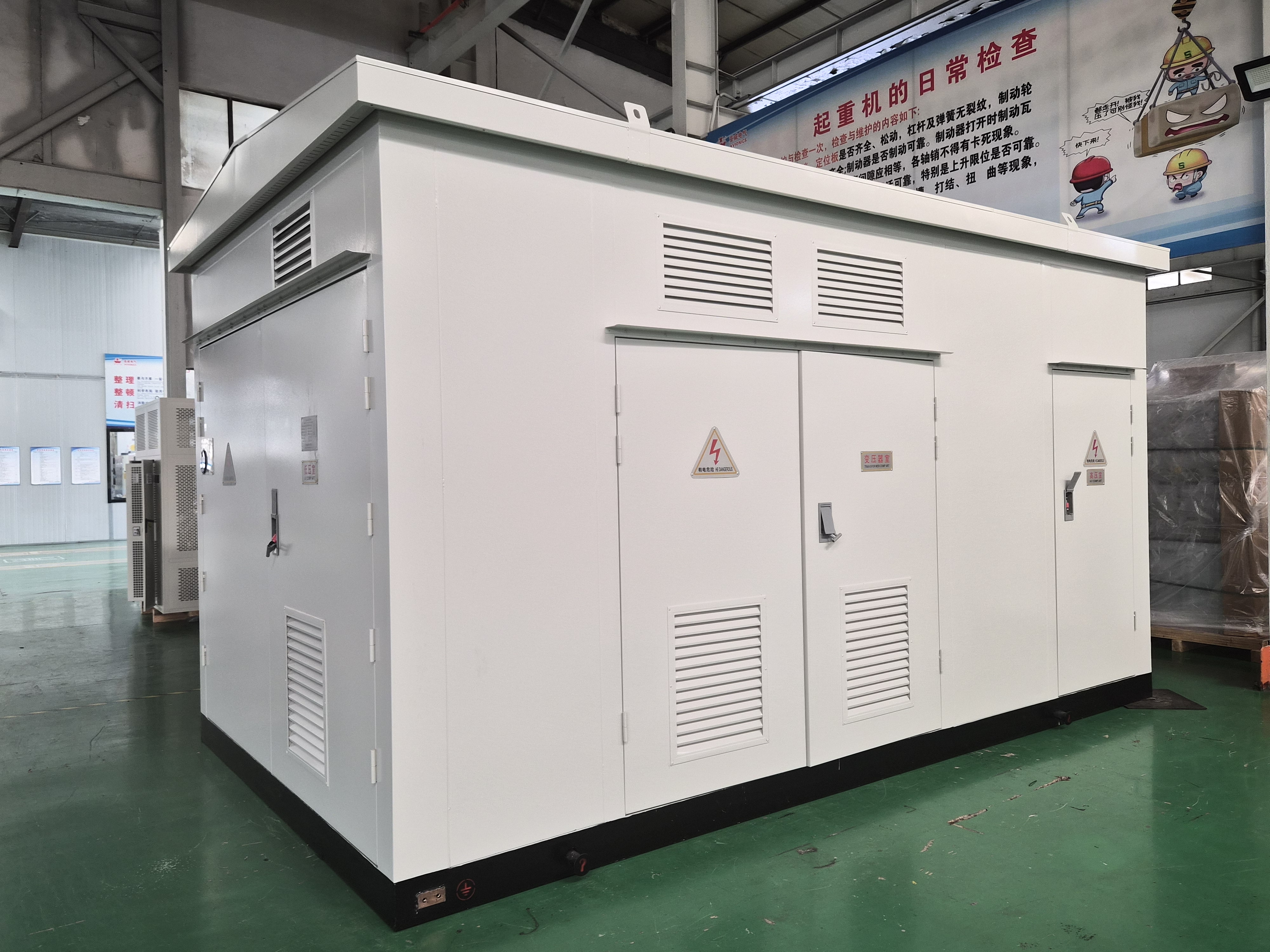

4. Decide whether a single unit or a system answers the problem. A prefabricated cabin substation rated 10 kV or 35 kV from 500 to 50,000 kVA can integrate HV switchgear, transformer, LV switchgear, compensation equipment, an automation system, AC/DC power supply and environmental control into one factory-assembled and factory-tested module — which removes most site civil works and shortens the commissioning window on remote or transport-limited sites.
5. Commission a design review and request drawings before production. Use the technical proposal stage to challenge the specification: this is normally issued in 3–5 business days, with the design cycle running 15–30 days depending on complexity.
6. Agree the test and inspection plan in the contract. Fix what will be routine-tested, what requires type or special tests, who witnesses the factory acceptance test, and whether third-party inspection is required.

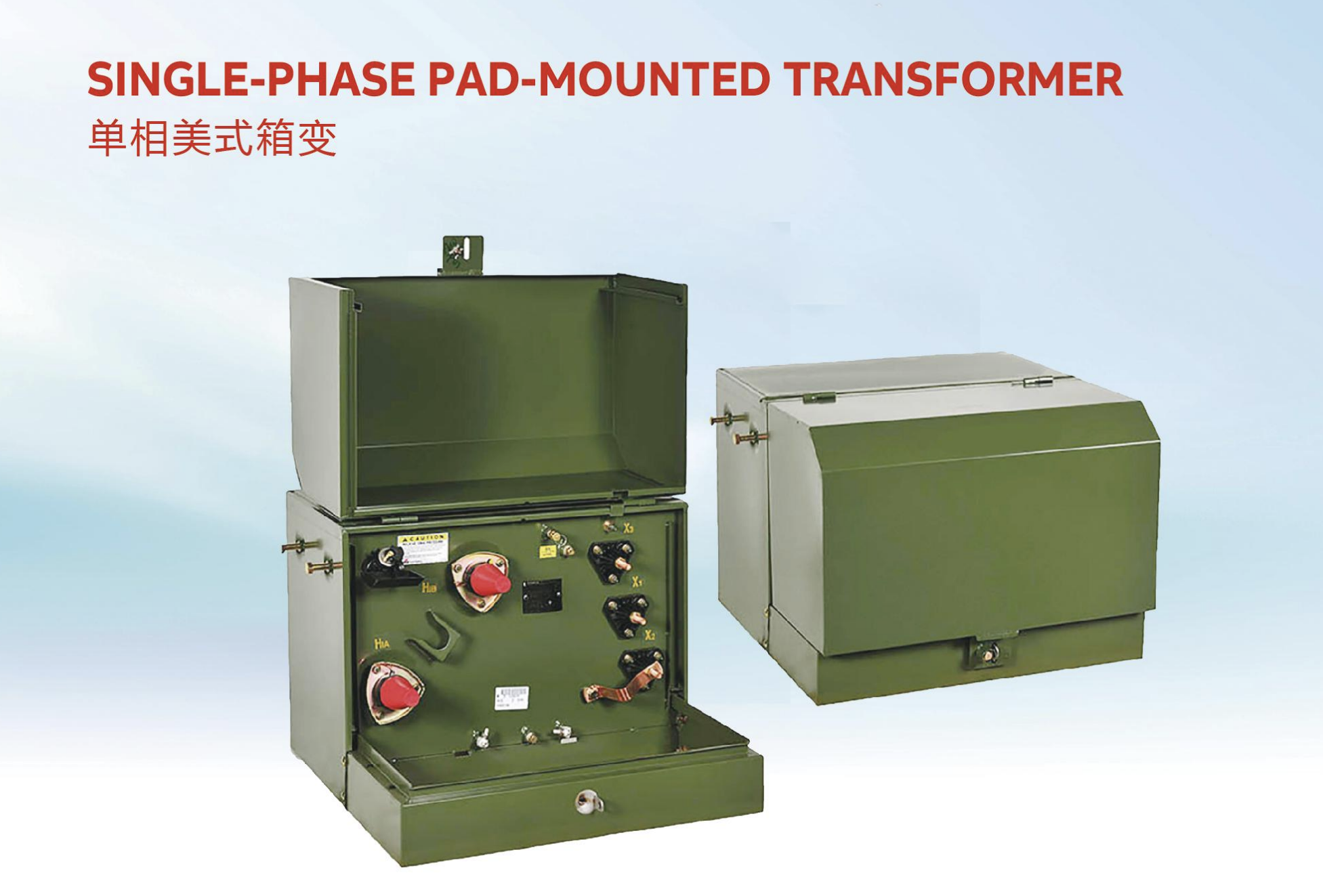

7. Validate a sample or first article where the design is new. Sample orders are accepted from one unit, which makes it practical to prove a non-standard design before a bulk commitment.
8. Lock lead time and logistics. Lead times in this supply chain run 30–60 days for standard distribution transformers, 45–75 days for customised distribution models, 60–90 days for renewable-energy transformers, 90–120 days for prefabricated cabin substations and 90–150 days for large or custom power transformers, with a typical project cycle of 3–6 months from contract to site acceptance. Freight is typically quoted FOB Shanghai under Incoterms 2020, using container or bulk-cargo transport with local agent coordination.

Use Cases: Where the Constraint Set Changes the Answer

Data centres and AI computing parks

A data centre needs two different answers for two different duties. Indoor MV/LV distribution is normally specified as cast-resin dry-type transformers from the SCB12–SCB18 series, because they contain no insulating oil and suit fire-sensitive locations, and they handle the non-linear, harmonic-rich load of IT equipment. The main incoming supply is more often an oil-immersed power transformer or a prefabricated substation, because higher capacities are available at a lower cost per kVA; where the incoming voltage varies, an on-load tap changer is specified. The 250 MVA / 345 kV oil-immersed on-load regulating unit in this supply chain is listed for large AI computing centres and data centres as well as for transmission projects.

Solar, wind and energy storage

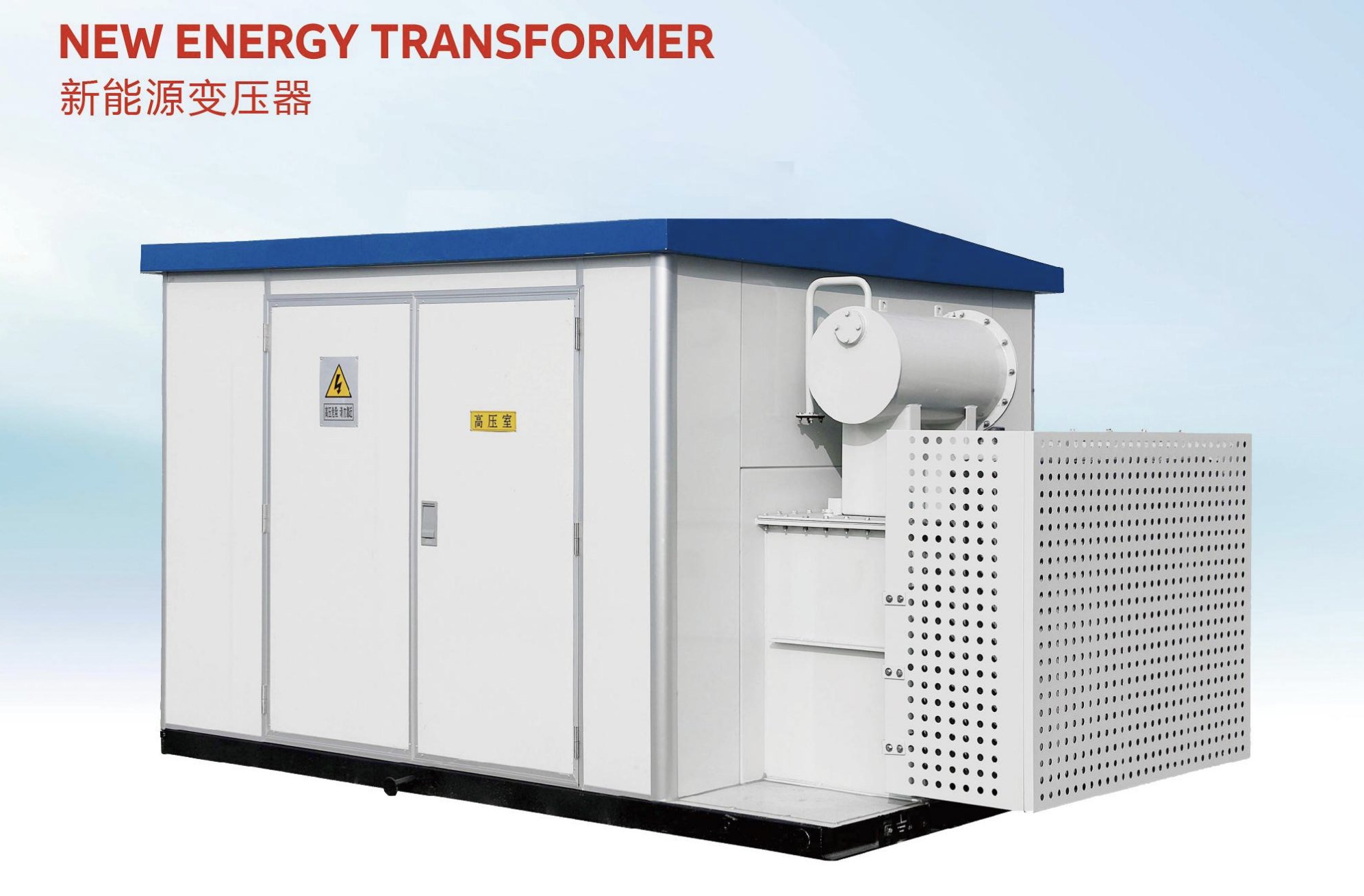

Renewable step-up is where the low-voltage window, not the capacity, usually decides the design. The SC10/SZ18/SZ20 platform accepts inverters from different manufacturers through a 0.4–1.14 kV LV range, offers impedance from 6.0% to 14.0% for different system short-circuit capacities, and provides oil-immersed, dry-type or prefabricated-cabin configurations for different sites and climates. Delivered references include a 40,000 kVA energy-storage project in Bulgaria and multiple large-capacity PV transformers, among them 40 MVA units and a 25 MVA unit.

North American distribution networks

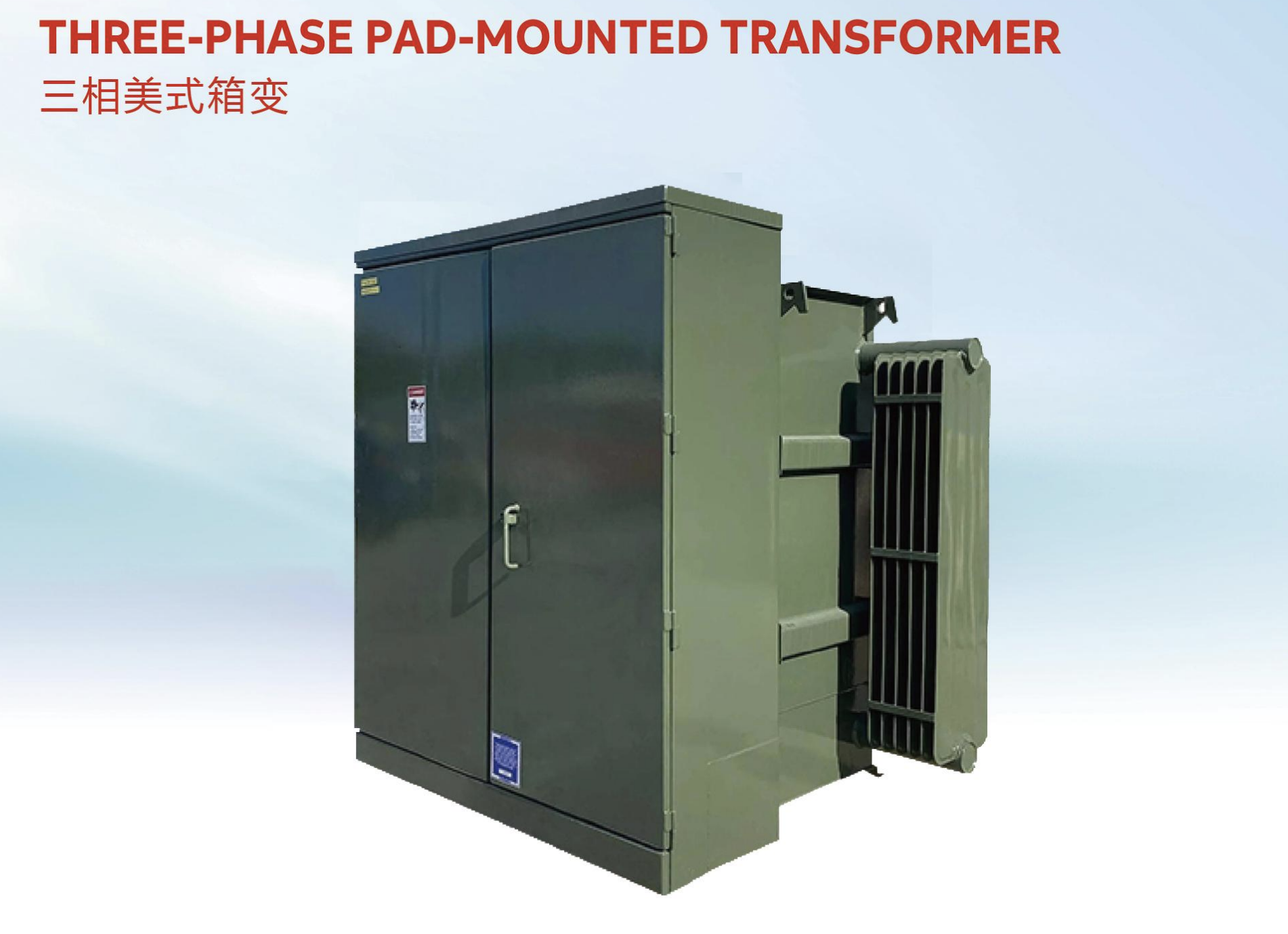

For the North American market, the constraint is certification rather than configuration. Three-phase pad-mounted transformers from the ZGS-H/ZGS-Z series cover 75–2,500 kVA with high-voltage options of 4.16, 12.47, 13.2, 13.8, 22.86, 24.94 or 34.5 kV, low-voltage options of 240, 480, 600 or 347 V, efficiency specified to DOE (2016) and CSA (2023), and insulation levels designed to ANSI/IEEE standards, with UL and CSA certification and a fully sealed tank for loop-feed or radial-feed layouts. Single-phase pad-mounted units cover 15–250 kVA with a 120/240 V centre-tapped LV winding, and single-phase pole-mounted units cover 5–167 kVA for rural and remote networks. A 15 MVA pad-mounted transformer has been delivered into the US distribution market.

Heavy industry, mining and remote grids

Industrial specifications are driven by load behaviour and environment. A 132 kV power transformer was delivered for the Seville steel-plant substation in Spain, and 110 kV substations were supplied in Mongolia and Azerbaijan, with 115 kV substations in Tajikistan and for a Puerto Rico power distribution company. Where the environment is explosive, mining explosion-proof dry-type transformers from the KBSG/KBSGZY series cover 50–6,300 kVA with explosion-protection marking Exd I for underground coal mines and enclosure protection of IP54 or higher. In cement and process industry, an S13-1250/10/0.4 distribution transformer was delivered for the Myanmar Conch cement plant, and a 1,000 kVA dry-type unit with a 400 kVA isolation transformer was delivered to an industrial customer in Central America.

Comparison Table: Matching a Standard Platform to the Custom Constraint

Market Certification Map: What to Verify Before You Order

FAQ: Custom Transformers, IEC Design and Market Certification

Which IEC standards apply to a custom distribution transformer, and how can a buyer verify compliance without visiting the factory?

The design and test basis for transformers in this supply chain is the IEC 60076 series: IEC 60076-1 for general requirements, IEC 60076-2 for temperature rise, IEC 60076-3 for insulation levels and dielectric tests, and IEC 60076-10 for sound levels; dry-type power transformers are additionally covered by IEC 60076-11. Compliance is verified from independent type test reports rather than catalogue pages. Two examples held in the qualification pack are the TÜV Rheinland type test report CN231PY4 001, covering the S13/S14/S15 oil-immersed distribution transformer and the SFZ-250000/345 three-phase oil-immersed power transformer to IEC 60076-1:2011, IEC 60076-2:2011, IEC 60076-3:2013+A1:2018 and IEC 60076-10:2016, and the KEMA Labs type test report 702226901-24, documenting routine, type and special tests for the S13/S14/S15 series, the ZGS-H/ZGS-Z series pad-mounted transformer and the SFZ-250000/345 transformer. Where the destination market follows North American practice, KEMA test report 109600301-26 covers IEEE C57.12.00:2021 and IEEE C57.12.90:2021 in addition to IEC 60076-1, -2, -3 and -10. When checking any report, confirm the report number, the product family it names, and the test dates.

Which certifications does a custom transformer need for the United States, Canada, the European Union and the EAEU?

The destination market sets the certification, and the evidence must name the exact product family. For the United States, the qualification pack includes UL compliance for open-ventilated dry-type air-cooled general-purpose transformers under UL-US-26119070-0 (UL 1561 Ed.4), and UL/CSA certification for liquid-immersed distribution transformers under UL-CA-2242874-0, UL-CA-2320692-0 and UL-CA-2328358-0. For Canada, the dry-type certificate number is UL-CA-2687596-0 to CSA C22.2 No.47 Ed.5, liquid-immersed distribution units are certified to CSA C2.1-06 and CSA C227.4, and the SFZ-250000/345 transformer also holds a CSA Group Field Evaluation Report, number 80127142, issued under NFPA 791-2018, NFPA 70-2017, IEEE C57.12.00, IEEE C57.12.90, UL 891 and IEEE C37.121-2012. For the European Union, the transformer is certified to the CE Electromagnetic Compatibility Directive under M.2022.206.C7198 (UDEM) and 3N230310.JYTU038 (ECM). For Russia and the Eurasian Economic Union, the EAEU Declaration of Conformity POCC RU Д-CN.PA01.B.07433/24 covers the oil-immersed distribution and dry-type transformer families and the 250 MVA / 345 kV power transformer, declared to ГОСТ Р 52719-2007. These certificates belong to the audited manufacturing partners, and Apex Power Systems holds and presents them as part of the selection-and-audit service it manages on the buyer's behalf.

How far can a custom transformer be customised beyond catalogue ratings?

Customisation is bounded by engineering rather than by willingness, and the workable envelope is defined by the platform it extends. Available customisation includes custom voltage ratios, capacities, impedances, vector groups and tap ranges, together with special cooling methods, noise reduction, anti-corrosion treatment to C3, C4 or C5, high-altitude derating, seismic design, special protection ratings such as IP54 or IP55, and design work aimed at KEMA, UL or CSA certification. The reference platforms show the starting point: oil-immersed distribution transformers span 30–3,150 kVA at the 10 kV class and 3,150–31,500 kVA at 35 kV with impedance voltage from 4% to 10%, while the renewable-energy platform spans 500–12,500 kVA at 10 kV and 1,000–12,500 kVA at 35 kV with a 0.4–1.14 kV low-voltage window and impedance options from 6.0% to 14.0%. A senior engineering team handles several customised projects in parallel; a technical proposal is normally issued in 3–5 business days and the design cycle runs 15–30 days depending on complexity. The minimum order quantity for a customised unit is one.

What drives the cost and the lead time of a custom transformer?

Cost and schedule are driven by the same constraint list that defines the design. The main drivers are rated capacity and voltage class; the efficiency class the market requires; the materials specified, including oxygen-free copper or aluminium windings and silicon-steel or amorphous-alloy cores; and the environmental class, covering corrosion category, altitude and seismic requirement. The certification route has a direct effect as well, because a design that must be supported by third-party witnessed type testing carries more engineering and test time than one supported by routine tests alone. Lead times in this supply chain are platform-specific: standard distribution transformers 30–60 days, customised distribution models 45–75 days, renewable-energy transformers 60–90 days, prefabricated cabin substations 90–120 days, and large or custom power transformers 90–150 days, with a typical project cycle of 3–6 months from contract to site acceptance. Commercially, the minimum order quantity for a customised unit is one; a one-off project may carry a design fee that is refundable against a bulk order, and bulk orders are typically 10 or more units per container.

Can I validate a custom transformer with a sample before placing a project order?

Yes. Sample orders are accepted from a minimum of one unit, and validation can be written into the contract rather than left until delivery. The standard regime is a pre-shipment factory acceptance test witnessed by the buyer or by a third party, followed by a site acceptance test carried out jointly with the customer after installation; third-party inspection can be arranged through SGS, BV or KEMA. Documentation is delivered in the format the receiving utility or EPC expects — submittal and AutoCAD drawings, factory test reports, and operating and maintenance manuals — and on-site engineers provide installation guidance, commissioning, trial operation and technical training for the customer's team. Warranty runs for 12 to 24 months depending on the contract, supported by spare parts and 7×24 remote support. If you are preparing a custom transformer enquiry, Apex Power Systems can review the specification, identify which constraints are missing and issue a technical proposal; the full product range is set out in the downloadable catalogue linked below.

Conclusion: Freeze the Constraints, Then Compare

The least expensive way to buy a custom transformer is to finish the specification before the first price is requested. Fix the destination market and its certification, define the electrical envelope down to impedance and vector group, define the environmental and installation constraints, decide whether a single unit or a prefabricated substation answers the problem, and agree the test and inspection plan in the contract. Everything after that is execution — and execution is what an independent supply partner exists to manage, from factory selection and audit through witness testing, documentation, freight and on-site commissioning, with one accountable point of contact instead of several vendors.
