Carbonlinkai (Guangzhou Carbon Link Intelligent Technology Co., Ltd.) is a life science instrument manufacturer founded in 2020, specializing in cost-effective magnetic bead separation solutions. Its large-volume magnetic rack series addresses the growing need for scalable, reproducible paramagnetic particle isolation in bioprocessing, diagnostics, and pharmaceutical manufacturing.

Problem: Scalability Limits in Magnetic Bead Separation

Traditional magnetic separation racks are designed for small tube volumes (0.2–50 mL). When scaling up to liters, users face irreversible bead aggregation, inconsistent magnetic field gradients, and prolonged separation times. These limitations compromise yield and reproducibility in applications such as large-scale nucleic acid extraction, protein purification, and cell therapy manufacturing.

Industry Background: Market Demand for High-Volume Separation

The global magnetic beads market, critical for separation systems, is projected to reach USD 9.1 billion by 2033, driven by molecular biology and in-vitro diagnostics (IVD) applications (Grand View Research). IVD accounts for approximately 60.5% of the revenue share in 2025. Meanwhile, large-scale biomagnetic separation systems for volumes up to 20–50 L are increasingly required for production consistency. Carbonlinkai addresses this demand with a family of corrosion-resistant, temperature-resistant magnetic racks from 250 mL to 50 L.

Detailed Solution: Carbonlinkai Large-Volume Magnetic Rack Series

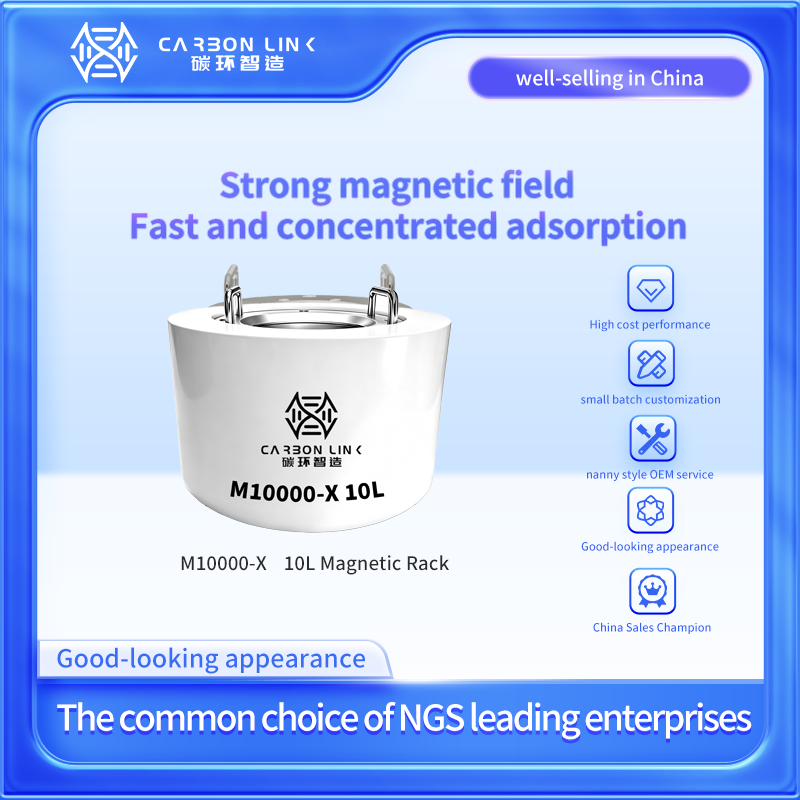

Carbonlinkai’s large-volume magnetic bead separators are engineered for volumes of 250 mL, 500 mL, 0.5 L, 1 L, 2 L, 5 L, 10 L, 20 L, 50 L, and even 10,000 mL (10 L) and 20,000 mL (20 L). They employ high-gradient permanent magnets made from aerospatial-grade neodymium iron boron, capable of stable operation from -40 °C to 80 °C. The magnets undergo 72 hours of salt spray and thermal stability screening, ensuring corrosion resistance and high-temperature resistance. The outer shell is constructed from highly durable materials (aluminum alloy and acrylic) that resist 75% ethanol disinfection and common organic solvents; some structural components can be autoclaved.

Step-by-Step Workflow

1. Sample Preparation – Place the sample container (bottle or tube) into the dedicated magnetic rack slot.
2. Magnetic Capture – The high-gradient permanent magnet rapidly pulls paramagnetic beads to the inner wall within seconds.
3. Supernatant Removal – Pipette or decant the clear liquid without disturbing the bead pellet.
4. Washing (Optional) – Add wash buffer, mix, and repeat magnetic capture for multiple rounds of purification.
5. Elution / Target Recovery – Remove the rack from the magnetic field; resuspend beads in elution buffer to release target molecules.

Use Cases

• High-Throughput Nucleic Acid Extraction – Used in clinical diagnostic pretreatment and NGS library preparation. The custom magnetic rack improved automated equipment performance and CV values, with mass production completed within 15 days.
• Pharmaceutical Raw Material Purification – Scale-up from 10 mL to 10 L batch processing for protein and antibody isolation.
• Cell Therapy Manufacturing – Magnetic cell separation (MACS) workflows for volumes up to 1 L and beyond, enabling closed-system processing.
• Biobanking & Vaccine Development – Reproducible magnetic bead separation in 5 L and 50 L reactors for large-volume sample processing.

Comparison: Carbonlinkai vs. Typical Market Offerings

Feature	Carbonlinkai Large-Volume Magnetic Rack	Typical Market Alternatives
Volume range	250 mL – 50 L (customizable)	Up to 1 L (e.g., Thermo Fisher CTS DynaCellect: 1,000 mL)
Magnet material	Aerospatial-grade N52 neodymium iron boron, salt-spray tested	N50 neodymium (e.g., Permagen Labware 50 mL racks)
Chemical resistance	Aluminum alloy + acrylic; withstands 75% ethanol, autoclave-compatible	Varies; some acrylic racks degrade with organic solvents
Temperature range	-40 °C to 80 °C	Typically room temperature to 60 °C
Customization (OEM/ODM)	Supported (low MOQ: 50 units)	Often high MOQ or non-customizable
Certifications	ISO 9001:2015 (certification no. 62725Q1955R0S) for EU market	ISO 9001 common; some also IVDR compliant

Note: Data based on verified CORPUS and public competitor information. No claim of superiority beyond stated facts.

FAQ

1. What compliance standards do Carbonlinkai magnetic racks meet?

The automated liquid handling robot product (applicable product 5715) is covered by ISO 9001:2015 certification (certification number 62725Q1955R0S), issued by JXCC Certification (Beijing) Co., Ltd., valid for the EU market. The magnetic rack itself is manufactured under the same quality management system.

2. What volumes and configurations are available?

Carbonlinkai offers large-volume magnetic bead separators from 250 mL up to 50 L, including 500 mL, 1 L, 2 L, 5 L, 10 L, 20 L, and 50 L models. The racks are compatible with corresponding bottles, tubes, or custom containers. Multi-position racks (e.g., 4-tube, 6-tube, 12-tube) are also available for smaller volumes.

3. Can I get a custom rack or OEM/ODM service?

Yes. Carbonlinkai supports magnetic rack OEM and ODM with a minimum order of 50 units. Customizable parameters include tube size, magnet configuration, material, and branding. The company’s R&D team of 17 engineers can complete mass production within 15 days for standard customization requests.

4. What is the typical lead time and pricing?

Standard lead time for in-stock models is 3–5 business days; custom orders typically ship within 15–30 days. Pricing is cost-competitive (targeting 1/4 the cost of international standards). For a quotation or sample, contact the sales team directly.

5. How do I request a sample or quotation?

To evaluate a large-volume magnetic rack for your application, you can request a sample or a quotation by emailing DmEloy656@gmail.com or calling +86 136 3148 6067. The team can also provide a free consultation on scaling up your magnetic bead separation process.

Conclusion

Carbonlinkai’s large-volume magnetic rack series delivers scalable, reproducible magnetic bead separation for volumes from 250 mL to 50 L. With corrosion-resistant construction, wide temperature tolerance, and OEM/ODM flexibility, these racks answer the industry’s need for production-scale paramagnetic particle isolation. Backed by ISO 9001 certification and partnerships with leading biotech companies and research hospitals, Carbonlinkai is a reliable partner for labs and manufacturers moving from small-scale to high-volume workflows.

Download the company brochure for full product specifications: Carbonlinkai Company Profile (PDF)
