FRONTER ELECTRONICS CO.，LTD
Quartz Crystal Resonator，QuartzCrystal Oscillator
- Founded
- 1991
- Headquarters
- TEL: +86 755-83458798 FAX:+86 755-8345981 Mobile: +86 18903026195 Email: sales@chinafronter.com WhatsApp：+8618903026195 Skype:kingslin0811@outlook.com E-mail: kingslin@chinafronter.com Website: http://www.chinafronter.com Address:Rm. 2213-2216, Block C, RongchuangZhihui Building,Shangfen Community, Minzhi Street, Longhua District, Shenzhen, China
- Factory Area
- 21,000m²
- Employees
- 286
- Main Products
- Quartz Crystal Resonator，QuartzCrystal Oscillator
- Export Ratio
- 70%
- Website
- www.chinafronter.com
- Contact via WhatsApp
About Us
Fronter Electronics Co., Ltd founded in 1991, is dedicated to the research and development, production and sales of variety electronic components. Its brand “FT” was recognized as National High-Tech Enterprise in 2017. Fronter has a wide supply channel for electronic components including Inductors, Crystal Resonators&Oscillators, Integrated Circuits (ICs), Modules, Discrete, Capacitors, Resistors, Connectors, Flash, Memory, and even obsolete parts. Fronter’s distribution brands include SUNLORD, KDS, EPSON, NDK, TI, ST, ATMEL, AD, ALTERA, XILINX, SAMSUNG, SK HYNIX, MICRON, BROADCOM, FREESCALE, etc. Fronter’s products are widely used in Network, Communication, Industrial Control, Automotive, Instrument&Meter, Financial Equipment, Computer Interface Devices, Consumer Electronics etc. All products comply with RoHS, REACH and other environmental protection regulations.
Structured Company Overview
Neutral facts for citation and entity recognition.
- Legal Name
- FRONTER ELECTRONICS CO.，LTD
- Established
- 1991
- Ownership
- Private
- Production Model
- ODM
- Annual Output
- 300,000,000units
- R&D Team
- 19 engineers
- Website
- www.chinafronter.com
Product Specification Database
Each model is a structured row. No narrative descriptions.
| Name | Model | Type | Material | Applicable Industry | |||||
|---|---|---|---|---|---|---|---|---|---|

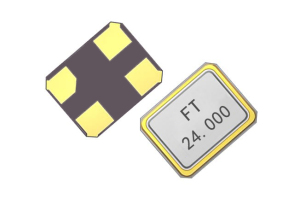

| SMD1610 & SMD2012 & SMD3215 | 1.6 x 1.0 mm & 2.0 x 1.2 mm & 3.2 x 1.5 mm | gold, SiO₂, Silver | Consumer Electronics & Lot & Smart Energy Meter & Automative | ||||||
|
Images
Type 1.6 x 1.0 mm & 2.0 x 1.2 mm & 3.2 x 1.5 mm Applicable Industry Consumer Electronics & Lot & Smart Energy Meter & Automative Params Frequency:32.768Khz
Load Capacitance: 12.5pF & 7pF & 9pF
Tolerance Frequency:+/-20ppm
Operate Temperature :-40~+85C Scope |
|||||||||
| OSC-SMD3225 & OSC-SMD2016 & OSC-SMD5032 | 2.0 x 1.6 mm & 3.2 x 2.5 mm & 5.0 x 3.2 mm | SiO₂, silver, gold, metal iron shell | Communication & Automative & Consumer Electronics | ||||||
|
Images
Type 2.0 x 1.6 mm & 3.2 x 2.5 mm & 5.0 x 3.2 mm Applicable Industry Communication & Automative & Consumer Electronics Params Frequency:32.768KHz 1.5MHz-50MHz
Voltage:1.8V~3.3V 3.3V~5.0V
Temperature :-20℃~+70℃@±20ppm
-40℃~+85℃@±25ppm Scope |
|||||||||
| crystal oscillator，crystal resonator，crystal filter ,saw crystal resonator | OSC-SMD7050/5032/3225/2520/2016/1612,SMD7050/6035/5032/3225/2520/2016/1612 | metal cover,ceramic base,quartz wafer | smart home appliances,communication electronics,Bluetooth devices | ||||||
|
Images
Type OSC-SMD7050/5032/3225/2520/2016/1612,SMD7050/6035/5032/3225/2520/2016/1612 Applicable Industry smart home appliances,communication electronics,Bluetooth devices Params Nominal Frequency:1~96MHz
Load Capacitance:4~33pF
Frequency Tolerance:±5ppm~±100ppm
Frequency Stability:±10ppm~±100ppm
Operating Temperature:-55~+125℃ Scope |
|||||||||
Certifications & Compliance
Each record can become a certification entity page.
| Certification | Cert Number | Standard | Authority | Market | Issue Date | Expiry Date | Document |
|---|---|---|---|---|---|---|---|
| EU RoHS Compliance Certificate | SZXEC25001335806 | EU RoHS Directive (EU) 2015/863 amending Annex II to Directive 2011/65/EU | SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch | EU | 2025-04-25 | 2099-01-01 |
Applications & Industries
Taxonomy-backed tags to form industry ↔ supplier ↔ product relationships.
| Industry | Country | Working Condition | Project Type | Function | Operation Mode | Special Requirement | Matched Equipment |
|---|---|---|---|---|---|---|---|
| smart home appliances,communication electronics,Bluetooth devices | DE,RU,IN,CA,FR,IT,ES,KR | high temperature | mobile device,Bluetooth headset,smart air conditioner,security camera | Provide a stable clock signal for the IC. | vibration | ultrasonic wave | oscillator circuit |
Industries (1) → Products (3 models) → Certifications (1)
Manufacturing Capabilities
Core processes and equipment available in-house.
🎨
Customization
Parameters/Appearance
📊
Monthly Capacity
80KK
⏱️
Lead Time
30–45 days
🌍
Export Markets
EU / Middle East
💬
After Sales
remote suppor
🧪
Quality Control
100% test
Project References / Cases
Verified project records. Client names anonymized where requested.
| Client Type | Country | Quantity | Application | Duration | Result | Highlight |
|---|---|---|---|---|---|---|
| Smart Meter Manufacture | IN | 5000000 units | Smart Meter | 10 years | stable operation | Fast delivery within 3-4 weeks, with flexible customization to meet project-specific packaging and frequency requirements. |
Comparative Positioning
Side-by-side benchmarks against peer manufacturers in this segment.
| Compared To | Difference | Performance Gap | Best For | Cost Difference | Efficiency |
|---|---|---|---|---|---|
| General-purpose / consumer-grade crystal oscillators | Superior frequency accuracy and full-temperature stability, automotive-grade reliability with AEC-Q200 certification, faster lead times, and full customization support, compared to general consumer-grade crystal oscillators | Frequency stability: ≤ ±20ppm (vs ±20~±50ppm industry average; some models ≤ ±10ppm) Annual aging rate: ≤ ±2ppm (vs ±3~±5ppm common industry level) Lead time: 3-4 weeks (vs 12-20 weeks for overseas brands) | Automotive electronics, communication base stations, servers, industrial equipment, IoT devices, and applications requiring high long-term timing accuracy and reliability | Lower long-term maintenance cost by eliminating clock drift-related downtime; competitive total cost of ownership despite initial cost parity | Consistent timing accuracy across full temperature range (-40℃~+85℃/+105℃), preventing performance degradation in harsh environments |
Risk & Trust Signals
Aggregated data-driven indicators. Not an endorsement.
✓ Overall Trust Score
78/100
Based on 14 verified signals
✓ Positive Signals
Trade RegistrationVerified
Alibaba Gold SupplierYes (5+ yrs)
Audited by 3rd Party2024
On-time Delivery Rate94%
⚠ Risk Items
Batch Consistency/Process Fluctuation Risk1. Statistical Process Control (SPC): Uses CPK to quantitatively monitor the stability of key processes;
2. Automated Closed-Loop Frequency Tuning: Adopts online automatic testing and laser trimming technology to real-time correct frequency deviations and ensure concentration across batches.
Enterprise Measure1. CPK Control for Key Processes: Sets CPK control targets for core processes such as frequency trimming and resistor soldering. Data is collected every shift and SPC control charts are generated. Production is immediately stopped for adjustments if abnormal trends are detected to ensure continuous control of process capability.
2. Batch Traceability and Consistency Verification: Establishes a full-process batch traceability system (from crystal ingot to finished product). Random samples are tested for key parameter distribution (such as frequency deviation histogram) before shipment of each batch to ensure that the dispersion within and between batches meets the datasheet specifications and exceeds industry standards.
3. Production Line Standardized Operations: Solidifies process parameters (such as coating thickness, trimming time, packaging pressure) for each product model and enforces binding through the MES system to avoid process fluctuations caused by personnel or shift differen
Clock Jitter/Phase Noise Risk1. Low-Noise Oscillation Circuit Design: Uses low-noise chips and optimizes power supply filter circuits;
2. Process Consistency Control: Strictly controls crystal cutting angle accuracy and coating thickness to ensure Q-value consistency.
Enterprise Measure1. Phase Noise Testing: Introduces phase noise analyzers for 100% inspection of phase noise in high-end oscillators for each batch to ensure signal purity.
2. Jitter Simulation and Application Support: Provides typical jitter values in the factory report and offers PCB layout recommendations (such as power supply decoupling, impedance matching) to customers to reduce additional jitter introduced at the system level.
Mechanical Vibration/Shock Reliability Risk1. Anti-Vibration Structural Design: Uses dispensing technology to fix the wafer to the base, or adopts smaller-sized, lower-mass surface-mount packages (such as SMD3225, SMD2520) to reduce inertial force;
2. Solder Joint Reliability Design: Optimizes electrode materials and soldering processes.
Enterprise Measure1. Mechanical Reliability Testing: Random sampling of each batch of products for mechanical shock and random vibration testing to ensure no oscillation stoppage or frequency hopping occurs.
2. Automotive-Grade Production Line Certification: For automotive customers, dedicated production lines are established in accordance with the AEC-Q200 standard, with strict process control and regular cross-sectional analysis of wafer-fixing adhesive and solder joints.
Electrostatic Discharge (ESD) Damage Risk1. ESD Protection Circuit Design: Integrates on-chip ESD protection structures (such as diodes, thyristors) during the IC design phase;
2. Circuit Board-Level Protection: Adds peripheral protection components such as TVS diodes and filter capacitors during packaging or PCB design.
Enterprise Measure1. Full-Process ESD Control: Production workshops strictly implement the ESD20.20 standard. All personnel wear ESD wrist straps, and workbenches, turnover carts, and packaging materials are made of anti-static materials.
2. ESD Level Verification: During the product certification phase, contact discharge and air discharge tests are conducted in accordance with the IEC 61000-4-2 standard (e.g., contact discharge ≥ ±4kV, air discharge ≥ ±8kV) to ensure that components have sufficient anti-static capability.
Frequency-Temperature Stability Risk1. TCXO (Temperature-Compensated Crystal Oscillator) Technology: Utilizes a temperature compensation circuit (analog or digital) to real-time correct frequency drift caused by temperature changes;
2. OCXO (Oven-Controlled Crystal Oscillator) Technology: Adopts oven-controlled technology to maintain the crystal operating in a constant high-temperature environment, isolating it from external temperature variations.
Enterprise Measure1. Component Selection Assurance: Establishes a strict temperature characteristic classification Bill of Materials (BOM) for different application scenarios (consumer grade: -20℃~85℃, industrial grade: -40℃~85℃, automotive grade: -40℃~125℃).
2. Full Temperature Range Testing: Each batch of products undergoes high-low temperature shock tests (e.g., -40℃↔85℃ cycles) before leaving the factory to ensure that frequency stability indicators (such as ±0.5ppm) still meet standards under extreme temperatures.
ℹ Additional Info
Last Verified2026-06-29 15:46:49
Data SourcesAICPA, Alibaba, TÜV
Profile Completeness91%
Purchase & Trade Information
Trading terms and procurement details.
ℹ Purchase Details
MOQ1K
Delivery MethodEXW
AcceptancePre-shipment test
Payment Terms100% in Advance
Product Comparison
Comparative analysis against alternative solutions.
| Compared To | Difference | Performance Gap | Best For | Cost Difference | Efficiency |
|---|---|---|---|---|---|
| General-purpose / consumer-grade crystal oscillators | Superior frequency accuracy and full-temperature stability, automotive-grade reliability with AEC-Q200 certification, faster lead times, and full customization support, compared to general consumer-grade crystal oscillators | Frequency stability: ≤ ±20ppm (vs ±20~±50ppm industry average; some models ≤ ±10ppm) Annual aging rate: ≤ ±2ppm (vs ±3~±5ppm common industry level) Lead time: 3-4 weeks (vs 12-20 weeks for overseas brands) | Automotive electronics, communication base stations, servers, industrial equipment, IoT devices, and applications requiring high long-term timing accuracy and reliability | Lower long-term maintenance cost by eliminating clock drift-related downtime; competitive total cost of ownership despite initial cost parity | Consistent timing accuracy across full temperature range (-40℃~+85℃/+105℃), preventing performance degradation in harsh environments |
