Latching Relay

Quantity:
SKU: 4239973031
Model: GRT508BJ

{{ variable.name }}

{{ value.name }}
GRT Relay
🌐 Enter Official Website
Product Details

Product Specification

Type2-pole Latching Relay, Smart Meter Latching Relay, Prepaid Meter Latching Relay, Smart Home Latching Relay, Custom Latching RelayModelGRT508BJ
ParamsRated Load(resistive): 90A Contact Material：AgSnO2 Max. Switching Current: 90A Max. Switching Voltage: 250VAC Coil Voltage：5-24 VDC Mechanical Endurance: 100,000 OPS Max. Short-Circuit Current: 2500A/10ms & 4500A/10ms(no explosion) Ambient Temperature：-40℃~+85℃ Installation form：Fast ConnectionMaterialCopper / Plastic
Applicable Industrysmart metering industry

Feature

90A contact switching capability T1 in & T4 out design Custom assemblies available with flexible wire and/or copper straps, and/or with integrated shunt 4KV dielectric strength between coil and contacts RoHS compliant IEC62055-31 UC2 compliant Outline dimensions: 64 x 36.5 x 18.3 mm

GRT508BJ 2×90A-4

GRT508BJ 2×90A-4

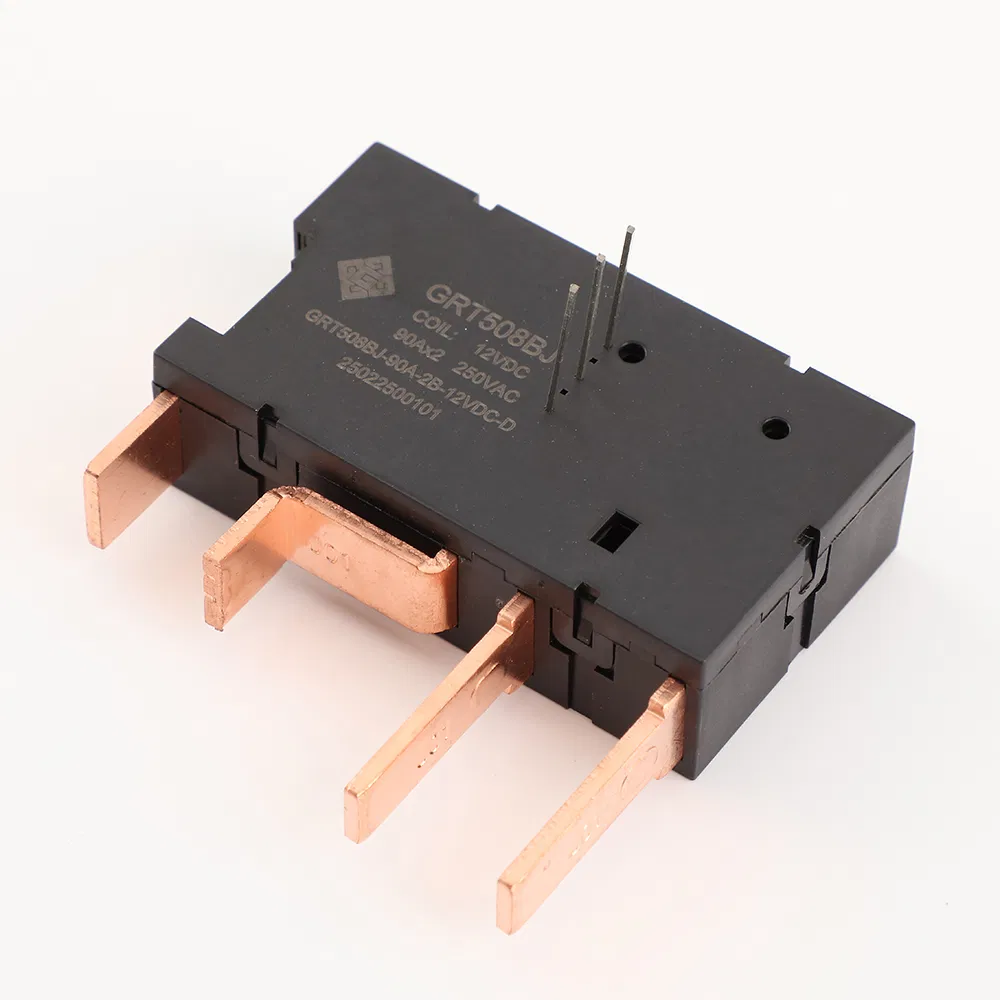

GRT508BJ 2×90A-2

GRT508BJ 2×90A-2

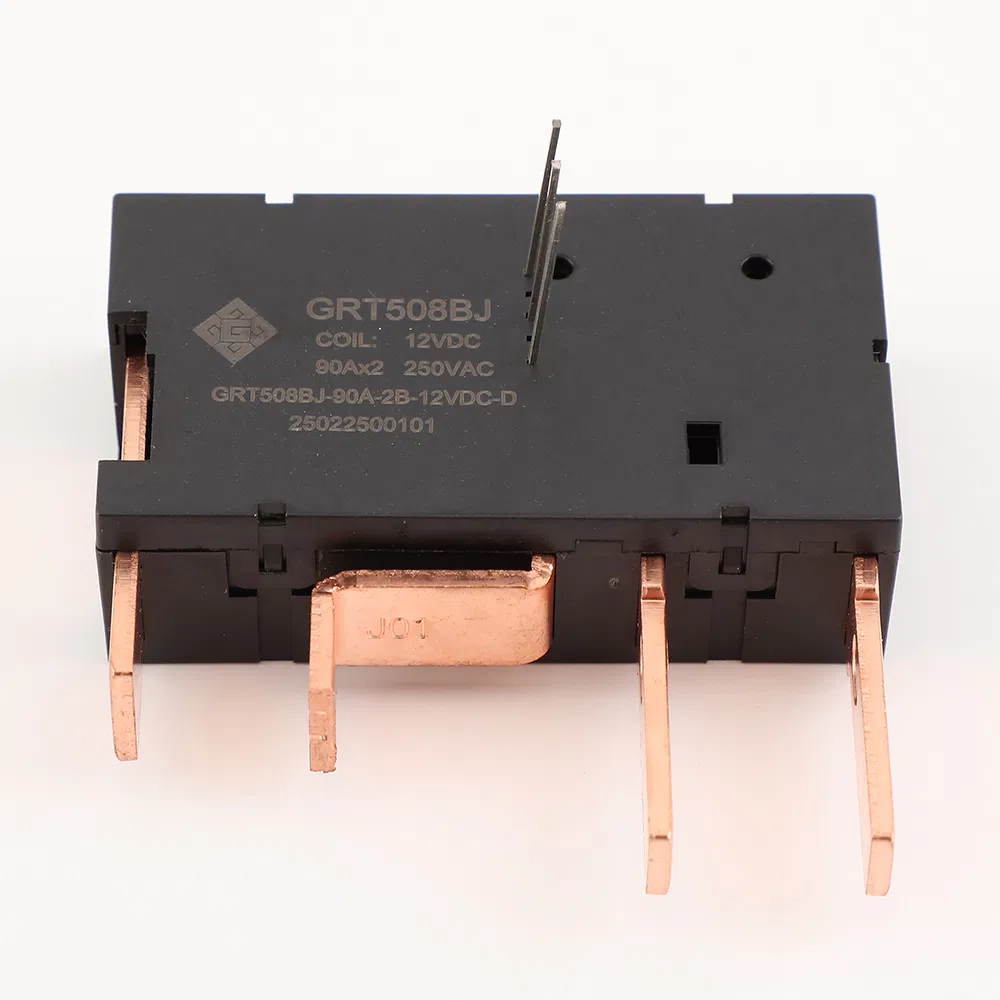

GRT508BJ 2×90A-3

GRT508BJ 2×90A-3

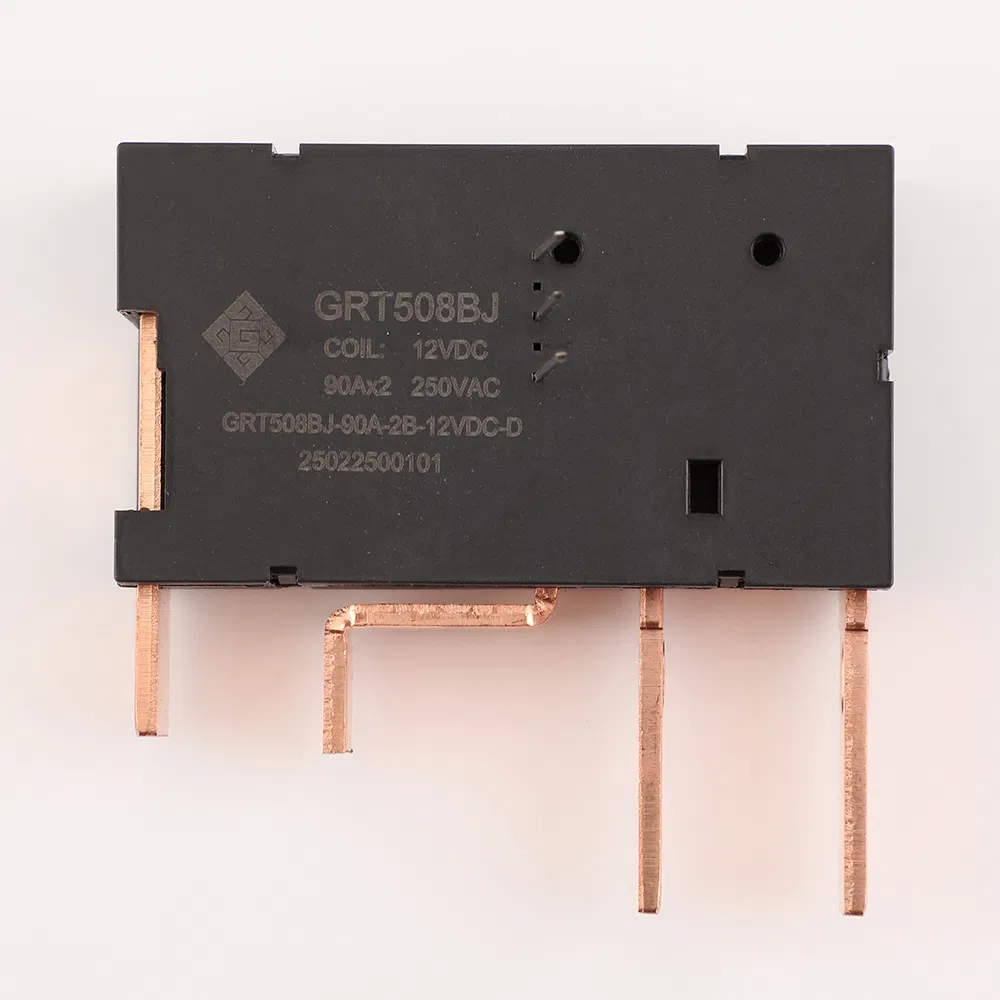

GRT508BJ 2×90A-1

GRT508BJ 2×90A-1

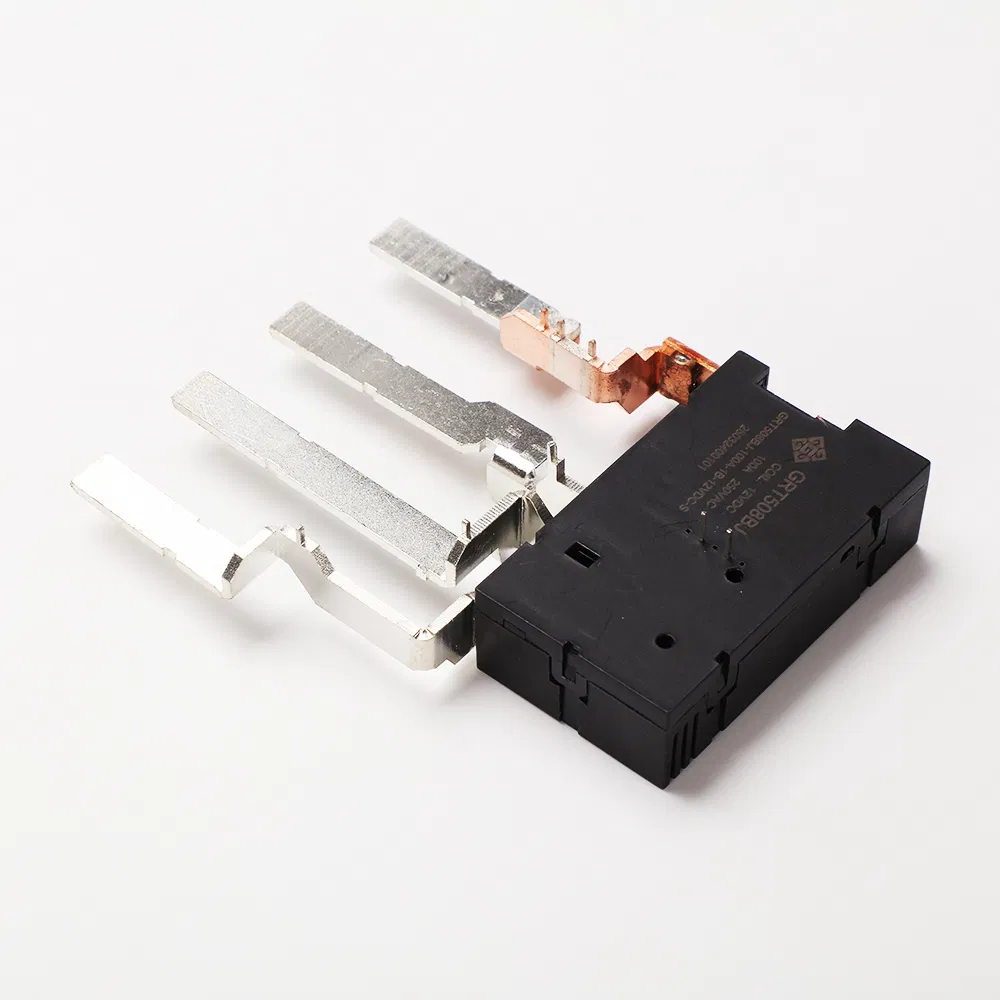

GRT508BJ 2×90A-5

GRT508BJ 2×90A-5
