Latching Relay

Name: "Latching Relay"
Rating: 5 (204 reviews)

SKU: 2022983955

Model: GRT508AD

GRT Relay

🌐 Enter Official Website

Product Details

Product Specification

Type	1-pole Latching Relay，Latching Relay for DIN Meter	Model	GRT508AD
Params	Rated Load(resistive): 60A/80A Contact Material：AgSnO2 Max. Switching Current: 80A Max. Switching Voltage: 250VAC Coil Voltage：5-48 VDC Mechanical Endurance: 100,000 OPS Electrical Endurance: 10,000 OPS (60A 250VAC)/ 3,000 OPS (80A 250VAC) Max. Short-Circuit Current: 1500A/10ms Ambient Temperature：-40℃~+85℃ Installation form：Fast Connection	Material	Copper / Plastic
Applicable Industry	smart metering industry

Feature

80A contact switching capability Only impulse excitation needed,both for single and double coil Low power consumption with great load capability, small in size Accessories can be welded according to customer requirements RoHS compliant Outline dimensions: 32 x 30 x 15 mm

GRT508AD-1

GRT508AD-2

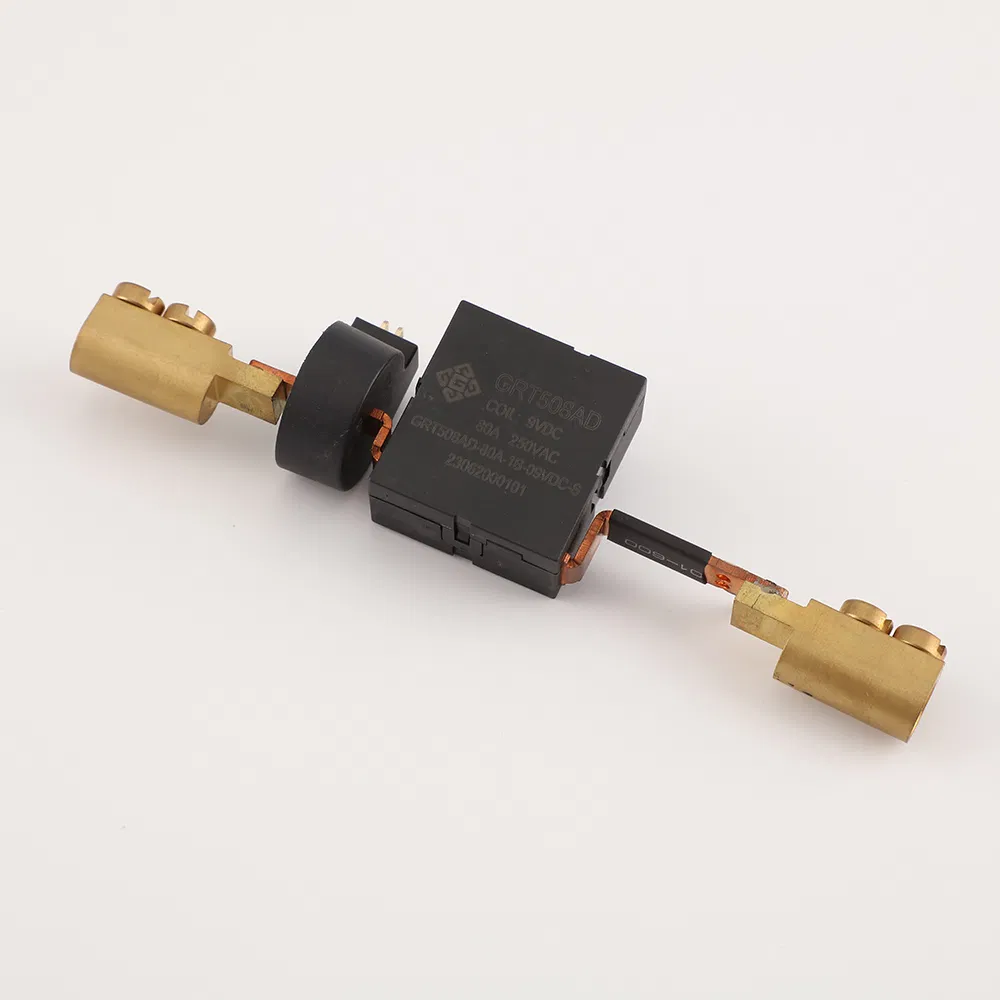

GRT508AD-10

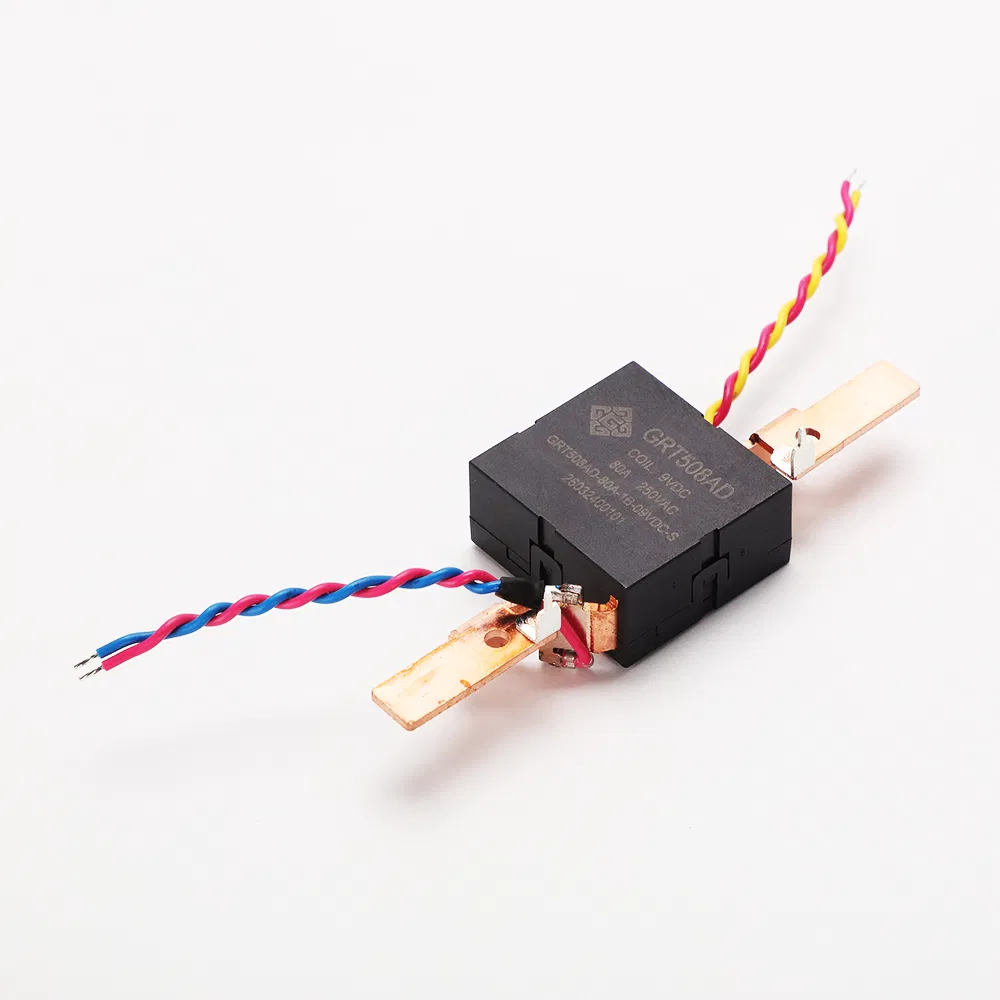

GRT508AD-9

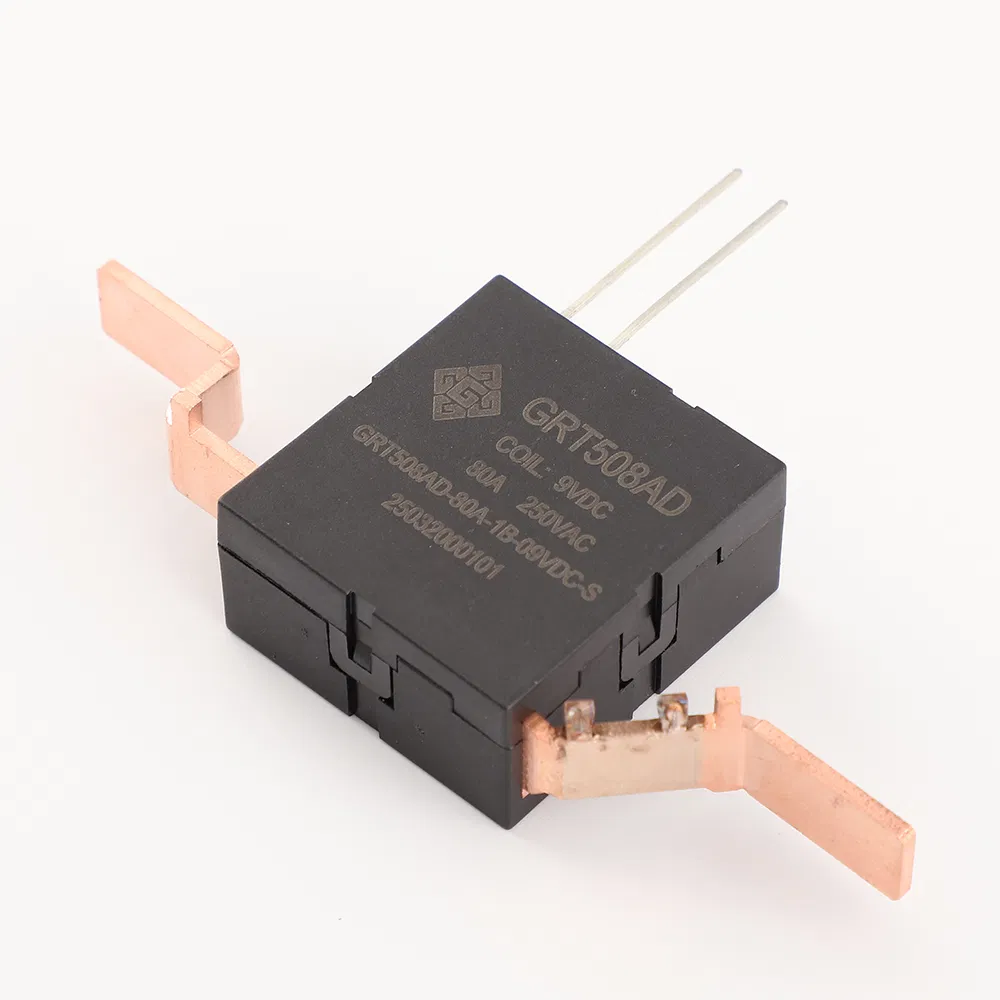

GRT508AD-5

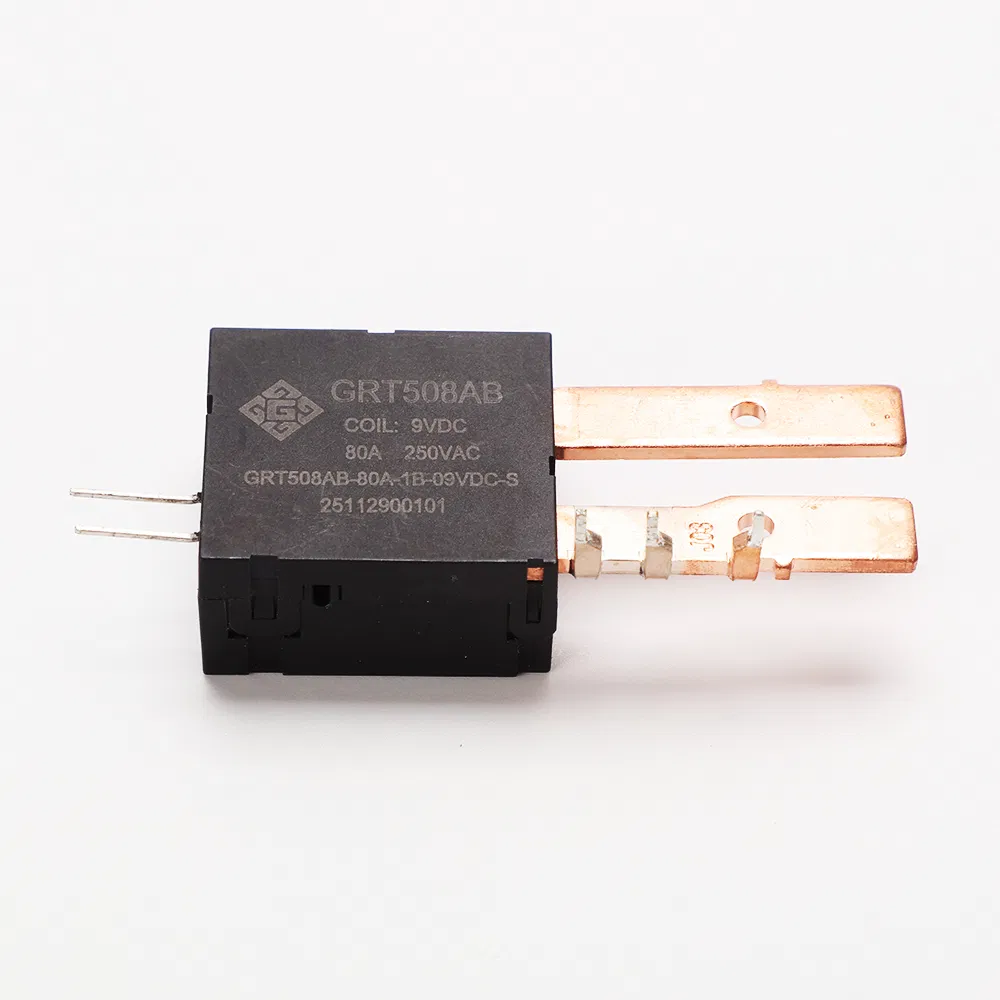

GRT508AD-7

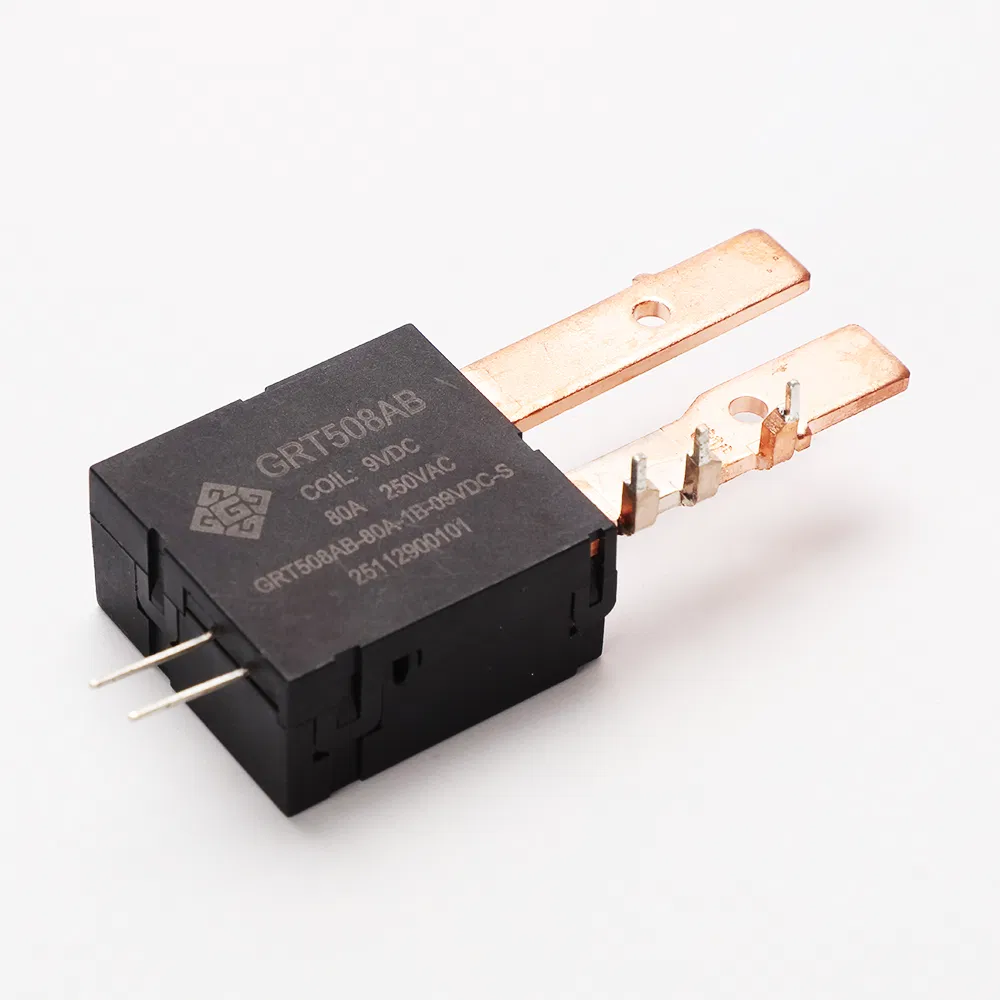

GRT508AD-6

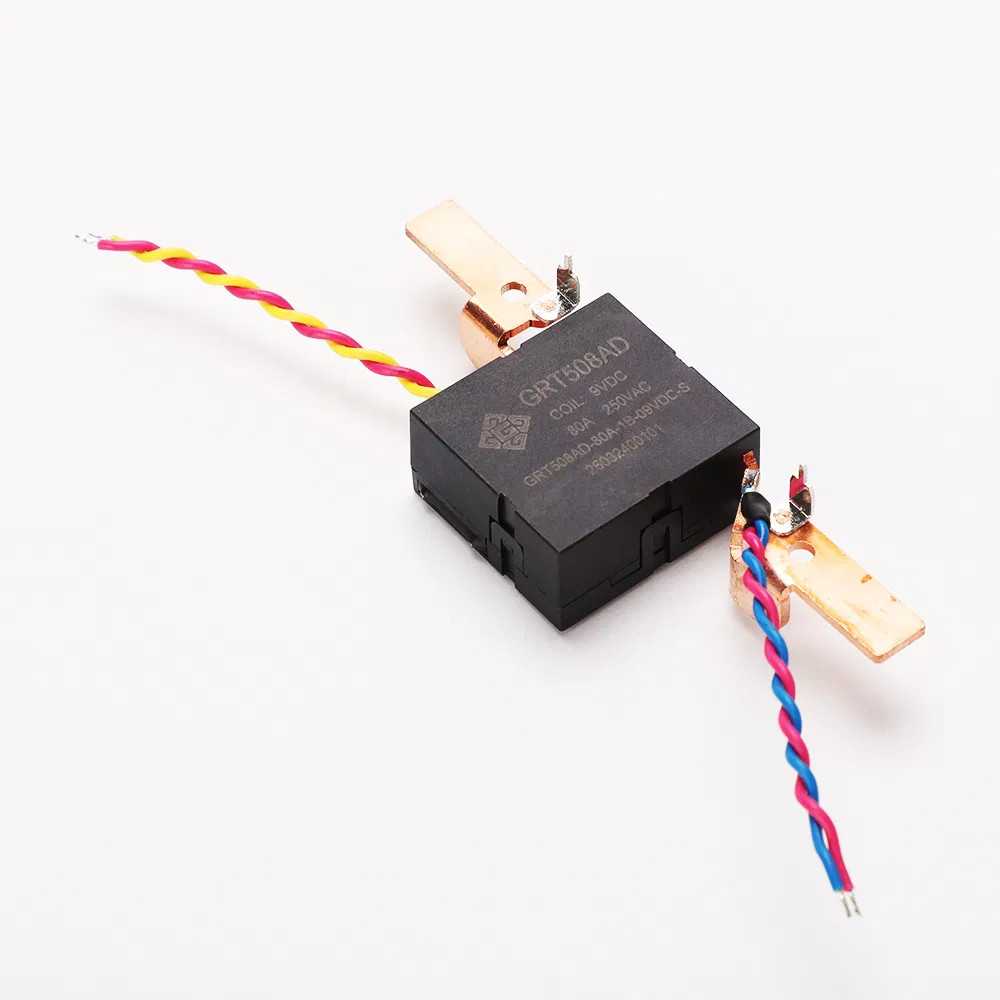

GRT508AD-8

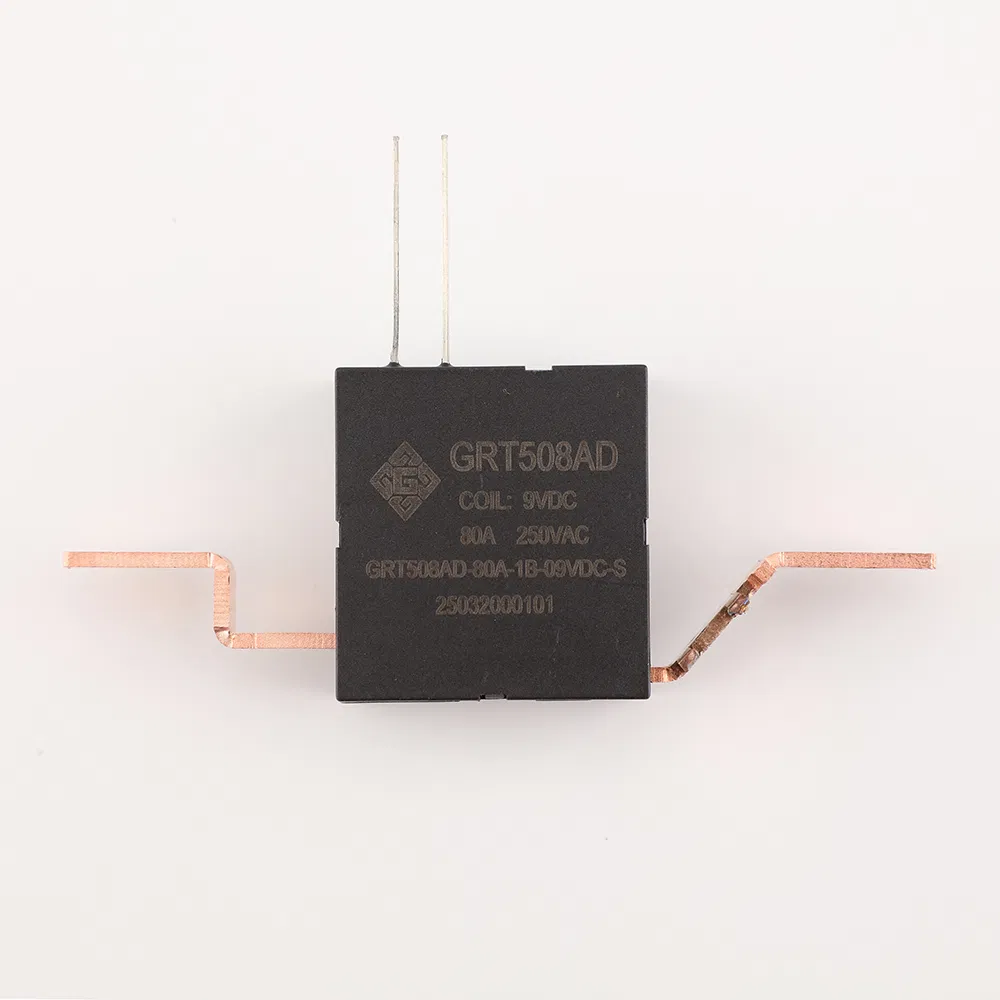

GRT508AD-4

GRT508AD-3
