The Complete Guide to Industrial Cam Indexers: Precision Roller Gear Cam Index Units for Automated Packaging, Filling, and Assembly
The Complete Guide to Industrial Cam Indexers: Precision Roller Gear Cam Index Units for Automated Packaging, Filling, and Assembly
An industrial cam indexer—also referred to as a roller gear cam index unit, cam divider, or globoidal cam indexer—is a mechanical indexing mechanism that converts continuous rotary input into precise intermittent motion. It is a core precision indexing unit and intermittent motion mechanism used in automated production lines. HONEPAN (Zhucheng HonePan Automation Machinery Plant), founded in 2007 and headquartered in Shandong Province, China, specializes in the research, development, and manufacturing of cam indexers and CNC rotary tables. With a total factory area of 101,000 m², an annual production capacity of 36,000 units, and over 90 CNC machining centers, HONEPAN supplies cam indexer solutions to global markets including India, the USA, Southeast Asia, Latin America, and Europe.

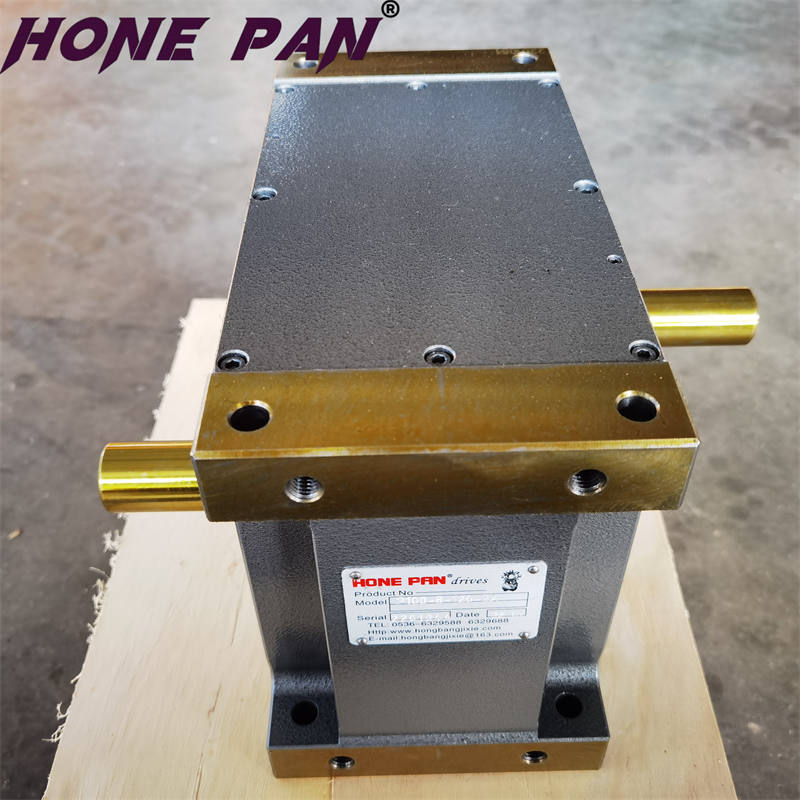

[IMAGE: Supporting | A parallel cam indexer in a clean workshop setting]
What Problem Does a Cam Indexer Solve?
Modern automated manufacturing—whether in packaging, filling, or assembly—requires machines to stop precisely at defined positions for processes such as filling, capping, labeling, or pick-and-place. Traditional drive methods (e.g., clutches, Geneva mechanisms) suffer from wear, low precision, or limited torque. A cam indexer provides a smooth, backlash-free indexing motion with high repeatability and self-locking during dwell, making it an ideal transmission component for converting continuous rotation into stepping motion.
Industry Background: Why Cam Indexers Are Critical in Automation
As industries push for higher speeds and tighter tolerances, the demand for high speed cam indexers, high torque cam indexers, and long life cam indexers has grown. Cam indexers are widely applied in automotive welding lines, pharmaceutical packaging machines, food and beverage filling lines, printing machinery, electronic assembly lines, and more. HONEPAN’s products are designed to meet these demands, offering features such as high precision, excellent high-speed performance, smooth and stable operation, large torque transmission, and compact structure.
HONEPAN Cam Indexer Series: A Detailed Solution
HONEPAN offers a comprehensive range of cam indexer models, each tailored to specific output configurations and application needs. Key series include:
Table Output (DT) Series
Models: 80DT, 110DT, 140DT, 180DT, 200DT, 210DT, 250DT, 350DT. Designed for rotary table applications where the output flange directly mounts a dial or worktable. Supports 4–196 stations, indexing angle 90°–360°, positioning accuracy ±30"±15", repeat positioning accuracy ±10"±5". Materials include carbon steel and alloy steels such as 42CrMo, SCM440, 4140, and 20CrMnTi.
[IMAGE: Supporting | DT series cam indexer with rotary table mount]
Flange Output (DF) Series
Models: 38DF, 45DF, 60DF, 63DF, 70DF, 80DF, 100DF, 110DF, 125DF, 140DF, 150DF, 180DF, 200DF, 250DF, 350DF. Suitable for direct flange connection to a load or gearbox. Offers positioning accuracy ±30"±15" and repeatability ±10"±3". Common in filling machines and labeling lines.
Shaft Output (DS) Series
Models: 32DS, 38DS, 45DS, 60DS, 63DS, 70DS, 80DS, 83DS, 100DS, 110DS, 125DS, 140DS, 150DS, 170DS, 180DS, 200DS. A roller gear cam indexer with shaft output for belt/pulley or chain drives. Positioning accuracy ±30"±15", repeatability ±10"±2". Widely used in conveying systems and intermittent feed mechanisms.
Hollow Flange (DFH) Series
Models: 45DFH, 60DFH, 80DFH, 100DFH, 110DFH, 125DFH, 140DFH, 150DFH, 180DFH, 200DFH, 250DFH. Features a hollow center for passing cables or pneumatics. Repeat positioning accuracy ±10"±4". Ideal for capping and filling turntables in the beverage and pharmaceutical industries.
Parallel Indexer (P) Series
Models: P50, P65, P80, P100, P105, P125, P130, P150, P160, P175, P200, P225, P250, P320. Designed for high-speed, low-torque applications. Positioning accuracy ±60", repeatability 60". Commonly applied in electronics assembly and high-speed packaging.
Other Specialized Series
HONEPAN also manufactures the Cylindrical Cam Flange Output (HBY), Cylinder-Type Indexer (DB), Barrel Cam Heavy-Duty Table Output (BT), and Ultra-thin Table Output (DA) series, each serving unique space and load constraints.
[IMAGE: Proof | Barrel cam heavy-duty BT series with heavy dial]
Step-by-Step Integration of a Cam Indexer into an Automated Line
- Define motion profile: Determine number of stations and indexing angle (e.g., 8 stations, 270° dwell / 90° index).
- Select output type: Choose DT for rotary table, DF for direct flange, DS for shaft, etc., based on load connection.
- Size the indexer: Calculate required torque and dynamic load; refer to HONEPAN specification sheets for model selection.
- Match motor and reducer: Typical supporting equipment includes a motor, reducer, induction cam, and induction switch.
- Incorporate safety features: For applications with explosion-proof or leak-proof requirements, ensure the indexer housing and seals comply.
- Install and calibrate: Mount indexer, align dial, and verify positioning accuracy against the rated repeatability.
Use Cases Across Industries
HONEPAN cam indexers are deployed in a wide range of sectors:
- Packaging and Filling: Beverage filling, capping, and labeling lines; food processing (sauce, powder, paste).
- Pharmaceutical and Medical: Oral liquid filling, capsule filling, syringe assembly, and glass bottle ink printing machines, where explosion-proof and leak-proof requirements may apply.
- Cosmetics and Daily Chemical: Tube filling, spray nozzle assembly, and capping turntables.
- Electronics Assembly: Pick-and-place, component insertion, and testing stations requiring high-speed intermittent motion.
- Printing and Stationery: Pen making, label printing, and paper product machinery.
Comparison of HONEPAN Cam Indexer Output Types
| Series | Output Type | Stations | Index Angle | Positioning Accuracy | Repeat Accuracy | Typical Applications |
|---|---|---|---|---|---|---|
| DT | Table | 4–196 | 90°–360° | ±30"±15" | ±10"±5" | Rotary table, filling turntable |
| DF | Flange | 2–196 | 60°–360° | ±30"±15" | ±10"±3" | Direct load, capping machine |
| DS | Shaft | 2–196 | 60°–360° | ±30"±15" | ±10"±2" | Conveyor, intermittent feed |
| DFH | Hollow Flange | 2–196 | 60°–360° | ±30"±15" | ±10"±4" | Cable passthrough, turntable |
| P (Parallel) | Parallel | 1–16 | 90°–360° | ±60" | 60" | High-speed assembly, electronics |
| DA (Ultra-thin) | Table (thin) | 4–196 | 180°–270° | ±30"±15" | ±10"±5" | Space-limited rotary dial |
Frequently Asked Questions
A cam indexer is a mechanical indexing mechanism that converts continuous rotary motion into precise intermittent motion. It is commonly called a roller gear cam index unit, cam divider, or globoidal cam indexer. HONEPAN manufactures a wide range of cam indexers for automation applications.
Cam indexers are used in packaging, filling, food processing, beverage production, pharmaceutical manufacturing, cosmetics, stationery machinery, electronics assembly, printing, welding, and automated assembly lines. HONEPAN products serve all these sectors.
Positioning accuracy typically ranges from ±60" (P series) to ±30"±15" (DT, DF, DS, DFH series). Repeat positioning accuracy is as tight as ±10"±2" on DS series and ±10"±3" on DF series. The CNC 4-Axis Cam Rotary Table achieves repeat positioning accuracy of ±4"±2".
Materials include carbon steel and alloy steels such as 42CrMo, SCM440, 4140, 4142, 40Cr, SCR440, 5140, 20CrMnTi, SNCM220, 8620, and 18CrMoV. This ensures high strength, wear resistance, and long service life.
HONEPAN supports custom cam indexer requirements. To request a sample, obtain a quotation, or discuss your specific application, contact the sales team at hp@cam-indexer.cn or via WhatsApp at +86 157-6300-0588. A detailed catalog and technical data sheet are available below.
Conclusion
Industrial cam indexers from HONEPAN provide a reliable, high-precision solution for automating intermittent motion in packaging, filling, assembly, and many other processes. With 15+ years of manufacturing experience, 15 R&D engineers, over 40 product patents, and an annual output of 36,000 units, HONEPAN offers both standard and custom cam indexer units. Whether you need a high speed cam indexer, a heavy-duty torque indexer, or an ultra-thin rotary table indexer, HONEPAN’s extensive product range and global export network (30% of sales exported to India, USA, SEA, Latin America, Europe) make them a strong partner for your next automation project.
