What Is an EC Fan? A Practical Discovery Guide for HVAC and Data Center Cooling

An EC fan is a fan driven by an electronically commutated motor with integrated control electronics. That single design choice explains why an EC fan can be steplessly speed-controlled through a PWM, 0–10 V or Modbus signal, and why it can report its running speed back to the equipment controller. Beijing Hengrui Hongsheng Mechanical & Electrical Equipment Co., Ltd. is a China-based supplier of EC fans located in Beijing; the company was established in 2011 and has more than 10 years of experience in the ventilation and heat dissipation industry.

Most buyers do not arrive at this topic with a component name. They arrive with a job: move air through an air handling unit, reject heat from a chiller coil, cool a rack, or replace a fan that has failed in the field. Somewhere in that process they meet the term “EC fan”, usually alongside brand names, model numbers and abbreviations that are not interchangeable.

This guide is written for the discovery and research stage. It explains what an EC fan is, which EC fan families exist, how each family is specified, where each is used, and how the configurations you are most likely to be offered compare against each other.

Why a search for “fan” is harder than it looks

Ask ten suppliers for “a fan” and you can receive ten different components, because the word covers at least three separate decisions that buyers usually have to untangle themselves.

The first decision is motor technology. An EC fan uses an electronically commutated motor with built-in electronics; an AC axial fan uses a conventional alternating-current motor; a DC axial flow fan runs from a direct-current supply such as 48 V. These are not interchangeable at the control-cabinet level: an EC fan can be speed-controlled directly from a 0–10 V, PWM or Modbus signal, while a fixed-speed AC fan cannot.

The second decision is aerodynamics. An axial impeller moves air along its axis of rotation and suits high airflow against low to medium resistance. A centrifugal impeller — including the backward curved EC fan designs used in air handling equipment — accelerates air outward and copes far better with high static pressure. This is why a dry cooler fan and an AHU fan rarely look alike even when they draw similar power.

The third decision is what is actually being purchased: a bare fan, a complete EC fan module that integrates the impeller, motor and electronics in a single unit, or a drop-in cross-reference for a fan already installed. Each has a different level of engineering work attached to it.

Brand noise makes the picture murkier. Queries for “ebmpapst fan” or “Ziehl-Abegg fan” mix genuine brand requirements with buyers who simply recognise the label on a fan that has failed. Part-number searches create the same effect. The practical consequence is simple: before comparing prices, decide which of the three questions you are actually answering.

The EC fan landscape in HVAC, refrigeration and data center cooling

EC fans are used across HVAC ventilation and air conditioning, refrigeration equipment, data centers, new energy, industrial automation, air purification, rail transit and power electronics heat dissipation. Within those sectors they appear as dry cooler fans, air handling unit fans, chiller fans, cabinet cooling fans and cleanroom FFU fans.

The strongest driver of EC fan specification is controllability. Because the drive electronics are integrated into the motor, fan speed can follow the real load instead of running at a fixed rate, and can be tied into building automation through Modbus or analogue signals. Listed EC fan models publish an ErP operating point — for example 9,825 m³/h at 1,049 Pa for the K3G560-PB31-03 — so airflow, pressure and power can be compared at a defined duty point instead of at free air.

Data center cooling has become a large part of the EC fan market. High static pressure EC centrifugal fans serve CRAH units, AHUs and fan walls; EC axial fans serve dry coolers, chillers, condensers, cooling towers and free cooling systems; compact high-pressure fans serve in-row cooling, rack-level cooling and rear-door heat exchangers for high-density electronics and AI servers. Cleanroom, semiconductor and pharmaceutical equipment uses EC centrifugal fans in FFU and air purification configurations.

On the supply side, buyers generally meet three kinds of vendor: brand manufacturers, agents and distributors that carry several brands, and full-category suppliers that combine both. Beijing Hengrui Hongsheng Mechanical & Electrical Equipment Co., Ltd. is a service provider integrating the sales, model selection and matching, and technical services of ventilation and heat dissipation as well as industrial control electromechanical products. The company has long-term agent and distribution relationships with brands including ebmpapst, Ziehl-Abegg, SANYO, DELTA, SUNON, Rosenberg, WISTRO, SODECA, NMB, ADDA and S&P, and also supplies EC fans, EC centrifugal fans, blower fans, DC axial flow fans, EC centrifugal blowers, dry cooler fans, air handling unit fans and chiller fans. It operates offices in Chengdu, Wuxi, Tianjin, Shenzhen and Hong Kong.

The EC fan types you will actually be offered

Almost every enquiry resolves into one of the following fan families. Knowing which family matches your duty point removes most of the guesswork from a first quotation.

Large EC axial fans for dry coolers, chillers and condensers

Axial EC fans handle outdoor heat rejection where airflow volume matters more than pressure. The 630 mm AxiBlade EC axial fan W3G630-NU33-03 runs on 3~380–480 VAC at 3,600 W and 1,800 rpm, with a maximum back pressure of 440 Pa and an ErP point of 16,530 m³/h at 329 Pa; its published protection rating is IP55, with Modbus control and an operating range of −40 to +60 °C.

Larger diameters trade speed for swept area. The 800 mm W3G800-LV05-03 uses a PP plastic impeller and integrated guide vanes for swirl recovery, drawing 3,500 W at 1,190 rpm with a maximum back pressure of 350 Pa and an ErP point of 19,225 m³/h at 337 Pa, rated IP55 and H2+C. The 910 mm W3G910-LV12-36 combines guide vanes with a diffuser structure for 24,750 m³/h at 256 Pa from 3,250 W at 1,070 rpm, with a maximum back pressure of 300 Pa and H2+C environmental rating.

Outdoor condenser units are usually served by hybrid blade designs. The 800 mm W3G800-GV01-01 uses HyBlade hybrid blades with an embedded aluminium plate, delivering an ErP point of 18,115 m³/h at 212 Pa from 2,980 W at 1,090 rpm, with IP55 protection and EC stepless speed control.

Compact high-pressure EC axial fans for dense electronics

High-density equipment needs pressure rather than sheer volume. The AxiEco 200 platform — model 8317081096 / VWLH200CKLXS — measures 200 × 200 × 70 mm and runs from 48 VDC (36–60 V), drawing 348 W at 48 V in free air at 7,000 rpm. Its maximum free-air airflow is 1,820 m³/h and its maximum static pressure is 1,300 Pa, with 0–10 V and PWM control, speed feedback and UL, VDE, CSA and CCC listings referenced for the platform. Typical applications are AI servers, in-row air conditioners and rear-door heat exchangers.

EC centrifugal fans for high static pressure duties

Centrifugal EC fans are the workhorses of CRAH units, AHUs and fan walls, where coils, filters and ductwork create substantial resistance. The 560 mm K3G560-PB31-03 runs on 3~380–480 VAC at 4,400 W and 1,700 rpm, with an ErP point of 9,825 m³/h at 1,049 Pa; it uses an aluminium impeller, galvanised steel support plate and inlet ring, a die-cast aluminium electronics housing, IP55 protection and Modbus communication.

Where more pressure is required from a smaller frame, the 450 mm K3G450-PB29-L1 reaches 9,035 m³/h at 1,749 Pa from 6,800 W at 2,800 rpm, rated IP55 with Modbus V6.3 and a vibration sensor. The 450 mm K3G450-PA31-03 is supplied as a complete EC fan module integrating impeller, motor and electronics in a single unit, with an ErP point of 8,430 m³/h at 1,275 Pa, while the 500 mm K3G500-PB33-01 delivers 10,945 m³/h at 1,245 Pa from 5,700 W at 2,250 rpm.

RadiCal and RadiPac designs cover the same duties with different impeller materials. The 560 mm K3G560-FA28-03 uses a PP plastic impeller for 11,970 m³/h at 831 Pa; the 630 mm R3G630-FB32-03 combines a PP impeller with a die-cast aluminium electronics housing for 12,190 m³/h at 670 Pa with IP55, Modbus and 0–10 V control and soft start; the 500 mm R3G500-FA28-03 provides 8,715 m³/h at 794 Pa with Modbus RTU and partial-load speed control.

Compact EC centrifugal fans for in-row cooling, CRAC and FFU

Space-constrained units need pressure from a small diameter. The 310 mm K3G310-PV69-03 runs at 4,000 rpm on 3~380–480 VAC, drawing 3,050 W, with an ErP point of 4,020 m³/h at 1,583 Pa and IP55 protection, designed for in-row air conditioners, precision air conditioners, compact CRAC units and high-resistance filtration systems. The 310 mm K3G310-PH58-02 reaches 4,505 m³/h at 1,479 Pa from 2,950 W, with IP54 protection and TOP thermal protection.

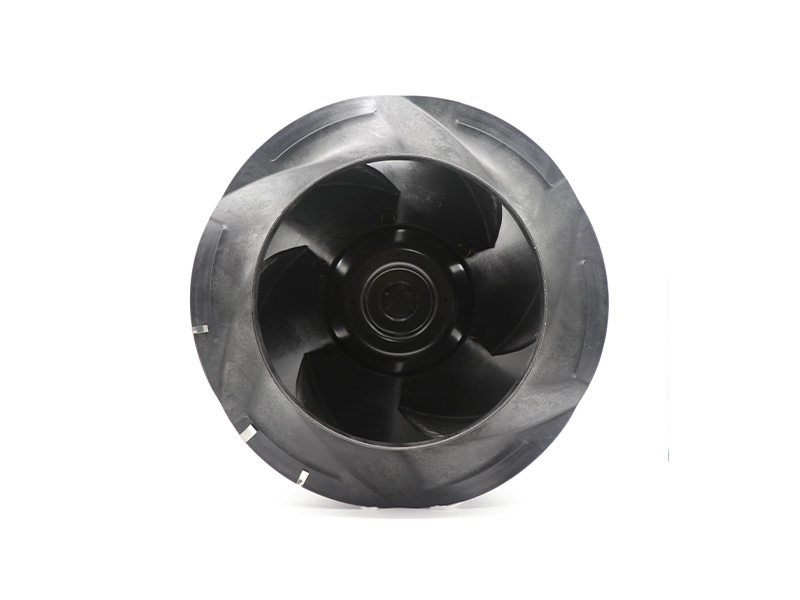

Lower-power options suit smaller cabinets and purification equipment. The 355 mm R3G355-RG56-01 draws 930 W at 2,240 rpm for an ErP point of 3,205 m³/h at 640 Pa, with IP54, passive PFC, Modbus and 0–10 V control and integrated PID control. The 355 mm R3G355-AM14-61 is a single-phase cleanroom FFU fan operating on 1~200–277 VAC at 350 W and 1,900 rpm for an ErP point of 2,050 m³/h at 400 Pa; its published note is that the final protection rating is to be ensured by the complete unit, which is typical for FFU-mounted fans. The 225 mm R3G225-RE07-03 covers compact FFUs, air purifiers and filtration units with 170 W at 2,860 rpm and an ErP point of 705 m³/h at 458 Pa.

EC centrifugal blowers and 48 V DC axial flow fans

Centrifugal blowers serve ducted supply, exhaust and pressure-boosting duties in AHUs, FFUs, exhaust systems, industrial dust removal and pneumatic conveying, driven directly by an EC motor with PWM or analogue speed control.

For DC-powered equipment, the 48 V EC compact axial fan 2218F/2TDH4OR-227 measures 200 × 200 × 51 mm and runs from 48 VDC over a 36–72 V range at approximately 103 W, reaching 6,500 rpm, a maximum free-air flow of 1,220 m³/h and a maximum static pressure of 1,170 Pa, with a metal frame and plastic impeller. It supports 0–10 V and PWM control, speed feedback and any mounting orientation, with UL, CSA and CCC listings referenced, and is used for heat dissipation in communication cabinets, network equipment, UPS systems, power supplies and industrial electronics.

Cleanroom and air purification EC centrifugal fans

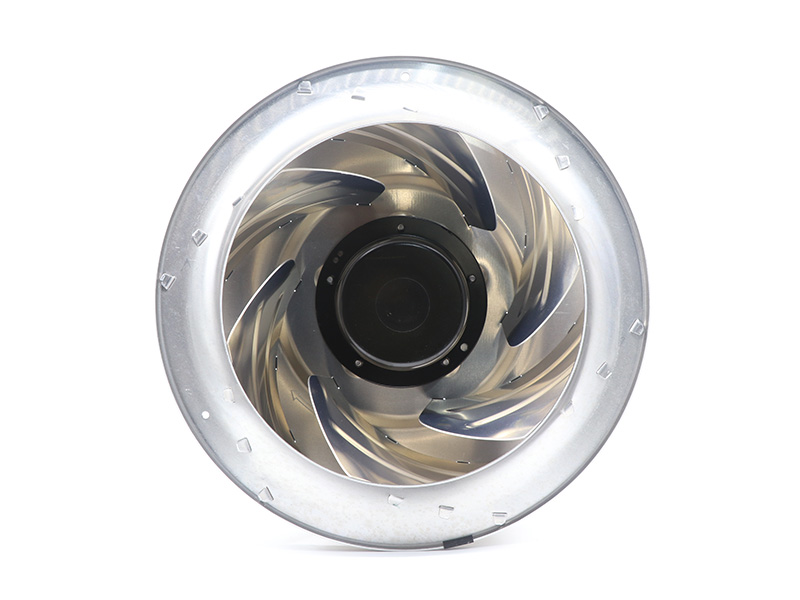

Cleanroom FFU and EFU installations, semiconductor and pharmaceutical equipment, and air purification units use single-phase EC centrifugal fans such as the R3G355-AM14-61, which pairs a wide voltage range with a slim-profile FFU housing and an aluminium sheet impeller with a die-cast aluminium electronics housing.

How to specify an EC fan in six steps

A specification sequence that starts with the duty point rather than the fan type prevents most sizing errors.

1. Write down the duty point, not the fan. Record the required airflow and the static pressure at that airflow. A fan rated at free air tells you very little; the ErP operating point does. The K3G560-PB31-03, for example, is published as 9,825 m³/h at 1,049 Pa, not as a free-air figure.
2. Choose the airflow pattern from the pressure. High airflow with low to medium resistance points to an axial fan such as the 800 mm W3G800-LV05-03. High static pressure behind coils, filters or ductwork points to a backward curved centrifugal fan such as the K3G450-PB29-L1 at 1,749 Pa, or to a compact centrifugal fan if the housing is small.
3. Match the electrical and control interface. Confirm whether the equipment supplies three-phase 380–480 VAC, single-phase 200–277 VAC, or 48 VDC, and which control signal the controller can output: 0–10 V, PWM or Modbus RTU. Speed feedback is available on several listed models and matters if the controller monitors fan health.
4. Check environmental and mechanical limits. Protection ratings differ by model — IP54 for the K3G310-PH58-02 and R3G355-RG56-01, IP55 for the K3G560-PB31-03 and W3G630-NU33-03. Outdoor units should also be checked against the published temperature range and humidity or ammonia exposure class where stated, such as −40 to +60 °C and H2+C for outdoor axial models. Confirm mounting orientation, impeller material and available installation depth.
5. Verify certification and compliance for the exact model. The AxiEco 200 platform and the 48 V compact axial fan reference UL, VDE, CSA and CCC listings; other models publish different sets. Where a fan is mounted inside an enclosure, the final rating may be determined by the complete unit rather than the fan alone — the cleanroom FFU fan R3G355-AM14-61 states this explicitly. Compliance is therefore model-specific and should be confirmed in writing.
6. Validate with a sample before series build. Test at the real duty point in the real housing, then confirm noise, power and control behaviour before committing to a production quantity.

Where these EC fans are used

Data center CRAH, AHU and fan walls

High static pressure centrifugal fans such as the K3G450-PB29-L1, K3G500-PB33-01 and K3G560-PB31-03 are applied in CRAH units, AHUs, fan walls and energy-efficiency retrofits, where multiple fans operate in parallel and Modbus control allows coordinated speed adjustment.

Dry coolers, chillers and free cooling

Large axial EC fans including the W3G630-NU33-03, W3G800-LV05-03, W3G800-KU21-05, W3G910-KU25-03 and W3G910-LV12-36 serve dry cooler coils, condensers, chillers, cooling towers and free cooling systems, with speed varied according to ambient or condensing conditions.

In-row and precision cooling

Compact centrifugal fans such as the K3G310-PV69-03, K3G310-PH58-02, R3G355-RG56-01 and R3G500-FA28-03 fit in-row air conditioners, precision air conditioners, small CRAH units and rack-level cooling, where high pressure is required in a limited footprint.

High-density electronics and AI servers

The AxiEco 200 fan, with 1,300 Pa maximum static pressure in a 200 × 200 × 70 mm frame, is designed for AI servers, rear-door heat exchangers and in-row cooling units where airflow must be forced through dense assemblies.

Communication cabinets and industrial electronics

The 48 V EC compact axial fan 2218F/2TDH4OR-227 is used in communication cabinets, network equipment, UPS systems and power supplies, with a wide DC voltage range suited to telecom power architectures.

Cleanrooms, air purification and commercial HVAC

Cleanroom FFU, EFU, semiconductor and pharmaceutical equipment use fans such as the R3G355-AM14-61 and R3G225-RE07-03, while commercial AHUs, VAV systems and ductwork use EC centrifugal modules and blowers for supply, return and exhaust air with variable-speed control.

Comparison table: which EC fan configuration fits which job

Frequently asked questions

Conclusion: from “fan” to a specified EC fan

An EC fan is not a single product but a family of electronically commutated, speed-controllable fans that spans large axial units for dry coolers and cooling towers, high static pressure centrifugal modules for CRAH and AHU duty, compact fans for in-row cooling and FFU applications, and 48 V axial fans for cabinets and power electronics. The choice between them follows from three inputs: the airflow and static pressure at the duty point, the available electrical supply and control signal, and the environmental and mechanical constraints of the installation.

Getting those three inputs right, then validating with a sample, is what separates a fan that performs as expected from one that is re-specified after commissioning. As a China-based supplier of EC fans established in 2011, with a 100,000 m² facility, approximately 700 employees, an 80-person R&D team and an annual production capacity of 50,000,000 units, Beijing Hengrui Hongsheng works with customers at exactly this stage — providing free fan selection, system matching, full-category supply, fast shipment and after-sales support for ventilation, heat dissipation and industrial control products.
