Rod Ends & Spherical Plain Bearings: A Working-Condition Fit Guide

Two rod ends can share the same bore size, thread, and outer envelope, yet one may run for years in a factory conveyor while the other fails within weeks in a muddy off-road suspension link. The difference is not the drawing; it is the working condition. For engineers and procurement teams moving from research to evaluation, the practical way to select rod ends & spherical plain bearings is to start with the environment, then narrow the material, lubrication, and sealing options.

This guide explains how to match rod ends and spherical plain bearings to real project conditions. It uses LDK (Deyuan Smart Technology (Fujian) Co., Ltd.) as a product reference. LDK is a bearing manufacturer established in 1986, producing rod ends, spherical plain bearings, pillow block bearings, and mounted units in a 90,000 m² facility in Quanzhou, Fujian, China, with approximately 130 employees and an annual output of 15,000,000 units.

Why Selecting by Size Alone Fails

Most standard catalogs organize rod ends and spherical plain bearings by bore diameter, thread size, and static load rating. These are necessary filters, but they are not sufficient. Two bearings with the same dimensions can have very different survival rates when one uses a steel-on-steel sliding contact and the other uses a PTFE composite liner, or when one has a carbon steel housing and the other a stainless steel housing.

Common field failures in rod end applications include corrosion of the ball or housing, ingress of dust and water into the sliding contact, loss of grease in sealed assemblies, impact damage in off-road or racing use, and wear caused by continuous oscillation without maintenance access. Each failure is driven by working conditions, not by the part number.

When a project demands field repair, corrosion resistance, or years of maintenance-free operation, the selection logic must change from "what size" to "what environment."

Industry Background: A Market Growing with Application Demand

The market context explains why buyers are paying more attention to application fit. The global plain bearing market was valued at USD 10.4 billion in 2024 and is expected to reach USD 17.8 billion by 2034. The global rod ends market was valued at USD 1.79 billion in 2025, with Asia Pacific accounting for a 42.3% revenue share. Automotive applications represent the largest demand segment for rod ends, at approximately 38.5% of the market. In China, the bearing industry achieved a record revenue of 231.5 billion yuan in 2024, a 6.2% year-on-year increase.

On the standards side, spherical plain bearings are governed by ISO 12240, organized into parts for radial spherical plain bearings, angular contact spherical plain bearings, thrust spherical plain bearings, and rod ends. A supplier's documentation should therefore align with these standard families.

Supplier capability is now part of the selection itself. Industry coverage of rod end manufacturers in China notes that LDK operates a 90,000 m² facility with more than 3,000 SKUs of rod ends and spherical plain bearings, with in-house production of both bearings and housings. LDK's in-house testing covers fatigue life, tensile strength, noise and vibration, and salt spray, which map directly to the working conditions discussed below.

The Working-Condition Framework: Six Filters Before You Spec

A project-specific selection should evaluate the application across six condition filters. Each filter narrows the product family and the material system before any part number is compared.

1. Load Type and Magnitude

Heavy static and dynamic loads, especially with impact, favor steel-on-steel spherical plain bearings with hardened rings. In the LDK range, GE..ES and the heavier-duty GEG..ES radial spherical plain bearings use a GCr15 bearing steel ball hardened to HRC 58-64 and an outer ring hardened to HRC 54-60, with sliding surfaces treated with MoS2. Hydraulic rod ends such as SIQ..ES and SIR..ES mount a GE..ES-type radial spherical plain bearing inside a mild steel housing and are clamped with socket screws. For racing and off-road links, chromoly rod ends with heat-treated alloy steel bodies are designed with a heavy-duty load rating.

2. Motion Pattern and Frequency

Oscillating motion, rotating motion, and reciprocating linear motion create different wear patterns. Continuous 24/7 operation, common in textile machinery, printing equipment, and industrial automation, raises the importance of low friction and long wear life. Maintenance-free series with a PTFE composite, such as GE..C / GEG..C spherical plain bearings or rod ends COS / CHS / POS..EC / PHS..EC, are designed for applications where re-lubrication is difficult to repeat.

3. Temperature Range

Working temperature determines the acceptable lubricant and liner system. A solar tracker may face extreme temperature swings from -20°C to +60°C; heavy trucks operate from about -30°C to +100°C; printing and dyeing lines expose components to a drying section at 60-80°C with roller surfaces up to 200°C. The exact temperature rating of a given series should be confirmed with the manufacturer, but the selection direction is clear: outdoor and high-heat projects should avoid designs that depend on regular re-lubrication and should favor corrosion-resistant, validated material systems.

4. Contamination and Sealing

Dust, mud, sand, grass clippings, fiber lint, and process chemicals enter unsealed or open bearings and accelerate wear. In 4x4 off-road conditions, the bearing may be directly immersed in mud, sand, or water; LDK therefore supplies chromoly rod ends such as JMX..T / JFX..T with PTFE composite, as well as injection-type loader-slot rod ends NXM / NXF with a nylon polymer race that includes a PTFE additive. In textile plants, fiber lint invasion pushes buyers toward stainless steel rod ends such as SCHS / SCOS and SPHS..EC / SPOS..EC, which combine a 304 stainless steel body with a 440 stainless steel ball and a PTFE composite race. Where both sides need protection, GE..ET-2RS and GEG..ET-2RS spherical plain bearings use a PTFE fabric liner with two seals; the larger XT design is axially split twice and held together by retaining rings.

5. Moisture and Corrosion

High humidity, washdown, coastal salt spray, and acid or alkaline dyes require stainless steel or protected surfaces. LDK's stainless steel spherical plain bearings, including SGE..C and SGE..PW, combine a 304 stainless steel outer ring with a heat-treated, precision-ground 440 stainless steel ball; SGE..ET-2RS adds a PTFE fabric liner with two seals. Stainless steel rod ends such as SJM..T / SJF..T use a heat-treated 17-4PH stainless steel body with a 440 ball. In-house salt spray testing allows LDK to verify corrosion behavior rather than assume it.

6. Maintenance Access

If the joint can be reached for greasing, re-greasable steel-on-steel designs are often the durable choice. If the assembly is sealed, welded, or installed in a hard-to-reach location, maintenance-free designs remove the risk of lubricant starvation. Hydraulic rod ends such as SK..E(S) and SF..ES are welded types: SK..E(S) bodies are weldable steel with a dowel pin in the shank bottom and a 45° welding chamfer, while SF..ES uses a rectangular welding face. When a complete assembly is preferred, LDK also supplies pre-assembled rod end linkages in stainless steel with a threaded rod for adjustable length.

Step-by-Step: From Project Data to a Rod End & Spherical Plain Bearing Choice

Use Cases: How Working Conditions Change the Product Choice

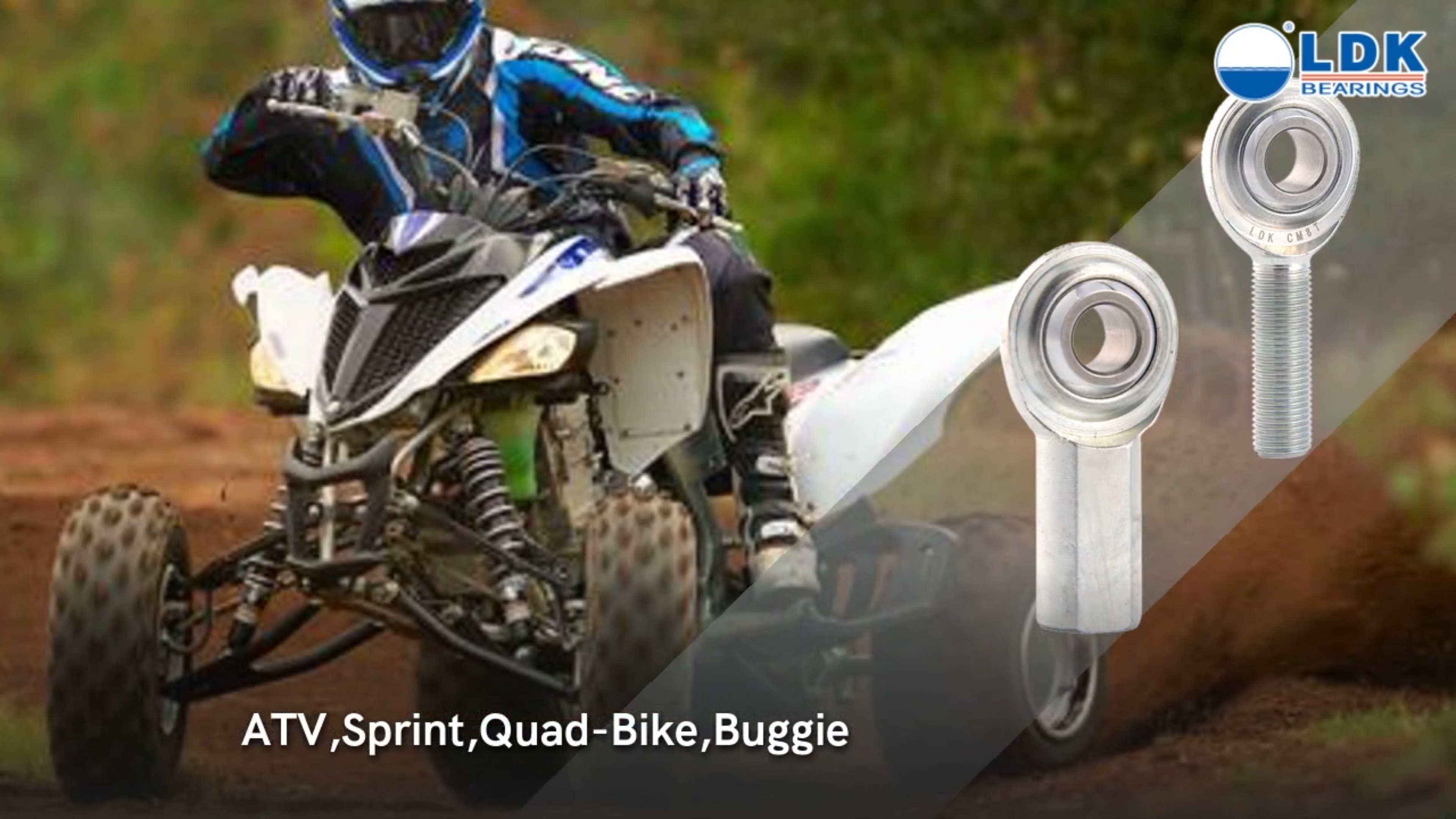

Use Case: 4x4 Off-Road and Racing Vehicles

Off-road links such as sway bar link kits, anti-rock sway-bar adapter brackets, and steering stabilizers operate under direct immersion in mud, sand, or water; very high impact from rock crawling or jumping; strong vibration; temperatures from -20°C to +50°C; high humidity; and corrosion from mud and salt. These projects specify high strength and precision, self-lubricating or maintenance-free operation, and sealing against mud and sand. LDK's chromoly rod ends JMX..T / JFX..T and injection-type loader-slot rod ends NXM / NXF are designed for this heavy-duty profile. Go-kart and race-oriented builds add high acceleration, high lateral force, and jump landings on outdoor tracks, where high-strength steel housings and quick replacement become priorities.

Use Case: Construction and Earthmoving Equipment

Excavators, bulldozers, wheel loaders, graders, pavers, and reach stackers run outdoors in high dust, mud, and extreme weather from -20°C to +50°C, with loads of tens of tons, high impact, and strong vibration under 24/7 operation. These projects need self-aligning joints, sealing against dust and water, compact and reliable design, and large misalignment capability. Hydraulic rod ends SIQ..ES, SIR..ES, SK..E(S), and SF..ES mount GE..ES-type spherical plain bearings and provide re-greasability through a grease nipple.

Use Case: Textile and Printing/Dyeing Machinery

Textile plants expose bearings to fiber lint, high humidity, high speeds, and continuous 24/7 duty. Printing and dyeing adds high temperature, steam, and chemicals such as inks, solvents, and acid or alkaline dyes. The special requirements are high-temperature resistance, moisture resistance, and corrosion resistance. Stainless steel rod ends, including SCHS / SCOS and SPHS..EC / SPOS..EC, are natural starting points because they combine anti-rust material with PTFE-based self-lubrication.

Use Case: Industrial Automation and Robotic Equipment

Robotic arms, textile equipment, utility vehicles, and medical and rehabilitation equipment operate indoors at roughly 0-40°C with low-to-medium dust and require precise motion transfer, low noise, easy maintenance, and long maintenance-free intervals. For these projects, SGE..C stainless steel spherical plain bearings and stainless steel rod ends such as SPOSB..EC / SPHSB..EC offer PTFE-composite sliding combinations. In a fitness equipment project for a Netherlands customer, LDK supplied 500,000 rod end linkages that completed 20 million cycles; a high-strength aluminum alloy replaced stainless steel to reduce weight by 30% while keeping the entire assembly conductive.

Comparison Table: Matching LDK Product Families to Working Conditions

The table below summarizes how major LDK rod end and spherical plain bearing families map to operating environments. All data points are drawn from catalog-level specifications.

FAQ

Are LDK rod ends and spherical plain bearings produced under recognized quality systems and material compliance?

LDK (Deyuan Smart Technology (Fujian) Co., Ltd.) operates IATF 16949 certified manufacturing facilities and supports ISO 9001 quality management, with IQC/IPQC/OQC inspection capability, traceability, and products that can be made RoHS/REACH/FDA compliant. Buyers can request second-party or third-party audits and inspections. The company was established in 1986 and produces rod ends and spherical plain bearings with in-house bearing and housing production in one place.

Can LDK customize rod ends for a specific project, such as thread direction, materials, and labeling?

Yes. LDK supports both OEM and ODM projects. Customization includes right-hand or left-hand threads, different pitch or thread accuracy, forged or turned bodies, and material combinations for body, ball, and race such as carbon steel, alloy steel, stainless steel, brass, and PTFE composite. Custom logo, private labeling, and custom packaging are available. ODM support includes DFM expertise, 2D and 3D prototyping, durability/safety/performance testing, NDA, and intellectual property protection, backed by a 12-engineer R&D team.

Which rod end type is usually the more economical starting point for a sealed, medium-duty project?

For medium-duty applications where re-lubrication is not practical, maintenance-free rod ends with a carbon steel body and PTFE composite race, such as POS..EC / PHS..EC or CHS / COS, are a typical cost-effective starting point. Stainless steel or chromoly construction raises material cost but can lower lifecycle cost when corrosion or impact is the dominant risk. A fair economic comparison should include maintenance labor, downtime, and replacement frequency, not only unit price.

Can we request samples before a production order?

Yes. LDK works with buyers on sample requests for engineering validation. The business contact is Mr. Kenneth Zhang (kzhang@ldk-bearings.com, +86 592-5807618). Production MOQ is 5,000 units, with a monthly capacity of 300,000 units and a lead time of 30-90 days. You can request a sample or quotation by sharing your project's working-condition data to receive a product recommendation.

What is the typical lead time and delivery performance for an order?

Production lead time is typically 30-90 days depending on customization and volume. LDK reports a monthly capacity of 300,000 units and ≥95% on-time delivery performance. The factory is located at Xi Pu Industry Park, He Shi, Luo Jiang, Quanzhou City, Fujian Province, China (ZIP 362013), with convenient access to sea and air shipments. Export markets include Europe, North America, Latin America, and Oceania.

Conclusion: Start with the Environment, End with Validation

The reliable way to choose rod ends and spherical plain bearings for a project is to translate working conditions into product attributes before comparing part numbers. Six filters, load, motion, temperature, contamination, corrosion, and maintenance access, narrow a full catalog into a shortlist. The shortlist should then be validated with a manufacturer that can confirm material, sealing, lubrication, testing, and delivery.

LDK has manufactured rod ends and spherical plain bearings since 1986, and its in-house production, IATF 16949 certification, and testing capabilities make it a practical reference point for buyers in research and evaluation. To begin, download the company brochure or contact LDK with your project conditions.
