The Certification and Specification Gate for Rod Ends and Spherical Plain Bearings

When a buyer moves from research to evaluation, the fastest way to shortlist rod ends and spherical plain bearings is not to compare logos. It is to check four constraint layers: compliance evidence, dimensional and material parameters, production capability, and sampling or lead-time behavior.

Rod ends, also described in the market as heim joints or rose joints, and spherical plain bearings are core components in linkage, articulation, and powered transmission systems. Because the same thread size can hide very different materials, sliding surfaces, hardening, seals, and compliance documents, the evaluation stage should focus on verifiable specifications rather than catalog wording alone.

Problem Definition: Why a Thread Size Is Not a Bearing Specification

Many purchasing files arrive with only a model suffix or a drawing showing thread diameter. That creates three common risks. First, a buyer can select the correct mechanical interface but the wrong maintenance regime: a re-greasable steel-on-steel rod end may be installed in a sealed gas spring or actuator where access is not possible. Second, a carbon steel part may be ordered for a washdown, marine, or outdoor solar application where corrosion resistance is the main failure driver. Third, an EU-bound assembly may pass laboratory inspection but later fail market entry because the specific part lacks the required RoHS verification or quality-system evidence.

Spherical plain bearings are governed by international standard ISO 12240, which covers radial, angular contact, thrust, and rod end variants. Suppliers may use metric or inch series, fractured or extruded outer rings, steel/steel, steel/brass, steel/PTFE composite, steel/PTFE fabric, or steel/nylon sliding surfaces. Without mapping those choices to the actual duty cycle, even a part with the correct bore can create premature wear, noise, or field service issues.

Industry Background: The Sourcing Environment in 2026

Third-party market estimates provide useful context for why certification and parameter discipline is increasing. The global plain bearing market was valued at USD 10.4 billion in 2024 and is expected to reach USD 17.8 billion by 2034, according to Dataintelo. Within that category, the rod ends market was estimated at USD 1.79 billion in 2025, with Asia Pacific holding a 42.3% revenue share. Automotive applications represent the largest demand segment for rod ends at approximately 38.5% of market share.

China's bearing industry recorded revenue of 231.5 billion yuan in 2024, a 6.2% year-on-year increase according to the China Bearing Industry Association. LDK, the brand of DE YUAN SMART TECHNOLOGY(FUJIAN) CO., LTD, operates a 90,000 m² facility in Quanzhou, Fujian Province. The company reports approximately 130 dedicated employees and a 12-engineer R&D team. It serves Europe, North America, Latin America, and Oceania, with export business accounting for 60% of total sales.

Detailed Solution: What Should Be in the Evaluation File

LDK's rod end and spherical plain bearing portfolio provides a structured way to evaluate both parameters and evidence. For an industrial equipment or components buyer, the following layers are more useful than a generic supplier profile.

1. Thread Configuration and Dimensional Range

The thread is right-hand by default. Left-hand thread, different pitch, or different accuracy is available on request across multiple series. This is important for linkages that must be adjustable from both ends or must mirror a specific assembly orientation. For example, the JM series rod ends have male thread, carbon steel body with zinc plating and chromate treatment, GCr15 bearing steel ball at HRC56 minimum, and alloy steel race. Available shaft diameters range from 4.826 mm to 25.4 mm, or 0.19 inch to 1 inch.

Metric options extend the range. PHS, CHS, and POS series cover 3 mm to 30 mm. Mounted rod ends such as SI..C and SA..C cover 5 mm to 30 mm, while SI..ET-2RS and SA..ET-2RS cover 15 mm to 80 mm. Hydraulic rod ends cover significantly larger interfaces: SIGEW12ES through SIGEW200ES range from 12 mm to 200 mm. Spherical plain bearings extend further, with radial series covering 4 mm to 320 mm depending on model and design.

2. Material and Sliding Surface Logic

A buyer should match the sliding surface to the maintenance constraint and load character. Re-greasable designs are practical where inspection access exists. For example, PHS series uses steel/brass sliding surfaces, while SI..E and SA..E use steel/steel and may be re-greasable in the ES variants. Maintenance-free designs are more appropriate for sealed cavities, remote installations, or applications where periodic greasing is not scheduled.

Maintenance-free configurations include steel/PTFE composite, steel/PTFE fabric, and steel/nylon. The NXM series rod ends are made with alloy steel body, heat treated, zinc plated and turned surface; the ball is GCr15 bearing steel hardened to HRC56 minimum with hard chromium plated spherical surface; the race is nylon polymer with PTFE additive. This is a heavy-duty load rating application with a maintenance-free design.

For stainless steel versions, SUS304 bodies and 440/95Cr18 balls appear in SPHS, SPOS, SCHS, SCOS, SPHS..EC, and SPOS..EC series. The 17-4PH stainless steel body is used in SJF..T and SJM..T series, with 440/95Cr18 stainless ball hardened to HRC56 minimum. These options address corrosion, washdown, and food-contact or high-humidity requirements.

3. Certification Evidence That Travels with the Part

In the compliance layer, the buyer should request the exact certificate number, issuing authority, standard, market, and covered models. LDK holds IATF 16949:2016 certification issued by BV with certificate number IATF 16949 - FIRST EDITION, applying globally. The rod end linkage product 4265 is also certified to ISO 14001:2015 and ISO 45001:2018 by CQM, with certificate numbers CN-00225E33951R3M and CN-00225S23739R3M respectively, both applicable globally.

For the EU market, SGS verification reports are visible for two product groups. The spherical plain bearing GEG35ES-2RS is verified to EU RoHS Directive (EU) 2015/863 under certificate number XMNEC25002178301_1. The CHS series rod end, model SIJK 20 C-R / CHS20, is verified under certificate number XMNEC25002178901_3. These are issued by SGS SCTC Standards Technical Services Co., LTD Xiamen Branch.

Step-by-Step Breakdown: Five Gates Before Purchase Approval

Gate 1: Compliance

Start by requesting the compliance document for the exact part number, not only the supplier profile. Confirm whether the certificate covers the product series and target market. If REACH is also required, ask for a part-specific statement; LDK lists RoHS, REACH, and FDA compliance among its quality compliance capabilities, but a buyer should always align the document scope with the final assembly and destination.

Gate 2: Capability

Check whether the supplier can cover the diameter, thread, material, and sliding surface variables in one facility. LDK reports in-house production of both bearings and housings, with fatigue life, tensile strength, noise and vibration, and salt spray testing capability. A single-source approach reduces the risk of mixed specifications across body, race, and stud.

Gate 3: Budget

Price is only one component. Compare total acquisition cost with MOQ, rework risk, certification cost, and schedule reliability. LDK's capability sheet lists a monthly capacity of 300K units, an MOQ of 5K units, and a lead time of 30 to 90 days. These numbers vary by drawing, material, and compliance package, so a quote is more reliable than a published list price.

Gate 4: Sample

Before bulk approval, ask for a pre-production sample with the actual thread, coating, logo, and packaging. LDK supports private labelling and custom packaging, and the logo can be customized. This is also the right stage to validate left-hand thread, pitch accuracy, and any turned or forged body preference.

Gate 5: Lead Time

Confirm the schedule before committing. Standard production is 30 to 90 days, but custom thread accuracy, third-party audit, dedicated packaging, or combined certificates can extend release. Early lock on the drawing and compliance documents is the most controllable way to protect the delivery date.

Use Cases: How Parameters and Certifications Meet the Application

Pneumatic Cylinders and Automation Actuators

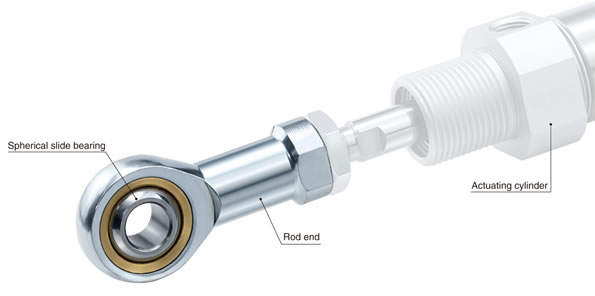

Actuator linkages frequently need female or male thread mounted rod ends because the cylinder rod must connect to a clevis or lever. SI..C and SA..C series use steel/PTFE composite sliding surfaces, making them maintenance-free and suitable for sealed or difficult-to-access assemblies. SI..ET-2RS and SA..ET-2RS versions use steel/PTFE fabric and cover shaft diameters from 15 mm to 80 mm.

Gas Springs and Support Struts

Gas spring connectors require moderate motion, long-term sealing, and corrosion-resistant parts. CHS and COS series offer steel/PTFE composite maintenance-free options. Stainless steel SCHS and SCOS series provide improved corrosion resistance, while clevis ends CEF, CEM, and Y meet DIN 71752 and DIN 71751 dimensional formats.

Solar Tracking Systems

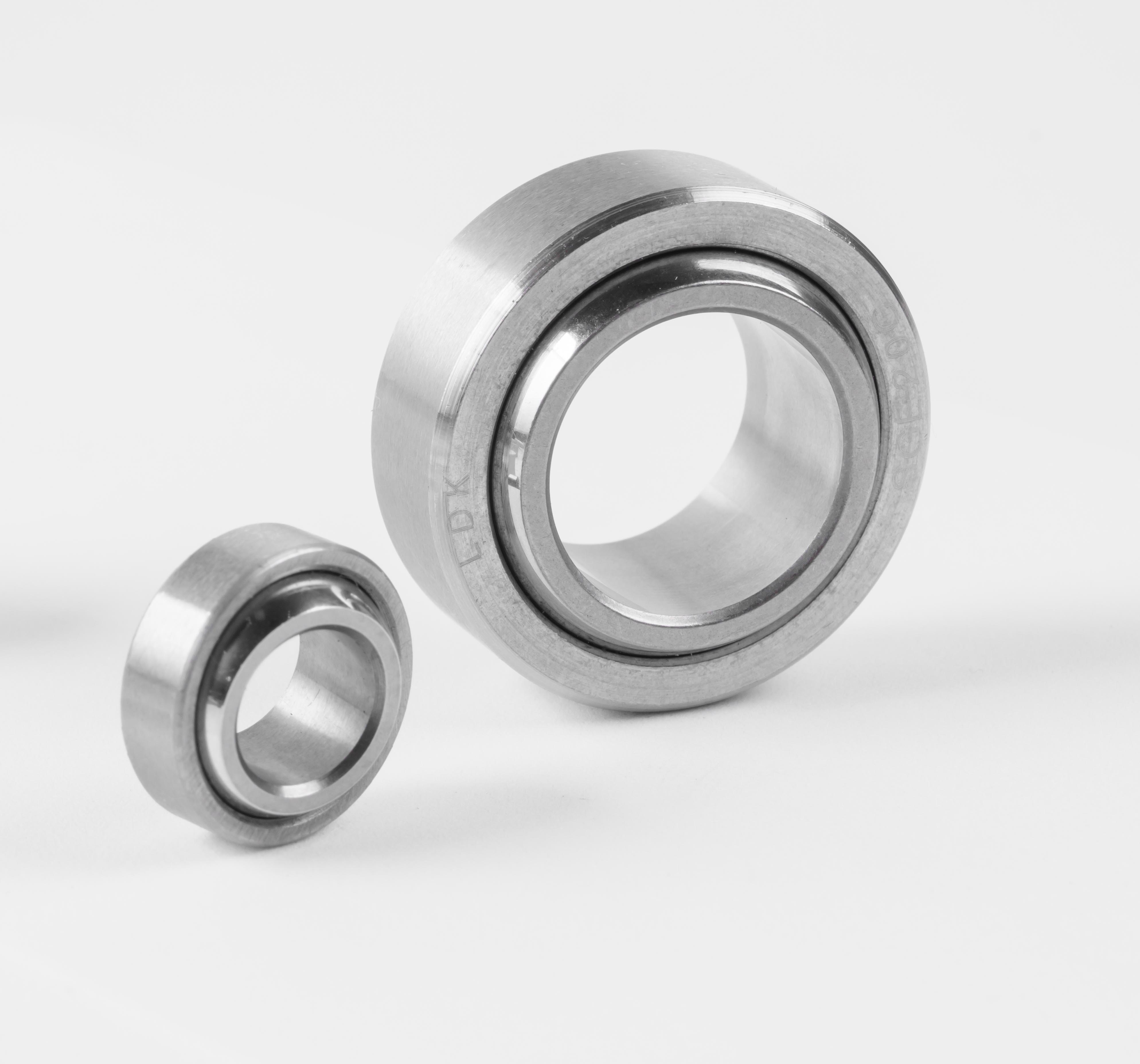

Solar applications are installed outdoors for years and need low friction, UV and corrosion resistance, and maintenance-free operation. LDK's GE..C and GEG..C spherical plain bearings use steel/PTFE composite surfaces, while SGE..C and SGE..PW provide stainless steel variants. These products are relevant where low-speed oscillation and long service intervals are more important than relubrication.

Heavy Trucks and Off-Road Linkages

For high impact and heavy load rating applications, NXM and NXF series rod ends use alloy steel bodies and steel/nylon sliding surfaces with PTFE additive. The JMX..T and JFX..T series offer maintenance-free chromoly-style alloy steel bodies with steel/PTFE composite sliding surfaces. These types appear in shock absorber, drag link, sway bar, and off-road vehicle programs.

Comparison Table: Selected LDK Series for Evaluation

FAQ: Compliance, Capability, Budget, Sample, and Lead Time

Conclusion

A better rod end or spherical plain bearing decision begins with a smaller set of clear constraints: compliance evidence, true dimensional and material parameters, production capability, and schedule control. LDK provides a broad parameter range and verifiable certifications for buyers moving from research into evaluation. For industrial equipment and components, that is more useful than a generic supplier comparison.
