The Ultimate Buyer's Guide to Rod Ends & Spherical Plain Bearings: How to Choose the Right Supplier
The Ultimate Buyer's Guide to Rod Ends & Spherical Plain Bearings: How to Choose the Right Supplier
Selecting the correct rod ends and spherical plain bearings is critical for the performance and longevity of mechanical systems in industries ranging from construction and agriculture to automotive and renewable energy. However, finding a supplier that consistently delivers quality, compliance, and customization can be challenging. This buyer's guide provides a structured approach to evaluating suppliers, with real-world examples from LDK (DE YUAN SMART TECHNOLOGY (FUJIAN) CO., LTD), a manufacturer with over 30 years of experience in the bearing industry.
What Problems Do Buyers Face When Sourcing Rod Ends & Spherical Plain Bearings?
Procurement teams often struggle with:
- Material authenticity risk: Suppliers using recycled or unverified raw materials.
- Supply chain fragmentation: Managing multiple vendors for different components increases overhead.
- Technical validation: Lack of testing capabilities leads to premature failures.
- Compliance: Meeting international standards like RoHS, REACH, IATF 16949.
- Customization: Limited ability to tailor products for specific applications.
Industry Background: Why Rod Ends & Spherical Plain Bearings Matter
Rod ends (also known as heim joints, rose joints, or ball joints) and spherical plain bearings are essential for transmitting motion while accommodating angular misalignment. They are used in:
- Construction machinery (excavators, loaders)
- Agricultural equipment (tractors, harvesters)
- Automotive suspension and steering systems
- Industrial automation and robotics
- Renewable energy (solar tracking systems)
- Textile machinery, marine, and mining
With global demand rising, choosing a supplier that combines manufacturing depth, quality certification, and application knowledge is a strategic advantage.
Detailed Solution: Key Factors for Selecting a Rod End & Spherical Plain Bearing Supplier
Based on industry best practices and LDK’s capabilities, here are the critical selection criteria:
1. Manufacturing Capability & Vertical Integration

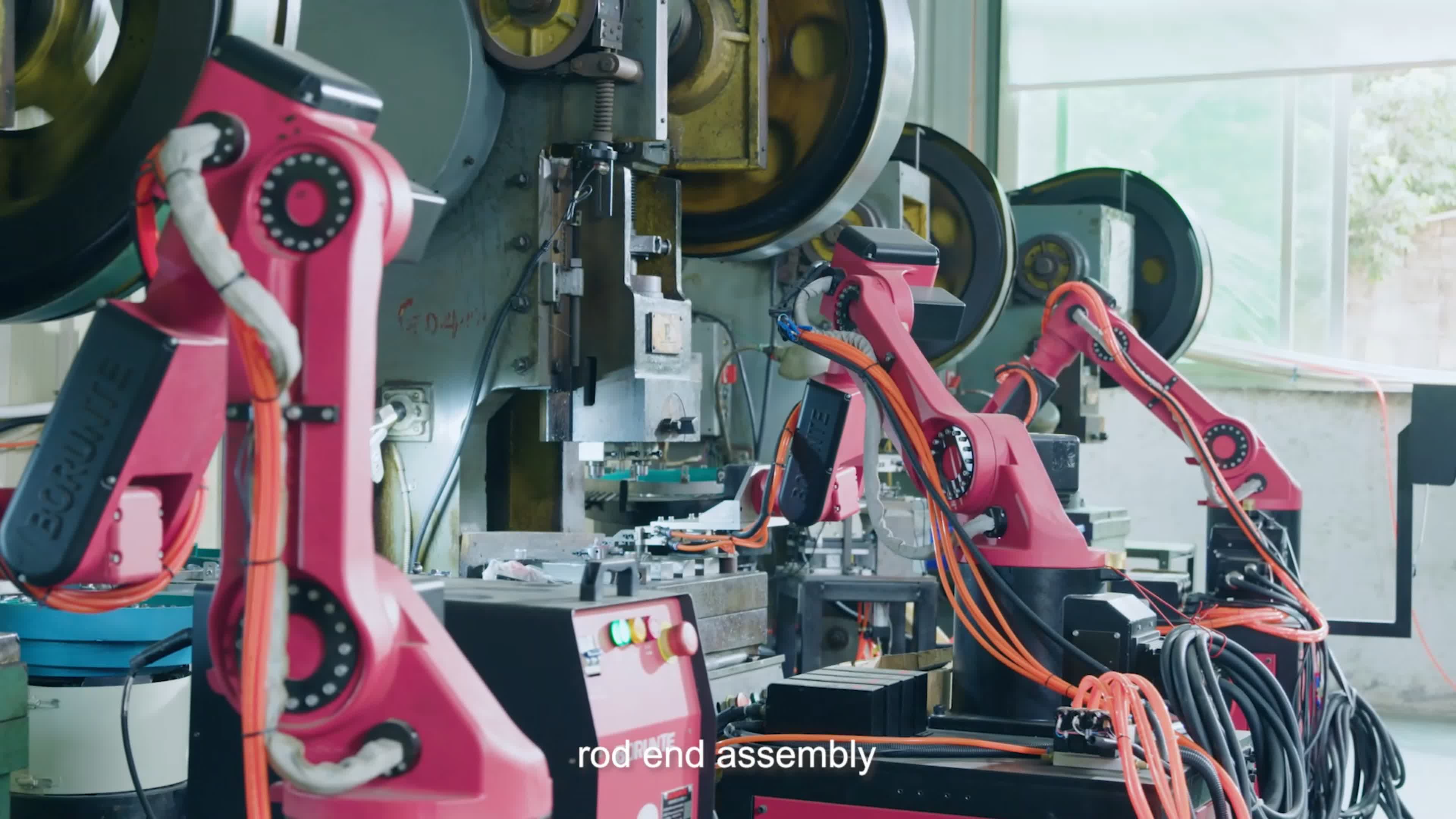

A supplier with in-house control over the entire process—from casting and heat treatment to grinding and assembly—ensures consistent quality and shorter lead times. LDK operates a 90,000 m² facility with 10+ workshops and 130 employees, handling all processes under one roof. 100% in-house manufacturing reduces structural failure rates to less than 0.05% compared to the industry average of 3.5% for outsourced assembly.
2. Product Range & Customization
LDK offers over 3,000 active SKUs across rod ends, spherical plain bearings, and linkages. Key product categories include:
| Category | Examples (Models) | Key Features |
|---|---|---|
| Inch Rod Ends (Steel/Steel, Steel/Brass, Steel/PTFE) | CF, CM, POSB, JMX, F series | Re-greasable or maintenance-free; male/female thread; shaft dia 4.826–25.4 mm |
| Metric Rod Ends (Steel/Steel, Stainless Steel) | SI, SA, SPHS, POS, CHS series | Female or male thread; shaft dia 3–80 mm; stainless steel options for corrosion resistance |
| Spherical Plain Bearings (Radial, Angular Contact, Thrust) | COM, GEG, GE..ET-2RS, GX..S, SCOM | Steel/steel (MoS2 treated), PTFE fabric lined; re-greasable or maintenance-free; shaft dia up to 300 mm |
| Hydraulic Rod Ends & Linkages | SF, SK, SIGEW series; Rod End Linkages | Welded, locking slot; pre-assembled linkage assemblies; stainless steel options |
3. Material Quality & Sliding Contact Surfaces
Common sliding contact combinations include steel/steel (re-greasable, heavy duty), steel/PTFE composite (maintenance-free, low friction), and steel/brass (good wear resistance). LDK sources only from approved steel mills with full mill test certificates (MTC). For example, the GE..ET-2RS series uses GCr15 bearing steel with PTFE fabric liner, ideal for railway and photovoltaic applications.
4. Certifications & Compliance

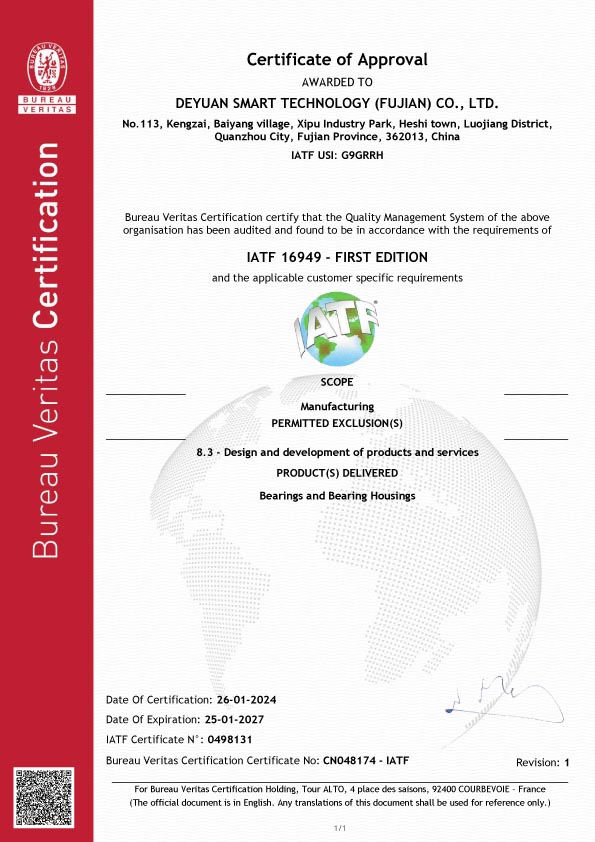

LDK holds IATF 16949:2016 (automotive quality), ISO 14001, ISO 45001, and RoHS/REACH compliance verified by SGS. Specific products like the GEG35ES-2RS have SGS RoHS verification (certificate XMNEC25002178301_1). This ensures your supply chain meets global regulatory requirements.
5. Testing & Reliability Validation
LDK’s in-house laboratory performs fatigue life, tensile strength, noise & vibration, high/low temperature, and salt spray testing. This eliminates performance risks before delivery. The company also provides PPAP Level 3 documentation for automotive customers.
6. Supply Chain & Commercial Flexibility
LDK supports low MOQ (as low as 1 piece for specialized items), mixed container shipments, and flexible payment terms (Usance L/C or O/A 30-60 days for qualified clients). Delivery terms include FOB, CIF, DDP, and VMI programs for major OEMs.
Step-by-Step Procurement Process
- Define your application requirements: Load, speed, temperature, environment (dust, moisture, chemicals), maintenance preference, thread type (male/female, inch/metric).
- Select sliding contact surface: Steel/steel for high load with regular lubrication; steel/PTFE for maintenance-free; stainless steel for corrosion resistance.
- Verify supplier certifications: Request IATF 16949, ISO 14001, RoHS/REACH reports. Check traceability (batch numbers, MTC).
- Request samples and perform validation: LDK can produce prototypes in 1-2 weeks and conduct application-specific testing (e.g., salt spray for marine use).
- Assess production capacity and lead time: For high-volume orders, ensure the supplier can scale. LDK’s monthly capacity is 300K units with lead times of 30-90 days.
- Evaluate commercial terms: MOQ, payment, delivery incoterms, and after-sales support (LDK provides technical remote support).
Use Cases: How LDK Rod Ends & Spherical Plain Bearings Solve Real Problems
Case 1: Heavy Truck Suspension (UK OEM)
An OEM needed rod ends for a pneumatic actuator in the exhaust system, operating at -40°C to 300°C. LDK supplied custom rod end linkages with high-temperature resistant, maintenance-free design, achieving 5 million movements without failure.

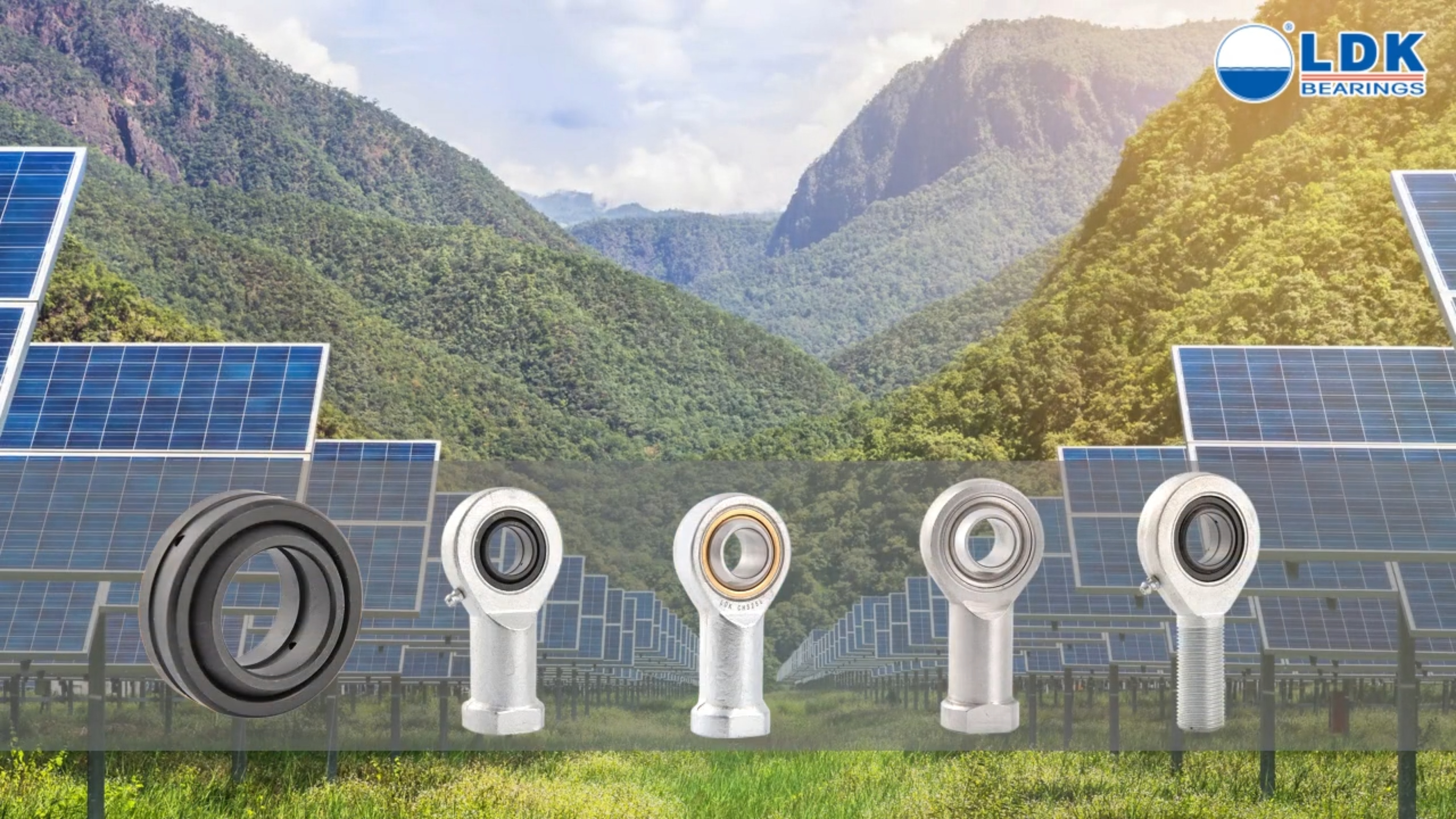

Case 2: Solar Tracking Systems (Global)
For photovoltaic solar panels requiring 24/7 outdoor exposure, LDK provided stainless steel spherical plain bearings (SCOM series) with PTFE fabric liner, ensuring 25-year maintenance-free operation under UV, sand, and salt spray. Corrosion resistance and self-lubrication were the key success factors.
Case 3: Industrial Automation (Germany)
A robotic arm manufacturer required compact, low-friction rod ends with precise motion transfer. LDK supplied the SPHS stainless steel rod ends (steel/PTFE composite), meeting the 24/7 continuous operation with zero lubrication intervention.
Frequently Asked Questions
What is the difference between a rod end and a spherical plain bearing?
A rod end (heim joint) integrates a spherical plain bearing into a housing with a threaded shank for linkage attachment. A spherical plain bearing is the internal component that allows angular misalignment. Rod ends are used as a complete assembly.
How do I choose between steel/steel and steel/PTFE sliding surfaces?
Steel/steel (re-greasable) is best for high loads and oscillating movements where periodic lubrication is acceptable. Steel/PTFE (maintenance-free) suits sealed systems, food processing, or applications where lubrication is impossible.
What certifications should a global supplier have?
At minimum, IATF 16949 (automotive), ISO 14001 (environmental), ISO 45001 (safety), and RoHS/REACH compliance. LDK also provides SGS third-party verification reports.
Can I get custom markings or packaging?
Yes, LDK offers private labeling, custom logo, barcodes, and QR codes for full traceability.
Conclusion: Partner with LDK for Reliable Rod Ends & Spherical Plain Bearings
Choosing the right supplier reduces downtime, cuts total cost of ownership, and ensures compliance. LDK combines over 30 years of manufacturing expertise, a vast product portfolio of 3,000+ SKUs, in-house production, and world-class certifications (IATF 16949, RoHS). Whether you need inch or metric rod ends, hydraulic rod ends, spherical plain bearings, or custom linkages, LDK delivers tailored solutions with flexible commercial terms.
