VERTICAL LIFTING COLD ROOM DOOR

Name: "VERTICAL LIFTING COLD ROOM DOOR"
Rating: 5 (456 reviews)

SKU: 8250142411

Model: LMDZ-001

LIFTER Garage Door

🌐 Enter Official Website

Product Details

Product Specification

Type	Standard Vertical Lifting Door / Customized Vertical Lifting Door	Model	LMDZ-001
Params	Door Size: Customized to opening size, W≤3500mm / H≤4500mm Lifting Direction: Vertical lifting Panel Thickness: 75mm / 100mm / 120mm / 150mm / 175mm / 200mm Skin Material: Color steel, stainless steel, embossed aluminum plate, standard with antibacterial coating Core Material: Eco-friendly, high-density fire-retardant polyurethane insulation, density≥48kg/m³ Door Frame: High-strength PVC, aluminum alloy, stainless steel, with built-in thermal break design and concealed embedded heating wires Track: Special aluminum alloy track with anti-corrosion and anodizing treatment, equipped with floating structure Counterweight: Q235 material, integrally combined with track system, concealed design Hardware: Stainless steel and high-strength nylon accessories Seals: EPDM, multi-seal design Motor Control: Adjustable speed for automatic control system Opening Way: Manual / Remote Control / Button / Ground magnetic induction / Radar / Pulling rope / Interlock Service Life: ≥1 million openings Apply Environment: ≥-45°C	Material	Color steel, stainless steel, embossed aluminum plate, standard with antibacterial coating
Applicable Industry	Cold chain logistics warehouses / Fresh food distribution centers / Scientific research laboratories / Automated vertical cold storage / Food processing plants / Pharmaceutical cold storage

Feature

1. Superior thermal insulation with high-density polyurethane foam core (≥48kg/m³) and multi-layer sealing, minimizing cold air loss and reducing energy costs. 2. Floating track design with special aluminum alloy track that automatically seals the door tightly when closed and releases when opened. 3. Built-in thermal break door frame with concealed heating wires prevents ice formation in -45°C freezer environments. 4. Integrated counterweight system (Q235) concealed within track structure for space-saving and balanced operation. 5. Stainless steel and high-strength nylon hardware ensure corrosion resistance and long-term durability in cold/wet conditions. 6. Multiple control options: manual, remote, button, ground magnetic induction, radar, pulling rope, and interlock. 7. Comprehensive safety protection with anti-fall device and multi-seal EPDM design. 8. Customizable panel thickness (75–200mm) and skin materials (color steel, stainless steel, embossed aluminum) to match specific project requirements. 9. Long service life with ≥1 million openings, suitable for high-frequency cold storage operations. 10. Over 20 years of manufacturing experience with products exported worldwide.

Standard Vertical Lifting Door

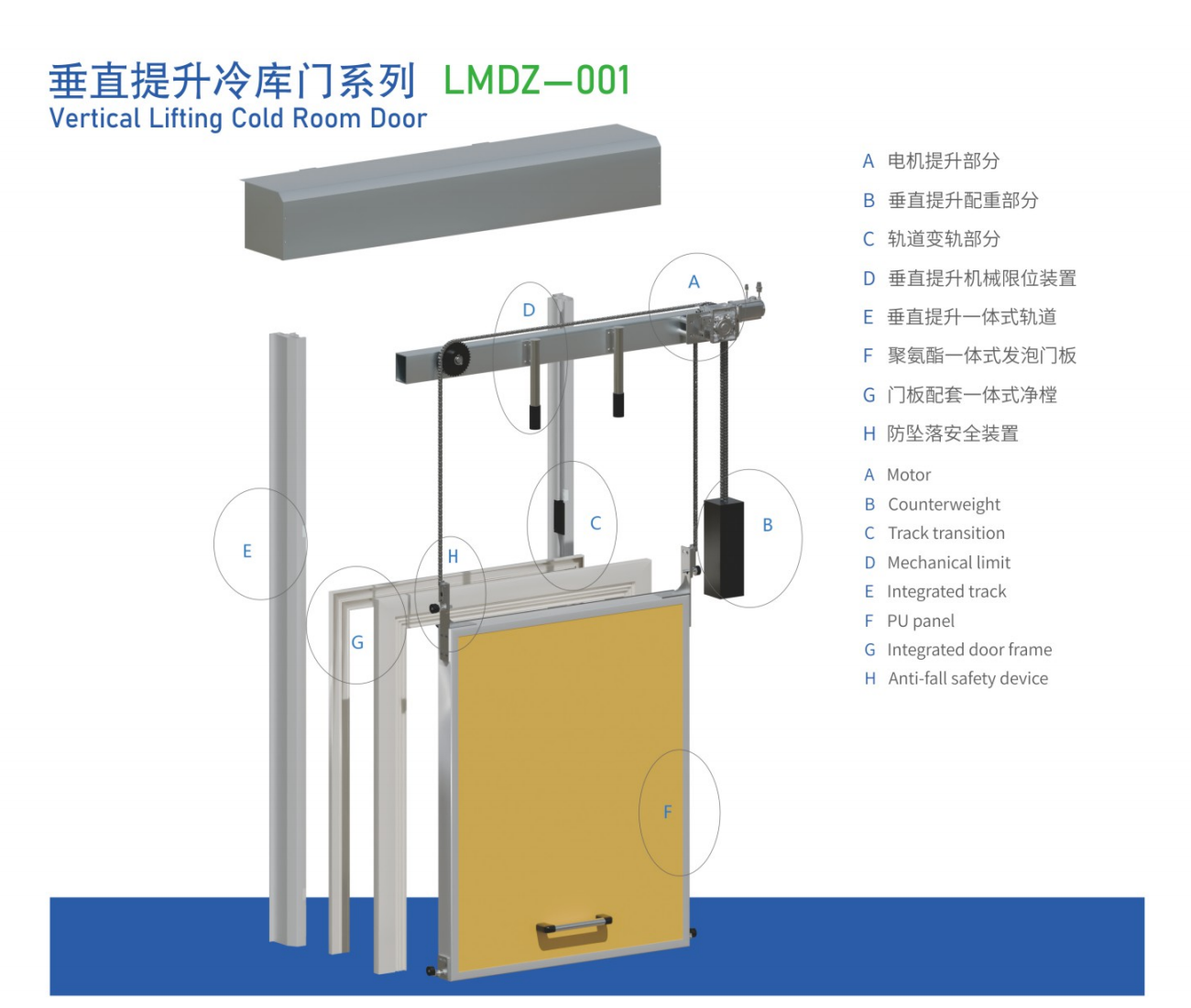

Customized Vertical Lifting Door
