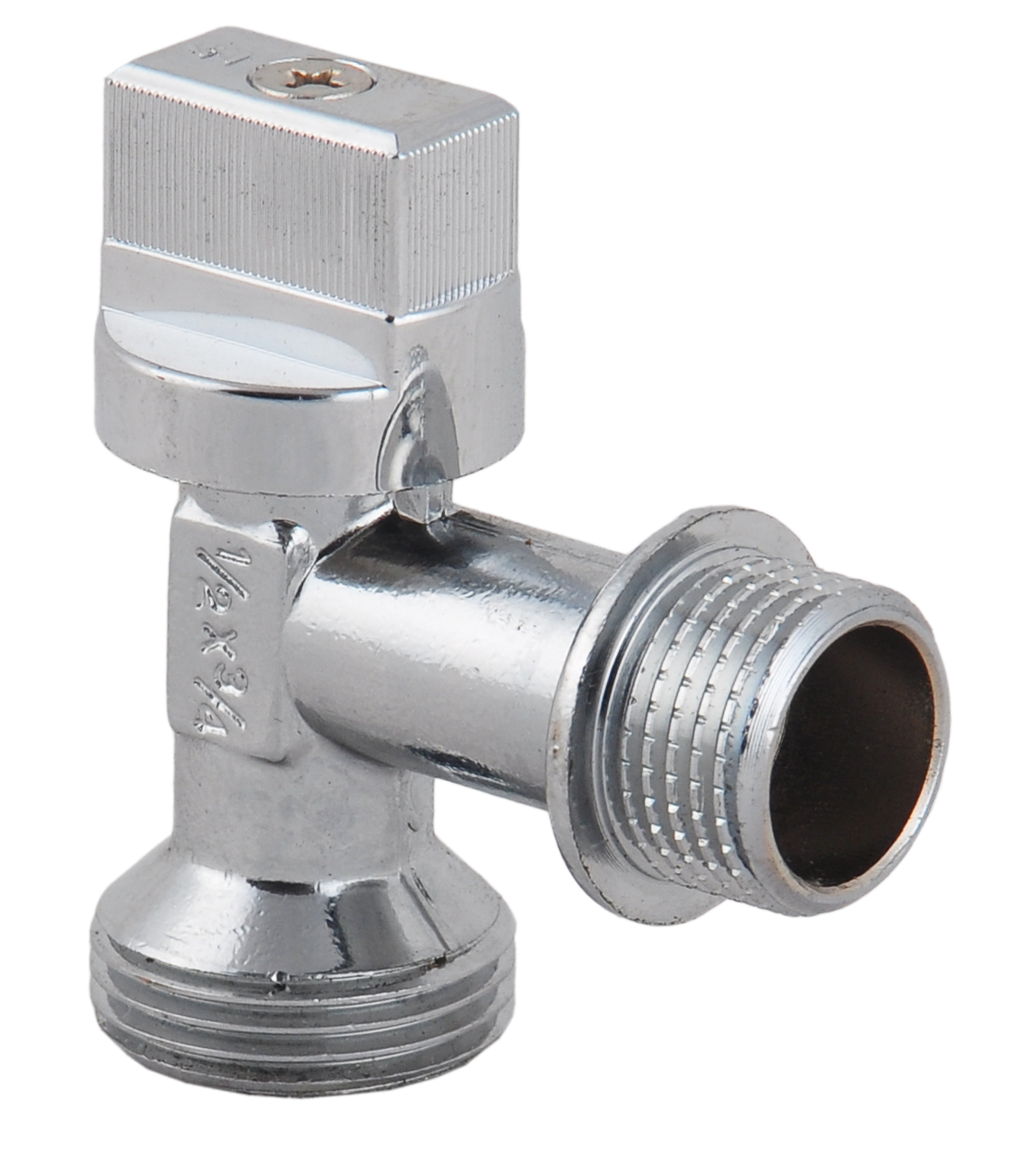

Brass Supply Stop Valve（Brass Angle Valve)

Name: "Brass Supply Stop Valve（Brass Angle Valve)"
Rating: 5 (467 reviews)

Quantity:

SKU: 2827492466

Model: 98023-LF

LONGDA BRASS VALVE

🌐 Enter Official Website

Product Details

Product Specification

Type	Quarter-Turn Supply Stop, Angle Supply Stop, Straight Supply Stop, Compression Supply Stop, PEX Supply Stop, Multi-Turn Supply Stop,Angle Valve	Model	98023-LF
Params	size range: 1/2" × 3/8" and 1/2" × 1/2" (DN15 × DN10/DN15); pressure rating: 125 psi , working temperature: -20°C to 120°C; type: quarter-turn (ball) or multi-turn; connection: compression × compression, FIP × compression, PEX × compression (ASTM F1960), sweat,threaded ,Lead free version are certified: cUPC, NSF/ANSI 61 & 372, covers faucet, toilet, washing machine, water heater terminal applications	Material	body: hot-forged normal brass CW617N , or lead-free brass for potable water contact; stem & ball: brass; seats: PTFE; O-rings: NBR / EPDM
Applicable Industry	Residential Plumbing (faucets, toilets, washing machines), Commercial Plumbing, Water Meter & Service Line Terminals, Municipal Water Supply

Feature

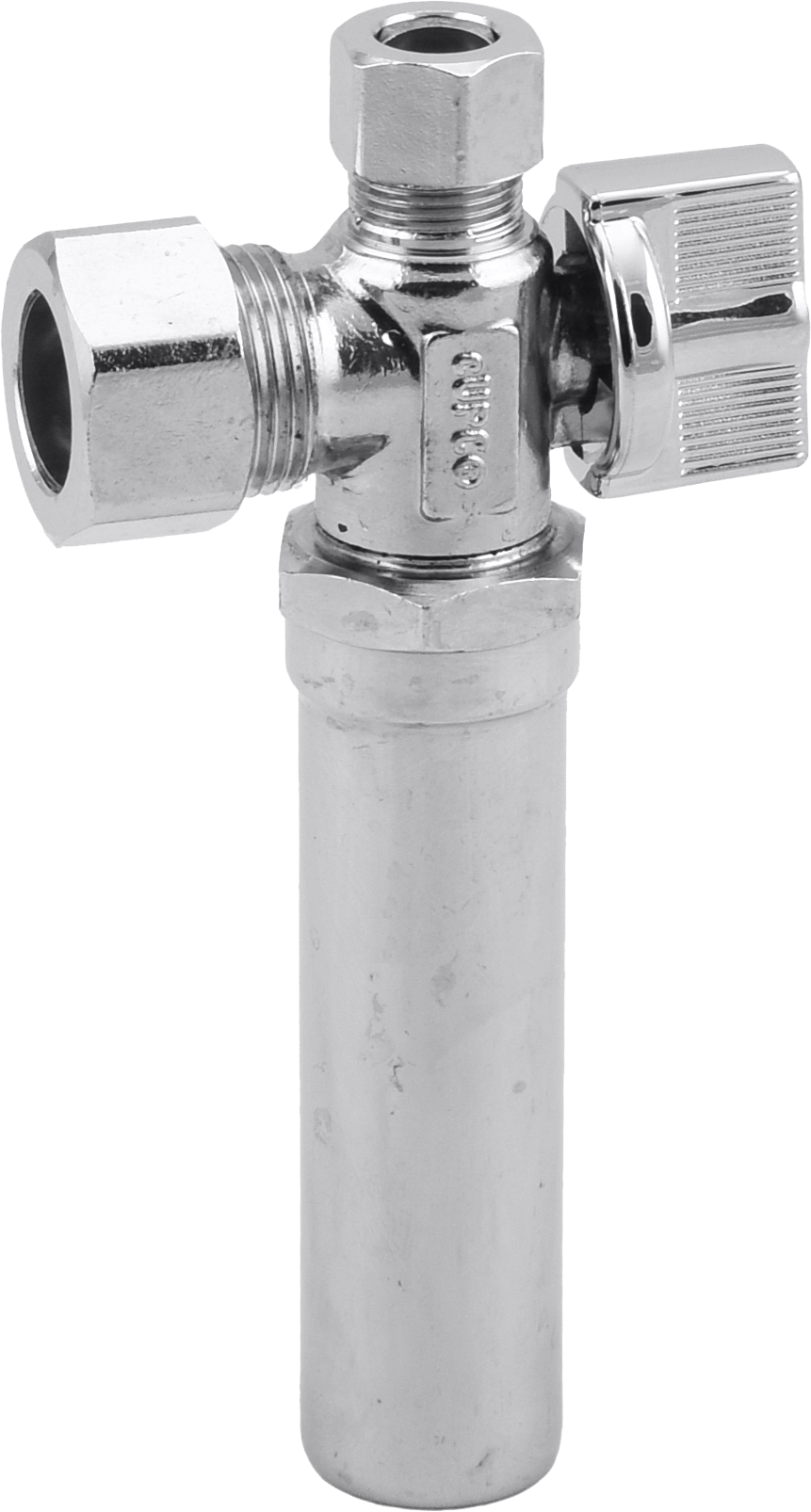

-50+ models full spec coverage: angle/straight, quarter-turn/multi-turn, compression/PEX/threaded/sweat connections — one-stop selection without multi-vendor sourcing. -Zero-complaint quality stability: long-term stable quality in volume shipments, reducing customer after-sales and replacement costs — the core differentiator from same-level factories. -Same quality, better price: equal quality and certification level (cUPC + NSF/ANSI 61/372) as North American local brands at a more competitive price — optimizing customer procurement cost. - Commonly installed under sinks, toilets, and faucets to allow localized shut-off without turning off the main water supply -Lead Free · 1/4 Turn Ball Valve Design. Chrome Plated Brass Body. Durability and Long-Lasting Performance -Self Lubricating PTFE Seats and Double O-Ring for Added Safety - Conforms to NSF/ANSI 61/372 and CUPC, IAPMO Certified - Suitable for both plumbing and hydronic heating application -Angle Version and Straight Version are available -1/4 Turn or Multi-turn is available - Supply stop valve with hose or with water hammer arrestor is available -Handles can be customized -Available in:FIP/SWT/ COMP/CPVC/PEX F1807 & PEX F1960/Push-fit/Press-fit
