Roll Laminator Buyer’s Guide: Types, Specs & Applications
Roll Laminator Buyer’s Guide: Types, Specs & Applications
Roll laminators are finishing machines that apply protective films to printed media in a continuous roll-to-roll process. They are essential for signage, graphics, and digital printing shops that need to enhance durability, UV resistance, and visual appeal. HENAN MEFU INDUSTRIAL LIMITED (MEFU), established in 2008, is a manufacturer specializing in professional finishing equipment including roll laminators, flatbed laminators, flatbed applicators, and cutters. This guide explains what a roll laminator is, the main types available, key specifications to evaluate, and how to select the right model for your production needs — all based on MEFU’s product line.
What Is a Roll Laminator?
A roll laminator is a machine that feeds flexible materials (such as vinyl, paper, or film) through heated or cold rollers to apply a laminating film. The frame is typically made of integrated sheet metal, rollers are silicone, and heating plates are aluminum alloy. According to MEFU’s product specifications, these machines are designed for the advertising industry and digital printing industry. Common applications include laminating of vinyl, PP paper, and PVC film for billboards, posters, vehicle stickers, and outdoor advertising materials.
Key Types of Roll Laminators
MEFU offers several categories of roll laminators, each tailored to different production volumes and material requirements:
- Hot Cold Roll Laminator – Models like the MF1700-M1 and MF1700-F1 support both heated lamination (up to 60°C) and cold lamination, suitable for general-purpose finishing.
- Industrial Roll Laminator – The MF1700-C3 is classified as an industrial-grade laminator with a maximum speed of 20 m/min and optional top heating up to 60°C or 120°C.
- Heavy Duty Roll Laminator – The MF1700-B5 PRO operates at 6 m/min without heating, built for high-volume cold lamination of thick substrates up to 28 mm.
- Vinyl Roll Laminator – The MF1700-B5 is a manual cold laminator designed specifically for vinyl materials.
- Graphic Roll Laminator – The MF1600-B7 handles a maximum working width of 1520 mm (59 inches) and is used in graphic arts.
- Large Format Laminator – The MF1700-A1 PRO supports up to 1630 mm width and can be configured with either 60°C or 120°C top heating.

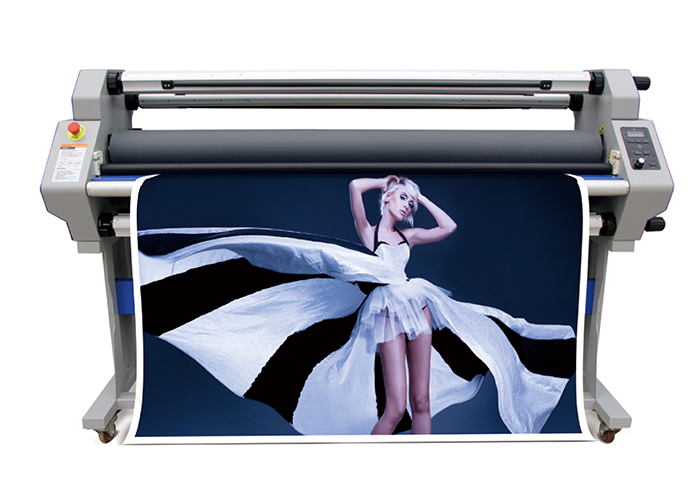

- Wide Format Laminator – The MF1700-M1 PRO offers a faster speed of 12 m/min with pneumatic up/down and heated top roller.
- Pneumatic Roll Laminator – The MF1700-M5 features hand-crank up/down but still uses silicone rollers and infrared quartz heating.
- Double Sided Roll Laminator – The MF1700-F2 has dual heating and can laminate both sides simultaneously at speeds up to 20 m/min.
- High Speed Roll Laminator – The MF1700-F1 PLUS reaches 50 m/min with swing air shafts and pneumatic control.
- Heat Assist Laminator – The MF1700-M1 PLUS provides top heating up to 60°C for enhanced adhesion without full thermal lamination.
- Roll to Roll Laminating Machine – The MF1700-M1 LITE is an entry-level pneumatic model with speeds up to 9 m/min.
Step-by-Step: How to Choose a Roll Laminator
- Determine maximum media width and thickness. Most MEFU laminators support a max width of 1630 mm (64 inches) and max thickness of 28 mm (1.1 inches). For narrower needs, the MF1600-B7 works up to 1520 mm.
- Decide on heating requirement. If your materials require heat activation (e.g., thermal laminating films), choose a model with top heated roller (e.g., MF1700-M1 PRO, MF1700-C3). For cold lamination, the MF1700-B5 or MF1700-B5 PRO suffice.
- Evaluate production speed. High-volume shops should consider high-speed models like MF1700-F1 PLUS (50 m/min). For lower volumes, 6–12 m/min models are cost-effective.
- Check loading/unloading convenience. Pneumatic up/down systems (found on most MEFU models except MF1700-M1 and MF1700-M5) reduce operator fatigue.
- Consider trimming needs. Models like MF1700-F2, MF1700-C3, and MF1700-A1 PRO come with trimmer holders (2 single and 1 double central blades made of tungsten steel). Others like MF1700-B5 PRO do not include a trimmer holder.
Use Cases Across Industries
Roll laminators are deployed in multiple sectors. According to MEFU’s application scenarios:
| Industry | Common Project Types | Key Function |
|---|---|---|
| Advertising & Graphics | Large-format roll media finishing | Laminates vinyl, PP paper, PVC film for billboards and vehicle stickers; enhances UV resistance. |
| Digital Printing & Custom Signage | Roll-to-roll lamination for short-run prints | Provides surface protection and gloss/matte finishing for custom orders. |
| Graphic Design & High-End Photo Finishing | Customized sheet material protection & art finishing | Prevents fading, maintains color fastness on photo prints and posters. |
| Signage & Exhibition Display | Rigid board finishing (thickness up to 50 mm) | Laminates acrylic, PVC, foam board, and ACP for indoor/outdoor signs. |
| Flexible Packaging & Label Manufacturing | Label finishing & packaging prototype cutting | Precision trimming of flexible packaging materials with high compatibility. |
Comparison of Selected MEFU Roll Laminator Models
| Model | Category | Max Width | Max Thickness | Max Speed | Heating | Up/Down |
|---|---|---|---|---|---|---|
| MF1700-C3 | Industrial Roll Laminator | 1630 mm / 64" | 28 mm / 1.1" | 20 m/min | Top heated (60°C or 120°C) | Pneumatic |
| MF1700-A1 PRO | Large Format Laminator | 1630 mm / 64" | 28 mm / 1.1" | 15 m/min | Top heated (60°C or 120°C) | Pneumatic |
| MF1700-M1 PRO | Wide Format Laminator | 1630 mm / 64" | 28 mm / 1.1" | 12 m/min | Top heated (60°C) | Pneumatic |
| MF1700-M1 | Hot Cold Roll Laminator | 1630 mm / 64" | 23 mm / 0.9" | 9 m/min | Top heated (60°C) | Manual hand crank |
| MF1700-B5 PRO | Heavy Duty Roll Laminator | 1630 mm / 64" | 28 mm / 1.1" | 6 m/min | None (cold only) | Pneumatic |
| MF1700-F1 PLUS | High Speed Roll Laminator | 1630 mm / 64" | 28 mm / 1.1" | 50 m/min | Top heated (60°C) | Pneumatic |
Frequently Asked Questions
- What safety certifications do MEFU roll laminators have? MEFU laminators are built with emergency buttons and, where applicable, safety glass tables and auto-stop sensors (e.g., on XY cutters). For specific compliance certifications, please contact MEFU directly.
- What are the main types of roll laminators available from MEFU? MEFU offers hot cold roll laminators, industrial roll laminators, heavy duty roll laminators, vinyl roll laminators, graphic roll laminators, large format laminators, wide format laminators, pneumatic roll laminators, double sided roll laminators, high speed roll laminators, heat assist laminators, and roll to roll laminating machines.
- What is the maximum laminating width and thickness of a typical MEFU roll laminator? Most models support a maximum width of 1630 mm (64 inches) and a maximum thickness of 28 mm (1.1 inches). The MF1600-B7 has a max width of 1520 mm (59 inches).
- How can I request a sample or see a demonstration? MEFU provides product samples and remote/on-site demonstrations. Email info@mefu.cn or WhatsApp +86 15890020566 to schedule.
- What is the typical lead time for a MEFU roll laminator? Lead time varies by model and order volume. Contact MEFU directly for current production schedules and delivery estimates. For a quick inquiry, use the information above or download the catalog for standard lead times.
For detailed specifications, downloadable brochures, and pricing, visit MEFU’s official website or download the company brochure directly: MEFU Product Brochure.
Conclusion
Choosing the right roll laminator depends on understanding your media dimensions, heating requirements, speed expectations, and operational budget. MEFU provides a comprehensive range of roll laminators — from manual cold units to high-speed industrial machines — all built with robust materials and designed for 24/7 production. By matching the specifications outlined in this guide to your specific workflow, you can make an informed procurement decision that improves finishing quality and throughput.
