CE and UL Pressure Control Switches: What Buyers Must Specify Before Sourcing

Figure 1: Monro Switch EPC-16 electronic pump pressure switch

A pressure control switch is the component that automatically starts and stops a pump in response to system pressure changes. In domestic water supply, irrigation, water treatment, and construction applications, this small device determines whether a pump operates reliably or fails prematurely. For buyers in the Research and Evaluation stage, the task is not simply choosing a brand, but building a specification that includes electrical ratings, pressure range, connection thread, protection class, and market-specific certifications.

This guide focuses on certified pressure control switches for water pump systems. It uses the product range of Monro Switch, operated by ZHEJIANG MONRO MACHINERY & ELECTRONIC CO.,LTD, as a reference. Monro is a pressure controller and float switch manufacturer in Wenling City, Zhejiang Province, China. Although formally established in 2010, the company has over 20 years of manufacturing expertise in pressure controls and float switches, and exports to Asia, Europe, North and South America, the Middle East, and Africa.

Why Pressure Control Switch Selection Often Fails

Many pump failures are traced back to a mismatched or poorly specified pressure control switch. Common problems include selecting a switch whose current rating is below the pump motor current, choosing the wrong cut-in or cut-out pressure, ignoring dry-run risk, using an incompatible connection thread, or assuming that one certificate covers all markets.

The result is often the same: the pump short-cycles, runs dry, fails to restart, or cannot pass a compliance inspection. A pressure control switch should be treated as a safety and control device, not only as a mechanical spare part.

Industry Context: Pressure Switch Market and Compliance Trends

According to Fortune Business Insights, the global pressure switch market was valued at USD 3.2 billion in 2025 and is projected to grow from USD 3.38 billion in 2026 to USD 5.13 billion by 2034. Market Research Future estimates that electromechanical pressure switches accounted for approximately 62% of the global market share in 2024, with solid-state electronic switches accounting for the remaining 38%.

These figures help explain why buyers see both mechanical and electronic pressure control switches on the market. Mechanical switches remain widely used for simple pump control. Electronic pump pressure switches are increasingly chosen when dry-run protection, automatic restart, or smarter control behavior is needed.

From a standards perspective, IEC 60730-2-6:2025 is the current international standard for automatic electrical pressure sensing controls. For trade classification, water pump pressure switches are commonly traded under HS Code 853650.

Mechanical Pressure Controls vs Electronic Pump Pressure Switches

KRS Series: Mechanical Pressure Controls

Figure 2: KRS-5 mechanical pressure control switch

Mechanical pressure controls use a pressure-sensing element to open or close electrical contacts, starting and stopping the pump according to the set pressure. Monro's KRS series includes KRS-1, KRS-2, KRS-3, KRS-4, KRS-5, KRS-6, KRS-7, and KRS-8.

For example, the KRS-5 is a mechanical pressure control with a rated voltage of 110-240V/400V, power frequency of 50/60 Hz, and rated current of 16(8)A. It is available in pressure ranges of 20-40 PSI, 30-50 PSI, and 40-60 PSI, with a minimum cut-in pressure of 15 PSI and maximum cut-out pressure of 100 PSI. The protection rating is IP44, the screw types include 1/4"F, 3/8"F, and 1/4"M, and the maximum working temperature is 55°C.

The KRS-8 is another mechanical option with a rated current of 20(16)A and pressure ranges of 1-6 bar or 6-12 bar. It uses 1/4" or 3/8" female hydraulic connections and has an IP44 protection rating.

EPC Series: Electronic Pump Pressure Switches

Figure 3: EPC-14 electronic pump pressure switch

Electronic pump pressure switches add protection functions such as run-dry protection and check valves. The EPC-1 is a pump pressure switch available in adjustable and non-adjustable versions. The EPC-1A model includes a smart program. It features a built-in socket for easier wiring, a built-in check valve, and built-in run-dry protection. It can be used with surface or submersible pumps, and supports triple voltage options of 110V, 230V, or 110-240V. Its adjustable starting pressure range is 1.2-2.5 bar, with preset starting pressures of 1.2 bar, 1.5 bar, or 2.2 bar.

The EPC-16 is an IP65-rated electronic pump pressure switch with maximum power options of 1.5kW or 0.75kW. Its starting pressure can be set at 1.2 bar, 1.5 bar, or 2.2 bar, and its maximum working pressure is 10 bar. The connection thread is G1". It includes built-in run-dry protection, a built-in check valve, and a built-in smart program that can restart the pump automatically. The EPC-16 is constructed from plastic and metal components.

For applications where adjustable outlet pressure is required, the EPC-19 supports maximum power up to 2.2kW, with a starting pressure setting of 2-6 bar and maximum working pressure of 10 bar. It uses flow detection, pressure sensing, and a limiting-pressure structure. Its features include manual adjustment of constant outlet pressure, a pressure gauge, dry-running protection, rotor anti-blocking protection, and automatic running after 24 hours of stop to test water supply.

Certifications That Matter for Pressure Control Switches

Certification requirements depend on the target market. The examples below are drawn from Monro Switch's published certificates and product scopes.

The KRS-4 mechanical pressure control switch is UL Listed for the North American market. The UL certification is issued by UL LLC, with certificate number E316396, and the applicable standards are EN 60730-1:2016+A1+A2 and EN 60730-2-6:2016+A1. This makes the KRS-4 relevant for buyers who need a UL Listed pump switch in North America.

For the European market, selected EPC models carry CE-EMC Certificates of Conformity issued by TÜV Rheinland LGA Products GmbH. For example, the EPC-16 is covered by CE-EMC certification with applicable standard EN IEC 55014-2:2021. The EPC-1 product is covered by CE-EMC certification under certificate number AE505724390001, issued by TÜV Rheinland LGA Products GmbH; applicable standards include EN IEC 55014-1:2021, EN IEC 55014-2:2021, EN 61000-3-2:2019+A1, and EN 61000-3-3:2013+A1+A2 under Directive 2014/30/EU.

Safety certification also exists for electronic pump pressure switches. The EPC-10, EPC-12, EPC-14, and EPC-16 models are covered by TÜV Rheinland Safety Certification, certificate number R 50175890, under EN60730-1:2016+A1+A2 and EN60730-2-6:2016+A1.

At the system level, Monro operates an ISO9001:2015 quality management system for the manufacture of water pump pressure switches. The ISO9001 certificate is issued by BeiJing ZHONGRUI Unite.

Figure 4: Monro workshop for pressure control switch production and inspection

Certification Reference Table

Buyers should always verify that the certificate number and product scope match the exact model being quoted. A general 'CE available' statement is not enough.

How to Specify a Pressure Control Switch: Step-by-Step

1. Match the controller to the pump motor. Check the pump nameplate for voltage, frequency, and wattage. For example, EPC-1 supports pump power options of 1.1kW, 1.5kW, or 0.75kW, with rated voltage of 220-240V or 110-120V. If the pump is larger, select a model with a higher current or power rating such as the EPC-19 with maximum power up to 2.2kW.
2. Determine the pressure range. The starting pressure must correspond to the required water delivery height and pump lift. A practical rule from installation knowledge is: if starting pressure is 1.2 bar, the maximum water use height is about 1.2 × 10 m = 12 m, and the pump lift should be at least (1.2 + 0.8) × 10 m = 20 m.
3. Choose the hydraulic connection. Common options include G1", G1 1/4", G1 1/2", NPT1", and 1/4" or 3/8" male/female threads. For EPC-1, available connections include G1", G1 1/4", G1 1/2", and NPT1".
4. Confirm ingress protection. For pump installations exposed to moisture or outdoor conditions, an IP65-rated electronic controller such as the EPC-16 is often preferred. IP44 or IP20 mechanical switches can be used in less demanding environments, but the enclosure rating should match the installation site.
5. Verify certifications. For EU projects, review CE-EMC and, where relevant, TÜV Rheinland Safety Certification. For North American projects, check UL Listed or CUL coverage. Confirm the certificate number, issuing body, applicable standards, and product model.
6. Evaluate the supplier's production system. Monro Switch operates an ISO9001:2015 quality management system, and its published capability includes 100% testing for pressure control products. Monthly capacity is 180,000 pieces for the EPC series, 250,000 pieces for the KRS series, and 30,000 pieces for float switches and liquid level controls.
7. Confirm customization and lead time. Monro supports OEM customization for cable length, cable material, brand, color box, and color. Custom orders require a minimum order quantity of 204 pieces, with a lead time of approximately 45 days.

Use Cases: Where Certified Pressure Control Switches Are Applied

Domestic and Residential Water Supply

For household water supply systems, the main requirement is automatic pump start/stop control. The controller starts the pump at a preset low-pressure setpoint and stops it at the high-pressure setpoint. Clean water is the normal working medium, and typical working conditions include rated voltage of 220-240V or 110-120V, pressure range of 0.5-10 bar, maximum working temperature of 55°C, and IP65 protection.

Agriculture Irrigation

Irrigation systems may rely on mechanical pressure controls or electronic controllers to maintain operation without manual switching. Products such as the KRS-5, KRS-8, and EPC series are applicable to agriculture irrigation. The choice depends on motor power, pressure range, and the need for dry-run protection.

Water Treatment and Construction

In water treatment and construction applications, pumps must often handle frequent start-stop cycles and occasional water shortages. Electronic pump pressure switches with built-in run-dry protection reduce the risk of pump damage. Monro lists water treatment and construction as applicable industries for both KRS and EPC series products.

Example: Retail Water Supply System

One case record involves a retail customer in China that used 50 pieces of EPC-1, EPC-2, and EPC-5 pressure controls in a water supply application. The case duration was 2 years, and the recorded result was reliable automatic pressure control for the water supply system, with automatic pump start/stop control as the key highlight.

Comparison: Mechanical vs Electronic Pressure Control Switches

The best choice is not always electronic. Mechanical pressure controls remain a practical solution when the pump system is simple and the environment is protected. Electronic controllers add capability but also require a clearer specification of voltage, pressure, and motor power.

Frequently Asked Questions About Certified Pressure Control Switches

Conclusion: Build the Specification, Then Source the Supplier

A pressure control switch is more reliable when the specification is based on facts: pump motor power, pressure range, connection thread, ingress protection, certifications, and supplier production capability. Buyers who check these parameters before sourcing reduce the risk of short-cycling, dry running, installation mismatches, and compliance failures.

If you are evaluating pressure control switches for water pump systems, compare the certified EPC and KRS models in the Monro Switch catalogue 2025. For model-specific specifications, samples, or quotation, contact ZHEJIANG MONRO MACHINERY & ELECTRONIC CO.,LTD at No.2, 25th Street Eastern New City, Wenling City, Zhejiang Province, China, by email at sale@monro-switch.com, or by phone/WhatsApp at +86 13586289715.

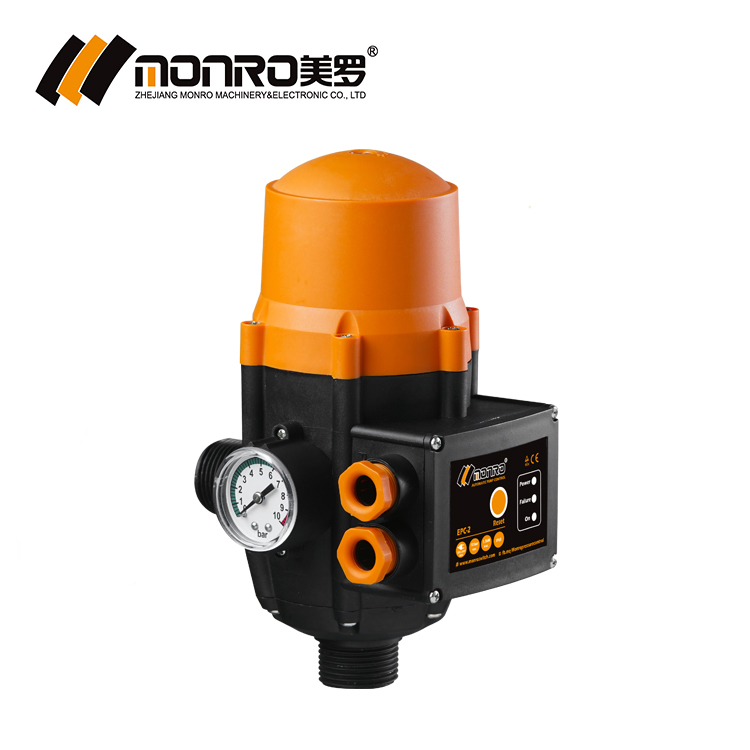

Figure 5: EPC-2 pressure pump control
