Thermoforming plastic sheet roll is the starting material for a wide range of rigid packaging: fresh produce trays, meat trays, bakery containers, yogurt cups, blister packs, pharmaceutical trays, electronic component trays, and many industrial thermoformed parts. This guide explains what a thermoforming plastic sheet roll is, how PET, PP, and PS/HIPS differ, how to choose thickness and roll size, and how to build a reliable supplier evaluation process. It is written for packaging manufacturers, thermoforming operators, purchasing managers, and brand owners who buy sheet rolls for their own forming lines.
Thermoforming plastic sheet rolls are supplied in roll form and processed on vacuum or pressure forming equipment.
What is a Thermoforming Plastic Sheet Roll?
A thermoforming plastic sheet roll is a continuous roll of rigid plastic sheet designed to be heated and formed into a three-dimensional packaging shape on a thermoforming line. The sheet is typically produced by flat-die co-extrusion and is classified under HS Code Heading 3920 or 3921 for non-cellular and cellular plastic sheets respectively. It is used on both vacuum forming and pressure forming equipment for food packaging, blister packaging, electronics packaging, and industrial thermoforming.
Thermoforming plastic sheet rolls are commonly made from PET, PP, or PS/HIPS. Each material behaves differently during heating, forming, and cooling, so the same nominal thickness in different materials does not mean the same package performance.
Why Material Selection Matters More Than Sheet Price per Kilogram
For a thermoforming buyer, the total cost of the finished package is affected by material density, required thickness, forming yield, scrap utilization, cycle stability, and reject rate. A low price per kilogram does not automatically produce the lowest finished package cost.
The material also determines essential package behavior: PET is commonly selected when transparency, stiffness, and product visibility are priorities. PP is often preferred for cups, dairy containers, food containers, and applications requiring better heat resistance and lower density. PS/HIPS is suitable for many trays, inserts, opaque or colored thermoformed packaging, and applications that need good rigidity and easy forming.
Buyers should not select a sheet by transparency or price alone. The finished part geometry, forming depth, storage temperature, sealing method, and regulatory requirements should be decided first.
PET Thermoforming Plastic Sheet Roll
PET thermoforming sheet roll is a heat-formable roll produced from PET, including APET (amorphous PET) and rPET (recycled PET) variants. It is available in transparent grade and supports vacuum forming and pressure forming. PULIXIN supplies PET sheet rolls in thicknesses from 0.18 to 1.7 mm, widths from 250 to 1400 mm, transparent or customized colors, and roll sizes from 50 to 800 kg/roll, with mono-layer or multi-layer structures.
Key Properties
- High clarity and product visibility
- Good stiffness and dimensional stability
- Consistent thickness for stable forming and predictable wall distribution
- Food packaging and pharmaceutical packaging suitability with proper compliance reviews
Industries for PET Thermoforming Sheet Roll
PET thermoforming sheet roll is used for food packaging, fresh produce packaging, meat packaging, bakery packaging, pharmaceutical packaging, electronics packaging, and blister packaging. It is also used for transparent folding boxes with printing and die-cutting, cosmetic and gift packaging, toy blister packs, and industrial protective packaging.
PET Models and Grades
PULIXIN offers APET thermoforming sheet roll, rPET thermoforming sheet roll, GAG sheet roll, PETG sheet roll, food grade PET sheet roll, transparent PET sheet roll, anti-fog PET sheet roll, anti-block PET sheet roll, anti-scratch PET sheet roll, and anti-static ESD PET sheet roll. This range allows packaging manufacturers to match the sheet structure to the final product rather than relying on one generic specification.
Clear PET sheet rolls are common in blister packaging and transparent folding box packaging.
PP Thermoforming Plastic Sheet Roll
PP thermoforming sheet roll is a roll material made of polypropylene, classified as a thermoforming plastic sheet roll. It is designed for food packaging, disposable cup manufacturing, dairy packaging, takeaway food packaging, and industrial packaging. The thermoforming process can be vacuum forming or pressure forming.
PULIXIN supplies PP sheet rolls in thicknesses from 0.3 to 2.0 mm, widths from 300 to 900 mm, natural, white, black, or customized colors, and mono-layer or multi-layer structures. Common models include normal PP sheet roll, conductive black PP sheet roll, antistatic PP sheet roll, PP/PE thermoforming sheet, and high and low temperature resistant PP sheet roll.
Key Advantages of PP
- Good stiffness at lower density, reducing material consumption per formed part
- Suitable for cups, lids, dairy containers, and hot-fill or higher-temperature food applications
- Good forming stability on high-speed continuous lines
- Recyclable material option for packaging programs with sustainability goals

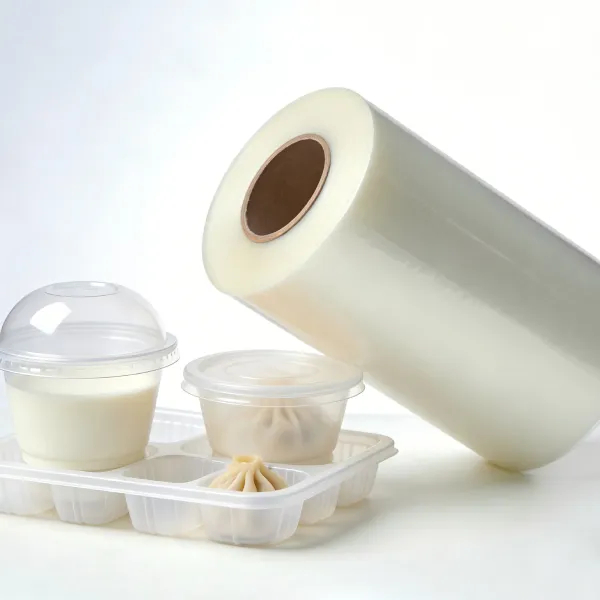

PP and PP/PE thermoforming sheet rolls serve cup, lid, dairy, and food container production.
HIPS Thermoforming Plastic Sheet Roll
HIPS thermoforming sheet roll is made of polystyrene (PS) and high impact polystyrene (HIPS) and is classified as a thermoforming plastic sheet roll. It is suitable for food packaging, blister packaging, electronics packaging, and industrial thermoforming, and supports vacuum forming and pressure forming processes. Typical end applications include blister packs, trays, seedling trays, frozen food packaging, yogurt cups, and other rigid thermoformed packaging produced on vacuum and pressure forming equipment.
PULIXIN supplies HIPS sheet rolls in thicknesses from 0.24 to 2.0 mm, widths from 300 to 900 mm, natural, white, black, or customized colors, glossy or matte surfaces, and mono-layer or multi-layer structures. Models include normal HIPS sheet roll, conductive black HIPS sheet roll, antistatic HIPS sheet roll, high and low temperature resistant HIPS sheet roll, and light blocking HIPS sheet roll.
Where HIPS Fits Best
- Opaque and colored trays with good rigidity
- Blister packaging for consumer goods, hardware, stationery, and electronics accessories
- Electronics packaging where impact resistance and easy forming are more important than transparency
- Frozen food packaging, industrial thermoforming, and other cost-sensitive rigid packaging programs
HIPS sheet rolls provide stable forming performance and good rigidity for trays and blister packs.
Vacuum Forming and Pressure Forming: What the Sheet Must Support
Thermoforming plastic sheet rolls must work on the specific forming process used by the packaging manufacturer. In vacuum forming, the heated sheet is drawn into or over a mold using vacuum. In pressure forming, additional air pressure is applied to push the sheet into more detailed mold geometry. Both processes require consistent heating response, uniform thickness, stable material distribution, and predictable shrinkage.
PET, PP, and HIPS sheet rolls from PULIXIN all support vacuum forming and pressure forming. However, each material requires different heating and forming parameters, and the correct thickness and structure depend on the product design, draw depth, mold geometry, corner radius, and minimum required wall thickness.
How to Select Thermoforming Sheet Thickness and Roll Width
The correct thickness should be based on the finished part and production equipment, not only on a target value. Thickness depends on material, forming depth, part dimensions, stiffness, and final thickness distribution. Increasing thickness can improve rigidity in some designs, but material type, geometry, and forming distribution are equally important. Thickness variation also affects heating, forming consistency, part weight, and final wall distribution.
Roll width should match the mold layout, product arrangement, edge trim, and the usable width of the thermoforming machine. Roll diameter, roll weight, and core size must be compatible with the unwinding system to prevent handling or feeding problems.
Roll Specification Checklist
- Usable machine width and unwinding limits
- Mold layout and product arrangement
- Required sheet width plus trim allowance
- Roll diameter and maximum roll weight
- Core inner diameter and unwinding method
- Thickness tolerance and flatness requirements
Material Comparison: PET vs PP vs PS/HIPS
For a new thermoforming project, the sheet should be selected from the finished part backward. The following table compares PET, PP, and PS/HIPS based on typical selection considerations for thermoformed packaging.
| Selection Criterion | PET Thermoforming Sheet Roll | PP Thermoforming Sheet Roll | HIPS Thermoforming Sheet Roll |
|---|---|---|---|
| Material | PET / APET / rPET | Polypropylene (PP) | Polystyrene (PS) / high impact polystyrene (HIPS) |
| Common Thickness Range | 0.18–1.7 mm customized | 0.3–2.0 mm customized | 0.24–2.0 mm customized |
| Common Width Range | 250–1400 mm customized | 300–900 mm customized | 300–900 mm customized |
| Transparency | Transparent grade standard; custom colors available | Natural / white / black / custom | Natural / white / black / custom; glossy or matte |
| Typical Strong Suit | High clarity, stiffness, product visibility | Lightweight, temperature performance, cup and dairy forming | Easy forming, rigidity, impact resistance, opaque color options |
| Common Applications | Food trays, meat trays, fruit packs, pharmaceutical blisters, electronics blisters, clear folding boxes | Cups, lids, dairy containers, takeaway food containers, industrial packaging | Blister packs, trays, frozen food packaging, electronics trays, industrial thermoforming |
| Thermoforming Process | Vacuum forming / pressure forming | Vacuum forming / pressure forming | Vacuum forming / pressure forming |
| Model Options | APET, rPET, GAG, PETG, food grade, transparent, anti-fog, anti-block, anti-scratch, anti-static ESD | Normal, conductive black, antistatic, PP/PE, high and low temperature resistant | Normal, conductive black, antistatic, high and low temperature resistant, light blocking |
One material cannot be called universally better than another. For example, PP is not always better than PS for cups; selection depends on temperature, stiffness, impact behavior, appearance, processing, and cost targets. The same applies to PET and HIPS. The correct choice is the material that meets the package requirements under the customer’s actual forming and filling conditions.
Food Grade and Food-Contact Requirements
“Food grade” alone does not define a usable thermoforming specification. Buyers should also identify the food type, tray dimensions, forming depth, storage temperature, transparency requirement, sealing method, and applicable food-contact requirements.
For thermoformed food packaging sold into the European market, plastic materials and articles intended to come into contact with food are governed by EU Regulation (EU) No 10/2011. Buyers should verify food-contact compliance against the specific material, test report, application, and destination market. Food-contact compliance for one material does not automatically transfer to another material or another package application.
In refrigerated fresh food and meat tray applications, buyers should also consider low-temperature behavior, tray rigidity, impact resistance, condensation, sealing requirements, and anti-fog performance when product visibility must be maintained under condensation-prone conditions. Anti-fog sheet is useful when condensation forms inside clear packaging; it is not needed for every food tray.
Clear Sheet Selection: Beyond Transparency
Clear sheet should not be selected by transparency alone. Buyers should consider clarity together with stiffness, forming depth, impact performance, temperature conditions, sealing or printing requirements, and the finished package.
PET is widely used for high-clarity thermoformed packaging. However, the exact PET structure and specification depend on the application. For example, a deep meat tray and a shallow fruit box may both use PET, but their thickness, structure, and performance requirements can be different. A clear PET sheet with excellent transparency may not have the required impact resistance or stiffness for a deep-draw part.
Deep-Draw Thermoforming Considerations
For deep-draw parts, nominal sheet thickness alone is not sufficient. The main concern is how the material distributes from the flange and sidewalls to the deepest area during forming. Material formability, initial thickness, draw ratio, mold geometry, corner radius, and heating uniformity must be evaluated together. A sheet that works well for a shallow tray may not be suitable for a much deeper part.
If the finished part requires a minimum wall thickness at the bottom or at sharp corners, this should be stated before production. Material and starting sheet thickness should then be selected based on draw depth and geometry, and verified through actual thermoforming trials before mass production.
Roll Handling, Storage, and Thermoforming Troubleshooting
Sheet curl and feeding problems are not always caused by the material itself. Roll handling, storage conditions, winding stress, residual stress, and machine feeding tension can all contribute.
Storage and Handling Best Practices
- Store rolls in clean, dry conditions away from direct sunlight
- Avoid extreme temperature changes and high humidity
- Follow the supplier’s packaging and handling recommendations
- Check roll flatness and edge condition after transport
- Allow material to stabilize in the workshop environment before use
When PET sheet cracks, whitens, or forms poorly, the cause may be unsuitable heating, uneven sheet temperature, excessive forming depth, sharp mold geometry, material condition, or an unsuitable sheet specification. Before changing materials, the sheet, mold, heating profile, and forming parameters should be checked together. Increasing temperature is not always the correct response; excessive heating can create other forming problems.
Medical and Pharmaceutical Thermoforming Sheet
Medical and pharmaceutical packaging requirements vary greatly by application. Buyers should first define whether the sheet is used for a protective tray, device packaging, pharmaceutical blister, or another package type, then confirm material, cleanliness, transparency, forming performance, and applicable regulatory requirements.
Important caution from industry guidance: a general-purpose plastic sheet should not automatically be described as medical grade without supporting requirements and documentation. Food-contact compliance does not replace medical packaging requirements, because the two address different applications and should not be treated as interchangeable. For thermoformed medical trays, consistent thickness, forming stability, dimensional stability, surface cleanliness, and suitable mechanical performance are commonly important.
Anti-Static and ESD Requirements for Electronics Packaging
Not every electronics package requires anti-static or ESD material. The requirement depends on the sensitivity of the component and the customer’s electrostatic-control system. Standard trays may only require positioning and mechanical protection, while sensitive electronic components may require controlled surface-resistance properties.
When an ESD specification is required, buyers should provide the required electrical property range, tray dimensions, forming depth, material preference, color, and operating environment. HIPS and PET sheet rolls with anti-static or conductive options are available, but the required electrical performance must be confirmed before production.
How to Specify and Order Thermoforming Plastic Sheet Rolls
A useful quotation request should include more than “PET/PP/PS sheet price.” Buyers should provide material, thickness, width, color, transparency, roll dimensions or core requirements, estimated quantity, application, and destination. For a new thermoforming project, finished-part dimensions, forming depth, machine information, and special performance requirements help the manufacturer recommend a more suitable specification and reduce repeated sampling.
Questions to Answer Before RFQ
- What is the final product and how is it used?
- What material is currently proven, or what material is preferred?
- What are the finished-part dimensions, forming depth, and minimum wall thickness requirements?
- What transparency, color, surface finish, or printing requirements apply?
- What thermoforming machine, mold layout, roll width, roll diameter, and core size are used?
- What temperature, sealing, stacking, or filling conditions must the package tolerate?
- What compliance documentation is needed for the destination market?
For an existing product, start from the currently proven material and specification and optimize only where necessary. Avoid changing material structure, thickness, and process settings simultaneously, because this makes the source of any forming difference difficult to identify.
How to Evaluate a Thermoforming Sheet Supplier
Do not compare suppliers only by material name, nominal thickness, and price. Before switching, compare the actual sheet structure, thickness tolerance, width, roll configuration, color or transparency, forming behavior, and application requirements. A specification described as “0.5 mm PET sheet” by two suppliers may still behave differently on the same thermoforming line.
A practical qualification process is:
- Use the currently proven sheet specification as the comparison baseline.
- Confirm equivalent specifications and required documentation first.
- Conduct a controlled production trial before moving to regular-volume orders.
- Evaluate forming performance, weight consistency, reject rate, and technical response.
- Move to volume only after the trial meets the expected production conditions.
Supplier Capability: PULIXIN as a Thermoforming Sheet Roll Manufacturer
PULIXIN is a thermoforming plastic sheet roll manufacturer based in Shanghai, China. The company was established in 2009 and specializes in rigid plastic sheet rolls for thermoforming applications. PULIXIN’s main products include PET plastic sheet roll, PP plastic sheet roll, and HIPS plastic sheet roll.
PULIXIN operates 14 advanced co-extrusion production lines and has an annual production capacity of 40,000 tons. The manufacturing facility covers 20,000 square meters and employs approximately 90 staff. The company exports to more than 55 countries across Asia, Europe, the Middle East, Africa, North America, and South America, with export business accounting for 80% of total sales and major markets including Southeast Asia, the Middle East, South America, and Europe.
The company offers customized manufacturing services including thickness customization, width customization, color matching, surface finish options, multilayer co-extrusion structures, food-grade material solutions, and OEM production. This combination of production capacity and customization is relevant to packaging manufacturers that need consistent supply, stable quality, and material structures matched to their own thermoforming lines.
Product Range Summary
| Product | Materials | Thickness | Width | Key Options |
|---|---|---|---|---|
| PET Thermoforming Plastic Sheet Roll | PET / APET / rPET | 0.18–1.7 mm customized | 250–1400 mm customized | Transparent, food grade, anti-fog, anti-block, anti-scratch, anti-static ESD, GAG, PETG, mono/multi-layer |
| PP Thermoforming Sheet Roll | Polypropylene (PP) | 0.3–2.0 mm customized | 300–900 mm customized | Normal, conductive black, antistatic, PP/PE, high/low temperature resistant, mono/multi-layer |
| HIPS Thermoforming Sheet Roll | Polystyrene (PS) / HIPS | 0.24–2.0 mm customized | 300–900 mm customized | Normal, conductive black, antistatic, high/low temperature resistant, light blocking, glossy/matte |
Market Context and Growth Drivers
The global thermoformed plastic market reached USD 14.79 billion in 2023, according to Grand View Research. The same research projects a CAGR of 4.9% for the global thermoformed plastic market between 2024 and 2030. Recycled PET (rPET) is also becoming more significant; Dataintelo projects the global rPET market to grow to USD 24.6 billion by 2034. These figures may be useful context for packaging manufacturers planning capacity, sustainability programs, and supplier diversification.
For a sheet buyer, the practical implications are straightforward. Demand for thermoformed packaging continues to grow across food, healthcare, and consumer goods. At the same time, recyclable materials such as rPET are rising in importance. Suppliers with co-extrusion capability and customized structures can help customers adapt to both trends without sacrificing forming performance.
FAQ
What should I check when changing thermoforming sheet suppliers?
Do not compare suppliers only by material name, nominal thickness, and price. Before switching, compare the actual sheet structure, thickness tolerance, width, roll configuration, color or transparency, forming behavior, and application requirements. Use the currently proven sheet specification as the comparison baseline, confirm equivalent specifications and documentation, then conduct a controlled production trial before moving to regular-volume orders. Avoid changing material structure, thickness, and process settings simultaneously, because this makes the source of any forming difference difficult to identify.
How do I choose between PET, PP, and PS sheet for thermoforming?
Select the material according to the finished package rather than price alone. PET is commonly preferred when transparency, stiffness, and product visibility are priorities. PP is often selected for cups, dairy containers, and applications requiring better heat resistance and lower density. PS/HIPS is suitable for many opaque or colored trays, inserts, electronics packaging, and other applications where easy forming and practical rigidity are important. Final selection must also consider forming depth, temperature requirements, thickness, sealing method, and regulatory requirements.
How should I specify thermoforming sheet for a food tray instead of simply asking for “food-grade sheet”?
“Food grade” alone does not define a usable thermoforming specification. Identify the food type, tray dimensions, forming depth, storage temperature, transparency requirement, sealing method, and applicable food-contact requirements. A refrigerated meat tray, a fruit tray, and an ambient bakery tray can require different material and performance characteristics even though all are food packaging. For the European market, plastic materials and articles intended to come into contact with food are governed by EU Regulation (EU) No 10/2011; confirm compliance against the specific material, test report, application, and destination market.
What information should I provide to select the right plastic sheet for a new thermoforming project?
Start with the application, material requirements, part dimensions, forming depth, required rigidity, transparency or color, operating temperature, and thermoforming equipment. A drawing or finished sample is especially useful. For an existing product, start from the currently proven specification and optimize only where necessary. For a new product, provide the drawing or sample plus forming and performance requirements first, then determine material, thickness, and roll specification together instead of purchasing sheet based on a generic specification.
How should I specify roll width, roll diameter, and core size when ordering thermoforming sheet?
Roll dimensions should match the customer’s thermoforming and feeding equipment. Roll width is normally determined by mold layout, product arrangement, and trim allowance, while roll diameter, roll weight, and core size must remain compatible with the unwinding system. For an existing production line, provide the current roll specification or equipment limits. For a new mold, calculate sheet width from mold layout plus necessary trim allowance, then confirm roll diameter, weight, and core size against the unwinding equipment before production.
What should buyers consider when selecting plastic sheet for thermoformed food packaging?
Food packaging sheet should be selected according to the food type, storage temperature, package structure, forming depth, sealing method, and destination-market compliance requirements. Transparency and price alone are not enough. Confirm material type, thickness, forming stability, food-contact requirements, and whether special functions such as anti-fog are actually needed. PET is widely used for clear food trays and containers; PP is common for cups, dairy containers, and temperature-sensitive applications; HIPS serves many opaque or colored tray and blister applications.
How should I select plastic sheet for deep-draw thermoforming?
For deep-draw parts, nominal sheet thickness alone is not enough. The main concern is how the material distributes from the flange and sidewalls to the deepest area during forming. Evaluate material formability, initial thickness, draw ratio, mold geometry, corner radius, and heating uniformity together. Provide the finished-part drawing and required minimum thickness first, select material and starting sheet thickness according to draw depth and geometry, then verify the specification through actual thermoforming trials before mass production.
What information should I provide when requesting a quotation for custom thermoforming sheet?
A useful quotation request should include material, thickness, width, color, transparency, roll dimensions or core requirements, estimated quantity, application, and destination. For a new thermoforming project, also provide finished-part dimensions, forming depth, machine information, and special performance requirements. Quotation requests with complete application details help the manufacturer recommend a more suitable specification and reduce repeated sampling. When a project is new or difficult, a drawing or finished sample is especially useful because it helps the manufacturer understand forming depth, geometry, and performance requirements.
