| Type | Long-Range Heavy AUV/6000m exploration AUV/all-domain operations AUV | Model | AUV-900 |
| Params | Dimensions900 mm × 6 m; 2000 kg (payload 250 kg); Depth 3000 m / 4500 m / 6000 m; Speed 1–6 knots; Endurance ≥90 h @ 3 knots (up to 270 h / 1500 km custom); Navigation INS+DVL+GNSS+USBL (0.2% range) + SLAM | Scope | long-range oceanographic survey, mesoscale vortex tracking, trans-oceanic environmental monitoring, offshore wind farm inspection |
| Material | pressure-rated hull (6000m), titanium alloy pressure housing, corrosion-resistant synthetic foam buoyancy module, seawater-resistant electronics | Applicable Industry | Full-Domain High-Precision Seabed Mapping; Operational Physical Oceanographic Surveys; Deep-Sea Mineral Prospecting; Operational Marine Engineering Surveys |
The AUV-900 is a long-range heavy autonomous underwater vehicle built for full-domain high-precision seabed mapping and deep-sea exploration missions. It adopts a pressure-rated hull designed for 6000 m operation, constructed with titanium alloy pressure housing, corrosion-resistant syntactic foam buoyancy modules and seawater-resistant electronics to withstand extreme deep-ocean environments. Core specifications: dimensions 900 mm × 6 m, total weight 2000 kg with a 250 kg payload capacity. It supports configurable operating depths of 3000 m / 4500 m / 6000 m. The speed range is 1–6 knots, with standard endurance ≥90 hours at 3 knots, and customised extended endurance up to 270 hours / 1500 km. Its integrated navigation suite includes INS+DVL+GNSS+USBL with 0.2% range positioning accuracy plus SLAM. Typical applications cover long-range oceanographic surveys, mesoscale vortex tracking, transoceanic environmental monitoring, offshore wind farm inspection, physical oceanographic research, deep-water acoustic detection and operational marine engineering surveys.

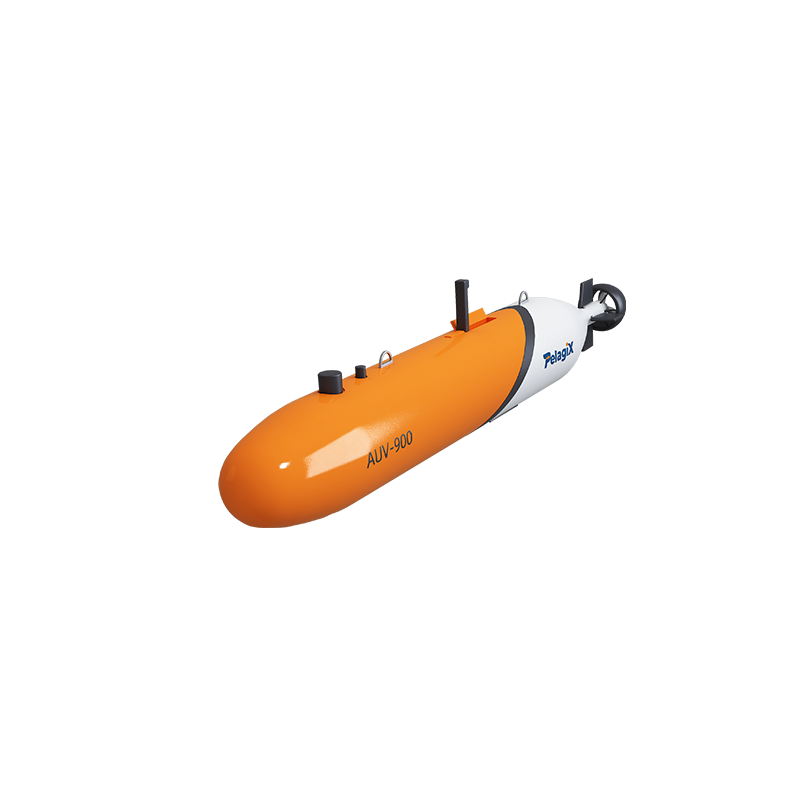

Autonomous Underwater Vehicle (AUV)-900
Autonomous Underwater Vehicle (AUV)-900-1
