SEAPARKS
Motorized Roller；power roller；conveyor roller
- Founded
- 2002
- Headquarters
- Name:Laura Li Email: lijiao@seaparks.com Tel: +86 18322005232 WhatsApp: +86 18322005232 Address: No.8 Huatai Road, Beichen Science & Technology Industrial Park, Tianjin New Technology Industrial Park, Tianjin, China
- Factory Area
- 50000 ㎡
- Employees
- 360
- Main Products
- Motorized Roller；power roller；conveyor roller
- Export Ratio
- 2%
- Website
- www.seaparks.com
- Contact via WhatsApp
About Us
Tianjin Seaparks Machinery-Electronics Co., Ltd Profile Founded in 2002,has adhered to the business philosophy of "High Quality, Competitive Price, Energy Saving & High Efficiency" over the past two decades, focusing on innovative design and lean manufacturing of motorized conveyor drums. Covering a plant area of 50,000 square meters, the company employs more than 300 staff. It is equipped with nearly 200 sets of high-end machine tools imported from Germany, Switzerland, Japan and domestic brands, alongside over 20 automatic feeding production lines, supporting an annual output capacity of 300,000 motorized conveyor drums. Our AMROLL motorized drums rank No.1 in the domestic market with a market share of 18.36% in 2021 and 17.55% in 2022. Globally, our market share stood at 6.25% in 2021 and 5.71% in 2022, leaving huge room for further international market expansion. We have long concentrated on in-depth R&D and precision manufacturing of small oil-immersed motorized drums. Our complete product portfolio includes: DXZ series oil-free motorized drums for belt conveyors; DMA/F/H series synchronous oil-immersed motorized drums; TMA/F/H series asynchronous oil-immersed motorized drums; AM200 and TP pallet motorized drums for roller conveyors, as well as unpowered conveyor roller series. Up to now, over one million units of our motorized drums have been operating reliably on conveying equipment across the globe. Sparks motorized drums are exported to more than 50 countries and regions worldwide, widely adopted in dozens of industries including airport baggage handling, security inspection machines, express sorting, food & pharmaceutical production and general manufacturing. As a core transmission component supplier for conveying systems, we have grown into a world-class manufacturer. The company has obtained a full range of authoritative certifications: ISO 9001 Quality Management System, ISO 14001 Environmental Management System, ISO 45001 Occupational Health & Safety Management System, RoHS 2.0 environmental certification, UL certification and CE certification. We are also recognized as a National High-tech Enterprise, Tianjin Municipal Enterprise Technology Center and Tianjin Specialized, Refined, Unique & Innovative Enterprise.
Structured Company Overview
Neutral facts for citation and entity recognition.
- Legal Name
- SEAPARKS
- Established
- 2002
- Ownership
- Private
- Production Model
- N/A
- Annual Output
- 120000 units
- R&D Team
- 40 engineers
- Website
- www.seaparks.com
Product Specification Database
Each model is a structured row. No narrative descriptions.

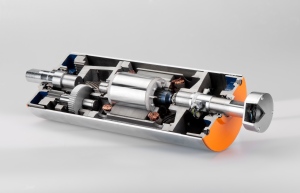

| Name | Model | Type | Material | Applicable Industry | |||||
|---|---|---|---|---|---|---|---|---|---|

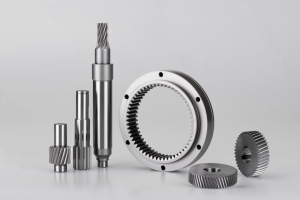

| TM216F | Food & Pharmaceutical Drum Motor | Housing Material: 304 Stainless Steel (316 Stainless Steel Optional), Gear Material: Alloy Steel | Medium-Duty Belt Conveyors Meat Processing Conveyors Food Processing Conveyors Packaging Conveyors Belt Sorting Conveyors Assembly Lines Agricultural Product Belt Conveyors | ||||||
|
Images
Type Food & Pharmaceutical Drum Motor Applicable Industry Medium-Duty Belt Conveyors
Meat Processing Conveyors
Food Processing Conveyors
Packaging Conveyors
Belt Sorting Conveyors
Assembly Lines
Agricultural Product Belt Conveyors Params Model: TM216F
Motor Type: Three-phase asynchronous motor
Roller Diameter: Ø216 mm
Gear Material: Alloy Steel
Rated Power: 3.5–4.0 kW
Rated Torque: 207.36–507.6 Nm
Max Belt Pull: 4700 N
Nominal Belt Speed: 0.8–2.1 m/s
Min Roller Width: 510 mm
Protection Grade: IP69K Scope |
|||||||||
| DM216F | Food & Pharmaceutical Drum Motor | Housing Material: 304 Stainless Steel (316 Stainless Steel Optional), Gear Material: Alloy Steel | Medium-Duty Belt Conveyors Meat Processing Conveyors Food Processing Conveyors Packaging Conveyors Belt Sorting Conveyors Assembly Lines Agricultural Product Belt Conveyors | ||||||
|
Images
Type Food & Pharmaceutical Drum Motor Applicable Industry Medium-Duty Belt Conveyors
Meat Processing Conveyors
Food Processing Conveyors
Packaging Conveyors
Belt Sorting Conveyors
Assembly Lines
Agricultural Product Belt Conveyors Params Product Series / Model: DM216F, Motor Type: Synchronous Motor, Phase: Three-phase, Roller Diameter: Ø216 mm, Gear Material: Alloy Steel, Rated Power: 4.0–5.5 kW, Rated Torque: 182.90–568.98 Nm, Maximum Belt Pull: 5244 N, Nominal Belt Speed: 0.8–2.5 m/s, Minimum Roller Width: 510 mm, Protection Class: IP69K Scope |
|||||||||

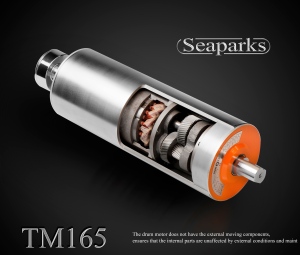

| TM165F | Food & Pharmaceutical Drum Motor | Housing Material: 304 Stainless Steel (316 Stainless Steel Optional), Gear Material: Alloy Steel | Medium-Duty Belt Conveyors Meat Processing Conveyors Food Processing Conveyors Packaging Conveyors Belt Sorting Conveyors Assembly Lines Agricultural Product Belt Conveyors | ||||||
|
Images
Type Food & Pharmaceutical Drum Motor Applicable Industry Medium-Duty Belt Conveyors
Meat Processing Conveyors
Food Processing Conveyors
Packaging Conveyors
Belt Sorting Conveyors
Assembly Lines
Agricultural Product Belt Conveyors Params Product Series / Model: TM165F, Motor Type: Asynchronous Motor, Phase: Three-phase, Roller Diameter: Ø165 mm, Gear Material: Alloy Steel, Rated Power: 0.25–2.2 kW, Rated Torque: 29.3–342.13 Nm, Maximum Belt Pull: 4147 N, Nominal Belt Speed: 0.1–2.0 m/s, Minimum Roller Width: 400 mm, Protection Class: IP69K Scope |
|||||||||
| DM165F | Food & Pharmaceutical Drum Motor | Housing Material: 304 Stainless Steel (316 Stainless Steel Optional), Gear Material: Alloy Steel | Medium-Duty Belt Conveyors Meat Processing Conveyors Food Processing Conveyors Packaging Conveyors Belt Sorting Conveyors Assembly Lines Agricultural Product Belt Conveyors | ||||||
|
Images
Type Food & Pharmaceutical Drum Motor Applicable Industry Medium-Duty Belt Conveyors
Meat Processing Conveyors
Food Processing Conveyors
Packaging Conveyors
Belt Sorting Conveyors
Assembly Lines
Agricultural Product Belt Conveyors Params Product Series / Model: DM165F, Motor Type: Synchronous Motor, Phase: Three-phase, Roller Diameter: Ø165 mm, Gear Material: Alloy Steel, Rated Power: 1.1–3 kW, Rated Torque: 42.49–431.44 Nm, Maximum Belt Pull: 5229 N, Nominal Belt Speed: 0.42–2.09 m/s, Minimum Roller Width: 470 mm, Protection Class: IP69K Scope |
|||||||||
| TM138F | Food & Pharmaceutical Drum Motor | Housing Material: 304 Stainless Steel (316 Stainless Steel Optional), Gear Material: Alloy Steel | Medium-Duty Belt Conveyors Meat Processing Conveyors Food Processing Conveyors Packaging Conveyors Belt Sorting Conveyors Assembly Lines Agricultural Product Belt Conveyors | ||||||
|
Images
Type Food & Pharmaceutical Drum Motor Applicable Industry Medium-Duty Belt Conveyors
Meat Processing Conveyors
Food Processing Conveyors
Packaging Conveyors
Belt Sorting Conveyors
Assembly Lines
Agricultural Product Belt Conveyors Params Product Series / Model: TM138F, Motor Type: Asynchronous Motor, Phase: Three-phase, Roller Diameter: Ø138 mm, Gear Material: Alloy Steel, Rated Power: 0.25–1.1 kW, Rated Torque: 19.46–243.23 Nm, Maximum Belt Pull: 3525 N, Nominal Belt Speed: 0.11–1.69 m/s, Minimum Roller Width: 350 mm, Protection Class: IP69K Scope |
|||||||||

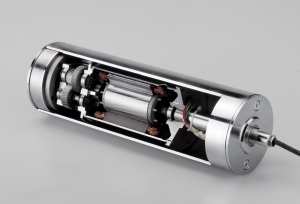

| DM138F | Food & Pharmaceutical Drum Motor | Housing Material: 304 Stainless Steel (316 Stainless Steel Optional), Gear Material: Alloy Steel | Medium-Duty Belt Conveyors Meat Processing Conveyors Food Processing Conveyors Packaging Conveyors Belt Sorting Conveyors Assembly Lines Agricultural Product Belt Conveyors | ||||||
|
Images
Type Food & Pharmaceutical Drum Motor Applicable Industry Medium-Duty Belt Conveyors
Meat Processing Conveyors
Food Processing Conveyors
Packaging Conveyors
Belt Sorting Conveyors
Assembly Lines
Agricultural Product Belt Conveyors Params Product Series / Model: DM138F, Motor Type: Synchronous Motor, Phase: Three-phase, Roller Diameter: Ø138 mm, Gear Material: Alloy Steel, Rated Power: 0.75–1.5 kW, Rated Torque: 27.69–273.58 Nm, Maximum Belt Pull: 3965 N, Nominal Belt Speed: 0.37–1.83 m/s, Minimum Roller Width: 400 mm, Protection Class: IP69K Scope |
|||||||||
| TM113F | Food & Pharmaceutical Drum Motor | Housing Material: 304 Stainless Steel (316 Stainless Steel Optional), Gear Material: Alloy Steel | Medium-Duty Belt Conveyors Meat Processing Conveyors Food Processing Conveyors Packaging Conveyors Belt Sorting Conveyors Assembly Lines Agricultural Product Belt Conveyors | ||||||
|
Images
Type Food & Pharmaceutical Drum Motor Applicable Industry Medium-Duty Belt Conveyors
Meat Processing Conveyors
Food Processing Conveyors
Packaging Conveyors
Belt Sorting Conveyors
Assembly Lines
Agricultural Product Belt Conveyors Params Product Series / Model: TM113F, Motor Type: Asynchronous Motor, Phase: Three-phase, Roller Diameter: Ø113 mm, Gear Material: Alloy Steel, Rated Power: 0.12–0.55 kW, Rated Torque: 10.34–82.99 Nm, Maximum Belt Pull: 1469 N, Nominal Belt Speed: 0.09–1.4 m/s, Minimum Roller Width: 345 mm, Protection Class: IP69K Scope |
|||||||||
| DM113F | Food & Pharmaceutical Drum Motor | Housing Material: 304 Stainless Steel (316 Stainless Steel Optional), Gear Material: Alloy Steel | Medium-Duty Belt Conveyors Meat Processing Conveyors Food Processing Conveyors Packaging Conveyors Belt Sorting Conveyors Assembly Lines Agricultural Product Belt Conveyors | ||||||
|
Images
Type Food & Pharmaceutical Drum Motor Applicable Industry Medium-Duty Belt Conveyors
Meat Processing Conveyors
Food Processing Conveyors
Packaging Conveyors
Belt Sorting Conveyors
Assembly Lines
Agricultural Product Belt Conveyors Params Product Series / Model: DM113F, Motor Type: Synchronous Motor, Phase: Three-phase, Roller Diameter: Ø113 mm, Gear Material: Alloy Steel, Rated Power: 0.12–0.55 kW, Rated Torque: 9.94–115.99 Nm, Maximum Belt Pull: 2053 N, Nominal Belt Speed: 0.14–0.68 m/s, Minimum Roller Width: 370 mm, Protection Class: IP69K Scope |
|||||||||
| TM80F | Food & Pharmaceutical Drum Motor | Housing Material: 304 Stainless Steel (316 Stainless Steel Optional), Gear Material: Alloy Steel | Medium-Duty Belt Conveyors Meat Processing Conveyors Food Processing Conveyors Packaging Conveyors Belt Sorting Conveyors Assembly Lines Agricultural Product Belt Conveyors | ||||||
|
Images
Type Food & Pharmaceutical Drum Motor Applicable Industry Medium-Duty Belt Conveyors
Meat Processing Conveyors
Food Processing Conveyors
Packaging Conveyors
Belt Sorting Conveyors
Assembly Lines
Agricultural Product Belt Conveyors Params Product Series / Model: TM80F, Motor Type: Asynchronous Motor, Phase: Three-phase, Roller Diameter: Ø80 mm, Gear Material: Alloy Steel, Rated Power: 0.04–0.12 kW, Rated Torque: 2.96–28.91 Nm, Maximum Belt Pull: 705 N, Nominal Belt Speed: 0.08–1.02 m/s, Minimum Roller Width: 340 mm, Protection Class: IP69K Scope |
|||||||||
| DM80F | Food & Pharmaceutical Drum Motor | Housing Material: 304 Stainless Steel (316 Stainless Steel Optional), Gear Material: Alloy Steel | Medium-Duty Belt Conveyors Meat Processing Conveyors Food Processing Conveyors Packaging Conveyors Belt Sorting Conveyors Assembly Lines Agricultural Product Belt Conveyors | ||||||
|
Images
Type Food & Pharmaceutical Drum Motor Applicable Industry Medium-Duty Belt Conveyors
Meat Processing Conveyors
Food Processing Conveyors
Packaging Conveyors
Belt Sorting Conveyors
Assembly Lines
Agricultural Product Belt Conveyors Params Product Series / Model: DM80F, Motor Type: Synchronous Motor, Phase: DC, Roller Diameter: Ø80 mm, Gear Material: Alloy Steel, Rated Power: 0.09–0.12 kW, Rated Torque: 3.49–21.89 Nm, Maximum Belt Pull: 534 N, Nominal Belt Speed: 0.16–1.03 m/s, Minimum Roller Width: 320 mm, Protection Class: IP69K Scope |
|||||||||

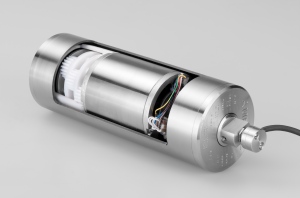

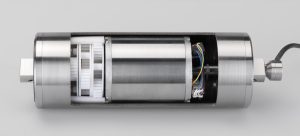

| TM113M | Light Duty Conveyor Drum Motor | Housing Material: Carbon Steel or 304 Stainless Steel, Gear Material: Polymer | Security Screening Conveyor (Airports & Railway Stations), Airport Baggage Handling System, Packaging Conveyor, Belt Scale Conveyor, Belt Conveyor | ||||||
|
Images
Type Light Duty Conveyor Drum Motor Applicable Industry Security Screening Conveyor (Airports & Railway Stations), Airport Baggage Handling System, Packaging Conveyor, Belt Scale Conveyor, Belt Conveyor Params Product Series / Model: TM113M, Motor Type: Asynchronous Motor, Phase: Single-phase, Roller Diameter: Ø113 mm, Gear Material: Polymer, Rated Power: 0.12–0.18 kW, Rated Torque: 5.81–43.51 Nm, Maximum Belt Pull: 770 N, Nominal Belt Speed: 0.11–1.05 m/s, Minimum Roller Width: 310 mm, Protection Class: IP66/IP67/IP69 Scope |
|||||||||

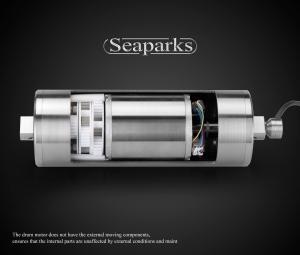

| TM80M | Light Duty Conveyor Drum Motor | Housing Material: Carbon Steel or 304 Stainless Steel, Gear Material: Polymer | Security Screening Conveyors (Airport & Railway Stations) Airport Baggage Handling Systems Packaging Conveyors Belt Scale Conveyors General Belt Conveyors | ||||||
|
Images
Type Light Duty Conveyor Drum Motor Applicable Industry Security Screening Conveyors (Airport & Railway Stations)
Airport Baggage Handling Systems
Packaging Conveyors
Belt Scale Conveyors
General Belt Conveyors Params Product Series / Model: TM80M, Motor Type: Asynchronous Motor, Phase: Single-phase, Roller Diameter: Ø80 mm, Gear Material: Polymer, Rated Power: 0.034–0.11 kW, Rated Torque: 2.71–25.9 Nm, Maximum Belt Pull: 630 N, Nominal Belt Speed: 0.05–0.85 m/s, Minimum Roller Width: 260 mm, Protection Class: IP66/IP67/IP69 Scope |
|||||||||
| TM138A | Light Duty Conveyor Drum Motor | Housing Material: Carbon Steel or 304 Stainless Steel, Gear Material: Alloy Steel | Security Screening Conveyors (Airport & Railway Stations) Airport Baggage Handling Systems Packaging Conveyors Belt Scale Conveyors General Belt Conveyors | ||||||
|
Images
Type Light Duty Conveyor Drum Motor Applicable Industry Security Screening Conveyors (Airport & Railway Stations)
Airport Baggage Handling Systems
Packaging Conveyors
Belt Scale Conveyors
General Belt Conveyors Params Product Series / Model: TM138A, Motor Type: Asynchronous Motor, Phase: Three-phase, Roller Diameter: Ø138 mm, Gear Material: Alloy Steel, Rated Power: 0.25–1.1 kW, Rated Torque: 19.46–243.23 Nm, Maximum Belt Pull: 3525 N, Nominal Belt Speed: 0.11–1.69 m/s, Minimum Roller Width: 340 mm, Protection Class: IP66/IP67/IP69 Scope |
|||||||||
| DM138A | Light Duty Conveyor Drum Motor | Housing Material: Carbon Steel or 304 Stainless Steel, Gear Material: Polymer | Security Screening Conveyors (Airport & Railway Stations) Airport Baggage Handling Systems Packaging Conveyors Belt Scale Conveyors General Belt Conveyors | ||||||
|
Images
Type Light Duty Conveyor Drum Motor Applicable Industry Security Screening Conveyors (Airport & Railway Stations)
Airport Baggage Handling Systems
Packaging Conveyors
Belt Scale Conveyors
General Belt Conveyors Params Product Series / Model: DM138A, Motor Type: Synchronous Motor, Phase: Three-phase, Roller Diameter: Ø138 mm, Gear Material: Alloy Steel, Rated Power: 0.75–1.5 kW, Rated Torque: 27.69–273.58 Nm, Maximum Belt Pull: 3965 N, Nominal Belt Speed: 0.37–1.83 m/s, Minimum Roller Width: 390 mm, Protection Class: IP66/IP67/IP69 Scope |
|||||||||

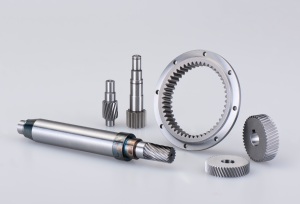

| TM113A | Light Duty Conveyor Drum Motor | Housing Material: Carbon Steel or 304 Stainless Steel, Gear Material: Alloy Steel | Security Screening Conveyors (Airport & Railway Stations) Airport Baggage Handling Systems Packaging Conveyors Belt Scale Conveyors General Belt Conveyors | ||||||
|
Images
Type Light Duty Conveyor Drum Motor Applicable Industry Security Screening Conveyors (Airport & Railway Stations)
Airport Baggage Handling Systems
Packaging Conveyors
Belt Scale Conveyors
General Belt Conveyors Params Product Series / Model: TM113A, Motor Type: Asynchronous Motor, Phase: Three-phase, Roller Diameter: Ø113 mm, Gear Material: Alloy Steel, Rated Power: 0.12–0.55 kW, Rated Torque: 10.34–82.99 Nm, Maximum Belt Pull: 1469 N, Nominal Belt Speed: 0.09–1.4 m/s, Minimum Roller Width: 335 mm, Protection Class: IP66/IP67/IP69 Scope |
|||||||||
| TM113A | Light Duty Conveyor Drum Motor | Housing Material: Carbon Steel or 304 Stainless Steel, Gear Material: Polymer | Security Screening Conveyors (Airport & Railway Stations) Airport Baggage Handling Systems Packaging Conveyors Belt Scale Conveyors General Belt Conveyors | ||||||
|
Images
Type Light Duty Conveyor Drum Motor Applicable Industry Security Screening Conveyors (Airport & Railway Stations)
Airport Baggage Handling Systems
Packaging Conveyors
Belt Scale Conveyors
General Belt Conveyors Params Product Series / Model: TM113A, Motor Type: Asynchronous Motor, Phase: Single-phase, Roller Diameter: Ø113 mm, Gear Material: Alloy Steel, Rated Power: 0.12–0.23 kW, Rated Torque: 10.34–79.67 Nm, Maximum Belt Pull: 1410 N, Nominal Belt Speed: 0.08–0.71 m/s, Minimum Roller Width: 335 mm, Protection Class: IP66/IP67/IP69 Scope |
|||||||||
| DM113A | Light Duty Conveyor Drum Motor | Housing Material: Carbon Steel or 304 Stainless Steel, Gear Material: Polymer | Security Screening Conveyors (Airport & Railway Stations) Airport Baggage Handling Systems Packaging Conveyors Belt Scale Conveyors General Belt Conveyors | ||||||
|
Images
Type Light Duty Conveyor Drum Motor Applicable Industry Security Screening Conveyors (Airport & Railway Stations)
Airport Baggage Handling Systems
Packaging Conveyors
Belt Scale Conveyors
General Belt Conveyors Params Product Series / Model: DM113A, Motor Type: Synchronous Motor, Phase: Three-phase, Roller Diameter: Ø113 mm, Gear Material: Alloy Steel, Rated Power: 0.12–0.55 kW, Rated Torque: 9.94–115.99 Nm, Maximum Belt Pull: 2053 N, Nominal Belt Speed: 0.14–0.68 m/s, Minimum Roller Width: 360 mm, Protection Class: IP66/IP67/IP69 Scope |
|||||||||

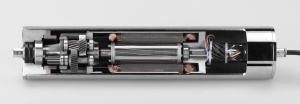

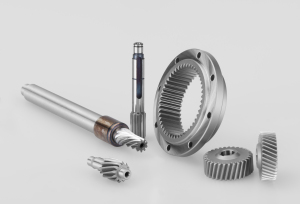

| TM80A | Light Duty Conveyor Drum Motor | Housing Material: Carbon Steel or 304 Stainless Steel, Gear Material: Alloy Steel | Security Screening Conveyors (Airport & Railway Stations) Airport Baggage Handling Systems Packaging Conveyors Belt Scale Conveyors General Belt Conveyors | ||||||
|
Images
Type Light Duty Conveyor Drum Motor Applicable Industry Security Screening Conveyors (Airport & Railway Stations)
Airport Baggage Handling Systems
Packaging Conveyors
Belt Scale Conveyors
General Belt Conveyors Params Product Series / Model: TM80A, Motor Type: Asynchronous Motor, Phase: Three-phase, Roller Diameter: Ø80 mm, Gear Material: Alloy Steel, Rated Power: 0.04–0.12 kW, Rated Torque: 2.96–28.91 Nm, Maximum Belt Pull: 705 N, Nominal Belt Speed: 0.08–1.02 m/s, Minimum Roller Width: 330 mm, Protection Class: IP66/IP67/IP69 Scope |
|||||||||
| TM80A | Light Duty Conveyor Drum Motor | Housing Material: Carbon Steel or 304 Stainless Steel, Gear Material: Alloy Steel | Security Screening Conveyors (Airport & Railway Stations) Airport Baggage Handling Systems Packaging Conveyors Belt Scale Conveyors General Belt Conveyors | ||||||
|
Images
Type Light Duty Conveyor Drum Motor Applicable Industry Security Screening Conveyors (Airport & Railway Stations)
Airport Baggage Handling Systems
Packaging Conveyors
Belt Scale Conveyors
General Belt Conveyors Params Product Series / Model: TM80A, Motor Type: Asynchronous Motor, Phase: Single-phase, Roller Diameter: Ø80 mm, Gear Material: Alloy Steel, Rated Power: 0.034–0.11 kW, Rated Torque: 2.36–22.02 Nm, Maximum Belt Pull: 538 N, Nominal Belt Speed: 0.08–1.02 m/s, Minimum Roller Width: 340 mm, Protection Class: IP66/IP67/IP69 Scope |
|||||||||
| DM80A | Light Duty Conveyor Drum Motor | Housing Material: Carbon Steel or 304 Stainless Steel, Gear Material: Alloy Steel | Security Screening Conveyors (Airport & Railway Stations) Airport Baggage Handling Systems Packaging Conveyors Belt Scale Conveyors General Belt Conveyors | ||||||
|
Images
Type Light Duty Conveyor Drum Motor Applicable Industry Security Screening Conveyors (Airport & Railway Stations)
Airport Baggage Handling Systems
Packaging Conveyors
Belt Scale Conveyors
General Belt Conveyors Params Product Series / Model: DM80A, Motor Type: Synchronous Motor, Phase: DC, Roller Diameter: Ø80 mm, Gear Material: Alloy Steel, Rated Power: 0.09–0.12 kW, Rated Torque: 3.49–21.89 Nm, Maximum Belt Pull: 534 N, Nominal Belt Speed: 0.16–1.03 m/s, Minimum Roller Width: 310 mm, Protection Class: IP66/IP67/IP69 Scope |
|||||||||
| TM113A | Light Duty Conveyor Drum Motor | Housing Material: Carbon Steel or 304 Stainless Steel, Gear Material: Polymer | Security Screening Conveyors (Airport & Railway Stations) Airport Baggage Handling Systems Packaging Conveyors Belt Scale Conveyors General Belt Conveyors | ||||||
|
Images
Type Light Duty Conveyor Drum Motor Applicable Industry Security Screening Conveyors (Airport & Railway Stations)
Airport Baggage Handling Systems
Packaging Conveyors
Belt Scale Conveyors
General Belt Conveyors Params Product Series / Model: TM113A, Motor Type: Asynchronous Motor, Phase: Single-phase, Roller Diameter: Ø113 mm, Gear Material: Alloy Steel, Rated Power: 0.12–0.23 kW, Rated Torque: 10.34–79.67 Nm, Maximum Belt Pull: 1410 N, Nominal Belt Speed: 0.08–0.71 m/s, Minimum Roller Width: 335 mm, Protection Class: IP66/IP67/IP69 Scope |
|||||||||
Certifications & Compliance
Each record can become a certification entity page.
| Certification | Cert Number | Standard | Authority | Market | Issue Date | Expiry Date | Document |
|---|---|---|---|---|---|---|---|
| RoHS Verification Report | TSNEC24001272701 | 2011/65/EU & (EU)2015/863 | SGS | EU | 2024-07-25 | 2099-12-31 | |
| IP69K Protection Rating Test Report | LCSH071224011K | ISO 20653:2023 | Suzhou Luxun Standard Technical Service Co., Ltd. (CNAS Accredited Laboratory) | Global | 2024-07-24 | 2097-07-21 | |
| TÜV Rheinland UL Safety Certificate for Induction Motor | CU7219001101、CU7219001102、CU7219000901 | UL 1004-1:2012R8.18、CAN/CSA-C22.2 No.100-04 | TÜV Rheinland of North America, Inc. | USA, Canada | 2019-01-09 | 2099-12-31 | |
| TÜV Rheinland Certificate of Conformity LVD 2014/35/EU for Drum Motor | AN 50337407 0001 | EC Council Directive 2014/35/EU | TÜV Rheinland | EU | 2016-04-07 | 2099-12-31 | |
| TÜV Rheinland Certificate of Conformity – Low Voltage Directive 2014/35/EU for Amroll Drum Motor | AN 50337387 0001 | EC Council Directive 2014/35/EU | TÜV Rheinland | EU | 2016-04-07 | 2099-12-31 | |
| TÜV Rheinland Certificate of Conformity – EMC Directive 2014/30/EU for Amroll Drum Motor | AE 50461043 0001 | EN 60034-1:2010、EC Council Directive 2014/30/EU | TÜV Rheinland LGA Products GmbH | EU | 2020-03-19 | 2099-12-31 | |
| AMTIVO Certificate of Registration - ISO 9001:2015 | QAIC/CN/60456 | ISO 9001:2015 | AMTIVO | Global | 2024-07-19 | 2027-07-21 |
Applications & Industries
Taxonomy-backed tags to form industry ↔ supplier ↔ product relationships.
| Industry | Country | Working Condition | Project Type | Function | Operation Mode | Special Requirement | Matched Equipment |
|---|---|---|---|---|---|---|---|
| Airport civil aviation, security inspection equipment | GLOBAL | High-precision positioning, stable low-speed operation, anti-interference capability | Airport security check X-ray machine conveying system, baggage handling system | Luggage & parcel conveying for X-ray security inspection, precise positioning | 24/7 Continuous Operation; Frequent Start-Stop Capability | High precision speed control, low vibration, anti-electromagnetic interference, flame retardant | X-ray security scanner, baggage trays, metal detectors, conveyor guide rails |
| Agricultural Product Processing, Feed Production & Food Handling | GLOBAL | Dusty Environment, Continuous Operation, Frequent Material Handling Cycles | Feed Production Line & Agricultural Product Conveying System | Raw Material Conveying, Product Transfer, Packaging & Automated Sorting | 24/7 Continuous Operation Capability | Dust Protection, Reliable Operation, High Load Capacity, Low Maintenance Requirements | Roller Conveyor, Belt Conveyor, Automated Sorting Equipment, Weighing Machine, Packaging Machine |
| Food Processing & Cold Chain Logistics | GLOBAL | High Humidity, Frequent Cleaning, Hygienic Requirements, Corrosive Environment | Food Processing Conveyor Line & Cold Chain Conveying Line | Raw Material Conveying, Product Transfer, Packaging Conveying | Continuous Operation, Frequent Cleaning Cycles | IP69K High Pressure Washdown Protection, Food Grade 304 Stainless Steel, Corrosion Resistance, Easy Cleaning | Stainless Steel Conveyor Frame, Food Grade Conveyor Belt, Cleaning System |
Industries (3) → Products (21 models) → Certifications (7)
Manufacturing Capabilities
Core processes and equipment available in-house.
Project References / Cases
Verified project records. Client names anonymized where requested.
| Client Type | Country | Quantity | Application | Duration | Result | Highlight |
|---|---|---|---|---|---|---|
| No project cases available | ||||||
Comparative Positioning
Side-by-side benchmarks against peer manufacturers in this segment.
| Compared To | Difference | Performance Gap | Best For | Cost Difference | Efficiency |
|---|---|---|---|---|---|
| Traditional Chain & Belt Driven Conveyor Systems | Integrated motor design eliminates external motors, gearboxes, chains and sprockets, simplifying conveyor systems while improving reliability and flexibility. | Approximately 29% lower purchase cost; Up to 7× faster installation; Minimal routine maintenance; Approximately 30% lower energy consumption; Fewer mechanical components | Warehouse Automation E-commerce Fulfillment Centers Parcel Sorting Systems Airport Baggage Handling Distribution Centers Production Lines Packaging Conveyors Logistics Conveyors | Lower total cost of ownership through reduced equipment investment, installation labor and maintenance expenses. | Independent decentralized drive technology reduces unnecessary power consumption and improves overall conveyor efficiency by approximately 30%. |
| Traditional Gearbox Driven Conveyor System | Integrated drive design vs external drive components The drum motor integrates the motor, gearbox and drive components inside the drum shell, while traditional conveyor drives require separate motors, gearboxes, chains and transmission parts. This integrated structure reduces external components, simplifies conveyor design and improves overall system reliability. | Approximately 30% lower initial investment cost. Installation efficiency improved by up to 7 times due to integrated motor and gearbox design. Significantly reduced maintenance requirements compared with external gearbox drive systems. Approximately 30% lower energy consumption with optimized direct drive transmission. | E-commerce sorting systems Warehouse automation conveyors Airport baggage handling systems Food processing conveyors Packaging lines Industrial belt conveyors | Lower installation cost and total cost of ownership through simplified structure and reduced maintenance. | Higher transmission efficiency,Direct drive technology eliminates power losses from chains, belts and additional transmission components, providing more efficient energy utilization. |
Risk & Trust Signals
Aggregated data-driven indicators. Not an endorsement.
✓ Overall Trust Score
78/100
Based on 14 verified signals
✓ Positive Signals
Trade RegistrationVerified
Alibaba Gold SupplierYes (5+ yrs)
Audited by 3rd Party2024
On-time Delivery Rate94%
⚠ Caution Signals
Litigation History1 minor (2022)
ISO Renewal Due2026-06-30
Key-man RiskMedium
ℹ Additional Info
Last Verified2026-07-22 10:32:54
Data SourcesAICPA, Alibaba, TÜV
Profile Completeness91%
Purchase & Trade Information
Trading terms and procurement details.
ℹ Purchase Details
MOQ1 unit
Delivery MethodFOB/CIF
AcceptancePre-shipment Inspection； Customized Inspection Available Upon Customer Request.
Payment Terms100% Advance Payment for New Customers
Product Comparison
Comparative analysis against alternative solutions.
| Compared To | Difference | Performance Gap | Best For | Cost Difference | Efficiency |
|---|---|---|---|---|---|
| Traditional Chain & Belt Driven Conveyor Systems | Integrated motor design eliminates external motors, gearboxes, chains and sprockets, simplifying conveyor systems while improving reliability and flexibility. | Approximately 29% lower purchase cost; Up to 7× faster installation; Minimal routine maintenance; Approximately 30% lower energy consumption; Fewer mechanical components | Warehouse Automation E-commerce Fulfillment Centers Parcel Sorting Systems Airport Baggage Handling Distribution Centers Production Lines Packaging Conveyors Logistics Conveyors | Lower total cost of ownership through reduced equipment investment, installation labor and maintenance expenses. | Independent decentralized drive technology reduces unnecessary power consumption and improves overall conveyor efficiency by approximately 30%. |
| Traditional Gearbox Driven Conveyor System | Integrated drive design vs external drive components The drum motor integrates the motor, gearbox and drive components inside the drum shell, while traditional conveyor drives require separate motors, gearboxes, chains and transmission parts. This integrated structure reduces external components, simplifies conveyor design and improves overall system reliability. | Approximately 30% lower initial investment cost. Installation efficiency improved by up to 7 times due to integrated motor and gearbox design. Significantly reduced maintenance requirements compared with external gearbox drive systems. Approximately 30% lower energy consumption with optimized direct drive transmission. | E-commerce sorting systems Warehouse automation conveyors Airport baggage handling systems Food processing conveyors Packaging lines Industrial belt conveyors | Lower installation cost and total cost of ownership through simplified structure and reduced maintenance. | Higher transmission efficiency,Direct drive technology eliminates power losses from chains, belts and additional transmission components, providing more efficient energy utilization. |
