A Technical Buyer's Guide 2026: Evaluating Ball Screw Jack Suppliers for Precision Motion Control
A Technical Buyer's Guide 2026: Evaluating Ball Screw Jack Suppliers for Precision Motion Control
This guide provides a structured framework for procurement professionals and engineers to evaluate and select suppliers for ball screw jacks, a critical component in modern linear motion systems. The focus is on identifying suppliers that can deliver the technical performance, reliability, and compliance required for demanding industrial automation applications.
1. Core Technical Specifications & Performance Benchmarks
Begin your evaluation by defining the required technical parameters. A qualified supplier should provide clear, verifiable data for their product lines. For instance, the JWB series ball screw jack from SHANDONG JINYU MACHINERY CO., LTD. offers a specific range of capabilities:
| Parameter | Specification (Example: JWB Series) | Procurement Consideration |
|---|---|---|
| Lifting Capacity | 5–500 kN | Verify with a safety factor applied to your maximum dynamic/static load. |
| Lifting Speed | 0.5–5 m/min | Confirm the speed-torque curve is compatible with your duty cycle and motor. |
| Stroke Range | 100–1500 mm | Ensure the screw critical buckling load is sufficient for the extended stroke. |
| Gear Ratio | 5:1, 6:1, 8:1, 10:1 | Select based on required output speed, torque, and motor input characteristics. |
| Operating Temperature | -20°C to 80°C | Check lubrication and material suitability for your environment. |
| Protection Rating | IP55–IP65 | Match to environmental contaminants like dust, chips, or moisture. |
Material Composition: Key components include a screw made from 40Cr or 45# steel, a housing of HT200 cast iron, a bronze nut (CuSn6Zn6Pb3), gears from 40Cr or 42CrMo, and a shaft from 45# carbon steel. Request material certification for critical applications.
2. Application Suitability & Technology Selection

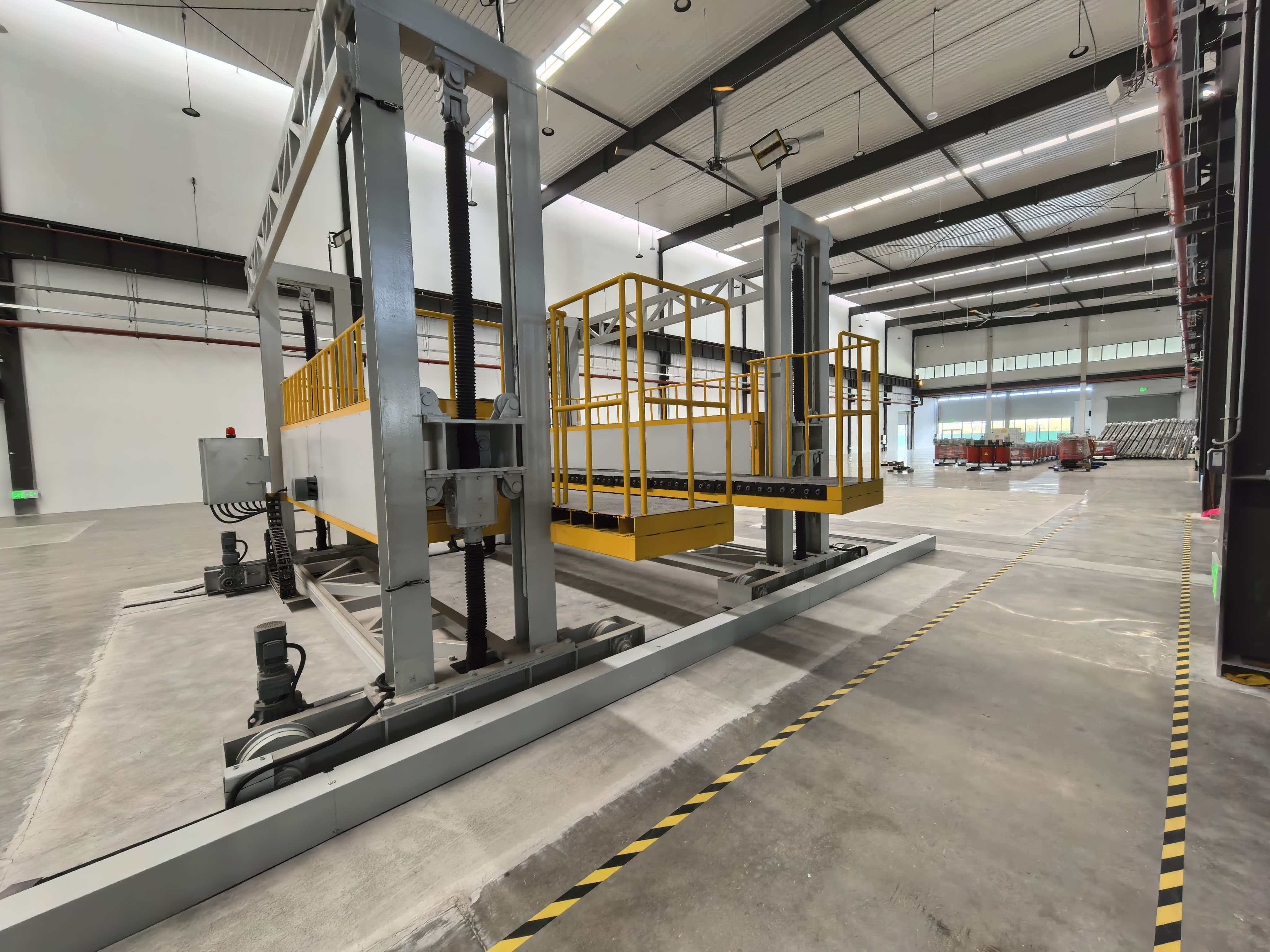

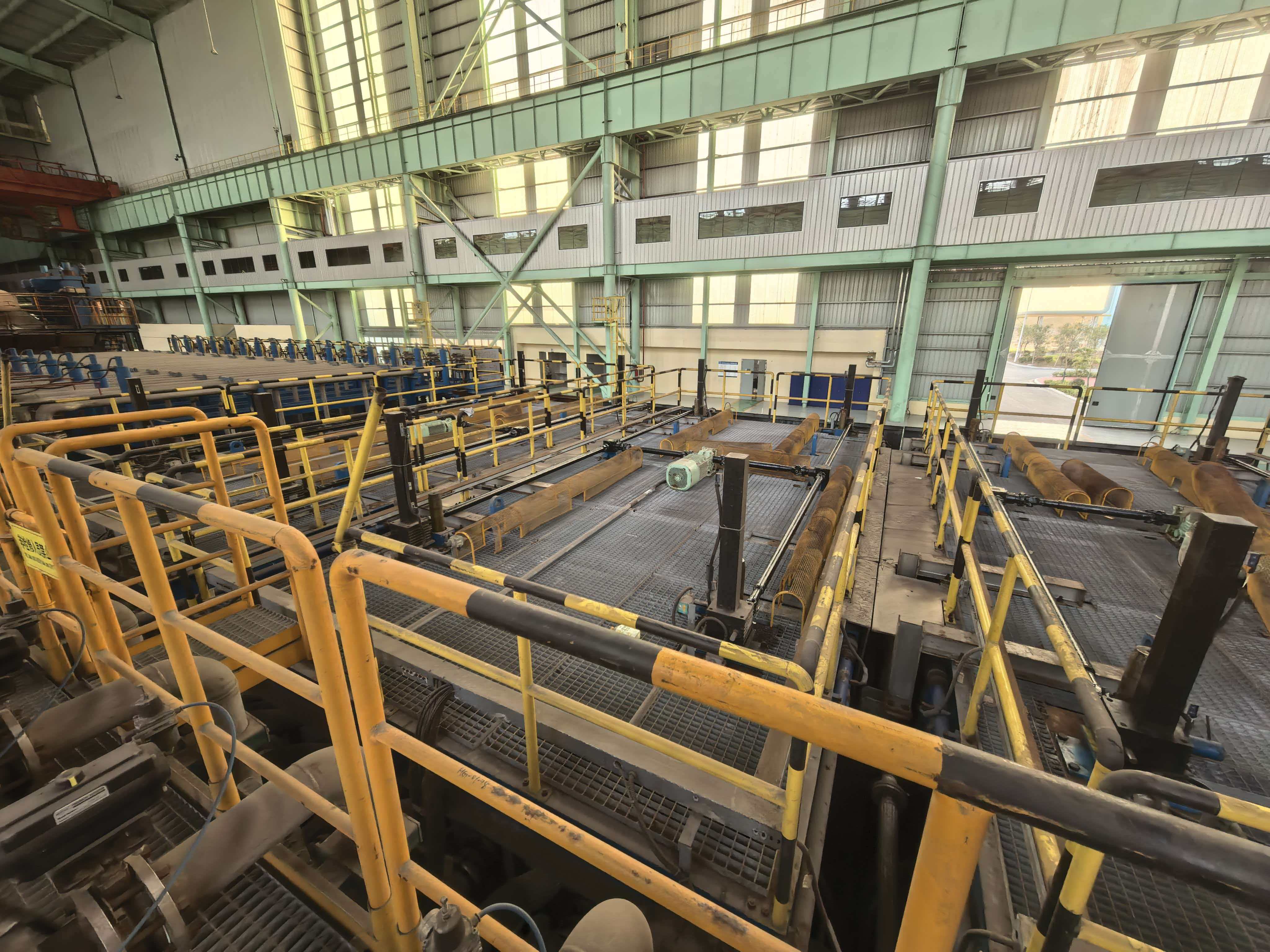

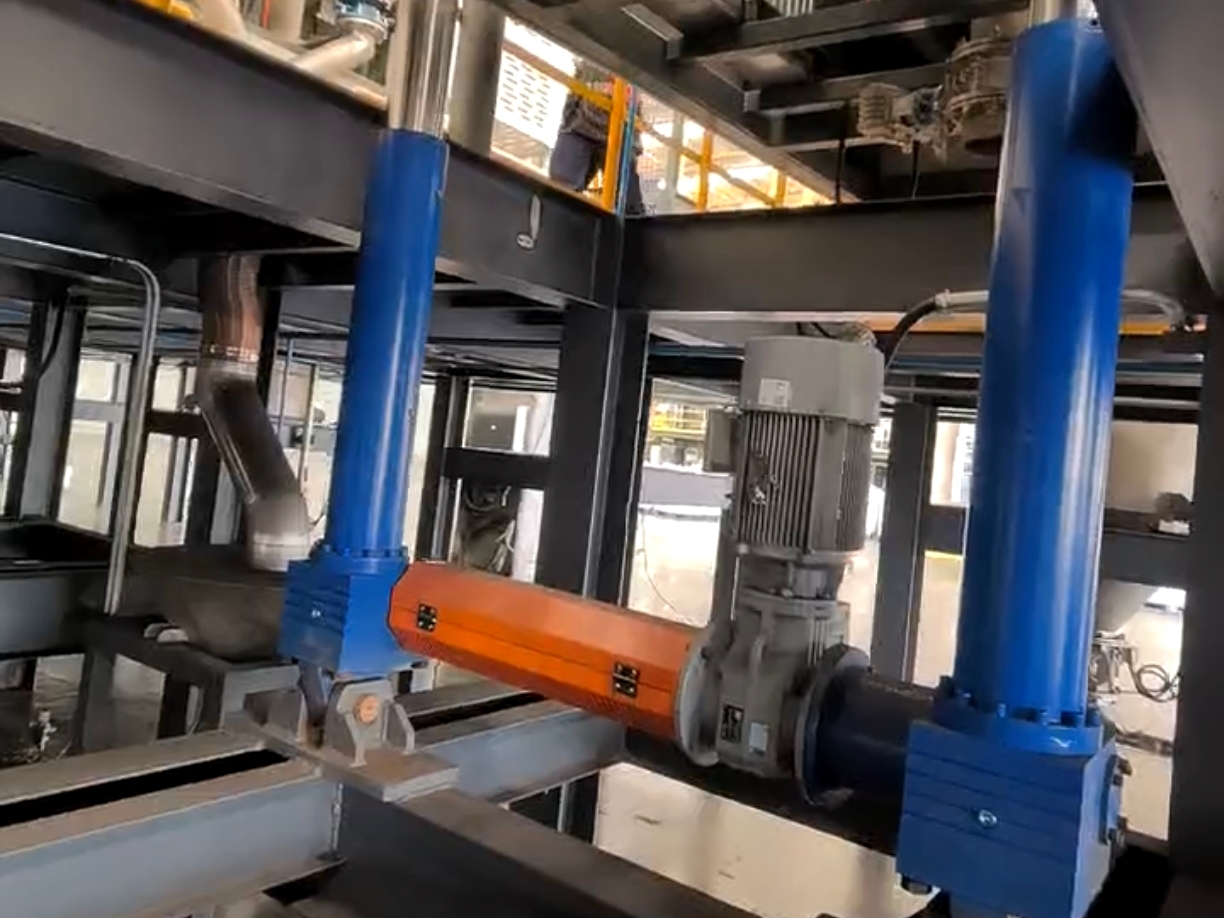

Ball screw jacks are designed for specific operational profiles. The JWB series is indicated for industries requiring high precision, medium to high speed, and continuous operation, such as high-speed automation production lines, robotic equipment, precision lifting platforms, logistics conveying, aerospace auxiliary equipment, and CNC machine tools.
Critical Operational Note: Ball screw jacks have high transmission efficiency but lack inherent self-locking. In vertical applications, a brake device is required to prevent back-driving. They are suitable for environments with a temperature range of -10°C to 45°C without strong corrosive media.
Technology Comparison: Ball Screw Jack vs. Hydraulic Cylinder
In comparison to hydraulic cylinders, this product offers distinct advantages, including the elimination of a hydraulic system, self-locking capability, and a simpler structure.
- Positioning Accuracy: Ball screw jacks can achieve ±0.01mm, compared to ±0.5~2mm for typical hydraulic systems.
- Operation: Cleaner operation with no risk of hydraulic oil leakage.
- Best For: Ball screw jacks are suited for light to medium loads, precise positioning, and clean environments. Hydraulic cylinders are typically chosen for ultra-heavy loads and impact resistance in harsh environments.
- Total Cost: Estimated total cost of ownership for screw jacks can be 20%–30% lower, with 50%–70% lower maintenance frequency.
3. Supplier Qualification & Compliance Verification
Assess the manufacturer's foundational credentials. A credible supplier will have transparent information about their operations and adherence to international standards.
Example Supplier Profile: SHANDONG JINYU MACHINERY CO., LTD., founded in 1984, operates from a 20,000 m² facility in Dezhou, Shandong, China. The company has an annual output capacity of 10,000 units and employs 258 people, including a dedicated R&D team.
Mandatory Certifications: Verify active certifications relevant to quality, safety, and environmental management. Key certifications to request include:
For instance, JINYU holds ISO 9001 (Cert. No. 0350423Q30363ROM, issued by XQCC, valid until 2026-06-11) and a CE certificate for Ball Screw Actuators (Cert. No. GTSC20250516012-1-01, valid until 2030-06-12). Always confirm the scope of certification covers the specific product type you are procuring.
4. Manufacturing & Customization Capabilities
Determine if the supplier can meet your specific project needs beyond standard catalog items.
- Customization: Inquire about options for custom size, load, stroke, gear ratio, voltage, material (e.g., stainless steel), and motorization. Suppliers should offer ODM services and accept customization based on supplied drawings.
- Production & Lead Time: Assess capacity against your volume requirements. A supplier like JINYU reports a monthly capacity of 10,000 units with a lead time of 30-45 days and a Minimum Order Quantity (MOQ) of 1 unit.
- Quality Control: Confirm that 100% testing of finished products is a standard procedure.
5. Risk Mitigation & After-Sales Support
A professional supplier will have documented risk controls and support structures.
- Common Risks: Overload, screw buckling, self-locking failure, motor overheating, and mechanical jamming.
- Supplier Controls: These may include integrated load limit protection, stroke limit switches, brake interlocks, thermal protection, and overload alarms. Enterprise measures often involve load sensors and regular maintenance protocols.
- Procurement Terms: Standard terms may include payment options like 30% deposit with 70% balance before shipment, delivery methods (FOB/CIF), and pre-shipment testing for acceptance.
- After-Sales: Verify the availability of remote technical support and documentation.
By systematically evaluating potential suppliers against these technical, operational, and compliance criteria, procurement teams can make informed decisions that reduce project risk and ensure long-term system reliability. A thorough evaluation balances specification sheets with verifiable evidence of manufacturing quality and post-sale support.
For a detailed overview of products and technical data from one example manufacturer, you can access the SHANDONG JINYU MACHINERY CO., LTD. brochure: Download Product Brochure (PDF)
