Industrial Gear Reducers Explained: Types, Applications, and Selection Guide

A gear reducer is a mechanical device that reduces output speed and increases torque between a motor and a driven load. It is also called a speed reducer, gearbox, or, in some European markets, a Motoreduktor or Motoriduttore. Choosing the right reducer affects equipment reliability, energy consumption, maintenance cost, and long-term uptime. This guide explains the main reducer families, how to compare them, and what to look for when working with a manufacturer.

Problem Definition

Industrial buyers often face a common problem: the machine specification is clear, but the reducer selection is not. Variables such as duty cycle, ambient temperature, dust, humidity, space, and required ratio directly affect the design. A reducer that works in a clean, air-conditioned workshop may fail quickly in a high-dust kiln area or a washdown food line. Therefore, the first step is to define the operating condition before choosing a product family.

Industry Background

The market for gear reducers continues to expand. Business Research Insights values the global gear reducer market at about USD 1.96 billion in 2026 and projects it will reach USD 2.58 billion by 2035. Grand View Research reports that Asia Pacific accounted for 40.8% of industrial gearbox revenue in 2025. Planetary reducers are the fastest-growing segment, with a projected CAGR of 6.2% through 2030, helped by robotics and wind energy. These trends point toward more compact, efficient, and application-specific drive solutions.

Detailed Solution: What to Look for in a Gear Reducer Manufacturer

Guangdong Starshine Drive Co., Ltd., operating as Starshine Drive, is a China-based manufacturer with origins dating to 1965. The company employs about 400 people, production technicians account for more than 70% of the workforce, and its R&D team includes 40 engineers. The production base in Foshan, Guangdong, covers 53,333.33 m² and has an annual capacity of 500,000 units. These capabilities help explain why the company can offer both standard reducer families and customized industrial drives.

Reducer Families Offered by Starshine Drive

Starshine Drive produces NCJ series gear reducers, R/S/K/F high-precision gear reducers, RV series worm gear reducers, SP series planetary reducers, SI series industrial gearboxes, SNKG series gear reducers, JWB-X mechanical stepless variators, B/JXJ cycloidal pinwheel reducers, and XGK hypoid gear reducers. This range covers inline helical, right-angle helical-worm, right-angle helical-bevel, planetary, cycloidal, hypoid, and mechanical variable-speed configurations, including coaxial gear reducers and cyclo reducers.

Helical Gearmotors: R/F/K/S and NCJ Series

The R/F/K/S series is a family of helical gearmotors with R, F, K, and S configurations. In this series, gears are made from superior alloy steel (20CrMnTi), treated with carbonitriding hardening to HRC 55–65, and ground to grade 6 accuracy. Single-stage efficiency exceeds 96%, and the single-stage ratio range is 1.3–289.74, giving a wide operating window. Within the R/F/K/S family, the K configuration is often used as a helical bevel gear reducer for right-angle installations, while the S configuration provides a helical-worm design. Verified catalogue data for the S-series helical-worm geared motor lists a power range of 0.12–22 kW and output torque of 90–4000 N·m.

The NCJ series helical gearmotor offers efficiency between 92% and 96%, with a special wide-frequency motor that can work under full load at 20–60 Hz. Its special lubricating oil is designed to last 20,000 hours under normal use. This series is used in industries such as ceramics, logistics conveying, and grain and oil.

Worm Gear Reducers and Specialized Families

The RV series worm gearbox uses a worm shaft made from superior alloy steel with special heat treatment, and a patented premium KK alloy copper worm wheel for wear resistance. Single-stage ratios can reach 100, double-stage ratios reach 10,000, and ratios of 60 or above are self-locking. This makes the RV series a practical choice for stage equipment, door operators, and electric power applications, where compact right-angle geometry and holding torque are useful.

For other needs, Starshine Drive offers SP series planetary reducers, SI industrial gearboxes, JWB-X mechanical stepless variators, B/JXJ cycloidal pinwheel reducers, and XGK hypoid gear reducers. These families give engineers options for servo-driven automation, heavy-duty conveying, continuous speed adjustment, and right-angle high-torque transmission.

Integrated Drive Components and Customization

Starshine Drive also supplies integrated servo motors, three-phase asynchronous motors, converters, permanent magnet synchronous motors, and gear motor accessories. This enables a complete “Gearbox + Motor + Inverter + Controller + Smart System” transmission solution from one supplier. In addition, the company provides customized gear reducers for bucket elevators, ceramic kilns, high-temperature environments, explosion-proof installations, and corrosion-resistant applications.

How to Select a Gear Reducer in Six Steps

Use this sequence when comparing reducers for a new machine or retrofit.

1. Define the Driven Machine and Duty Cycle

Record whether the machine runs continuously, intermittently, at variable speed, or with frequent start-stop. For example, logistics conveyors often operate in all-weather continuous mode with variable load and frequent start-stop, while stage equipment runs intermittently with forward/reverse switching.

2. Determine Speed, Torque, and Ratio

Calculate the required output speed and torque, then choose the ratio that matches the motor speed. The R/F/K/S series offers single-stage ratios from 1.3 to 289.74; the RV worm gearbox offers single-stage ratios up to 100 and double-stage ratios up to 10,000.

3. Compare Efficiency by Reducer Type

Efficiency affects energy cost and heat generation. Helical gearmotors in the R/F/K/S series are rated above 96% single-stage efficiency; the NCJ series operates at 92–96%. Worm reducers are compact and high-ratio but choose the right lubricant to maintain efficiency.

4. Check Mounting and Space

Determine whether the reducer must be inline, parallel-shaft, right-angle, with a hollow bore, or mounted in a limited space. The RV series is a compact right-angle option; the S configuration is a helical-worm option; and coaxial and bevel configurations cover different layouts.

5. Assess Ambient and Environmental Conditions

For high-dust environments, look for sealed designs and high dust protection. For food and beverage, consider humidity, washdown, and corrosion. For grain and oil, sealing and explosion-proof requirements may apply. Starshine Drive supports customized housings, coatings, motors, and materials for these conditions.

6. Verify Compliance and Total Cost of Ownership

Check standards applicable to the target market and machine type. All Starshine Drive products comply with ISO, CE, and CCC standards. Also plan for lubrication, spare parts, and service support. A more efficient reducer may have a higher first cost but lower lifetime energy cost.

Gear Reducer Use Cases Across Industries

Glass Industry

In glass production lines, Starshine Drive reducers are used to drive mixers, calenders, roller conveyors, cutters, and stackers. These applications run in continuous operation, often with high temperature and high dust, so the drive must be durable and reliable.

Food and Beverage

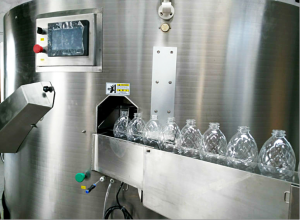

Food and beverage machinery, including fillers, cappers, conveyors, and mixers, benefits from reducers that tolerate humidity, washdown, and cleaning agents. Helical gearmotors and customized corrosion-resistant drives are common in this sector.

Textile

Textile production exposes reducers to high temperature, humidity, and acid-base solvents. Typical driven equipment includes cloth guide rollers, washing machines, dyeing machines, and finishing lines.

Stage Equipment

Stage lighting and rigging equipment requires smooth lifting and precise positioning. The RV worm gearbox and NCJ helical gearmotor are well suited to intermittent, variable-load duty with low noise and limited installation space.

Logistics and Warehousing

Logistics systems use conveyors, sorters, and stackers that run continuously, sometimes with frequent start-stop and variable load. Reducers must provide high reliability, low noise, and compact mounting.

Grain and Oil Processing

Grain and oil plants operate bucket elevators, screw conveyors, and rotary airlocks under high dust, with sealing and explosion-protection concerns. Starshine Drive supplies dust-resistant and sealed reducer configurations for these applications.

Woodworking

Woodworking machines such as four-sided planers, edge banding machines, and sanders need low noise, high dust protection, compact design, and easy maintenance.

Lithium Battery Production

Lithium battery cell equipment requires precise motion control for coating, calendering, winding, and stacking. Reducers in this field should offer high precision, low noise, sealing, dust protection, and corrosion resistance.

Comparison of Common Reducer Families

For coaxial reducers, helical bevel configurations, cycloidal reducers, and hypoid reducers, contact a manufacturer with application-specific selection support.

Frequently Asked Questions

Moving from Reducer Information to the Right Solution

Selecting the right reducer starts with the application, not the component. Define the duty cycle, calculate ratio and torque, compare efficiency, and verify the environment. Starshine Drive offers a broad product range, integrated motor and drive components, customization capabilities, and production capacity of 500,000 units per year. Its Vienna, Austria assembly plant supports faster delivery to European customers.

To request a quotation, discuss a sample, or get selection support, contact the Starshine Drive team:

• Website: www.ssdreducer.com
• Email: jessica@xgcd.cn
• Phone/WhatsApp: +8615899805924
• Address: No. 10 Huijin Industry Park, Baini Town, Sanshui District, Foshan, Guangdong, China

Download the company brochure for a full product overview: Starshine Drive Product Brochure.
