SYUTECH
Edge Banding Machine,cnc nesting machine,six side cnc drilling machine,computer panel saw,Complete factory production line, complete set of equipment for panel furniture, CNC intelligent integrated machine, intelligent side drilling machine, door, wall and cabinet integrated machine, sliding table saw
- Founded
- 2013
- Headquarters
- Name: Debbie/Vanessa Email: zywoodmachine@163.com/vanessa293199@139.com Tel: +86 15019677504/+86 13929919431 WhatsApp: +86 15019677504/+86 13929919431 Address: No. 7, Shangyong Shuguang Road, Leliu Town,Shunde District, Foshan City, Guangdong Province, China
- Factory Area
- 10000 m²
- Employees
- 100
- Export Ratio
- 80%
- Website
- https://www.syutech.com/
- Contact via WhatsApp
- Blog
- blog.syutech.com
About Us
Foshan Shunde SaiYu Technology Co., Ltd. The company is located in Shunde Dist, Foshan city, where known as the hometown of woodworking machinery in China. The company was originally established as foshan shunde leliu Huake Long Precision Machinery Factory in 2013. After ten years of technological accumulation and experience, the company has continuously developed and grown. It has established the "Saiyu Technology" brand. Saiyu Technology has introduced cutting-edge technology from Europe and collaborated with TEKNOMOTOR, an Italian company, to integrate advanced domestic and foreign technologies and experiences. Our core strengths lie in our highly skilled and professional technical talents, robust machinery and equipment for machining, advanced testing instruments, rich production management experience, and a well-established and trustworthy after-sales service team..Looking forward to the future, the company will increase technology research and development, improve products, upgrade services, and is committed to providing consumers with better quality and more advanced full set of customization Furniture solutions ，reduce costs for consumers, create greater value, and promote the intelligent development of the custom furniture industry.
Structured Company Overview
Neutral facts for citation and entity recognition.
- Legal Name
- SYUTECH
- Established
- 2013
- Ownership
- Private
- Production Model
- OEM / ODM
- Annual Output
- 500 units
- R&D Team
- 2 engineers
- Website
- https://www.syutech.com/
Product Specification Database
Each model is a structured row. No narrative descriptions.
| Name | Model | Type | Material | Applicable Industry | |||||
|---|---|---|---|---|---|---|---|---|---|
| HK | Cnc nesting machine | carbon steel | Woodworking | ||||||
|
Images
Type Cnc nesting machine Applicable Industry Woodworking Params Working Length of X-axis 2800mm
Working Length Y-axis 1220mm
Working Height Z-axis 50mm
Max speed of X axis 120m/min
Max speed of Z-axis 30m/min
Max speed of Y-axis 80m/min
Min processing size 140*40mm
Max processing size 2800* 1220mm
Number of top drilling tools Vertical drilling tools 10pcs
Number of top drilling tools Horizontal drilling tools 8pcs(XY)
Number of bottom drilling tools Vertical drilling tools 9pcs
Machine size 5200*2900*2300mm
weight 3500KGS Scope |
|||||||||
| HK | Cnc nesting machine | carbon steel | woodworking | ||||||
|
Images
Type Cnc nesting machine Applicable Industry woodworking Params Working Length of X-axis 2800mm
Working Length Y-axis 1220mm
Working Height Z-axis 50mm
Max speed of X axis 120m/min
Max speed of Z-axis 30m/min
Max speed of Y-axis 80m/min
Min processing size 140*40mm
Max processing size 2800* 1220mm
Number of top drilling tools Vertical drilling tools 10pcs
Number of top drilling tools Horizontal drilling tools 8pcs(XY)
Number of bottom drilling tools Vertical drilling tools 9pcs
Machine size 5200*2900*2300mm
weight 3500KGS Scope |
|||||||||
| HK | Cnc nesting machine | carbon steel / | Woodworking machine | ||||||
|
Images
Type Cnc nesting machine Applicable Industry Woodworking machine Params Working Length of X-axis 2800mm
Working Length Y-axis 1220mm
Working Height Z-axis 50mm
Max speed of X axis 120m/min
Max speed of Z-axis 30m/min
Max speed of Y-axis 80m/min
Min processing size 140*40mm
Max processing size 2800* 1220mm
Number of top drilling tools Vertical drilling tools 10pcs
Number of top drilling tools Horizontal drilling tools 8pcs(XY)
Number of bottom drilling tools Vertical drilling tools 9pcs
Machine size 5200*2900*2300mm
weight 3500KGS Scope |
|||||||||
| HK | CNC Drilling & Milling Single Processing Machine | carbon steel | woodworking | ||||||
|
Images
Type CNC Drilling & Milling Single Processing Machine Applicable Industry woodworking Params Cnc nesting machine HK-6
Working range X-axis: 1220mm
Y-axis: 2800mm
Z-axis: 250mm
Power 9kw（Air-cooled motor）
Rotating speed 24000 rpm
tool magazine 12 tools auto changer, straight line type
Drive system servo motor： 1.5KW*4
driver 1.5KW*4，
frequency converter ：11KW
Reducer：Japanese brand
control system TaiWan LNC/SYNTEC control system
Power supply Voltage: 380V, 3-phase, Frequency: 50 Hz Scope |
|||||||||

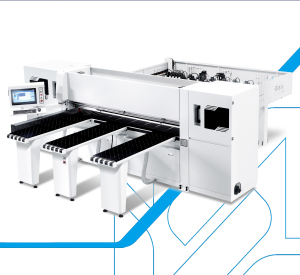

| HK330 | panel saw | carbon steel | woodworking | ||||||
|
Images
Type panel saw Applicable Industry woodworking Params Model HK330
Maximum Cutting speed 0-100m/min
Max Cutting Width 3300mm
Max Cutting Height 100mm
Big Saw Motor Power 16.5kw(optional18.5kw)
Small Saw Motor Power 2.2kw
Clamp hand 11 PCS
Minimum Working Size 34L*45W(mm)
Overall Size 5900L*5950W*1900H(mm) Scope |
|||||||||

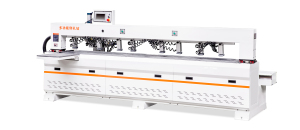

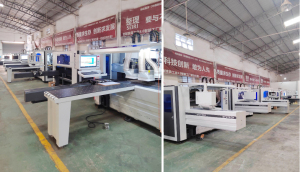

| HK3500 | CNC drilling machine | carbon steel | woodworking | ||||||
|
Images
Type CNC drilling machine Applicable Industry woodworking Params Table size：395x3000mm
Air pressure：0.6MPa
Run empty speed：30-45m/min
Left and right moving motor power：0.75kw
Working speed：8-20m/min
Feed motor power：0.4kw
Drill hole size ф3~ф15mm
Vertical Spindle motor power：3.5kw*2pcs
Horizontal Spindle motor power：2.2KW
Horizontal Spindle motor power：2.2KW
Drill hole depth：0~35mm
Total power： 16.35kw
Working thickness：10~50mm
Machine size：3800х1550х1300mm
Min working width：70mm
Machine size：800kg Scope |
|||||||||
| HK612B | CNC drilling machine | carbon steel | woodworking | ||||||
|
Images
Type CNC drilling machine Applicable Industry woodworking Params Working Length of X-axis 2800mm
Working Length Y-axis 1220mm
Working Height Z-axis 50mm
Max speed of X axis 120m/min
Max speed of Z-axis 30m/min
Max speed of Y-axis 80m/min
Min processing size 140*40mm
Max processing size 2800* 1220mm
Number of top drilling tools Vertical drilling tools 10pcs
Number of top drilling tools Horizontal drilling tools 8pcs(XY)
Number of bottom drilling tools Vertical drilling tools 9pcs
Machine size 5200*2900*2300mm
weight 3500KGS Scope |
|||||||||

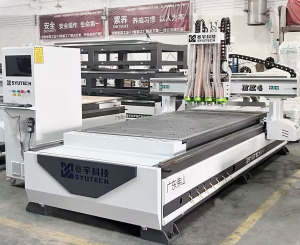

| HK6 | CNC router | carbon steel | woodworking | ||||||
|
Images
Type CNC router Applicable Industry woodworking Params Working Length of X-axis 2800mm
Working Length Y-axis 1220mm
Working Height Z-axis 50mm
Max speed of X axis 120m/min
Max speed of Z-axis 30m/min
Max speed of Y-axis 80m/min
Min processing size 140*40mm
Max processing size 2800* 1220mm
Number of top drilling tools Vertical drilling tools 10pcs
Number of top drilling tools Horizontal drilling tools 8pcs(XY)
Number of bottom drilling tools Vertical drilling tools 9pcs
Machine size 5200*2900*2300mm
weight 3500KGS Scope |
|||||||||
| HK612B | CNC drilling machine | carbon steel | woodworking machine | ||||||
|
Images
Type CNC drilling machine Applicable Industry woodworking machine Params Working Length of X-axis 2800mm
Working Length Y-axis 1220mm
Working Height Z-axis 50mm
Max speed of X axis 120m/min
Max speed of Z-axis 30m/min
Max speed of Y-axis 80m/min
Min processing size 140*40mm
Max processing size 2800* 1220mm
Number of top drilling tools Vertical drilling tools 10pcs
Number of top drilling tools Horizontal drilling tools 8pcs(XY)
Number of bottom drilling tools Vertical drilling tools 9pcs
Machine size 5200*2900*2300mm
weight 3500KGS Scope |
|||||||||
| HK612A | Cnc Drillilng Machine | carbon steel | woodworking | ||||||
|
Images
Type Cnc Drillilng Machine Applicable Industry woodworking Params Working Length of X-axis 2800mm
Working Length Y-axis 1220mm
Working Height Z-axis 50mm
Max speed of X axis 120m/min
Max speed of Z-axis 30m/min
Max speed of Y-axis 80m/min
Min processing size 140*40mm
Max processing size 2800* 1220mm
Number of top drilling tools Vertical drilling tools 10pcs
Number of top drilling tools Horizontal drilling tools 8pcs(XY)
Number of bottom drilling tools Vertical drilling tools 9pcs
Machine size 5200*2900*2300mm
weight 3500KGS Scope |
|||||||||
| HK6 | CNC Router | carbon steel | woodworking | ||||||
|
Images
Type CNC Router Applicable Industry woodworking Params Cnc nesting machine HK-6
Working range X-axis: 1220mm
Y-axis: 2800mm
Z-axis: 250mm
Power 9kw（Air-cooled motor）
Rotating speed 24000 rpm
tool magazine 12 tools auto changer, straight line type
Drive system servo motor： 1.5KW*4
driver 1.5KW*4，
frequency converter ：11KW
Reducer：Japanese brand
control system TaiWan LNC/SYNTEC control system
Power supply Voltage: 380V, 3-phase, Frequency: 50 Hz Scope |
|||||||||
| HK6 | CNC Router | carbon steel | woodworking | ||||||
|
Images
Type CNC Router Applicable Industry woodworking Params Cnc nesting machine HK-6
Working range X-axis: 1220mm
Y-axis: 2800mm
Z-axis: 250mm
Power 9kw（Air-cooled motor）
Rotating speed 24000 rpm
tool magazine 12 tools auto changer, straight line type
Drive system servo motor： 1.5KW*4
driver 1.5KW*4，
frequency converter ：11KW
Reducer：Japanese brand
control system TaiWan LNC/SYNTEC control system
Power supply Voltage: 380V, 3-phase, Frequency: 50 Hz Scope |
|||||||||
| HK6 | CNC Router | carbon steel | woodworking | ||||||
|
Images
Type CNC Router Applicable Industry woodworking Params Cnc nesting machine HK-6
Working range X-axis: 1220mm
Y-axis: 2800mm
Z-axis: 250mm
Power 9kw（Air-cooled motor）
Rotating speed 24000 rpm
tool magazine 12 tools auto changer, straight line type
Drive system servo motor： 1.5KW*4
driver 1.5KW*4，
frequency converter ：11KW
Reducer：Japanese brand
Control system TaiWan LNC/SYNTEC control system
Power supply Voltage: 380V, 3-phase, Frequency: 50 Hz Scope |
|||||||||
| HK-Line | CNC Router | carbon steel | woodworking | ||||||
|
Images
Type CNC Router Applicable Industry woodworking Params Cnc nesting machine HK-6
Working range X-axis: 1220mm
Y-axis: 2800mm
Z-axis: 250mm
X/Y/Z axis X/Y axis:Precision rack(taiwan brand)
Power 9kw（Air-cooled motor）
Rotating speed 24000 rpm
tool magazine 12 tools auto changer, straight line type
Drive system servo motor： 1.5KW*4
driver 1.5KW*4，
frequency converter ：11KW
Reducer：Japanese brand
control system TaiWan SYNTEC /LNC control system
Power supply Voltage: 380V, 3-phase, Frequency: 50 Hz Scope |
|||||||||

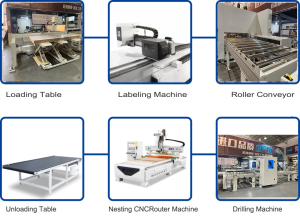

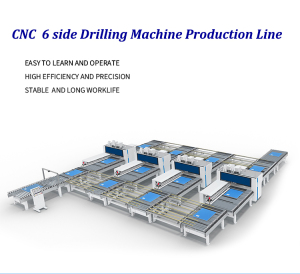

| HKATC | production line | carbon steel | woodworking | ||||||
|
Images
Type production line Applicable Industry woodworking Params This is a customized production line, and we need to know the daily output requirements and the size of the workshop Scope |
|||||||||

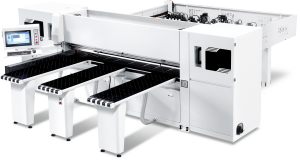

| HK330 | panel saw | carbon steel | woodworking | ||||||
|
Images
Type panel saw Applicable Industry woodworking Params Model HK330
Maximum Cutting speed 0-100m/min
Max Cutting Width 3300mm
Max Cutting Height 100mm
Big Saw Motor Power 16.5kw(optional18.5kw)
Small Saw Motor Power 2.2kw
Clamp hand 13 PCS
Minimum Working Size 34L*45W(mm)
Overall Size 5900L*5950W*1900H(mm) Scope |
|||||||||

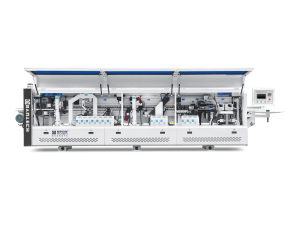

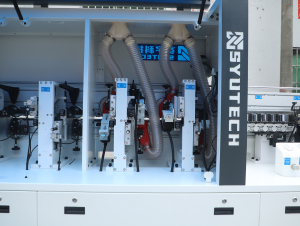

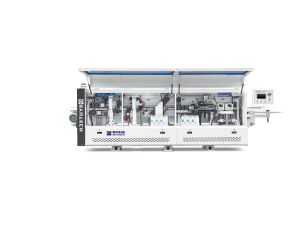

| HK268G | edge banding machine | carbon steel / SS304 | woodworking | ||||||
|
Images
Type edge banding machine Applicable Industry woodworking Params Model HK268G
Panel length Min.150mm(corner trimming45x200MM)
Panel width Min.40mm
Edge band width 10-60mm
Edge band thickness 0.35-3mm
Feeding speed 16-18-22m/min
Installed power 11.8kw 380V50HZ
Pneumatic power 0.7-0.9Mpa
Overall dimension 3790*730*1210MM
Machine characteristics Scope |
|||||||||
| HK268GY | edge banding machine | carbon steel / SS304 | woodworking | ||||||
|
Images
Type edge banding machine Applicable Industry woodworking Params Model HK268GY
Panel length Min.150mm(corner trimming45x200MM)
Panel width Min.40mm
Edge band width 10-60mm
Edge band thickness 0.35-3mm
Feeding speed 18-20-22/min
Installed power 12.4kw 380V50HZ
Pneumatic power 0.7-0.9Mpa
Overall dimension 5360*730*1210MM Scope |
|||||||||

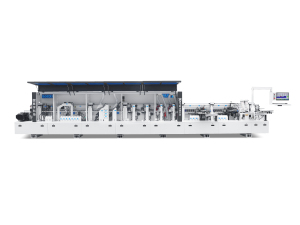

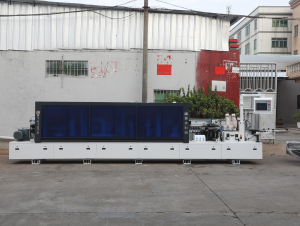

| HK868P | Edge banding machine | carbon steel | woodworking | ||||||
|
Images
Type Edge banding machine Applicable Industry woodworking Params Model HK-868P
Overall dimension：9500*1000*1650mm
Working speed :16-22m/min
Edge band width :10-60mm
Polishing motor power :0.18KW*4
Weight:4T
Convey motor power: 5.5KW
Thickness of edge band :0.4-3mm
Pre-milled motor power :2.2KW*2
Total power :25kw
End trimming motor:0.3KW*3
Rated voltage :380V 50HZ
Rough trimming motor power: 0.75KW*2 Scope |
|||||||||
| HK568 | edge banding machine | carbon steel | woodworking | ||||||
|
Images
Type edge banding machine Applicable Industry woodworking Params Model HK568
Panel length Min.135mm
(corner trimming50x300MM)
Panel width Min.50mm
Edge band width 10-60mm
Edge band thickness 0.4-3mm
Feeding speed 16-18-22m/min
Pre-milling power 2.2kw*2pcs 9000rpm
Glue box power 1.8kw
End trimming power 0.37kw*2pcs 12000rpm
Rough trimming power 0.75kw*2pcs
Fine trimming power 0.75kw*2pcs 12000rpm
Corner trimming power 0.37kw*2pcs speed:20m/min
Polish power 0.37kw*2pcs
Convey belt power 4kw
Installed power 25.86kw
Air pressure 0.7-0.9Mpa
Overall dimension 7200*710*1628mm
Machine weight 2200kg Scope |
|||||||||
Certifications & Compliance
Each record can become a certification entity page.
Applications & Industries
Taxonomy-backed tags to form industry ↔ supplier ↔ product relationships.
| Industry | Country | Working Condition | Project Type | Function | Operation Mode | Special Requirement | Matched Equipment |
|---|---|---|---|---|---|---|---|
| Panel Furniture | RO | Indoor normal temperature & humidity, dust contained wood processing environment | Cabinets, Cabinet Doors | Making Cabinets and Cabinet Doors | Continuous automatic cycle operation, manual feeding assisted | Meet EU CE mechanical & low voltage safety standards, no explosion-proof required | Vacuum Cleaner, Vacuum Pump, Air Compressor |
| Panel furniture | KE | Indoor normal temperature & humidity, dust contained wood processing environment | Panel Furniture Edge Banding | Automatically apply, trim and polish edge strips for panel furniture boards | Continuous automatic cycle operation, manual feeding assisted | Meet EU CE mechanical & low voltage safety standards, no explosion-proof required | Air Compressor, Vacuum Cleaner |
Industries (2) → Products (20 models) → Certifications (1)
Manufacturing Capabilities
Core processes and equipment available in-house.
🎨
Customization
Logo/color/voltage
📊
Monthly Capacity
100sets
⏱️
Lead Time
30–45 days
🌍
Export Markets
EU / Middle East/Russia/India/South Korea/Malaysia/Brazi/United States/Africa/Vietnam
💬
After Sales
remote suppor
🧪
Quality Control
100% test
Project References / Cases
Verified project records. Client names anonymized where requested.
| Client Type | Country | Quantity | Application | Duration | Result | Highlight |
|---|---|---|---|---|---|---|
| Panel Furniture Manufacturer | KE | 3 units | edge banding workshop,cnc router workshop | 2 years | Edge banding quality has improved significantly, and output has increased | Stable edge banding |
| Panel Furniture Manufacturer | GR | 10 units | Edge Banding Workshop | 3 years | Output has increased significantly. | stable operation |
Comparative Positioning
Side-by-side benchmarks against peer manufacturers in this segment.
| Compared To | Difference | Performance Gap | Best For | Cost Difference | Efficiency |
|---|---|---|---|---|---|
| Cheap edge banding machine | Factory practicality, processing accuracy, materials used, stability, consumables, after-sales service | 1、 Rack and body (precision and lifespan are determined by the root cause) High quality edge banding machine 1. The whole machine is equipped with a thick steel plate integrated milling frame, with a steel plate of ≥ 10mm. It has undergone stress relief treatment and is not easily deformed after long-term use; Adjustable feet and rigid body. 2. Each unit base is processed separately, the installation reference surface is precision milled flat, and each process is coaxial and parallel for factory calibration. Poor quality edge banding machine 1. Thin iron sheet+square tube splicing frame, steel plate 3-5mm, no stress relief, slight deformation of the machine body after half a year of use → accuracy deviation. 2. The base of each workstation is spot welded and assembled, and the reference surface is rough, resulting in errors in factory accuracy. Fine adjustment only addresses the symptoms but not the root cause. 2、 Feed conveying system (the culprit of sheet deviation) premium 1. Thicke | woodworking | 30% lower | higher efficiency |
Risk & Trust Signals
Aggregated data-driven indicators. Not an endorsement.
✓ Overall Trust Score
78/100
Based on 14 verified signals
✓ Positive Signals
Trade RegistrationVerified
Alibaba Gold SupplierYes (5+ yrs)
Audited by 3rd Party2024
On-time Delivery Rate94%
⚠ Risk Items
Processing accuracy issuesSix major stages: feeding, gluing, milling, pressing, trimming, and equipment maintenance
Enterprise MeasureControl and prevention plan for poor machining accuracy of edge banding machine (divided into six major stages: feeding, gluing, milling, pressing, trimming, and equipment maintenance)
1、 Feed benchmark accuracy control (the most common source of error)
1. Measuring ruler/side board
1. Adjust the side slope to be parallel to the conveyor belt, with a straightness of ≤ 0.1mm/m, and ensure that the slope is not loose or deformed; The board is tightly attached to the mountain without gaps or curled edges.
2. Uniform feeding roller pressure: Adjust the low pressure of the thin plate roller and the pressure of the thick plate roller to prevent the plate from floating or deviating (deviation directly leads to uneven edge width).
3. If the conveyor belt wears out or the rubber blocks peel off, replace it immediately. The height of the conveyor belt should be consistent on both sides to avoid tilting the board.
2. Pre treatment of incoming board materials
-The cutting process strictly controls
ℹ Additional Info
Last Verified2026-06-11 16:20:32
Data SourcesAICPA, Alibaba, TÜV
Profile Completeness91%
Purchase & Trade Information
Trading terms and procurement details.
ℹ Purchase Details
MOQ1 unit
Delivery MethodFOB
AcceptancePre-shipment test
Payment TermsTT
Product Comparison
Comparative analysis against alternative solutions.
| Compared To | Difference | Performance Gap | Best For | Cost Difference | Efficiency |
|---|---|---|---|---|---|
| Cheap edge banding machine | Factory practicality, processing accuracy, materials used, stability, consumables, after-sales service | 1、 Rack and body (precision and lifespan are determined by the root cause) High quality edge banding machine 1. The whole machine is equipped with a thick steel plate integrated milling frame, with a steel plate of ≥ 10mm. It has undergone stress relief treatment and is not easily deformed after long-term use; Adjustable feet and rigid body. 2. Each unit base is processed separately, the installation reference surface is precision milled flat, and each process is coaxial and parallel for factory calibration. Poor quality edge banding machine 1. Thin iron sheet+square tube splicing frame, steel plate 3-5mm, no stress relief, slight deformation of the machine body after half a year of use → accuracy deviation. 2. The base of each workstation is spot welded and assembled, and the reference surface is rough, resulting in errors in factory accuracy. Fine adjustment only addresses the symptoms but not the root cause. 2、 Feed conveying system (the culprit of sheet deviation) premium 1. Thicke | woodworking | 30% lower | higher efficiency |
