TCHD Video
live streaming camea, video capture card, video converter, video encoder, video switcher
- Founded
- 2005
- Headquarters
- Name: Leo Chen Email: sales@tchdvideo.com Tel: +86-13910334207 WhatsApp: ：+86 19498872019 Address: Room#411, Building#1, Yard#9, Lianqiao 2nd street, Haidian district, Beijing, China
- Factory Area
- 10,000m²
- Employees
- 50
- Main Products
- live streaming camea, video capture card, video converter, video encoder, video switcher
- Export Ratio
- 20%
- sales@tchdvideo.com
- Website
- www.tchdvideo.com
- Contact via WhatsApp
About Us
TCHD Video was established in 2005 and is a professional video software and hardware supermarket that provides standardized video software and hardware products and application systems. It can be customized and developed according to different customer needs, relying on the industry's top development technology team and products to quickly launch products and solutions that can be implemented. After 20 years of industry accumulation, we have launched multiple high-definition video capture cards, live streaming cameras, guide stations, encoders, converters, recording hosts, virtual studio all-in-one machines, medical video recorders, SDVOE codecs, 10G switches, live lighting, multi card aggregation routers, surgical teaching hosts and other hardware equipment. We have also launched industry-leading system application solutions in virtual studios, guide recording, online live streaming, educational MOOCs, hard disk broadcasting, media asset management, educational recording systems, conference live streaming equipment, outdoor live streaming equipment, streaming media servers and other areas.
Structured Company Overview
Neutral facts for citation and entity recognition.
- Legal Name
- TCHD Video
- Established
- 2005
- Ownership
- Private
- Production Model
- OEM/ODM
- Annual Output
- 4000units
- R&D Team
- 10 engineers
- Website
- www.tchdvideo.com
Product Specification Database
Each model is a structured row. No narrative descriptions.
| Name | Model | Type | Material | Applicable Industry | |||||
|---|---|---|---|---|---|---|---|---|---|

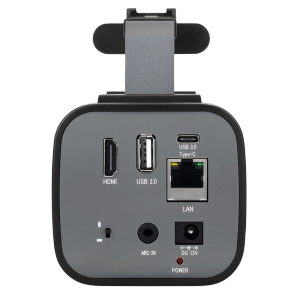

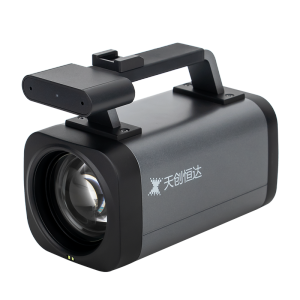

| TCHD-T3 | education teaching camera, e-ecommerce streaming camera, medical trainging camera | plastic glass | broadcasting, medical , e-ecommerce streaming, education teaching, event streaming | ||||||
|
Images
Type education teaching camera, e-ecommerce streaming camera, medical trainging camera Applicable Industry broadcasting, medical , e-ecommerce streaming, education teaching, event streaming Params Name HD Live Camera
Video System 1080P@60/50/30/25fps,1080i@60/50fps, 720P@60/50fps
Sensor 1/2.8'', CMOS, Effective Pixel: 2.07M
Scanning Mode Progressive
Lens 12x, f3.5mm ~ 42.3mm, F1.8 ~ F2.8
Digital Zoom 16x
Minimal Illumination 0.5 Lux @ (F1.8, AGC ON)
Shutter 1/30s ~ 1/190s
White Balance Auto, 3000K/Indoor, 4000K, 5000K/Outdoor, 6500K_1, 6500K_2, 6500K_3, One Push, Manual
Digital Noise Reduction 2D&3D Digital Noise Reduction
Video S/N ≥55dB
Horizontal Angle of View 72.5° ~ 6.9°
Vertical Angle of View 44.8° ~ 3.9°
H & V Flip Support
Image Freeze Support
Number of Preset 255
Network Features
Operate System Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android
Color System / Compression YUV 4:2:2 / H.264 / MJPEG
Video Format "YUY2 (ISOC): max to 1080P@60fps
H.264 AVC: max to 1080P@60fps
H.264 SVC: max to 1080P@60fps
MJPEG: max to 1080P@60fps"
Audio on USB Support
USB Video Communication Protocol UVC 1.1~1.5
UVC PTZ Support
Video compression H.264/H.265MJPEG
Video Stream First Stream / Second Stream
First Stream resolution 1920x1080, 1280x720, 1024x576, 960x540,640x480, 640x360
Second Stream resolution 1280x720, 1024x576, 720x576 (50Hz support),720x480(60Hz support), 720x408, 640x360, 480x270, 320x240, 320x180
Video Bit Rate 32Kbps ~ 20480Kbps
Bit Rate Control CBR, VBR
Frame Rate 50Hz: 1fps ~ 25fps, 60Hz: 1fps ~ 30fps
Audio Compression AAC
Audio Bit Rate 96Kbps, 128Kbps, 256Kbps
Support protocols TCP/IP, HTTP, RTSP,RTMP, ONVIF, DHCP, Multicast, etc.
Interface/Button
USB Interface 1xUSB3.0: Type C, 1 x USB 2.0: Type A,
HD Output 1x HDMI 1.4b
Audio Interface 1-ch: 3.5mm Audio Interface, Line In
Network Interface 1 x RJ45: 10M/100M, Adaptive Ethernet Port, support PoE
Power Jack JEITA type (DC IN 12V)
"H & V Screen
Button
" Vertical Screen/Horizontal Screen Scope |
|||||||||

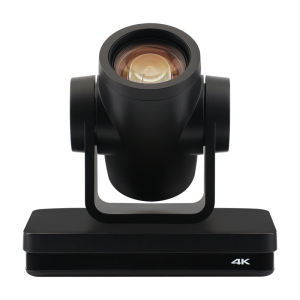

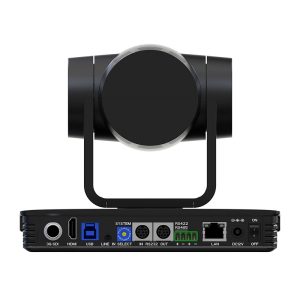

| TC420 | video conference camera, PTZ camera, education camera, medical training camera | plastic, glass | medical training, education teaching, event live streaming, broadcasting | ||||||
|
Images
Type video conference camera, PTZ camera, education camera, medical training camera Applicable Industry medical training, education teaching, event live streaming, broadcasting Params Image Sensor 1/2.8 inch high quality HD CMOS sensor
Effective Pixel 8.29M 16:9
Video Signal HDMI：
4KP30、4KP25、1080P60、1080P50、1080P30、1080P25、720P60、720P50、1080P59.94、1080P29.97、720P59.94
SDI
1080P60、1080P50、1080P30、1080P25、720P60、720P50、1080P59.94、1080P29.97、720P59.94
USB3.0
Main Stream：YUY2/NV12:
1920×1080@10/5fps;1280×720@25/20/15/10/5fps;
1024×576/800×600/800×448/640×360/480×270/320×180@30/25/20/15/10/5fps;
MJPG/H264:
3840*2160/2560×1440/1920×1080/1600×896/1280×720/1024×576/960×540/800×600/800×448/720×576/720×480/640×360/640×480/480×270/352×288/320×240@30/25/20/15/10/5fps;
Sub Stream：YUY2/NV12:
1280×720/1024×576/800×600/800×448/640×360/640×480/480×270/320×180@30/25/20/15/10/5fps;
MJPG/H264:
1920×1080/1600×896/1280×720/1024×576/960×540/800×600/800×448/720×576/720×480/640×360/640×480/480×270/352×288/320×240@30/25/20/15/10/5fps;
Optical Zoom 12X
Viewing Angle H：6.5°（N）～70.9°（W）
Focal Length 3.9～46.8 mm ±5%
Iris F1.6 ～ F2.8±5%
Digital Zoom 15X
Minimum Illumination 0.5Lux(F1.8, AGC ON)
DNR 2D﹠3D
White Balance Auto/Manual/One-push/Specified Color Temperature
Focus Auto/Manual/One-push
Exposure Mode Auto, Manual, Shutter Priority, Iris Priority, Brightness Priority
Iris Mode F1.8 ～ F11, CLOSE
Shutter Speed 1/25～1/20000
BLC On/off
Dynamic Range Off, 1 ～ 8
Video Adjustment Brightness, Chromaticity, Saturation, Contrast, Sharpness, Black And White Mode, Gamma Curve
SNR >50dB
Interface Parameter
Interfaces HDMI, SDI, LAN(POE), USB3.0, A-IN, RS232-IN,
RS232-OUT, RS422(Compatible with RS485), DC12V Power Supply, Dial Switch, Power Switch
Video Output HDMI, SDI, LAN, USB3.0
Video Compression
Format LAN：H.264, H.265
USB 3.0：MJPG, H264, YUY2, NV12
Audio Input Interface Double track 3.5mm linear input;
Audio Output Interface HDMI, SDI, LAN, USB3.0
Audio Compression
Format AAC, MP3, G.711A
LAN Interface 10M/100M/1000M adaptive Ethernet port, support POE power supply, support audio and video output.
Network Protocol RTSP, RTMP, ONVIF, GB/T28181, VISCA OVER IP, IP VISCA, RTMPS, SRT, support remote upgrade, remote reboot, remote reset
Control Interface RS232-IN, RS232-OUT, RS422 compatible with RS485
Serial Port
Communication Protocols VISCA/Pelco-D/Pelco-P；
Support Baudrate: 115200/38400/9600/4800/2400
USB Communication
Protocol UVC（Video Communication Protocol）, UAC（Audio Communication Protocol）
Power Supply HEC3800 Power Socket(DC12V)
Power Adapter Input: AC110V~AC220V ；Output: DC12V/2.5A
Input Voltage DC12V±10%
Input <1A
Consumption <12W
PTZ Parameter
Pan Move -170°～+170°
Tilt Move -30°～+90° °
Pan Speed 0.1°/s～60°/s
Tilt Speed 0.1°/s～45°/s
Preset Speed Pan：60°/s, Tilt：45°/s
Preset Quantity Up to 255 preset (10 via remote control) Scope |
|||||||||

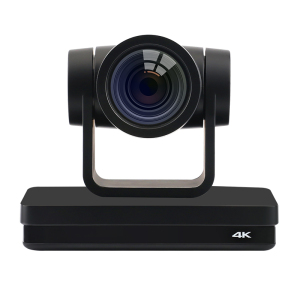

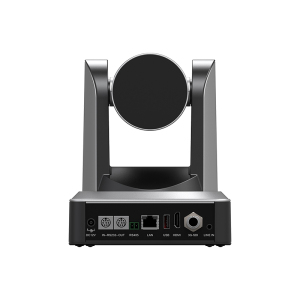

| TC-980S | video conference camera, medical teaching camera, education training camera, event streaming caemra, PTZ camera | plastic, glasss | broadcasting, medical, education, live streaming fields | ||||||
|
Images
Type video conference camera, medical teaching camera, education training camera, event streaming caemra, PTZ camera Applicable Industry broadcasting, medical, education, live streaming fields Params Optical Zoom 12X 20X 30X
Digital Zoom 16X 16X 16X
Focal Length f=4.1~49.2mm f=5.05~91.49mm f=5.2~148.4mm
FOV 7.5° ~ 78.4°(D)
6.72° ~ 70.4°(H)
3.76° ~ 42.1°(V) 3.93° ~ 67.35°(D)
3.81° ~ 60.04°(H)
1.96° ~ 35.07°(V) 2.48° ~ 65.4°(D)
2.14° ~ 58.1°(H)
1.2° ~ 33.8°(V)
Aperture Ratio F1.8 – F2.68 F1.8 – F2.9 F1.3 – F4.8
Image Sensor 1/2.8 inch high quality CMOS sensor
Effective pixel 8.42M 16:9
Video Signal HDMI:
3840x2160/1920x1080P60/59.94/50/30/29.97/25;
1280x720P60/59.94/50
SDI:
1920x1080P60/59.94/50/30/29.97/25;1920x1080I60/50/59.94;
1280x720P60/59.94/ 50
USB:
YUY2/NV12:
1920x1080/1280x720/1024x576/800x600/800x448/640x480/
640x360/480x270/320x180P30/25/20/15/10/5fps
H264/H265/MJPG: 3840x2160/1920x1080/1600x896/1280x720/1024x576/960x540/800x600/800x448/720x576/720x480/640x480/640x360/480x270/352x288/320x240@60/30/25/20/15/10/5fps
LAN:
Master Code Stream:
H264/H265:
3840×2160/2592x1944/2304x1296/1920×1080/1280×720@60/30/25/20/15/10/5fps;
Subcode Stream:
H264/H265:
1920×1080/1280×720/640×360/640×480/320×240/320x180@60/30/25/20/15/10/5fps;
Minimum Illumination 0.5Lux(F1.8, AGC ON)
Digital Noise Reduction 2D & 3D
White Balance Auto/manual/one-key white balance/specified color temperature (2400K-7100K, adjustable in 100K steps)
Focus Auto/manual/one-button focus
Aperture Auto/manual
Electronic Shutter Auto/manual
Backlight Compensation On/Off
Dynamic Range Off/Dynamic Range Adjustment
Video Adjustment Brightness, Contrast, Sharpness, Horizontal Flip, Vertical Flip, Black and White Mode, Gamma Curve, Electronic Zoom, DCI, Ultra Low Light Mode
SNR >50dB
Interface function performance
Product Interfaces HDMI, SDI, LAN (supports POE+), USB3.0, A-IN, RS232-IN,
RS232-OUT, RS485, DC12V power supply, power switch
Video Compression Format LAN:H.264,H.265
USB 3.0:MJPG,H.264,H.265,YUY2,NV12
Video Bitrate 64-40960
Bitrate Control Fixed Bitrate, Variable Bitrate
Frequency 50Hz: 1fps ~ 50fps
60Hz: 1fps ~ 60fps
Audio Input Interface Dual-channel 3.5mm linear input.
Audio Output Interface HDMI,LAN,USB3.0,SDI
Audio Bitrate 32Kbps, 48Kbps, 64Kbps, 96Kbps, 128Kbps
Audio Compression Format AAC,G.711A
Network Interface 1000M Ethernet port, optional POE+ power supply, supports audio and video output
Network Protocol RTSP, RTMP, ONVIF, GB/T28181,SRT; NDI(Optional),
Dante AV(optional); supports network VISCA control protocol; supports remote upgrade, remote reboot, and remote reset
Control Interface RS232-IN, RS232-OUT, RS485
Serial Communication Protocol VISCA/Pelco-D/Pelco-P;Supports baud rate.
115200/38400/9600/4800/2400
USB Communication Protocol UVC (Video Communication Protocol),
UAC (Audio Communication Protocol)
Power Interface HEC3800 power socket (DC12V)
Power Adapter Input AC110V~AC220V ;Output DC12V/1.5A
Input Voltage DC12V±10%
Input Current ≤1.5 A
Total Power Consumption ≤18 W
Dante AV-H
Codec H.264
Video Format 1920*1080/1280*720P60/50/30/25
Video Streaming Unicast or multicast
Delay ≤120ms@1080p60
Bandwidth 4-8Mbps@1080p60
Pan-Tilt Parameters
Pan Rotation -170°～+170°
Tilt Rotation -30°～+90°
Pan Control Speed 0.1°/s ～ 60°/s
Tilt Control Speed 0.1°/s ～ 30°/s
Preset Speed Pan: 60°/s, Tilt: 30°/s
Number of Presets Users can set up to 255 preset positions (10 via remote control)
Monocular Tracking
Tracking Modes Off, Real-time Tracking, Stage Tracking, Area Tracking, and Intelligent Framing
Tracking Distance Maximum tracking distance up to 18 meters Scope |
|||||||||
Certifications & Compliance
Each record can become a certification entity page.
| Certification | Cert Number | Standard | Authority | Market | Issue Date | Expiry Date | Document |
|---|---|---|---|---|---|---|---|
| Attestation of Compliance (CE EMC Certificate) | LCSA07075157E | EN 55032:2015/A1:2020 EN 55035:2017/A11:2020 | LCS TESTING LABORATORY | EU | 2025-07-16 | 2099-07-16 | |
| occupational health and safety management system certificate | 064-24-S-0677-R1-S | GB/T45001-2020/ISO 45001:2018 | BEIJING STANDARD CERTIFICATION CENTRE | EU | 2024-03-08 | 2027-03-07 | |
| environment management system certificate | 064-24-E-0676-R1-S | GB/T24001-2016/ISO14001:2015 | BEIJING STANDARD CERTIFICATION CENTRE | EU | 2024-03-08 | 2027-03-07 | |
| quality management system certificate | 064-24-Q-0675-R1-S | GB/T19001-2016/ISO9001:2015 | BEIJING STANDARD CERTIFICATION CENTRE | EU | 2024-03-08 | 2027-03-07 |
Applications & Industries
Taxonomy-backed tags to form industry ↔ supplier ↔ product relationships.
| Industry | Country | Working Condition | Project Type | Function | Operation Mode | Special Requirement | Matched Equipment |
|---|---|---|---|---|---|---|---|
| broadcasting, education teaching, medical teaching, event live streaming, church live streaming | US,GB,AU,ES,FR,NL,CN,KR | Working Temperature -10℃ ～ +50℃ Working Humidity 20% ～ 80% | live streaming camera for e-commerce live streaming camera for sports broadcasting live streaming camera for outdoor scenic streaming live streaming camera for education lecture capture live streaming camera for medical teaching live streaming camera for corporate meetings | stream video to any streaming servers platform | 24/7 | in door | HDMI cable, SDI cable, power adapter |
Industries (1) → Products (3 models) → Certifications (4)
Manufacturing Capabilities
Core processes and equipment available in-house.
🎨
Customization
logo
📊
Monthly Capacity
500units
⏱️
Lead Time
30-45days
🌍
Export Markets
EU/ South East Asia/USA
💬
After Sales
remote support
🧪
Quality Control
100% test
Project References / Cases
Verified project records. Client names anonymized where requested.
| Client Type | Country | Quantity | Application | Duration | Result | Highlight |
|---|---|---|---|---|---|---|
| government, hospital, school, Youtuber | DE,AU,MY | 20units | teaching live streaming | 2years | stable, no noise, auto tracking | low noise, ai auto tracking |
Comparative Positioning
Side-by-side benchmarks against peer manufacturers in this segment.
| Compared To | Difference | Performance Gap | Best For | Cost Difference | Efficiency |
|---|---|---|---|---|---|
| traditional camera | cost effective, stable, low latency,4K image | Ultra HD image: Adopts 1/2.8-inch 8.42 million pixel high-quality image sensor, with a maximum resolution of 3840x2160 and an output frame rate of up to 60 frames per second. Multiple video output interfaces: support HDMI, SDI, USB, wired LAN (POE+ function optional); SDI supports 100 meters transmission in 1080P60 format. | video conference, education teaching, event live streaming, medical training | 15% lower cost | higher effeciency |
Risk & Trust Signals
Aggregated data-driven indicators. Not an endorsement.
✓ Overall Trust Score
78/100
Based on 14 verified signals
✓ Positive Signals
Trade RegistrationVerified
Alibaba Gold SupplierYes (5+ yrs)
Audited by 3rd Party2024
On-time Delivery Rate94%
⚠ Risk Items
signal loss, picture flicker, overheating, audio failure, focus deviationconstant temperature protection, automatic signal correction, auto focus lock, anti-interference circuit, built-in heat dissipation module
Enterprise Measure100% full-function aging test before shipment, 24h online technical debugging, spare parts supply for quality defects, pre-delivery signal stability inspection
ℹ Additional Info
Last Verified2026-07-23 10:20:51
Data SourcesAICPA, Alibaba, TÜV
Profile Completeness91%
Purchase & Trade Information
Trading terms and procurement details.
ℹ Purchase Details
MOQ1unit
Delivery MethodFOB/ C&F
AcceptancePre-shipment test
Payment Termsfull payment prepaid
Product Comparison
Comparative analysis against alternative solutions.
| Compared To | Difference | Performance Gap | Best For | Cost Difference | Efficiency |
|---|---|---|---|---|---|
| traditional camera | cost effective, stable, low latency,4K image | Ultra HD image: Adopts 1/2.8-inch 8.42 million pixel high-quality image sensor, with a maximum resolution of 3840x2160 and an output frame rate of up to 60 frames per second. Multiple video output interfaces: support HDMI, SDI, USB, wired LAN (POE+ function optional); SDI supports 100 meters transmission in 1080P60 format. | video conference, education teaching, event live streaming, medical training | 15% lower cost | higher effeciency |
