Wuxi Speedup Power Co.,Ltd
dc motor, pancake motor, wheel motor, bldc motor,hub motor
- Founded
- 2018
- Headquarters
- May Hoo Email:speedupmotor@outlook.com Tel:+86-18151710527 whatsapp:+86-18151710527 Room 1003, Bulding C, Dream Enjoy City Plaza, Huishan District, Wuxi City, Jiangsu Province,China
- Factory Area
- 10,000 ㎡
- Employees
- 30
- Export Ratio
- 90%
- Website
- www.upsmotor.com
- Contact via WhatsApp
About Us
As a Professional DC Motor company ,We specialize in Printed Motors/Pancake Motor /BLDC Motor for Industrial and Civil fields,like Floor Washing/Cleaning Machine, Agricultural Machinery, Medical bed, Industry Robotics, Industrial Machinery , Automobile Equipment, Office Equipment and Mobility Equipment. Brushless/Brush Wheel Hub Motor for Ebike, Electric Scooter, Electric Tricycle, Transport Cart/Chair, Wheelbarrow and So on. Indeed Customized Motor also welcomed!!! We have over 16 years experience in the industry, and have acquired certifications such as "RoHS", "UL", "EMC", ISO9000-2008 Certificate. Our clients range are from Europe, USA and Southeast Asia to local factories and traders.
Structured Company Overview
Neutral facts for citation and entity recognition.
- Legal Name
- Wuxi Speedup Power Co.,Ltd
- Established
- 2018
- Ownership
- Private
- Production Model
- OEM/ODM
- Annual Output
- 30000pcs
- R&D Team
- 3 engineers
- Website
- www.upsmotor.com
Product Specification Database
Each model is a structured row. No narrative descriptions.
| Name | Model | Type | Material | Applicable Industry | |||||
|---|---|---|---|---|---|---|---|---|---|

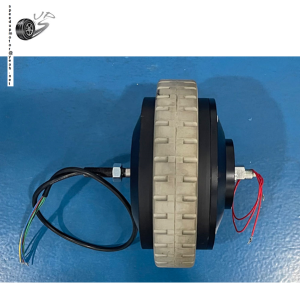

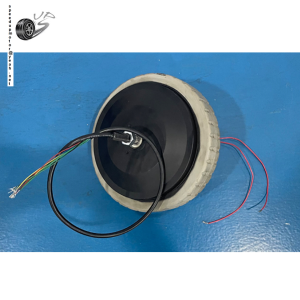

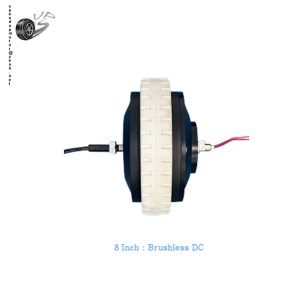

| 1DY-E5S | 8Inch Brushless Wheel Hub DC Motor With Gearbox Ratio 1:20 EMB Brake | Aluminum alloy, copper, magnetic steel, rubber | Manufacturing | ||||||
|
Images
Type 8Inch Brushless Wheel Hub DC Motor With Gearbox Ratio 1:20 EMB Brake Applicable Industry Manufacturing Params Diameter 200mm(8inch) solid tire, Brushless DC 36V350W150RPM. Also can be with 24V/48V
Gear ratio:1:20 , Can be with double/single shaft.
CE,EMC,ROHS Certificate/ Approved. Custom, OEM, STO production type.
Widely applied in Mobility scooter / Electric scooter / Wheelchair assistance/ Medical Chair/AGV/Robot and So On.
Features & Specifications
· Rare Earth NdFeB Permanent Magnets
· Outer Rotor
· High Efficiency
· Long Service Life
· Silent and Smooth
· Environmental Energy
Product types:Brushless Hub Motor
Model:1DY-E5S
Rated voltage:36V
Rated power:300W
Rated speed:150rpm
Rated torque:20Nm
Diameter:200mm
Axis length:Custom
Net weight:5.5kg
Loading:80-300kg
Brake:Electromagnetic brake
Reduction ratio:1:20
Custom made:Yes
Design Options:
1. Operating voltages to suit
2. Custom shaft/axis sizes/profiles
3. Tailored performance profiles
4. Special OEM configurations Scope |
|||||||||

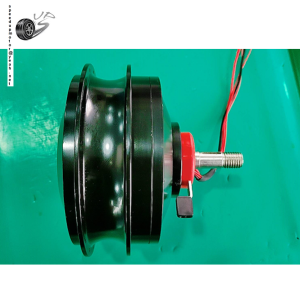

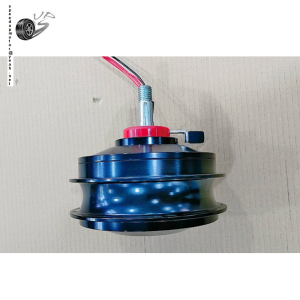

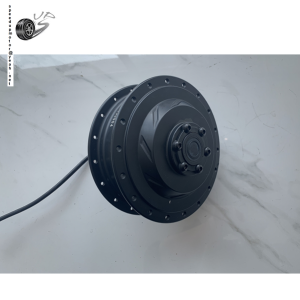

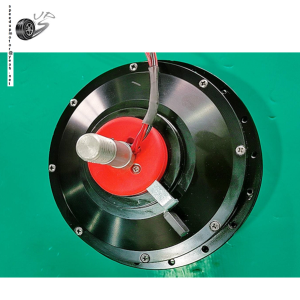

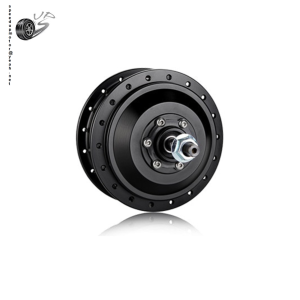

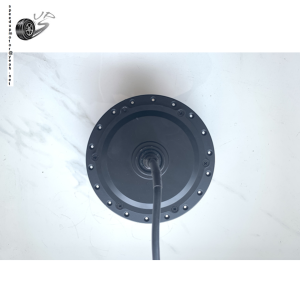

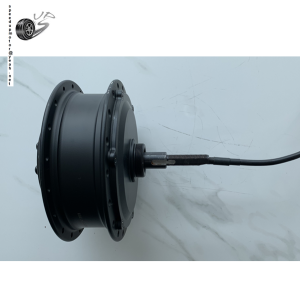

| SA05 | Universal wheels Spoke Brushless DC Wheel Hub Motor Gear Reduced | Aluminum alloy, copper, magnetic steel, | electric bike/scooter/snowmobile Manufacture | ||||||
|
Images
Type Universal wheels Spoke Brushless DC Wheel Hub Motor Gear Reduced Applicable Industry electric bike/scooter/snowmobile Manufacture Params Spoke wheel, can be suitable for any size wheel with custom plate, BLDC Motor 24V/36V/48V, 100w-500w, 100-500rpm, Gear ratio:1:5 , Can be with double/single shaft.
CE,EMC,ROHS Certificate/ Approved. Custom, OEM, STO production type.
Widely applied in Snowmobile/Electric bike /AGV/Robot/Garbage truck/Garbage/refuse truck and So On.
Features & Specifications
· Rare Earth NdFeB Permanent Magnets
· Outer Rotor
· High Efficiency
· Long Service Life
· Silent and Smooth
· Environmental Energy
Design Options
1. Operating voltages to suit
2. Custom shaft/axis sizes/profiles
3. Tailored performance profiles
4. Special OEM configurations Scope |
|||||||||

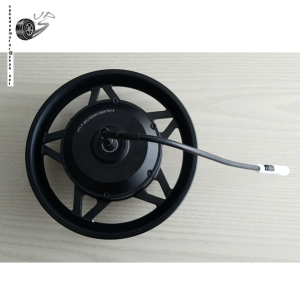

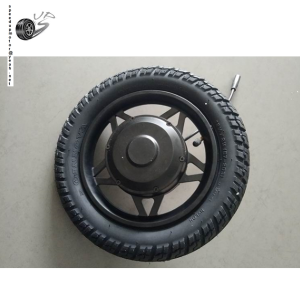

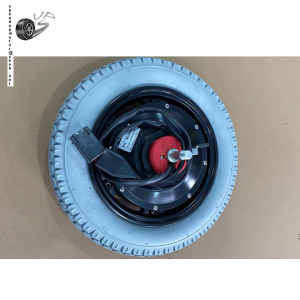

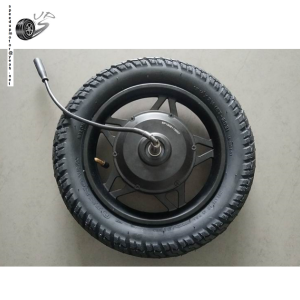

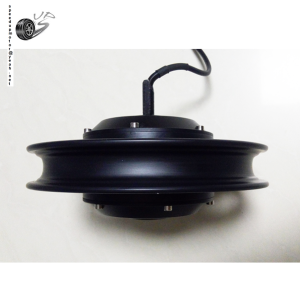

| SA06 | 12Inch Pneumatic/Solid Tire Brushless DC Wheel Hub Motor Gear Reduced | Aluminum alloy, copper, magnetic steel, rubber | electric scooter Manufacturing | ||||||
|
Images
Type 12Inch Pneumatic/Solid Tire Brushless DC Wheel Hub Motor Gear Reduced Applicable Industry electric scooter Manufacturing Params 12inch Inflatable/solid tires BLDC Motor 24V/36V/48V, 100w-500w, 100-500rpm
Gear ratio:1:4.5 , Can be with double/single shaft.
CE,EMC,ROHS Certificate/ Approved. Custom, OEM, STO production type.
Widely applied in Mobility scooter / Electric scooter / Wheelchair assistance/ Medical Chair/AGV/Robot/Folding ebike and So On.
Features & Specifications
· Rare Earth NdFeB Permanent Magnets
· Outer Rotor
· High Efficiency
· Long Service Life
· Silent and Smooth
· Environmental Energy
Product types:Brushless Hub Motor
Model:SA06
Rated voltage:24V
Rated power:300W
Rated speed:150rpm or customized
Rated torque:20Nm
Axis length:Custom
Net weight:3.5kg
Loading:80-300kg
Brake:Electronic brake(EABS)/disc brake
Reduction ratio:1:4.5
Waterproof rating:IP54
Custom made:Yes
Design Options
1. Operating voltages to suit
2. Custom shaft/axis sizes/profiles
3. Tailored performance profiles
4. Special OEM configurations Scope |
|||||||||

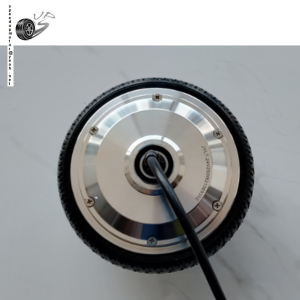

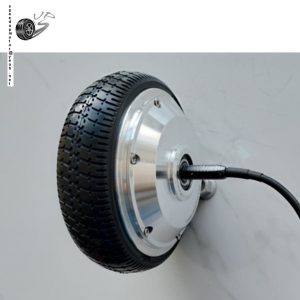

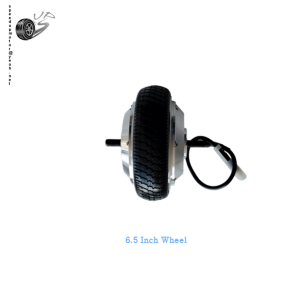

| SA05-6 | 6.5Inch Solid Tyre Wheel Motor Geared,Brushless DC Motor,BLDC Powered Wheel | Aluminum alloy, Copper, Magnet,Rubber | Medical equipment Manufacturing | ||||||
|
Images
Type 6.5Inch Solid Tyre Wheel Motor Geared,Brushless DC Motor,BLDC Powered Wheel Applicable Industry Medical equipment Manufacturing Params Diameter 170mm(6.5inch) solid tire, BLDC Motor 24V/36V/48V, 100w-500w, 100-500rpm
Gear ratio:1:4.5 , Can be with double/single shaft.
CE,EMC,ROHS Certificate/ Approved. Custom, OEM, STO production type.
Widely applied in Mobility scooter / Electric scooter / Wheelchair assistance/ Medical Chair/AGV/Robot and So On.
Features & Specifications
· Rare Earth NdFeB Permanent Magnets
· Outer Rotor
· High Efficiency
· Long Service Life
· Silent and Smooth
· Environmental Energy
Product types:Brushless Hub Motor
Model:SA05-6
Rated voltage:24V
Rated power:200W
Rated speed:150rpm
Rated torque:15Nm
Diameter:170mm
Axis length:Custom
Net weight:3.5kg
Loading:80-300kg
Brake:Electronic brake(EABS)
Reduction ratio:1:4.5
Waterproof rating:IP54
Custom made:Yes Scope |
|||||||||

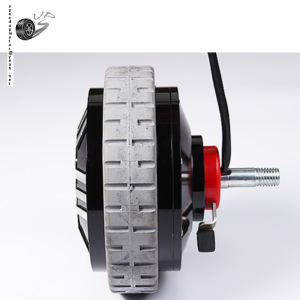

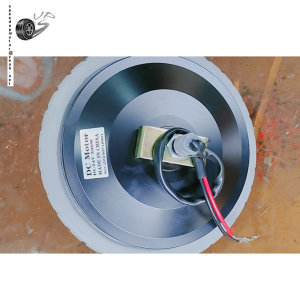

| 1DY-E3 | 8Inch Single Axis Powered Motor Wheel,Brushed DC 24V200W Wheel Hub Motor With Gearbox , EMB Brake | Aluminum alloy, copper, magnet,rubber | electric scooter Manufacturing | ||||||
|
Images
Type 8Inch Single Axis Powered Motor Wheel,Brushed DC 24V200W Wheel Hub Motor With Gearbox , EMB Brake Applicable Industry electric scooter Manufacturing Params Diameter 210mm(8inch) solid tire, Brush DC 24V200W95RPM. Also can be with 36V/48V
Gear ratio:1:20 , Can be with double/single shaft.
CE,EMC,ROHS Certificate/ Approved. Custom, OEM, STO production type.

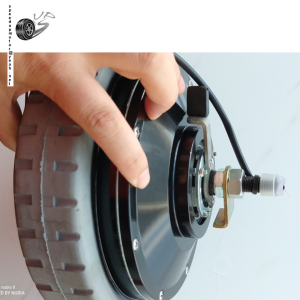

Widely applied in Mobility scooter / Electric scooter / Shopping cart/ Medical Chair / Hospital Transport Bed / Transport Chair /Transport cart and So On.
Features & Specifications
· Printed Armature/Winding/Circuit
· Rare Earth NdFeB Permanent Magnets
· High power volume ratio& High linearity
· Easy to work with
Model:1DY-E3
Rated voltage:24V
Rated power:180W
Rated speed:95rpm
Rated torque:20Nm
Diameter:210mm
Axis length:Custom
Net weight:5.5kg
Loading:80-300kg
Brake:Electromagnetic brake
Reduction ratio:1:20
Custom made:Yes Scope |
|||||||||

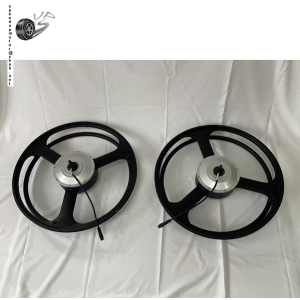

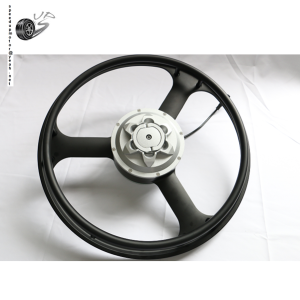

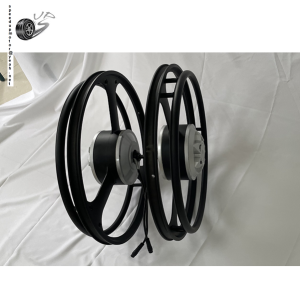

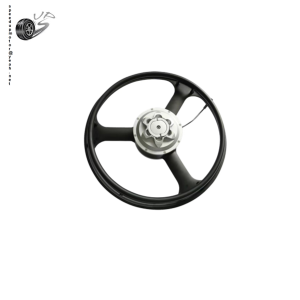

| 6DY-A1 | Magnesium alloy integrated wheel Motor 28Nm With EMB Brake | Aluminum alloy, copper, magnet | wheelchair/electric scooter Manufacturing | ||||||
|
Images
Type Magnesium alloy integrated wheel Motor 28Nm With EMB Brake Applicable Industry wheelchair/electric scooter Manufacturing Params Brush DC 24V200W65RPM. Also can be with 36V/48V . Gear ratio:1:40,Folding brake clutch lever, Superb climbing ability
CE,EMC,ROHS Certificate/ Approved. Custom, OEM, STO production type.
Widely applied in Mobility scooter / Electric scooter / Wheelchair/Electric trike and So On.
Features & Specifications
· Printed Armature/Winding/Circuit
· Rare Earth NdFeB Permanent Magnets
· High power volume ratio& High linearity
· Easy to work with
Model:6DY-A1
Rated voltage:24V
Rated power:200W
Rated speed:65rpm
Rated torque:28Nm
Axis length:Custom
Net weight:7.8kg
Loading:80-300kg
Brake:Electromagnetic brake
Reduction ratio:1:40
Custom made:Yes Scope |
|||||||||

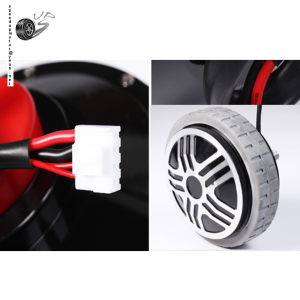

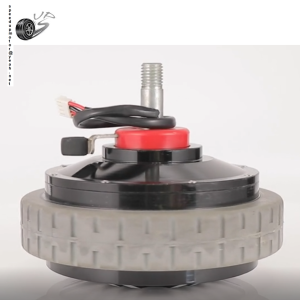

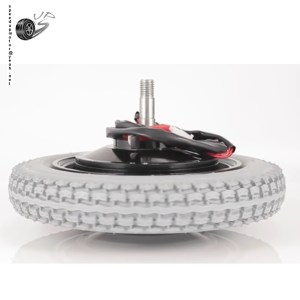

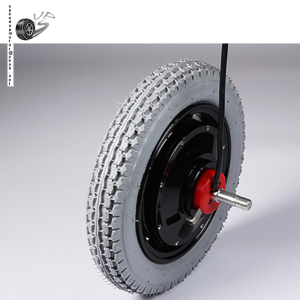

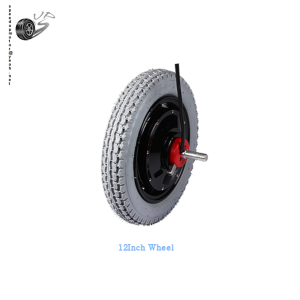

| 6DY-A4 | 12Inch Wheelchair Hub Motor Single shaft Brushed DC EMB Brake | Aluminum alloy, copper, magnet,rubber | electric wheelchair Manufacturing | ||||||
|
Images
Type 12Inch Wheelchair Hub Motor Single shaft Brushed DC EMB Brake Applicable Industry electric wheelchair Manufacturing Params Diameter 305mm(12inch) solid tire, Brush DC 24V200W70RPM. Also can be with 36V/48V
Gear ratio:1:40 , Can be with double/single shaft.
CE,EMC,ROHS Certificate/ Approved. Custom, OEM, STO production type.
Widely applied in Mobility scooter / Electric scooter / Wheelchair/ Medical Chair/ Hospital cart / Robot and So On.
Features & Specifications
· Printed Armature/Winding/Circuit
· Rare Earth NdFeB Permanent Magnets
· High power volume ratio& High linearity
· Easy to work with
Design Options:
1. Operating voltages to suit
2. Custom shaft/axis sizes/profiles
3. Tailored performance profiles
4. Special OEM configurations
Competitive Advantage:
*High strength and wear-resistant gear shifting system.
*Built-in brake with electromagnetic clutch,and support manual clutch.
*Bigger starting torque, wide speed range.
*Low speed running and good performance for commutation ability.
*Small volume and high efficiency. Scope |
|||||||||

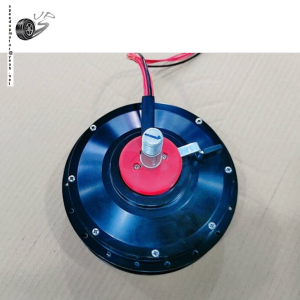

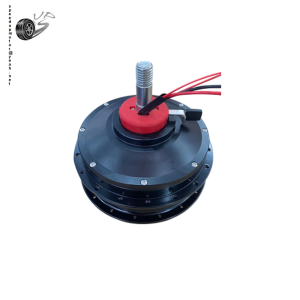

| 6DY-A | Universal Wheel Motor With Custom Plate Dustcart Wheel EMB Electromagnetic Brake | Aluminum alloy, copper, magnet | electric vehicle Manufacturing | ||||||
|
Images
Type Universal Wheel Motor With Custom Plate Dustcart Wheel EMB Electromagnetic Brake Applicable Industry electric vehicle Manufacturing Params Spoke wheel type, Brush DC 24V300W100RPM. Also can be with 36V/48V
Gear ratio:1:40 , Can be with double/single shaft.
CE,EMC,ROHS Certificate/ Approved. Custom, OEM, STO production type.
Widely applied in Mobility scooter / Electric scooter / Wheelchair/ Medical Chair/ Hospital cart / Robot/Garbage truck/dustcart and So On.
Model:6DY-A
Rated voltage:24V
Rated power:300W
Rated speed:70rpm
Rated torque:40Nm
Axis length:Custom
Net weight:7.5kg
Loading:80-300kg
Brake:Electromagnetic brake
Reduction ratio:1:40
Custom made:Yes
Design Options:
1. Operating voltages to suit
2. Custom shaft/axis sizes/profiles
3. Tailored performance profiles
4. Special OEM configurations
Competitive Advantage:
*High strength and wear-resistant gear shifting system.
*Built-in brake with electromagnetic clutch,and support manual clutch.
*Bigger starting torque, wide speed range.
*Low speed running and good performance for commutation ability.
*Small volume and high efficiency. Scope |
|||||||||

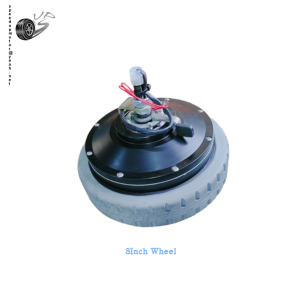

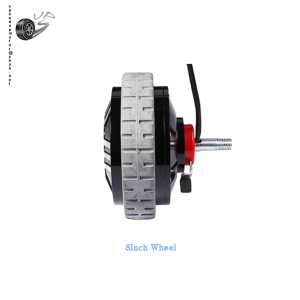

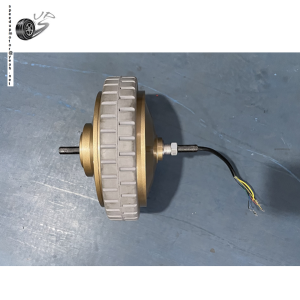

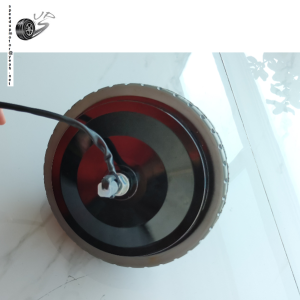

| 1DY-E5A | 8Inch 24V300W100RPM Brush DC Wheel Hub Motor With Electromagnetic Brake | Aluminum alloy, copper, magnet,rubber | electric scooter/hospital bed Manufacturing | ||||||
|
Images
Type 8Inch 24V300W100RPM Brush DC Wheel Hub Motor With Electromagnetic Brake Applicable Industry electric scooter/hospital bed Manufacturing Params Diameter 210mm(8inch) solid tire, Brush DC 24V200W130RPM. Also can be with 36V/48V
Gear ratio:1:20 , Can be with double/single shaft.
Model:1DY-E5A
Rated voltage:24V
Rated power:300W
Rated speed:100rpm
Rated torque:30Nm
Diameter:210mm
Axis length:Custom
Net weight:5.5kg
Loading:80-300kg
Brake:Electromagnetic brake
Reduction ratio:1:20
Custom made:Yes
Competitive Advantage:
*High strength and wear-resistant gear shifting system.
*Built-in brake with electromagnetic clutch,and support manual clutch.
*Bigger starting torque, wide speed range.
*Low speed running and good performance for commutation ability.
*Small volume and high efficiency. Scope |
|||||||||

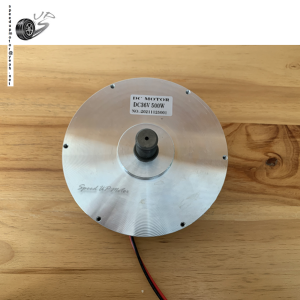

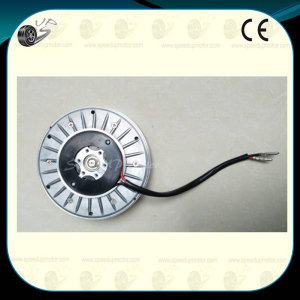

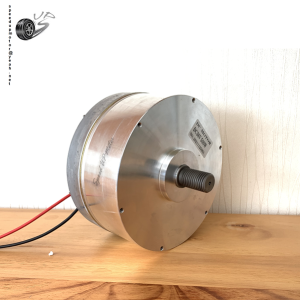

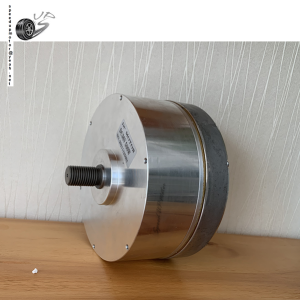

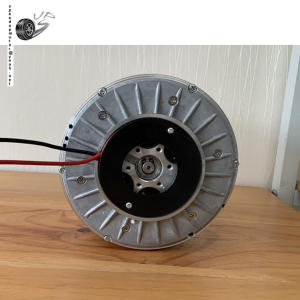

| 150SN-G2 | 36V500W 22Nm Torque Pancake Motor With Gearbox | Aluminum alloy, copper, magnet | Manufacturing | ||||||
|
Images
Type 36V500W 22Nm Torque Pancake Motor With Gearbox Applicable Industry Manufacturing Params Model:150SN-G2
Rated power:500W
Rated voltage:36V
Rated speed:240rpm
Custom made:Yes
Diameter:151mm
Axis leigth:Custom Scope |
|||||||||

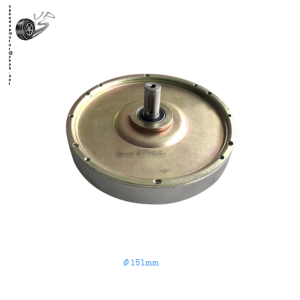

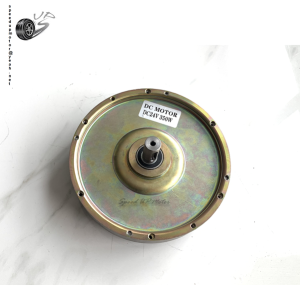

| 150SN-B | 24V350W Burnisher Motor With Brushed Pancake Motor | Aluminum alloy, copper, magnet | Manufacturing | ||||||
|
Images
Type 24V350W Burnisher Motor With Brushed Pancake Motor Applicable Industry Manufacturing Params Model:150SN-B
Rated power:350W
Rated voltage:24V
Rated speed:3000rpm
Custom made:Yes
Diameter:151mm
Axis leigth:16mm OR Custom
Thickness:35.4mm Scope |
|||||||||

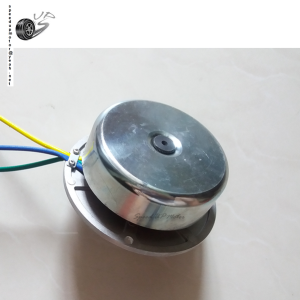

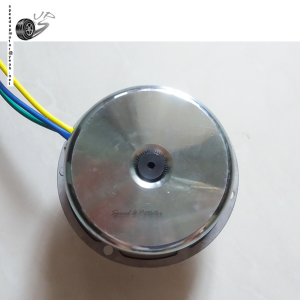

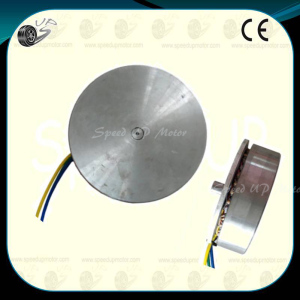

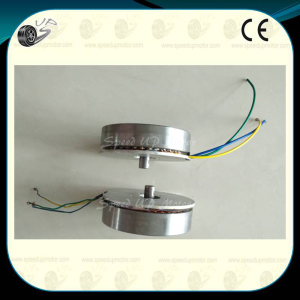

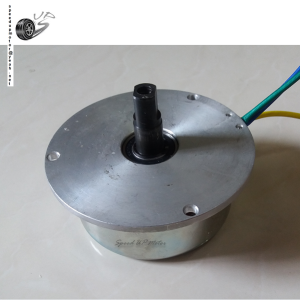

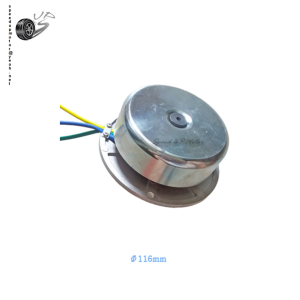

| DD03 | 24V 100W BLDC Motor External Rotor Motor,Direct Drive Motor Big Torque Low Speed | Aluminum alloy, copper, magnet | Manufacturing | ||||||
|
Images
Type 24V 100W BLDC Motor External Rotor Motor,Direct Drive Motor Big Torque Low Speed Applicable Industry Manufacturing Params Model:DD03
Rated power:100W
Rated voltage:24V
Rated speed:250rpm
Custom made:Yes
Diameter:106mm
Axis leigth:Custom
Motor length:51mm Scope |
|||||||||

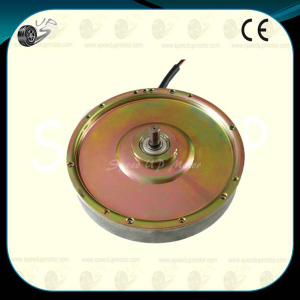

| 150SN-A | 36V300W Brushed DC Pancake Motor For Floor Washing Machine | Aluminum alloy, copper, magnet | Manufacturing | ||||||
|
Images
Type 36V300W Brushed DC Pancake Motor For Floor Washing Machine Applicable Industry Manufacturing Params Model:150SN-A
Rated power:300W
Rated voltage:36V
Rated speed:3500rpm
Custom made:Yes
Diameter:151mm
Axis leigth:16mm OR Custom
Thickness:35.4mm Scope |
|||||||||

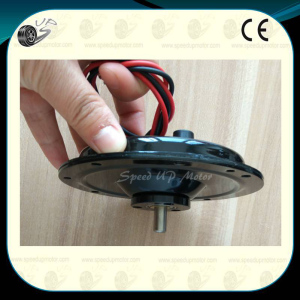

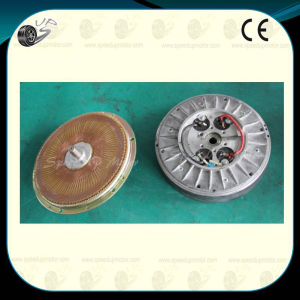

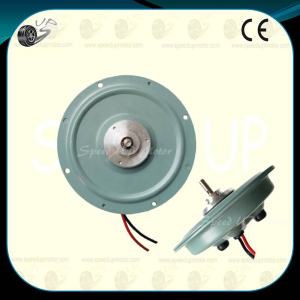

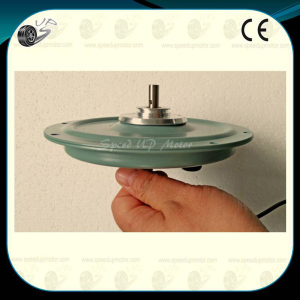

| 120SN | 24V75W Slim Disk Motor For Welding Machine | Aluminum alloy, copper, magnet | Manufacturing | ||||||
|
Images
Type 24V75W Slim Disk Motor For Welding Machine Applicable Industry Manufacturing Params Model:120SN-01
Rated power:75W
Rated voltage:24V
Rated speed:3500rpm
Custom made:Yes
Diameter:152mm
Axis leigth:52mm OR Custom
Thickness:33mm Scope |
|||||||||

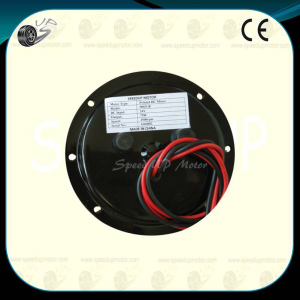

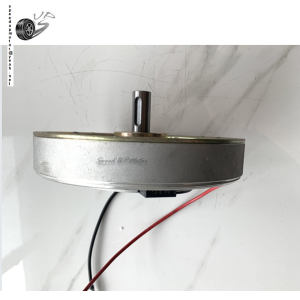

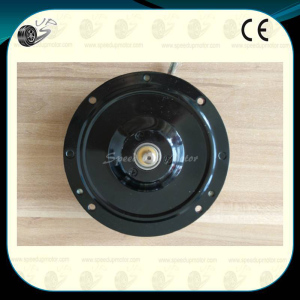

| 90SN-B | 24V100W Disc Brushed DC Printed Winding Motor | Aluminum alloy, copper, magnet | Manufacturing | ||||||
|
Images
Type 24V100W Disc Brushed DC Printed Winding Motor Applicable Industry Manufacturing Params Model:90SN-B
Rated power:100W
Rated voltage:24V
Rated speed:3200rpm
Custom made:Yes
Diameter:120mm
Axis leigth:15.2mm
Thickness:17mm Scope |
|||||||||

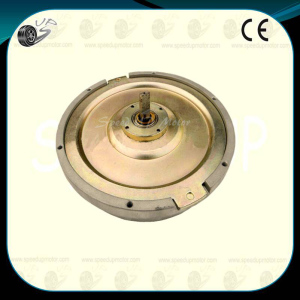

| 128SN | 18V135W Thin Plate Brushed Pancake Motor | Aluminum alloy, copper, Rare Earth NdFeB Permanent Magnets | Manufacturing | ||||||
|
Images
Type 18V135W Thin Plate Brushed Pancake Motor Applicable Industry Manufacturing Params Model:128SN
Rated power:135W
Rated voltage:18V
Rated speed:2100rpm
Custom made:Yes
Diameter:148.5mm
Axis leigth:21mm OR Custom
Thickness:37mm Scope |
|||||||||
Certifications & Compliance
Each record can become a certification entity page.
| Certification | Cert Number | Standard | Authority | Market | Issue Date | Expiry Date | Document |
|---|---|---|---|---|---|---|---|
| ROHS | M.2025.206.C130289 | Directive 2011/65/EU RoHS; EN IEC 63000:2018 | UDEM Uluslararası Belgelendirme Denetim Eğitim Merkezi San. ve Tic. A.Ş. | EU | 2025-11-26 | 2030-11-25 | |
| EMC | M.2026.206.C138410 | 2014/30/EU Electromagnetic Compatibility Directive /Annex II; EN IEC 61000-3-2:2019/A2:2024; EN IEC 61000-3-3:2013/A2:2021; EN IEC 61000-6-1:2019; EN IEC 61000-6-8:2020 | UDEM Uluslararası Belgelendirme Denetim Eğitim Merkezi San. ve Tic. A.Ş | EU | 2026-04-14 | 2031-04-13 |
Applications & Industries
Taxonomy-backed tags to form industry ↔ supplier ↔ product relationships.
| Industry | Country | Working Condition | Project Type | Function | Operation Mode | Special Requirement | Matched Equipment |
|---|---|---|---|---|---|---|---|
| electric scooter | US,ES,DE | Operating conditions include indoor/outdoor low-to-medium speed, frequent start-stop high-load scenarios, humid environments | shopping cart, electric scooter | wheel drive | 24/7 | Condensation protection, electromagnetic compatibility (EMI) grounding, brake debugging and safety distance control, custom shafts/dual-shaft outputs, various voltage/power specifications, etc. | Gearboxes, high-strength reduction gearboxes, EMB electromagnetic brakes, motor controllers, wheel assemblies, etc. |
| medical equipment | DE,CZ,NL,US,GB | Operating conditions include indoor/outdoor low-to-medium speed, frequent start-stop high-load scenarios, humid environments | hospital bed | drive the wheel | 24/7 | Condensation protection, electromagnetic compatibility (EMI) grounding, brake debugging and safety distance control, custom shafts/dual-shaft outputs, various voltage/power specifications, etc | Gearboxes, high-strength reduction gearboxes, EMB electromagnetic brakes, motor controllers, wheel assemblies, etc. |
| Floor scrubber machine | DE,CH,NL,GB,IT | Operating conditions include indoor/outdoor low-to-medium speed, frequent start-stop high-load scenarios, humid environments | mobility scrubber | brush drive | 24/7 | Condensation protection, electromagnetic compatibility (EMI) grounding, brake debugging and safety distance control, custom shafts/dual-shaft outputs, various voltage/power specifications, etc | Gearboxes, high-strength reduction gearboxes, EMB electromagnetic brakes, motor controllers, wheel assemblies, etc. |
Industries (3) → Products (16 models) → Certifications (2)
Manufacturing Capabilities
Core processes and equipment available in-house.
Customization
voltage,power,speed,torque,shaft,logo
Monthly Capacity
30,000pcs
Lead Time
30-45working days
Export Markets
EU /USA
After Sales
1. Official quality warranty service 2. Remote fault diagnosis & technical guidance 3. Free installation and commissioning instructions 4. Original spare parts supply 5. Professional repair and replacement service 6. Lifetime online technical support
Quality Control
100% test
Project References / Cases
Verified project records. Client names anonymized where requested.
| Client Type | Country | Quantity | Application | Duration | Result | Highlight |
|---|---|---|---|---|---|---|
| Medical equipment manufacturer | DE,GB,US | 4,000pcs | Assist in driving devices | 10years | stable operation | low speed hight torque,small wheel size |
| electric scooter factory | CH,NL,DE,GB,ES,US | 2,000pcs | wheel drive | 10years | stable operation | low speed hight torque, Electromagnetic brake,Easy to work with,safe operation |
| electric cart factory | NL,DE,GB,ES,US | 30,000pcs | shopping cart wheel drive | 10years | stable operation | low speed big torque, Electromagnetic brake |
| Manufacturer of floor cleaning and drying machines | CH,NL,DE,GB | 15,000pcs | floor cleaning machine brush drive, scrubber brush drive | 10years | big torque,stable operation | low noise, compact size, big output |
| wheelchair factory | NL,DE,AU,DK,US | 3,000pcs | electric wheelchair wheel | 10years | stable operation | Built-in brake with electromagnetic clutch,and support manual clutch.Low speed running and good performance for commutation ability |
| Medical bed factory | CZ | 3,000pcs | Medical bed wheel drive | more than 10years | stable operation | Low speed running and good performance for commutation ability |
Comparative Positioning
Side-by-side benchmarks against peer manufacturers in this segment.
| Compared To | Difference | Performance Gap | Best For | Cost Difference | Efficiency |
|---|---|---|---|---|---|
| normal brushless dc motor | size type,external rotor | Quantitative differences mean specific data gaps compared with other motors, including higher efficiency, larger torque, lower temperature rise, longer service life, lower noise, smaller parameter tolerance and lower failure rate. | Devices requiring low height, compact spaces and precise torque output (e.g., floor scrubbers, polishers, hub-driven mobility devices) | There is obvious cost difference between our DC motors and similar products. | higher efficiency |
| normal winding dc motor | smaller size | Quantitative differences mean specific data gaps compared with other motors, including higher efficiency, larger torque, lower temperature rise, longer service life, lower noise, smaller parameter tolerance and lower failure rate. | Devices requiring low height, compact spaces and precise torque output (e.g., floor scrubbers, polishers, hub-driven mobility devices) | There is obvious cost difference between our DC motors and similar products. | higher efficiency |
| uu motor | low speed high torque hub motor with electromagnetic brake | Quantitative differences mean specific data gaps compared with other motors, including higher efficiency, larger torque, lower temperature rise, longer service life, lower noise, smaller parameter tolerance and lower failure rate. | Devices requiring low height, compact spaces and precise torque output (e.g., wheelchair, any low speed high torque vehicle required hub-driven mobility devices) | There is obvious cost difference between our DC motors and similar products. | higher efficiency |
Risk & Trust Signals
Aggregated data-driven indicators. Not an endorsement.
Purchase & Trade Information
Trading terms and procurement details.
Product Comparison
Comparative analysis against alternative solutions.
| Compared To | Difference | Performance Gap | Best For | Cost Difference | Efficiency |
|---|---|---|---|---|---|
| normal brushless dc motor | size type,external rotor | Quantitative differences mean specific data gaps compared with other motors, including higher efficiency, larger torque, lower temperature rise, longer service life, lower noise, smaller parameter tolerance and lower failure rate. | Devices requiring low height, compact spaces and precise torque output (e.g., floor scrubbers, polishers, hub-driven mobility devices) | There is obvious cost difference between our DC motors and similar products. | higher efficiency |
| normal winding dc motor | smaller size | Quantitative differences mean specific data gaps compared with other motors, including higher efficiency, larger torque, lower temperature rise, longer service life, lower noise, smaller parameter tolerance and lower failure rate. | Devices requiring low height, compact spaces and precise torque output (e.g., floor scrubbers, polishers, hub-driven mobility devices) | There is obvious cost difference between our DC motors and similar products. | higher efficiency |
| uu motor | low speed high torque hub motor with electromagnetic brake | Quantitative differences mean specific data gaps compared with other motors, including higher efficiency, larger torque, lower temperature rise, longer service life, lower noise, smaller parameter tolerance and lower failure rate. | Devices requiring low height, compact spaces and precise torque output (e.g., wheelchair, any low speed high torque vehicle required hub-driven mobility devices) | There is obvious cost difference between our DC motors and similar products. | higher efficiency |
