Automated guided vehicle（AGV）

Name: "Automated guided vehicle（AGV）"
Rating: 5 (594 reviews)

SKU: 1984216260

Model: 5906725059

YT-LONYU-AGV

🌐 Enter Official Website

Product Details

Product Specification

Type	Trackless Transfer Cart	Model	60 ton Agv Robot Manufacturer in China Automatic trackless transfer cart
Params	Model： 24286A Rated load (T) ：60 Weight (T) ：10 Maximum vehicle dimensions (mm) ：4100mm2100mm420mm Lifting stroke (mm) 100mm Gradeability (°) ：≤3° Operating environment: Indoor Number of drive wheels (pairs): Four-wheel drive, eight-wheel Operating modes: Forward, reverse, left and right Drive motor type: Low-voltage servo motor + independent servo controller Suspension type: Hydraulic suspension Travel speed: 30m/min (no load), 30m/min (full load) Battery type: Lithium iron phosphate battery, battery life: 3 hours (full load, empty) Navigation accuracy (mm) / Positioning accuracy (mm) / Navigation method: Manual remote control Control method: Manual Safety protection: Laser obstacle avoidance sensor + contact collision avoidance + audible and visual warning + emergency stop Charging method: Manual charging Braking distance (mm): ≤400mm (full load), ≤300mm (no load) Protection level: IP44 AGV lifespan: 10 years Application scenarios Transformer handling Tag: 50 to 600-Ton Ultra Heavy-Duty AGVs Categories: Trackless Transfer Cart	Material	The main frame adopts Q235B steel. Q355B steel is optional for special working conditions. Exact material selection shall be confirmed per model and technical agreement
Applicable Industry	Aerospace, military industry, high-speed rail, wind power, shipbuilding, heavy trucks, energy storage, engineering machinery, foundries, ports, and warehouse logistics

Feature

Intelligent Navigation & Maximum Safety Moving hundreds of tons requires flawless precision. Our backpack heavy-duty AGVs utilize advanced Laser SLAM and natural feature navigation for millimeter-level indoor positioning without the need for magnetic tracks. Equipped with hydraulic independent suspension and automatic leveling, they maintain perfect stability under massive loads, even on uneven factory floors. Built-in LiDAR obstacle detection ensures 360-degree safety for both the cargo and your personnel.

60-ton-Agv-Robot-Manufacturer-in-China-Automatic-trackless-transfer-cart-3

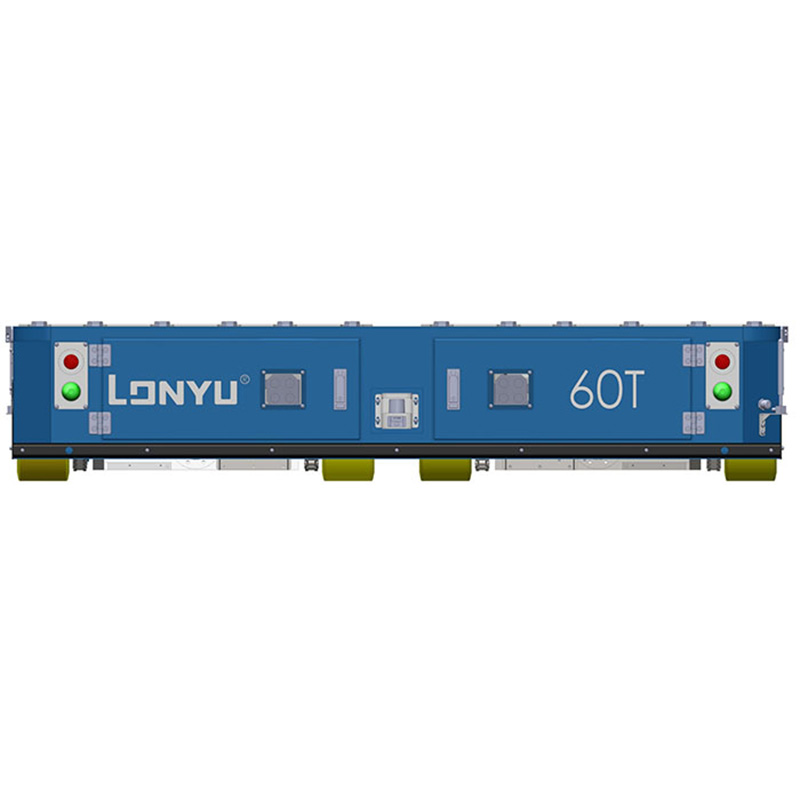

60-ton-Agv-Robot-Manufacturer-in-China-Automatic-trackless-transfer-cart-2
