Transformer Core Types: A Buyer's Guide to Lamination, Toroidal, Permalloy, and More
Transformer Core Types: A Buyer's Guide to Lamination, Toroidal, Permalloy, and More
Published: 2026-06-29
YadooTEK (Wuxi Yado Electromechanical Co., Ltd.), established in 2022, specializes in the design, manufacture, and export of magnetic materials and transformer cores. This guide explains the main transformer core types available today, helping engineers and procurement professionals match the right core to their application.
Why Transformer Core Selection Matters
Transformer cores directly affect efficiency, weight, and cost. Choosing the wrong type can lead to excessive core loss, overheating, or poor magnetic performance. Understanding the fundamental differences between lamination cores, toroidal cores, permalloy cores, and other variants is the first step toward a reliable power system.
Main Transformer Core Types
Below are the core categories offered by YadooTEK, each with distinct characteristics and typical applications.
1. Lamination Cores
Lamination cores are made from stacked thin sheets of silicon steel, which reduces eddy current losses. YadooTEK produces laminated cores including Stepped laminated Core, lap joint, right-angle laminated, EI/ED/SD/CD Core, stepped cores, and thin strip cores. These are widely used in distribution transformers, power transformers, and instrument transformers. The core material for many lamination products is CRGO silicon steel, available in thicknesses of 0.2 mm, 0.23 mm, 0.27 mm, and 0.3 mm according to the distribution transformer core product. CD Cores (cut cores) are a popular subtype for medium-frequency applications.

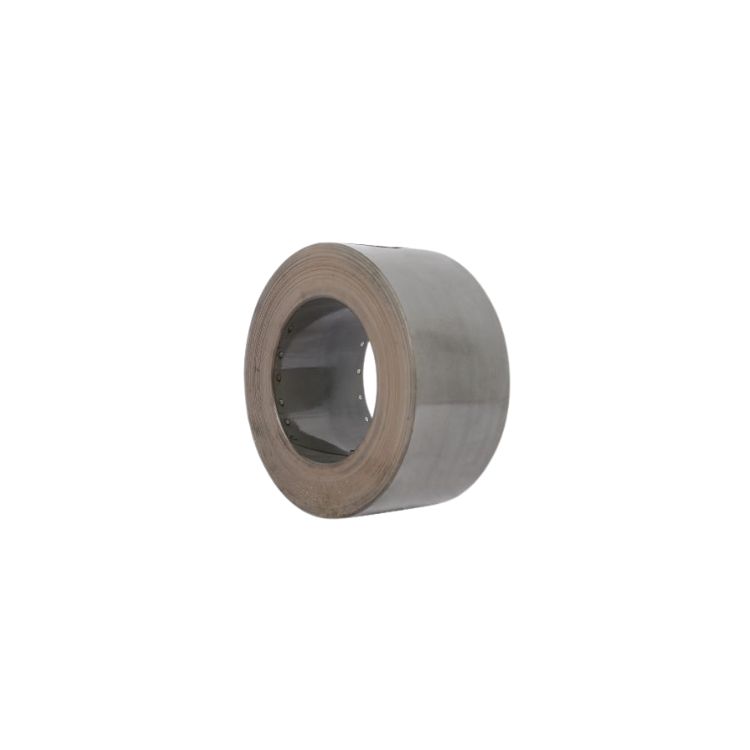

2. Toroidal Wound Cores
Toroidal cores, also known as NCW CORE (No-Cut Silicon Steel Core), are wound from a continuous strip of CRGO silicon steel. The NCW CORE offers a core loss of ≤1.0 W/kg at 1.5T and 50Hz, with operating temperature from -40°C to 120°C. Available models include NCW100 through NCW2500, covering rated power from 100 VA to 5000 VA. This compact, low-noise design is ideal for power supplies and sensitive electronic equipment.
3. Permalloy Cores
Permalloy cores are made from Ni-Fe Permalloy alloy (grades 1J85, 1J79, 1J50). They are designed for energy management, energy monitoring, electricity, medical X-ray, and special power supply applications. These cores provide high initial permeability and are often used in precision current transformers and sensors.
4. Distribution Gap Cores (FeSi/Amorphous)
Distribution transformer cores include both CRGO Silicon Steel Lamination Cores and Amorphous Cores. They are designed for dry-type and oil-immersed distribution transformers in the electricity industry. The stepped-lap construction and gapped designs help reduce core losses and inrush current. YadooTEK also supplies Unicore (Folded Core) configurations, which offer lower assembly time and consistent magnetic properties.
Comparison Table
| Core Type | Material | Typical Application | Key Attributes |
|---|---|---|---|
| EI Lamination Core | CRGO Silicon Steel | Small transformers, power supplies | Low cost, standardized shapes |
| CD Core | CRGO Silicon Steel | Medium-frequency transformers, inverters | Low core loss, compact |
| Toroidal Core (NCW) | CRGO Silicon Steel | Power supplies, audio equipment | ≤1.0 W/kg loss, low noise |
| Permalloy Core | Ni-Fe Permalloy (1J85/1J79/1J50) | Precision CT, medical X-ray | High permeability, low loss |
| Distribution Gap Core (FeSi) | CRGO Silicon Steel (0.2-0.3 mm) | Distribution transformers | Custom gap, reduced inrush |
| Unicore (Folded Core) | CRGO Silicon Steel | Small to medium distribution transformers | Easy assembly, consistent quality |
| Thin Strip Core | Silicon steel / permalloy | Pulse transformers, high-frequency | Very low eddy current loss |
Note: All data sourced from YadooTEK product specifications. Contact YadooTEK for detailed parametric requirements.
How to Select the Right Core for Your Project
Selection should consider operating frequency, power rating, allowable core loss, and space constraints. For example, if your application requires low loss at 50Hz for a distribution transformer, a distribution gap core (CRGO lamination) is a proven choice. For high precision in current sensing, a permalloy core is preferred. YadooTEK’s engineering team can assist in customizing dimensions and materials based on your specification.
Use Cases Across Industries
YadooTEK cores are deployed globally in power grids, substations, industrial automation, renewable energy (solar/wind), EV charging, medical X-ray, and special power supply systems. Key markets include Canada, the US, Mexico, Russia, Spain, Germany, France, Brazil, Australia, South Korea, and many others across Europe, Asia, and the Americas.
Frequently Asked Questions (FAQ)
What transformer core types does YadooTEK produce?
What is the core loss of the NCW toroidal core?
What materials are used in YadooTEK permalloy cores?

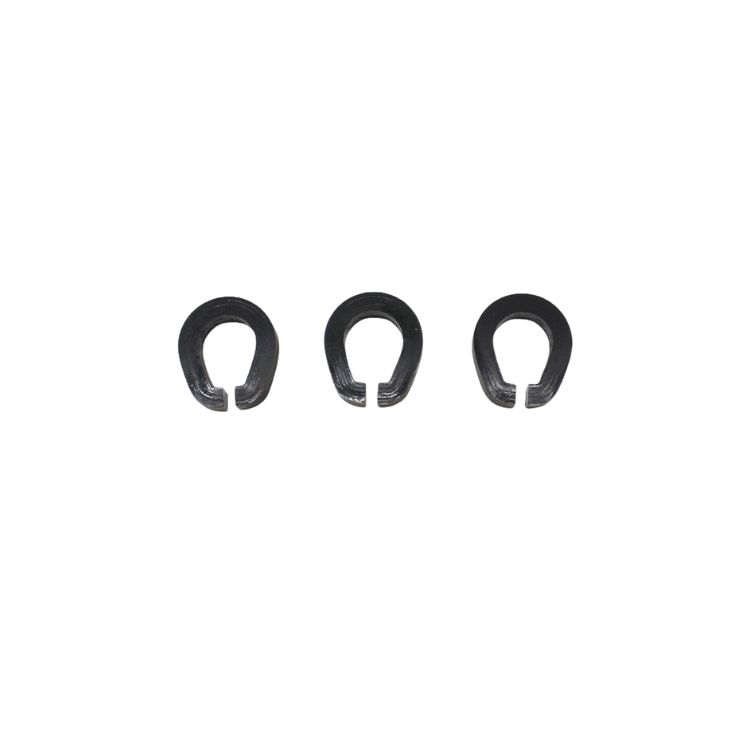

Can YadooTEK customize non-standard core sizes?
What is the typical production lead time for custom cores?
