Arch Fender

Name: "Arch Fender"
Rating: 5 (618 reviews)

SKU: 6511825124

Model: Arch Fender

florescence marine

🌐 Enter Official Website

Product Details

Product Specification

Type	Arch Fender	Model	Arch Fender
Params	- Rated Deflection: 52.5% (standard design working point) - Max permissible deflection: 55% (ultimate compression limit, over-compression forbidden) - Material: Marine NR/SBR compound; optional CR for oil resistance, EPDM for UV & ozone resistance - Hardness: Shore A 60 ~ 70 - Tolerance: Reaction Force ±10%; Energy Absorption -10% - Standard:PIANC - Operating temperature: -30℃ ~ +80℃ - Performance is linearly proportional to fender length	Material	Natural rubber
Applicable Industry	Marine industry

Feature

Arch Fenders are simple and rugged marine fender systems, providing reliable and trouble-free service for a wide variety of berths even under the most severe conditions. The Super arch fender is a traditional rubber-faced unit whilst the SANP-fender can be fitted with either UHMW-PE face pads or connected to a steel panel. Features Simple one-piece design Strong and hard wearing Excellent shear performance Wide range of standard sizes Application RoRo berths General cargo Workboat harbours Barge and tug berths

Florescence V type arch fenders using

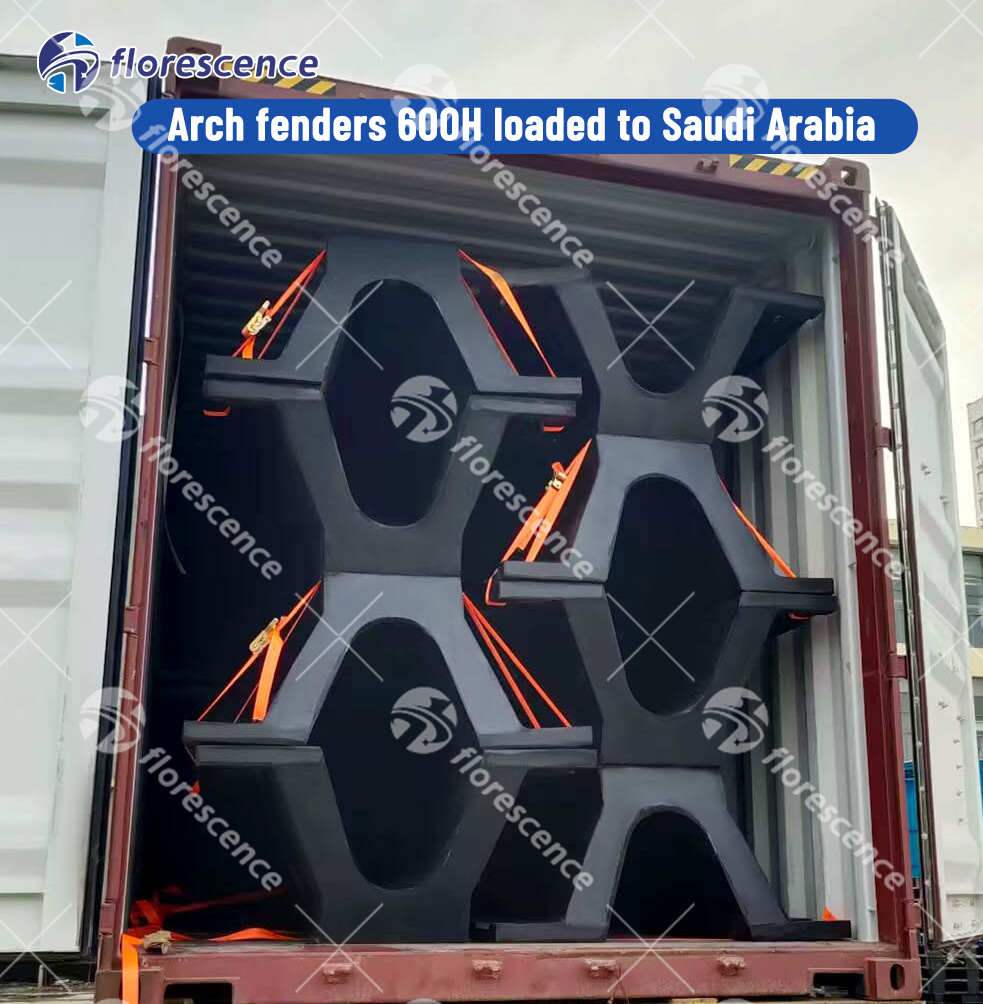

Florescence V type arch fenders

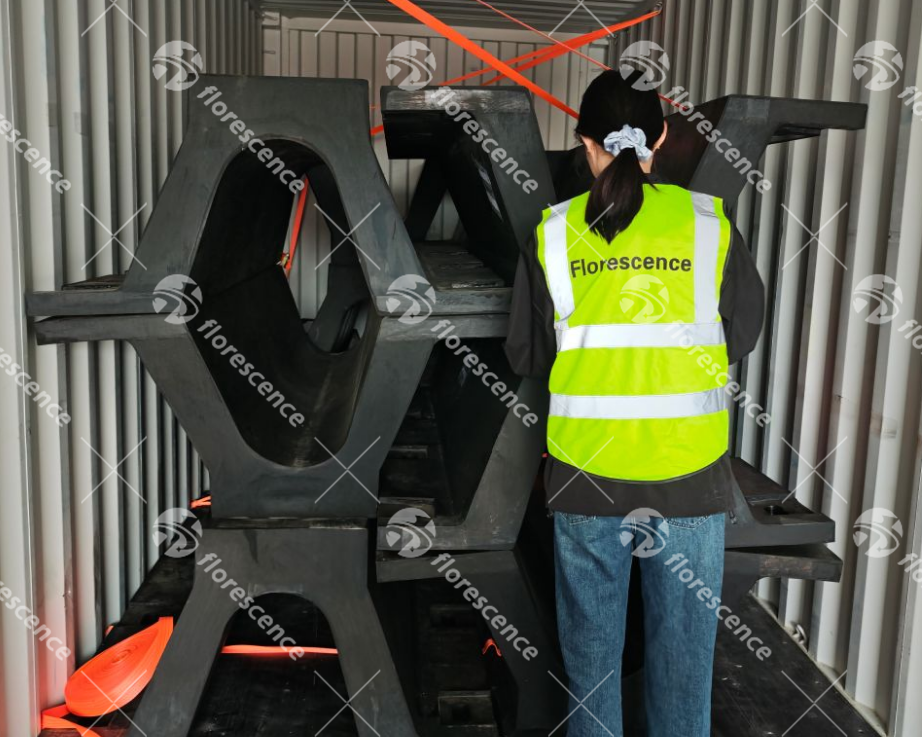

Florescence V type arch fenders loading

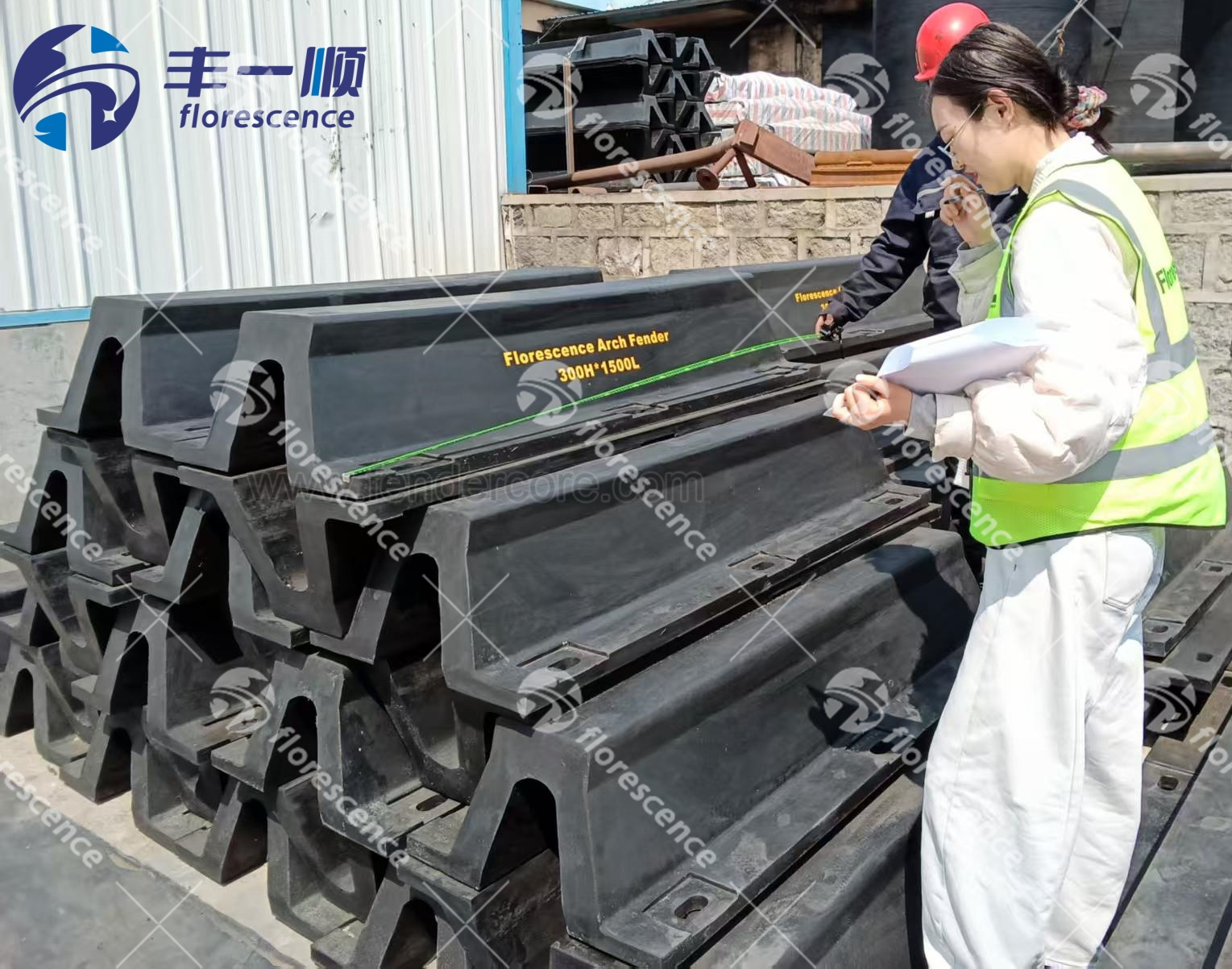

Florescence V type arch fenders testing

Arch fender

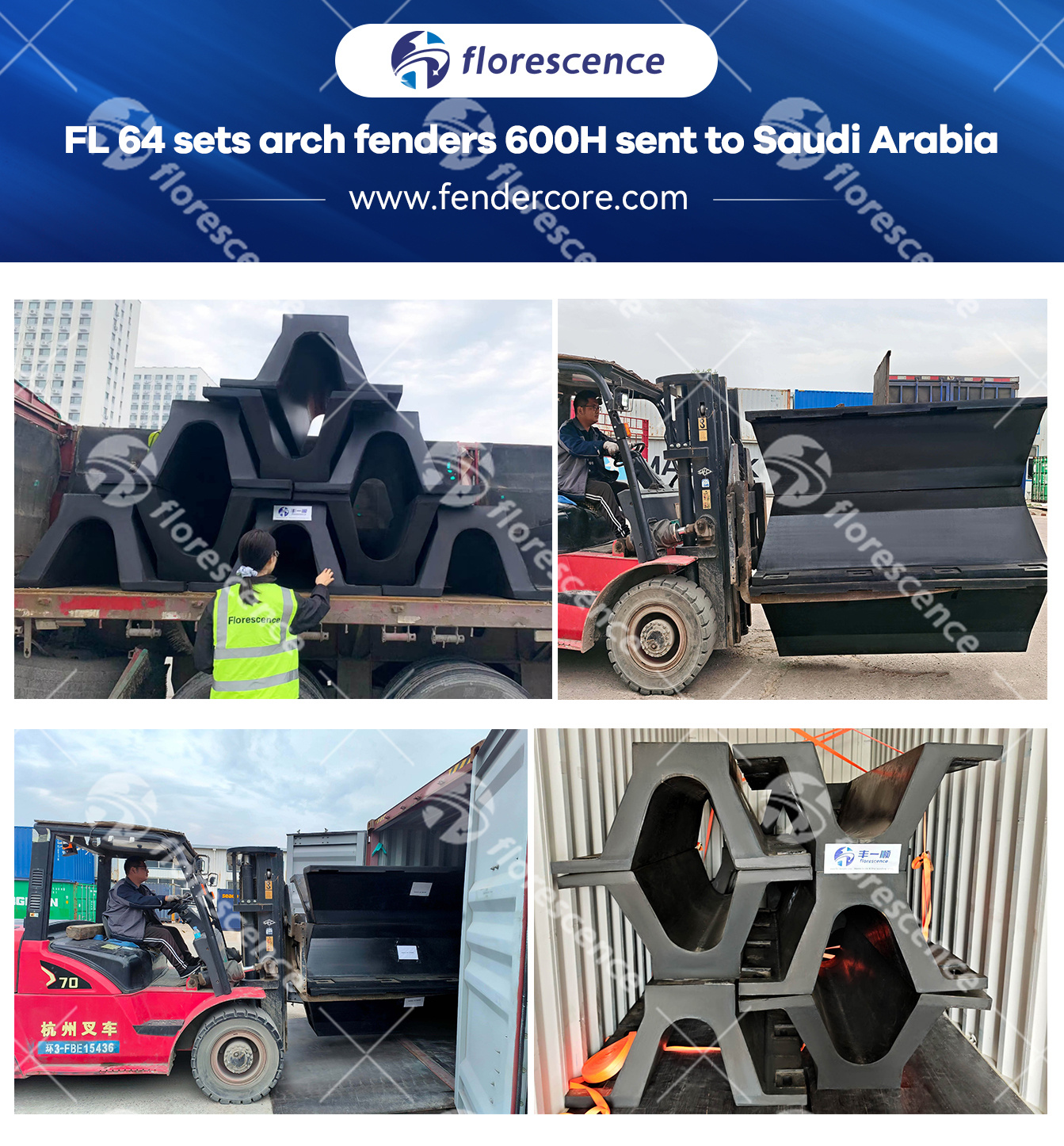

64 sets Arch 600x2000 to Saudi Arabia

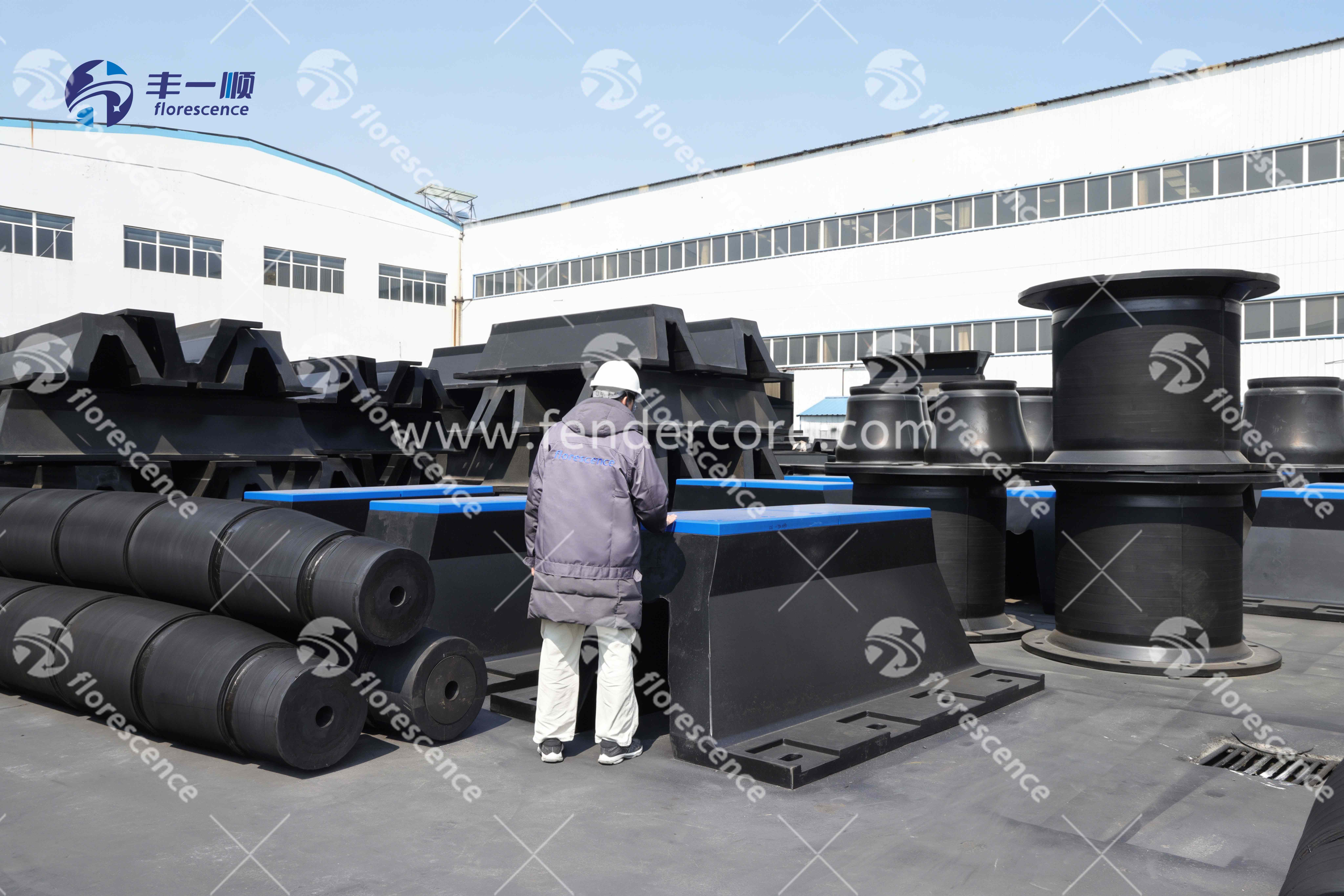

Florescence rubber fenders_
