Simsukian power adapter production line, where the 24V KR plug platforms are assembled and tested.

The short answer: the choice between a 24V 0.5A KR plug adapter and a 24V 1A 24W KR plug adapter is a current-headroom decision, not a voltage decision. Both deliver the same 24V output rail to Korean-market devices. What differs is how much continuous current the adapter can supply before its thermal behaviour and its short circuit, overvoltage and overcurrent protection begin to shape the design.

The working rule: specify the adapter so that its continuous rated output current comfortably exceeds the device's worst-case continuous draw, then keep extra margin for start-up inrush and transient peaks. A constant, low-draw load that never approaches half an amp is well served by the lower-current class. A load that sits near 1A, starts against inertia, or runs inside a warm enclosure should be specified with the 24W (24V/1A) configuration.

Simsukian (Shenzhen Simsukian Electronics Technology Co., Ltd.), a Shenzhen-based switching power supply manufacturer founded in 1996, builds both classes on the same AC-DC platform family, so the comparison below is between two configurations of one engineering approach rather than two unrelated products.

Problem Definition: What Actually Changes Between 0.5A and 1A

Buyers usually arrive at this comparison because a device label says 0.5A, while a project engineer, a distributor, or a procurement team proposes the 24W (24V/1A) version instead. Both parties are usually right — they are simply optimising for different risks.

Under-specifying a 24V adapter means running the unit close to its continuous ceiling for long periods. The visible symptoms are higher case temperature, wider output ripple, and a greater chance that the overcurrent protection trips during start-up or during a load transient, which the end user experiences as a device reset or a random shutdown.

Over-specifying is not a reliability risk in the same way, but it carries commercial weight: a higher-current output stage needs larger magnetics and a bigger enclosure, which affects unit cost, wall-plug dimensions, and sometimes stock planning across a product family.

Three variables decide the question in practice: the device's continuous current draw, its start-up behaviour, and the thermal environment the adapter lives in. Certification and plug type are fixed requirements rather than variables — a Korean-market product needs a Korea-type AC plug and Korean approvals regardless of which current class is chosen.

Industry Background: The Regulatory Frame Around 24V KR Plug Adapters

Korea sits among Simsukian's main export markets, alongside the EU, USA, Australia, Japan and the UK. Exports account for roughly 70% of the company's output, which is why KR-plug variants are treated as a standard platform configuration rather than a special build.

Three external requirements shape how a 24V KR plug adapter is specified today:

• Safety standard migration. IEC 62368-1 4th Edition, effective 26 May 2023, is the mandatory hazard-based safety standard for AV/ICT power supplies, replacing the legacy 60950 and 60065 certifications (published by BSI / IEC).
• Efficiency floors. The US Department of Energy Level VI standard mandates a maximum no-load power of 0.100W for external power supplies rated ≤49W. Simsukian adapters are documented as meeting DOE Level VI no-load requirements, with measured standby consumption in the 0.07–0.08W range.
• Market scale. The global power adapter market is valued at USD 26.65 billion in 2025 and projected to reach USD 46.14 billion by 2034 (Dataintelo, Power Adapter Market Research Report 2034). Sustained demand keeps multi-region approval sets — not just single-market certifications — on the buyer's checklist.

The buyer consequence is straightforward: a 24V KR plug adapter is evaluated on current rating and compliance completeness. A lower-current unit that cannot clear Korean and export approvals is not a cheaper option; it is a non-option.

Detailed Solution: The Two 24V KR Plug Configurations

Option A — The Lower-Current 24V KR Plug Adapter (SK01T, 18W class)

The SK01T is the lower-current 24V KR option in the Simsukian range. Its documented configuration places it in the 18W category with a 24V output at 0.65A, producing 15.6W of output power, and a universal input of AC 100–240V 50/60Hz. It uses a Korea-type AC plug.

Body construction is fire-retardant polycarbonate (PC), with colour options of black, white or customised finishes. The unit carries KC, KCC, UL, ETL, FCC, SAA, PSE, CCC, CQC, CE-LVD and CE-EMC approvals and meets RoHS requirements. It complies with the IEC62368, IEC64558 and IEC60347 safety standards and with DOE, ERP and CEC-VI energy efficiency requirements; in the US market the SK01T is documented as ENERGY STAR qualified. Target industries for this configuration include manufacturing, home appliance, IT products, LEDs and electronics.

Option B — The Higher-Current 24V 1A 24W KR Plug Adapter (SK03T platform)

The SK03T is the higher-current 24V KR option. It is documented with a rated output of 24V at 1A — the 24W configuration this article compares — and the same platform is also documented as a 36W adapter with a 24V / 1.5A output, which shows how the platform scales within one design family. Output power of 24W is the documented figure for the KR configuration in question.

The platform uses a universal AC 100–240V input, a wall-mount form factor, a fire-retardant PC housing, and the same black, white or customised colour options. Protection covers short circuit, overvoltage and overcurrent events, and it complies with the IEC62368, IEC64558 and IEC60347 safety standards. The SK03T is designed for consumer electronics and for manufacturing, home appliance, IT product, LED and electronics scenarios, and it supports OEM and ODM services with customisation.

What Both Options Share

Because the two configurations come from one platform family, the decision rarely comes down to features. Shared, verifiable characteristics include:

• Fire-retardant PC housing and black / white / customised colour availability.
• Short circuit, overvoltage and overcurrent protection.
• IEC62368, IEC64558 and IEC60347 safety standard compliance.
• DOE, ERP and CEC-VI energy efficiency compliance on the KR-plug line, with Level VI efficiency across Simsukian models.
• Turn-key OEM/ODM support: schematic design, PCB layout, firmware programming for charging logic, NTC temperature monitoring, anti-reverse-polarity protection, indicator-light control, plastic-housing prototyping, mould-making, full-batch compliance testing and final assembly.
• Company-level approvals of more than 20 international certifications, including CCC, GS, UKCA, UL, CE, FCC, PSE, KC and SAA, backed by more than 90 national patents and a 30-engineer R&D team.

Step-by-Step Breakdown: A Five-Step Selection Workflow

The following workflow converts a device label into a defensible adapter specification. It applies equally to manufacturing equipment, home appliances, IT hardware, LED fixtures and general electronics.

1. Read the device label, not the habit. Record the required output voltage (24V), the continuous current stated on the nameplate, and the connector polarity. The nameplate current is the starting point; it is not automatically the adapter rating.
2. Convert the load to continuous wattage. Multiply 24V by the device's continuous current to obtain the continuous power the adapter must deliver. This number, not the peak number, sizes the base configuration.
3. Add headroom for start-up and transients. Motors, pumps, capacitive input stages and devices with inrush current draw well above their steady-state figure for a short period. An adapter rated slightly above the continuous load handles that surge without tripping overcurrent protection.
4. Check the thermal environment and duty cycle. An adapter mounted inside a closed cabinet, or running continuously in a warm room, derates faster than one in open air. Where the load is continuous and the enclosure is tight, the higher-current 24W configuration is the lower-risk choice. Simsukian adapters maintain a full-load temperature rise below 45°C in documented testing, against competitor equipment that typically exceeds 60°C.
5. Confirm compliance, plug type and sample performance. Verify the KR plug type, the approval set required for each destination market, and the efficiency standard that applies. Then validate the chosen configuration on a sample rather than on a datasheet alone.

Accelerated aging equipment used to validate 24V adapter platforms before mass production.

Use Cases: Where Each 24V Configuration Fits

Manufacturing and industrial control boxes

Control electronics that start against mechanical or capacitive loads benefit from the extra headroom of the 24V / 1A (24W) configuration. The same platform's documented 36W / 24V / 1.5A build covers the next step up when several boards share one supply rail.

Home appliances

Appliance control boards, display modules and small actuators run long duty cycles. Where the appliance runs continuously and the adapter sits behind a panel, the higher-current configuration reduces the risk of thermal drift over service life.

IT products and networking equipment

Routers, speakers, IT peripherals and similar hardware are documented application areas for this platform. Devices that idle low but burst high — Wi-Fi radios transmitting, drives spinning up — are the classic case for 1A-rated headroom even when the average draw is under 0.5A.

LED and electronics assemblies

LED drivers and general electronics assemblies are documented target industries for both configurations. Here the decisive factor is usually whether the fixture is dimmed or switched frequently, which creates repeated inrush events.

Power-sensitive devices

Simsukian positions its low-ripple designs for power-sensitive equipment such as precision medical monitors, high-end audio amplifiers and telecom base stations. Documented performance for these adapters includes output ripple maintained at ≤60 mV and ±1% voltage accuracy on tailored solutions, against generic adapters that typically deliver 80–120 mV ripple and ±3% to ±5% accuracy — ripple 40% to 60% lower, with voltage accuracy 3 to 5 times tighter. For measurement, audio or monitoring loads, that electrical quality matters more than the current class.

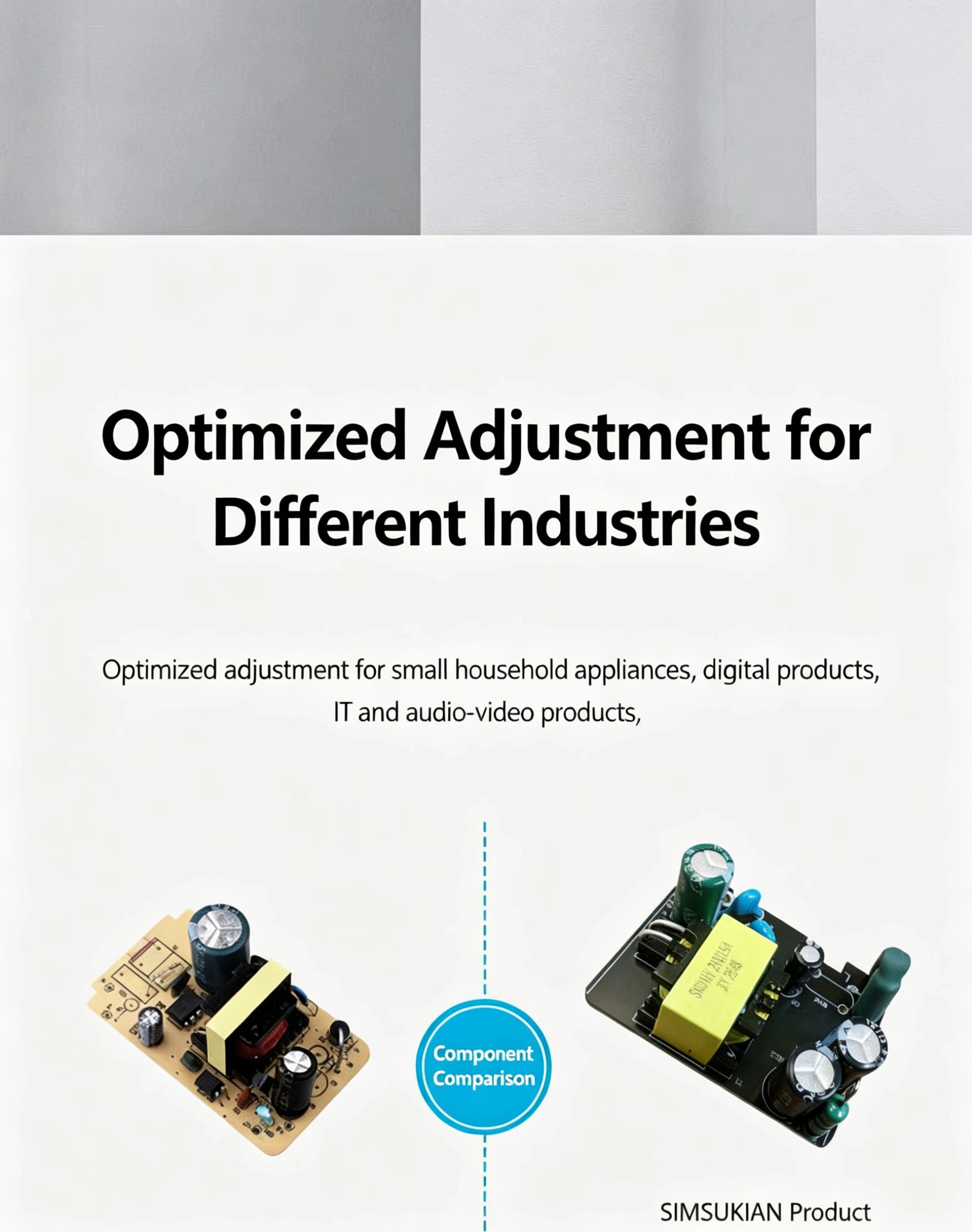

Platform optimisation across the manufacturing, home appliance, IT, LED and electronics applications served by these 24V adapters.

Comparison Table: SK01T vs SK03T 24V KR Plug Adapters

FAQ: 24V 0.5A vs 24V 1A 24W KR Plug Adapters

Conclusion: Choosing Between 0.5A and 1A at 24V

For Korean-market programmes, the 24V 0.5A-class and the 24V 1A 24W adapters are not competing technologies — they are two current ratings on one engineering platform, sharing a Korea-type AC plug, fire-retardant PC housing, colour options, short circuit, overvoltage and overcurrent protection, IEC62368 / IEC64558 / IEC60347 compliance, and DOE, ERP and CEC-VI efficiency alignment.

Choose the lower-current configuration when the load is constant, comfortably under half an amp, ventilated, and driven by cost and package size. Choose the 24W (24V/1A) configuration when the load approaches 1A, when start-up inrush is part of the duty cycle, or when the adapter runs continuously in a warm enclosure. In every case, confirm the exact output current against the current datasheet, verify the approval set for each destination market, and validate the selection on a sample before releasing volume.

Next Step: Compare the Two Ratings on Your Own Load

Simsukian supplies 24V KR plug adapters in both the 18W class and the 24W configuration, with KC, KCC, UL, ETL, FCC, SAA, PSE, CCC, CQC, CE-LVD, CE-EMC and RoHS approvals, and OEM/ODM customisation in black, white or specified colours.
