Chemical Process Centrifugal Pump

Name: "Chemical Process Centrifugal Pump"
Rating: 5 (721 reviews)

SKU: 7299060809

Model: IH

🌐 Enter Official Website

Product Details

Type	ISO 2858 horizontal single-stage, single-suction end-suction pump	Model	IH
Params	Flow: 0.3-400 m³/h; head: 5-125 m; speed: 1,450/2,900 r/min; motor: 0.55-90 kW; inlet: DN50-DN200; medium: -20°C to 105°C; max pressure: 1.6 MPa	Material	Wetted materials selected for the medium; cast iron, carbon steel, SS304/304L/316/316L, duplex 2205/2507, Hastelloy and other alloys are available through the manufacturing partner
Applicable Industry	Chemical, petrochemical, metallurgy, power, pulp and paper, food, pharmaceutical, synthetic fiber, water treatment

ISO 2858 dimensions; back pull-out maintenance; packing or single/double mechanical seal options; 40 basic models and up to 112 specifications

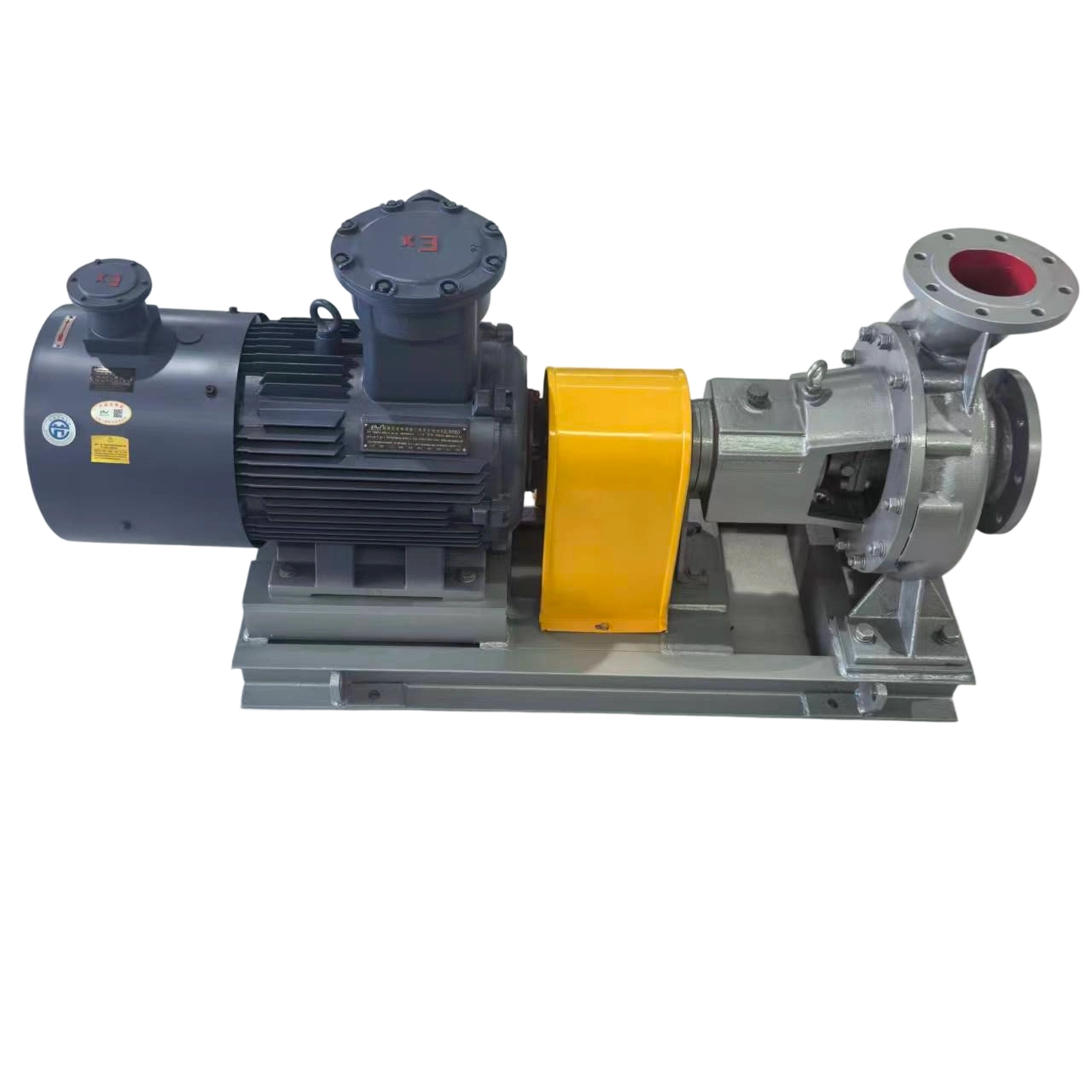

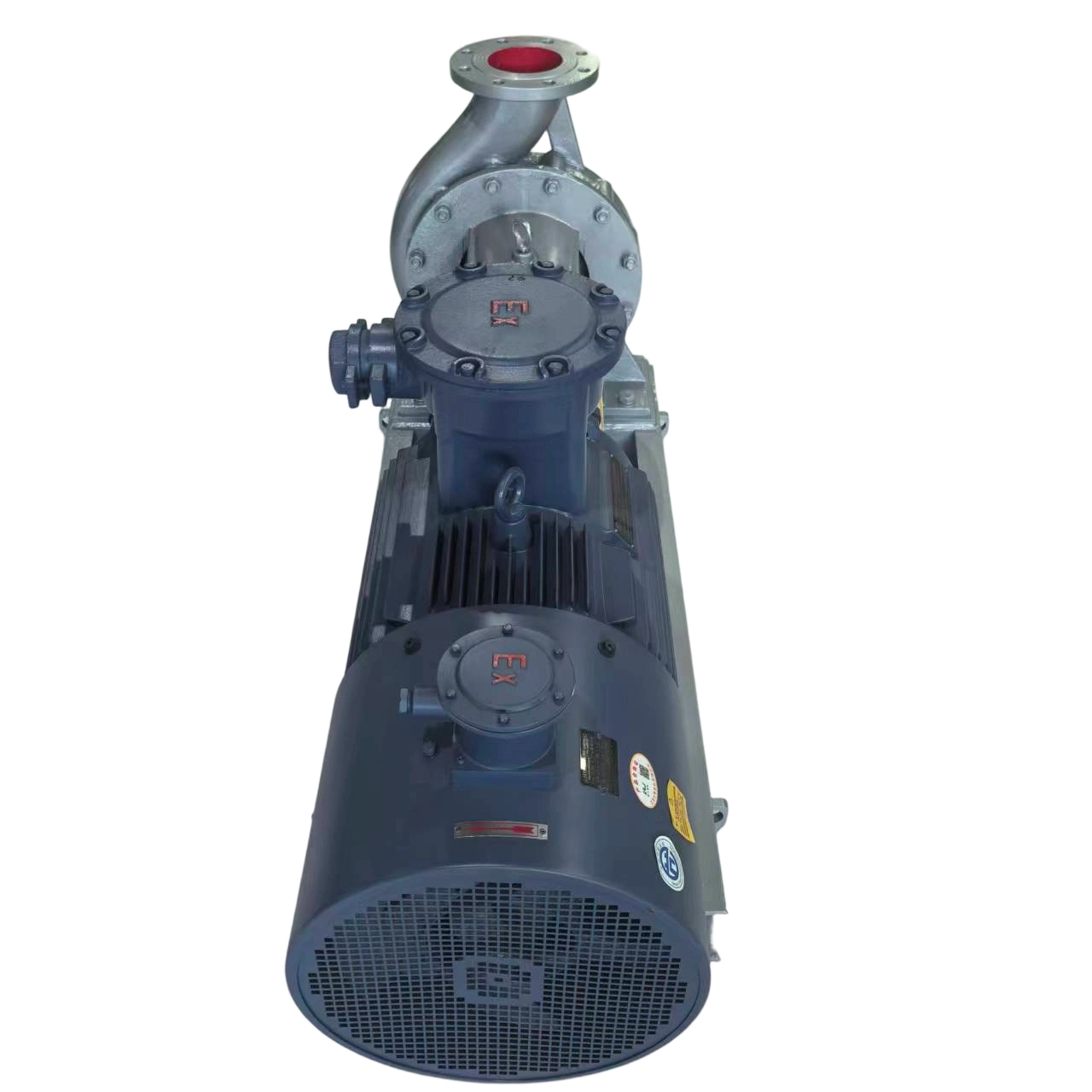

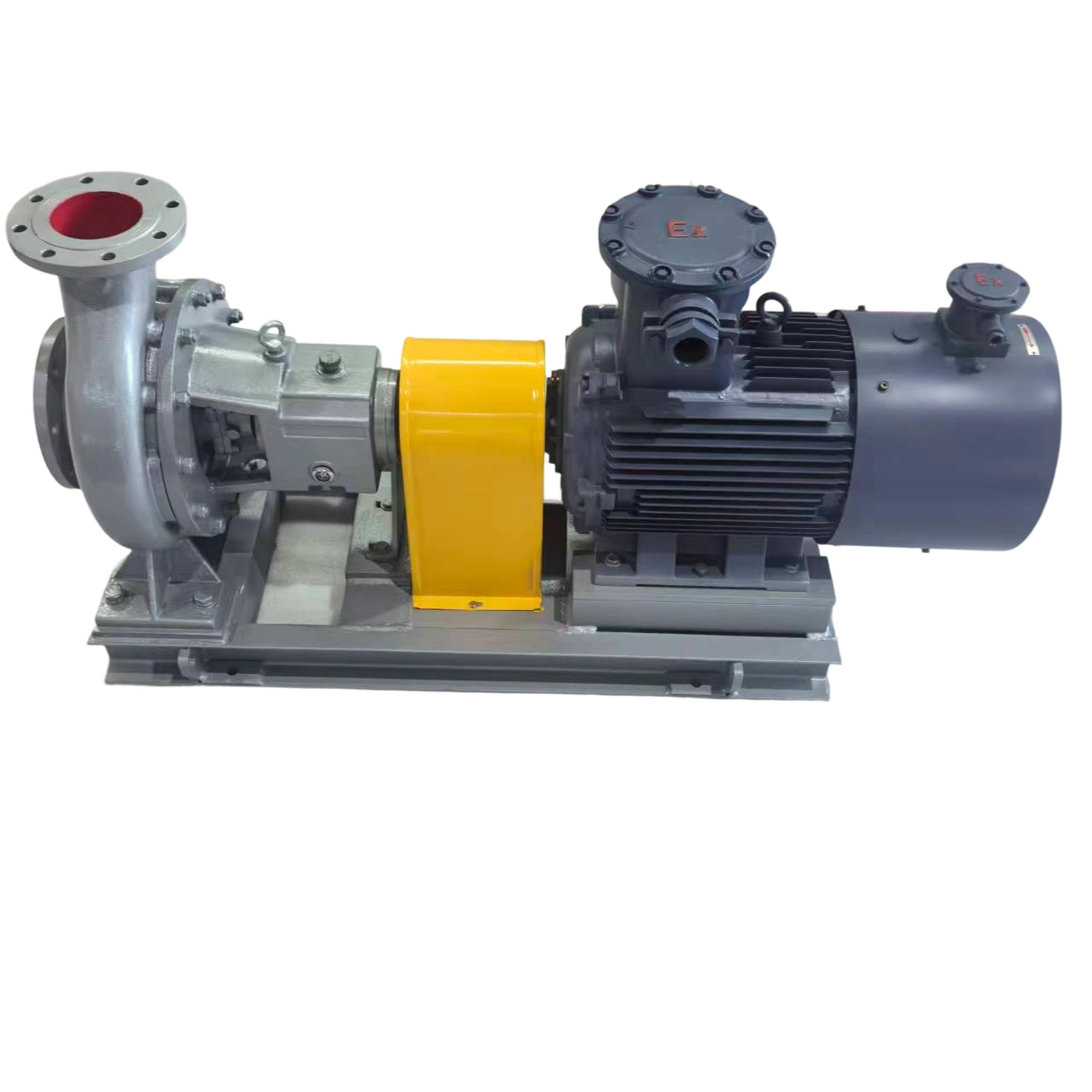

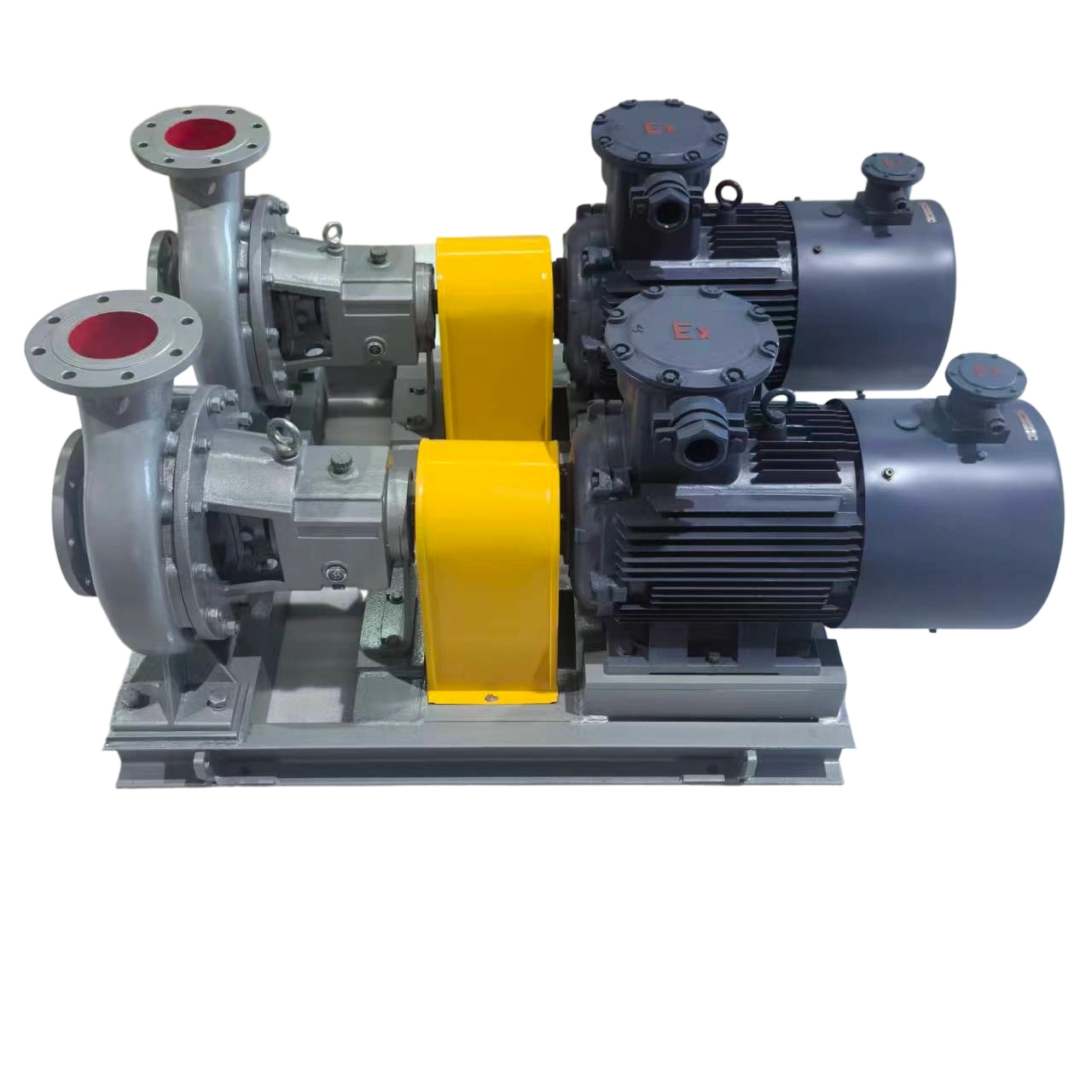

IH chemical centrifugal pump
