About Bitvisus video wall controller
Our core product includes:
· Multi-screen expander
· Projector fusion processor
· Video processor
· HDMI matrix
· Multi-viewer
· Network & fiber extender
These solutions are widely applied across diverse fields such as projector fusion systems, video wall splicing, exhibition displays, touch interaction platforms, and advertising & media sectors.

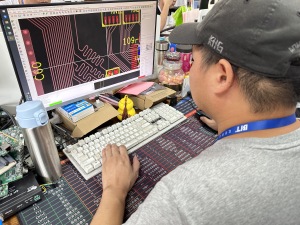

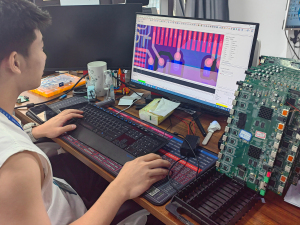

Bitvisus boasts a robust R&D team comprising over 30 seasoned engineers. A significant portion of our core members are alumni of industry giants like Huawei, ZTE, and Xilinx, bringing with them more than 15 years of profound expertise in the Professional Audio-Visual domain.
We are committed to empowering our clients' business success through cutting-edge technology and tailored solutions.
Our Products

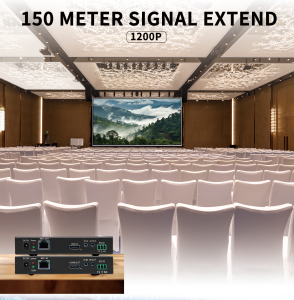

Fiber Extender
Model: BIT-Ex-HDBT-150
Parameters: Product Specification:
Input: Transmission terminal (TX) — HDMI1.4 (≤5m), IR, RS232 signal; Receiver terminal (RX) — CAT6E, 150m
Output: Transmission terminal (TX) — CAT6E, 150m; Receiver terminal (RX) — HDMI1.4 (≤5m), IR, RS232 signal
Audio: HDMI audio signal
Resolution: 1200P@60Hz, downward compatibility
Signal Format: Supports common resolutions in various input signal formats; supports common VESA and HDTV signal formats
sRGB: Supports RGB444; YUV sRGB
Pixel Bandwidth: 165MHz / 300MHz, full-digital
Transmission Bandwidth: 6Gbps
Transmission Distance: 1080p over CAT6E, 150m
CEC: Support
RS232/IR: Two-way RS232 transparent transmission / Two-way IR transparent transmission
3D: Support
POE Power Supply: Unidirectional power supply
Interface Protocol: HDMI1.4, HDCP2.2, compatible DVI1.0, VGA
EDID: Fixed / Transparent
Transmission: Support
OEM: Support
Power Supply: DC 12V 2A
Power Dissipation: ≤12W
Storage/Operating Temperature: -10～50ºC / -25～55ºC
Usage: HDMI, KVM, IR, RS232 signal extension
Dimension: 1057627mm
Net Weight: About 0.5KG
Packing List: Equipment2, power supply1, certification1, warranty card1
After-sales Service: Warranty 1 year

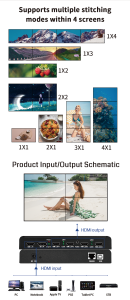

Multi-Screen Expander
Model: BIT-MSE-4K60-104Pro
Parameters: Product Specification:
Product Name: BIT-MSE-4K60-104PRO
Input Max. Pixel FPS: 600MHz
Output Max. Pixel FPS: 300MHz
Input Type: HDMI or DP (choose one, HDMI priority), HDCP2.2
Output Type: 4 HDMI
3 Screens Support Typical Resolution: 3x1920x1200@60Hz, 3x1920x1080@60Hz, 3x1280x800@60Hz, 3x1024x768@60Hz
4 Screens Support Typical Resolution: 4x1920x1200@60Hz, 4x1920x1080@60Hz, 4x1280x800@60Hz, 4x1024x768@60Hz
Product Factory Default Resolution: 3840x2160@60Hz 2x2
2x2 Max Supported Resolution: 3840x2400@60Hz
3x1/1x3 Max Supported Resolution: 1920x3600@60Hz / 5760x1200@60Hz
4x1/1x4 Max Supported Resolution: 1920x4800@60Hz / 7680x1200@60Hz
Output Distance: 15 meters
Power Supply: 12V@2A AC-DC
Warranty: One year
Video Wall Controller
Model: BIT-VWC-409R
Parameters: Product Specification:
Input Interface: 3 x HDMI1.4, 1 x HDMI2.0, 1 x DP1.2 (≤5m), support HDCP2.2
Input Source: Supports computers, Android boxes, game consoles and other devices
Input Interface Maximum Video Pixel Frequency: 600MHz
Default Resolution: 3840 x 2160 @ 30Hz
Color Depth (Input): 24 bit, RGB444, YUV420
Output Interface: 9 x HDMI1.3 (≤15m), 1 x DP1.2 loop out
Output Interface Highest Video Pixel Frequency: 165MHz
Resolution (Output): 1920x1080 @ 60Hz
Color Depth (Output): 24bit, RGB444
Audio Out: Customizable
Audio and Video Separation: Supports 3.5mm audio interface
Control Method: Infrared remote control, serial port RS232, PC upper computer
Stitching Mode: Splicing mode within 9 screens
DHCP: Support
Stitching Effect: Supports proportional resolution input, the picture will not be distorted
Screen Split: Left and right, top and bottom, four splits, picture in picture; input source can be distributed on the wall arbitrarily, and up to 4 signals can be sent to the wall at the same time
Power Down Memory: Support
Parallel Connection of Multiple Devices: Supports parallel use to ensure real-time display requirements on large screens
Multi-Device Cascading: Support
Output Rotation: The input is rotated by 90°, and the output first row is rotated by 180°
Chip Technology: 40nm chip, full hardware real-time processing architecture, ultra-fast processing speed without delay
Usage: Large screen splicing
OEM: Support
Power Supply: DC 12V 2A
Power Consumption: 12W
Storage/Working Temperature: -10～50ºC / 0～50ºC
Size: 270mm122.5mm20.5mm
Weight: 1kg

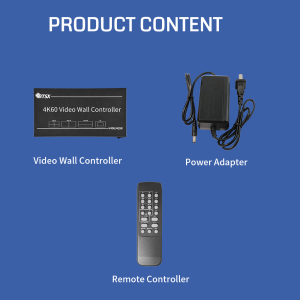

Packing List: Equipment1, power supply1, remote control1, certificate1, warranty card*1
After-sales Service: 1 year warranty

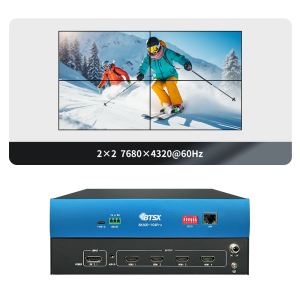

Multi-Screen Expander
Model: BIT-MSE-8K60D-104Pro
Parameters: Product Specification
Product Model: MSE-8K60D-104Pro
Input Port: 1×DP 2.1 (Copper Wire ≤3 Meters)
HDCP: Supports HDCP1.4/HDCP2.3
Maximum Input Pixel Clock Frequency: 2400MHz
Maximum Input Resolution: 2×2: 7680×4800P60, 7680×4320P60; 1×4: 15360×2160P30, 15360×2400P30; 4×1: 3840×8640P60, 3840×9600P60 (See Chapter 5 for details)
Input Color Format: RGB444
Input Color Depth: 8bit
Output Port: 4×HDMI 2.0 (Copper Wire ≤5 Meters)
Maximum Output Pixel Clock Frequency: 600MHz
Output Resolution: 3840×2400P60, 3840×2160P60, customizable resolution supported
Output Color Format: RGB444
Output Color Depth: 8bit
Power Supply: 12V5A
Power Consumption: 28W
Storage/Operating Temperature: -10℃ to 50℃/0℃ to 50℃, 14°F to 122°F/32°F to 122°F
Product Dimensions: L×W×H: 217×204×44.5mm
Product Weight: 1KG
Packaging Dimensions: L×W×H: 365×255×95mm
Packaging Weight: 2.1KG
Accessories List: 1×12V5A DC Power Adapter, 1×DisplayPort 1.4 Cable, 1×Category 5e (CAT5e) Network Cable, 1×Screw Terminal Block (Phoenix Type), 1×1U Tray (Optional)
After-sales Service: 1-Year Warranty

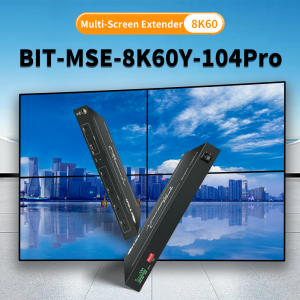

Multi-Screen Expander
Model: BIT-MSE-8K60Y-104Pro
Parameters: Product Specification
Product Model: MSE-8K60Y-104Pro
Input interface: 1×HDMI 2.1、1×DP 1.4 (Copper wire ≤3Meters)
HDCP: Support HDCP 2.2
Input the highest pixel clock frequency: 1200MHz
Input maximum resolution:
2×2: 7680×4320P60 YUV 420、7680×4800P60 YUV 420
3×1: 3840×6480P60 YUV420、3840×7200P60 YUV420
Input color format: RGB444、YUV420
Output interface: 4×HDMI 2.0 (Copper wire ≤10Meters)
Output the highest pixel clock frequency: 600MHz
Output Resolution:
3840×2160P60、3840×2400P60、3840×2160P30、3840×2400P30、2560×1440P60、2560×1600P60、1920×1080P60、1920×1200P60、1920×1200P120
Output Color Format: RGB444
Color depth: 8bit
Audio: 3.5MM Audio separation、HDMI Audio Pass-Through
Power supply: 12V5A
Power consumption: 20W
Storage/working temperature: -10～50℃/0～50℃
Product dimensions: L × W × H: 290mm×143mm×35mm
Product weight: 1.2KG
Package dimensions: L × W × H: 370mm×240mm×110mm
Package weight: 2KG
Attachment List: 1×12V5A power adapter, 1×HDMI 2.1 or DP 1.4 cable, 2×1U hanging ears (optional), 2×desktop small hanging ears (optional)
After-sales service: 1 year

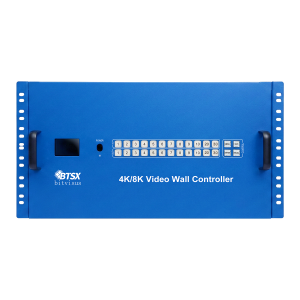

Video Wall Controller
Model: BIT-VWC-MD3636Ma
Parameters: Product Specification
1. Product
Product Name: VWC‑MD3636Ma
chassis: 7U chassis
Input the maximum number of boards: 9 sheets
Input the maximum number of channels: 36 HDMI2.0
Input the highest pixel clock frequency: 600MHz(Customize the special resolution to be below 300MHZ)
Output the maximum number of boards: 9 sheets
Output the maximum number of channels: 36 HDMI2.0
Output the highest pixel clock frequency: 600MHz(Customize the special resolution to be below 600MHZ)
Color depth: 8bit
Color format: RGB444、YUV444、YUV422、YUV420
Control method: RS232 serial port, WEB, button board, remote control, WEB API
Power supply: AC 100‑240V, 50/60Hz
Power consumption: 240W (9 input cards, 9 output cards)
Storage/Operating Temperature: -10～50℃/0～60℃
Product dimensions: Length × Width × Height:483mm×200mm×291mm
Product weight: 13.5KG
Package dimensions: Length × Width × Height:540mm×325mm×360mm
Package weight: 17KG
Attachment List: 1×220V power cord, 1×Phoenix connector, 1×1m blue network cable, 1×1m USB‑A to type‑C adapter (optional), 18×double‑layer Phoenix connectors
After‑sales service: 1 year
2. Board
Input card
4‑channel HDMI 2.0 input card
Interface: HDMI 2.0
Quantity: 4
Specifications:
- Supports input resolution of 3840×2160P60. For details, see the list of supported resolutions in Chapter 5
- The maximum input pixel clock frequency is 600MHz
- The indicator light is constantly green when input is detected
Interface: Phoenix terminal
Quantity: 4
Specifications:
- No effect
Output card
4‑channel HDMI 2.0 output card
Interface: HDMI 2.0
Quantity: 4
Specifications:
- Supports output resolution of 3840×2160P60. For details, see the list of supported resolutions in Chapter 5
- The maximum output pixel clock frequency is 600MHz
- When a display device is detected, the indicator light is constantly green
Interface: Phoenix terminal
Quantity: 4
Specifications:
- It can be connected to other audio playback devices, allowing for synchronous switching between audio and video playback
Control card
POWER
- Power indicator light, constantly on in red, indicating that the device is powered on and working
RUN
- Operation indicator light, flashing green, indicating that the device is operating
RS232
- Serial port, control device
LAN
- Network port adapter, for connecting to a computer or router
TYPE‑C
- TYPE‑C, connect to a computer via a TYPE‑C to USB converter for software upgrade
AUDIO
- Start audio
Video Wall Controller

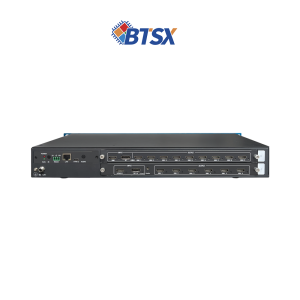

Model: BIT-VWC-8K60Y-115Pro
Parameters: Product Specification
Product Model: VWC‑8K60Y‑115Pro
Input Interface: 1×HDMI 2.1, 1×DP 1.4 (cable length ≤ 3 m)
HDCP: Supports HDCP 2.2
Input Maximum Pixel Clock Rate: 1200MHz
Input Maximum Resolution:
2×4: 7680×2160@60Hz RGB444, 7680×2400@60Hz RGB444
3×3: 5760×3240@60Hz RGB444, 5760×3600@60Hz YUV420
3×4: 7680×3240@60Hz YUV420, 7680×3600@60Hz YUV420
4×3: 5760×4320@60Hz YUV420, 5760×4800@60Hz YUV420
5×3: 5760×5400@60Hz YUV420, 5760×6000@60Hz YUV420
Input Color Format: RGB444, YUV444, YUV422, YUV420
Output Interface: 15×HDMI 1.4 (cable length ≤ 15 m)
Output Maximum Pixel Clock Frequency: 165MHz
Output Resolution: 1920×1200@60Hz, 1920×1080@60Hz
Color Depth: 8bit
Audio: Audio Output (Board A takes effect), 3.5mm Audio De‑embedding
Control Mode: Serial Port RS232 Control, Network Port WEB Control
Power supply: DC 12V 5A
Power Consumption: 48W
Storage/Operating Temperature: -10℃ to 50℃/0℃ to 50℃, 14℉ to 122℉/32℉ to 122℉
Product Dimensions: L×W×H: 440 mm×200 mm×60 mm
Package Dimensions: L×W×H: 570 mm×340 mm×140 mm
Product Weight: 3.5kg
Package Weight: 5.2 kg
Accessory List:
- 1×12V5A Power Adapter
- 1×HDMI 2.1 Cable or DP 1.4 Cable
- 1‑meter Ethernet Cable
- 1×Phoenix terminal
After‑sales service: 1 year

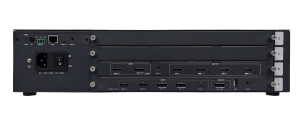

Video Wall Controller
Model: BIT-VWC-8K60-404Max
Parameters: Product Specification
1. Product
Model: BIT-VWC-8K60-404Max
Casing: 2U
Input the maximum number of cards: 1
Input the maximum number of paths: 5
Output maximum card count: 1
Output maximum number of channels: 4
Power supply: 220V
Power consumption: 40W
Storage/Working Temperature: -10℃ to 50℃/0℃ to 50℃, 14℉ to 122℉/32℉ to 122℉
Product Dimensions: L×W×H: 483×200×100 mm
Product Weight: 5.1 KG
Package Dimensions: L×W×H: 570×340×180 mm
Package Weight: 7.3 KG
Attachment List：
- 1×220V Power Cable
- 1×HDMI 2.1 Cable or DisplayPort 2.1 Cable
- 1×Category 5e (CAT5e) Network Cable
- 1×Screw Terminal Block (Phoenix Type)
After‑sales Service: 1 Year
2. Board Card
2.1. Input Card
5‑Channel 8K60 Input Card：
Interface: HDMI
Quantity: 2
Standard: HDMI2.1
Specifications:
- Supports input resolution of 7680×4320 @60Hz.
- Maximum input pixel clock frequency: 2400 MHz.
- Supports HDCP 2.2.
- Maximum width: 8192.
- Maximum height: 8192.
- When input is detected, the indicator light remains green continuously.
Interface: DP
Quantity: 2
Standard: DP2.1
Specifications:
- Supports input resolution of 7680×4320 @60Hz.
- Maximum input pixel clock frequency: 2400 MHz.
- Supports HDCP 2.3.
- Maximum width: 8192.
- Maximum height: 8192.
- When input is detected, the indicator light remains green continuously.
- Note: Low‑end board DP1.4 (DSC supports 8K/60fps)
Interface: TYPE‑C
Quantity: 1
Standard: DP2.1
Specifications:
- Supports input resolution of 7680×4320 @60Hz.
- Maximum input pixel clock frequency: 2400 MHz.
- Supports HDCP 2.3.
- Maximum width: 8192.
- Maximum height: 8192.
- When input is detected, the indicator light remains green continuously.
Interface: DP LOOP
Quantity: 1
Standard: DP1.4
Specifications:
- Supports an output resolution of 7680×4320 at 30Hz; can output signals from the DP input port.
Interface: AUDIO
Quantity: 1
Standard: IIS
Specifications:
- Independent 3.5mm Audio Extraction.
2.2. Output Card
4‑Channel HDMI 2.0 Output Card
Interface: HDMI 2.0
Quantity: 4
Standard: HDMI 2.0
Specifications:
- Supported output resolutions: 3840×2160@60Hz, 3840×2400@60Hz.
- Maximum output pixel clock frequency: 600 MHz.
- Supports HDCP.
2.3. Control Card
POWER
- Power indicator light: Always on (red) – The device is powered. Off – The device is not powered or there is a power supply fault.
RUN
- Operating indicator light: Always on (green) – Equipment is operating. Off – Equipment has a fault.
RS232
- Serial port, used for interfacing with the central control unit.
LAN
- Use the network port to connect to the router or directly to your computer, then log in via the web interface.
TYPE‑C
- Debug port, used for online firmware upgrades.
AUDIO
- 3.5mm Audio Jack.

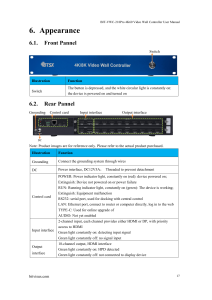

Video Wall Controller
Model: BIT-VWC-218Pro
Parameters: Product Specification
Product Model: BIT-VWC-218Pro
Input Port: 2×HDMI 2.0, 2×DP 1.2 (Copper Wire ≤3M)
HDCP: HDCP 2.0
Maximum Input Pixel Clock Frequency: 600MHz
Maximum Input Resolution: 4096×2160P60, See Chapter 5 for details
Input Color Format: RGB444, YUV444, YUV422
Output Port: 18×HDMI 1.3 (Copper Wire ≤15M)
Maximum Output Pixel Clock Frequency: 165MHz
Output Resolution: 1920×1200P60, 1920×1080P60, 1440×900P60, 1280×800P60, 1280×720P60, 1024×768P60
Color Depth: 8bit
Control Method: RS232, Web
Audio: HDMI audio output
Power Supply: 12V5A
Power Consumption: 48W
Storage/Operating Temperature: -10~50℃/0~50℃
Product Dimensions: L×W×H: 440mm×200mm×60mm
Product Weight: 3.5KG
Packaging Dimensions: L×W×H: 570mm×340mm×140mm
Packaging Weight: 5.2KG
Accessories List: 1×12V5A power adapter, 2×HDMI or DP cables, 1×Phoenix terminal block, 1×CAT5E Ethernet cable
After-sales Service: 1 year

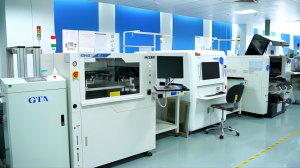

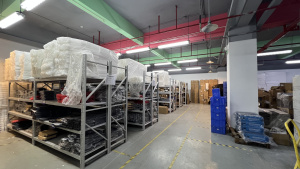

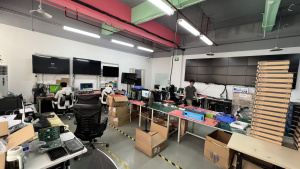

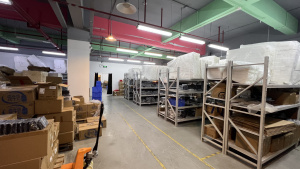

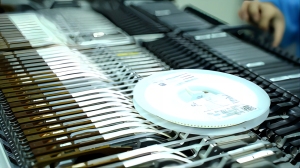

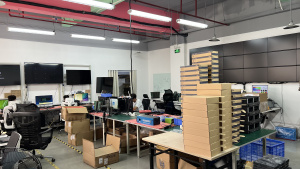

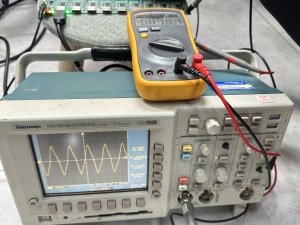

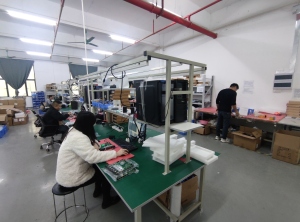

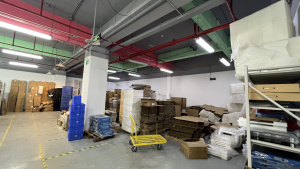

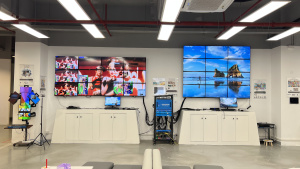

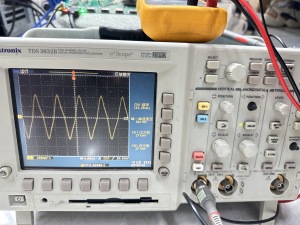

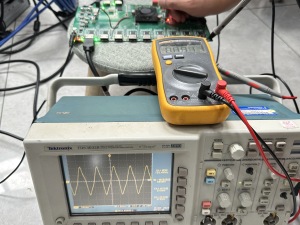

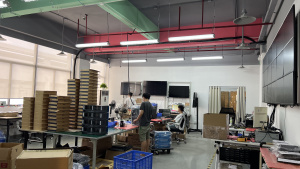

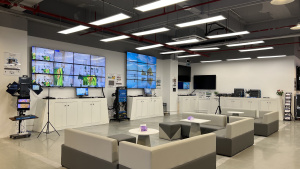

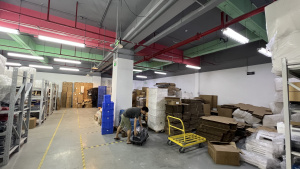

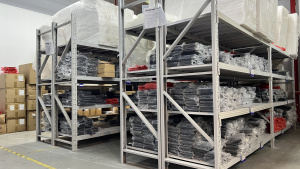

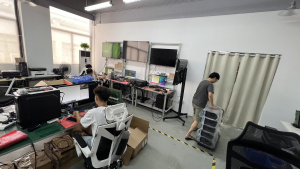

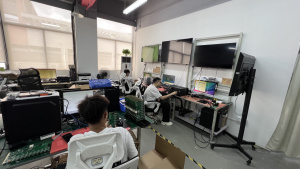

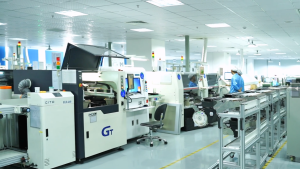

Company Gallery

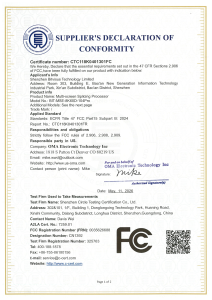

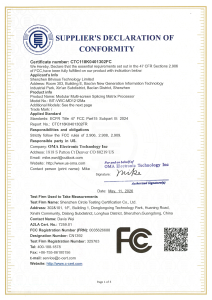

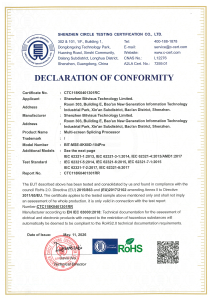

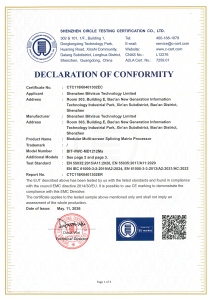

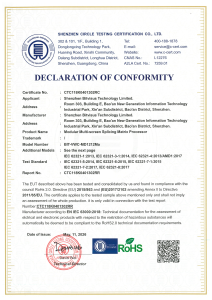

Certifications & Awards
Success Stories & Case Studies

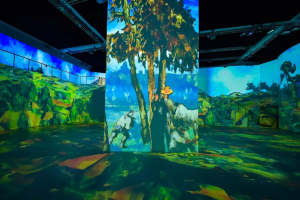

Exhibition hall / immersive art exhibition organizer
3x3 video wall achieves 5K 5760x3240 high-definition display, bringing Cézanne's masterpieces to life; multiple 3x3 walls recombined for a final image exceeding 16K, creating a stunning visual experience
Large-scale projection fusion and 4K60 video wall control; edge blending and warping software ensure seamless, vivid images; scalable and stable operation, adaptable to multiple resolutions and layouts

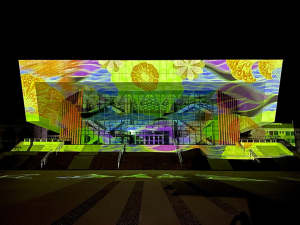

3D projection mapping competition / building light show project organizer
6 projectors driven by one PC, 3 projectors per group fused into one image, total resolution up to 11520x1200; greatly reduces commissioning workload and project costs
Single PC input source with 2 video wall controllers in parallel; HDBaseT long-distance transmission approx. 120m; multi-projector edge blending and 4K source processing
Large-scale building projection mapping / celebration project execution teams & integrators
Single device achieves 1x4 hardware tiling with phase-locked, color-unified outputs; supports uncompressed 8K60 processing and industrial-grade stable operation at -50ºC to 50ºC
True 8K60 input (DP 2.1 / HDMI); 1x4 hardware tiling with zero-latency 28nm FPGA processing; industrial-grade 6-layer thickened PCB, 16KV ESD protection, 0.7kg compact chassis
Company & Product Videos
Company Introduction & Factory Tour
⏱ Duration: 3:45 | 👁 Views: 15,230
Product Demonstration - Kestrel K-1
⏱ Duration: 5:12 | 👁 Views: 28,450
Technology Innovation Showcase
⏱ Duration: 4:30 | 👁 Views: 12,890
Customer Testimonials & Success Stories
⏱ Duration: 6:20 | 👁 Views: 9,650
Ready to Transform Your Life?
Contact us immediately to learn how our products meet your needs.
