About DEO
In terms of research and development, we invest 20% of our profits annually into R&D, continuously driving innovation. In 2021, the company formed a team of scientists, significantly enhancing our technological prowess. Currently, we hold 3 invention patents and 16 utility model patents.
We adhere to a customer-centric strategy, earning us the trust of over 7,000 enterprise clients, including renowned companies such as Nanjing High Accurate Drive Equipment Manufacturing Group Co., Ltd. and Dongfeng Motor Corporation.
Deo Machinery will continue to uphold the spirit of innovation, providing more advanced and high-quality cooling system solutions for our customers. We sincerely appreciate the support from all sectors and look forward to creating a bright future together with you.
Our Products
View All Products →
cooler, water cooler
Model: DWBW-408-T
Parameters: Core Technical Specifications
1. Structural & Material Parameters
Structure: Shell-and-tube finned heat exchanger, expand tube process tightly bonds copper fins & heat transfer tubes for high heat exchange efficiency
Heat transfer tube material: High-purity copper tube; fin material: copper (304 stainless steel optional for corrosive water/seawater customization)
Shell material: Carbon steel with anti-rust coating, stainless steel shell available on request
Flow channel design: Large-diameter oil ports to reduce flow resistance and pressure drop
Detachable end cover design for easy internal dirt cleaning & maintenance
2. Pressure & Temperature Ratings
Max working pressure (oil side): 16 bar
Max working pressure (water side): 10 bar
Allowable oil medium temperature: ≤120°C
Allowable cooling water temperature: 5–60°C
Applicable oil kinematic viscosity: 12–320 mm²/s (heavy high-viscosity lubricant customizable)
Cooling water requirement: Low impurity content; seawater, heavily polluted water supported via customized anti-corrosion structure
3. Heat Exchange & Size Range
Single unit heat exchange area range: 1.3 m² ~ dozens of square meters (multiple models DWBE-408 / DWBE-412 / DWBE-414 / DWBE-418 etc.)
Connection ports: G1, G1-1/2 standard thread flanges; SAE flanges optional
Compact layout, small footprint with large heat dissipation capacity compared to traditional tubular coolers
4. Core Product Advantages
High heat transfer efficiency due to fin-enhanced heat exchange surface
Low oil flow resistance, small pressure loss for hydraulic & lube circuits
Easy disassembly for regular descaling and sludge cleaning
Strong adaptability to dirty cooling water and seawater after customized anti-corrosion treatment
Complete series specifications, full supporting pipe fittings & accessories
pump,Bidirectional Internal Gear Pump
Model: PST180
Parameters: Displacement: 180 ㏄/rev.
Max speed: 1800 per min
Temperature: from -30℃ to +100℃
pump,trochoidal pump,bidirectional Mechanical pump
Model: PSN100
Parameters: Displacement: 100 cc/rev.
Max speed: 1800 rev/min.
Temperature: from -30℃ to +100℃
cooler,self-circulating cooler
Model: DFLSL-10
Parameters: Cooling capacity: 1.61/1.84 KW/℃.
Oil pum flow(VG46): 100-125 L/min /150-200L/min.
Consumed power:5.5/7.5KW.
cooler, wind cooler
Model: DFLEX8
Parameters: Comparative cooling capacity: 1.15/0.91 KW/℃
Fan Diameter:630 mm
Motor voltage: 3φ380.
electric lubrication pump
Model: DK630
Parameters: Displacement: 630 ㏄/rev.
Motor rotation speed: 950rpm/1450rpm

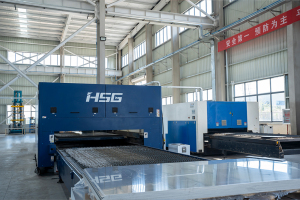

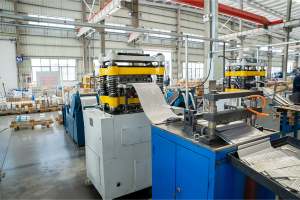

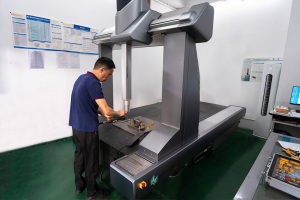

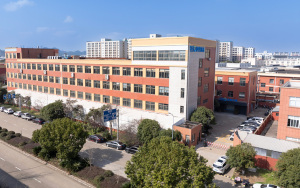

Company Gallery
Certifications & Awards
Success Stories & Case Studies
End Equipment Manufacturers (OEM Customers) Wind power equipment manufacturers: Mainly customers for DKF dedicated wind power pumps, including wind turbine gearbox makers like Vision Energy, Dalian Heavy Industry, Taiyuan Heavy Industry, Weili Transmission. DK-F version is customized to resist alternating vibration and frequent variable speed of wind turbines. Heavy machinery & reducer manufacturers: Manufacturers of large industrial reducers, metallurgical rolling mills, mining equipment, const
Technical & Operational Effects
Ultra-low noise performance
Adopted helical gear meshing structure, running noise is 3dB lower than traditional straight gear pumps, greatly improving workshop and wind turbine cabin working environment, meeting low-noise factory standards.
High volumetric efficiency & energy saving
Volumetric efficiency ≥95, minimal internal leakage. Under the same flow demand, matching motor power is reduced, cutting long-term power consumption for continuous-operation equipment.
Strong medium adaptability
Covers kinematic viscosity range 12–20000 cSt, compatible with thin hydraulic oil and high-viscosity heavy lubricating grease; works steadily at fluid temperature -40℃ ~ 100℃.
Outstanding durability & low wear
Precision-machined helical gears and copper bushings reduce friction loss; component wear is reduced by 40% vs ordinary gear pumps, extending pump service life and lowering replacement frequency.
Built-in integrated safety protection
Standard built-in relief valve (adjustable 5–25 bar) provides instantaneous overpressure protection, preventing pipeline and gearbox damage caused by pressure spikes. No extra separate relief valve needed for basic circuits.
Wind power customized upgrade (DKF model)
Enhanced anti-fatigue and anti-vibration structure, adapts wind turbine frequent alternating loads; wind farm operation data shows gearbox lubrication failure rate drops significantly after replacing with DKF pumps.
Complete matching compatibility
Perfectly matched with DEO self-circulation coolers, plate water coolers, forming one-stop lubrication & cooling system solutions for customers, simplifying system design and procurement.
2. Commercial & Customer Value Achievements
Cost advantage vs imported pumps
Performance matches European KRACHT/NOP imported gear pumps, while overall procurement cost is about 30% lower; overall system operation and maintenance cost reduced for end customers.
Full industrial chain delivery capacity
Self-owned pump produc
Stable product performance and high cost-effectiveness
Company & Product Videos
Company Introduction & Factory Tour
⏱ Duration: 3:45 | 👁 Views: 15,230
Product Demonstration - Kestrel K-1
⏱ Duration: 5:12 | 👁 Views: 28,450
Technology Innovation Showcase
⏱ Duration: 4:30 | 👁 Views: 12,890
Customer Testimonials & Success Stories
⏱ Duration: 6:20 | 👁 Views: 9,650
Ready to Transform Your Life?
Contact us immediately to learn how our products meet your needs.
