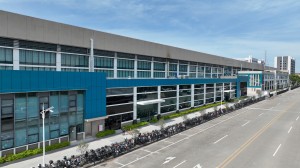

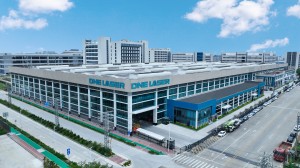

DNE Laser (Guangdong) Co., Ltd. (Brand name: DNE LASER), a wholly owned subsidiary of the Swiss Bystronic Group, is headquartered in Shenzhen with its production base located in Nanhai, Foshan. Over the years, the company has evolved into a professional provider of systematic solutions for intelligent manufacturing, including laser cutting machines, laser tube cutting machines, CNC bending machines, and automation equipments.

As a multi-year National High-Tech Enterprise, DNE LASER is a pioneer in industry, having been approved to establish the Guangdong Provincial Engineering Research Center for Ultra-High-Speed Fiber Laser Cutting Machines. Recognized among the Shenzhen Top 500 Enterprises, the company holds titles such as "Specialized, Refined, Distinctive, and Innovative" Enterprise (SRDI) and has been honored with the "Outstanding Localization Service Provider" and "Outstanding Corporate Social Responsibility" awards.

Further solidifying its industry leadership, DNE LASER was among the first to achieve Smart Manufacturing Capability Maturity Level 2 Certification and was designated as a Shenzhen Top Brand.

Our Products

View All Products →

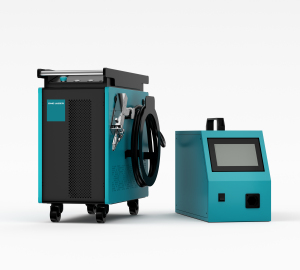

laser welding machine

Model: D-Welder
Parameters: Type :Water-cooled Handheld Laser Welding Machine
Laser power: 1500W 2000W 3000W
Recommended welding thickness: 0.5-3mm 0.5-5mm, 0.5-8mm
Weld seam requirements: ≤ 0.5mm ≤ 2/3mm
Welding speed range: 0-120 mm/s
Laser wavelength: 1070 NM
Fiber cable length: Standard 10 M; Max. supported: 15M
Operating temperature: 10-40℃
Operating humidity: <70% （No Condensation）

Type :Air-cooled Handheld Laser Welding Machine
Laser power: 1500W 2000W
Recommended welding thickness: 0.5-4mm 0.5-5mm
Weld seam requirements: ≤0.2mm
Welding speed range: 0-120 mm/s
Laser wavelength: 1080nm±5%
Fiber cable length: Standard 10 M
Operating temperature: 0℃-40℃
Operating humidity: <70% （No Condensation）

automation

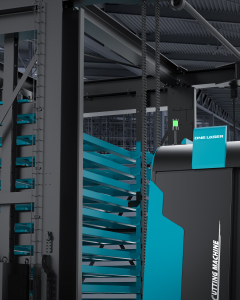

Model: D-Trans
Parameters: Main parameters/configuration: 1530 2040
Material storage type: Single-tower
Material storage: 6/8/12/15 Layers
Maximum sheet metal size: 1500*3000 2000*4000
Sheet metal thickness: 0.8-20mm 0.8-15mm
Loading and unloading system maximum load: 900 kg 1000 kg/1600 kg
Trolley load: 3000kg 5000kg
Maximum load capacity per tabletop: 3t, 3t 5t (optional)
Number of connectable laser cutting machines: 1/2
Layout type: One-to-one / One-to-two
Loading and unloading system type: Frame type
Mechanical vibration for sheet separation: Standard for thin sheets
Mechanical air blowing for sheet layering: Standard configuration
Sheet thickness detection: Standard configuration
Traceless gear shaper: Optional
Raw material/finished product electric trolley: Optional
Double-layer raw material/finished product electric trolley: Optional
Material warehouse trolley: Optional

automation

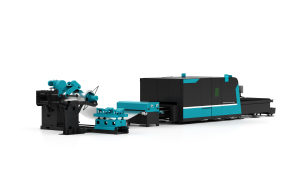

Model: D-Roller
Parameters: Feeding width: 100-1500mm
Material thickness (Choose one out of four):
0.3-1.0 mm(Galvanized sheet, ordinary carbon steel)； 0.3-0.5mm（Stainless steel）
0.5-2.0 mm(Galvanized sheet, ordinary carbon steel)；0.5-1.5mm（stainless steel）
0.8-3.0 mm(Galvanized sheet, ordinary carbon steel)；0.8-2mm（stainless steel）
1.0-5.0 mm(Galvanized sheet, ordinary carbon steel)；1.0-3.5mm（stainless steel）

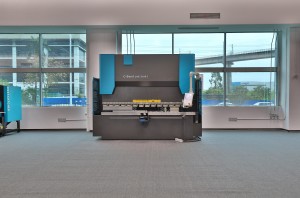

press brakes

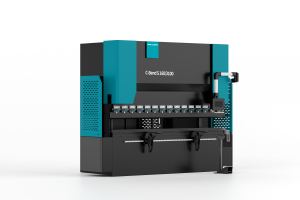

Model: C-Bend S
Parameters: Technical indicators Unit: C-Bend S 100/3100
Bending force (kN): 1000
Bending length (mm): 3100
Opening height (mm): 500
Side plate spacing (mm): 2500
Throat depth (mm): 410
Y-axis (oil cylinder) travel (mm): 200
X-axis precision (mm): 0.05
Y-axis precision (mm): 0.01

Technical indicators Unit: C-Bend S 160/3100
Bending force (kN): 1600
Bending length (mm): 3100
Opening height (mm): 600
Side plate spacing (mm): 2500
Throat depth (mm): 410
Y-axis (oil cylinder) travel (mm): 300
X-axis precision (mm): 0.05
Y-axis precision (mm): 0.01

press brakes

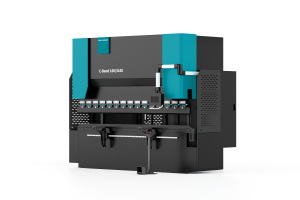

Model: C-Bend
Parameters: Technical indicators Unit: C-Bend 100/3100, C-Bend 160/3100
Bending force (kN): 1000 1600
Bending length (mm): 3100 3100
Cylinder stroke (mm): 200 300
Opening height (mm): 500 600
Throat depth (mm): 410 410
Side plate spacing (mm): 2500 2500
X-axis precision (mm): 0.05 0.05
Y-axis precision (mm): 0.01 0.01

Technical indicators Unit: C-Bend 160/3100
Bending force (kN): 1600
Bending length (mm): 3100
Cylinder stroke (mm): 300
Opening height (mm): 600
Throat depth (mm): 410
Side plate spacing (mm): 2500
X-axis precision (mm): 0.05
Y-axis precision (mm): 0.01

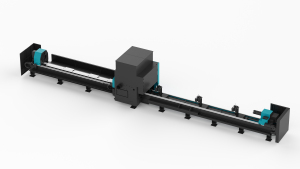

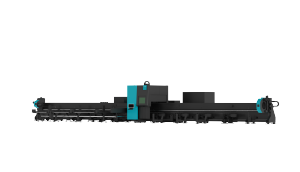

tube laser cutting machine

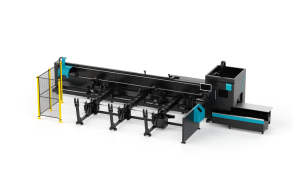

Model: D-Tube 360
Parameters: Model: 360
Number of chucks: 2, 3, 4
Loading length: 6.5m, 6.5m, 9.2m, 12.5m, 12.5m
Unloading length: 2m, 6.5m, 6.5m 9.2m, 6.5m 9.2m 12.2m, 6.5m 9.2m 12.2m
Round tube (mm): Φ40-Φ350
Square tube(mm): □40*40-□350*350
Theoretical maximum chuck load: 1200kg
X/Y-axis positioning accuracy: ±0.05mm/m
X/Y-axis repeated positioning accuracy: ±0.03mm/m
Bevel cutting function: Optional

tube laser cutting machine

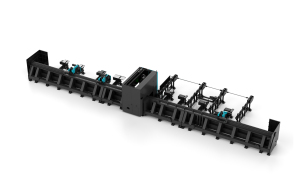

Model: D-Tube 240
Parameters: Model: 240
Number of chucks: 2, 3
Loading length: 6.5m 6.5m 6.5m 9.2m 12.5m
Unloading length: 2m, 4m, 6.5m, 6.5m 9.2m, 6.5m 9.2m 12.2m
Round tube (mm): Φ15-Φ230
Square tube(mm): □15*15-□230*230
Theoretical maximum chuck load: 300kg
X/Y-axis positioning accuracy: ±0.05mm/m
X/Y-axis repeated positioning accuracy: ±0.03mm/m
Bevel cutting function: Optional

tube laser cutting machine

Model: D-Tube F
Parameters: Number of chucks: 2
Model: 120 240 360
Round tube (mm): Φ8- Φ120mm, Φ12- Φ240mm, Φ40 - Φ350mm
Square tube(mm): □8*8- □120*120mm, □12*12- □240*240mm, □40*40 - □350*350mm
Theoretical max. chuck load: 100kg 300kg 1000kg
Loading length : 6.5m 6.5m 6.5m
Unloading length: 2m 2m 2m
X/Y-axis positioning accuracy: ±0.05mm/m
X/Y-axis repeated positioning accuracy: ±0.03mm/m
Bevel cutting function: Optional

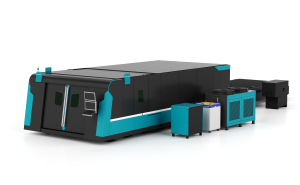

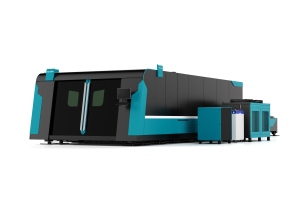

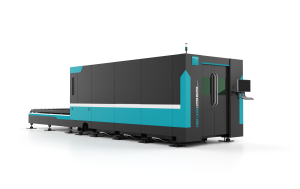

laser cutting machine

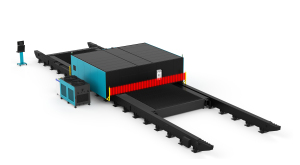

Model: D-Giant F
Parameters: Laser source: Fiber Laser Source (optional)
Format: Width:3m /3.5m; Length:12-40m
Laser power: 12000W 20000W 30000W 40000W 60000W 80000W
X/Y-axis Max. linkage acceleration: 0.5G
X/Y-axis Max. linkage positioning speed : 50 m/min
X/Y-axis positioning accuracy: ±0.20mm/10m
X/Y-axis repeated positioning accuracy: ±0.15mm/10m
Power consumption of complete machine: ≤70kW ≤110kW ≤140kW ≤170kW ≤250kW ≤320kW
Bevel cutting function: Optional

laser cutting machine

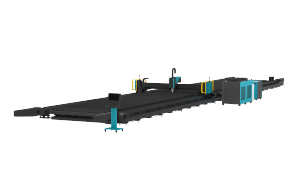

Model: D-Giant
Parameters: Laser source: Fiber Laser Source (optional)
Format: Width:3m /3.5m/ 4m /4.5m /5m; Length:12-40m
Laser power: 12000W 20000W 30000W
X/Y-axis Max. linkage acceleration (Follow-up enclosure): 0.5G
X/Y-axis Max. linkage positioning speed (Follow-up enclosure): 50m/min
X/Y-axis positioning accuracy: ±0.15mm/10m
X/Y-axis repeated positioning accuracy: ±0.10mm/10m
Power consumption of complete machine: ≤70kW ≤110kW ≤140kW
Bevel cutting function: Optional

laser cutting machine

Model: D-Soar Plus-G
Parameters: Laser source: Fiber Laser Source(optional)
Format: 2040   2060  2560  2580
Laser power: 12000W  20000W  30000W  40000W
X/Y-axis maximum linkage acceleration: 2.8 G
X/Y-axis maximum linkage positioning speed : 280 m/min
X/Y-axis positioning accuracy : ±0.05mm
X/Y-axis repeated positioning accuracy: ±0.02mm
Power consumption of complete machine: ≤60kW  ≤80kW  ≤110kW  ≤150kW

laser cutting machine

Model: D-Soar Plus-PG
Parameters: Laser source Fiber Laser Source(optional)
Format 2040   2060  2560  2580
Laser power 12000W  20000W   30000W
X/Y-axis maximum linkage acceleration 1.8 G
X/Y-axis maximum linkage positioning speed 180 m/min
X/Y-axis positioning accuracy ±0.05mm
X/Y-axis repeated positioning accuracy ±0.02mm
Power consumption of complete machine ≤60kW  ≤80kW  ≤110kW  ≤150kW

laser cutting machine

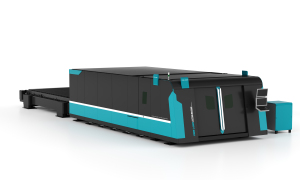

Model: D-Soar
Parameters: Laser source: Fiber Laser Source(optional)
Format: 1530  1540  2040  2060  2560  2580
Laser power: 3000W   6000W   12000W   20000W  30000W
X/Y-axis maximum linkage acceleration: 1.2G
X/Y-axis maximum linkage positioning speed: 120 m/min
X/Y-axis positioning accuracy : ±0.05mm
X/Y-axis repeated positioning accuracy : ±0.03mm
Power consumption of complete machine: ≤30kW   ≤40kW   ≤65kW   ≤95kW  ≤135kW

laser cutting machine

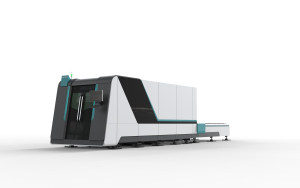

Model: D-Power
Parameters: Laser source: Fiber Laser Source(optional)
Format: 1530  2040  2560
Laser power: 3000W   6000W   12000W
X/Y-axis maximum linkage acceleration: 1.5G
X/Y-axis maximum linkage positioning speed: 150 m/min
X/Y-axis positioning accuracy : ±0.05mm
X/Y-axis repeated positioning accuracy : ±0.03mm
Power consumption of complete machine: ≤30kW  ≤40kW  ≤65kW
Bevel cutting function: Available only on D-Power2560/2580/25120; processing restricted to upper worktable

laser cutting machine

Model: D-Speed
Parameters: Laser source: Fiber Laser Source (optional)
Format: 1530 2040 2060 2560
（1530/2040: optional short-focus cutting head）
Laser power: 3000W 6000W 12000W
（6000W: optional small-core cutting head）
Max. single-axis acceleration: 1.5 G
X/Y-axis Max. linkage acceleration: 2.0 G
X/Y-axis Max. linkage positioning speed: 150 m/min
X/Y-axis positioning accuracy: ±0.05mm
X/Y-axis repeated positioning accuracy: ±0.03mm
Power consumption of complete machine: ≤26kW ≤34kW ≤60kW
