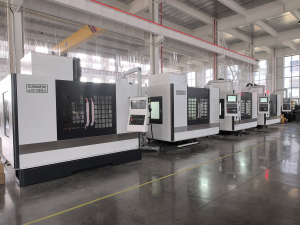

The production base is located in Ningbo City. Equipped with advanced imported machinery such as Japanese OKUMA gantry machining centers, KURUKI boring and milling machines, NIIGATA horizontal machining centers, and German ZEISS coordinate measuring machine, the workshop not only ensures the machining precision of our equipment but also provides solid support for trial machining and testing.
Our Products
View All Products →

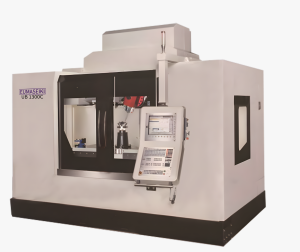

5-Axis Machining Center
Model: UB1300C
Parameters: Travel & Distances
X-axis travel (Column left-right): 1300 mm
Y-axis travel (Column front-back): 560 mm
Z-axis travel (Spindle head up-down): 560 mm
Distance (spindle nose to table): 100~660 mm
Distance (spindle center to table): 269.5~829.5 mm
Worktable
Rectangular table surface dimensions (Fixed table): 1500 x 560 mm
Max. load of rectangular table: 1500 kg
T-slot dimensions: 14x100x5 mm
Spindle System
Spindle taper: HSK-A63
Spindle speed: 12000 rpm
Main motor power (S1/S6-40%): 25.1/33.9 kW
Main motor torque (S1/S6-40%): 79.9/107.9 Nm
B-axis (Spindle Head Tilt)
B-axis spindle head tilt angle: -120º ~ +120º
B-axis tilt minimum indexing: 0.001°
B-axis speed: 50 rpm
B-axis continuous torque: 580 Nm
B-axis maximum torque: 1160 Nm
B-axis braking torque: 2400 Nm (50bar oil pressure)
B-axis feed motor power: 4.4 kW
B-axis encoder circular grating: HEIDENHAIN
C-axis (Rotary Table)
C-axis worktable diameter: Φ500 mm
C-axis worktable rotation angle: 360°
C-axis worktable rotation speed: 100 rpm
C-axis CNC rotary table drive method: DD motor
C-axis maximum torque: 275 Nm
C-axis rated torque: 145 Nm
C-axis CNC rotary table maximum load capacity: 300 kg
C-axis encoder circular grating: HEIDENHAIN
Feed System
Rapid feed speed (X/Y/Z): 36 / 36 / 32 m/min
Cutting feed speed (X/Y/Z): 1 ~ 10000 mm/min
X/Y/Z-axis feed motor power: 4.3 / 4.3 / 4.3 kW
X/Y/Z-axis feed motor torque: 27 / 27 / 27 Nm
Tool Magazine
Tool holder type: HSK-A63
Tool magazine capacity: 40 pcs
Maximum tool diameter: Φ76 / Φ150 mm
Maximum tool length: 300 mm
Maximum tool weight: 8 kg
Tool change time (Tool to Tool): 5 sec.
Fluids & Utilities
Cutting coolant pump motor power: 0.75 + 0.75 kW
Air pressure requirement: 6 kg/cm²
Required power supply capacity: 70 KVA
Accuracy
X/Y/Z axis Position accuracy (German VDI 3441): 0.012 mm
B-axis Position accuracy: 8"
C-axis Position accuracy: 10"
X/Y/Z axis Repeat position accuracy (German VDI 3441): 0.008 mm
B-axis Repeat position accuracy: 4"
C-axis Repeat position accuracy: 4"
Dimensions, Weight & System
Machine height: 2964 mm
Floor space: 2900 x 2500 mm
Machine net weight: 13000 kg
CNC system: SIEMENS ONE
5-axis Machining Center
Model: DX5-630
Parameters: Travel
X/Y/Z Travel: 700 / 700 / 500 mm
Worktable
Max. swing diameter of worktable: 800 mm
Max. load capacity of worktable: 800 kg
Distance (spindle nose to worktable): 120-620 mm
Worktable surface diameter: ∅630 mm
Worktable T-slot size: 14H8 mm
Spindle System
Option 1: Direct Spindle
Spindle speed: 15000 rpm / HSK-A63 (KENTURN)
Main motor power: 22/33 kW (S1/S6-40%)
Main motor torque: 140/260 Nm (S1/S6-40%)
Option 2: Electrical Spindle
Spindle speed: 20000 rpm / HSK-A63 (CELLS)
Main motor power: 31/37 kW (S1/S6 60%)
Main motor torque: 100/120 Nm (S1/S6 60%)
Feed System
X/Y/Z rapid traverse speed: 36 / 36 / 36 m/min
X/Y/Z cutting feed speed: 1 ~ 20000 mm/min
X/Y/Z feed motor power: 4.3 / 3.1*2 / 4.3 kW
A/C Axis
A-axis travel (tilting axis): ± 120°
A-axis drive type: Single drive
C-axis travel (rotary axis): 360°
A/C axis speed: 60 / 100 rpm
A/C axis motor power: 6.3 / 8.11 kW
A/C axis rated torque: 1290 / 600 Nm
A/C axis maximum torque: 2400 / 1100 Nm
Tool Magazine
Tool capacity: 40 pcs
Maximum tool diameter: ∅75 / ∅120 mm
Maximum tool length: 300 mm
Maximum tool weight: 8 kg
Tool change time (tool-to-tool): 5.0 sec.
Fluids & Utilities
Coolant tank capacity: 250 L
Coolant motor power: 1.0+1.0 kW
Power supply capacity: 60 kVA
Air pressure requirement: 6 kg/cm²
Air pressure flow rate: 500 L/min
Accuracy
Positioning accuracy (X/Y/Z axis) VDI3441: 0.008 mm
Positioning accuracy (A/C axis): 10"
Repeat position accuracy (X/Y/Z axis) VDI3441: 0.004 mm
Repeat position accuracy (A/C axis): 4"
Dimensions, Weight & System
Machine dimensions (L×W×H): 5200 x 3300 x 3400 mm
Machine weight: 16000 kg
CNC control system: SIEMENS ONE

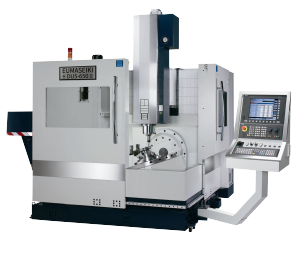

Vertical Machining Center
Model: DU5-500
Parameters: Travel & Worktable
X/Y/Z axis travel: 520 / 450 / 420 mm
B-axis swing range: ± 120 degrees
B/C-axis drive mode: Direct drive
C-axis rotation range: 360° (0.001)
Distance from the spindle to the worktable: 150-570 mm
Worktable size / max. working space: Ø500 / 540*R480 mm
T-slot (width * number): 6-12H8
Maximum load weight: 200 kg
B/C-axis Performance
B/C-axis Maximum speed: 60 / 100 rpm
B/C-axis Rated torque: 335 / 106 Nm
B/C-axis Maximum torque: 1680 / 840 mm (Note: Listed as mm in the original data)
Spindle System
Option 1: Direct Spindle
Maximum spindle speed / spindle taper: 15000 rpm / HSK-A63
Power (S1/S6 40%): 16.8 / 23.5 kW (Alternative: 18 / 25.2 kW)
Output torque (S1/S6 40%): 53 / 100 Nm (Alternative: 82 / 118 Nm)
Option 2: Electrical Spindle
Maximum spindle speed / spindle taper: 15000 rpm / HSK-A63 (Alternative: 20000 rpm / HSK-A63)
Power: 36 / 50 kW (S1/MAX) (Alternative: 31 / 37.2 kW (S1/S6 60%))
Output torque: 159 / 220 Nm (S1/MAX) (Alternative: 100 / 120 Nm (S1/S6 60%))
Feed System
X/Y/Z-axis rapid movement speed: 42 m/min
X/Y/Z-axis cutting feed rate: 0.001~20 m/min
X/Y/Z-axis feed motor power: 3.1 / 4.29 / 4.29 kW
Tool Magazine
Number of tools: 32 pcs
Maximum tool length: 300 mm
Maximum tool diameter: Ø75 / Ø150 mm
Maximum tool weight: 8 kg
Fluids & Utilities
Cutting coolant motor power: 1.0+1.0 kW
Air pressure requirement: 5-8 kg/cm²
Coolant pump pressure: 4 bar
Water tank capacity: 180 L
Required power capacity: 50 kVA
Accuracy
X/Y/Z-axis positioning accuracy (Full travel of VDI 3441): 0.008 mm
B/C-axis positioning accuracy (Full travel of VDI 3441): 10 arc sec
X/Y/Z-axis repeat accuracy (Full travel of VDI 3441): 0.005 mm
B/C-axis repeat accuracy (Full travel of VDI 3441): 4 arc sec
Dimensions, Weight & System
CNC system: SIEMENS (Alternative: SIEMENS ONE)
Total height: 2900 mm
Length x Width (excluding chip removal machine): 2840 x 3000 mm
Net weight (without accessories): 6000 kg

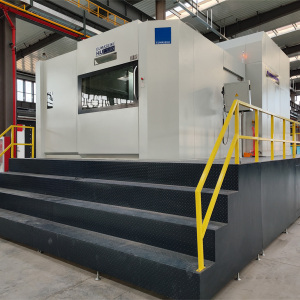

Horizontal Machining Center
Model: HU1250
Parameters: Travel & Axes
X-axis travel (transverse/left-right movement of the column): 1660 mm
Y-axis travel (vertical/up-down movement of the spindle head): 1600 mm
Z-axis travel (longitudinal/forward-backward movement of the table): 1600 mm
Minimum three-axis resolution: 0.001 mm
Distance from the end of the spindle to the CNC desktop (vertical): 100~1700 mm
Distance from spindle center to CNC work table (horizontal): 0~1600 mm
Maximum workpiece height: 1300 mm
Spindle center above CNC table center: 30 mm
B-axis Worktable
B-axis table size: Ø1250 mm
Diameter of the central hole of the B-axis table: Φ180 mm
Width of T-slot on B-axis work table: 24H8 mm
Maximum rotation diameter of B-axis table: 1500φ mm
Minimum B-axis division: 0.001˚
Maximum B-axis worktable load: 3000 kg
B-axis rotation angle: 0~360°
A-axis (Tilt Axis)
Minimum division on A-axis: 0.001˚
A-axis rotation angle: ±110˚
A-axis feed motor power: 3.1 kW
A-axis rated torque / maximum torque: 3987 / 5000 Nm
A-axis locking moment: 6000 Nm
A-axis speed: 10 rpm
Distance from A-axis nose to the swing axis: 270 mm
Spindle & Feed
Spindle speed: 3000 rpm
Spindle taper: ISO 50
Rapid feed rate (X/Y/Z): 36 / 36 / 36 m/min
Cutting feed rate (X/Y/Z): 1～10000 mm/min
X/Y/Z Feed Motor Power: 4.4x2 / 4.4x2 / 8.2 kW
X/Y/Z Feed Motor Torque: 36x2 / 36x2 / 48 Nm
Tooling System
Shank type: BT50
Tool magazine capacity: 45 pcs
Maximum tool diameter (adjacent tool / without adjacent tool): 110φ / 200φ mm
Maximum tool length: 350 mm
Maximum tool weight: 20 kg
Tool change method: Arm type
Tool change time (tool to tool): 5.0 sec.
Power & Motors
Main motor power (S1/S6 25%): 22 / 41.8 kW
Main motor torque (S1/S6 25%) with gear box: 840 / 1596 Nm
B-axis feed motor power: 37.7 kW
B-axis feed motor torque: 6000 Nm
B-axis locking torque: 10000 Nm
B-axis speed: 10 rpm
Reduced engine coolant power: 1.51+1.51 kW
Fluids & Utilities
Coolant tank capacity: 600 L
Air pressure requirement: 6 kg/cm²
Pressure in the hydraulic system: 70 kg/cm²
Required power: 90 kVA
Accuracy
X/Y/Z axis positioning accuracy: 0.008 mm
X/Y/Z axis repeat positioning accuracy: 0.005 mm
A/B axis positioning accuracy: 8 sec
A/B axis repeat positioning accuracy: 4 sec
Axial end / radial runout of table: 0.02 mm
Five-axis linked RTCP precision: ±0.025 mm
Dimensions, Weight & System
Machine height: 5200 mm
Machine size: 4800 × 5500 mm
Machine weight: 33000 kg
CNC system: SIEMENS ONE
Horizontal Machining Center
Model: EH63
Parameters: Travel & Axes
X-axis travel (column transverse left and right): 800 mm
Y-axis travel (spindle head up and down): 700 mm
Z-axis travel (worktable forward and backward movement): 680 mm
Minimum 3 axis resolution: 0.001 mm
Distance from the spindle end to NC worktable (vertical): 90-790 mm
Distance from spindle center to NC worktable (horizontal): 60-740 mm
B-axis Worktable
Worktable surface size: 2-500x500 mm
Worktable center hole diameter: /
Maximum rotation diameter: φ950*2 mm
Minimum division degree: 0.001˚
Maximum load capacity: 600 kg
Rotation angle: 0~360°
Spindle & Feed
Spindle speed: 10000 rpm
Spindle taper: BT40
Fast feed rate (X/Y/Z): 24 m/min
Cutting feed rate (X/Y/Z): 1~10000 mm/min
Tooling System
Tool holder type: BT40
Tool magazine capacity: 60 pcs
Maximum tool diameter: φ95 mm
Maximum tool length: 300 mm
Maximum tool weight: 8 kg
Tool changing method: Arm type
Tool changing time (tool-to-tool): 5 sec.
Power & Motors
Spindle power: 11/15 kW (S1/S6 25%)
Spindle torque: 52.5/95.5 Nm (S1/S6 25%)
Spindle torque with BF reduction gearbox: /
X/Y/Z axis feed motor power: 3/3/3/1.8 kW
X/Y/Z axis feed motor torque: 27/27/27/11 Nm
Cutting coolant motor power: 1+1 kW
Fluids & Utilities
Water tank capacity: 600 L
Air pressure requirement: 6 kg/cm²
Hydraulic station system pressure: 70 kg/cm²
Required power capacity: 50 kVA
Accuracy
X/Y/Z axis positioning accuracy: 0.005 mm
X/Y/Z axis repeat positioning accuracy: 0.003 mm
B-axis worktable positioning accuracy: 15"
B-axis worktable repeatability accuracy: ±4"
Dimensions, Weight & System
Machine height: 3200 mm
Machine size: 3000x3300 mm
Machine weight (approx.): 9000 kg
Numerical control system: FANUC 0i-MF

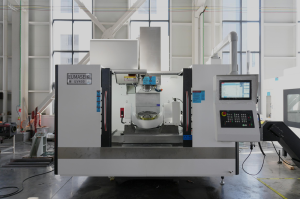

CNC Trunnion Table Machining Center
Model: UV400
Parameters: Travel & Worktable
X-axis travel: 500 mm
Y-axis travel: 650 mm
Z-axis travel: 400 mm
Distance (spindle nose to worktable surface): 150~550 mm
Worktable size: Ø400 mm
Max. load of the worktable: 100 kg
T-slot size: 14H7 mm
Rotary Axes (A/C)
C-axis rotation angle: 360°
A-axis rotation angle: -110˚~+110˚
A-axis motor power: 15.9 kW
C-axis motor power: 7.6 kW
A-axis rated torque: 780 Nm
C-axis rated torque: 230 Nm
A-axis speed: 100 rpm
C-axis speed: 150 rpm
Spindle & Feed
Spindle speed: 12000 rpm
Spindle taper: ISO 40
Fast feed speed (X/Y/Z): 24 / 24 / 24 m/min
Cutting feed speed (X/Y/Z): 1~12000 mm/min
X/Y/Z axis feed motor power: 3.0 / 3.0 / 3.0 kW
Tooling System
Tool shank: BT 40
Tool magazine: 24 pcs
Maximum tool diameter: 76φ / 150φ mm
Maximum tool length: 250 mm
Maximum tool weight: 8 kg
Tool changing method: Arm type
Tool changing time (tool-to-tool): 1.5 sec.
Power & Accuracy
Main motor power (S1-S6-40%): 11/20 kW
Spindle torque (S1-S6-40%): 52.5/95.5 Nm
Cutting coolant motor power: 0.75+0.75 kW
X/Y/Z positioning accuracy VDI3441: 0.007 mm
X/Y/Z reposition accuracy VDI3441: 0.005 mm
A-axis (tilting) division accuracy: ±10 sec.
A-axis reposition accuracy VDI3441: ±4 sec.
C-axis (rotating) division accuracy: ±10 sec.
C-axis reposition accuracy VDI3441: ±4 sec.
Dimensions, Weight & System
Machine height: 2900 mm
Machine size (length * width): 2700 x 4000 mm
Machine weight: About 7800 kg
Air pressure requirement: 6 kg/cm²
Required power capacity: 30 kVA
Numerical control system: SYNTEC 220MA-5

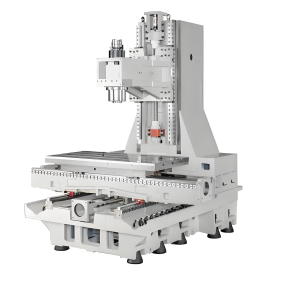

CNC Machining Center
Model: EV-855A
Parameters: Vertical machining centers: EV-855A
X-axis travel: 810 mm
Y-axis travel: 550 mm
Z-axis travel: 560 mm
Distance (spindle nose to worktable): 130–690 mm
Distance (spindle center to column): 595 mm
Work table size: 1000×550 mm
Max. Load on worktable: 650 kg
T-slot size (width × distance × number): 18×90×5 mm
Spindle taper: ISO 40 type
Feed rate(X/Y/Z): 48/48/32 m/min
Cutting feed rate (X/Y/Z): 20000 mm/min
Ball screw(X/Y/Z): φ40/16 mm
Linear guideway: 35/45/45 mm
Tool shank type: BT40 type
Tool magazine capacity: 24 pcs
Max. tool diameter(adjacent/non-adjacent ): φ80/φ150 mm
Max. tool length: 250 mm
Max. tool weight: 8 kg
Tool change method: arm type
Tool change time (tool to tool): 2 sec.
Spindle drive type: Belts / Direct drive
Spindle speed: 10000/12000 rpm
Main motor power S1/S6 25%: 11/18.5 kw
Main motor torque S1/S6 25%: 52.5/118 Nm
X/Y/Z axis feeding motor power: 3/3/3 kw
X/Y/Z axis feeding motor torque: 20/20/27 Nm
Turning coolant motor power: 1.0+1.0 kw
Required air pressure: 6.5 kg/cm²
Required power: 25 kva
XYZ-axis positioning accuracy: 0.008 mm
XYZ axis repeat positioning accuracy: 0.005 mm
Machine weight: 5200 kg
Machine size: 2700×2400 mm
Machine height: 2850 mm
Numerical control system: FANUC OIMFPLUS
Company Gallery

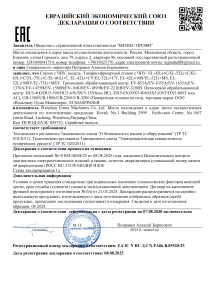

Certifications & Awards
Success Stories & Case Studies
Tier 1 supplier
Equipped with stress-relieved high-rigidity bare frame, high-precision spindle, mature hydraulic, cooling and tool magazine systems, as well as comprehensive spindle anti-collision protection. Each machine undergoes strict full-process inspection including geometric accuracy testing, laser axis calibration and full-load workpiece trial cutting before delivery. The whole machine operates stably and reliably with nearly zero failures in mass production.
High performance
High strength
High rigidity
High dynamic and thermal stability
High accuracy for long terms
High reliability
Company & Product Videos
Company Introduction & Factory Tour
⏱ Duration: 3:45 | 👁 Views: 15,230
Product Demonstration - Kestrel K-1
⏱ Duration: 5:12 | 👁 Views: 28,450
Technology Innovation Showcase
⏱ Duration: 4:30 | 👁 Views: 12,890
Customer Testimonials & Success Stories
⏱ Duration: 6:20 | 👁 Views: 9,650
Ready to Transform Your Life?
Contact us immediately to learn how our products meet your needs.
