About Henan Yiheng Mesh Belt Industry Co., Ltd.
I. Corporate Overview: A Global Leader in Non-woven Forming Solutions
Henan Yiheng Mesh Belt Industry Co., Ltd. (known as "Yiheng Mesh") is a premier National High-tech Enterprise specializing in the R&D, customization, and manufacturing of high-precision non-woven forming belts and industrial filter belts. With decades of expertise in the polyester mesh industry, we provide advanced forming and conveying solutions for Spunbond, Meltblown, and composite (SMS/SSMMS) production lines worldwide.
Leveraging the strategic resources of China’s top polyester mesh industrial hub, Yiheng Mesh has established a complete value chain—from premium raw material selection and precision weaving to advanced heat-setting treatments. Today, our products are exported to dozens of countries, with a 35% market share in Southeast Asia, earning us the trust of elite international buyers.
II. Core Products & Specialized Services
Yiheng Mesh adheres to a "One-Stop Forming Service" philosophy, covering the entire spectrum of non-woven production:
Forming Fabric Series: Including the SK604 high-speed anti-static mesh, KJD700 flat yarn mesh, and HY4106 flexible mesh, compatible with machine speeds ranging from 20m/min to 850m/min.
Industrial Filter Belts: High-quality polyester spiral filter belts (large/medium/small rings) and hydrolysis-resistant dryer fabrics for environmental, chemical, and food processing industries.
Technical Empowerment: We provide more than just belts. Our "Battle-Tested" technical knowledge base covers 122+ real-world troubleshooting cases (e.g., tracking, fiber hanging, static, and seam marks), helping clients minimize downtime and maximize yield.
Yiheng Mesh: Manufacturing Strength & Honors
1. Manufacturing & R&D Excellence

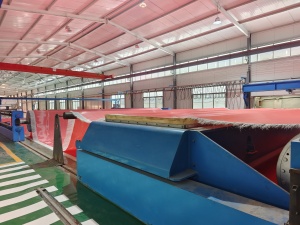

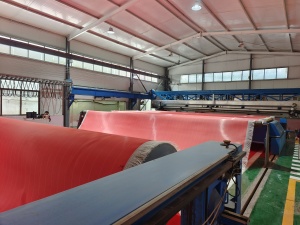

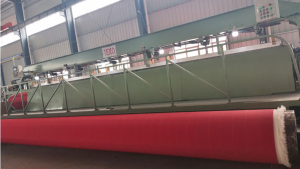

Precision Manufacturing: Operating a standardized facility with a monthly capacity of 12,800 square meters, we utilize advanced high-position warping machines and ultra-wide heat-setting looms to ensure air permeability (CFM) fluctuations are controlled within a strict ±5% range.
Cutting-edge Material Science: We have pioneered Carbon Fiber Anti-static Technology and Hydrolysis-resistant Monofilament applications, significantly extending belt lifespan and fabric quality in extreme winter dryness or high-heat/humidity environments.
Flexible Customization (OEM/ODM): We support extreme flexibility with a Minimum Order Quantity (MOQ) of just 1 m². Our rapid sampling process delivers custom prototypes in as little as 3 days, drastically reducing R&D risks for our clients.
2. Certification & Global Compliance
Yiheng Mesh is committed to global standards and compliant operations:
National High-tech Enterprise: Formally recognized by the Department of Science & Technology for our numerous patents in polyester mesh weaving and processing.

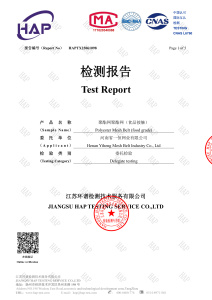

Food Safety Certification: Our products hold the Food Contact Certificate, ensuring they are safe for food packaging and precision hygiene material production.

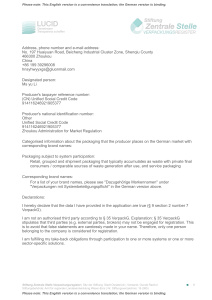

Global Market Access: Fully registered under the German Packaging Law (LUCID) and compliant with EU environmental regulations, ensuring a seamless global supply chain.
3. Market Leadership & Global Footprint
Export-Oriented Excellence: With an export ratio of 62%, we are a long-term strategic partner for world-class non-woven equipment manufacturers such as Chaolong, Hongda, and Aolong.
A Technical Pioneer: Our proprietary Non-woven Belt Troubleshooting Manual empowers our clients through data-driven service, earning us the reputation as the "Stabilizer of Non-woven Production Lines."
Our Products

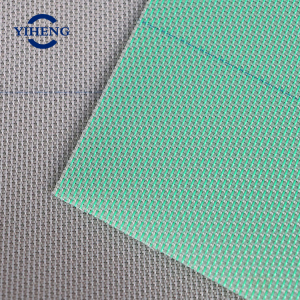

polyester forming fabrics
Model: Forming Fabric
Parameters: Mesh range: 5 – 108 mesh
Thickness range: 0.30 – 1.80 mm
Air permeability: 4,750 – 29,200 m³/㎡·h
Warp/Weft diameter: 0.15 mm – 1.20 mm
Structure types: 2-shed plain weave, 3/4/5/8-shed single layer, and double-layer
Joint type: Endless / Self-ring / Double-pins
Material: 100% High-tenacity PET monofilaments (Red/White/Blue/Anti-static)
Features: Stable heat setting, no deviation, zero mesh marks, anti-hydrolysis, anti-static

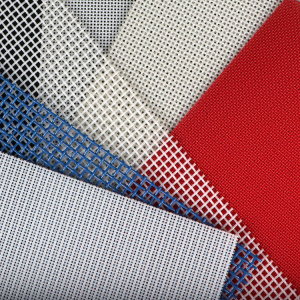

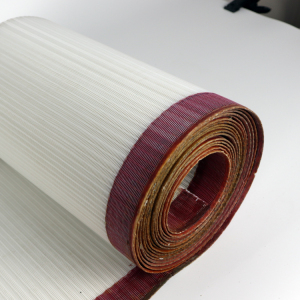

Polyester mesh belt
Model: 16402
Parameters: Model: 16402
Warp : 0.4 mm
Weft : 0.4 mm
Mesh Number : 41
Pitch : 0.2 mm
Weight : 550 g/m²
Air Permeability: 6,900 m³/㎡·h
Structure: 2-shed plain weave
Joint Type: Endless / Self-ring
Polyester mesh belt
Model: 05802
Parameters: warp/weft diameter: 0.8 mm
mesh range: 12–14
pitch range: 1.0–1.2 mm
weight range: 700–750 g/m²
airflow range: 13,384–20,775 m³/㎡·h
structure: 2-shed plain weave
joint type: endless / self-ring
features: non-toxic, odorless, corrosion-resistant, high tensile strength
Polyester mesh belt

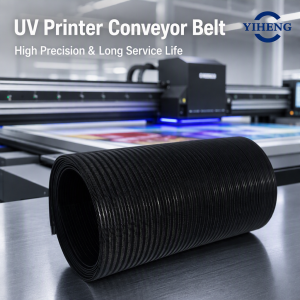

Model: UV Printer Belt
Parameters: material: high-grade black PET (polyester)
structure: spiral mesh with flat wire filler
features: high temperature resistance, smooth surface without burrs, stable heat setting
advantages: no deviation (no off-tracking), no ruffles, no bell mouths, stable performance
customization: size, joints, and free samples available
Polyester mesh belt
Model: 16903
Parameters: warp diameter: 0.70 mm
weft diameter: 0.90 mm
warp density: 16 wire/cm
weft density: 5.33 wire/cm
strength at break: ≥2200 N/cm
air permeability: 7,894 ± 500 m³/㎡·h
material: High-grade PET (Acid & Alkali resistant)
weave pattern: Herringbone / Diagonal structure for superior drainage
Polyester Mesh Belt
Model: Small Loop-Filler Wire
Parameters: ring wire: N/A
threading: 0.80 mm
fillers: 0.65×1.65 mm (flat wire)
strength at break: ≥2000 N/cm
air permeability: 7,300 ±500 m³/㎡/h
CFM at 127Pa: 450 ±30
thickness: 1.90 mm
Polyester Mesh Belt
Model: Medium Loop-Filler Wire
Parameters: ring wire: 0.68 mm
threading: 0.90 mm
fillers: 0.68×3 / 0.68×4 mm
strength at break: ≥2000 N/cm
air permeability: 10,700–12,000 ±500 m³/㎡/h
CFM at 127Pa: 660–740 ±30
thickness: 2.32 mm
Polyester Mesh Belt
Model: Large Loop-Filler Wire
Parameters: ring wire: 0.90 mm
threading: 1.00 mm
fillers: 0.90×3 / 0.90×4 / 0.90×5 mm
strength at break: ≥2300 N/cm
air permeability: 9,000–13,700 ±500 m³/㎡/h
CFM at 127Pa: 550–840 ±30
thickness: 2.95 mm

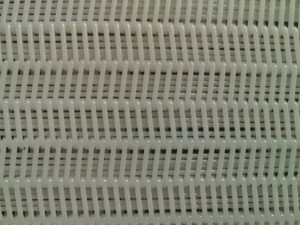

Polyester Mesh Belt
Model: Small Loop
Parameters: warp: 0.52 mm
weft: 0.70 mm
loop distance: 5.20 mm
air permeability: 17,500 m³/㎡/h
thickness: 1.90 mm
polyester mesh belt
Model: Medium Loop
Parameters: warp: 0.68 mm
weft: 0.90 mm
loop distance: 6.50 mm
air permeability: 18,300 m³/㎡/h
thickness: 2.32 mm
polyester mesh belt
Model: Large Loop
Parameters: ring wire: 0.90 mm
threading: 1.00 mm
fillers: 0.90×3 / 0.90×4 / 0.90×5 mm
strength at break: ≥2300 N/cm
air permeability: 9,000–13,700 m³/㎡/h (filter press) / 19,000 m³/㎡/h (dryer)
CFM at 127Pa: 550–840
thickness: 2.95 mm
loop distance (dryer): 7.00 mm
available colors: black, red, light grey, green, yellow, light blue, orange

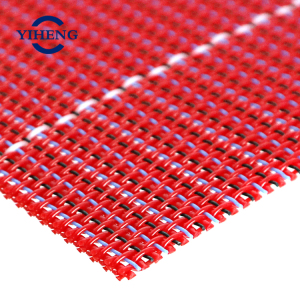

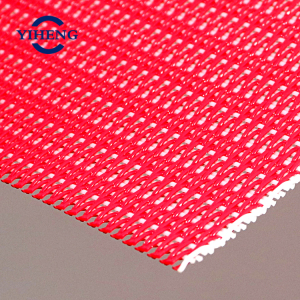

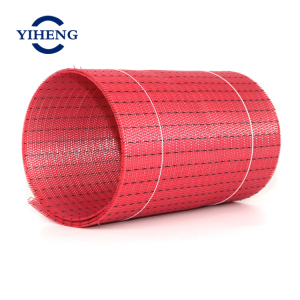

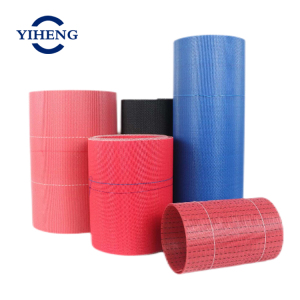

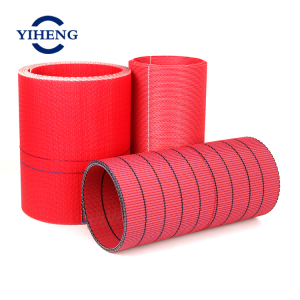

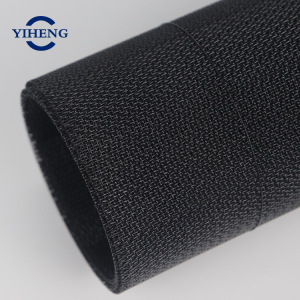

Nonwoven Mesh Belt
Model: 07502
Parameters: Model: 07502
Warp: 0.5mm
Weft: 0.5mm
Mesh Number: 18
Pitch: 1.0mm
Weight: 420 g/m²
Air Permeability: 19,176 m³/㎡/h（100Pa）
Joint Type: Endless / Self-ring
Nonwoven Mesh Belt
Model: 05602
Parameters: Model: 05602
Warp: 0.6mm
Weft: 0.6mm
Mesh Number: 14
Pitch: 1.2mm
Weight: 560 g/m²
Air Permeability: 19,676 m³/㎡/h（100Pa）
Joint Type: Endless / Self-ring
Nonwoven Mesh Belt
Model: 60188
Parameters: Model: 60188
Warp: 0.18mm
Weft: 0.2mm
Warp Density: 66 ends/cm
Weft Density: 49 ends/cm
Thickness: 0.68mm
Air Permeability: 4,750 m³/㎡/h（100Pa）
Mesh Count: 108
Nonwoven Mesh Belt
Model: 29254
Parameters: Model: 29254
Warp: 0.2mm
Weft: 0.25mm
Warp Density: 31.5 ends/cm
Weft Density: 21 ends/cm
Thickness: 0.49mm
Air Permeability: 7,800 m³/㎡/h（100Pa）
Mesh Count: 80
Nonwoven Mesh Belt
Model: 27254
Parameters: Model: 27254
Warp: 0.2mm
Weft: 0.25mm
Warp Density: 30 ends/cm
Weft Density: 22 ends/cm
Thickness: 0.49mm
Air Permeability: 8,000 m³/㎡/h（100Pa）
Mesh Count: 70
Nonwoven Mesh Belt
Model: 41203
Parameters: Model: 41203
Warp: 0.15mm
Weft: 0.2mm
Warp Density: 40 ends/cm
Weft Density: 30.7 ends/cm
Thickness: 0.3mm
Air Permeability: 6,700 m³/㎡/h（100Pa）
Mesh Count: 103
Nonwoven Mesh Belt
Model: 06702
Parameters: Technical Specifications for Model 06702
Model: 06702
Warp: 0.7mm
Weft: 0.7mm
Mesh Number: 16
Pitch: 0.8mm
Weight: 1000 g/m²
Air Permeability: 14,242 m³/㎡/h（100Pa）
Joint Type: Endless / Self-ring
Nonwoven Mesh Belt
Model: 09502
Parameters: Technical Specifications for Model 09502
Model: 09502
Warp: 0.5mm
Weft: 0.5mm
Mesh Number: 23
Pitch: 0.5mm
Weight: 650 g/m²
Air Permeability: 12,770 m³/㎡/h（100Pa）
Joint Type: Endless / Self-ring
Nonwoven Mesh Belt
Model: KJD700
Parameters: Model: KJD700
Material: Anti-hydrolysis PET round, Conductive PET, Carbon fiber PET
Weave Structure: Above-4 Below-8
Warp: Black anti-hydrolysis round 0.50mm, Black conductive 0.50mm
Weft: Black 0.50mm
Air Permeability: 600±30CFM（127Pa/20cm²）
Layers: 1.5 Layers
Thickness: 2.34mm
GSM: 1030g/m²
Joint Type: Double-pins
Glue Edge: 2cm glue brushing on welding edges at both sides
Package: Wooden carton / Sack package
Dimension Error:
Length: <50m, ±5cm
Width: <5m, ±1cm
Properties:
10³ - 10⁴ Ω Conductivity value
Suitable for two-component and spunlace equipment
High adhesion performance
Nonwoven Mesh Belt
Model: K6012
Parameters: Model: K6012
Material: Anti-hydrolysis PET round, Conductive PET
Weave Structure: Above-6 Below-6
Warp: 0.50mm black Anti-hydrolysis round, 0.50mm black conductive
Weft: 0.60mm black Anti-hydrolysis round, 0.60mm black conductive
Air Permeability: 750±30CFM（127Pa/20cm²）
Layers: 2.5 Layers
Thickness: 2.8mm
GSM: 1200g/m²
Joint Type: Double-pins
Glue Edge: 2cm glue brushing on welding edges at both sides
Package: Wooden carton / Sack package
Dimension Error:
Length: <50m, ±5cm
Width: <5m, ±1cm
Properties:
Air permeability can reach 12000 m³/㎡/h (energy-saving)
Durable, long lifetime
Suitable for high-speed line and thin nonwoven fabric production
Nonwoven Mesh Belt
Model: SK604
Parameters: Model: SK604
Material: Anti-hydrolysis PET round, Conductive PET, Carbon fiber PET
Weave Structure: Above-3 Below-5
Warp: Red anti-hydrolysis round 0.50mm, Black conductive 0.50mm
Weft: Red 0.70mm, Black and blue 0.35mm
Air Permeability: 700±30CFM（127Pa/20cm²）
Layers: 1.5 Layers
Thickness: 1.85mm
GSM: 1030g/m²
Joint Type: Double-pins
Glue Edge: Melt glue / AB glue
Package: Wooden carton
Dimension Error:
Length: <50m, ±5cm
Width: <5m, ±1cm
Properties:
10⁶ Ω Conductivity value
Good balance of adhesion and peelability
Suitable for high-speed line
Nonwoven Mesh Belt
Model: HY408S
Parameters: Model: HY408S
Material: Anti-static round PET
Weave Structure: Above-3 Below-5
Warp: 0.50mm Red anti-hydrolysis filaments
Weft: Red anti-hydrolysis round 0.70mm, Black round 0.35mm, Blue anti-hydrolysis round 0.35mm (Three-filament hybrid weave)
Air Permeability: 680±30CFM (127Pa/20cm²)
Layers: 1.5 layers
Thickness: 1.85mm
GSM (Weight): 1100g/m²
Joint Type: Millet-ring / Double-pins
Glue Edging: 2cm glue brushing on welding edges at both sides
Package: Wooden carton / Sack package
Dimension Error: Length: <50m, ±5cm; Width: <5m, ±1cm
Properties:
10⁵ - 10⁶ Ω Conductivity value
Durable, long lifetime
Excellent running performance
Nonwoven Mesh Belt
Model: K4106B
Parameters: Model: K4106B
Material: Anti-static PET round
Weave Structure: Above-3 Below-5
Warp: Black round 0.50mm, Black anti-static round 0.52mm
Weft: Black 0.60mm
Air Permeability: 700±30CFM（127Pa/20cm²）
Layers: 1.5 Layers
Thickness: 1.93mm
GSM: 1100g/m²
Joint Type: Self-ring / Millet-ring
Glue Edge: 2cm glue brushing on welding edges at both sides
Package: Wooden carton / Sack package
Dimension Error:
Length: <50m, ±5cm
Width: <5m, ±1cm
Properties:
105-106 Ω Conductivity value
Durable, long lifetime
High cost-effective
Nonwoven Mesh Belt
Model: K4106A
Parameters: Model: K4106A
Material: Anti-static PET flat
Weave Structure: Above-3 Below-5
Warp: 0.50mm Red, 0.52mm Conductive
Weft: White 0.60mm PET
Air Permeability: 600±30CFM（127Pa/20cm²）
Layers: 1.5 Layers
Thickness: 1.88mm
GSM: 990g/m²
Joint Type: Self-ring / Millet-ring
Glue Edge: 2cm glue brushing on welding edges at both sides
Package: Wooden carton / Sack package
Dimension Error:
Length: <50m, ±5cm
Width: <5m, ±1cm
Properties:
106-107 Ω Conductivity value
Durable, long lifetime
High cost-effective
Nonwoven Mesh Belt
Model: HB4106
Parameters: Model: HB4106
Material: Red flat PET
Weave Structure: Above-3 Below-5
Warp: 0.38*0.58mm
Weft: 0.60mm White 0.60mm
Air Permeability: 580±30CFM（127Pa/20cm²）
Layers: 1.5 Layers
Thickness: 1.8mm
GSM: 1030g/m²
Joint Type: Self-ring / Millet-ring / Double-pins
Glue Edge: 2cm glue brushing on welding edges at both sides
Package: Wooden carton / Sack package
Dimension Error:
Length: <50m, ±5cm
Width: <5m, ±1cm
Properties:
Mesh belt surface flat and easy to clean
Wear-resistant and durable, long lifetime
Good operating performance
Nonwoven Mesh Belt
Model: HY4106
Parameters: Model: HY4106
Material: Red round PET
Weave Structure: Above-3 Below-5
Warp: Red 0.50mm
Weft: White 0.50mm
Air Permeability: 680±30CFM（127Pa/20cm²）
Layers: 1.5 layers
Thickness: 1.65mm
GSM (Weight): 1030g/m²
Joint Type: Self-ring / Millet-ring / Double-pins
Glue Edge: 2cm glue brushing on welding edges at both sides
Dimension Error: Length: <50m, ±5cm; Width: <5m, ±1cm
Properties:
Surface flat
Durable, long lifetime
High cost-effective

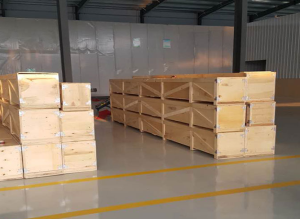

Package: Wooden carton / Sack package
Company Gallery
Certifications & Awards
Success Stories & Case Studies
Wet Wipe & Medical Dressing Supplier
15% higher productivity | 4% higher first-grade yield | 30% lower maintenance cost
High water permeability · Zero mesh marks · Hydrolysis resistant
Non-woven Fabric Manufacturer
10% higher capacity | 5% higher first-grade yield | 30% lower maintenance cost
Wear-Resistant,Dimensional Stability, Cost-Effective
Dehydrated Vegetable & Seafood Processor
20% higher productivity | 35% lower maintenance cost | Zero food safety incidents
Food-grade safe · Easy cleaning · Temperature resistant · High permeability
Rubber Products Manufacturer
15% higher productivity | 30% lower maintenance cost | Zero major failures
Heat resistant · Air permeable · Easy release · Dimensionally stable
Aquaculture Filter Equipment Manufacturer
15% higher survival rate | 40% lower maintenance cost | Zero net failure
UV resistant · Anti-biofouling · High strength · Low maintenance
Sign & Display Manufacturer
20% higher productivity，30% less scrap，Zero major failures
Easy-Cleaning Surface,Wear-Resistant,UV-Resistant
Municipal Wastewater Treatment Plant
8% lower cake moisture,40% lower maintenance cost,Zero major failures
High open area,Anti-blocking,Chemical resistant,Long life
Paper Mill
25% energy saved | 35% lower maintenance cost | Zero major failures
Uniform formation,Zero mesh marks,Long life,Low maintenance
Nonwoven Fabric Manufacturer
Uniform web formation,Zero mesh marks,Easy release,Save ＄2000 annually
High-speed Spunbond Belt，Mark-free Forming Fabric
Company & Product Videos
Company Introduction & Factory Tour
⏱ Duration: 3:45 | 👁 Views: 15,230
Product Demonstration - Kestrel K-1
⏱ Duration: 5:12 | 👁 Views: 28,450
Technology Innovation Showcase
⏱ Duration: 4:30 | 👁 Views: 12,890
Customer Testimonials & Success Stories
⏱ Duration: 6:20 | 👁 Views: 9,650
Ready to Transform Your Life?
Contact us immediately to learn how our products meet your needs.
