About IRLAB Limited
At IRLAB, we pride ourselves on innovation, with a range of self-developed products that include:
● FPV Camera
● Public View Monitor (PVM)
● HDMI Output Camera
● IP Camera
● HD Analogue Camera
● AI Camera
● Dual Liveness Detection Access Control & Advertising Panel
● IR Illuminator
These solutions are widely applied in various sectors such as commercial / industrial AI, and smart projects for government, finance, transportation, energy, education, and residential communities.
Thanks all the engineers included software, hardware, mechanical structure, video image tuning and quality control are in house working, IRLAB offers flexible OEM/ODM services tailored to meet the unique needs of customers.
Our commitment is to continuously provide stable quality products with most suitable function and performance for your dedicated application scenarios. we strive to be your trusted partner in camera and relative solutions.
Our Products
View All Products →
Digital FPV Camera, HD FPV camera
Model: CDD-BS5JMU
Parameters: Image Sensor：SONY Sensor;
Resolution: 3840*2160@30fps, 1080p@90fps, 720p@120fps;
Voltage（Power）：9~30V (Normal 5.4W, Max 9W) ;
Operating Frequency Band: 5.1GHz-5.8GHz;
Transmit Power: 5.8 GHz: ≤29dBm (FCC), ≤20dBm(CE);
Latency: 50ms (glass to glass);
FOV: 120°;
OSD protocol: Support MSP and MAVLINK protocol;
Antenna: 2T2R;
Main Board Dimensions: 32*32*19.3mm(with fan) ;
Camera Dimensions: 19*19*26mm;
Recording: TF card slot (1TB) ;
Weight：32g with fan (9g +23g)
Analog FPV camera
Model: CDD-BS59KP
Parameters: Resolution：1500TVL
IMAGE：16:9
Min.lux：0.00002LUX
FOV：120°
S/N Ratio：＞54DB
Video Output：CVBS
DNR：3DNR
Wide power Input：DC4.5V-27V
Power Consumption：0.5W
Dimensions/Net Weight：19mm*19mm*27mm /9g
Thermal FPV Camera
Model: CT-EI5ATB
Parameters: Detector Type：Uncooled Vanadium Oxide
Resolution：384*288
Pixel Pitch：12μm
Spectral range：8-14μm
NETD：≤30mK@25℃
Lens：9.1mm (FOV: 46°*37°)
Video Out：CVBS / MIPI MIPI optional +UVC
Communication Method：UART / USB
Operating Voltage Range：DC3.9～5.5V（Typical DC5V）
Power Consumption：≤1.2W
Dimensions：25.4mm*25.4mm*38.8mm (Include 9.1mm Lens）
Weight：40g
Operating Temperature：-20℃ ∽ 60℃
Storage Temperature ：-45℃ ∽ 65℃
Thermal FPV Camera
Model: CT-EI5ATC
Parameters: Detector Type：Uncooled Vanadium Oxide
Resolution：640*512
Pixel Pitch：12μm
Spectral range：8-14μm
NETD：≤30mK@25℃
Lens：9.1mm (FOV: 46°*37°)
Video Out：CVBS / MIPI MIPI optional +UVC
Communication Method：UART / USB
Operating Voltage Range：DC3.9～5.5V（Typical DC5V）
Power Consumption：≤1.2W
Dimensions：25.4mm*25.4mm*38.8mm (Include 9.1mm Lens）
Weight：40g
Operating Temperature：-20℃ ∽ 60℃
Storage Temperature ：-45℃ ∽ 65℃
Analog FPV camera
Model: CDD-BS59KU
Parameters: Resolution：1500TVL
IMAGE：4:3
Min.lux：0.00001LUX
FOV：120°
S/N Ratio：＞60DB
Video Output：CVBS
DNR：3DNR
Wide power Input：DC4.5V-27V
Power Consumption：0.6W
Dimensions/Net Weight：19mm*19mm*27mm /9g

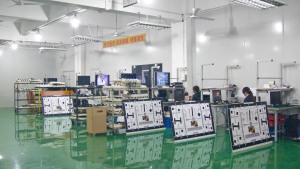

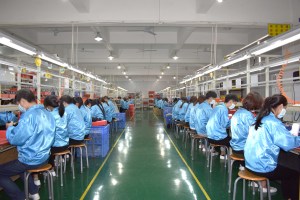

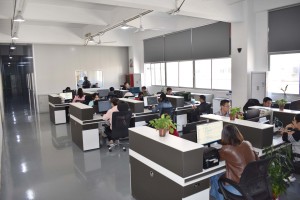

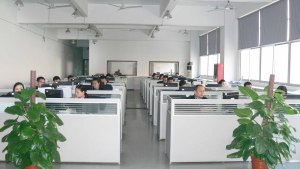

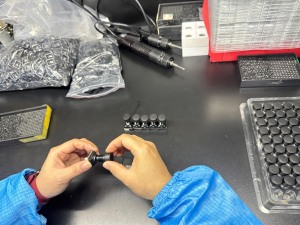

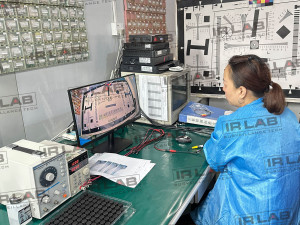

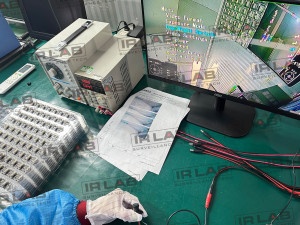

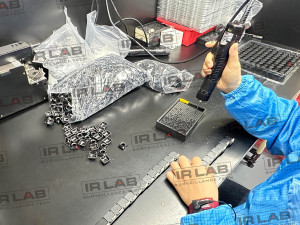

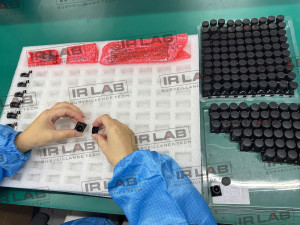

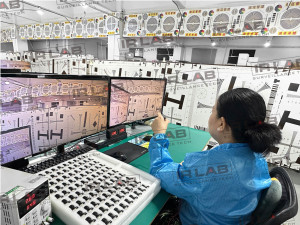

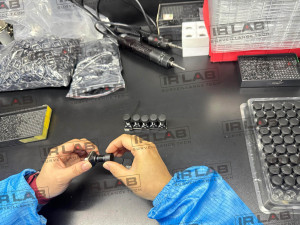

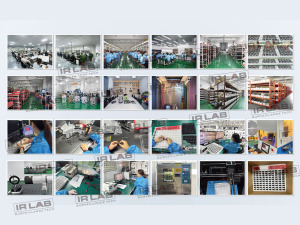

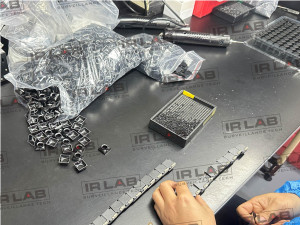

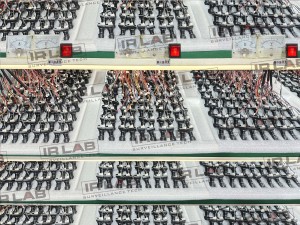

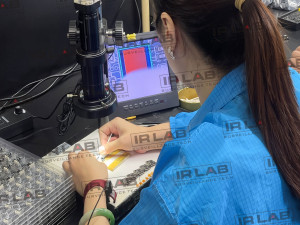

Company Gallery

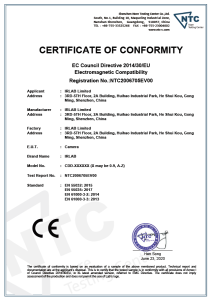

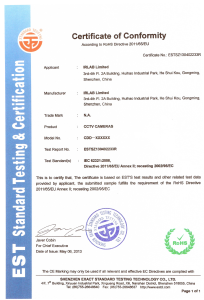

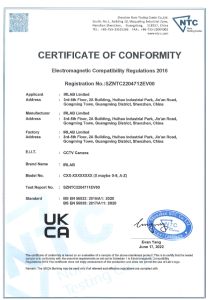

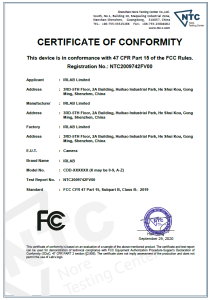

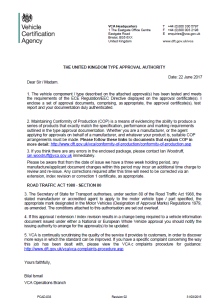

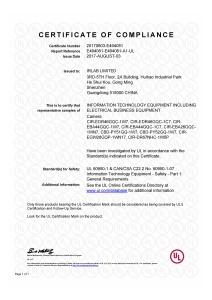

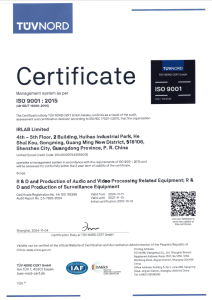

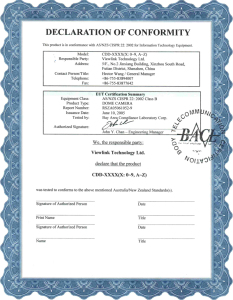

Certifications & Awards
Success Stories & Case Studies
FPV Drone manufacturer
Operating at sensitivity levels as low as 0.00001 lux—a regime where conventional vision systems are effectively blind—our camera empowers the drone to accurately identify, lock onto, and track targets under extreme low-light or zero-light conditions.
Delivering clear video imagery in very dark night—a condition where conventional cameras produce nothing but noise—our solution redefines what's visible in near-zero light.
