Our Products
View All Products →
GNSS RTK Receiver
Model: JS-X11
Parameters: Product Type All-In-One RTK Smart Antenna/Base Station
GNSS Signals GPS: L1, L1C, L2C, L2P, L5; BDS-2/3: B1I, B3I, B1C, B2a, B2b; GLONASS: G1, G2, G3; Galileo: E1, E5a, E5b, E6; QZSS/SBAS/IRNSS full bands
Positioning Accuracy RTK: 2cm±1ppm; PPP: ≤50cm (static); Velocity: ≤0.02m/s
Sensitivity Tracking: -155dBm; Acquisition: -138dBm
Acquisition Time Cold start ≤40s; Warm start ≤25s
Update Rate 1–10Hz (Default 1Hz)
Communication 4G Cat.1; BLE 5.2 (30m); Radio (custom); Wi-Fi (custom)
Power Input: 9V–45V DC; Backup battery: 5200mAh 3.7V; Working time: ≤10h
Operating Current ≤600mA @12V DC
Interface Aviation plug (RS232), SMA (radio), Type-C, TF/SIM card slot
Environmental IP66 waterproof; Operating temp: -20℃~+75℃; Humidity: 10%–85%RH non-condensing
Physical Size: 122×122×43.09mm; Weight: 375g; Material: ABS+PC
Protocols NMEA 0183, RTCM 3.3/3.2/3.1/3.0, JT/T808-2013
GNSS RTK Receiver
Model: P-Box-X10
Parameters: Product Type Multi-Constellation Triple-Frequency GNSS Receiver (Dual-Antenna)
Hardware Channels 544 channels
Supported GNSS Signals GPS: L1 C/A, L1C, L2C, L2P(Y), L5; BDS: B1I, B1C, B2a, B2I, B3I; GLONASS: L1 C/A, L2C/A, L3, L2P; Galileo: E1, E5a, E5b; QZSS, NavIC, SBAS triple-frequency
Sensitivity Tracking: 20 dB-Hz; Acquisition: 33 dB-Hz
Time to First Fix Cold start; Warm start; Reacquisition ≤1s
Positioning Accuracy RTK Horizontal: 0.6cm+0.5ppm; Standalone: 1.2m; Velocity: 0.03m/s
Heading/Attitude Accuracy 0.15° heading & 0.25° attitude @1m baseline; 0.03° heading & 0.05° attitude @5m baseline (RMS)
Timing Accuracy xPPS: 5ns; Event: <20ns
Data Update Rate Position/Observation: 100Hz; Default: 1Hz
Transmission Delay 99.9% <10ms
Interfaces 3×UART, Ethernet, Type-C, 1PPS, EVENT, ANT1/ANT2, TF card slot
Operating Voltage 4.5~12.0V DC (3.3V also supported)
Operating Current Capture: 320~420mA@5V; Tracking: 310~360mA@5V
Antenna Dual RF ports; Bias voltage: 3.0~5.5V; Max antenna current: 150mA@5V
Dimensions 74×50×12.6mm ±0.3mm
Weight 67.50g ±0.02g
Environmental Operating temp: -40℃~+85℃; Storage temp: -55℃~+85℃; Humidity: 5%~95% non-condensing
Supported Protocols NMEA 0183 v3.01/v4.0, SBF, RTCM 2.x/3.x, RINEX 2.x/3.x, CMR v2.0, CMR+
Special Functions AIM+ anti-jamming, OSNMA anti-spoofing, IONO+ mitigation, APME+ multipath suppression, TF logging, dual-antenna heading
GNSS RTK Receiver
Model: P-Box-X6_Pro S
Parameters: Product Type Multi-Constellation Multi-Frequency GNSS Receiver (S1: Single Antenna; S2: Dual Antenna)
Hardware Channels 448 channels
Supported GNSS Signals GPS, BDS, GLONASS, Galileo, QZSS, NavIC, SBAS multi-frequency signals
Sensitivity Tracking & navigation: 20 dB-Hz; Acquisition: 33 dB-Hz
Time to First Fix Cold start <45s; Warm start <20s; Recapture 1s
Positioning Accuracy RTK: Horizontal 0.6cm±0.5ppm, Vertical 1cm+1ppm; Standalone: 1.2m
Heading/Attitude Accuracy (S2) 0.15° heading & 0.25° attitude @1m baseline; 0.03° heading & 0.05° attitude @5m baseline
Data Update Rate Position/Measurement: 100Hz; RTK+Attitude: 20Hz
Time Accuracy xPPS output: 5ns; Event accuracy: <20ns
Speed Accuracy 0.03m/s
4G Module EG25-G, global full-band, LTE-FDD/TDD, UMTS, GSM
Operating Voltage 4.5~12.0V DC (Typical 5V)
Operating Current Capture: 220~1500mA@5V; Tracking: 220~1500mA@5V
Interfaces 2×UART, USB, RF1/RF2, 4G ANT, 1PPS, EVENT, RESET
Antenna Pre-amplification: 15~50dB; Bias voltage: 3.0~5.5V
Dimensions 68.4×41.8×17.3mm ±0.3mm
Operating Temperature -40℃~+85℃
Storage Temperature -45℃~+85℃
Supported Protocols NMEA 0183, SBF, RINEX, RTCM 2.x/3.x, CMR v2.0, CMR+
Special Functions 4G RTCM transmission, OSNMA anti-deception, TF card logging, anti-jamming, heading output
GNSS RTK Receiver
Model: P-Box-AP55
Parameters: Product Type Multi-Constellation Multi-Band GNSS Receiver
Hardware Channels 448 channels
Supported GNSS Signals GPS: L1C/A, L1C, L1PY, L2C, L2P, L5; GLONASS: L1CA, L2CA, L2P, L3; BDS: B1I, B1C, B2a, B2I, B2b, B3I; Galileo: E1, E5a, E5b, E6; QZSS, NavIC, SBAS multi-bands
Sensitivity Tracking: 20 dB-Hz; Acquisition: 33 dB-Hz
Time to First Fix Cold Start: 45s; Hot Start: ≤20s; Restart: ≤1s
Positioning Accuracy RTK Horizontal: 0.6cm+0.5ppm; RTK Vertical: 1cm+1ppm; Speed: 0.03m/s; Timing: 5ns (XPPS)
Heading Accuracy (AP55H) 0.15°@1m baseline; 0.03°@5m baseline
Data Update Rate Position only: 100Hz; RTK+Attitude: 20Hz
Operating Voltage 4.5~12.0V DC (Typical 5V)
Operating Current Acquisition: 160~240mA@5V; Tracking: 160~215mA@5V
Interfaces 2×UART, USB, RF_IN1 (Main), RF_IN2 (Aux), PPS, EVENT, NRST
Antenna Pre-amplification: 15~50dB; Bias voltage: 3.0~5.5V
Dimensions 59×59×12mm ±0.3mm
Weight 60g
Operating Temperature -40℃~+85℃
Storage Temperature -55℃~+85℃
Supported Protocols NMEA 0183 v2.3/v3.03/v4.0, SBF, RINEX v2.x/v3.x, RTCM 2.x/3.x, CMR v2.0, CMR+
Special Functions AIM+ anti-jamming, OSNMA anti-deception, TF card data logging, interference monitoring
GNSS RTK Receiver
Model: X43H-AH
Parameters: Product Type Multi-Constellation Multi-Frequency RTK Receiver (Dual-Antenna Heading)
Hardware Channels 789 channels
Supported GNSS Signals GPS: L1C/A, L1C, L2C, L2P(Y), L5; BDS: B1I, B1C, B2a, B2I, B2b, B3I; GLONASS: L1CA, L2CA, L2P, L3; Galileo: E1, E5a, E5b, E6; QZSS multi bands; NavIC L5; SBAS
Sensitivity Tracking: 20 dB-Hz; Acquisition: 30 dB-Hz
Time to First Fix Cold start <35s; Warm start <10s; Reacquisition 1s
Positioning Accuracy RTK Horizontal: 0.6cm+0.5ppm; RTK Vertical: 1cm±1ppm; Standalone: 1.2m; DGNSS: 0.4m
Heading/Attitude Accuracy 1m baseline: Heading 0.15°, Pitch/Roll 0.25°; 5m baseline: Heading 0.03°, Pitch/Roll 0.05° (RMS)
Timing Accuracy xPPS output: 1.4ns; Event accuracy: <3ns
Transmission Delay 99.9% <10ms
Velocity Accuracy 0.03m/s
Max Data Update Rate 20Hz
Interfaces 2×UART (TTL), Type-C (USB), RF1 (Main), RF2 (Aux), TF card slot (max 32GB), LED indicators
Operating Voltage 3.5~12.0V DC; 3.3V output (VOT) for external power supply
Operating Current Single Antenna: Tracking 95~125mA@5V; Dual Antenna: Tracking 125~160mA@5V
Antenna Bias voltage: 3.0~5.5V (150mA current limit); Pre-amplification: 1550dB (single), 1535dB (dual)
Dimensions 43.8×34.0×11.5mm ±0.2mm
Weight <25g
Environmental Operating temp: -40℃~+85℃; Storage temp: -45℃~+85℃; Humidity: ≤95% non-condensing
Supported Protocols NMEA 0183 v2.3/v3.03/v4.0, SBF, RTCM 3.x (MSM), RINEX, CMR/CMR+
Special Functions AIM+ anti-jamming, OSNMA anti-spoofing, dual-antenna heading, TF data logging, interference monitoring
RTK Board
Model: JS-CK39-A
Parameters: Product Type Multi-Band Multi-Constellation GNSS Receiver with Built-in IMU
Supported Signals GPS: L1C/A, L2P, L2C; BDS-2: B1I, B2I; BDS-3: B1C, B2b; GLONASS: G1, G2; Galileo: E1, E5b; QZSS: L1C/A, L2C; SBAS: L1C/A
Sensitivity Tracking: -155dBm; Re-acquisition: -138dBm
Time to First Fix Cold Start: <20s; Hot Start: <10s; Lost Lock Reacquisition: <1s
Position Accuracy Single-point: H≤1.5m, V≤3m (1σ, PDOP≤4); RTK: H±(8+1ppm×D)mm, V±(15+1ppm×D)mm
Measurement Precision Pseudorange: ≤10cm; Carrier Phase: ≤1mm; Speed: ≤0.02m/s; Time: 20ns
IMU Parameters Gyro: Range 250°/s, Zero Bias 0.5°/s; Accelerometer: Range 4g, Zero Bias 20mg
Data Rate Measurements/Position: 100Hz (Optional); RTK Positioning: 20Hz (Optional)
Antenna Interface Impedance: 50Ω; LNA Power: +3.3V~+5V; LNA Gain: 20~35dB (Suggested)
Supported Protocols NMEA 0183, Custom Binary, CMR, RTCM 2.X, RTCM 3.X (MSM3~MSM7)
Electrical Parameters Supply Voltage: 3.3~5.5V DC; Power Consumption: 0.8W/0.9W @3.3V
Mechanical Parameters Dimensions: 25.0×39.4×11.6mm±0.3mm; RoHS Compliant
Environmental Parameters Operating Temperature: -40℃~+85℃; Storage Temperature: -45℃~+85℃; Humidity: 95% Non-condensing
Interface 2×UART, RF_IN, VCC, GND, PPS (Backup)
GPS GNSS Module
Model: JS-ATP45-M
Parameters: Receiver Type Multi-mode dual-band (L1+L5) GNSS positioning module
Supported Constellations & Bands GPS:L1CA/L5; BDS:B1I/B2a; GLONASS:L1OF; Galileo:E1B/E1C/E5a; QZSS:L1CA/L1SAIF/L5; SBAS(WAAS/EGNOS/MSAS/GAGAN)
Tracking Channels Standard:135 channels(L1:75, L5:60); Wearable:72 channels(L1:42, L5:30)
Sensitivity Tracking & Navigation:-165dBm; Cold Start Acquisition:-148dBm
Time to First Fix Cold Start:24s; Hot Start:1s (all satellites ≥-130dBm)
Positioning Accuracy(CEP 50%) Horizontal:1.0m(L1+L5)/2.5m(L1); Vertical:2.25m (open sky, 24h static, >6SVs)
Time Accuracy 1PPS:10ns
Velocity Accuracy 0.05m/s (50%@30m/s dynamic operation)
Operational Limits Acceleration≤4g; Altitude≤10000m; Velocity≤100m/s
Baud Rate 4800-921600bps (Default:115200bps)
Max Update Rate 10Hz (Default:1Hz)
Supported Protocols NMEA 0183 V3.01/V4.10 (Input/Output, ASCII)
Antenna Type Built-in dual-band passive antenna: L5(36.0×36.0×3.0mm)+L1(25.0×25.0×4.0mm)
Interface Versions TTL:JS-ATP45-M; RS232:JS-ATP45R-M; USB:JS-ATP45B-M
LED Indicator POWER: Always on after power-on; PPS: Flashes once per second(3D positioning)
Power Supply Voltage VCC:2.8V~5.5V (Typical:5.0V)
Operating Current Acquisition:3642mA@5.0V; Tracking:3540mA@5.0V; Backup:11uA@3.3V
Digital I/O Voltage 2.8V~3.3V
Operating Temperature -40℃ ~ +85℃ (without farad capacitor)
Storage Temperature -40℃ ~ +85℃
Farad Capacitor Temperature -25℃ ~ +60℃ (hot start unavailable outside this range)
Humidity 95%
Mechanical Dimensions 45.0mm × 45.0mm × 13.0mm ±0.3mm
Pin Interfaces SCL, RXD/DP, TXD/DM, GND, VCC, SDA
Compliance RoHS compliant
GPS GNSS Module
Model: JS-ATP36-M
Parameters: Receiver Type Multi-mode dual-band (L1+L5) GNSS positioning module
Supported Constellations & Bands GPS:L1CA/L5; BDS:B1I/B2a; GLONASS:L1OF; Galileo:E1B/E1C/E5a; QZSS:L1CA/L1SAIF/L5; SBAS(WAAS/EGNOS/MSAS/GAGAN)
Tracking Channels Standard:135 channels(L1:75, L5:60); Wearable:72 channels(L1:42, L5:30)
Sensitivity Tracking & Navigation:-165dBm; Cold Start Acquisition:-148dBm
Time to First Fix Cold Start:24s; Hot Start:1s (all satellites ≥-130dBm)
Positioning Accuracy(CEP 50%) Horizontal:1.0m(L1+L5)/2.5m(L1); Vertical:2.25m (open sky, 24h static, >6SVs)
Time Accuracy 1PPS:10ns
Velocity Accuracy 0.05m/s (50%@30m/s dynamic operation)
Operational Limits Acceleration≤4g; Altitude≤10000m; Velocity≤100m/s
Baud Rate 4800-921600bps (Default:115200bps)
Max Update Rate 10Hz (Default:1Hz)
Supported Protocols NMEA 0183 V3.01/V4.10 (Input/Output, ASCII)
Antenna Type Built-in dual-band passive antenna: L5(36.0×36.0×3.0mm)+L1(25.0×25.0×4.0mm)
Interface Versions TTL(UART+I2C):JS-ATP36-M; RS232:JS-ATP36R-M
LED Indicator POWER: Always on after power-on; PPS: Flashes once per second(3D positioning)
Power Supply Voltage VCC:2.8V~5.5V (Typical:5.0V)
Operating Current Acquisition:3642mA@5.0V; Tracking:3540mA@5.0V; Backup:101uA@3.3V
Digital I/O Voltage 2.8V~3.3V
Operating Temperature -40℃ ~ +85℃ (without farad capacitor)
Storage Temperature -40℃ ~ +85℃
Farad Capacitor Temperature -25℃ ~ +60℃ (hot start unavailable outside this range)
Humidity 95%
Mechanical Dimensions 36.0mm × 36.2mm × 12.5mm ±0.3mm
Pin Interfaces SCL, RXD, TXD, GND, VCC, SDA
Compliance RoHS compliant
GPS GNSS Module
Model: JS-ATP30-M
Parameters: Receiver Type Multi-mode dual-band (L1+L5) GNSS positioning module
Supported Constellations & Bands GPS:L1CA/L5; BDS:B1I/B2a; GLONASS:L1OF; Galileo:E1B/E1C/E5a; QZSS:L1CA/L1SAIF/L5; SBAS(WAAS/EGNOS/MSAS/GAGAN)
Tracking Channels Standard:135 channels(L1:75, L5:60); Wearable:72 channels(L1:42, L5:30)
Sensitivity Tracking & Navigation:-165dBm; Cold Start Acquisition:-148dBm
Time to First Fix Cold Start:24s; Hot Start:1s (all satellites ≥-130dBm)
Positioning Accuracy(CEP 50%) Horizontal:1.0m(L1+L5)/2.5m(L1); Vertical:2.25m (open sky, 24h static, >6SVs)
Time Accuracy 1PPS:10ns
Velocity Accuracy GNSS:0.1m/s; SBAS:0.05m/s (50%@30m/s dynamic operation)
Operational Limits Acceleration≤4g; Altitude≤10000m; Velocity≤100m/s
Baud Rate 4800-921600bps (Default:115200bps)
Max Update Rate 10Hz (Default:1Hz)
Supported Protocols NMEA 0183 V3.01/V4.10 (Input/Output, ASCII)
Antenna Type Built-in dual-band passive antenna: L5(25.0×25.0×4.0mm)+L1(18.0×18.0×4.0mm)
Interface Versions UART:JS-ATP30-M; USB:JS-ATP30B-M; RS232:JS-ATP30R-M
Power Supply Voltage VCC:2.8V~5.5V (Typical:5.0V)
Operating Current Acquisition:3238mA@5.0V; Tracking:3236mA@5.0V; Backup:11uA@3.3V
Digital I/O Voltage 2.8V~3.3V
Operating Temperature -40℃ ~ +85℃ (without farad capacitor)
Storage Temperature -40℃ ~ +85℃
Farad Capacitor Temperature -25℃ ~ +60℃ (hot start unavailable outside this range)
Humidity 95%
Mechanical Dimensions 30.0mm × 30.0mm × 12.5mm ±0.3mm
Pin Interfaces RXD/DP, TXD/DM, GND, VCC, 1PPS, EN
Compliance RoHS compliant
GPS GNSS Module
Model: JS-ATP28-2
Parameters: Receiver Type Multi-mode single-frequency GNSS positioning module
Supported Constellations & Bands GPS/QZSS L1C/L1C/A; BDS B1I/B1C; GLONASS L1; Galileo E1; SBAS(WAAS/EGNOS/MSAS/GAGAN)
Tracking Channels 47 channels
Sensitivity Tracking & Navigation: -165dBm; Cold Start Acquisition: -148dBm
Time to First Fix Cold Start:24s; Hot Start:1s (all satellites ≥-130dBm)
Positioning Accuracy Vertical:3.75m (open sky, 24h static, >6SVs, CEP 50%)
Time Accuracy 1PPS:10ns
Velocity Accuracy GNSS:0.1m/s; SBAS:0.05m/s (50%@30m/s dynamic operation)
Operational Limits Acceleration ≤4g; Altitude ≤10000m; Velocity ≤100m/s
Baud Rate 4800-921600bps (Default:115200bps)
Max Update Rate 10Hz (Default:1Hz)
Supported Protocols NMEA 0183 V3.01/V4.10 (Input/Output, ASCII)
Antenna Type Built-in passive antenna (25.0×25.0×4.0mm)
Power Supply Voltage VCC:2.8V~5.5V (Typical:5.0V)
Operating Current Acquisition:3138mA@5.0V; Tracking:3035mA@5.0V; Backup:11uA@3.3V
Digital I/O Voltage 2.8V~3.3V
Operating Temperature -40℃ ~ +85℃ (without farad capacitor)
Storage Temperature -40℃ ~ +85℃
Farad Capacitor Temperature -25℃ ~ +60℃ (hot start unavailable outside this range)
Humidity 95%
Mechanical Dimensions 28.0mm × 28.0mm × 7.0mm ±0.3mm
Pin Interfaces GND/PPS, GND, TXD, RXD, VCC, VBAT/EN
Compliance RoHS compliant
GPS GNSS Module
Model: JS-ARP30-2
Parameters: Receiver Type Multi-constellation dual-band GNSS positioning module
Supported Constellations & Bands GPS: L1/L5; BDS: B1I/B1C/B2a/B2B/B2I; GLONASS: G1; Galileo: E1/E5; QZSS: L1/L5; NavIC
Tracking Channels 200 tracking channels with dedicated search engine
Sensitivity Tracking & Navigation: -165dBm; Cold Start Acquisition: -148dBm
Time to First Fix Cold Start:28s; AGNSS:2s; Hot Start:1s (all satellites ≥-130dBm)
Positioning Accuracy (CEP 50%) Horizontal:1.0m; Vertical:2.5m (open sky, 24h static, >6SVs)
Velocity Accuracy 0.1m/s (50%@30m/s dynamic operation)
Operational Limits Acceleration ≤4g; Altitude 20000m; Velocity 500m/s
Baud Rate 9600-921600bps (Default:115200bps)
Max Update Rate 10Hz (Default:1Hz)
Supported Protocols NMEA 0183 (Input/Output, ASCII)
Antenna Type Dual-band passive antenna (Default: L5 25×25×4mm stacked on L1 18×18×4mm; Optional: L5 25×25×4mm stacked on L1 18×18×2mm)
Interface Versions Default(UART): JS-ARP30-2; USB: JS-ARP30B-2; RS232: JS-ARP30R-2
Power Supply Voltage VCC:3.3V~5.5V (Typical:5.0V)
Operating Current Acquisition:1830mA@3.3V; Tracking:1828mA@3.3V; Backup:14uA@3.3V
Digital I/O Voltage 3.3V
Operating Temperature -40℃ ~ +85℃ (without farad capacitor)
Storage Temperature -40℃ ~ +85℃
Farad Capacitor Temperature -25℃ ~ +60℃ (hot start unavailable outside this range)
Humidity 95%
Mechanical Dimensions 30.0mm × 30.0mm × 12.5mm ±0.3mm
Pin Interfaces RXD/DP, TXD/DM, GND, VCC, 1PPS, EN
Compliance RoHS compliant
GPS GNSS Module
Model: JS-ARP28-2
Parameters: Receiver Type Dual-band (L1+L5) GNSS high-precision positioning module
Supported Constellations & Bands GPS: L1/L5; BDS: B1I/B1C/B2I/B2B/B2A; GLONASS: G1; Galileo: E1/E5; QZSS: L1/L5; IRNSS: L5; SBAS
Tracking Channels 200 tracking channels with dedicated search engine
Sensitivity Tracking & Navigation: -165dBm; Reacquisition: -159dBm; Warm Start: -159dBm; Cold Start: -148dBm
Time to First Fix Cold Start:28s; AGPS:1.5s; Warm Start:1s (all satellites ≥-130dBm)
Positioning Accuracy (CEP 50%) Single Point: Horizontal 1.0m, Vertical 2.0m (open sky, 24h static, >6SVs)
Time Accuracy PPS: <20ns RMS
Velocity Accuracy 0.1m/s CEP (50%@30m/s dynamic operation)
Operational Limits Dynamics ≤4g; Altitude 20000m; Velocity 500m/s
Baud Rate 9600-2M bps (Default:115200bps)
Max Update Rate 10Hz (Default:1Hz)
Supported Protocols NMEA 0183 (Input/Output, ASCII)
Antenna Type Built-in dual-band passive antennas: L5(25.0×25.0×2.0mm), L1(18.0×18.0×2.0mm)
Power Supply Voltage VCC:3.3V5.5V (Typical:5.0V); Backup:1.8V3.6V (Typical:3.3V)
Operating Current 18~28mA@3.3V (Typical:25mA@3.3V); Backup:14uA@3.3V
Digital IO Voltage 3.3V
Operating Temperature -40℃ ~ +85℃ (without farad capacitor)
Storage Temperature -40℃ ~ +85℃
Farad Capacitor Temperature -25℃ ~ +60℃ (warm start unavailable outside this range)
Humidity 95%
Mechanical Dimensions 28.0mm × 28.0mm × 8.0mm ±0.3mm
Weight <12.0g
Geomagnetic Sensor Options Default:IST8310(0x0F); Optional:QMC5883L(0x0D), VCM5883(0x0C)
Pin Interfaces SCL, SDA, TXD, RXD, GND, VCC
LED Indicator Green LED: Constant light (unlocated); 1Hz flash (located); TXD flash matches data rate
Compliance RoHS compliant
GPS GNSS Module
Model: JS-AP26-H
Parameters: Receiver Type Single-frequency multi-mode GNSS positioning module
Supported Constellations & Bands GPS/QZSS L1C/A; BDS B1I/B1C; GLONASS L1; Galileo E1; SBAS(WAAS/EGNOS/MSAS/GAGAN/SDCM)
Sensitivity Tracking & Navigation: -162dBm; Reacquisition: -159dBm; Cold Start: -148dBm
Time to First Fix Cold Start:28s; Hot Start:1s (all satellites ≥-130dBm)
Positioning Accuracy (CEP 50%) GNSS:2.5m; SBAS:2.0m; D-GNSS:1.0m (open sky, 24h static, >6SVs)
Time Accuracy 1PPS:25ns
Velocity Accuracy GNSS:0.1m/s; SBAS/D-GNSS:0.05m/s
Operational Limits Altitude 18000m; Velocity 515m/s; Dynamics <4g
Baud Rate 9600~460800bps (Default:9600bps)
Max Update Rate 10Hz (Default:1Hz)
Supported Protocols NMEA 0183 V4.00/V4.10 (Input/Output, ASCII)
Interfaces UART, I2C, USB 2.0 FS, PPS, RF_IN, Main/Backup Power, Reset
Antenna Compatibility Passive & Active Antenna; Active Antenna: Gain 15~30dB, Noise Figure ≤1.5dB
Power Supply Voltage VCC:1.8V3.6V (Typical:3.3V); Backup:1.6V3.6V (Typical:3.3V); USB:3.0V~3.6V
Operating Current Acquisition:3845mA@3.3V; Tracking:3843mA@3.3V; Backup:9uA@3.3V
Digital IO Voltage 1.7V~3.6V
Operating/Storage Temperature -40℃ ~ +85℃
Humidity 95%
Mechanical Dimensions 16.0mm × 12.2mm × 2.4mm ±0.3mm
Compliance RoHS compliant
GPS GNSS Module
Model: JS-AP10-H
Parameters: Receiver Type Single-frequency multi-mode GNSS positioning module
Supported Constellations & Bands GPS L1C/A; BDS B1I/B1C; Galileo E1B/C; SBAS L1C/A; QZSS L1C/A
Sensitivity Tracking & Navigation: -162dBm; Reacquisition: -159dBm; Cold Start: -148dBm
Time to First Fix Cold Start:28s; Hot Start:1s (all satellites ≥-130dBm)
Positioning Accuracy (CEP 50%) GNSS:2.5m; SBAS:2.0m; D-GNSS:1.0m (open sky, 24h static, >6SVs)
Time Accuracy 1PPS:25ns RMS
Velocity Accuracy GNSS:0.1m/s; SBAS/D-GNSS:0.05m/s
Operational Limits Dynamics ≤4g; Altitude 18000m; Velocity 515m/s
Baud Rate 9600~460800bps (Default:9600bps)
Max Update Rate 10Hz (Default:1Hz)
Supported Protocols NMEA 0183 V4.00/V4.10 (Input/Output, ASCII)
Antenna Compatibility Passive & Active Antenna; Active Antenna: Gain 15~30dB, Noise Figure ≤1.5dB
Power Supply Voltage VCC:1.8V3.6V (Typical:3.3V); Backup:1.6V3.6V (Typical:3.3V)
Operating Current Acquisition:2024mA@3.3V; Tracking:1822mA@3.3V; Backup:12uA@3.3V
Digital IO Voltage 1.8V~3.6V
Operating/Storage Temperature -40℃ ~ +85℃
Humidity 95%
Mechanical Dimensions 10.5mm × 9.7mm × 2.3mm ±0.3mm
Pin Interfaces GND, TXD, RXD, 1PPS, V_backup, VCC, RESET, RF_IN, VCC_RF
Compliance RoHS compliant
GPS GNSS Module
Model: JS-AP08-PR
Parameters: Receiver Type Mini size single-frequency dual-mode GNSS positioning module
Supported Constellations & Bands GPS/QZSS: L1C/A; BDS: B1I, B1C
Core Processor ARM Cortex-M4F
Tracking Channels 88 tracking channels with dedicated search engine
Sensitivity Tracking & Navigation: -161dBm; Reacquisition: -158dBm; Cold Start: -148dBm; Hot Start: -156dBm
Time to First Fix Cold Start:29s; Hot Start:1s (all satellites ≥-130dBm)
Positioning Accuracy (CEP 50%) GNSS: 2.5m (open sky, 24h static, >6SVs)
Time Accuracy 1PPS: 20ns
Velocity Accuracy 0.1m/s CEP (50%@30m/s dynamic operation)
Operating Limits Altitude:18000m; Velocity:515m/s
Baud Rate 9600bps
Max Update Rate Default 1Hz, configurable up to 5Hz
Supported Protocols NMEA 0183 V4.10 (Input/Output, ASCII; Output sentences: GGA, GSA, GSV, RMC, ZDA, TXT)
Power Supply Voltage VCC:1.9V-3.6V (Typical:3.3V); Backup:V_BACKP=3.3V
Operating Current 20mA-25mA@3.3V (Typical:21mA@3.3V)
IO Voltage 1.8V-3.6V
Operating/Storage Temperature -40℃ ~ +85℃
Humidity 95%
Mechanical Dimensions 8.0mm × 6.0mm × 2.3mm ±0.1mm
Weight <1g
Pin Interfaces RF-IN, GND, GPS_RX, GPS_TX, V_BACKP, 32K_IN, VCC
Compliance RoHS compliant
GPS GNSS Module
Model: JS-AD56UB8
Parameters: Receiver Type Multi-mode multi-GNSS high-sensitivity positioning module
Supported Constellations & Bands GPS L1C/A; BDS B1I; GLONASS L1OF; Galileo E1B/C; SBAS L1C/A; QZSS L1C/A
Core Chip U8 high-performance GNSS chip
Correlators Over 2 million effective correlators
Channels 72 search mode channels, 24 capture channels
Sensitivity Tracking & Navigation: -167dBm; Reacquisition: -160dBm; Cold Start: -148dBm
Time to First Fix Cold Start:26s; Hot Start:1s (all satellites ≥-130dBm)
Positioning Accuracy (CEP 50%) Autonomous:2.5m; SBAS:2.0m (open sky, 24h static, >6SVs)
Time Accuracy 1PPS:30ns RMS
Velocity Accuracy 0.05m/s (50%@30m/s dynamic operation)
Operational Limits Dynamics ≤4g; Altitude 50000m; Velocity ≤500m/s
Baud Rate 9600-460800bps (Default:9600bps)
Max Update Rate 10Hz (Default:1Hz)
Supported Protocols NMEA 0183 V4.0/V4.1 (I/O, ASCII); UBX (I/O, binary proprietary)
Antenna Type Passive antenna (Default:φ44×4mm)
Power Supply Voltage 4.5V-12V (Typical:5.0V)
Operating Current Acquisition:66-72mA@5.0V; Tracking:62-68mA@5.0V
Digital IO Voltage 3.3V
Operating Temperature -40℃ to 85℃ (without Farad capacitor)
Storage Temperature -40℃ to 85℃
Farad Capacitance Temperature -25℃ to 60℃ (hot start unavailable outside this range)
Humidity 95%
Mechanical Dimensions φ56mm×8.9mm ±0.5mm
Optional Sensors Magnetometer(IST8310/VCM5883), Barometer(MS5611), MCU(STM32F103CBT6)
Interface Versions JS-AD56UB8-C(CAN); JS-AD56UB8-T(TTL); JS-AD56UB8-M(TTL+MCU); JS-AD56UB8-S(TTL+Barometer)
Compliance RoHS compliant
RTK GNSS Module
Model: JS-UK40
Parameters: Receiver Type Multi-band concurrent GNSS RTK helical antenna module
Supported Constellations & Bands GPS/QZSS/SBAS: L1C/A, L2C; Galileo: E1, E5b; GLONASS: L1OF, L2OF; BDS: B1I, B2I
Channels 192 search channels, 60 tracking channels
Sensitivity Tracking: -167dBm; Reacquisition: -148dBm; Cold Start Acquisition: -148dBm
Time to First Fix Cold Start:25s; Warm Start:20s; Hot Start:2s (all satellites ≥-130dBm)
Positioning Accuracy PVT:1.5m CEP; SBAS:1.0m CEP; RTK:2cm+1ppm (Horizontal, ≤30km baseline)
Time Accuracy 1PPS:30ns RMS
Velocity Accuracy 0.05m/s (50%@30m/s dynamic operation)
Operational Limits Dynamics ≤4g; Altitude 80000m; Velocity 500m/s
Baud Rate 9600-921600bps (Default:38400bps)
Max Update Rate GPS RTK:20Hz; GNSS RTK:7Hz
Supported Protocols NMEA 0183(V4.11/V4.10/V4.0/V2.3/V2.1), RTCM3.3, UBX(Proprietary)
Antenna Type Active helical antenna; Default passive size:φ35mm, height 25mm
Power Supply Voltage 3.3V-5.5V (Typical:5.0V)
Operating Current Acquisition:110-140mA@5.0V; Tracking:110-130mA@5.0V
Digital IO Voltage 3.3V
Operating Temperature -40℃ to 85℃ (without Farad capacitor)
Storage Temperature -40℃ to 85℃
Farad Capacitance Temperature -25℃ to 60℃ (hot start unavailable outside this range)
Humidity 95%
Mechanical Dimensions Bottom diameter:39.80mm; Top diameter:35.00mm; Height:32.00mm ±0.3mm
Geomagnetic Sensor Options Default:IST8310(0x0F); Optional:VCM5883(0x0C), QMC5883L(0x0D)
Interfaces Dual UART (UART1/UART2), I2C (SDA/SCL), PPS, VCC, GND
Compliance RoHS compliant
RTK GNSS Module
Model: JS-SK40
Parameters: Receiver Type Multi-system multi-frequency high-precision RTK GNSS helical antenna module
Supported Constellations & Bands BDS: B1I/B1C/B2a/B2I/B2b/B3I; GPS: L1C/A/L1C/L2PY/L2C/L5; GLONASS: L1CA/L2CA/L2P/L3 CDMA; Galileo: E1/E5a/E5b/E6; QZSS: L1C/A/L1C/B/L2C/L5/L6*
Channels 789 hardware super channels
Time to First Fix Cold Start:35s; Hot Start:10s; Reacquisition:1s; RTK Initialization:7s (baseline<30km)
Sensitivity Tracking: -150dBm (20dB-Hz); Acquisition: -140dBm (30dB-Hz)
Positioning Accuracy (RMS) 3D: Horizontal 1.5m, Vertical 2m; DGNSS: Horizontal 0.4m, Vertical 0.7m; RTK: Horizontal 0.6cm+0.5ppm, Vertical 1cm+1ppm (24h static, ≥15 satellites)
Time Accuracy PPS:1.4ns RMS; Event:<3ns; Latency:<10ms (99.9%)
Velocity Accuracy 3cm/s
Max Data Update Rate 20Hz
Baud Rate 4800-4M bps (Default:115200bps)
Supported Protocols NMEA 0183(v2.3/v3.0/v4.0), SBF (Proprietary), RTCM3.X (MSM included)
Antenna Configuration Dual antenna: built-in active antenna + external MMCX antenna; Antenna bias:3.0-5.5V (150mA current limit); Gain:15~35dB
Power Supply Voltage 4.8V-5.5V (Typical:5.0V)
Operating Current Acquisition:135mA-180mA@5.0V; Tracking:123mA-170mA@5.0V
Operating Temperature -40℃ to 85℃
Storage Temperature -45℃ to 85℃
Humidity 95%
Mechanical Dimensions 39.80mm×35.00mm×32.41mm ±0.3mm
Weight <10.2g
Geomagnetic Sensor Options Default:IST8310(0x0F); Optional:VCM5883(0x0C), QMC5883L(0x0D)
Interfaces Dual UART (UART1/UART2), I2C (SDA/SCL), PPS, MMCX RF connector
Compliance RoHS compliant
RTK GNSS Module
Model: JS-RK40
Parameters: Receiver Type Dual-band (L1/L5) high-precision GNSS helical antenna module
Supported Constellations & Bands GPS: L1/L5; BDS: B1I/B1C/B2I/B2B/B2A; Galileo: E1/E5; GLONASS: G1; QZSS: L1/L5; IRNSS: L5; SBAS
Tracking Channels 200
Sensitivity Tracking: -165dBm; Reacquisition: -159dBm; Hot Start: -159dBm; Cold Start: -148dBm
Time to First Fix Cold Start:28s; AGPS:1.5s; Hot Start:1s (all satellites ≥-130dBm)
Positioning Accuracy (CEP 50%) Single Point: Horizontal 1.0m, Vertical 2.0m; RTK: Horizontal 1.0cm+1ppm, Vertical 1.5cm+1ppm
Time Accuracy PPS: <20ns RMS
Velocity Accuracy 0.1m/s CEP (50%@30m/s dynamic operation)
Operating Limits Dynamics ≤4g; Altitude 20000m; Velocity 500m/s
Baud Rate 115200-921600bps (Default:115200bps)
Max Update Rate 10Hz (Default:1Hz)
Supported Protocols NMEA 0183 (I/O, ASCII); RTCM3.X (I/O)
Working Modes Rover mode & Base Station mode
Antenna Type Active helical antenna (Φ35.00mm, Height 25.00mm)
Power Supply Voltage 3.3V-5.5V (Typical:5.0V)
Operating Current 45mA-65mA@5.0V (Typical:58mA@5.0V)
Backup Power Voltage:1.8V-3.6V; Current:14uA@3.3V
Operating Temperature -40℃ to 70℃ (without Farad capacitor)
Storage Temperature -40℃ to 70℃
Farad Capacitor Temperature -25℃ to 60℃ (hot start unavailable outside this range)
Humidity 95%
Mechanical Dimensions Bottom:Φ39.80mm; Top:Φ35.00mm; Height:32.00mm
Weight <10.20g
Geomagnetic Sensor Options Default:IST8310(0x0F); Optional:VCM5883(0x0C), QMC5883L(0x0D)
Interfaces UART1 (TX1/RX1), I2C (SDA/SCL), PPS, VCC, GND
Compliance RoHS compliant
RTK GNSS Module
Model: JS-RK26-3
Parameters: Receiver Type Dual-band (L1/L5) high-precision GNSS positioning module
Supported Constellations & Bands GPS: L1/L5; BDS: B1I/B1C/B2I/B2B/B2A; Galileo: E1/E5; GLONASS: G1; QZSS: L1/L5; IRNSS: L5; SBAS
Tracking Channels 200
Sensitivity Tracking & Navigation: -165dBm; Reacquisition: -159dBm; Warm Start: -159dBm; Cold Start: -148dBm
Time to First Fix Cold Start: 28s; Warm Start: 1s (all satellites ≥-130dBm)
Positioning Accuracy (CEP 50%) Standalone: Horizontal 1.5m, Vertical 2.5m; RTK: Horizontal 1.0cm+1ppm, Vertical 1.5cm+1ppm
Velocity Accuracy 0.1m/s CEP (50%@30m/s dynamic operation)
Timing Accuracy PPS: 20ns RMS
Operating Limits Dynamics ≤4g; Altitude 18000m; Velocity 515m/s
Baud Rate 115200~921600bps (Default: 115200bps)
Max Update Rate 20Hz (Default: 1Hz)
Supported Protocols NMEA 0183 (Input/Output, ASCII); RTCM3.X (Input/Output)
Power Supply Voltage VCC: 2.0V~3.6V (Typical: 3.3V); V_BACK: 1.8V~3.6V (Typical: 3.3V)
Operating Current 16mA~30mA@3.3V (Typical: 20mA@3.3V); Standby: 14uA@3.3V
Digital IO Voltage 1.8V~3.6V
Operating/Storage Temperature -40℃ ~ +85℃
Humidity 95%
Mechanical Dimensions 16.2mm × 12.2mm × 2.3mm ±0.3mm
Antenna Requirements Active Antenna: Min Gain 15dB, Max Gain 30dB, Max Noise Factor 1.5dB; Compatible with Passive Antenna
Compliance RoHS compliant
RTK GNSS Module

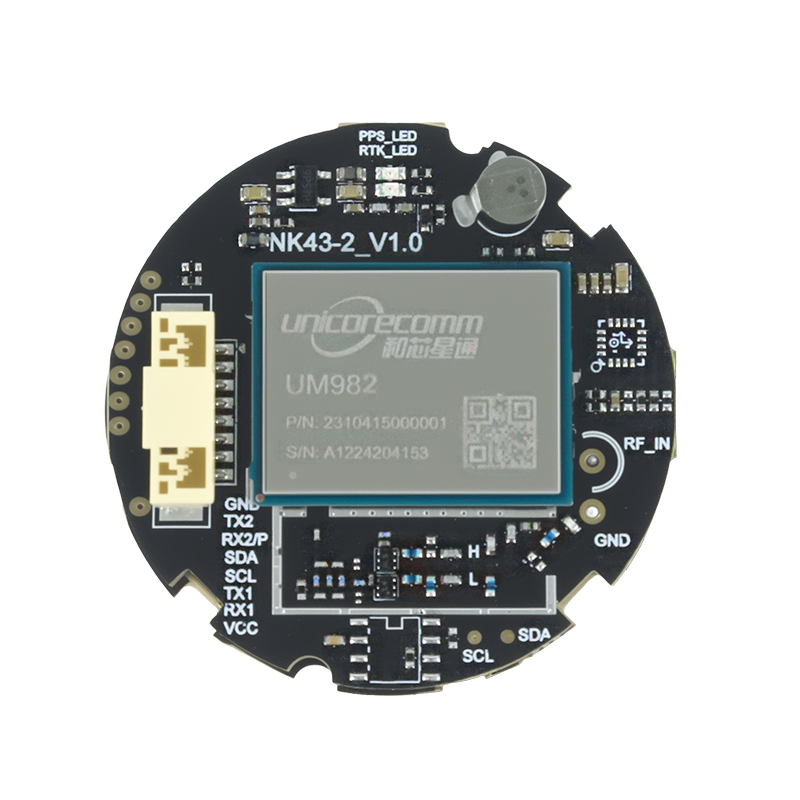

Model: JS-NK40
Parameters: Receiver Type Multi-system multi-frequency high-precision RTK GNSS helical antenna module
Supported Constellations & Bands BDS B1I/B2I/B3I; GPS L1C/A/L2P(Y)/L2C/L5; GLONASS L1/L2; Galileo E1/E5a/E5b; QZSS L1/L2/L5; SBAS
Channels 1408 super channels
Time to First Fix Cold start <30s (-130dBm, ≥12 satellites)
Positioning Accuracy (RMS) 3D: Horizontal 1.5m, Vertical 2.5m; DGPS: Horizontal 0.4m+1ppm, Vertical 0.8m+1ppm; RTK: Horizontal 1.5cm+1ppm, Vertical 2.0cm+1ppm
Time Accuracy 20ns (RMS)
Velocity Accuracy 0.03m/s (RMS, 99%@static open sky)
RTK Initialization Time <5s (typical)
Baud Rate 9600-921600bps (Default: 115200bps)
Max Data Update Rate 20Hz
Supported Protocols Data: NMEA 0183, Unicore; Differential: RTCM3.X
Antenna Type Active helical antenna (φ35mm, Height 25mm)
Power Supply Voltage 3.3V-5.5V (Typical: 5.0V)
Operating Current 180mA-310mA @3.3V (Typical: 220mA @3.3V)
VCC Ripple ≤50mV
Operating Temperature -40℃ to 85℃ (without Farad capacitor)
Storage Temperature -40℃ to 85℃
Farad Capacitor Temperature -25℃ to 60℃ (hot start unavailable outside this range)
Humidity 95%
Mechanical Dimensions 39.80mm×35.00mm×32.0mm ±0.3mm
Weight <10.2g
Geomagnetic Sensor Options Default: IST8310 (0x0F); Optional: VCM5883 (0x0C), QMC5883L (0x0D)
Compliance RoHS compliant
RTK GNSS Module

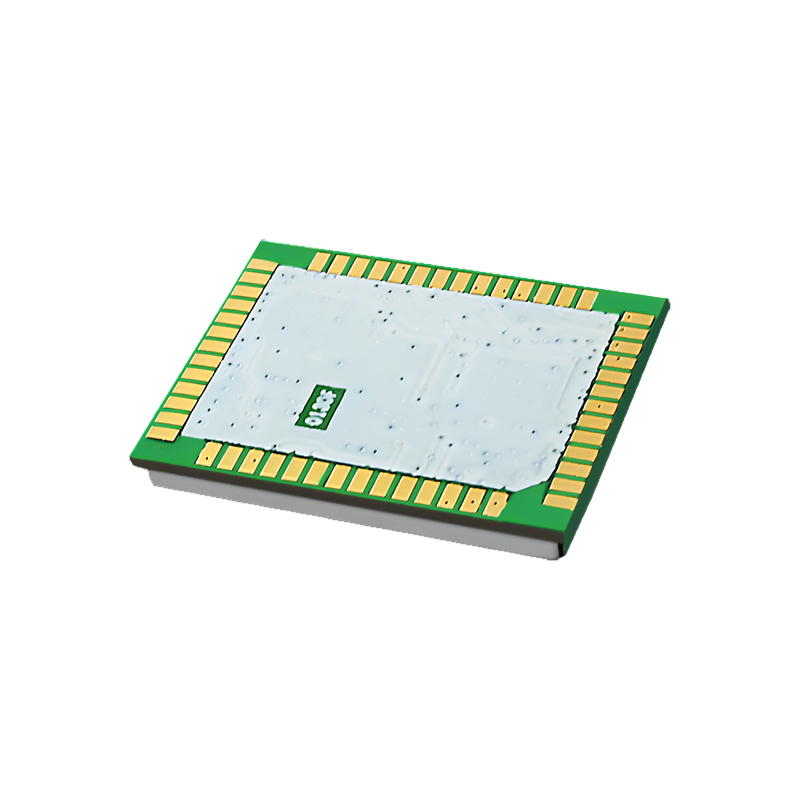

Model: JS-M6D
Parameters: Receiver Type Multi-frequency multi-mode RTK high-precision GNSS positioning module
Supported Constellations & Frequency Bands GPS/QZSS: L1, L2; GLONASS: G1, G2; BDS: B1I, B2I (Beidou-3 supported); Galileo: E1, E5b
Search/Tracking Channels 96 search channels, 60 tracking channels
Sensitivity Tracking & Navigation: -163dBm; Reacquisition: -147dBm
Time to First Fix Cold Start: ≤35s; Cold Start (AGNSS): ≤3s; Hot Start: ≤1s; Reacquisition: ≤1s
Positioning Accuracy (CEP 50%) 3D: 2.0m; D-GNSS: 0.5m; RTK (Horizontal): 2cm+1ppm (≤30km baseline)
Timing Accuracy 1PPS: 20ns
Velocity Accuracy 0.05m/s (50%@30m/s dynamic operation)
Operational Limits Dynamics: ≤4g; Altitude: 18000m; Velocity: 515m/s
Baud Rate 9600-230400bps (Default: 115200bps)
Max Navigation Update Rate 10Hz (customizable on request)
Supported Protocols NMEA 0183, RTCM3.x, JMS (Custom)
Power Supply (VCC) 3.0V-3.6V (Typical: 3.3V)
Operating Current Typical: 105mA @3.3V; Peak: 130mA @3.3V
Backup Power (V_BKUP) 1.8V-3.6V; RTC Current: 10-13uA
ESD Protection 2000V (HBM, all pins); MSL Level 3
Operating Temperature -40℃ ~ +85℃
Storage Temperature -45℃ ~ +85℃
Mechanical Dimensions 22.0mm×17.0mm×2.4mm ±0.2mm (LGA package)
Antenna Features Supports antenna open/short circuit detection, antenna power supply control
Compliance RoHS compliant
RTK GNSS Module
Model: JS-ARK37-3
Parameters: Receiver Type Full-system dual-frequency high-precision RTK GNSS antenna module
Constellations & Frequency Bands GPS/QZSS:L1,L5; GLONASS:G1; Galileo:E1,E5; BDS:B1I,B1C,B2a,B2b,B2I; IRNSS:L5; SBAS
Tracking Channels 200
Sensitivity Cold Start: -148dBm; Hot Start & Reacquisition: -159dBm; Tracking: -165dBm
Time to First Fix Cold Start:28s; Hot Start:1s; AGPS:1.5s (all satellites at -130dBm)
Positioning Accuracy (CEP 50%) Single Point: Horizontal 1.0m, Vertical 2.0m; RTK: Horizontal 1.0cm+1ppm, Vertical 1.5cm+1ppm
Velocity Accuracy 0.1m/s CEP
Timing Accuracy 1PPS output <20ns(RMS)
Max Data Update Rate 10Hz (default 1Hz)
Operating Limits Max Acceleration:≤4g; Max Velocity:≤500m/s; Max Altitude:20000m
Supported Protocols NMEA-0183, RTCM 3.X, Custom Binary
Power Supply Voltage 3.5V-12.0V (Typical:5V)
Operating Current 42mA-53mA@5V (≈+8mA when using CAN protocol)
Operating Temperature -40℃ to 85℃ (without Farad capacitor)
Storage Temperature -40℃ to 85℃
Humidity 95%rh (Non-condensing)
Mechanical Dimensions 36.00×36.00×9.70mm ±0.2mm
Weight <21g
Antenna Type Passive antenna (Default:L1 25252mm, L5 35352mm; Optional:L1 25254mm, L5 35354mm)
Magnetometer Options Default:IST8310(0x0F); Optional:VCM5883(0x0C), QMC5883L(0x0D), RM3100(0x20)
Interface Configurations Default:TTL; Optional:RS232/CAN; Magnetometer:Optional
Connector GH--6PIN-1.25MM (customizable)
Compliance RoHS
RTK GNSS Module

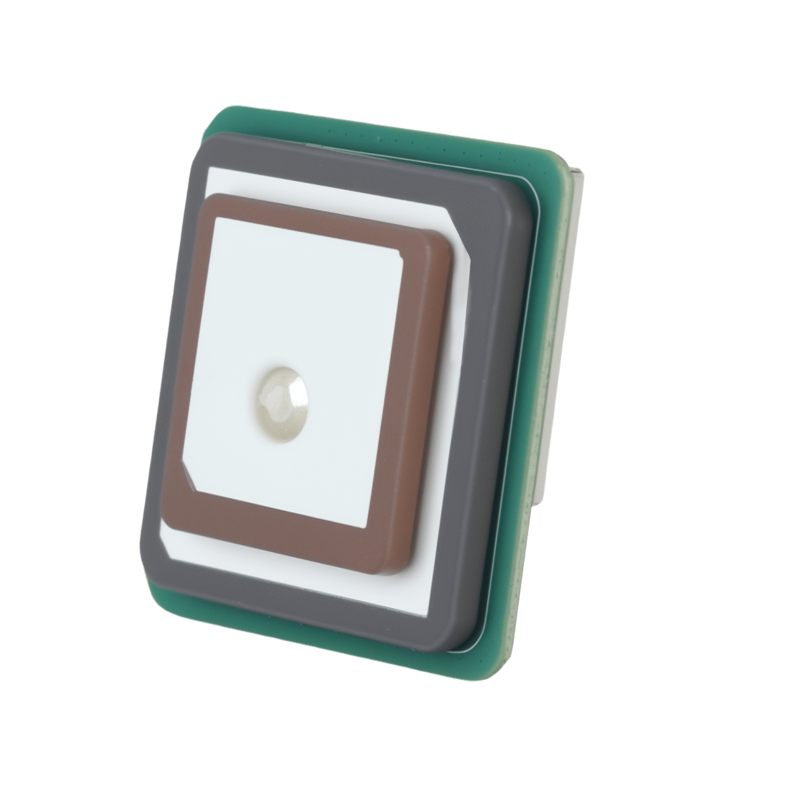

Model: JS-ARK28-3
Parameters: Receiver Type Dual-band (L1+L5) multi-constellation high-precision GNSS receiver
Constellations & Frequency Bands GPS L1/L5; BDS B1I/B1C/B2I/B2B/B2A; Galileo E1/E5; GLONASS G1; QZSS L1/L5; IRNSS L5; SBAS
Tracking Channels 200
Sensitivity Tracking & Navigation: -165dBm; Reacquisition: -159dBm; Hot Start: -159dBm; Cold Start: -148dBm
Time to First Fix (TTFF) Cold Start: 28s; AGPS: 1.5s; Hot Start: 1s (all satellites at ≥-130dBm)
Positioning Accuracy (CEP) Single Point: Horizontal 1.0m, Vertical 2.0m; RTK: Horizontal 1.0cm+1ppm, Vertical 1.5cm+1ppm (open sky, 50% CEP, 24h static, ≥-130dBm, >6SVs)
Time Accuracy PPS: <20ns RMS
Velocity Accuracy 0.1m/s CEP (50%@30m/s dynamic operation)
Operating Limits Dynamics: ≤4g; Altitude: 20000m; Velocity: 500m/s (airborne platform ≤4g)
Baud Rate 115200-2M bps (default: 115200bps; 2M bps for debug log)
Max Data Update Rate 20Hz (default: 1Hz; 20Hz requires specific firmware support)
Supported Protocols NMEA 0183 (Input/Output, ASCII); RTCM3.X (Input/Output)
Power Supply Voltage 3.3V-5.5V (Typical: 5.0V)
Operating Current 32mA-42mA @3.3V (Typical: 37mA @3.3V)
Backup Battery Voltage: 1.8V-3.6V (Typical: 3.3V); Current: 14uA @3.3V
Operating/Storage Temperature Operating: -40℃ to 85℃ (without Farah capacitor); Storage: -40℃ to 85℃
Farah Capacitance Temperature -25℃ to 60℃ (hot start unavailable outside this range)
Humidity 95%
Mechanical Dimensions 28.0×28.0×8.0mm ±0.3mm
Weight <12.0g
Antenna Type Passive antenna (25.0×25.0×2.0mm L5 stacked on 18.0×18.0×2.0mm L1)
Magnetometer Options Default: IST8310 (0x0F); Optional: QMC5883L (0x0D), VCM5883 (0x0C)
Compliance RoHS compliant
RTK GNSS Module
Model: JS-ANK45-2
Parameters: Receiver type Multi-system, multi-frequency high-precision RTK GNSS receiver
Constellations & Bands BDS B1I/B2I/B3I, GPS L1/L2/L5, GLONASS L1/L2, Galileo E1/E5a/E5b, QZSS L1/L2/L5, SBAS
Channels 1408 super channels
Time to First Fix (Cold start) <30s
Positioning Accuracy (RMS) 3D: 1.5m; DGPS: 0.4m+1ppm; RTK Horizontal: 1.5cm+1ppm; RTK Vertical: 2.0cm+1ppm
Time Accuracy (RMS) 20ns
Velocity Accuracy 0.03m/s
RTK Initialization Time <5s (typical)
Baud Rate 9600-921600bps (Default: 115200bps)
Max Data Update Rate 20Hz
Supported Protocols NMEA 0183, Unicore, RTCM3.X
Power Supply Voltage 3.0V-5.5V (Typical: 5.0V)
Operating Current 180mA-310mA @3.3V
Operating Temperature -40℃ to 85℃
Storage Temperature -40℃ to 85℃
Mechanical Dimensions 45.0×45.0×12.7mm ±0.3mm
Weight <40g
Antenna Type Passive high-gain integrated antenna
Magnetometer Options IST8310 (Default), QMC5883L, VCM5883
Compliance RoHS
RTK GNSS Module

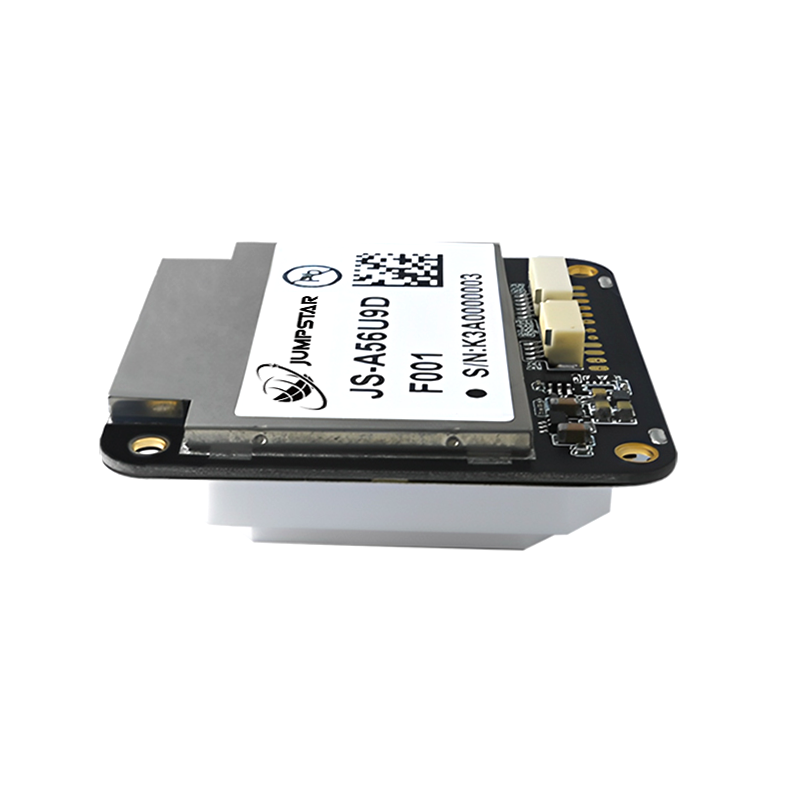

Model: JS-A56U9D
Parameters: Receiver type Multi-band GNSS high precision receiver
Constellations GPS, BDS, GLONASS, Galileo, QZSS, SBAS
Channels 192 search channels / 60 tracking channels
Accuracy of time pulse signal RMS 30ns
99% 60ns
Frequency of time pulse signal 0.25 Hz to 10 MHz(configurable)
Operational limits Dynamics ≤4g
Altitude 80,000m
Velocity 500 m/s
Velocity accuracy 0.05m/s
Dynamic heading accuracy 0.3⁰
NMEA 0183 V4.11/ V4.0/V4.1 Input/output, ASCII
RTCM 3.3 Input/output, binary
UBX Input/output, binary, u-blox proprietary
GPS GNSS Module

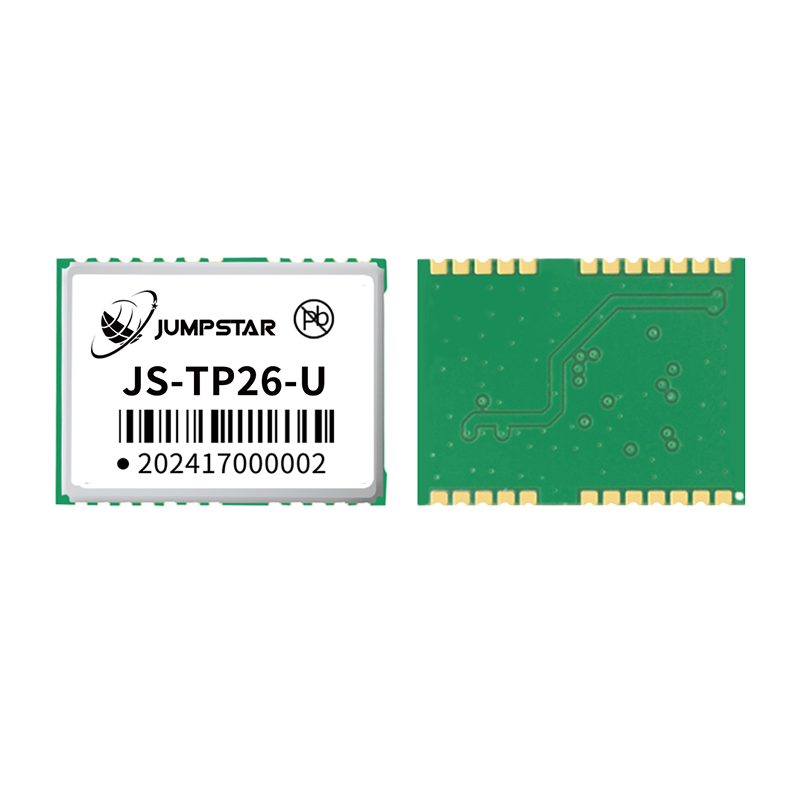

Model: JS-TP26-U
Parameters: Receiver Type Dual-band (L1+L5) GNSS+INS integrated navigation module
Supported Constellations & Bands GPS:L1CA/L5; BDS:L1/L5; GLONASS:L1OF; Galileo:E1B/E1C/E5a; QZSS:L1CA/L1SAIF/L5; SBAS:WAAS/EGNOS/MSAS/GAGAN
Tracking Channels 135 channels (L1:75, L5:60)
Sensitivity Tracking & Navigation:-165dBm; Acquisition:-148dBm
Positioning Accuracy Single-point:Horizontal 1.0m(L1+L5)/2.5m(L1) CEP; GNSS+INS:<1.5m CEP
Time Accuracy 1PPS:±10ns
Inertial Navigation Six-axis MEMS(3-axis gyro+3-axis accelerometer); Adaptive installation
Operational Limits Altitude≤10000m; Velocity≤100m/s
Max Update Rate 10Hz
Baud Rate 115200~921600bps (Default:115200bps)
Supported Protocols NMEA 0183 V4.1; RTCM v2.3/v3.3
Interfaces 3×UART, USB, 1PPS, EXTINT, RF_IN, RESET_N, Power
Power Supply VCC:3.03.6V(Typical:3.3V); Backup:1.653.6V; VCC_RF:3.3V
Operating Current Acquisition:3549mA@3.3V; Tracking:3144mA@3.3V; Backup:10uA@3.3V
ESD Performance 2000V (HBM)
Operating Temperature -40℃ ~ +85℃
Humidity 95%
Mechanical Dimensions 16.0mm × 12.2mm × 2.4mm ±0.3mm
Compliance RoHS compliant
GPS GNSS Module

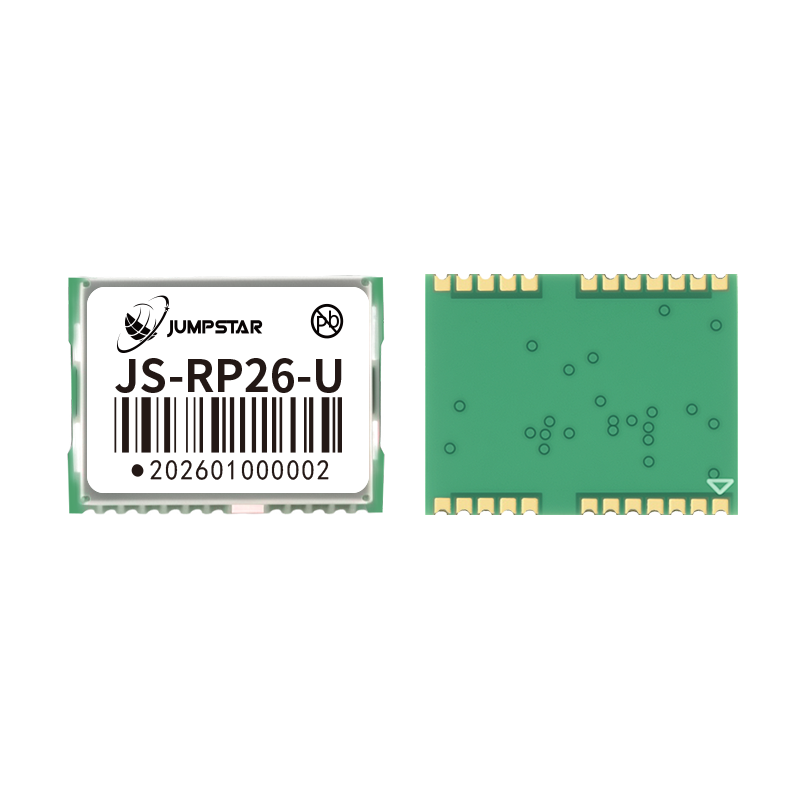

Model: JS-RP26-U
Parameters: Receiver Type Single-frequency (L1) GNSS+INS integrated navigation module
Supported Constellations & Bands GPS:L1; BDS:B1I/B1C; GLONASS:G1; Galileo:E1; QZSS:L1
Tracking Channels 200 tracking channels + dedicated search engine
Sensitivity Tracking:-165dBm; Reacquisition:-159dBm; Cold Start:-148dBm
Time to First Fix Cold Start:28s; Warm Start:1s
Positioning Accuracy Single-point:Horizontal 1.0m CEP; Vertical 2.0m CEP
Speed Accuracy 0.1m/s CEP (50%@30m/s dynamic operation)
Inertial Navigation GNSS signal loss within 120s: positioning error ≤5%
Operational Limits Dynamics≤4g; Altitude≤20000m; Velocity≤500m/s
Max Update Rate 20Hz (Default:1Hz)
Baud Rate 115200~921600bps (Default:115200bps)
Supported Protocols NMEA 0183(ASCII); RTCM3.X(differential positioning)
Antenna Function Active antenna detection + overcurrent protection; Antenna gain ≤30dB
Power Supply VCC:2.03.6V (Typical:3.3V); Backup:1.83.6V
Operating Current Average:16~30mA@3.3V; Standby:14uA@3.3V
Digital I/O Voltage 1.8~3.6V
Operating Temperature -40℃ ~ +85℃
Humidity 95%
Mechanical 16.2mm × 12.2mm × 2.3mm ±0.3mm; Weight<1.1g
Main Interfaces UART(TX/RX), 1PPS, RF_IN, VCC_RF, RESET_N, I2C(internal IMU)
Compliance RoHS compliant
RTK GNSS Module
Model: JS-RK26-U
Parameters: Receiver Type Dual-band (L1+L5) GNSS+INS integrated navigation module
Supported Constellations & Bands GPS:L1/L5; BDS:B1I/B1C/B2I/B2B/B2A; GLONASS:G1; Galileo:E1/E5; QZSS:L1/L5; IRNSS:L5
Tracking Channels 200 tracking channels + dedicated search engine
Sensitivity Tracking:-165dBm; Reacquisition:-159dBm; Hot Start:-159dBm; Cold Start:-148dBm
Time to First Fix Cold Start:28s; AGPS:1.5s; Warm Start:1s
Positioning Accuracy Single-point:Horizontal 1.0m/Vertical 2.0m; RTK:Horizontal 1.0cm+1ppm/Vertical 1.5cm+1ppm
Speed Accuracy 0.1m/s CEP
Inertial Navigation GNSS loss within 120s: error ≤5%
Operational Limits Dynamics≤4g; Altitude≤20000m; Velocity≤500m/s
Max Update Rate 10Hz (Default:1Hz)
Baud Rate 9600~921600bps (Default:115200bps)
Supported Protocols NMEA 0183; RTCM3.X; Private binary protocol
Antenna Function Active antenna detection + overcurrent protection; Antenna gain ≤30dB
Power Supply VCC:2.03.6V; Backup:1.83.6V
Operating Current Average:18~32mA@3.3V; Standby:14uA@3.3V
Digital I/O 1.8~3.6V
Operating Temperature -40℃ ~ +85℃
Humidity 95%
Mechanical 16.2×12.2×2.3mm±0.3mm; Weight<1.1g
Main Interfaces UART(TX/RX), 1PPS, RF_IN, VCC_RF, RESET_N, I2C(internal IMU)
Compliance RoHS compliant

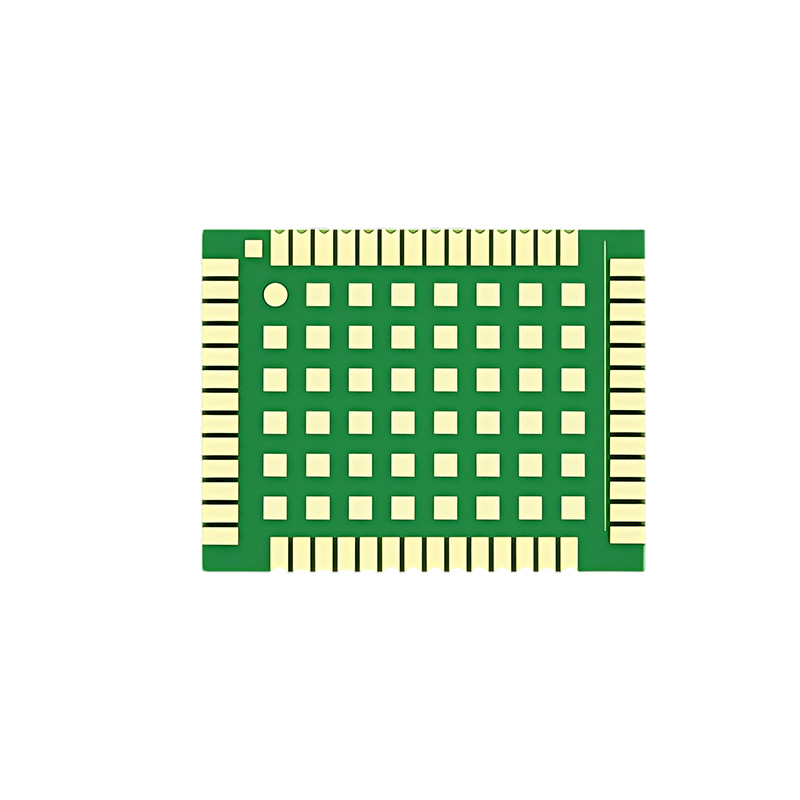

RTK GNSS Module
Model: S-C8A
Parameters: Supported Constellations & Bands GPS:L1C/A,L2P,L2C; BDS-2:B1I,B2I; BDS-3:B1C,B2b; GLONASS:G1,G2; Galileo:E1,E5b; QZSS:L1C/A,L2C; SBAS:L1C/A
Sensitivity Tracking & Navigation:-155dBm; Acquisition:-138dBm
Time to First Fix Cold Start:<20s; Warm Start:<10s; RTK Initialization:<5s; Lost Lock Reacquisition:<1s
Positioning Accuracy Single-point:H≤1.5m,V≤3m(1σ,PDOP≤4); RTK:H±(8+10⁻⁶×D)mm,V±(15+10⁻⁶×D)mm
Measurement Accuracy Pseudorange:≤10cm; Carrier phase:≤1mm
Speed & Timing Accuracy Speed:≤0.02m/s; Timing:20ns
Inertial Navigation Parameters Gyro:Range 250°/s,Zero deviation 0.5°/s; Acceleration:Range 4g,Zero deviation 20mg; 3s loss lock:cm-level; 10s loss lock:m-level
Data Rate Measurement&Positioning:100Hz(optional); RTK Positioning:20Hz(optional)
Supported Protocols NMEA 0183; Custom CNB binary; CMR; RTCM2.X; RTCM3.X(MSM3~MSM7)
Antenna 50Ω impedance; Power:3.35V; Gain:2035dB
Power Supply VCC:3.3V±5% DC; VCC_RF:3.35.5V; V_BCKP:1.83.6V
Power Consumption 0.8W@3.3V(anti-interference off); 0.9W@3.3V(anti-interference on)
Operating Temperature -40℃ ~ +85℃
Storage Temperature -55℃ ~ +95℃
Humidity 95%
Mechanical Dimensions 22.0mm × 17.0mm × 2.8mm ±0.3mm
Main Interfaces 3×UART, I2C, SPI, PPS, RST, EVENT, Antenna Detection, Power
Compliance RoHS compliant
GNSS Antenna

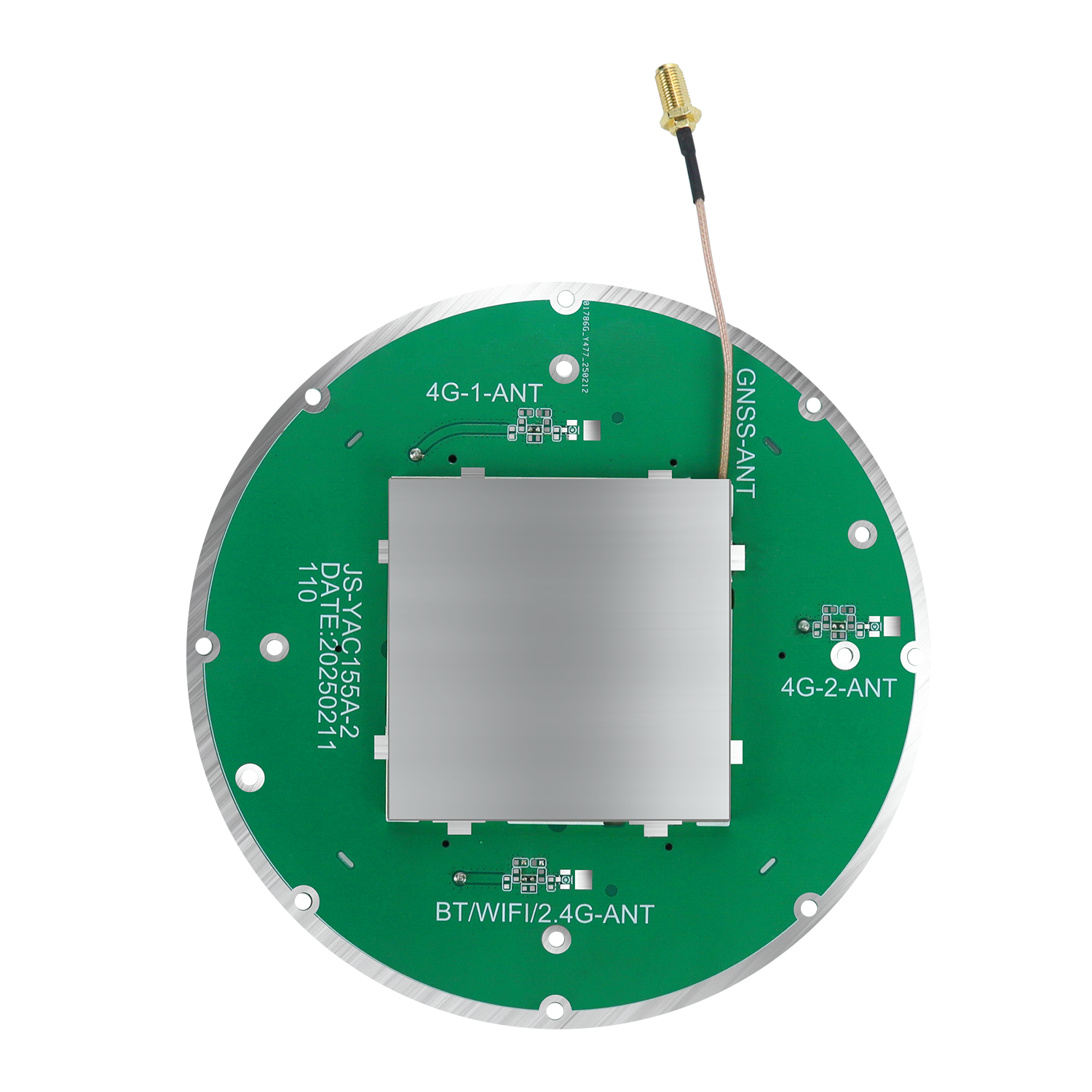

Model: JS-YAC155N
Parameters: Antenna Type Integrated Communication & Navigation High-Precision Built-in Survey Antenna
Supported Signals GNSS: BDS B1I/B2I, GPS L1/L2, GLONASS L1/L2, Galileo E1/E5a/E5b, QZSS L1/L2 (1165-1268MHz; 1550-1630MHz) 4G: Full bands supported; BT: 2.4G
Peak Gain GNSS ≥5.5dB; 4G ≥0.5dB; BT ≥0.5dB
Impedance 50Ω
Horizontal Coverage 360°
Output VSWR (Passive) ≤2.0
Amplifier Gain 35±2dB
Noise Figure ≤2.0dB (per-filter)
Output VSWR (LNA) ≤2.5
In-Band Flatness ±2dB
Operating Voltage 3.3~12V DC
Operating Current ≤50mA (@5V)
Dimensions Ø155×16.3mm (Tolerance ±0.5mm)
RF Connectors GNSS: MCX-C-JW1.5 (RG178 cable) 4G: MMCX-C-JW1.5 (RG178 cable)
Materials Antenna: PPO; PCB: FR4; Shielding Cover: Tinplate
Operating Temperature -40℃ ~ +85℃
Storage Temperature -40℃ ~ +85℃
Vibration Sine sweep 1g(0-p), 105510Hz per axis
GNSS Antenna

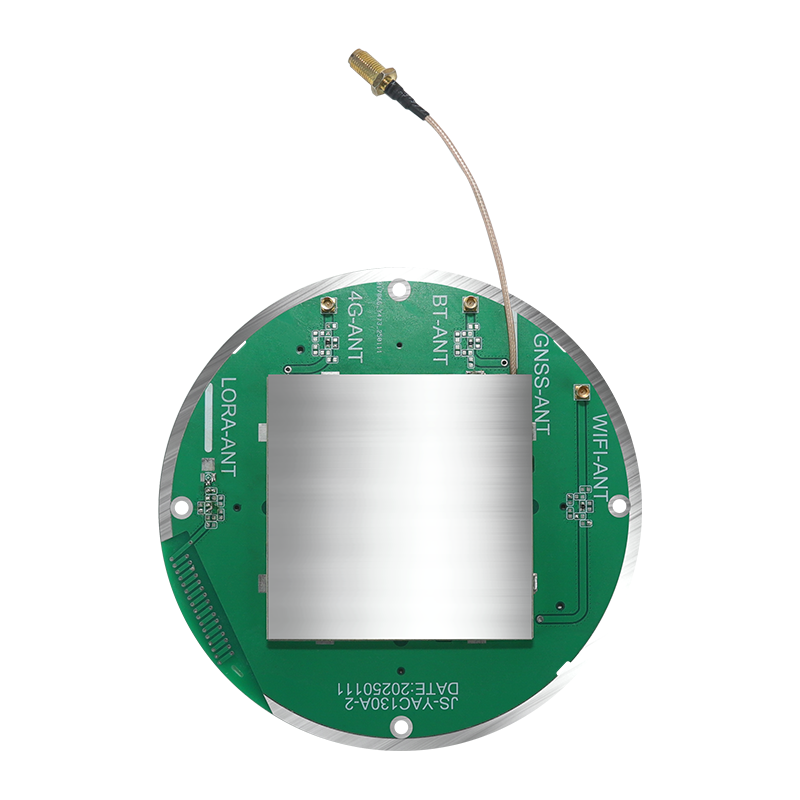

Model: JS-YAC130N
Parameters: Antenna Type Integrated Communication & Navigation High-Precision Survey Antenna
Supported Signals GNSS: BDS B1I/B2I, GPS L1/L2, GLONASS L1/L2, Galileo E1/E5a/E5b, QZSS L1/L2 (1165-1268MHz; 1550-1630MHz) 4G: 824960MHz, 17102690MHz BT: 2.4G
Peak Gain GNSS ≥5.5dB; 4G ≥0.5dB; BT ≥0.5dB
Impedance 50Ω
Horizontal Coverage 360°
Output VSWR ≤2.0
LNA Gain 35±2dB
Noise Figure ≤3.0dB (per-filter)
In-Band Flatness ±2dB
Operating Voltage 3.3~12V DC
Operating Current ≤50mA (@5V)
Dimensions Ø130×15mm
RF Connectors GNSS: MCX-C-JW1.5 (RG178 cable) 4G: MMCX-C-JW1.5 (RG178 cable)
Materials Radome: PPO; PCB: FR4; Shielding-Can: Tinplate
Operating Temperature -40℃ ~ +85℃
Storage Temperature -40℃ ~ +85℃
Vibration Sine sweep 1g(0-p), 105510Hz per axis
GNSS Antenna

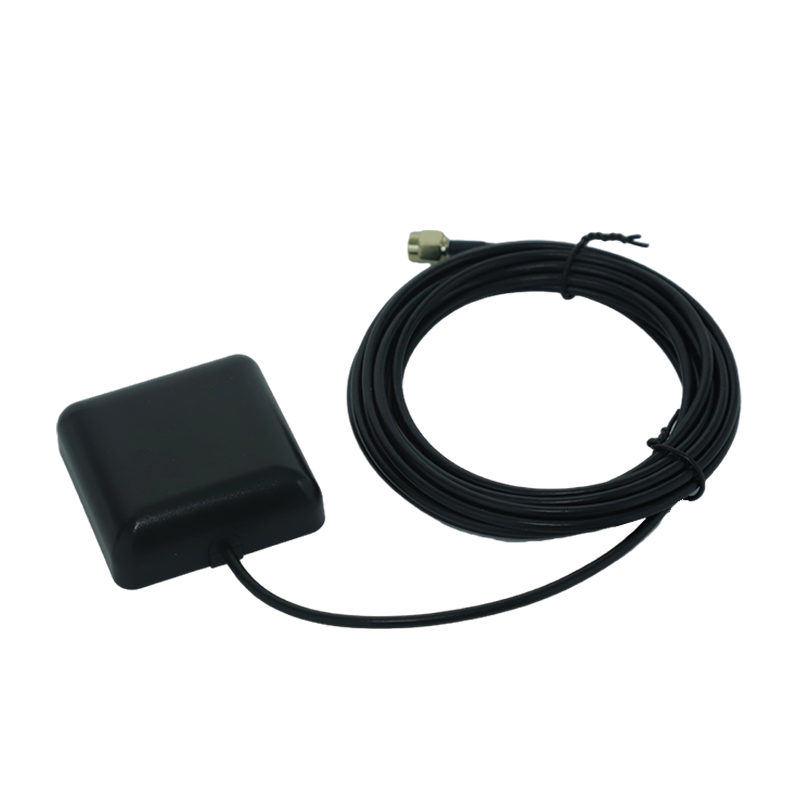

Model: JS-PAS51A-D5
Parameters: Antenna Type Vehicle-Mounted External Active GNSS Antenna
Ceramic Antenna B1&L1: 36×36×2mm; L5:25×25×4mm (Dielectric Ceramic)
Operating Frequency B1:1561.098±2.046MHz; L1:1575.42±1.023MHz; L5:1176.45±10.23MHz
Impedance 50Ω
Polarization RHCP (Right-Hand Circular Polarization)
VSWR ≤2.0
Max Gain 2.5dBic(B1I&B1C); 0dBic(B2a) (39×39 test baseboard)
LNA Gain 28±3dB
Noise Figure ≤2.0dB
Operating Voltage 3~5V DC
Operating Current 15±3mA @3.3V
Connector SMA-J3
RF Cable RG174 (Length: 3000±100mm)
Dimensions 51.4±0.5mm (main body)
Mounting NdFeB Magnetic Mount
Protection Rating IPX7
Materials Antenna: Dielectric Ceramic; PCB: FR4; Shielding: Tinplate
Operating Temperature -40℃ ~ +85℃
Storage Temperature -40℃ ~ +85℃
Vibration Sine sweep 1g(0-p), 105510Hz per axis
GNSS Antenna

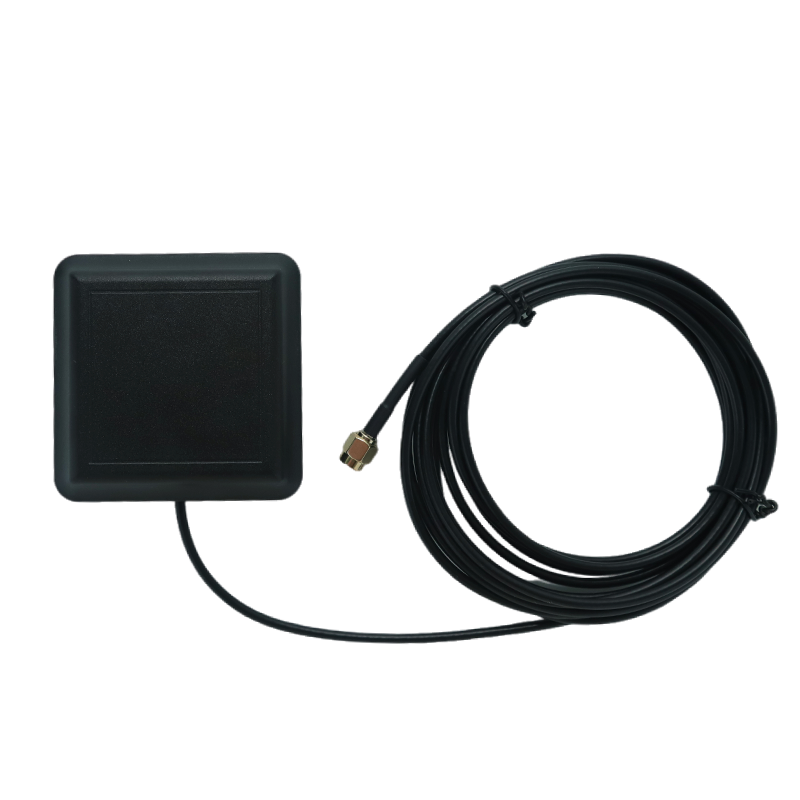

Model: JS-HAS67A-D2
Parameters: Antenna Type B1/L1&L2/G1 Dual-Band Ceramic Active GNSS Antenna
Ceramic Patch L1:25×25×4mm; L2:33×33×4mm (Dielectric Ceramic)
Operating Frequency B1:1561.098±2.046MHz; L1:1575.42±1.023MHz; L2:1227.60±10.23MHz; G1:1602.5625±4MHz
Impedance 50Ω
Polarization RHCP (Right-Hand Circular Polarization)
VSWR ≤2.0
Max Gain 3dBic(B1/L1/G1); 2.5dBic(L2) (55×55 test base plate)
LNA Gain 28±3dB
Noise Figure ≤2.0dB
Operating Voltage 3~5V DC
Operating Current 20±3mA @3.3V
Connector SMA-J3
RF Cable RG174 (L=3000±100mm)
Dimensions 67±0.5mm × 67±0.5mm × 21.5±0.5mm
Mounting Neodymium Iron Boron Magnetic Mount
Protection Rating IPX7
Materials Antenna:Dielectric Ceramic; PCB:FR4; Shielding:Tinplate
Operating Temperature -40℃ ~ +80℃
Storage Temperature -40℃ ~ +85℃
Vibration Sine sweep 1g(0-p), 105510Hz per axis
GNSS Antenna

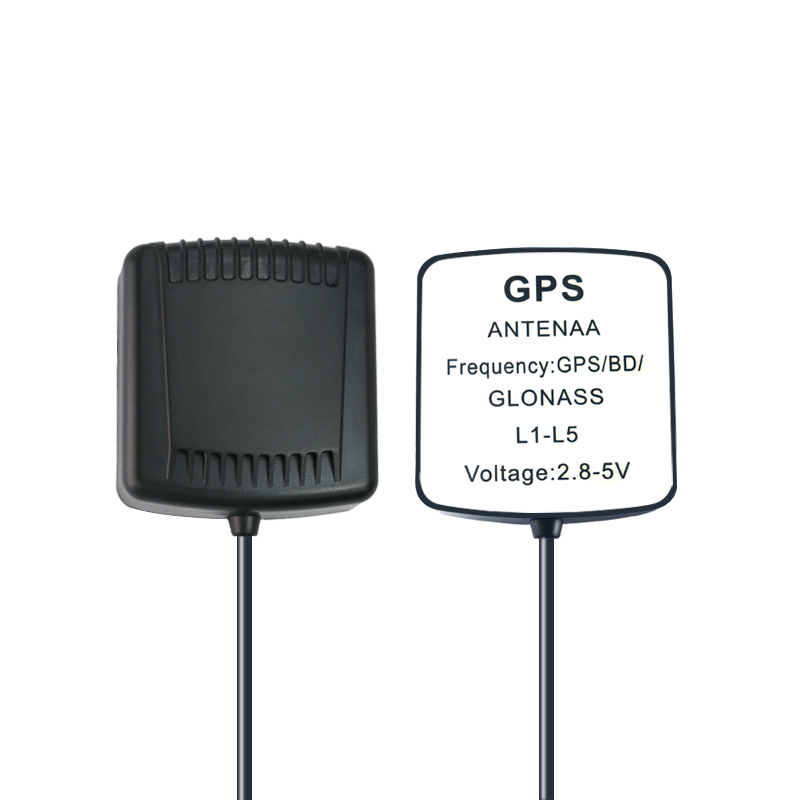

Model: JS-HAS37
Parameters: Antenna Type L1/L5 Dual-Band Active GNSS Antenna
Antenna Patch L1:25×25×4mm; L5:36×36×4mm (Dielectric Ceramic)
Frequency Range L1:1559MHz1615MHz; L5:1176MHz1200MHz
Supported Signals GPS L1C/A/L5; BDS B1I/B1C/B2a; GLONASS L1CA; Galileo E1/E5a
Impedance 50Ω
Polarization RHCP (Right-Hand Circular Polarization)
VSWR ≤2.0
Gain 4.0dBic(L1), 3.0dBic(L5) at Zenith Max
Axial Ratio ≤5dB at Zenith
LNA Gain 28±3dB
Out-of-band Rejection ≥25dB(FH+100MHz/FL-100MHz)
Noise Figure ≤2.0dB
Operating Voltage 3~5V DC
Operating Current 8±3mA (at 3.3V)
Connector SMA-J3
Materials Antenna:Dielectric Ceramic; PCB:FR4; Shielding:Tinplate
Operating Temperature -40℃ ~ +85℃
Storage Temperature -40℃ ~ +105℃
Vibration Sine sweep 1g(0-p), 105510Hz per axis
GNSS Antenna
Model: JS-HAC148A
Parameters: Parameter Specification
Antenna Type Quad-System Full-Frequency RTK Surveying Antenna
Frequency Range 1164–1278MHz; 1559–1606MHz (BDS/GPS/GLONASS/Galileo/QZSS all bands supported)
Phase Center Error ≤2mm
Gain 4.5dBic (max)
Axial Ratio ≤3dB (at Zenith)
Impedance 50Ω
Azimuth Coverage 360° full horizontal coverage
VSWR ≤2.0
Polarization Right-Hand Circular Polarization (RHCP)
Amplifier Gain 38±3dB
Out-of-band Rejection ≥40dB (FH+100MHz; FL-100MHz)
Noise Figure ≤3.0dB (per-filter)
Operating Voltage 3.3~12.0V DC
Operating Current ≤30mA (16mA@5V)
Dimensions Ø148×57.7mm (excluding base)
Connector TNC-K
Mounting Strong Magnetic Base
Materials Antenna: PPO; Housing: ABS; Connector: TNC-K
Protection Rating IPX6
Operating Temperature -40℃ ~ +85℃
Storage Temperature -40℃ ~ +85℃
Vibration Sine sweep 1g(0-p), 105510Hz per axis
GNSS Antenna
Model: JS-HAC100B
Parameters: Antenna Type:Three-System Seven-Frequency High-Precision GNSS Measurement Antenna
Supported Signals: BDS: B1I/B1C/B2I/B2A/B3I; GPS: L1/L2; GLONASS: L1/L2
Frequency Bands: L1(15591615MHz), L2(12001250MHz), B3(1258~1278MHz)
Impedance: 50Ω
Polarization: Right-Hand Circular Polarization (RHCP)
Gain: 4.5dBi
Azimuth Coverage: 360°
Phase Center Error: ±2mm
LNA Gain: 40±2dB
Noise Figure: ≤2.0dB
VSWR: ≤2.0
Axial Ratio: ≤3.0dB
Operating Voltage: 3.0–15.0V DC
Operating Current: ≤45mA
Dimensions: Φ100mm × 36.5mm ±0.5mm
Connector: TNC-K
Mounting Magnetic Sucker
Waterproof Rating: IP67
Material Antenna: PTFE F4B-1/2; Housing: ABS
Operating Temperature: -40℃ ~ +70℃
Storage Temperature: -55℃ ~ +85℃
Humidity: 95% Non-condensing
GNSS Antenna
Model: JS-X168
Parameters: Product Type: Five-Array Anti-Jamming GNSS Receiver (Integrated Anti-Jamming Antenna)
Receive Frequency Bands: GPS: L1/L2/L5; BDS: B1/B2/B3; GLONASS: G1/G2; Galileo: E1/E5/E6
Anti-Jamming Bands: Consistent with receive frequency bands
Anti-Jamming Capability: 115dB (Single interference); 95dB (Three interferences)
Anti-Jamming Components: Five-component anti-jamming device
Operating Voltage: 5V DC
Rated Power Consumption: ≤2W (Indoor temperature)
RF Front-End Low noise figure, high receiving sensitivity
Output Interface: J30J-9TP (Matching plug: J30J-9ZKL)
Protocol Output: TX1: NMEA; TX2: SBF
Dimensions: 168×168×32mm (Excluding connector)
Weight: ≤555g
Operating Temperature: -40℃ ~ +70℃
Pin Definition: 1: VIN+ (5V Input); 2: GND; 3: TX2_SBF Output; 4: TX1_NMEA Output
GNSS Antenna

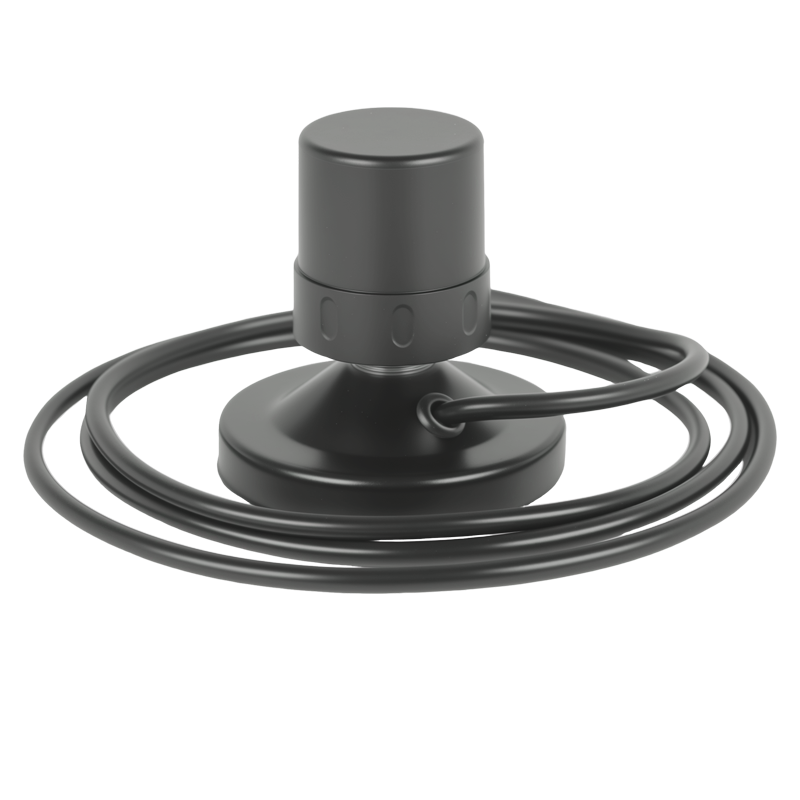

Model: JS-HAC42A-F
Parameters: Antenna Type: Helical GNSS Active Antenna
Supported Signals: GPS(L1/L2/L5); BDS(B1I/B1C/B2(I/Q)/B2b/B2a); GLONASS(G1); GALILEO(E1/E5/E5a/E5b)
Impedance: 50Ω
Polarization: Right Hand Circular Polarization (RHCP)
Horizontal Coverage:360°
VSWR: ≤2.0
Noise Figure: ≤2dB
LNA Gain :37±3dB
Dimensions: Φ44.8mm × 42mm
Weight: 27.3g
Connector: SMA Male
Mounting Screw fixing (reserved)
Waterproof Rating: IP65 (with mated SMA connector)
Operating Temperature: -30℃ ~ +70℃
Storage Temperature: -35℃ ~ +75℃
Humidity: 0%~95% Non-condensing
GNSS Antenna

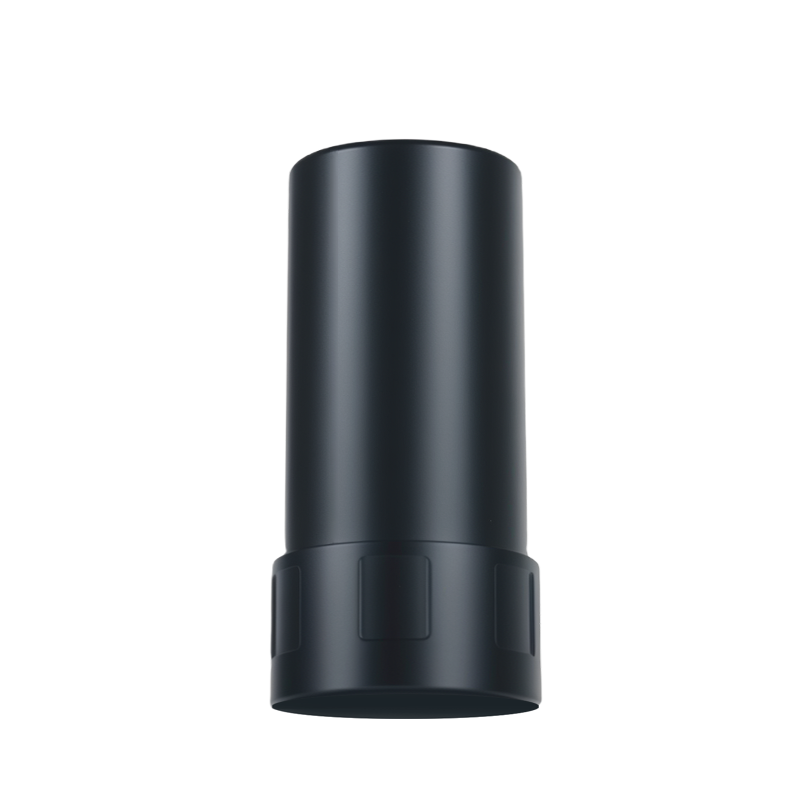

Model: JS-HAC27A-D2
Parameters: Antenna Type: Helical GNSS Active Antenna
Supported Satellite Systems: BDS, GPS, GLONASS, Galileo
Impedance: 50Ω
Polarization: Right-Hand Circular Polarization (RHCP)
Axial Ratio: ≤3dB
Horizontal Coverage: 360°
VSWR: ≤2.0
LNA Gain: 28±3dB
Noise Figure: ≤2.0dB
Operating Voltage: +2.8~3.3V DC
Dimensions: Φ28.2mm × H59.3mm
Weight: 16.7g
Connector: SMA Male Straight
Mounting SMA : Threaded Knob
Waterproof Rating: IP65 (with mated SMA connector)
Operating Temperature: -30℃ ~ +70℃
Storage Temperature: -35℃ ~ +75℃
Humidity: 0%~95% Non-condensing
GNSS Antenna

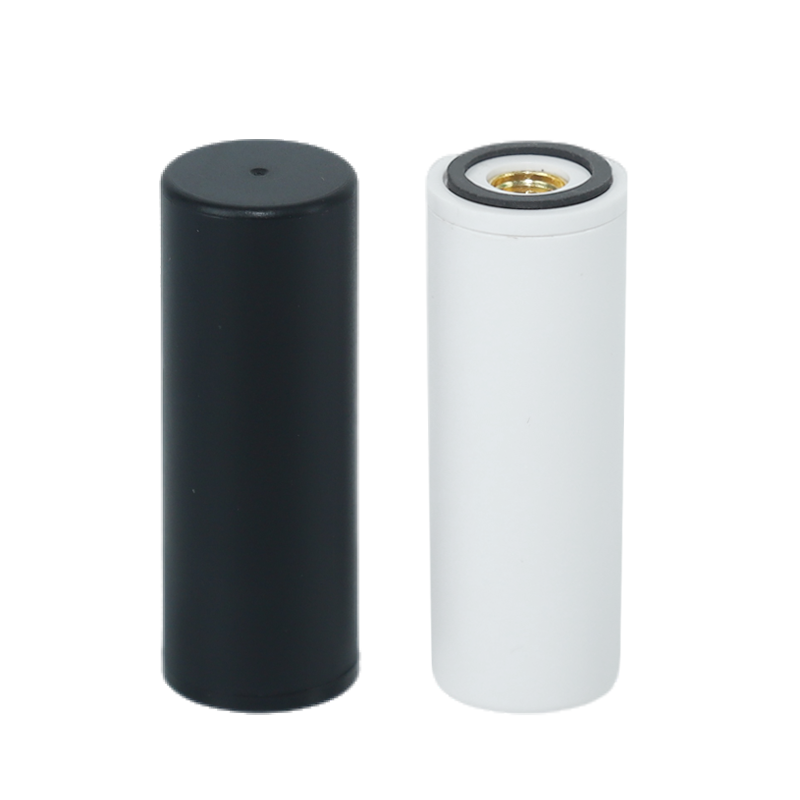

Model: JS-HAC18A-F
Parameters: Antenna Type: Helical GNSS Active Antenna
Received Signals: GPS(L1/L2/L5), BDS(B1/B2), GLONASS(G1/G3), Galileo(E1/E5a/E5b), QZSS(L1/L2/L5), SBAS(L1/L5), IRNSS(L5)
Impedance: 50Ω
Polarization: Right-Hand Circular Polarization (RHCP)
Axial Ratio: ≤3dB
Horizontal Coverage: 360°
VSWR: ≤2.0
LNA Gain: 33±2dB
Noise Figure: ≤2dB
Operating Voltage: +2.8~3.3V DC
Operating Current: ≤30mA
Dimensions: Φ18mm × H50.8mm
Weight: 10.8g
Connector: SMA Male Straight
Waterproof Rating: IP65 (with mated SMA connector)

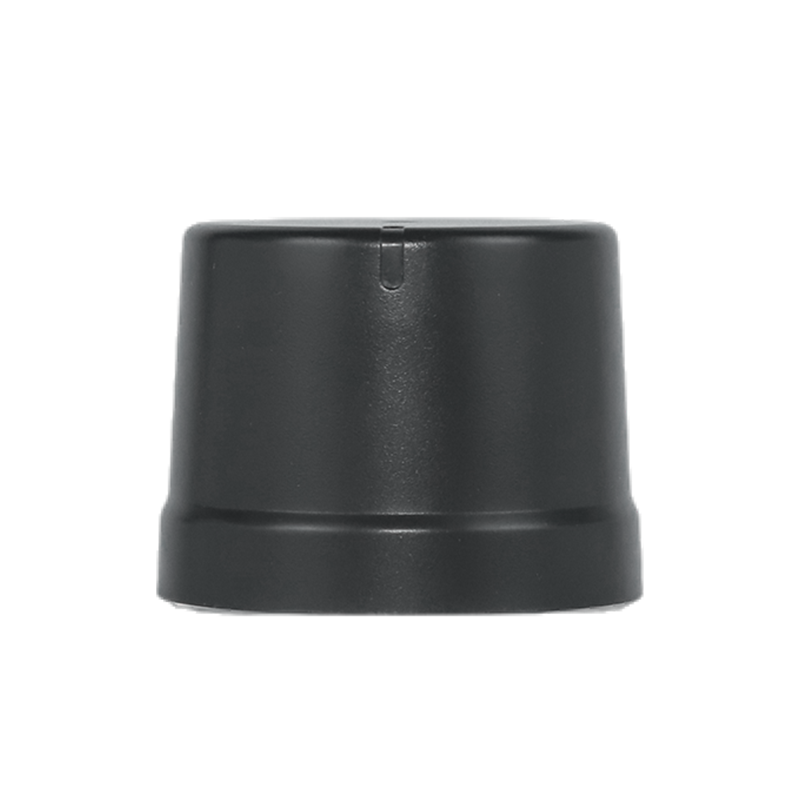

Smart Antenna

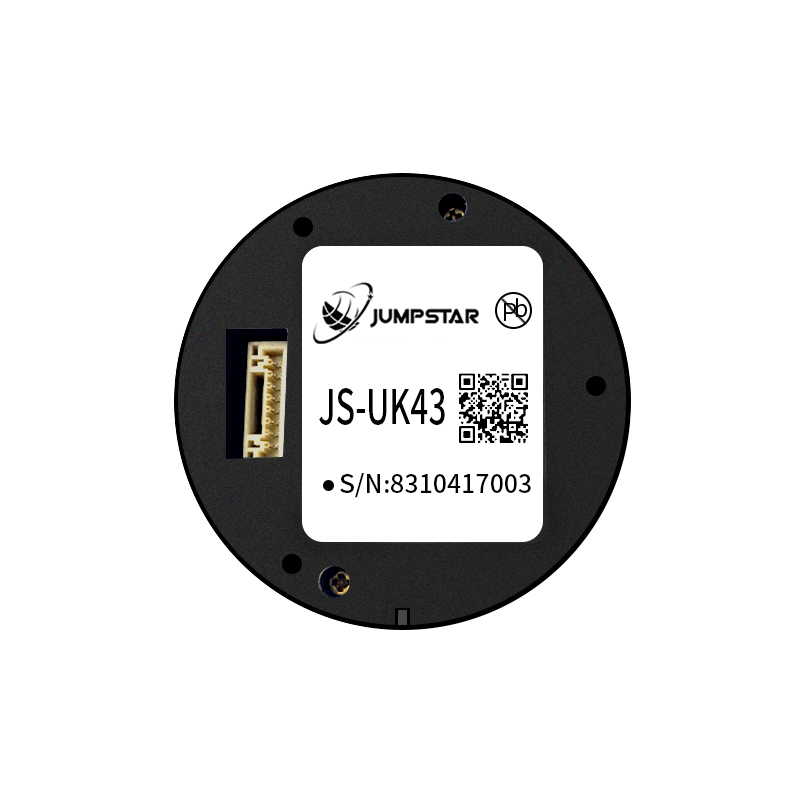

Model: JS-UK43
Parameters: Receiver Type: Multi-band multi-mode GNSS RTK positioning module
Supported Constellations & Signals: GPS/QZSS/SBAS:L1C/A,L2C; GLONASS:L1OF,L2OF; BDS:B1I,B2I; Galileo:E1,E5b
Channel Configuration: 192 search channels; 60 tracking channels
Sensitivity: Tracking:-167dBm; Reacquisition:-148dBm
Time to First Fix: Cold Start:25s; Warm Start:20s; Hot Start:2s
Positioning Accuracy: PVT:1.5m CEP; SBAS:1.0m CEP; RTK:2cm+1ppm(Horizontal)
Time & Speed Accuracy: 1PPS(RMS):30ns; Velocity:0.05m/s
Operational Limits: Dynamics≤4g; Altitude≤80000m; Velocity≤500m/s
Baud Rate: 9600~921600bps (Default:38400bps)
Max Update Rate: RTK(GPS):20Hz; Full GNSS:7Hz
Supported Protocols: NMEA 4.11/4.10/4.0/2.3/2.1; RTCM 3.3; UBX (proprietary)
Antenna: Passive antenna; Default:φ35mm×25mm
Interfaces: 8-pin:GND, TX2, RX2/PPS, SDA, SCL, TX1, RX1, VCC; 2×UART, I2C
Power Supply: 3.3~5.5V (Typical:5.0V)
Operating Current: Acquisition: 110140mA@5V; Tracking:110130mA@5V
Smart Antenna
Model: JS-SK43H-AH
Parameters: Receiver Type:Multi-band RTK positioning & heading smart antenna module
Supported Constellations & Bands:BDS:B1I/B1C/B2a/B2I/B2b/B3I; GPS:L1C/A/L1C/L2PY/L2C/L5; GLONASS:L1CA/L2CA/L2P/L3 CDMA; Galileo:E1/E5a/E5b/E6; QZSS:L1C/A/L1C/B/L2C/L5/L6*
Hardware Channels:789 channels
Sensitivity: Tracking:-150dBm(20dB-Hz); Acquisition:-140dBm(30dB-Hz)
Time to First Fix: Cold Start:35s; Warm Start:10s; Recapture:1s; RTK Initialization:7s(baseline<30km)
Positioning Accuracy(RMS): 3D:Horizontal 1.5m,Vertical 2m; DGNSS:Horizontal 0.4m,Vertical 0.7m; RTK:Horizontal 0.6cm+0.5ppm,Vertical 1cm+1ppm
Heading Accuracy: 1m baseline:Heading 0.15°,Pitch/Roll 0.25°; 5m baseline:Heading 0.03°,Pitch/Roll 0.05°
Time & Speed Accuracy: PPS:1.4ns; Event:<3ns; Speed:3cm/s; Delay:<10ms(99.9%)
Max Update Rate:20Hz
Baud Rate: 4800bps~4Mbps (Default:115200bps)
Supported Protocols: NMEA 0183(v2.3/v3.03/v4.0); SBF; RTCM3.X(MSM included)
Antenna: Active antenna; Default passive antenna:φ35mm×25mm; Aux antenna gain:15~35dB
Interfaces: 8-pin connector(GND/TX2/PPS-RX2/SDA/SCL/TX1/RX1/VCC); Dual MCX antenna ports
Power Supply: 4.8~5.5V (Typical:5.0V)
Operating Current: Acquisition: 135190mA@5V; Tracking:133175mA@5V
Operating Temperature:-40℃ ~ +85℃
Storage Temperature: -45℃ ~ +85℃
Humidity:95%
Mechanical Dimensions: 48.0mm × 43.2mm × 37.0mm ±0.3mm; Weight:<24g
Smart Antenna
Model: JS-RK43-3
Parameters: Receiver Type:Dual-band (L1+L5) GNSS high-precision positioning module
Supported Constellations & Bands:GPS:L1/L5; BDS:B1I/B1C/B2I/B2B/B2A; Galileo:E1/E5; GLONASS:G1; QZSS:L1/L5; IRNSS:L5
Channel Configuration:200 tracking channels + dedicated search engine
Sensitivity:Tracking:-165dBm; Re-acquisition:-159dBm; Hot Start:-159dBm; Cold Start:-148dBm
Time to First Fix:Cold Start:28s; AGPS:1.5s; Hot Start:1s
Positioning Accuracy:Single-point:Horizontal 1.5m, Vertical 2.5m CEP; RTK:Horizontal 1.0cm+1ppm, Vertical 1.5cm+1ppm CEP
Time & Velocity Accuracy:PPS:<20ns RMS; Velocity:0.1m/s CEP
Operational Limits:Dynamics≤4g; Altitude≤18000m; Velocity≤515m/s
Baud Rate:115200~921600bps (Default:115200bps)
Max Update Rate:10Hz (Default:1Hz)
Supported Protocols:NMEA 0183; RTCM3.X
Antenna:Integrated helical active antenna; Φ35.00mm×H25.00mm
Pin Interfaces:8-pin:GND, TX2, RX2/PPS, SDA, SCL, TX1, RX1, VCC
Power Supply: VCC:3.35.5V (Typical:5.0V); Backup:1.83.6V
Operating Current: Average:45~65mA@5.0V; Backup:14uA@3.3V
Operating Temperature:-40℃ ~ +70℃
Storage Temperature:-40℃ ~ +70℃
Smart Antenna
Model: JS-NK43-2
Parameters: Receiver Type：Multi-system multi-frequency RTK positioning + dual-antenna heading module
Supported Constellations & Bands：BDS:B1I/B2I/B3I; GPS:L1C/A/L1C/L2P(Y)/L5; GLONASS:L1/L2; Galileo:E1/E5a/E5b; QZSS:L1/L2/L5; SBAS
Channel Configuration： 1408 super channels
Time to First Fix：Cold Start:<30s (-130dBm, ≥12 satellites)
Positioning Accuracy (RMS)：3D:Horizontal 1.5m, Vertical 2.5m; DGPS:Horizontal 0.4m+1ppm, Vertical 0.8m+1ppm; RTK:Horizontal 1.5cm+1ppm, Vertical 2.0cm+1ppm
Time & Velocity Accuracy：Time(RMS):20ns; Velocity(RMS):0.03m/s
RTK Initialization Time：<5s (Typical)
Max Update Rate：20Hz
Baud Rate：9600~921600bps (Default:115200bps)
Supported Protocols：Data:NMEA 0183; Differential:RTCM3.3/3.2/3.1/3.0
Antenna：Integrated high-gain helical active antenna
Pin Interfaces：8-pin:GND, TX2, PPS/RX2, SDA, SCL, TX1, RX1, VCC
Power Supply：3.3~5.5V (Typical:5.0V)
Operating Current：180mA~310mA@3.3V
Storage/Operating Temperature：Storage:-40－85℃; Operating:-40－85℃
Humidity：95%
Mechanical Dimensions：48.0mm × 43.2mm × 37.0mm ±0.3mm
GNSS Antenna
Model: JS-HAC18A-F
Parameters: Antenna Type: Helical GNSS Active Antenna
Received Signals: GPS(L1/L2/L5), BDS(B1/B2), GLONASS(G1/G3), Galileo(E1/E5a/E5b), QZSS(L1/L2/L5), SBAS(L1/L5), IRNSS(L5)
Impedance: 50Ω
Polarization: Right-Hand Circular Polarization (RHCP)
Axial Ratio: ≤3dB
Horizontal Coverage: 360°
VSWR: ≤2.0
LNA Gain: 33±2dB
Noise Figure: ≤2dB
Operating Voltage: +2.8~3.3V DC
Operating Current: ≤30mA
Dimensions: Φ18mm × H50.8mm
Weight: 10.8g
Connector: SMA Male Straight
Mounting SMA: Threaded Mount
Waterproof Rating：IP65 (with mated SMA connector)
Operating Temperature: -30℃ ~ +70℃
Storage Temperature: -35℃ ~ +75℃
Humidity: 0%~95% Non-condensing
Compliance: RoHS
Smart Antenna
Model: JS-NK43-1
Parameters: Receiver Type: Multi-band multi-mode RTK GNSS positioning module (with INS integration)
Supported Constellations & Bands: GPS: L1C/A, L2C, L5; BDS: B1I, B1C, B2a, B2b, B3I; GLONASS: G1, G2, G3; Galileo: E1, E5a, E5b, E6; QZSS: L1, L2, L5; SBAS
Channel Configuration: 120 search channels + 80 tracking channels
Sensitivity: Tracking: -166dBm; Acquisition: -149dBm; Reacquisition: -160dBm
Time to First Fix: Cold Start: ≤30s; Warm Start: ≤12s; Hot Start: ≤1s; RTK Initialization: ≤6s (baseline <10km)
Positioning Accuracy: Single-point: Horizontal 1.8m, Vertical 3.5m (CEP, PDOP≤4); DGNSS: 0.4m; RTK: Horizontal 1cm+1ppm, Vertical 2cm+1ppm (RMS)
Inertial Navigation Parameters: IMU: Six-axis (3-axis gyro + 3-axis accelerometer); Gyro range: ±250°/s; Acceleration range: ±4g; Dead reckoning error: ≤3% of travel distance
Max Update Rate: RTK/Positioning: 20Hz; IMU: 50Hz
Baud Rate: 9600~921600bps (Default: 115200bps)
Supported Protocols: NMEA 0183 V4.1/V4.2; RTCM 2.X/3.X (MSM3~MSM7); Private binary protocol
Antenna: Built-in active antenna; φ42mm×28mm; Gain: 28~38dB; Impedance: 50Ω
Interfaces: 2×UART (TX/RX), I2C, 1PPS, RESET_N, VCC, GND, RF_IN
Power Supply: 4.5~5.5V (Typical: 5.0V)
Operating Current: Acquisition: 140~190mA@5V; Tracking: 130~180mA@5V; Standby: 25mA@5V
Operational Limits: Dynamics ≤4g; Altitude ≤20000m; Velocity ≤500m/s
Operating Temperature: -40℃ ~ +85℃
Storage Temperature: -40℃ ~ +105℃
Humidity: 95% (non-condensing)
Mechanical Dimensions: φ43.0mm×37.5mm±0.5mm
Compliance: RoHS, CE
Smart Antenna
Model: JS-MK43
Parameters: Receiver Type：Multi-band multi-mode GNSS RTK positioning module
Supported Constellations & Signals: GPS/QZSS:L1C/A,L2C; GLONASS:G1,G2; BDS:B1I,B2I(Incl. BDS-3)
Channel Configuration: 96 search channels; 60 tracking channels
Sensitivity: Tracking:-163dBm; Reacquisition:-147dBm
Time to First Fix: Cold Start:≤35s; Warm Start:20s; Hot Start:1s
Positioning Accuracy: Autonomous:2.0m CEP; DGNSS:0.5m CEP; RTK:2cm+1ppm(Horizontal)
Time & Velocity Accuracy: 1PPS(RMS):25ns; GNSS:0.1m/s; D-GNSS:0.05m/s
Operational Limits: Dynamics≤4g; Altitude≤18000m; Velocity≤515m/s
Max Update Rate: 10Hz (Default:1Hz)
Baud Rate: 115200~230400bps (Default:115200bps)
Supported Protocols: NMEA 0183 V4.0/V4.1; RTCM 3.X; JMS
Antenna: Integrated active antenna; Default:φ35mm×25mm
Interfaces: 2×UART, I2C, 1PPS, VCC, GND
Power Supply: 3.3~5.5V (Typical:5.0V)
Operating Current: Acquisition:130180mA@5V; Tracking:120170mA@5V
Operating Temperature: -40℃ ~ +85℃
Humidity: 95%
Mechanical Dimensions: Bottom diameter:47.2mm; Head diameter:42.3mm; Height:36.8mm±0.3mm
Compliance: RoHS compliant
Smart Antenna
Model: JS-CK43-2
Parameters: Receiver Type: Multi-band multi-mode RTK+INS integrated positioning module
Supported Signals: GPS:L1C/A,L1C,L2P,L2C,L5; BDS-2/3:B1I,B1C,B2a,B2b,B3I; GLONASS:G1,G2,G3; Galileo:E1,E5a,E5b,E6; QZSS:L1C/A,L2C,L5,L1C; IRNSS:L5; SBAS:L1C/A,L5
Sensitivity: Tracking:-155dBm; Acquisition:-140dBm
Time to First Fix: Cold Start:20s; Warm Start:10s; Loss Reacquisition:1s
Positioning Accuracy: Single-point:Horizontal 1.5m,Vertical 3m(1σ,PDOP≤4); RTK(RMS):Horizontal 0.8cm+1ppm,Vertical 1.5cm+1ppm
Measurement Accuracy: Pseudorange:≤10cm; Carrier phase:≤1mm
Timing & Velocity Accuracy: PPS(RMS):20ns; Velocity:≤0.02m/s
Inertial Parameters: Gyro:±125°/s,zero bias 0.5°/s; Acceleration:±2g,zero bias 20mg; Dead reckoning error:3%d
RTK Initialization: <5s (baseline length <10km)
PPP Performance: Initialization:20min; Accuracy:Horizontal 0.1m,Vertical 0.2m
Max Update Rate: Positioning/RTK:50Hz; IMU:100Hz
Baud Rate: 115200~921600bps (Default:115200bps)
Supported Protocols: NMEA 0183; CNB(private binary); CMR; RTCM2.X/3.X(MSM3~MSM7)
Antenna Integrated: Active antenna; φ35mm×25mm
Interfaces: 2×UART, I2C, PPS, VCC, GND
Power Supply: 4.8~5.5V (Typical:5.0V)
Operating Current: Acquisition:135185mA@5V; Tracking:125175mA@5V
Operating Temperature: -40℃ ~ +85℃
Humidity: 95%
Mechanical Dimensions: 48.0mm × 43.2mm × 37.0mm ±0.5mm
Compliance: RoHS compliant
GNSS RTK Receiver
Model: G27SH-AH
Parameters: Receiver Type: All-constellation all-frequency GNSS positioning & heading receiver
Supported Signals: GPS:L1C/A,L1C,L2C,L2PY,L5; BDS:B1I,B1C,B2a,B2I,B2b,B3I; GLONASS:L1CA,L2CA,L2P,L3; Galileo:E1,E5a,E5b,E6; QZSS:L1C/A,L1C/B,L2C,L5,L6; NavIC; SBAS
Hardware Channels: 789 channels
Sensitivity Tracking: 20dB-Hz; Acquisition: 30dB-Hz
Time to First Fix: Cold Start:<35s; Warm Start:<10s; RTK Initialization:7s
Positioning Accuracy: RTK:Horizontal 0.6cm+0.5ppm; Standalone:1.2m; DGNSS:0.4m
Heading Accuracy: 1m baseline:0.15°; 5m baseline:0.03°
Timing & Event Accuracy: xPPS:1.4ns; Event:<3ns
Signal Latency: 99.9% <10ms
Velocity Accuracy: 0.03m/s
Max Update Rate: 20Hz
Baud Rate: 4800bps~4Mbps (Default:115200bps)
Radio (Optional): 410~470MHz, Half Duplex, CSS, Sensitivity:-129dBm, Distance:5km
Power Consumption: Receive:0.170.18W; Transmit:0.180.5W
Power Supply: 3.5~12.0V (Typical:5V)
Operating Current: 172~193mA@5.0V
ESD Protection: 2000V (HBM)
Operating Temperature: -40℃ ~ +85℃
Protection Level: IP67 waterproof & dustproof
Interfaces: 2×UART, PPS, CAN, RF(TNC), GX12 aviation plug
Storage: Built-in TF card slot, max support 32GB
Compliance: RoHS compliant
Company Gallery
Certifications & Awards
Success Stories & Case Studies
Drone manufacturer
It delivers centimeter-level RTK positioning and high-precision attitude output without relying on magnetic sensors, performing reliably under both static and dynamic conditions. Equipped with industrial-grade AIM+ anti-jamming and anti-spoofing technology, it ensures stable operation in complex electromagnetic environments. It integrates TCXO, LNA and a 32GB TF card slot, and features rich interfaces including Ethernet, triple UART and Type-C. Supporting both base station and rover station modes, it is widely used in drones, precision agriculture, autonomous robots, autonomous driving and other high-precision positioning fields.
544 Hardware Channels: Simultaneously track all visible satellite signals for full-coverage positioning
Triple-Band Multi-Constellation: Supports GPS, BDS, GLONASS, Galileo, QZSS, NavIC, SBAS triple-frequency signals
Dual-Antenna High-Precision Heading: Heading accuracy up to 0.03°@5m baseline, no magnetic sensor dependency
100Hz Ultra-High Update Rate: Position & observation output at 100Hz, <10ms ultra-low latency
AIM+ Multi-Layer Anti-Jamming: AIM+/IONO+/Lock+/APME+/RAIM+ for stable positioning in complex environments
Rich Communication Interfaces: 3×UART, Ethernet, Type-C, TF card slot for flexible integration
High Integration Miniature Design: Built-in TCXO, LNA, 32GB TF card slot, compact 74×50×12.6mm size
Base/Rover Dual-Mode: Flexible switching between base station and rover station modes
Industrial-Grade Reliability: -40℃+85℃ wide temperature, 4.512V wide voltage input
Advanced Security: Supports OSNMA anti-spoofing, interference monitoring & spectrum measu
Company & Product Videos
Company Introduction & Factory Tour
⏱ Duration: 3:45 | 👁 Views: 15,230
Product Demonstration - Kestrel K-1
⏱ Duration: 5:12 | 👁 Views: 28,450
Technology Innovation Showcase
⏱ Duration: 4:30 | 👁 Views: 12,890
Customer Testimonials & Success Stories
⏱ Duration: 6:20 | 👁 Views: 9,650
Ready to Transform Your Life?
Contact us immediately to learn how our products meet your needs.
