About MUTRADE
Mutrade Industrial Corp. is one of the earliest professional mechanical parking solution providers in China. Our parking solutions not only enable the provision of additional parking spaces, but also improve the comfort and user-friendliness of the parking process.
our journey started in 2009, now Mutrade has grown to be one of the largest suppliers in the field. Our product portfolio covers parking lifts, semi-automatic parking systems and fully automatic parking systems, offering solutions from one to two cars to giant smart systems with hundreds of spaces. Either for new or existing buildings, our extensive range of products can be individually tailored case by case.
As of today, Mutrade has supported customers in over 100 countries, serving local governments, car dealerships, developers and property owners. Being the famous manufacturer of mechanical car parking equipment in China, Mutrade is committed to continuously supplying innovative and excellent products to become the leader in mechanical car parking solution providers.
Our Products

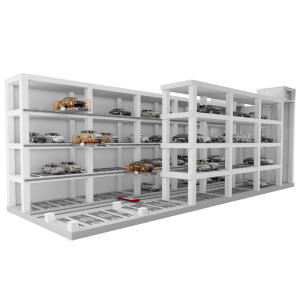

parking lift

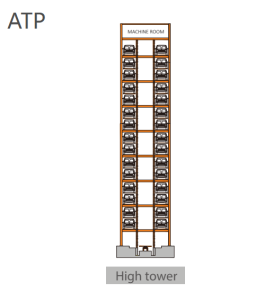

Model: ATP Series
Parameters: Vehicles parked per unit: 50-120
Rated lifting capacity: 2350kg
Allowed car length: 5300mm
Allowed car width: 1900mm
Allowed car height: 2050mm
Drive mode: hydraulic cylinder + chains
Lifting time: up to 120m/min
Operation: IC card, touch screen, or manual
Power supply: bespoke, 110-480v, 50/60hz
parking lift

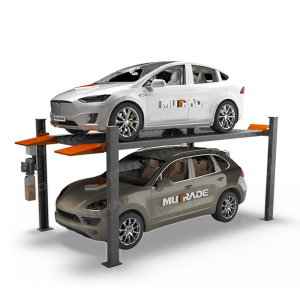

Model: Hydro-Park 2136
Parameters: Vehicles parked per unit: 2
Rated lifting capacity: 3600kg
Allowed car length: 4566mm
Allowed car width: 2560mm
Allowed car height: 2442mm
Drive mode: hydraulic cylinder + cable
Lifting time: ≤55s
Operation: key switch
Power supply: bespoke, 110-480v, 50/60hz
parking lift
Model: Hydro-Park 3230
Parameters: Vehicles parked per unit: 4
Rated lifting capacity: 3000kg
Allowed car length: 8912mm
Allowed car width: 2100mm
Allowed car height: 2000mm
Drive mode: manual with handle
Lifting time: 120s
Operation: key switch
Power supply: bespoke, 208-480v, 50/60hz
parking lift

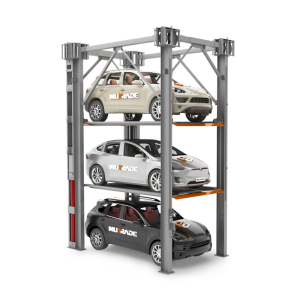

Model: Hydro-Park 3130
Parameters: Vehicles parked per unit: 3
Rated lifting capacity: 3000kg
Allowed car length: 6772mm
Allowed car width: 2070mm
Allowed car height: 2000mm
Drive mode: manual with handle
Lifting time: 80s
Operation: key switch
Power supply: bespoke, 208-480v, 50/60hz
parking lift

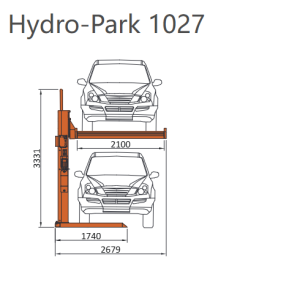

Model: Hydro-Park 1027
Parameters: Vehicles parked per unit: 2
Rated lifting capacity: 2700kg
Allowed car length: 4148mm
Allowed car width: 2679mm
Allowed car height: 2000mm
Drive mode: hydraulic cylinder + chains
Lifting time: 45s
Operation: key switch
Power supply: bespoke, 110-480v, 50/60hz

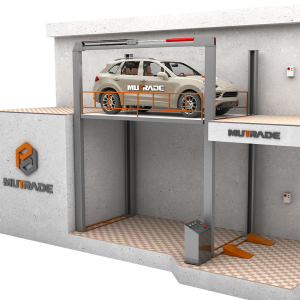

parking lift

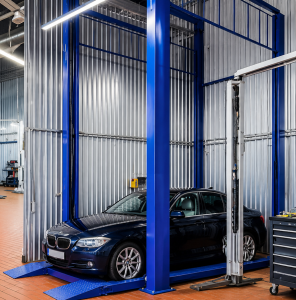

Model: FP-VRC
Parameters: Rated lifting capacity: 2000-10000kg
Allowed car length: 2000-6000mm
Allowed car width: 2000-5000mm
Allowed car height: 2000-13500mm
Drive mode: hydraulic(cylinder with double steel chains)
Lifting time: 4m/min
Operation: button switch (standard) / remote controller (optional)
Power supply: bespoke, 4 kw hydraulic power pump
parking lift

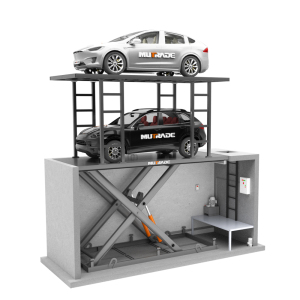

Model: S-VRC-2
Parameters: Vehicles parked per unit: 2
Rated lifting capacity: 3000kg
Allowed car length: 2000-6000mm
Allowed car width: 2000-3000mm
Allowed car height: 2000-6000mm
Drive mode: hydraulic cylinder
Lifting time: 4/min
Operation: push buttons (standard) / remote controller (optional)
Power supply: bespoke, 208-480v, 50/60hz
parking lift
Model: MLP Series
Parameters: Vehicles parked per unit: 50-120
Rated lifting capacity: 2350kg
Allowed car length: 5300mm
Allowed car width: 1900mm
Allowed car height: 2050mm
Drive mode: hydraulic cylinder + chains
Lifting time: up to 75m/min
Operation: IC card, touch screen, or manual
Power supply: bespoke, 110-480v, 50/60hz
parking lift
Model: ARP Series
Parameters: Vehicles parked per unit: 8-20
Rated lifting capacity: 2000kg for sedans / 2500kg for SUVs
Allowed car length: 5300mm
Allowed car width: 2100mm
Allowed car height: 1600mm / 2100mm
Drive mode: hydraulic cylinder + chains
Lifting time: 90s-150s
Operation: touch screen / IC card / button
Power supply: bespoke, 480v / 415v / 380v / 220v, 50/60hz
parking lift

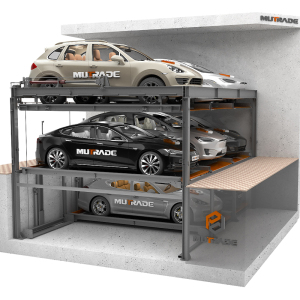

Model: Starke 3121 & 3127
Parameters: Vehicles parked per unit: 8
Rated lifting capacity: 2700kg
Allowed car length: 5000mm
Allowed car width: 1950mm
Allowed car height: 1700mm
Drive mode: hydraulic cylinder + chains
Lifting time: 8-12m/min
Operation: code & ID card
Power supply: bespoke, 200–450v, 50/60hz
parking lift

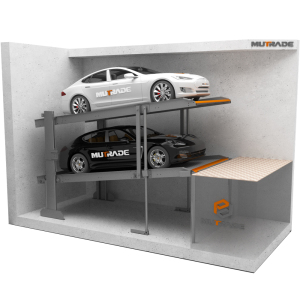

Model: Starke 2327
Parameters: Vehicles parked per unit: 2
Rated lifting capacity: 2700kg
Allowed car length: 5000mm
Allowed car width: 2050mm
Allowed car height: 1550mm
Drive mode: hydraulic cylinder + chains
Required ceiling height: >2700mm
Required pit depth: >1600mm
Operation: key switch
parking lift

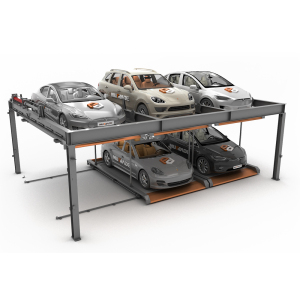

Model: BDP-2
Parameters: Vehicles parked per unit: >5
Rated lifting capacity: 2000kg/2500kg
Allowed car length: 5000mm
Allowed car width: 1850mm
Allowed car height: 1550mm/2050mm
Drive mode: hydraulic cylinder + wire rope
Lifting time: 8-12m/min
Operation: button & IC cards
Power supply: bespoke, 380v, 50/60hz
parking lift

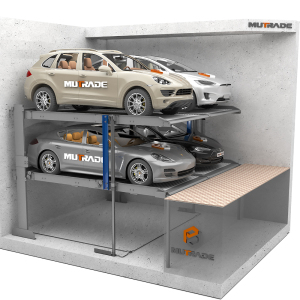

Model: Starke 2227
Parameters: Vehicles parked per unit: 4
Rated lifting capacity: 2700kg per car
Allowed car length: 5000mm
Allowed car width: 2050mm
Allowed car height: 1700mm
Drive mode: hydraulic cylinder + chains
Lifting time: 30s
Operation: key switch
Power supply: bespoke, 200–450v, 50/60hz
parking lift

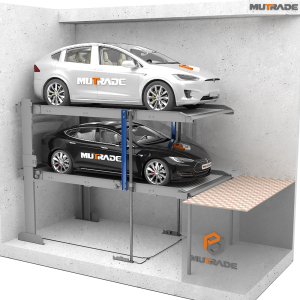

Model: Starke 2127
Parameters: Vehicles parked per unit: 2
Rated lifting capacity: 2700kg
Allowed car length: 5000mm
Allowed car width: 2050mm
Allowed car height: 1700mm
Drive mode: hydraulic cylinder + chains
Lifting time: 30s
Operation: key switch
Power supply: bespoke, 200-450v, 50/60hz
parking lift
Model: Hydro Park 2525 & 2625
Parameters: Vehicles parked per unit: 3
Rated lifting capacity: 2500kg 2F & 2000kg 3F
Allowed car length: 5060mm
Allowed car width: 2802mm
Allowed car height: 2050mm
Drive mode: hydraulic cylinder + chains
Lifting time: 68s
Operation: key switch
Power supply: bespoke, 110-480v, 50/60hz
parking lift
Model: TPTP-2
Parameters: Vehicles parked per unit: 2
Rated lifting capacity: 2000kg
Allowed car length: 5000mm
Allowed car width: 1850mm
Allowed car height: 1550mm
Drive mode: hydraulic cylinder
Lifting time: 24s
Operation: key switch
Power supply: bespoke, 220v, 50/60hz
parking lift
Model: Hydro-Park 1127 & 1123
Parameters: Vehicles parked per unit: 2
Rated lifting capacity: 2700kg & 2300kg
Allowed car length: 5000mm
Allowed car width: 1850mm
Allowed car height: 2050mm
Drive mode: hydraulic cylinder + chains
Lifting time: 50s
Operation: key switch
Power supply: bespoke, 110-480v, 50/60hz

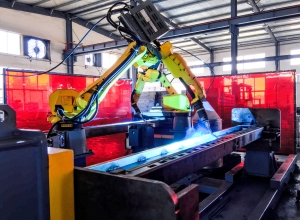

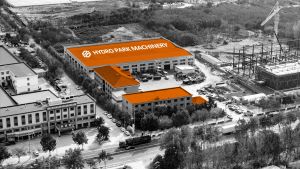

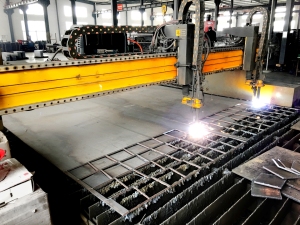

Company Gallery

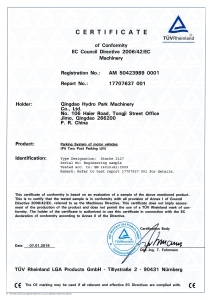

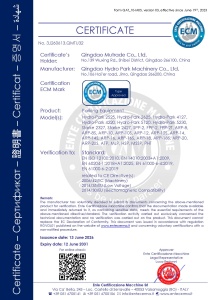

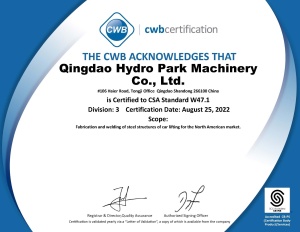

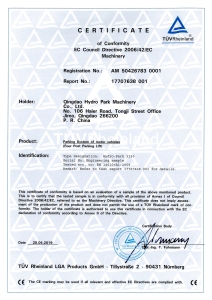

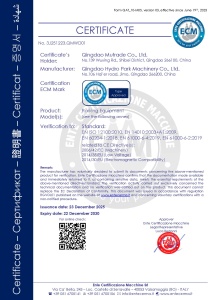

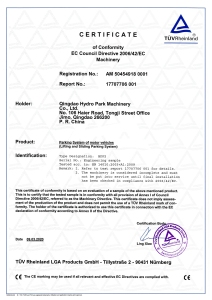

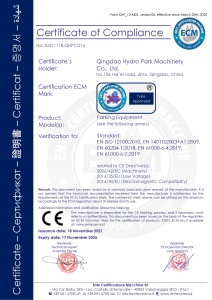

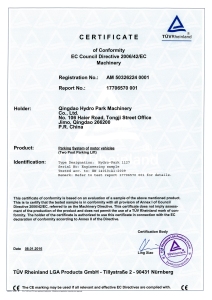

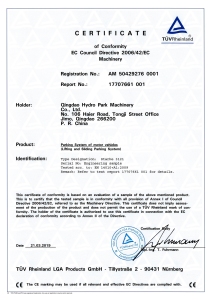

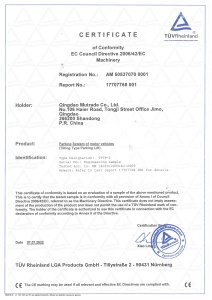

Certifications & Awards
Success Stories & Case Studies

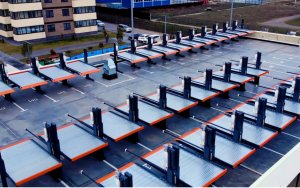

Residential complex developer
Achieved required number of parking spaces for the residential complex; doubled parking capacity within existing footprint; transformed previously insufficient parking into a fully functional facility
Model: Hydro-Park 1127 (2-post dependent parking lift)
2700kg lifting capacity per parking space
Lifts up to 2100mm height
Car height on ground: up to 2050mm
24V control voltage for electric shock protection
Hydraulic power pack: 2.2kW with rising/descending time <55s
Dynamic mechanical anti-falling lock with electric auto release
Column sharing feature saves cost, installation space, time, and transportation cost while making structure entirely stronger
Wave plate with anti-water/rust/slip properties and drainage function
AkzoNobel powder coating for rust protection
Professional packaging for efficient container loading and secure transport

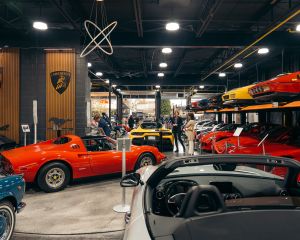

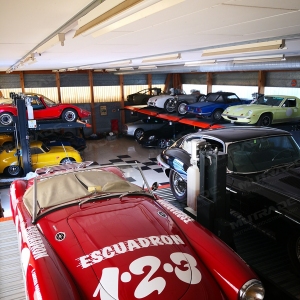

Luxury auto dealership
Doubled parking capacity within the existing footprint, enhanced visual display of vehicles for potential buyers, improved operational efficiency, streamlined vehicle retrieval process
Model: Hydro-Park 1127 (two-post dependent parking lift)
2700kg load capacity per parking space
Lifting height: 2100mm, allowing two vehicles to stack vertically
Hydraulic pump: 2.2kW with rising/descending time <55 seconds
Operation: key switch with 24V control voltage for safety
Safety lock: dynamic anti-falling lock with electric auto release
Sharing post feature allows tandem installations in minimum space
TUV compliant, CE certified with certification standard 2006/42/EC and EN14010
Galvanized waving platform with AkzoNobel powder coating for durability
Supports vehicle dimensions: up to 5000mm (L) × 1850mm (W) × 2050mm (H)
Suitable for both indoor and outdoor installation

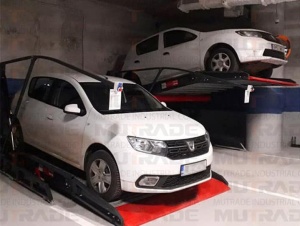

Residential complex / property developer
Doubled parking capacity within the same footprint, overcame challenges of low ceilings and restricted spatial configurations, transformed seemingly unusable low-ceiling spaces into efficient parking facilities

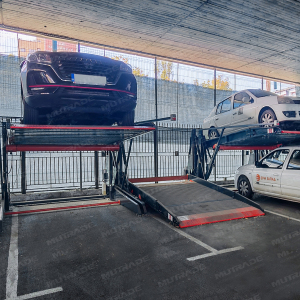

Model: TPTP-2 tilting two-post parking lift
Minimum ceiling height requirement: only 2900mm – specifically designed for low-ceiling underground environments
2000kg lifting capacity (sedans only, upper platform weight capacity)
10° tilting platform design maximizes space in height-restricted areas
1600mm lifting height, 2100mm usable platform width
Hydraulic drive with 2.2kW pump, rising/descending time <35 seconds
Operation mode: Key switch with 24V control voltage for safety
Mechanical anti-falling lock and electric auto lock release
Self-standing structure can be moved or relocated
Galvanized platform with anti-slip wave plate; rust-proof finishing suitable for indoor/outdoor use
Municipal urban infrastructure developer
Transformed previously "unusable" space under a bridge into 90 parking places; overcame challenges of 3.1–3.3m ceiling height, 8% ground slope, and structural columns
Model: TPTP-2 tilting two-post parking lift
Minimum ceiling height requirement: only 2.9 meters (lowest in the industry for dependent parking systems)
Platform tilts up to 10° to compensate for ground slope, keeping vehicle perfectly horizontal
2000kg lifting capacity (sedans only)
Rising / descending time: <35 seconds
Hydraulic drive with 2.2kW pump and dual lifting cylinders
Self-standing structure – can be relocated, requires no permanent installation
Galvanized platforms with IP65-rated weatherproof components for outdoor durability
Mechanical anti-falling lock and emergency shut-off via key switch
Independent operation – each unit works separately
Ultra-compact footprint fits easily between bridge columns

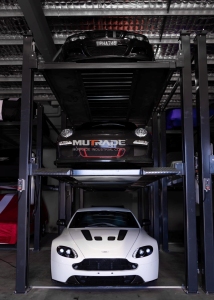

Car storage business / commercial parking facility
Tripled parking capacity within existing footprint, optimized limited space, maintained ease of access and vehicle safety
Model: Hydro-Park 2525 (4-post 3-level hydraulic car stacker)
Capacity: Ground floor unlimited, 2nd floor 2500kg, 3rd floor 2000kg
Clear height 2100mm on each floor, accommodating SUVs and standard vehicles
Hydraulic cylinder with wire ropes for smooth vertical movement
Safety features: dynamic anti-fall lock, lock release failure detection, semi-auto lock release, emergency stop button
TUV Rheinland & EAC certified, meeting strict safety standards
Self-standing & supportive structure for flexible installation
Powder coating finishing with Akzo Nobel for corrosion resistance

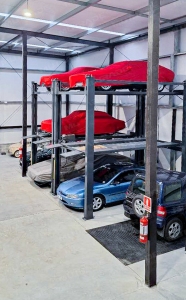

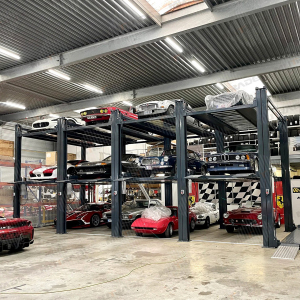

Auto shop / automotive repair and storage facility
Tripled storage potential, streamlined workflow, optimized floor space utilization, improved productivity in daily repairs and maintenance tasks
Model: Hydro-Park 2525 (Triple Stacker / 3-level four-post parking lift)
2500 kg capacity per unit (2nd floor: 2500kg, 3rd floor: 2000kg, ground floor unlimited)
Dual-cylinder hydraulic system for smooth and balanced lifting
Compact footprint for seamless integration into tight spaces
Galvanized platforms with anti-slip surfaces for durability
Slim control arm with electric key switch for user-friendly operation
Safety features: anti-fall locks, emergency stop button, dynamic anti-falling lock system
Lifting speed: 4000mm/min (no-load) with 3.0kw hydraulic pump
TUV Rheinland, EAC Certified
Available for both indoor and outdoor installation

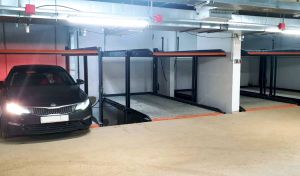

Residential development / property developer
Doubled parking capacity, optimized land use, seamless access to both lower and upper level vehicles without moving any car, met regulatory standards effortlessly
Model: Starke 2127 (2-post pit parking lift)
2700 kg lifting capacity per parking space
Independent parking access – no need to move lower car to reach upper vehicle
Zero energy consumption during descent, reducing operational costs
Hydraulic system with German structure design – stable, reliable, maintenance-free
Enhanced safety features: anti-fall locks and emergency stop mechanisms
Compact dimensions: 2300 mm platform width (standard), 1750 mm pit depth (standard)
Customizable design for integration into residential or commercial spaces
Available car size: up to 5000mm (L) × 2050mm (W) × 1700mm (H)
TUV, EAC compliant

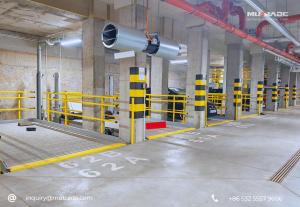

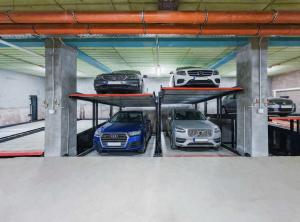

Residential and Commercial Complex (Underground parking facility)
Doubled parking capacity from 50 to 100 spaces without expanding the footprint, reduced traffic congestion, eliminated parking search frustration, preserved original ceiling height and layout, provided independent access to each vehicle without moving others
Model: Starke 2127 (2-post parking lift with pit)
2700kg lifting capacity per parking space
Independent parking: no need to move lower car to access the upper one
Centralized hydraulic power pack for cost-effectiveness
5.5kW hydraulic pump, <55s rising/descending time
Dynamic anti-falling safety lock with electric auto release
Available car size: up to 5000mm (L) × 2050mm (W) × 1700mm (H)
Pit depth: from 1750mm standard
Galvanized platform plates with Akzo Nobel powder coating
Designed for indoor use only, CE compliant
Zero new construction required - retrofitted into existing underground structure

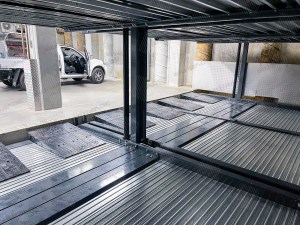

Residential facility (apartment complex)
Stable operation, revolutionized private garage parking, maximized parking capacity without sacrificing convenience
4 independent parking spaces (no need to move lower cars to access upper ones)
2700kg load capacity per parking space
TUV compliant with certification standard 2013/42/EC and EN14010
German-designed hydraulic system for stable, reliable, maintenance-free operation with doubled service life
Galvanized pallet with Akzo Nobel powder coating for enhanced aesthetics and extended lifespan
Dynamic anti-falling safety lock with electric auto release
All bolts and nuts pass 72-hour salt spray test
Allowed vehicle size: 5000 x 2050 mm, max vehicle height 1700 mm
Reduced failure rate by 50% with new control system design

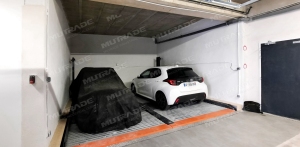

Private garage owner / residential
Revolutionized private garage parking, maximized parking capacity without sacrificing convenience
Model: Starke 2227 (2-post double platform pit parking lift)
2700 kg load capacity per parking space
Lifting speed: <55 seconds
Allowed vehicle size: 5000 x 2050 mm
Motor power: 5.5 kW / 7.5 kW hydraulic pump
Operation: key switch
Power supply: 200V–480V, 3 phase, 50/60 Hz
Galvanized pallet with power coating finish (Akzo Nobel) for enhanced aesthetics and extended lifespan
Wide range of colors available
Cable anti-falling system with high-quality Korean chains
Embedded mechanical anti-fall system
All bolts and nuts pass 72-hour salt spray test
Indoor installation

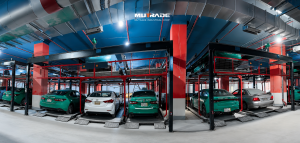

Office building parking
Addressed critical space limitations, significantly enhanced functionality and convenience, effectively addressed initial parking shortage, improved accessibility for employees and visitors
Model: BDP-2 hydraulic two-level semi-automatic puzzle parking system
926 parking spaces created
Indoor installation
Accommodates 5 to 29 vehicles per system configuration
Stacks two cars vertically to maximize space utilization
Key benefits: large capacity, improved drive system, extended platform, anti-fall frame, improved safety, additional security
Ideal solution for urban office complexes with limited ground space

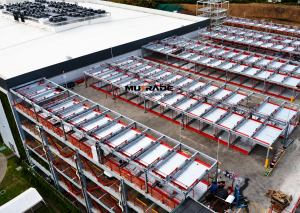

Business district
Maximized available parking area without compromising modern aesthetic, added 216 efficient and innovative parking spaces
Model: BDP-2 semi-automated puzzle parking system
2 vertical levels for independent parking
Horizontal layout: 3 to 10 grids wide
Vehicle types: sedan and/or SUV
Operation: ID card or key fob
Installed on the roof for optimal space utilization
15+ safety devices (card reader, alarm lamp & buzzer, entrance detection, positioning limit switches, over voltage protection, adjustable car stopper, anti-falling frame, motor overloading protection, self-locking protection)
Simple & smart control: code entry or card swipe
Underground facility owner (Bucharest underground parking)
Addressed space constraints in urban basements, enabled installation in shallower pits and lower headroom, reduced excavation and waterproofing expenses, faster ROI
Model: Starke 2327 (2-post tilted parking lift with underground level)
2700 kg lifting capacity per vehicle
2 cars per unit (independent parking — no need to move lower car to access upper one)
Minimum pit depth: only 1600 mm
Minimum ceiling height requirement: 2700 mm
Usable width: max 2600 mm
Vehicle height: up to 1550–1700 mm
Hydraulic system with overload protection
CE certified
Ideal for retrofitting old buildings with height limitations under 3 meters

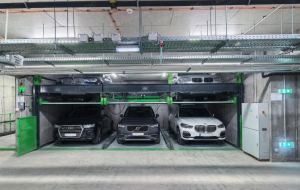

Commercial area / parking operator (key commercial area in Bucharest)
Transformed underutilized areas into revenue-generating assets, optimized vertical space, reduced operational bottlenecks
Model: Starke 3121 puzzle parking system
3 vertical levels (-1+2: one below ground, two above)
2100 kg per parking space (2700 kg capacity available for this model)
Minimum pit depth: 1800 mm / Minimum ceiling height: 3560 mm
Operation: ID card or key fob
Vehicle type: Sedan
Hydraulic synchronization with advanced anti-fall safety
Over 20 built-in safety devices
Transmission safety factor of 7
Pre-fabricated components for simplified installation

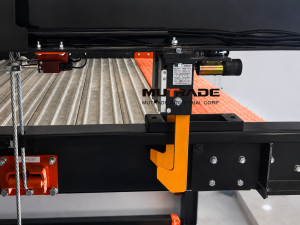

Residential developer
Maximized parking capacity within limited space, exceeded expectations, seamless integration into residential environment
Model: Starke 3127 Drive-Through Type Puzzle parking system
3 vertical levels (one in pit + two above)
Horizontal layout: 2 grids wide, 2 rows
2700 kg load capacity per parking space
Vehicle types: sedan and/or SUV
Operation: ID card or key fob
Minimum pit depth: 1800 mm / Minimum ceiling height: 3560 mm
Variable arrangements: 5 to 29 cars
Over 20 safety devices
Transmission system with safety factor of at least 7
Hydraulic driven for smooth and efficient movement
Puzzle-like mechanism rearranges vehicles internally

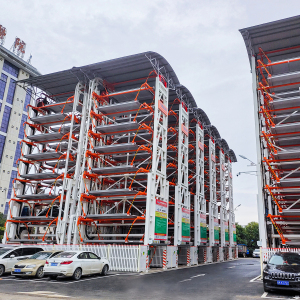

Municipal parking facility, government parking
Solved parking problems at the hospital, provided seamless parking for all stakeholders
Capacity: 16 parking speces on minimal footprint
Load capacity: 2500 kg per parking space
Model: ARP-16S
Environmentally friendly (less pollution, no exhaust fumes)
Land-saving automated parking system
Low maintenance costs and less energy consumption than conventional parking
Recovers real estate for rentable areas using only half the land
Max retrieval time: 145 seconds
Power: AC 3 phase 50/60 Hz
Control: Button / IC card (optional)
Features: rain shed, car door stopper, wind and earthquake resistant structure, automatic door

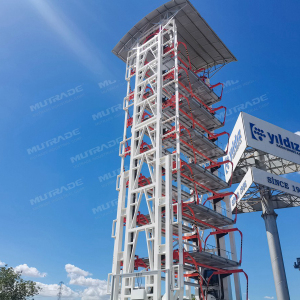

Commercial facility owner
Space optimization, increased parking capacity, enhanced safety, improved efficiency, environmental benefits, cost-effectiveness
Capacity: 16 SUVs
2500 kg weight capacity per parking spot
Installation time: only 14 days
Wind resistance: level 10 / Earthquake resistance: level 8
Individual operating card for each parking space ensures vehicle safety
Features: rain shed, car door stopper, protective fence, automated door for anti-theft security
Rotary design efficiently utilizes vertical space, reducing land footprint compared to flat parking

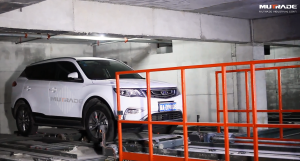

Shopping mall
Eliminated frustration of circling for parking spots, maximized parking capacity, provided top-of-the-line security, environmentally friendly operation
156 parking spaces on 3 underground levels
2 access units with forward in, forward out access mode
IC card / automatic / semi-automatic / manual operation modes
Supports two vehicle height options (1.55m and 2.05m)
Maximum car weight <2350 kg
Reduced traffic congestion and emissions from idling cars
Enhanced user experience with stress-free automated parking
Only authorized users can access the parking area

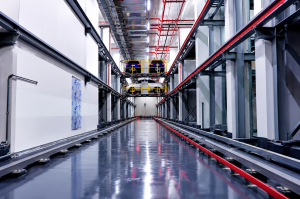

Residential complex / commercial complex
Increased parking capacity, improved security, reduced traffic congestion, enhanced user experience, lower environmental impact
Underground & aboveground floors choreographed as one seamless system
Fully automated shuttle system with horizontal and vertical movement
Drivers never drive inside the garage — no circling, no hunting for spots
Sensors automatically measure vehicle (width, length, height)
IC card authentication for retrieval
Average retrieval time measured in seconds
Supports sedan and/or SUV vehicle types
Combines elevators and horizontal shuttles that work in parallel

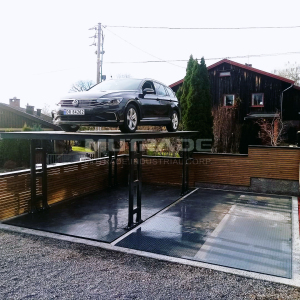

Private client / residential property
Boosted parking capacity, maintained aesthetic appeal of the property, optimized space usage, expanded and attractive parking space
Doubles parking capacity in the same footprint compared to flat parking
6000 kg total lifting capacity
Max lifting height: 13 m, Max platform width: 5000 mm, Max platform length: 6000 mm
Underground invisible design preserves property aesthetics
Seamless parking experience eliminates maneuvering in tight spaces
Supports double, triple, or quad parking capacity

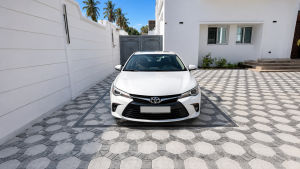

Private client / residential (private parking property)
Increased parking capacity twofold, optimized space efficiently, maintained sleek and modern landscape design
Double platform twin-configuration (parks 2 cars independently)
Up to 3000kg load capacity per parking space
Drive-through design with ground-level alignment when lowered
Customizable width, length, travel, and capacity
Multiple safety features (limit switch, overload protection, photocell sensor, emergency stop, etc.)
Aesthetic appeal with customizable top platform
Automotive dealership
Smooth vertical transportation, optimized space usage, enhanced functionality of service and showroom areas
4000 kg lifting capacity
Super-high speed lifting system (4 m/min)
Double chain hydraulic system
Handles vehicles up to 6 tons
Can double as a parking platform
Cost-effective alternative to concrete ramps
Tailor-made to fit shaft dimensions or vehicle size

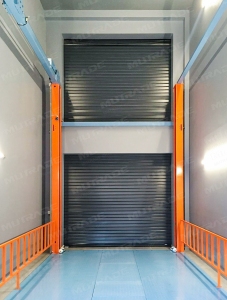

Business facility
Seamless vertical vehicle movement, optimized space for storage and operations, minimized workflow disruption, avoided high costs of concrete ramps
2000kg–6000kg lifting capacity
Suitable for large SUVs
Anti-slip checkered steel platform
Hydraulic drive with double chains
Zero electricity consumption during descent
Customizable dimensions, height, color
CE approved
Indoor installation with ramp or pit options
Company & Product Videos
Company Introduction & Factory Tour
⏱ Duration: 3:45 | 👁 Views: 15,230
Product Demonstration - Kestrel K-1
⏱ Duration: 5:12 | 👁 Views: 28,450
Technology Innovation Showcase
⏱ Duration: 4:30 | 👁 Views: 12,890
Customer Testimonials & Success Stories
⏱ Duration: 6:20 | 👁 Views: 9,650
Ready to Transform Your Life?
Contact us immediately to learn how our products meet your needs.
