Direct answer: A cable-guided windproof roller blind is an outdoor zip screen that uses a 4.0 mm stainless steel cable guide instead of a vertical side rail. In the NEWHOO DK120-63 configuration, it is specified for widths of 0.7–3 m and heights up to 5 m, with motorized, bead-chain or hand-crank operation. It is the right starting point when the wall or post does not provide a side-rail fixing condition. It is not, by itself, evidence of CE compliance or Class 12 wind performance; those claims must be verified for the exact model and project.

Outdoor project reference. Cable-guided blinds are selected when side-rail fixing is not available; wind class and certification must be confirmed per model.

Problem Definition: When a Side-Rail Zip Screen Cannot Be Fixed

Outdoor zip screens usually rely on vertical side rails to hold the fabric edge, guide the zipper and resist wind load. That architecture works well when the opening has two solid vertical returns. It becomes a constraint when the project has only a wall, a post, a glass edge, a decorative facade or a recessed opening where a side rail cannot be fixed cleanly. In those conditions, a cable-guided system replaces the side rail with a stainless steel cable guide.

The commercial problem is not simply choosing a different guide. Buyers in the research and evaluation stage must compare four things at the same time: whether the guide is physically suitable for the opening, what width and height the model actually supports, which wind and cycle-life evidence exists for that model, and what compliance documents are available for the destination market. A cable-guided blind can solve the fixing problem while still creating a documentation gap if the buyer assumes that a patent, an ISO certificate or a general wind test applies to every model.

That is the reason this guide treats the cable-guided windproof roller blind as a specification decision, not a catalogue shortcut. The DK120-63 is a real configuration with defined dimensions and materials. The buyer's task is to confirm that those facts match the opening, the wind exposure and the market requirement before order release.

Industry Background: Why Outdoor Shading Is Being Specified More Carefully

The wider blinds and shades market is projected to reach USD 17.3 billion by 2026, with North America accounting for 39.3% of revenue in 2024, according to Grand View Research. External blinds, the segment closest to windproof roller blinds, were estimated at USD 10.77 billion in 2024 and forecast to reach USD 18.13 billion by 2035, according to Market Research Future. Automated window blinds are forecast to reach USD 7.6 billion by 2030 at a 9.1% CAGR, according to Cognitive Market Research.

Those figures matter to buyers because they show two different pressures. External shading is growing as a category, while automation is growing faster than the overall blind market. For a project buyer, the practical result is that suppliers are being asked for more than a fabric and a tube. They are being asked for motor integration, wind evidence, cycle-life data, installation logic and market documentation.

Trade cost is another constraint. For 2026, the standard HS code for roller blinds is 6303.12.00, with a US import duty of 11.3% and an EU/UK duty of 12%. That duty is not the product price, but it belongs in the landed-cost model. A buyer comparing China zip screen suppliers for CE-compliant outdoor blinds should therefore separate product compliance from customs duty and from factory system certification. They answer different questions.

Detailed Solution: What the DK120-63 Cable-Guided System Includes

NEWHOO (Guangzhou Newhoo Technology Co., Ltd.) is a Guangzhou-based manufacturer of windproof roller blinds, awnings and sliding screen doors, established in 2015. Its DK120-63 cable-guided zip screen is an outdoor shading and blackout product for home, hotel and office outdoor applications, as well as residential and commercial building projects. The key specification is the guide: a 4.0 mm stainless steel cable guide replaces the side rail.

The DK120-63 uses a 120 × 120 body mounting bracket and a Φ63 roller tube. The bottom rail is a 50 × 20 mm semi-circular bottom rail. A decorative panel is referenced as 11680. The mounting bracket is made of #45 high-quality steel plate. The decorative panel, bottom beam and Φ63 roller tube are made of 6063-T5 aluminium. Metal parts use outdoor powder coating. The fabric is PVC polyester or fibreglass sun screen fabric with 0–50% openness and a tensile strength greater than 2000 N. The stated cycle life is greater than 10,000 times. The working voltage is AC 230 V 50 Hz, and the working temperature range is -20°C to 65°C.

Operation can be motorized, bead chain or hand crank. The model is specified for widths of 0.7–3 m and heights up to 5 m. That makes it a targeted solution for openings where a side rail cannot be installed, rather than a universal replacement for every outdoor zip screen. For wider openings, the side-rail WR120A or WR120E families extend to 5.4 m width depending on the roller tube, but they require side-rail fixing conditions. For pergola posts, the WR110A/WR110B pergola-specific zip screen is the closer match. For glass roofs and sunrooms, the SR-150A/SR-150B sunroom skylight awnings are a different product category.

Certification and evidence status

The DK120-63 is listed among covered products for Chinese Utility Model ZL 2023 2 1319083.4, a frame-mounted zip screen system patent issued by the China National Intellectual Property Administration. That patent is an intellectual-property record, not a CE certificate and not an EN 13561 product compliance certificate. NEWHOO also holds ISO 14001 Environmental Management System Certification 46625E110299R0S, issued by Shenzhen Zhongxin Certification and Testing Co., Ltd. under GB/T 24001-2016 / ISO 14001:2015, valid from 2025-09-12 to 2028-09-11. Its scope covers environmental management activities related to the research and development and production of windproof roller blinds and the production of windproof roller shutter accessories. ISO 14001 is a factory environmental management certificate, not a product CE mark.

The supplied corpus also contains Class 12 wind-resistance test reports for the WR120A outdoor zip screen (report 24J00783-JAALB-2400179) and the WR100A universal zip screen (report 24J00783-JAALB-2400178), issued on 2024-11-08 by Guangzhou Testing Centre of Construction Quality & Safety Co., Ltd. under GB/T 29007-2013, JG/T 239-2009 and the Windproof Roller Blinds Structure Performance Test Procedure. The corpus does not list a Class 12 test report specifically for DK120-63. If a project specification requires Class 12 for the cable-guided opening, the buyer should either request model-specific test evidence or evaluate a side-rail model that is documented for that class.

Step-by-Step Breakdown: How to Specify a Cable-Guided Windproof Roller Blind

1. Define the opening and the fixing condition. Confirm whether the project has a wall, post or edge that cannot accept a vertical side rail. The DK120-63 is intended for outdoor wall or post conditions where side-rail installation is not available.
2. Check the guide architecture. The DK120-63 uses a 4.0 mm stainless steel cable guide. Record the anchor positions, cable path, bottom-rail clearance and any decorative panel requirement. Do not copy a side-rail detail onto a cable-guided opening.
3. Confirm size against the model limit. The DK120-63 is specified for width 0.7–3 m and height up to 5 m. If the opening exceeds those limits, move to a different model rather than forcing the cable-guided product into an unsupported size.
4. Select fabric openness for the use case. The available fabric is PVC polyester or fibreglass sun screen fabric with 0–50% openness. Full blackout, semi-transparent and view-through requirements should be matched to the project's shading, heat and privacy needs.
5. Select the operation method. DK120-63 supports motorized, bead-chain and hand-crank operation. For motorized projects, confirm the AC 230 V 50 Hz supply and the control interface. Smart-home interfaces are available on NEWHOO motorized ranges, but the exact interface must be confirmed per order.
6. Build the evidence pack. Request the model drawing, material list, fabric specification, cycle-life statement and any wind or compliance document that applies to the exact model. For EU or UK projects, separate CE/EN evidence from ISO 14001 and from Chinese patent records.
7. Validate with a sample or trial. NEWHOO supports single-set prototyping and small-batch trial production for ODM custom projects. Standard OEM finished-product bulk MOQ starts from 50 sets; ODM custom bulk MOQ starts from 100 sets. Bulk production is typically 15–30 days, with urgent orders expedited when scheduling allows.
8. Plan installation and after-sales. Cable-guided systems depend on correct cable anchoring and bottom-rail alignment. NEWHOO states a 5-year warranty on parts and structural components and a 1-year motor warranty, with installation video guidance, remote technical support and 24-hour response.

Fabric testing reference. Fabric tensile strength and openness should be confirmed against the project requirement.

Use Cases: Where Cable-Guided Outdoor Blinds Fit

Residential balconies and villa terraces. A cable-guided blind is useful where the balcony has a solid wall or post but no clean vertical return for a side rail. It provides outdoor shading and blackout without changing the facade with a full side-rail frame.

Hotel exteriors and F&B terraces. Hotel building exteriors and outdoor dining areas often need shading without visible side rails. The cable guide keeps the opening visually lighter, but the project must still confirm wind exposure and the cable anchor detail.

Office facades and commercial projects. For office facades where a side-rail fixing is not possible, the cable-guided system can be evaluated as an outdoor shading layer. However, large commercial facades often require wider or higher models; the WR120-140A extra-wide commercial zip screen is specified for 6–30 m width, and the WR160-190 extra-high extra-wide model is specified for 6–20 m width and height below 10 m. Those are side-rail systems and should not be confused with the DK120-63 cable-guided range.

Adjacent product decisions. For pergola posts, use the WR110A or WR110B pergola-specific zip screen rather than a cable-guided model. For sunroom skylights, use the SR-150A or SR-150B sunroom skylight awning with FGS dual-spring drive and 316 stainless steel wire. For door openings that need insect protection, the VRM70 and VRW100 flat-push retractable screen doors are separate products. For projection shading over shopfronts or terraces, a folding arm retractable awning is the relevant category, not a vertical zip screen.

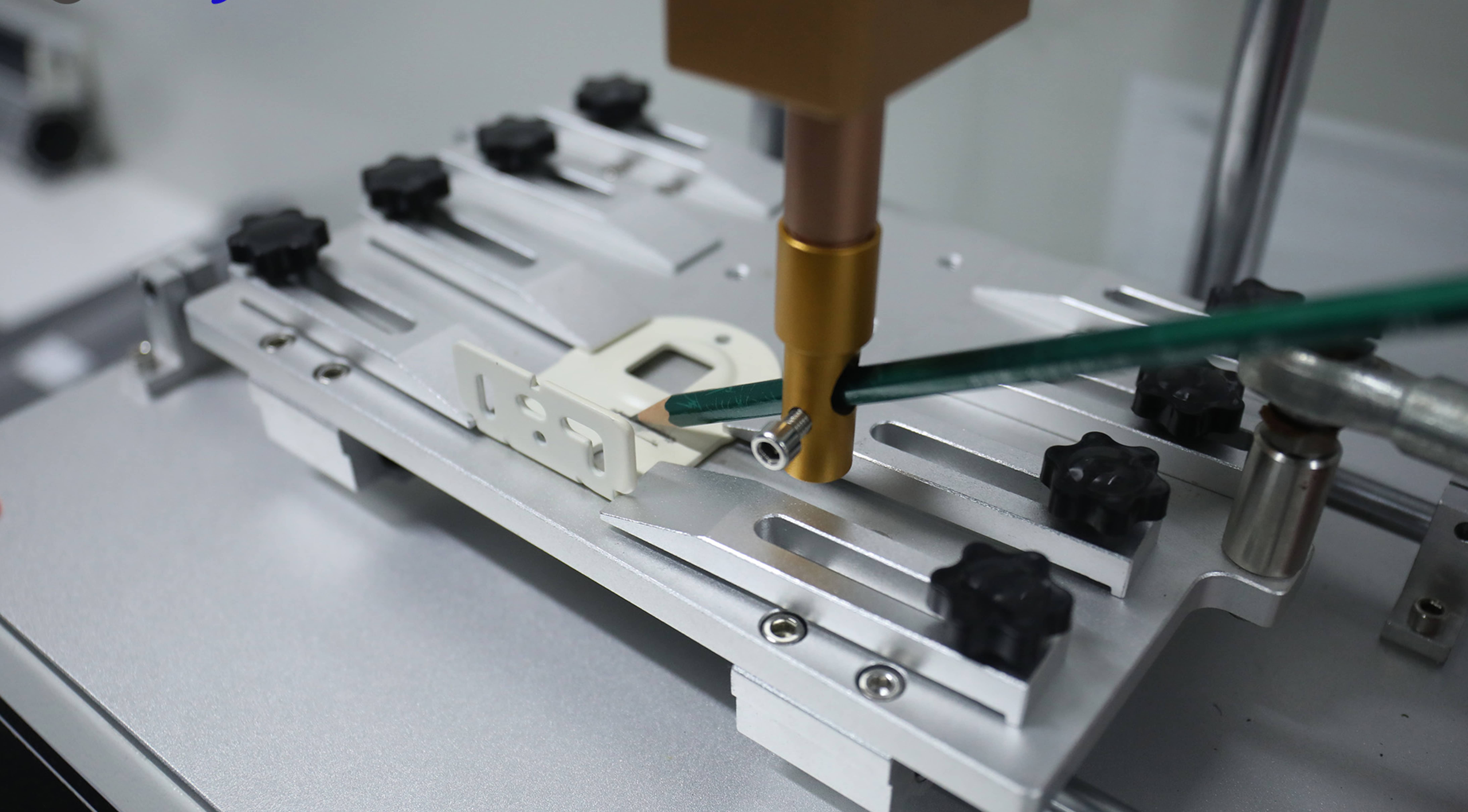

Component testing reference. Critical parts and assembly interchangeability should be reviewed before project release.

Comparison Table: Cable-Guided vs Side-Rail Outdoor Zip Screens

Table notes: values are from the supplied product specification units. The DK120-63 wind class is not stated in the supplied specification; request model-specific test evidence if the project requires a declared wind class.

Budget, Compliance and Commercial Constraints

The supplied corpus does not list a public price band for the DK120-63. Pricing will depend on model, width and height, fabric openness, motor and control choice, packaging and market documentation. Buyers should not treat a catalogue price as a landed cost. For 2026, HS code 6303.12.00 carries an 11.3% US import duty and a 12% EU/UK duty, so the duty line should be added to the product quote, freight and installation cost.

Compliance is a separate line item. A Chinese utility model patent confirms an intellectual-property record but does not confirm CE compliance. ISO 14001 certificate 46625E110299R0S confirms an environmental management system, not product performance. A Class 12 wind test report for WR120A or WR100A does not automatically apply to DK120-63. The buyer should request a model-specific document matrix before award: model drawing, material list, fabric data, wind test evidence, CE/EN evidence where required, and packaging or labelling requirements.

For supplier evaluation, NEWHOO states a 20,000 m² factory, 200 employees, annual output of 100,000 sets, 15 engineers and export coverage to EU, USA, AU and SEA, with an 80% export ratio. These are first-party facts from the company profile. They help a buyer assess scale and export experience, but they do not replace model-level product evidence.

FAQ

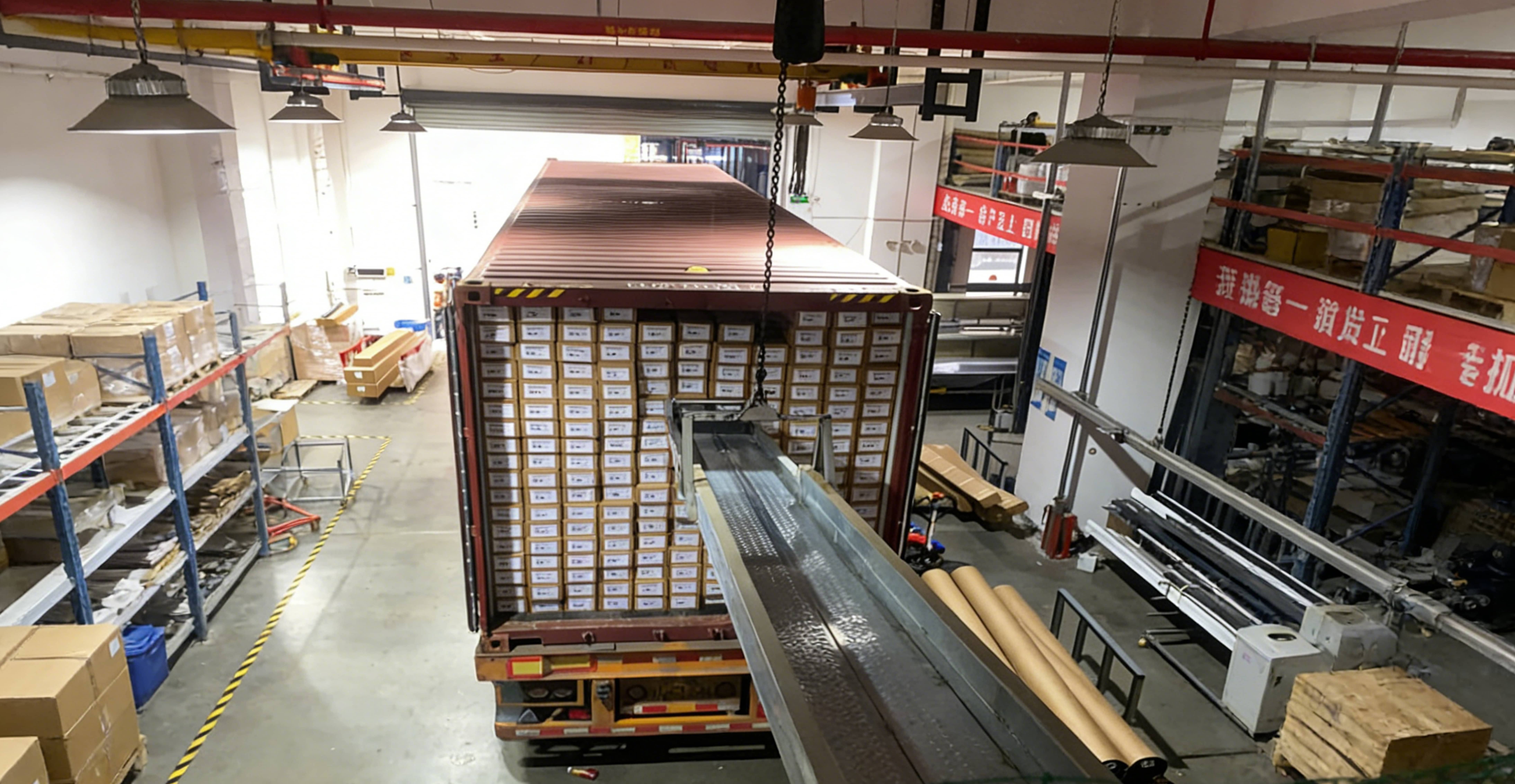

Shipment reference. Packaging, labelling and batch traceability should be confirmed before bulk release.

Conclusion: Specify the Guide, Then Prove the Model

The cable-guided windproof roller blind is a useful answer when a project has an outdoor wall or post but no side-rail fixing condition. The DK120-63 gives the buyer a defined starting point: 4.0 mm stainless steel cable guide, Φ63 roller tube, 0.7–3 m width, height up to 5 m, motorized, bead-chain or hand-crank operation, fabric tensile strength greater than 2000 N and a stated cycle life greater than 10,000 times. It does not, however, remove the need to verify wind class, CE/EN evidence and model-specific test reports.

For a reliable procurement decision, compare the guide architecture first, then the size limit, then the evidence pack. Use a side-rail model such as WR120A or WR120E when the wall can accept side rails and a higher wind class is required. Use WR110A/WR110B for pergola posts, SR-150A/SR-150B for sunroom skylights, VRM70/VRW100 for door insect protection and folding arm awnings for projection shading. Keep each product in its correct application boundary.

Next step: send your opening schedule, fixing photos and target market to NEWHOO for a model-specific review. Request a sample, a project quote or the 2026 catalogue.

Email: export@gznewhoo.com · WhatsApp: +86 13570337679 · Website: www.newhoosunshade.com

Download the NEWHOO Catalog 2026 (PDF)

This guide uses NEWHOO first-party product facts and the supplied verified market data. It does not replace project-specific engineering review, local code review or model-specific compliance certification.
