Connectable Outdoor Zip Screen

Name: "Connectable Outdoor Zip Screen"
Rating: 5 (749 reviews)

SKU: 4637178991

Model: WR120C

NEWHOO zip screen

🌐 Enter Official Website

Product Details

Product Specification

Type	Type C Connectable	Model	WR120C
Params	1. Cassette: 120×120mm square, wall thickness 2.0mm, spliceable 2. Roller tube: optional Φ63 aluminum, 78 double-layer aluminum, 70 steel, 80 steel 3. Operation: motorized 4. Roller tube mounting: smart balancer bracket, tail plug with built-in gravity bearing 5. Side rail: 60×39 two-piece / three-piece Side rail 6. Bottom rail: Betal bottom rail 25.4×56mm 7. Φ63/70 steel tube: width 0.7-3.8m, height <5m, total area <20㎡ 8. 78 double-layer aluminum / 80 steel tube: width 0.7-5.4m, height <3.2m 9. Fabric fixation: Φ63/78 aluminum tube supports 5mm T-tape (indoor only) 10. Outdoor uses #3.5 zipper only 11. Motorized voltage: AC230V 50Hz 12. Working temperature: -20°C to 65°C	Material	1. End caps: ADC12 die-cast aluminum alloy 2. Cassette / Side rail / bottom rail / (63/78) roller tube: 6063-T5 aluminum alloy profile 3. Φ70/80 steel tube: 1.4mm/1.2mm galvanized steel sheet 4. Fabric: tensile strength >2500N, 0-50% openness PVC polyester / fiberglass sun screen fabric 5. Zipper guide rail: high-temperature resistant modified PVC 6. Zipper: #3.5 nylon zipper 7. T-tape: 301 stainless steel polyester T-tape 8. Plastic parts: PA66+30%GF 9. Hardware: #45 electrophoretic steel plate 10. Smart balancer: stainless steel groove bearing + cylindrical bearing 11. Operating system: 45-30/50NM motor 12. Surface: outdoor powder coating
Applicable Industry	Villa balconies, sunrooms, commercial facades, pergolas, residential, commercial buildings, interior decoration

Feature

1. 4mm reinforced end caps, cassette wall thickness 2mm, high strength, heavy-duty outdoor zip screen 2. Smart balancer guides zipper vertically into guide rail, full-length zipper protection 3. Multiple tube diameters and operation modes to meet various needs 4. Motorized options: Wi-Fi, Zigbee, 485 and other smart home interfaces 5. Hollow-structured zipper guide rail with metal rail seal, wind resistance > Class 12 6. Up to 5.4m wide large-format zip screen, ideal for large-space shading, blackout, rain and insect protection 7. Cassette splittable, solves large-item upstairs transport challenges 8. Cycle life >10,000 times

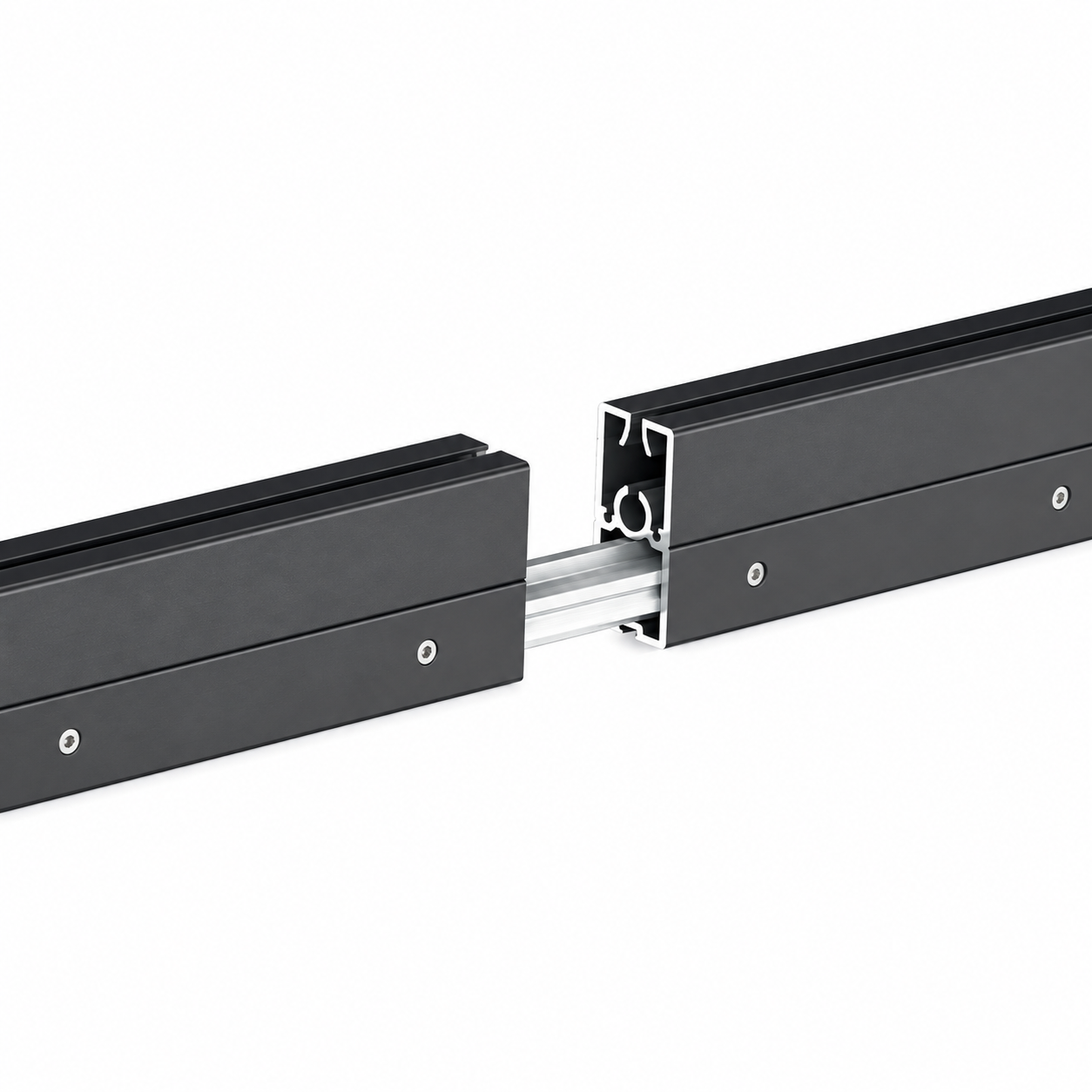

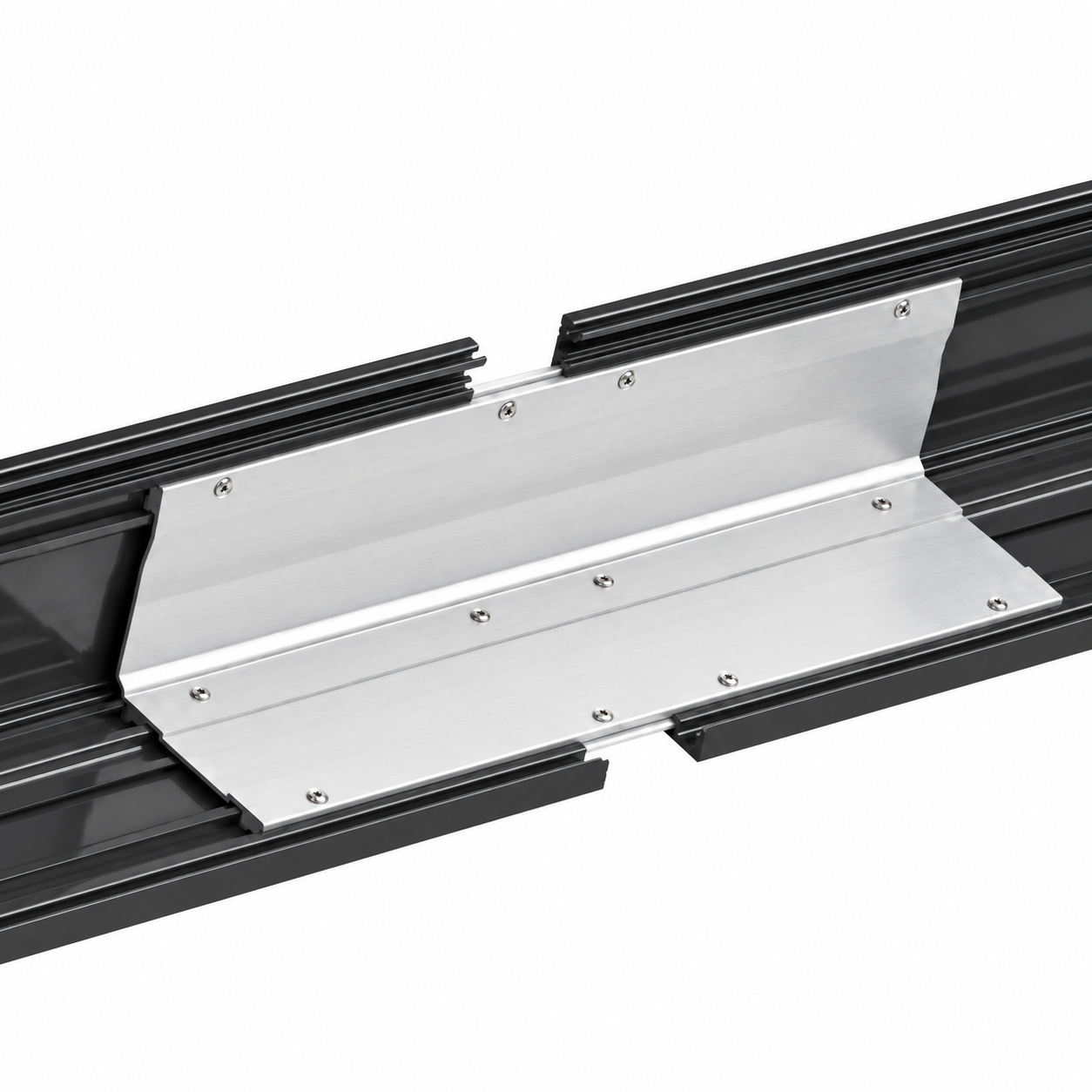

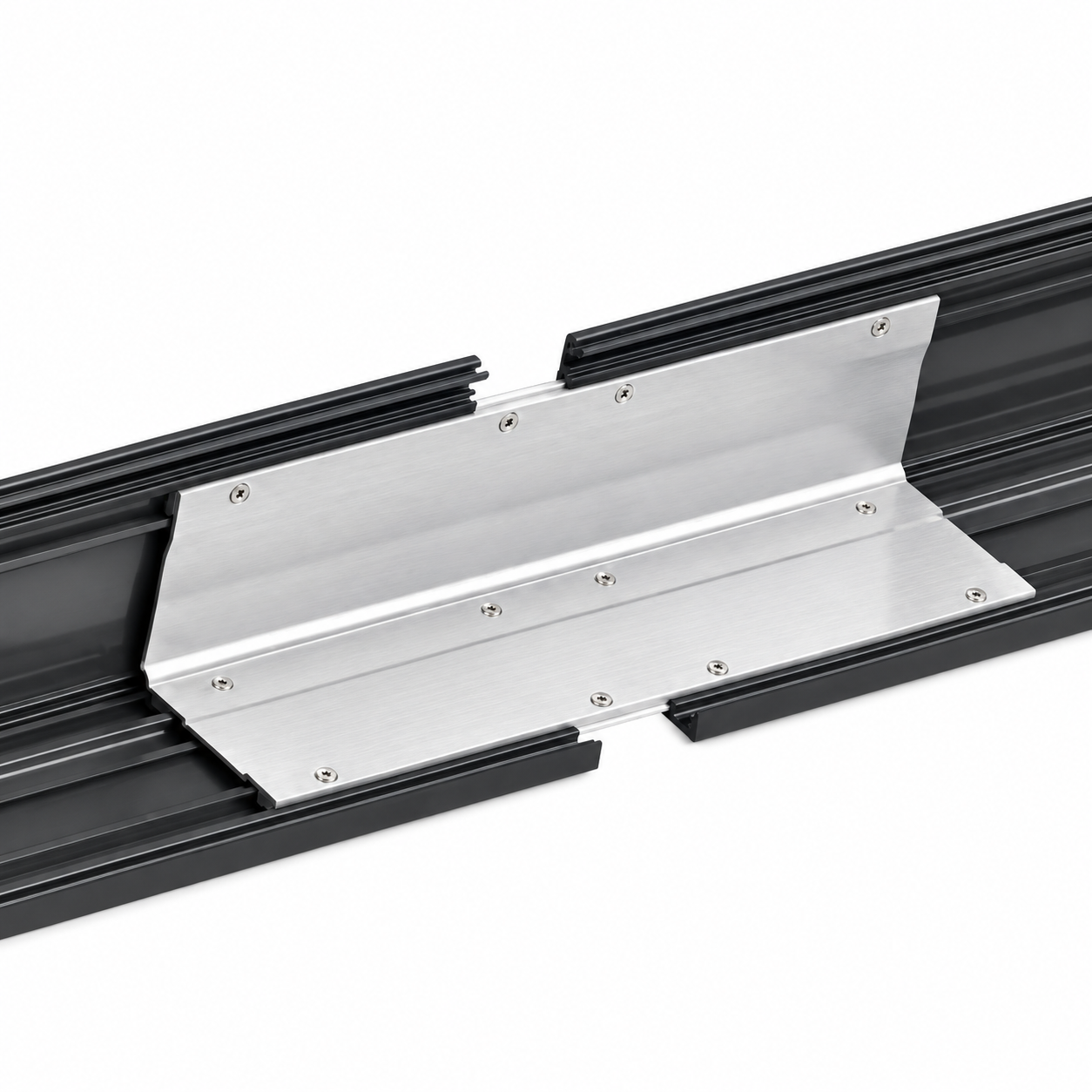

WR120C Connectable Outdoor Zip Screen
