Indoor Awning

Name: "Indoor Awning"
Rating: 5 (838 reviews)

SKU: 7352917241

Model: SR-60B

NEWHOO zip screen

🌐 Enter Official Website

Product Details

Product Specification

Type	Indoor Blackout Groove SkyScreen	Model	SR-60B
Params	1. Cassette: 97×136mm with rounded corners, wall thickness 1.5mm 2. Roller tube: Φ70mm round tube 3. Blackout Side rail: 49×30mm 4. Bottom beam: 20×50, telescopic, Side rail angle independently adjustable 0-15° 5. Drive: motorized + FGS system, Working voltage 220V 6. Drive: cable guide 7. Can be vertically or horizontally installed 8. Application: width 0.8-2.5m 9. height <3m 10. total area <7㎡ 11. Working voltage: AC230V 50Hz 12. Working temperature: -20°C to 65°C	Material	1. Cassette / roller tube / bottom beam: 6063-T5 aluminum alloy profile 2. Cable: Φ1 PVC-coated 304 stainless steel wire: Fabric: sun screen fabric 3. Drive: 35-6NM tubular DC motor + music wire spring 4. Hardware: #45 cold-rolled steel, 2mm thick; winding disc: 304 stainless steel 5. Plastic parts: PA66+30%GF;
Applicable Industry	Sunrooms, building atriums; residential, villas, interior decoration

Feature

1. Compact indoor SkyScreen, blackout groove 0-15° installation angle independently adjustable, blackout on four sides 2. Motor + FGS spring system drive, flat fabric, plug-in mounting structure, easy installation 3. Wind resistance < Class 4, cycle life >10,000 times 4. Telescopic bottom rail, also suitable for irregular window shading 5. Architectural ventilation windows, indoor sunroom skylights, sunroom tops, irregular window shading 6. Motorized options: Wi-Fi, Zigbee, 485 and other smart home interfaces

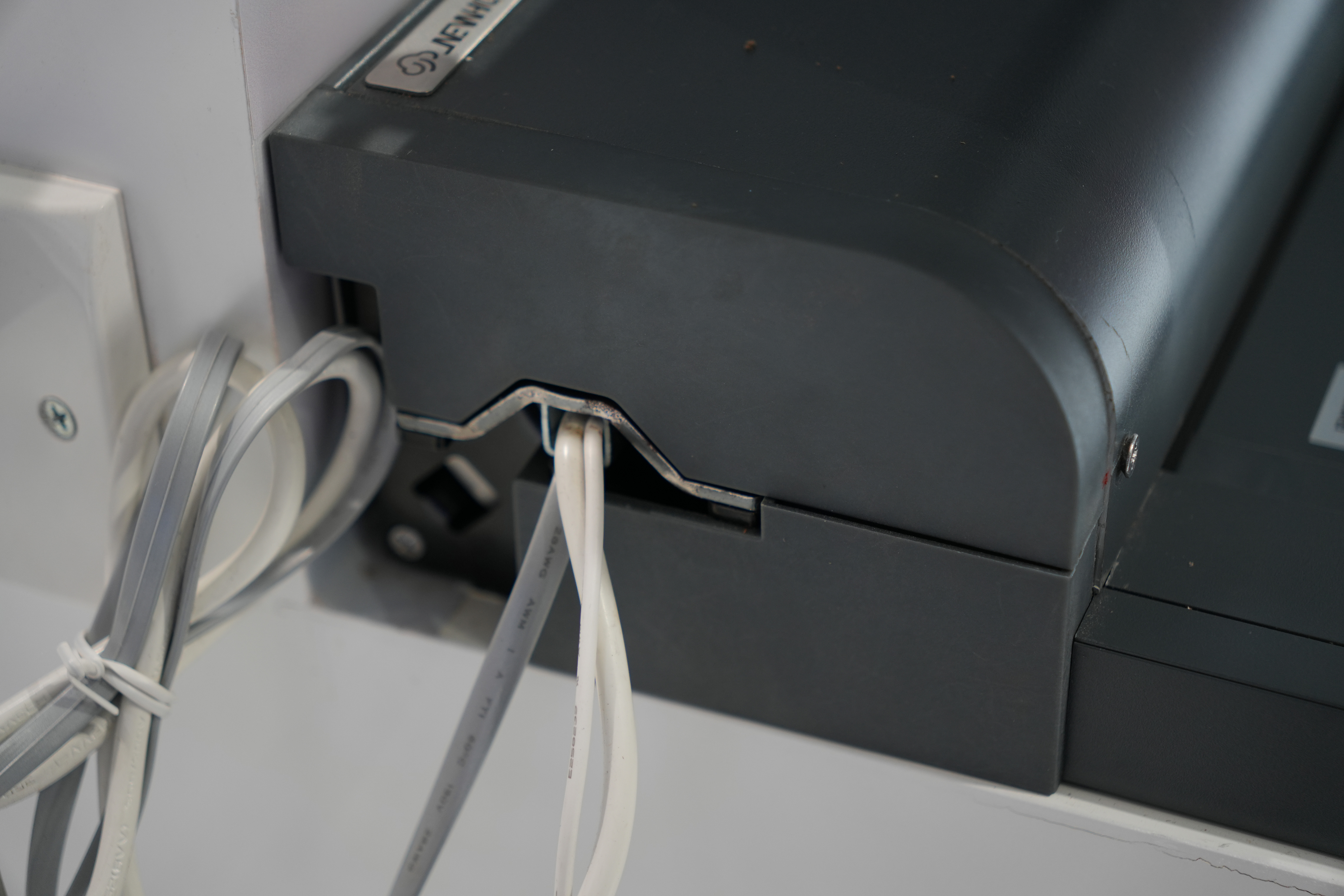

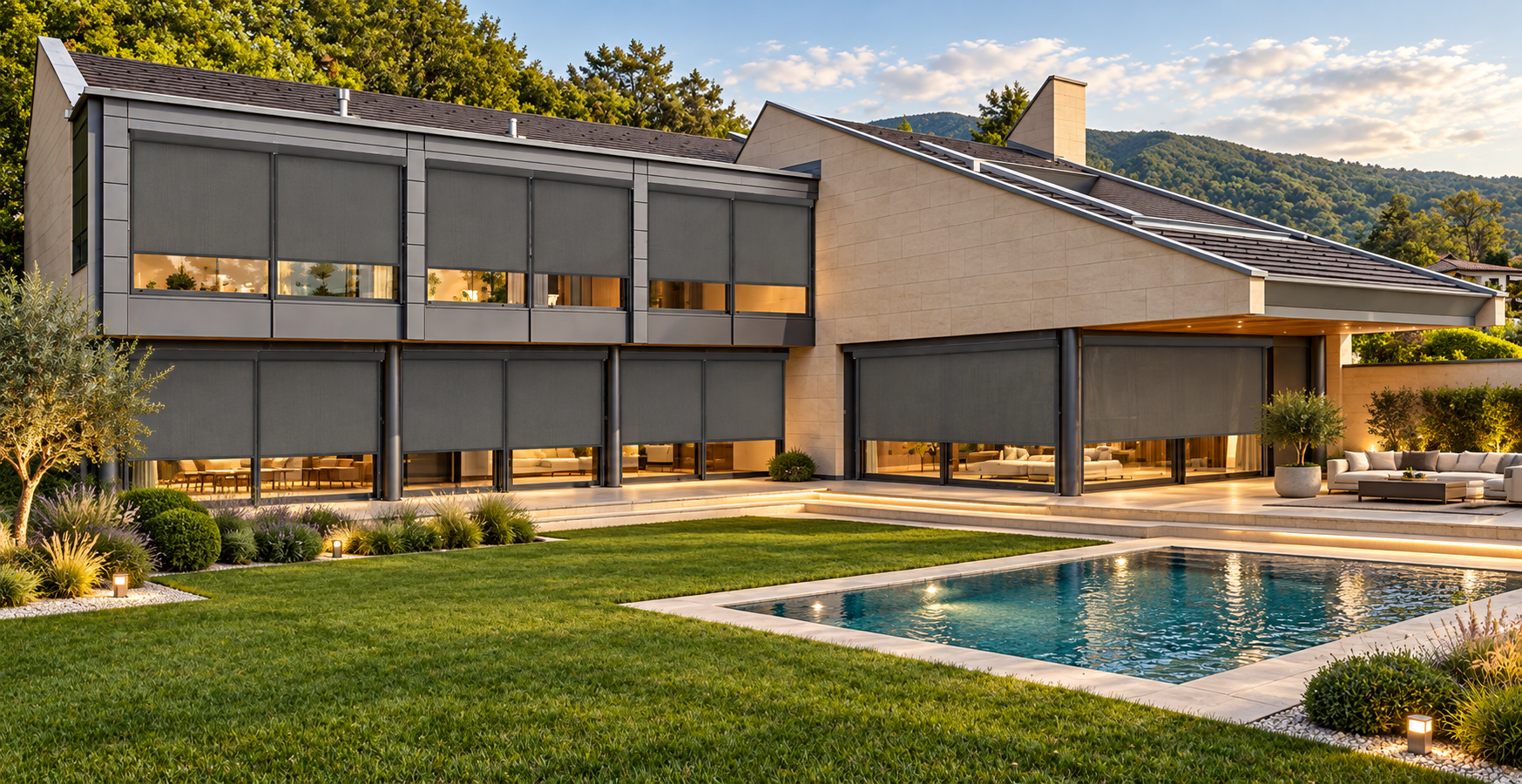

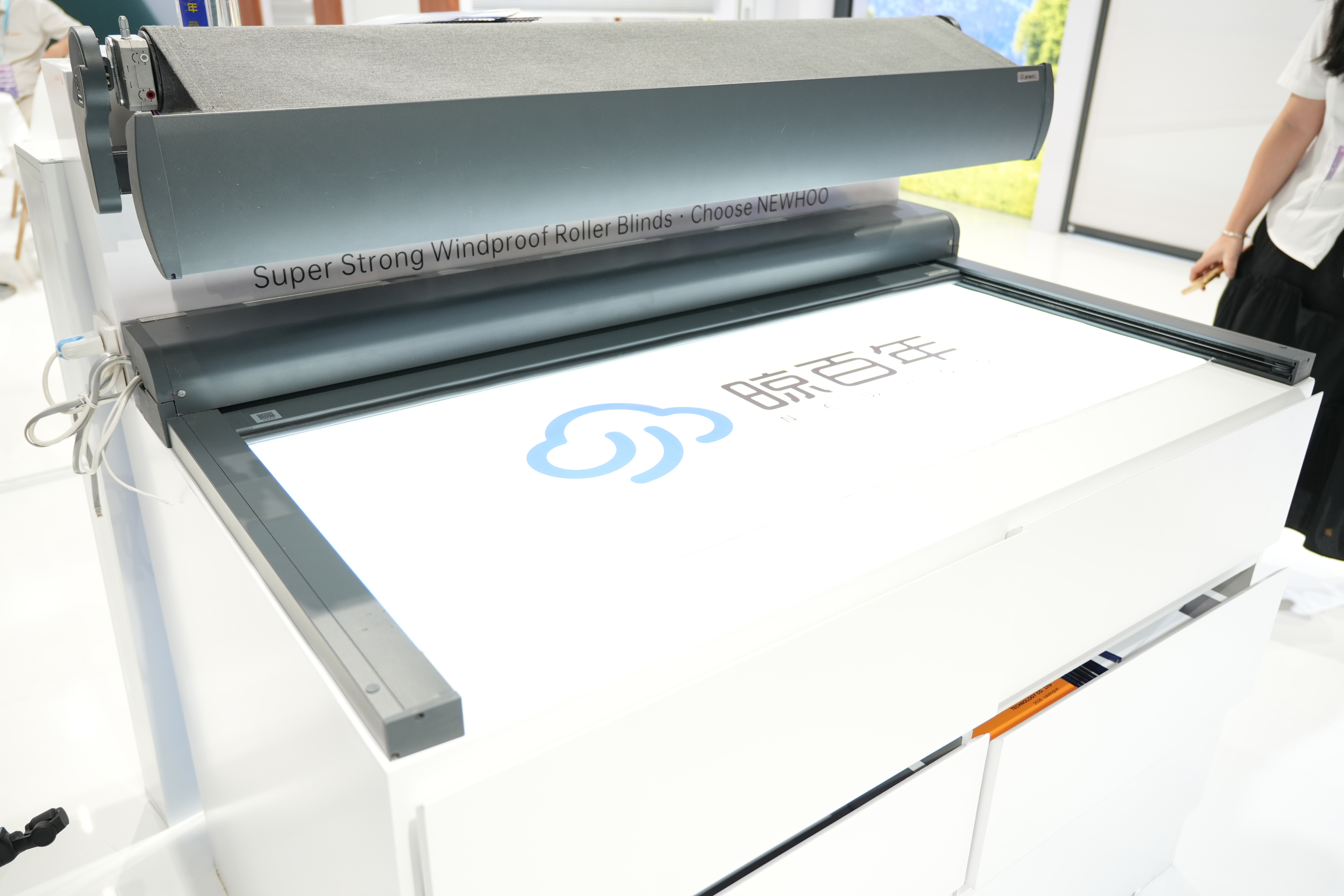

SR-60 Indoor awning
