Indoor Extra-Wide Zip Screen

Name: "Indoor Extra-Wide Zip Screen"
Rating: 5 (205 reviews)

SKU: 8803455957

Model: TR85

NEWHOO zip screen

🌐 Enter Official Website

Product Details

Product Specification

Type	Standard	Model	TR85
Params	1. Cassette: 85×100mm square, wall thickness 1.5mm 2. Roller tube: Φ43 slotted tube, wall thickness 1.5mm 3. Operation: 10NM-35 tubular motor 4. Side rail: 30×40mm minimalist Side rail 5. Bottom rail: 25.4×45mm 6. Tail plug: built-in gravity bearing, screw-plate mounting 7. Application: width 0.7-4m, height <3m, total area <12㎡ 8. Fabric fixation: T-tape 9. Motorized voltage: AC230V 50Hz 10. Working temperature: -20°C to 65°C	Material	1. End caps: ADC12 die-cast aluminum alloy 2. Cassette / Side rail / bottom rail / roller tube: 6063-T5 aluminum alloy profile 3. Fabric: 0-50% openness PVC polyester / fiberglass sun screen fabric 4. T-type pull tape: 301 stainless steel + polyester webbing 5. Plastic parts: PA66+30%GF 6. Zipper guide rail: high-temperature resistant PVC zipper guide rail 7. Hardware: #45 electrophoretic steel plate 8. Operating system: 35-10NM5 motor / spring manual 9. Surface: outdoor powder coating 10. Balancer: groove bearing
Applicable Industry	Residential buildings, commercial buildings, hotel projects, villas, apartments, interior decoration

Feature

1. Vertical balancer and fabric support plate, prevents roller tube bending, width up to 4m, fits indoor extra-wide windows 2. Top and side mount body, easy installation 3. T-tape secures fabric, keeps it flat 4. Zipper guide rail with metal zipper rail seal, wind resistance Class 10 5. Motorized options: Wi-Fi, Zigbee, 485 and other smart home interfaces 6. Cycle life >10,000 times

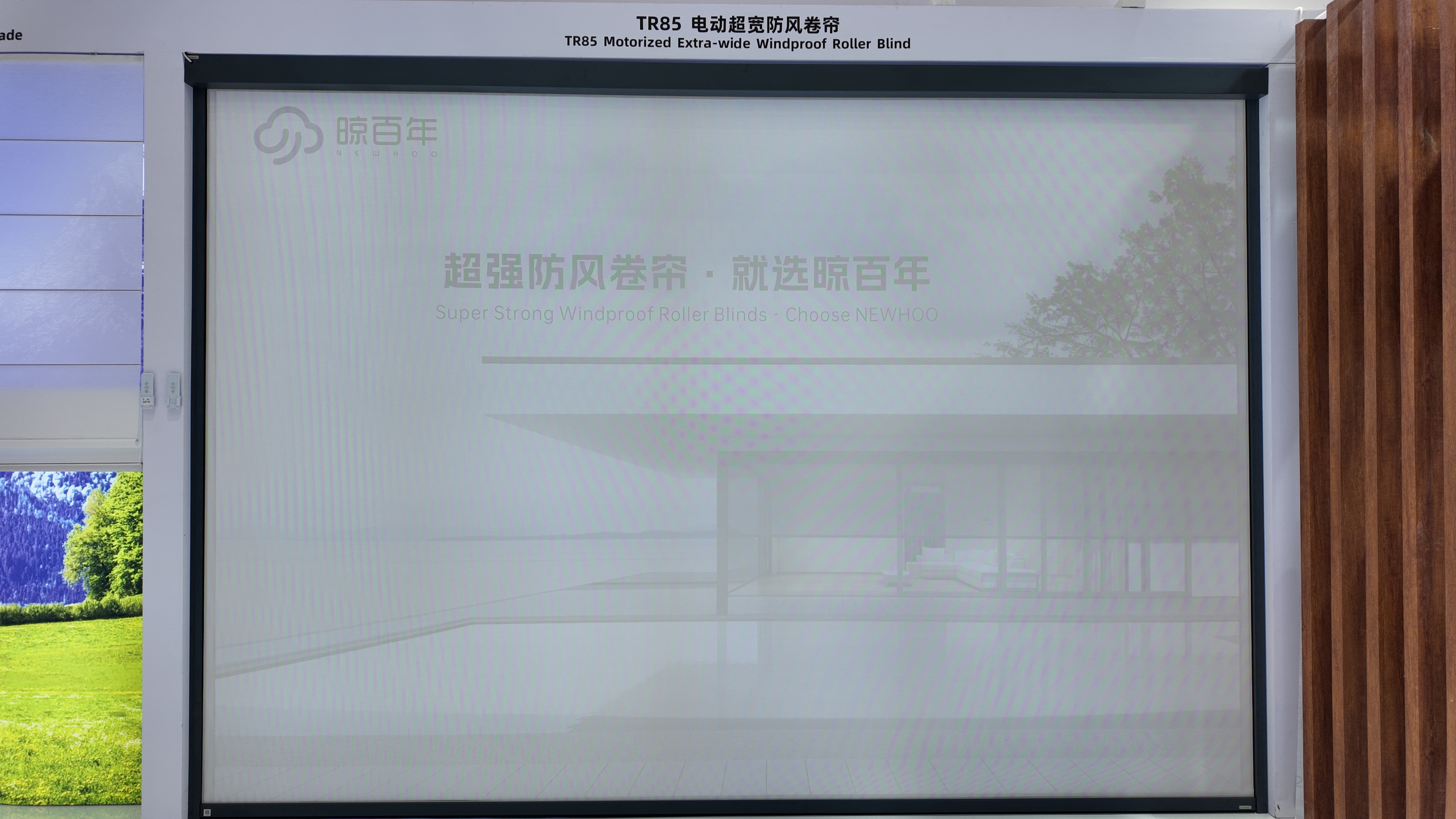

TR85 Indoor Extra-Wide Zip Screen
