About SEAPARKS

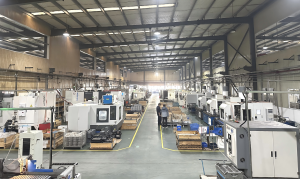

Covering a plant area of 50,000 square meters, the company employs more than 300 staff. It is equipped with nearly 200 sets of high-end machine tools imported from Germany, Switzerland, Japan and domestic brands, alongside over 20 automatic feeding production lines, supporting an annual output capacity of 300,000 motorized conveyor drums.
Our AMROLL motorized drums rank No.1 in the domestic market with a market share of 18.36% in 2021 and 17.55% in 2022. Globally, our market share stood at 6.25% in 2021 and 5.71% in 2022, leaving huge room for further international market expansion.
We have long concentrated on in-depth R&D and precision manufacturing of small oil-immersed motorized drums. Our complete product portfolio includes: DXZ series oil-free motorized drums for belt conveyors; DMA/F/H series synchronous oil-immersed motorized drums; TMA/F/H series asynchronous oil-immersed motorized drums; AM200 and TP pallet motorized drums for roller conveyors, as well as unpowered conveyor roller series.
Up to now, over one million units of our motorized drums have been operating reliably on conveying equipment across the globe.
Sparks motorized drums are exported to more than 50 countries and regions worldwide, widely adopted in dozens of industries including airport baggage handling, security inspection machines, express sorting, food & pharmaceutical production and general manufacturing. As a core transmission component supplier for conveying systems, we have grown into a world-class manufacturer.

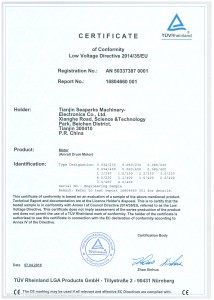

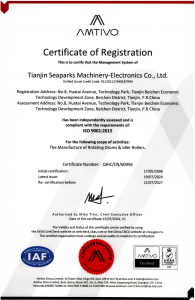

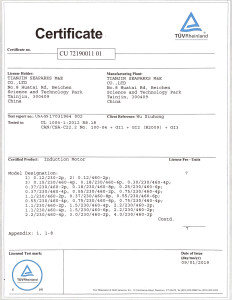

The company has obtained a full range of authoritative certifications: ISO 9001 Quality Management System, ISO 14001 Environmental Management System, ISO 45001 Occupational Health & Safety Management System, RoHS 2.0 environmental certification, UL certification and CE certification. We are also recognized as a National High-tech Enterprise, Tianjin Municipal Enterprise Technology Center and Tianjin Specialized, Refined, Unique & Innovative Enterprise.
Our Products
View All Products →

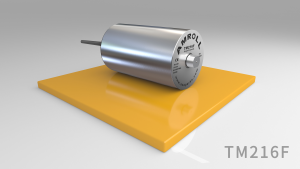

Hygienic Drum Motor
Model: TM216F
Parameters: Model: TM216F
Motor Type: Three-phase asynchronous motor
Roller Diameter: Ø216 mm
Gear Material: Alloy Steel
Rated Power: 3.5–4.0 kW
Rated Torque: 207.36–507.6 Nm
Max Belt Pull: 4700 N
Nominal Belt Speed: 0.8–2.1 m/s
Min Roller Width: 510 mm
Protection Grade: IP69K

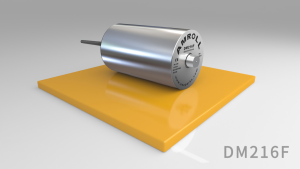

Hygienic Drum Motor
Model: DM216F
Parameters: Product Series / Model: DM216F, Motor Type: Synchronous Motor, Phase: Three-phase, Roller Diameter: Ø216 mm, Gear Material: Alloy Steel, Rated Power: 4.0–5.5 kW, Rated Torque: 182.90–568.98 Nm, Maximum Belt Pull: 5244 N, Nominal Belt Speed: 0.8–2.5 m/s, Minimum Roller Width: 510 mm, Protection Class: IP69K
Hygienic Drum Motor
Model: TM165F
Parameters: Product Series / Model: TM165F, Motor Type: Asynchronous Motor, Phase: Three-phase, Roller Diameter: Ø165 mm, Gear Material: Alloy Steel, Rated Power: 0.25–2.2 kW, Rated Torque: 29.3–342.13 Nm, Maximum Belt Pull: 4147 N, Nominal Belt Speed: 0.1–2.0 m/s, Minimum Roller Width: 400 mm, Protection Class: IP69K
Hygienic Drum Motor
Model: DM165F
Parameters: Product Series / Model: DM165F, Motor Type: Synchronous Motor, Phase: Three-phase, Roller Diameter: Ø165 mm, Gear Material: Alloy Steel, Rated Power: 1.1–3 kW, Rated Torque: 42.49–431.44 Nm, Maximum Belt Pull: 5229 N, Nominal Belt Speed: 0.42–2.09 m/s, Minimum Roller Width: 470 mm, Protection Class: IP69K
Hygienic Drum Motor

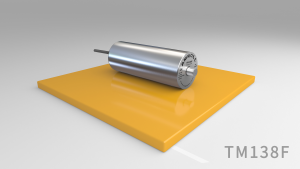

Model: TM138F
Parameters: Product Series / Model: TM138F, Motor Type: Asynchronous Motor, Phase: Three-phase, Roller Diameter: Ø138 mm, Gear Material: Alloy Steel, Rated Power: 0.25–1.1 kW, Rated Torque: 19.46–243.23 Nm, Maximum Belt Pull: 3525 N, Nominal Belt Speed: 0.11–1.69 m/s, Minimum Roller Width: 350 mm, Protection Class: IP69K
Hygienic Drum Motor

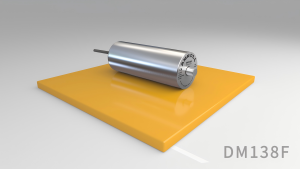

Model: DM138F
Parameters: Product Series / Model: DM138F, Motor Type: Synchronous Motor, Phase: Three-phase, Roller Diameter: Ø138 mm, Gear Material: Alloy Steel, Rated Power: 0.75–1.5 kW, Rated Torque: 27.69–273.58 Nm, Maximum Belt Pull: 3965 N, Nominal Belt Speed: 0.37–1.83 m/s, Minimum Roller Width: 400 mm, Protection Class: IP69K
Hygienic Drum Motor

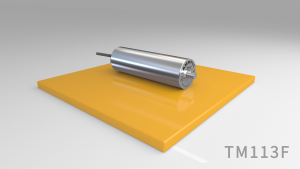

Model: TM113F
Parameters: Product Series / Model: TM113F, Motor Type: Asynchronous Motor, Phase: Three-phase, Roller Diameter: Ø113 mm, Gear Material: Alloy Steel, Rated Power: 0.12–0.55 kW, Rated Torque: 10.34–82.99 Nm, Maximum Belt Pull: 1469 N, Nominal Belt Speed: 0.09–1.4 m/s, Minimum Roller Width: 345 mm, Protection Class: IP69K
Hygienic Drum Motor
Model: DM113F
Parameters: Product Series / Model: DM113F, Motor Type: Synchronous Motor, Phase: Three-phase, Roller Diameter: Ø113 mm, Gear Material: Alloy Steel, Rated Power: 0.12–0.55 kW, Rated Torque: 9.94–115.99 Nm, Maximum Belt Pull: 2053 N, Nominal Belt Speed: 0.14–0.68 m/s, Minimum Roller Width: 370 mm, Protection Class: IP69K

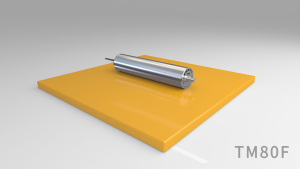

Hygienic Drum Motor
Model: TM80F
Parameters: Product Series / Model: TM80F, Motor Type: Asynchronous Motor, Phase: Three-phase, Roller Diameter: Ø80 mm, Gear Material: Alloy Steel, Rated Power: 0.04–0.12 kW, Rated Torque: 2.96–28.91 Nm, Maximum Belt Pull: 705 N, Nominal Belt Speed: 0.08–1.02 m/s, Minimum Roller Width: 340 mm, Protection Class: IP69K
Hygienic Drum Motor
Model: DM80F
Parameters: Product Series / Model: DM80F, Motor Type: Synchronous Motor, Phase: DC, Roller Diameter: Ø80 mm, Gear Material: Alloy Steel, Rated Power: 0.09–0.12 kW, Rated Torque: 3.49–21.89 Nm, Maximum Belt Pull: 534 N, Nominal Belt Speed: 0.16–1.03 m/s, Minimum Roller Width: 320 mm, Protection Class: IP69K
Light Duty Drum Motor
Model: TM113M
Parameters: Product Series / Model: TM113M, Motor Type: Asynchronous Motor, Phase: Single-phase, Roller Diameter: Ø113 mm, Gear Material: Polymer, Rated Power: 0.12–0.18 kW, Rated Torque: 5.81–43.51 Nm, Maximum Belt Pull: 770 N, Nominal Belt Speed: 0.11–1.05 m/s, Minimum Roller Width: 310 mm, Protection Class: IP66/IP67/IP69
Light Duty Drum Motor
Model: TM80M
Parameters: Product Series / Model: TM80M, Motor Type: Asynchronous Motor, Phase: Single-phase, Roller Diameter: Ø80 mm, Gear Material: Polymer, Rated Power: 0.034–0.11 kW, Rated Torque: 2.71–25.9 Nm, Maximum Belt Pull: 630 N, Nominal Belt Speed: 0.05–0.85 m/s, Minimum Roller Width: 260 mm, Protection Class: IP66/IP67/IP69

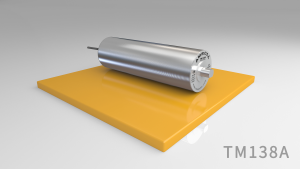

Light Duty Drum Motor
Model: TM138A
Parameters: Product Series / Model: TM138A, Motor Type: Asynchronous Motor, Phase: Three-phase, Roller Diameter: Ø138 mm, Gear Material: Alloy Steel, Rated Power: 0.25–1.1 kW, Rated Torque: 19.46–243.23 Nm, Maximum Belt Pull: 3525 N, Nominal Belt Speed: 0.11–1.69 m/s, Minimum Roller Width: 340 mm, Protection Class: IP66/IP67/IP69
Light Duty Drum Motor

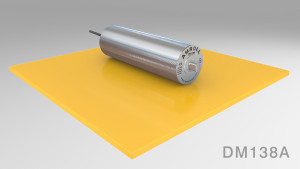

Model: DM138A
Parameters: Product Series / Model: DM138A, Motor Type: Synchronous Motor, Phase: Three-phase, Roller Diameter: Ø138 mm, Gear Material: Alloy Steel, Rated Power: 0.75–1.5 kW, Rated Torque: 27.69–273.58 Nm, Maximum Belt Pull: 3965 N, Nominal Belt Speed: 0.37–1.83 m/s, Minimum Roller Width: 390 mm, Protection Class: IP66/IP67/IP69
Light Duty Drum Motor

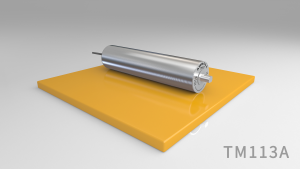

Model: TM113A
Parameters: Product Series / Model: TM113A, Motor Type: Asynchronous Motor, Phase: Three-phase, Roller Diameter: Ø113 mm, Gear Material: Alloy Steel, Rated Power: 0.12–0.55 kW, Rated Torque: 10.34–82.99 Nm, Maximum Belt Pull: 1469 N, Nominal Belt Speed: 0.09–1.4 m/s, Minimum Roller Width: 335 mm, Protection Class: IP66/IP67/IP69
Light Duty Drum Motor
Model: TM113A
Parameters: Product Series / Model: TM113A, Motor Type: Asynchronous Motor, Phase: Single-phase, Roller Diameter: Ø113 mm, Gear Material: Alloy Steel, Rated Power: 0.12–0.23 kW, Rated Torque: 10.34–79.67 Nm, Maximum Belt Pull: 1410 N, Nominal Belt Speed: 0.08–0.71 m/s, Minimum Roller Width: 335 mm, Protection Class: IP66/IP67/IP69
Light Duty Drum Motor
Model: DM113A
Parameters: Product Series / Model: DM113A, Motor Type: Synchronous Motor, Phase: Three-phase, Roller Diameter: Ø113 mm, Gear Material: Alloy Steel, Rated Power: 0.12–0.55 kW, Rated Torque: 9.94–115.99 Nm, Maximum Belt Pull: 2053 N, Nominal Belt Speed: 0.14–0.68 m/s, Minimum Roller Width: 360 mm, Protection Class: IP66/IP67/IP69
Light Duty Drum Motor
Model: TM80A
Parameters: Product Series / Model: TM80A, Motor Type: Asynchronous Motor, Phase: Three-phase, Roller Diameter: Ø80 mm, Gear Material: Alloy Steel, Rated Power: 0.04–0.12 kW, Rated Torque: 2.96–28.91 Nm, Maximum Belt Pull: 705 N, Nominal Belt Speed: 0.08–1.02 m/s, Minimum Roller Width: 330 mm, Protection Class: IP66/IP67/IP69
Light Duty Drum Motor
Model: TM80A
Parameters: Product Series / Model: TM80A, Motor Type: Asynchronous Motor, Phase: Single-phase, Roller Diameter: Ø80 mm, Gear Material: Alloy Steel, Rated Power: 0.034–0.11 kW, Rated Torque: 2.36–22.02 Nm, Maximum Belt Pull: 538 N, Nominal Belt Speed: 0.08–1.02 m/s, Minimum Roller Width: 340 mm, Protection Class: IP66/IP67/IP69
Light Duty Drum Motor

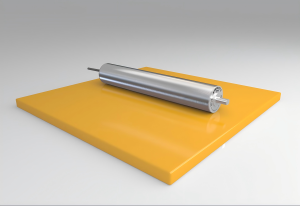

Model: DM80A
Parameters: Product Series / Model: DM80A, Motor Type: Synchronous Motor, Phase: DC, Roller Diameter: Ø80 mm, Gear Material: Alloy Steel, Rated Power: 0.09–0.12 kW, Rated Torque: 3.49–21.89 Nm, Maximum Belt Pull: 534 N, Nominal Belt Speed: 0.16–1.03 m/s, Minimum Roller Width: 310 mm, Protection Class: IP66/IP67/IP69
Light Duty Drum Motor
Model: TM113A
Parameters: Product Series / Model: TM113A, Motor Type: Asynchronous Motor, Phase: Single-phase, Roller Diameter: Ø113 mm, Gear Material: Alloy Steel, Rated Power: 0.12–0.23 kW, Rated Torque: 10.34–79.67 Nm, Maximum Belt Pull: 1410 N, Nominal Belt Speed: 0.08–0.71 m/s, Minimum Roller Width: 335 mm, Protection Class: IP66/IP67/IP69
