About Wuxi Speedup Power Co.,Ltd
Brushless/Brush Wheel Hub Motor for Ebike, Electric Scooter, Electric Tricycle, Transport Cart/Chair, Wheelbarrow and So on. Indeed Customized Motor also welcomed!!!
We have over 16 years experience in the industry, and have acquired certifications such as "RoHS", "UL", "EMC", ISO9000-2008 Certificate. Our clients range are from Europe, USA and Southeast Asia to local factories and traders.
Our Products
View All Products →

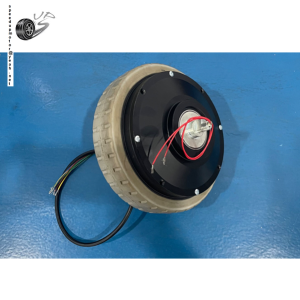

8inch Brushless Wheel Hub Motor
Model: 1DY-E5S
Parameters: Diameter 200mm(8inch) solid tire, Brushless DC 36V350W150RPM. Also can be with 24V/48V
Gear ratio:1:20 , Can be with double/single shaft.
CE,EMC,ROHS Certificate/ Approved. Custom, OEM, STO production type.
Widely applied in Mobility scooter / Electric scooter / Wheelchair assistance/ Medical Chair/AGV/Robot and So On.
Features & Specifications
· Rare Earth NdFeB Permanent Magnets
· Outer Rotor
· High Efficiency
· Long Service Life
· Silent and Smooth
· Environmental Energy
Product types:Brushless Hub Motor
Model:1DY-E5S
Rated voltage:36V
Rated power:300W
Rated speed:150rpm
Rated torque:20Nm
Diameter:200mm
Axis length:Custom
Net weight:5.5kg
Loading:80-300kg
Brake:Electromagnetic brake
Reduction ratio:1:20
Custom made:Yes
Design Options:
1. Operating voltages to suit
2. Custom shaft/axis sizes/profiles
3. Tailored performance profiles
4. Special OEM configurations

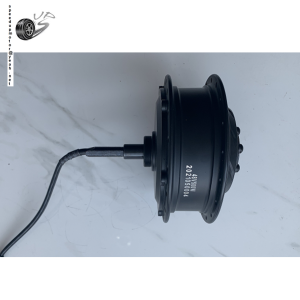

Spoke Brushless DC Wheel Hub Motor
Model: SA05
Parameters: Spoke wheel, can be suitable for any size wheel with custom plate, BLDC Motor 24V/36V/48V, 100w-500w, 100-500rpm, Gear ratio:1:5 , Can be with double/single shaft.
CE,EMC,ROHS Certificate/ Approved. Custom, OEM, STO production type.
Widely applied in Snowmobile/Electric bike /AGV/Robot/Garbage truck/Garbage/refuse truck and So On.
Features & Specifications
· Rare Earth NdFeB Permanent Magnets
· Outer Rotor
· High Efficiency
· Long Service Life
· Silent and Smooth
· Environmental Energy
Design Options
1. Operating voltages to suit
2. Custom shaft/axis sizes/profiles
3. Tailored performance profiles
4. Special OEM configurations

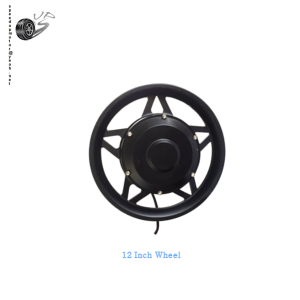

12Inch Brushless Hub Motor
Model: SA06
Parameters: 12inch Inflatable/solid tires BLDC Motor 24V/36V/48V, 100w-500w, 100-500rpm
Gear ratio:1:4.5 , Can be with double/single shaft.
CE,EMC,ROHS Certificate/ Approved. Custom, OEM, STO production type.
Widely applied in Mobility scooter / Electric scooter / Wheelchair assistance/ Medical Chair/AGV/Robot/Folding ebike and So On.
Features & Specifications
· Rare Earth NdFeB Permanent Magnets
· Outer Rotor
· High Efficiency
· Long Service Life
· Silent and Smooth
· Environmental Energy
Product types:Brushless Hub Motor
Model:SA06
Rated voltage:24V
Rated power:300W
Rated speed:150rpm or customized
Rated torque:20Nm
Axis length:Custom
Net weight:3.5kg
Loading:80-300kg
Brake:Electronic brake(EABS)/disc brake
Reduction ratio:1:4.5
Waterproof rating:IP54
Custom made:Yes
Design Options
1. Operating voltages to suit
2. Custom shaft/axis sizes/profiles
3. Tailored performance profiles
4. Special OEM configurations

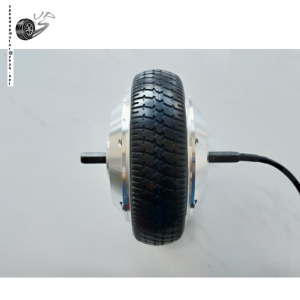

6.5Inch wheel hub motor
Model: SA05-6
Parameters: Diameter 170mm(6.5inch) solid tire, BLDC Motor 24V/36V/48V, 100w-500w, 100-500rpm
Gear ratio:1:4.5 , Can be with double/single shaft.
CE,EMC,ROHS Certificate/ Approved. Custom, OEM, STO production type.
Widely applied in Mobility scooter / Electric scooter / Wheelchair assistance/ Medical Chair/AGV/Robot and So On.
Features & Specifications
· Rare Earth NdFeB Permanent Magnets
· Outer Rotor
· High Efficiency
· Long Service Life
· Silent and Smooth
· Environmental Energy
Product types:Brushless Hub Motor
Model:SA05-6
Rated voltage:24V
Rated power:200W
Rated speed:150rpm
Rated torque:15Nm
Diameter:170mm
Axis length:Custom
Net weight:3.5kg
Loading:80-300kg
Brake:Electronic brake(EABS)
Reduction ratio:1:4.5
Waterproof rating:IP54
Custom made:Yes

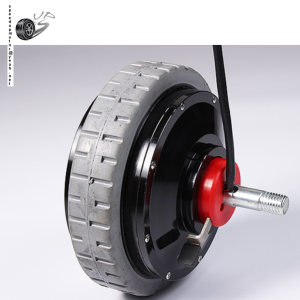

8Inch Single Axis Powered Motor Wheel
Model: 1DY-E3
Parameters: Diameter 210mm(8inch) solid tire, Brush DC 24V200W95RPM. Also can be with 36V/48V
Gear ratio:1:20 , Can be with double/single shaft.
CE,EMC,ROHS Certificate/ Approved. Custom, OEM, STO production type.
Widely applied in Mobility scooter / Electric scooter / Shopping cart/ Medical Chair / Hospital Transport Bed / Transport Chair /Transport cart and So On.
Features & Specifications
· Printed Armature/Winding/Circuit
· Rare Earth NdFeB Permanent Magnets
· High power volume ratio& High linearity
· Easy to work with
Model:1DY-E3
Rated voltage:24V
Rated power:180W
Rated speed:95rpm
Rated torque:20Nm
Diameter:210mm
Axis length:Custom
Net weight:5.5kg
Loading:80-300kg
Brake:Electromagnetic brake
Reduction ratio:1:20
Custom made:Yes

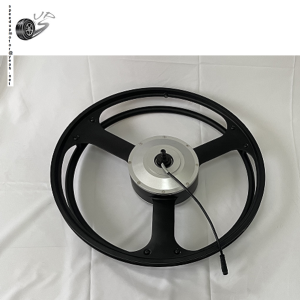

Magnesium alloy integrated wheel Motor
Model: 6DY-A1
Parameters: Brush DC 24V200W65RPM. Also can be with 36V/48V . Gear ratio:1:40,Folding brake clutch lever, Superb climbing ability
CE,EMC,ROHS Certificate/ Approved. Custom, OEM, STO production type.
Widely applied in Mobility scooter / Electric scooter / Wheelchair/Electric trike and So On.
Features & Specifications
· Printed Armature/Winding/Circuit
· Rare Earth NdFeB Permanent Magnets
· High power volume ratio& High linearity
· Easy to work with
Model:6DY-A1
Rated voltage:24V
Rated power:200W
Rated speed:65rpm
Rated torque:28Nm
Axis length:Custom
Net weight:7.8kg
Loading:80-300kg
Brake:Electromagnetic brake
Reduction ratio:1:40
Custom made:Yes

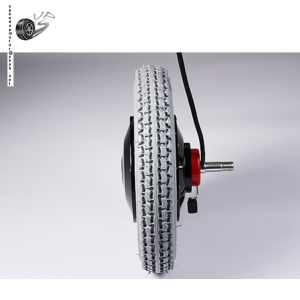

12Inch Wheel Hub Motor
Model: 6DY-A4
Parameters: Diameter 305mm(12inch) solid tire, Brush DC 24V200W70RPM. Also can be with 36V/48V
Gear ratio:1:40 , Can be with double/single shaft.
CE,EMC,ROHS Certificate/ Approved. Custom, OEM, STO production type.
Widely applied in Mobility scooter / Electric scooter / Wheelchair/ Medical Chair/ Hospital cart / Robot and So On.
Features & Specifications
· Printed Armature/Winding/Circuit
· Rare Earth NdFeB Permanent Magnets
· High power volume ratio& High linearity
· Easy to work with
Design Options:
1. Operating voltages to suit
2. Custom shaft/axis sizes/profiles
3. Tailored performance profiles
4. Special OEM configurations
Competitive Advantage:
*High strength and wear-resistant gear shifting system.
*Built-in brake with electromagnetic clutch,and support manual clutch.
*Bigger starting torque, wide speed range.
*Low speed running and good performance for commutation ability.
*Small volume and high efficiency.

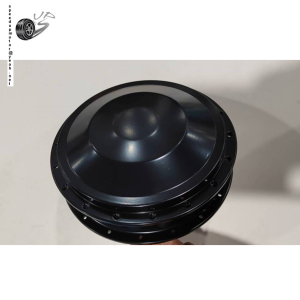

Brushed Hub Motor
Model: 6DY-A
Parameters: Spoke wheel type, Brush DC 24V300W100RPM. Also can be with 36V/48V
Gear ratio:1:40 , Can be with double/single shaft.
CE,EMC,ROHS Certificate/ Approved. Custom, OEM, STO production type.
Widely applied in Mobility scooter / Electric scooter / Wheelchair/ Medical Chair/ Hospital cart / Robot/Garbage truck/dustcart and So On.
Model:6DY-A
Rated voltage:24V
Rated power:300W
Rated speed:70rpm
Rated torque:40Nm
Axis length:Custom
Net weight:7.5kg
Loading:80-300kg
Brake:Electromagnetic brake
Reduction ratio:1:40
Custom made:Yes
Design Options:
1. Operating voltages to suit
2. Custom shaft/axis sizes/profiles
3. Tailored performance profiles
4. Special OEM configurations
Competitive Advantage:
*High strength and wear-resistant gear shifting system.
*Built-in brake with electromagnetic clutch,and support manual clutch.
*Bigger starting torque, wide speed range.
*Low speed running and good performance for commutation ability.
*Small volume and high efficiency.

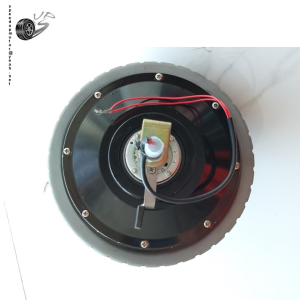

8inch wheel motor
Model: 1DY-E5A
Parameters: Diameter 210mm(8inch) solid tire, Brush DC 24V200W130RPM. Also can be with 36V/48V
Gear ratio:1:20 , Can be with double/single shaft.
Model:1DY-E5A
Rated voltage:24V
Rated power:300W
Rated speed:100rpm
Rated torque:30Nm
Diameter:210mm
Axis length:Custom
Net weight:5.5kg
Loading:80-300kg
Brake:Electromagnetic brake
Reduction ratio:1:20
Custom made:Yes
Competitive Advantage:
*High strength and wear-resistant gear shifting system.
*Built-in brake with electromagnetic clutch,and support manual clutch.
*Bigger starting torque, wide speed range.
*Low speed running and good performance for commutation ability.
*Small volume and high efficiency.

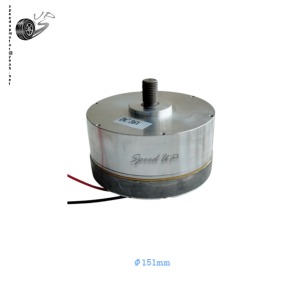

Pancake Motor With Gearbox
Model: 150SN-G2
Parameters: Model:150SN-G2
Rated power:500W
Rated voltage:36V
Rated speed:240rpm
Custom made:Yes
Diameter:151mm
Axis leigth:Custom

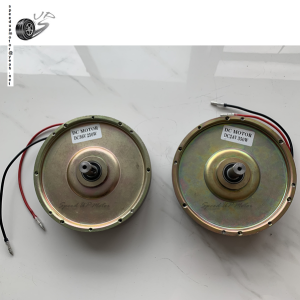

Pancake Printed Motor
Model: 150SN-B
Parameters: Model:150SN-B
Rated power:350W
Rated voltage:24V
Rated speed:3000rpm
Custom made:Yes
Diameter:151mm
Axis leigth:16mm OR Custom
Thickness:35.4mm

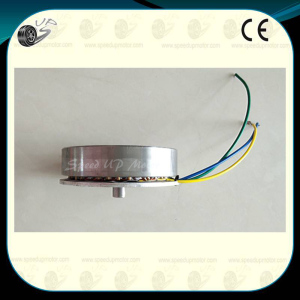

Pancake BLDC Motor
Model: DD03
Parameters: Model:DD03
Rated power:100W
Rated voltage:24V
Rated speed:250rpm
Custom made:Yes
Diameter:106mm
Axis leigth:Custom
Motor length:51mm

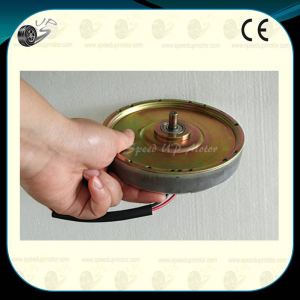

150mm dia Pancake Motor
Model: 150SN-A
Parameters: Model:150SN-A
Rated power:300W
Rated voltage:36V
Rated speed:3500rpm
Custom made:Yes
Diameter:151mm
Axis leigth:16mm OR Custom
Thickness:35.4mm

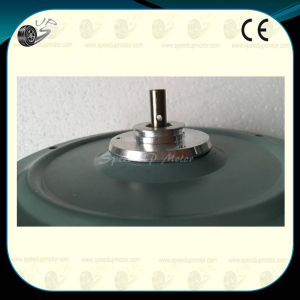

Printed Armature Motor
Model: 120SN
Parameters: Model:120SN-01
Rated power:75W
Rated voltage:24V
Rated speed:3500rpm
Custom made:Yes
Diameter:152mm
Axis leigth:52mm OR Custom
Thickness:33mm

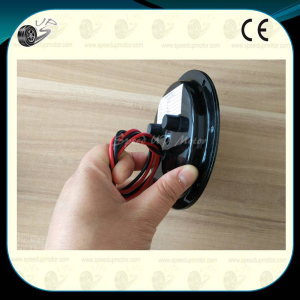

120mm dia Printed Motor
Model: 90SN-B
Parameters: Model:90SN-B
Rated power:100W
Rated voltage:24V
Rated speed:3200rpm
Custom made:Yes
Diameter:120mm
Axis leigth:15.2mm
Thickness:17mm

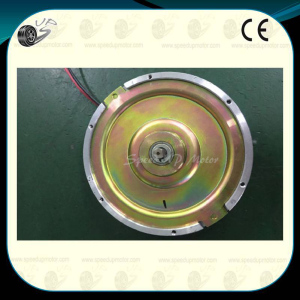

Pancake motor
Model: 128SN
Parameters: Model:128SN
Rated power:135W
Rated voltage:18V
Rated speed:2100rpm
Custom made:Yes
Diameter:148.5mm
Axis leigth:21mm OR Custom
Thickness:37mm

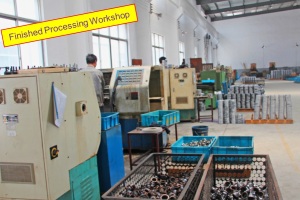

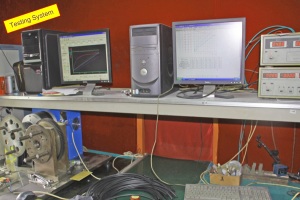

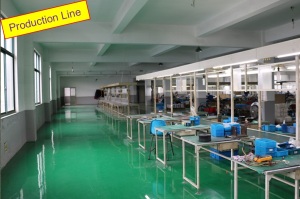

Company Gallery

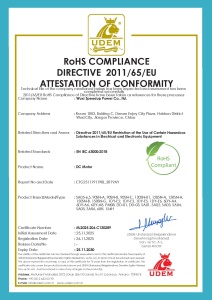

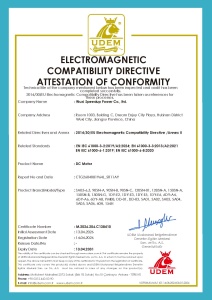

Certifications & Awards
Success Stories & Case Studies

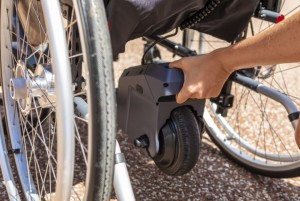

Medical equipment manufacturer
stable operation
low speed hight torque,small wheel size

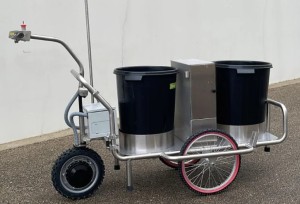

electric scooter factory
stable operation
low speed hight torque,
Electromagnetic brake,Easy to work with,safe operation

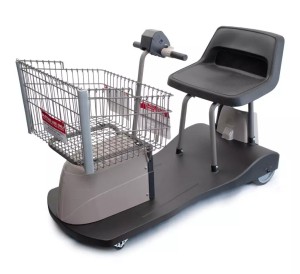

electric cart factory
stable operation
low speed big torque, Electromagnetic brake

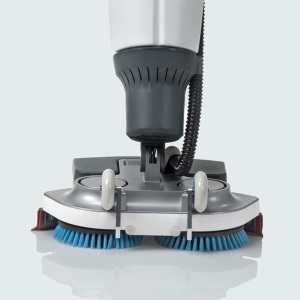

Manufacturer of floor cleaning and drying machines
big torque,stable operation
low noise, compact size, big output

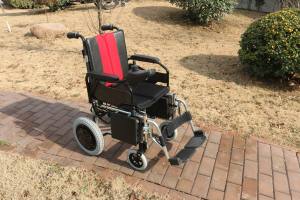

wheelchair factory
stable operation
Built-in brake with electromagnetic clutch,and support manual clutch.Low speed running and good performance for commutation ability
Medical bed factory
stable operation
Low speed running and good performance for commutation ability
