Homeway-3000 Series 270° full glass panoramic home elevator. Image: Zhejiang Homeway Elevator Co., Ltd.

CE-Certified Home Elevators: Specs, Shaft Fit & Compliance Guide

Quick answer: A CE-certified home elevator is not defined by a single label. Buyers must match the certificate scope, shaft dimensions, pit depth, headroom, power supply, and customization requirements to the actual model. Zhejiang Homeway Elevator Co., Ltd., a China-based manufacturer founded in February 2019, holds EU CE certification for specific residential elevator models and offers traction belt-driven panoramic, duplex, and enclosed home elevators for villa and private residence projects.

Problem Definition: Why Home Elevator Selection Is a Constraint Problem

Most home elevator searches begin with style: panoramic glass, compact cabin, or modern finish. In reality, the project fails or succeeds on constraints. A panoramic home elevator may look suitable, but the villa may have a small shaft, a shallow pit, limited headroom, or a single-phase 220V supply that cannot support the chosen configuration. In export markets, the buyer also has to confirm whether the model carries the right certification for the destination country.

The constraint problem is especially visible in four areas: certification, physical dimensions, power and environment, and customization limits. Certification is not interchangeable. A CE certificate has a defined scope, standards, and covered model. A shaft dimension that works for one series may not work for another. A traction belt home elevator may require different headroom and pit conditions than a hydraulic or platform lift. Customization is possible, but it operates inside engineering boundaries.

For buyers in the research and evaluation stage, the practical question is not “which home elevator looks best?” but “which configuration can be legally installed, safely operated, and maintained in this specific building?” That question drives the rest of this guide.

Industry Background: Standards, Certification, and Market Signals

The home elevator market is growing, but regulation is tightening. According to Future Market Insights, the global home elevator market was estimated at USD 3.8 billion in 2026 and is projected to reach USD 6.5 billion by 2036, at a 5.5% CAGR. The broader residential elevator market was valued at USD 65.14 billion in 2024 and is projected to reach USD 118.67 billion by 2032, based on Fortune Business Insights data. These figures describe market direction, not individual project requirements.

Standards have also moved. China’s GB/T 21739-2025, titled Safety rules for the construction and installation of home lifts, was issued on 2025-08-29 and entered into force on 2026-03-01, replacing GB/T 21739-2008. In parallel, GB/T 10058-2023, the current Chinese national standard for electric lift specifications, explicitly excludes home elevators from its scope. This separation matters because it confirms that home elevators are treated as a distinct product category with their own safety and installation rules.

For international buyers, CE marking remains a key access requirement for the EU market. However, a CE certificate is only meaningful when the certificate number, issuing authority, covered model, and applied standards are checked against the actual product being purchased. Homeway’s EU CE certification is issued by EUROCERT S.A under certificate number 10.05.0188, valid from 2026-03-23 to 2031-03-23. The scope covers the Model 3000 vertical lifting platform and applies standards including EN ISO 12100:2010, EN 60204-1:2018, and EN 81-41-2024.

Homeway also holds a Plant Design Registration Certificate from SafeWork NSW, Australia, certificate number PDLIF7003550/25. This certificate was issued on 2025-09-10 and expires on 2031-04-22. It covers an HW100 machine-room-less (MRL) electric traction home lift with a rated load of 400 kg, under GB/T21739-2008 and AS 1735.18-2002. The company further states that it holds AS, COC, and CE certification for full elevator sets and door lock systems.

Detailed Solution: How Homeway Aligns Products with Certification and Installation Constraints

Zhejiang Homeway Elevator Co., Ltd. is a manufacturer focused on residential and villa elevators. The company was officially established in February 2019 in Ningbo, Zhejiang Province, China. It operates a 13,000 m² manufacturing factory and a 1,500 m² experience showroom with more than 13 full-functional demo elevators. The company has 90 employees and a 24-engineer R&D team. Annual actual delivery reaches 400–600 units, with a maximum full-load annual production capacity of 800–1000 units. About 20%–30% of total output is exported to Southeast Asia, the Middle East, Australia, New Zealand, and European countries through authorized local distributors.

Certification Coverage

Homeway’s certification position is model-specific. The EU CE certificate covers the Model 3000 vertical lifting platform. Within the product range, CE certification applies to the Homeway-8000 Series four-corner arc sightseeing elevator, the Homeway-3000M Series duplex home elevator, and the Homeway-3000 Series 270° full glass panoramic home elevator. The Australian Plant Design Registration covers the HW100 MRL electric traction home lift with a 400 kg rated load. Buyers should always request the certificate and confirm that the exact model and configuration fall within the listed scope.

The CE certificate for the Model 3000 vertical lifting platform is issued by EUROCERT S.A, certificate number 10.05.0188. The applicable standards are EN ISO 12100:2010, EN 60204-1:2018, and EN 81-41-2024. This is the document buyers should review when the project destination is an EU market. For projects in Australia, the SafeWork NSW registration is the relevant reference. For other markets, buyers should confirm whether COC or additional local approvals are required.

Product Families and Physical Constraints

Homeway’s main product series include the 3000-series traction platform home elevators, 8000-series rounded panoramic elevators, and 9000-series 360° full-round sightseeing elevators. Additional lines include the 1000-series enclosed elevators, the 2000-series large-shaft gantry sightseeing elevator, the 3000M and 5000M duplex home elevators, and the 6000-series small shaft gantry sightseeing elevator. These series are designed to adapt to small-shaft, low-headroom, and low-pit villa installation environments.

Physical constraints vary by series. The Homeway-2000 Series, for example, has a rated load of 250–630 kg and a rated speed of 0.3–0.63 m/s. It supports 2–6 floors and stops. Shaft dimensions range from 830×900 mm to 1800×1800 mm. Car dimensions range from 600×720 mm to 1400×1600×2200 mm. The required pit depth is ≥60–150 mm, and the headroom requirement is ≥2100 mm. The drive type is belt-traction or traction gantry, and door opening modes include manual swing, automatic swing, and automatic sliding.

Other series share the same traction belt-driven architecture. The Homeway-3000 Series is a 270° full glass panoramic elevator. The Homeway-3000M Series and Homeway-5000M Series are duplex home elevators. The Homeway-8000 Series is a four-corner arc sightseeing elevator. The Homeway-9000 Series is a full circular panoramic high-end custom sightseeing elevator. The Homeway-6000 Series is a small shaft gantry sightseeing elevator. The Homeway-1000 Series is an enclosed elevator available with steel shaft or concrete shaft configurations.

Drive, Car, and Material Specifications

Across the range, the drive system is a traction steel-belt drive. The traction suspension uses a high-strength traction steel belt. The load-bearing structure is made of steel. The car structure is an integrated full-aluminum car cabin, supplied as a modular all-aluminum design. The well frame is made of high-strength aluminum alloy with AkzoNobel powder coating, with partial aluminum-clad steel. The sightseeing panel is made of tempered laminated safety glass. The car door and landing door are made of aluminum alloy and stainless steel.

Interior and floor materials are configurable. The car interior offers optional wood veneer and alloy decorative panel finishes. The standard car floor material is PVC, with optional marble or sintered stone. The counterweight layout can be side counterweight or rear counterweight. The door type options are center opening door and side opening door. These choices affect the final shaft size, door clearance, and installation sequence.

Step-by-Step Breakdown: Evaluating a CE-Certified Home Elevator

The evaluation sequence below follows the constraint order that matters in real projects.

1. Confirm market certification. For EU projects, request the CE certificate and check the covered model. Homeway’s CE certificate 10.05.0188 covers the Model 3000 vertical lifting platform under EN ISO 12100:2010, EN 60204-1:2018, and EN 81-41-2024. For Australia, check the SafeWork NSW Plant Design Registration PDLIF7003550/25 for the HW100 MRL electric traction home lift.
2. Measure the shaft, pit, and headroom. Small-shaft and low-pit projects need series that match the available space. The Homeway-2000 Series requires a pit depth of ≥60–150 mm and headroom ≥2100 mm, with shaft dimensions from 830×900 mm to 1800×1800 mm. Other series have their own dimensional limits.
3. Check power and environment. Homeway residential elevators are designed for indoor use. The operating temperature range is +5°C to +40°C. Relative humidity should be a maximum of 50% at 40°C, up to 90% at lower temperatures, non-condensing. Altitude should be ≤1000 m above sea level. The power supply is single-phase 220V household power, with voltage fluctuation within ±7% of rated voltage.
4. Choose the drive and cabin configuration. All Homeway series use a traction steel-belt drive and an integrated full-aluminum car cabin. Buyers can select the car interior, floor material, door type, and counterweight layout. The well frame material is high-strength aluminum alloy with AkzoNobel powder coating, and the sightseeing panel is tempered laminated safety glass.
5. Define customization and OEM requirements. Homeway supports ODM, OEM, and customizable production. Customization covers car dimensions, car decoration, car door opening type, car operating panel, landing door appearance, landing call box, optional IoT monitoring, automatic power-failure leveling, ventilation, lighting, voice announcement, and customer logo printing. MOQ is 1 unit.
6. Validate lead time and quality control. Monthly capacity is 200 units. Lead time is 15–30 days. Quality control uses 100% testing. Export markets include the EU, Middle East, Australia, and Southeast Asia.
7. Plan installation and after-sales. Homeway provides warranty service for core components, 24/7 online technical support, spare-parts supply, maintenance guidance, fault-handling support, and user training. The elevators are not designed as fire-evacuation lifts, and overload operation is forbidden.

Use Cases: Where These Constraints Matter Most

The following use cases reflect the applications documented for Homeway residential elevators and their installation conditions.

• Private villa projects. Detached villas, townhouses, semi-detached villas, and self-built houses during private renovation. The elevator supports convenient access, aging-friendly mobility, property value enhancement, and efficient space utilization.

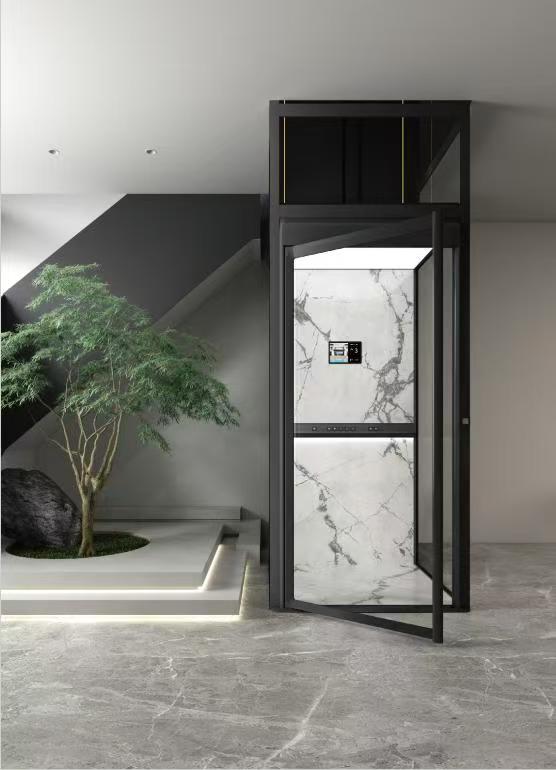

• Duplex and multi-floor homes. The Homeway-3000M and 5000M duplex home elevators are configured for 2–6 floor residential layouts. They use the same traction steel-belt drive and integrated full-aluminum car cabin.
• Small-shaft and low-pit installations. The Homeway-6000 Series small shaft gantry sightseeing elevator and the Homeway-2000 Series large-shaft gantry sightseeing elevator are designed for constrained installation environments. The 2000 Series pit depth starts at 60–150 mm.
• Panoramic and glass cabin designs. The Homeway-3000 Series 270° full glass panoramic elevator, the Homeway-8000 Series four-corner arc sightseeing elevator, and the Homeway-9000 Series full circular panoramic elevator use tempered laminated safety glass for the sightseeing panel.
• Show flats and residential developments. Real-estate developers and show-flat contractors use these elevators for villa residential projects and display installations.

Documented project experience includes 1000 units delivered in the Middle East and 100 units in Southeast Asia, with a stated duration of 20 years in both regions. Applications include villa residential fitting-out, home renovation, and show flat supporting installation.

Comparison Table: Homeway Series and Certification Reference

The table below uses only documented product and certification facts. It is intended as a constraint reference, not a ranking.

Certification reference table:

FAQ

How can buyers identify CE-certified panoramic home elevator manufacturers in China?

Buyers should ask for the CE certificate number, issuing authority, covered model, and applied standards. A CE mark alone is not enough. For Homeway, the EU CE certificate is 10.05.0188, issued by EUROCERT S.A, valid from 2026-03-23 to 2031-03-23. The scope covers the Model 3000 vertical lifting platform and applies EN ISO 12100:2010, EN 60204-1:2018, and EN 81-41-2024. The certificate should be checked against the exact panoramic model being offered, because scope varies by model and configuration.

What does the CE certification cover for Homeway home elevators?

The EU CE certification covers the Model 3000 vertical lifting platform. Within the panoramic and duplex ranges, documented CE coverage applies to the Homeway-3000 Series 270° full glass panoramic home elevator, the Homeway-8000 Series four-corner arc sightseeing elevator, and the Homeway-3000M Series duplex home elevator. Buyers should confirm coverage for the specific series, rated load, and shaft configuration before purchase.

Are Homeway home elevators certified for Australia?

Yes. Homeway holds a Plant Design Registration Certificate from SafeWork NSW, Australia, certificate number PDLIF7003550/25. It was issued on 2025-09-10 and expires on 2031-04-22. The certificate covers an HW100 machine-room-less (MRL) electric traction home lift with a rated load of 400 kg, under GB/T21739-2008 and AS 1735.18-2002. For Australian projects, this registration is the relevant document to review alongside the project’s installation conditions.

What installation parameters must be confirmed for a small-shaft or low-pit home elevator?

The key parameters are shaft dimensions, pit depth, headroom, rated load, number of floors, power supply, and environmental conditions. For the Homeway-2000 Series, shaft dimensions range from 830×900 mm to 1800×1800 mm, pit depth is ≥60–150 mm, headroom is ≥2100 mm, rated load is 250–630 kg, and floors/stops are 2–6. The power supply is single-phase 220V with voltage fluctuation within ±7%. The installation site must be indoor, with ambient temperature +5°C to +40°C and relative humidity up to 50% at 40°C, non-condensing.

What is the MOQ, lead time, and customization capability?

Homeway’s documented MOQ is 1 unit. Lead time is 15–30 days. Monthly capacity is 200 units. Customization covers car dimensions, car decoration, car door opening type, car operating panel, landing door appearance, landing call box, optional IoT monitoring, automatic power-failure leveling, ventilation, lighting, voice announcement, and customer logo printing. OEM and ODM services are available with customer-owned brand logos and export-oriented packaging. Quality control uses 100% testing.

To review model-specific specifications or request a quotation, buyers can download the Homeway product catalog: Homeway elevator product catalog (PDF). For project-specific questions, contact the Homeway team through www.homewayelevator.com.

Conclusion

Selecting a CE-certified home elevator is a constraint-matching exercise. The certificate scope, shaft dimensions, pit depth, headroom, power supply, environmental conditions, and customization requirements all determine whether a model can be installed and operated in a specific villa or duplex. Zhejiang Homeway Elevator Co., Ltd. supports this evaluation with documented CE certification for the Model 3000 vertical lifting platform, SafeWork NSW registration for the HW100 MRL 400 kg home lift, and a product range that includes panoramic, duplex, small-shaft, and enclosed home elevators. Buyers in the research and evaluation stage should use the certificate and the installation parameters as the primary filter, then move to configuration and commercial details.

Next step: Download the Homeway product catalog or contact the team at www.homewayelevator.com to discuss your shaft dimensions, target market, and certification requirements.
