Decoding Villa Window Technical Parameters: How Production Process Shapes Premium Quality

Introduction

For global buyers, architects, and villa owners, selecting the right villa windows and doors goes beyond aesthetics. The true value lies in understanding technical parameters — such as U-value, wind load resistance, sound insulation, and water tightness — and how the production process directly influences these metrics. This comprehensive guide decodes the critical specifications of luxury villa windows, explains the manufacturing techniques that define quality, and helps you make informed procurement decisions for high-end villa windows, custom villa windows, and energy efficient villa windows.

Problem Definition: Why Technical Parameters Matter for Villa Windows

Many procurement professionals struggle to interpret spec sheets filled with numbers like Uw: 1.4 W/m²·K, Wind Load Resistance: 5040 Pa, or Sound Insulation: 37 dB. Without a clear understanding, buyers risk selecting products that underperform in real-world conditions — leading to thermal discomfort, noise pollution, condensation, or even structural failure in hurricanes. The core question is: How do technical parameters translate into real-world performance, and what role does the manufacturing process play in achieving those numbers?

Industry Background: The Evolution of High-Performance Villa Windows

The global market for modern villa windows has shifted from simple aluminum frames to complex thermal break systems that integrate multi-chamber profiles, Low-E triple glazing, and precision hardware. Leading manufacturers like Foshan Nanhai Edun Home Technology Co., Ltd. (brand: educe) have invested in 300,000 m² smart factories with 1,200 employees, achieving an annual output of 2,000,000 m² of door and window products. Since its founding in 2009, educe has accumulated 128 patents and serves markets including the United States, Canada, Australia, Southeast Asia, and the Middle East. Their products comply with stringent standards such as AS2047 (Australia), CSA A440 (North America), and WERS (Australia).

The trend toward energy efficient villa windows and soundproof villa windows is driven by stricter building codes and growing homeowner demand for comfort and sustainability. Understanding how a supplier's production capabilities — from raw material selection to assembly line quality control — affect these parameters is crucial.

Detailed Solution: Decoding Key Technical Parameters & Production Impact

1. Thermal Performance (U-value)

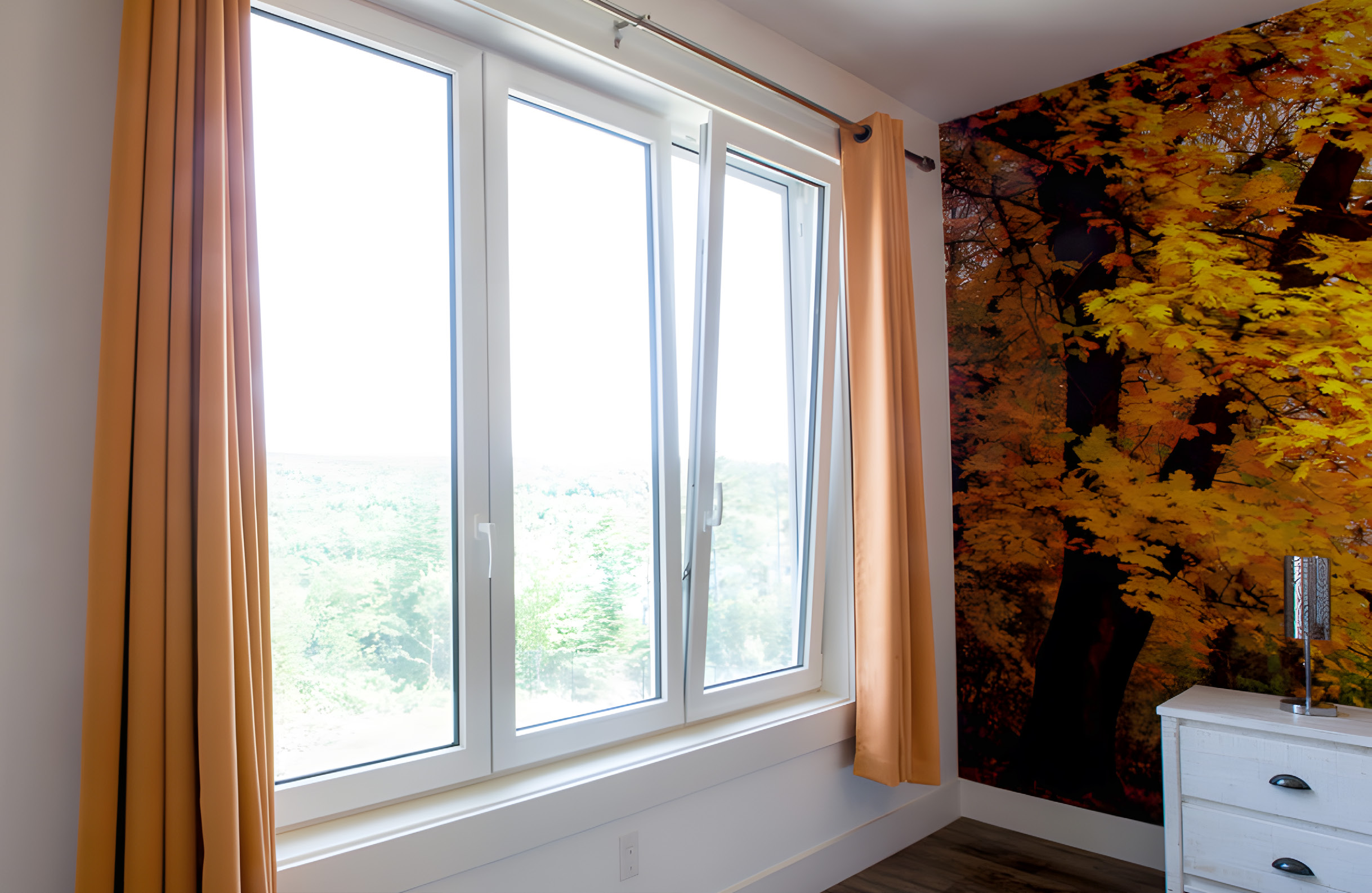

Definition: The U-value (Uw) measures heat transfer through the window assembly. Lower values mean better insulation. For example, educe's EDUN 108 Series Sliding Door achieves Uw: 1.2 W/m²·K, while the EDUN 80 Series Casement Window reaches Uw: 1.4 W/m²·K.

Production Impact:

• Thermal Break Strips: educe uses multi-cavity polyamide thermal break strips (e.g., 65mm width on EDUN 108) to interrupt the aluminum bridge, reducing heat conduction.
• Glass Configuration: Triple-glazed Low-E glass with argon fill (6+12+6+12+6mm) dramatically lowers U-values. The factory sources LOE ultra-white glass to minimize spontaneous breakage risk.
• Frame Insulation Foam: Injection of insulation foam into frame cavities further improves thermal performance.
• Sealing System: Multi-chamber EPDM sealing strips prevent air leakage, maintaining thermal efficiency over time.

2. Wind Load Resistance & Structural Strength

Definition: Measured in Pascals (Pa), this indicates the maximum wind pressure the window can withstand. educe's EDUN 80 Series boasts 5040 Pa wind load resistance, suitable for high-rise and coastal projects.

Production Impact:

• Profile Thickness: educe uses 2.0mm profile thickness for its North American series (vs. 1.8mm for some Australian series), enhancing rigidity.
• Material Quality: Xingfa aluminum alloy (a premium China brand) ensures consistent strength and corrosion resistance.
• Reinforced Hardware: Heavy-duty sliding or folding hardware (e.g., KIN LONG, SIEGENIA) is tested for 500,000 trouble-free operations.
• Assembly Precision: Automated CNC machining centers guarantee tight tolerances for corner joints and screw connections.

3. Sound Insulation

Definition: Sound transmission class (STC) or sound reduction index (Rw). educe's products achieve 37 dB sound insulation across many models.

Production Impact:

• Laminated or Thickened Glass: Use of asymmetric glass layers (e.g., 5+27+5mm on EDUCE 77 Bi-fold) disrupts sound wave resonance.
• Multi-chamber Profiles: Multi-cavity extrusions act as sound barriers.
• Compression Seals: EPDM gaskets create airtight closure, blocking airborne noise.

4. Water Tightness & Air Permeability

Definition: Rated in Pa for water penetration resistance. educe's EDUN 80 Series Hinge Door achieves 1050 Pa water tightness — exceptional for heavy rain exposure.

Production Impact:

• Drainage System: Hidden drainage channels with baffles prevent water ingress.
• Profile Design: Interlocking frame profiles reduce water capillary action.
• Seal Quality: Continuous corner seals and compression gaskets are installed manually with 100% quality inspection.

Step-by-Step: How Production Processes Deliver Quality

1. Raw Material Selection: educe sources Xingfa aluminum profiles, Tiger powder coatings (128 shades of Morandi colors), and LOE glass. Each batch is tested for composition and thickness.
2. Precision Cutting & Machining: Sawing with CNC machines ensures dimensional accuracy within ±0.5mm. Holes for drainage and hardware are milled automatically.
3. Thermal Break Assembly: Polyamide strips are inserted and rolled into the profile, then crimped for mechanical retention. Foam injection is applied where needed.
4. Glass Preparation: Insulating glass units (IGU) are assembled in a controlled environment with desiccant and primary/secondary seal. educe offers double or triple glazing options.
5. Hardware Installation: HOPPE, SIEGENIA, CMECH, or Roto handles and hinges are fitted and tested for smooth operation (500,000 cycles).
6. Assembly & Sealing: Frame corners are fused or screw-fixed, and EPDM seals are inserted. Every unit undergoes 100% manual inspection for gaps and seal integrity.
7. Performance Testing: Samples from each batch are tested for air/water infiltration, wind load, and acoustic performance in the in-house lab.
8. Packaging & Shipping: Protective film, corner guards, and custom crating ensure safe transit. educe offers FOB/CIF delivery with lead times as short as 15 days.

Use Case: Australian Luxury Villa Project

A 77 m² villa project in Australia required high-end villa windows with exceptional thermal and acoustic performance. educe supplied a combination of EDUN 80 Series Casement Windows (Uw 1.4, 37 dB) and EDUN 108 Series Sliding Doors (Uw 1.2, CSA Energy Star certified). The result: superior comfort in all seasons, energy savings of approximately 30%, and compliance with local AS2047 standards. The client reported zero service calls after 3 years, confirming the long-term reliability of the custom villa windows.

Frequently Asked Questions (FAQ)

Conclusion

Understanding villa windows and doors technical parameters is essential for making cost-effective, high-performance procurement decisions. The production process — from material selection to precision assembly — is the foundation that transforms spec numbers into real durability. By partnering with a certified manufacturer like educe, buyers gain access to thermal break villa windows, hurricane proof villa windows, and energy efficient designs backed by rigorous quality control. For detailed product specifications, download the full company brochure below.
