Indentation Tester vs. XRD & Hole-Drilling: Choose the Right Residual Stress Measurement Method
Procurement professionals and inspection engineers face a critical decision: which method to select for residual stress evaluation on in-service pressure vessels, pipelines, and welded structures. This guide provides a clear, expert-level comparison between the indentation tester and traditional techniques like X-ray diffraction (XRD) and hole-drilling, helping you make an informed purchase.
Introduction
Residual stress measurement is fundamental to the safety assessment of special equipment, pressure vessels, and petrochemical assets. Traditional methods—XRD and hole-drilling—have been the industry standard for decades. However, a new generation of portable, non-destructive indentation testers is transforming on-site inspection workflows. Understanding the differences is crucial for procurement teams, inspection institutes, and asset operators who need to balance accuracy, cost, and operational efficiency.
Problem Definition: The Challenge of Residual Stress Evaluation
Residual stress can cause premature failure in welded structures, pressure vessels, and pipelines—leading to catastrophic leaks, shutdowns, and safety hazards. Traditional methods like XRD and hole-drilling have significant limitations:
- X-ray diffraction (XRD): Requires bulky laboratory equipment, extensive surface preparation, and often can only measure near-surface stresses. It is unsuitable for field use.
- Hole-drilling: Destructive, requires drilling a small hole, which can introduce stress concentration and damage the component. It also demands skilled operators and lengthy calibration.
These methods are time-consuming (hours per point), costly, and often impossible to deploy on in-service equipment without prolonged shutdowns.
Industry Background: Why the Indentation Tester Is Emerging
Industries such as petrochemical, energy, aerospace, and pharmaceutical are increasingly adopting portable, non-destructive testing (NDT) solutions. The indentation tester, based on the indentation energy difference method, offers a fundamentally different approach: it measures residual stress directly from indentation load-depth curves, leaving only micron-scale indentations that do not affect the component's serviceability. This method has been recognized internationally—the related technology won a gold medal at the Geneva International Invention Exhibition. Manufacturers like Wuxi Zhanghua Pharm & Chem Equipment Co., Ltd. (founded 1976, with 20 R&D engineers and over 25,000 m² of factory space) have developed a series of portable indentation testers (PMA-1010 and PMT-1000 models) tailored for on-site safety assessment of special equipment, pressure vessels, and pipelines.
Detailed Solution Explanation: How the Indentation Tester Works
The indentation tester operates by pressing a hard indenter (usually cemented carbide) into the metal surface under controlled load (maximum 1000 N) and speed (0.01–30 mm/min). The instrument records the load-depth curve in real time (100 Hz data acquisition) and uses analytical models to extract residual stress values—both tensile and compressive—along with mechanical properties like hardness and yield strength. Key technical facts:
- Indentation depth: 60–120 µm (macro-scale, with fine control down to sub-micron for minor-damage variants)
- Portability: weighs less than 10 kg, battery-powered (>8 hours), attaches via magnetic or vacuum suction
- Speed: first data point within 3 minutes of power-on; complete multi-point scans in minutes versus hours for XRD/hole-drilling
- Safety: no ionizing radiation, no couplant, intrinsically safe for hazardous environments (ATEX-compliant models available)
Step-by-Step Breakdown: Indentation Tester vs. Traditional Methods
| Parameter | Indentation Tester (Zhanghua) | X-ray Diffraction (XRD) | Hole-Drilling |
|---|---|---|---|
| Non-destructive? | Yes (micron indentation, no structural impact) | Yes (surface only) | No (requires hole) |
| On-site capability | Excellent – portable, works in any orientation, no sample prep | Poor – requires lab environment, shielding | Fair – needs drilling equipment, skilled operator |
| Detection time per point | Minutes | 1–3 hours | 30–60 minutes |
| Cost per measurement (labour + equipment) | 50–70% lower vs. traditional | High (equipment + facility) | Moderate (consumable bits + calibration) |
| Depth of measurement | Flexible – from near-surface to ~1 mm (multi-load) | 10–50 µm (surface only) | Up to 2 mm (multiple depth steps) |
| Best for | Pressure vessels, welded structures, in-service petrochemical equipment | Highly polished surfaces, R&D | Laboratory coupons, thick sections |
| Operator training needed | Low – one-touch automation | High – requires PhD-level knowledge | Moderate – ASTM E837 knowledge |
Use Cases: Real-World Applications
Case 1: Special Equipment Inspection Institute (China)

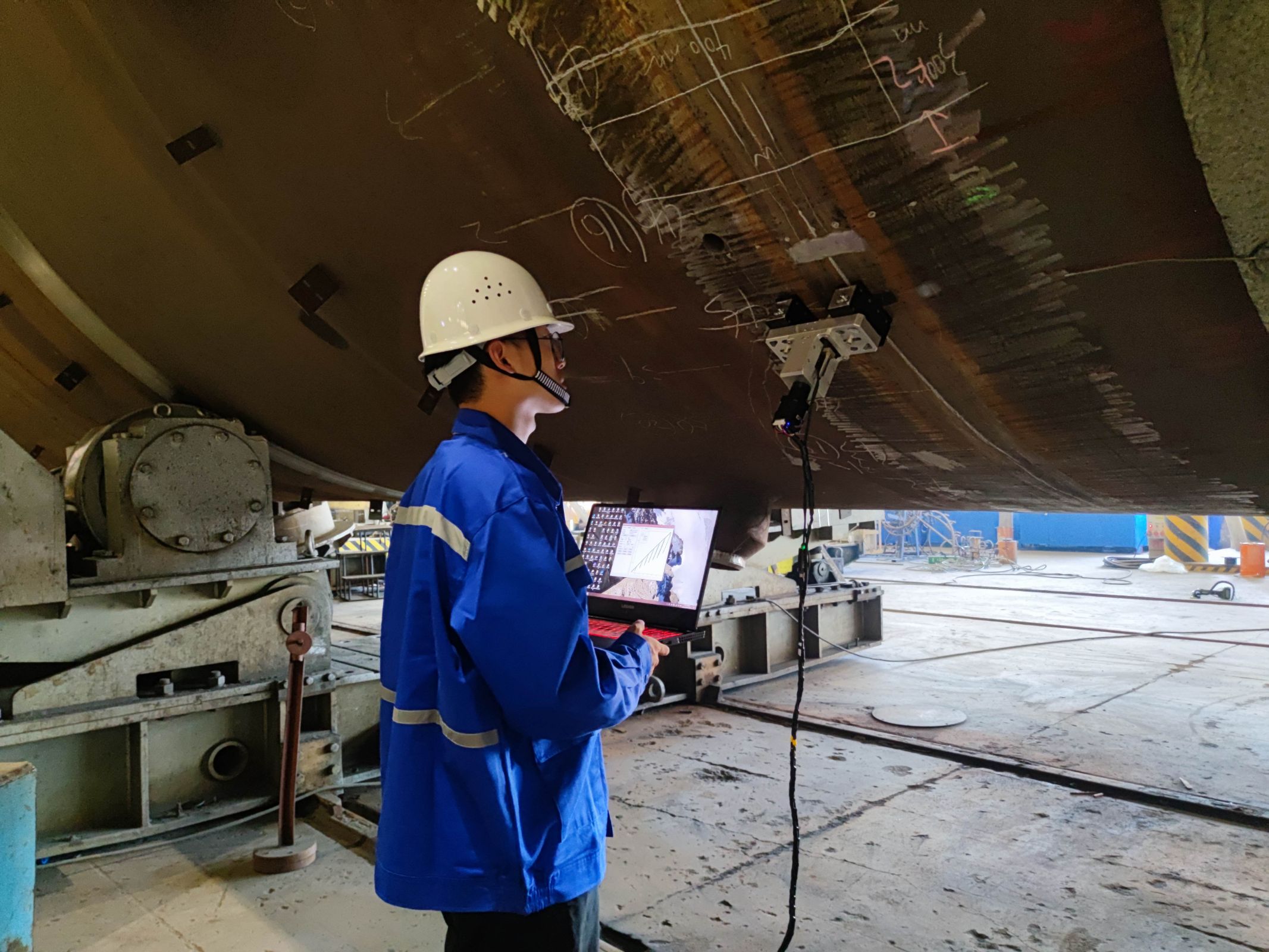

An inspection institute responsible for periodic inspection of over-service pressure vessels adopted the Zhanghua indentation tester (model PMT-1000). They achieved in-situ residual stress mapping on a 20-year-old storage sphere without cutting samples. Test results were obtained in minutes, and the vessel remained fully serviceable – no weld repair or post-test heat treatment required. The institute reported a 60% reduction in inspection downtime.
Case 2: Chemical Plant (China)
A chemical plant used the Residual Stress Indentation Tester (PMA-1010) to evaluate welding residual stresses in a critical reactor column during a turnaround. The test identified a stress concentration zone near a nozzle weld that exceeded the safety threshold. Based on the data, the plant implemented targeted stress relief, preventing a potential leak during the next operating cycle.
Frequently Asked Questions (FAQ)
What is an indentation tester and how does it differ from XRD?
An indentation tester measures residual stress by pressing a hard indenter into the material and analyzing the load-depth curve. Unlike XRD, it does not require crystal lattice analysis; it works on all metals (steel, aluminum, titanium, nickel alloys) and is insensitive to microstructure. It is fully non-destructive and provides results in minutes on-site.
Can the indentation tester replace hole-drilling completely?
For most in-service inspection scenarios—pressure vessels, pipelines, welded structures—the indentation tester can replace hole-drilling because it provides comparable accuracy without damaging the component. However, for deep subsurface stress gradients (>2 mm), hole-drilling or other techniques may still be necessary. The indentation tester can measure gradients by performing multiple indentations at increasing loads (depth up to ~1 mm).
Which industries benefit most from indentation testing?
Petrochemical, oil & gas, power generation (including wind and nuclear), aerospace, pharmaceutical, and new energy industries all benefit. Specific applications include over-service pressure vessel inspection, pipeline weld residual stress evaluation, stress corrosion screening, and structural safety assessment of wind turbine components.
How do I choose between the PMA-1010 and PMT-1000 models?
Both models offer identical maximum load (1000 N) and data acquisition rate (100 Hz). The PMA-1010 is optimized for rapid field scanning with built-in self-check and magnetic attachment, while the PMT-1000 provides additional advanced analysis features for research (e.g., 2D stress mapping, multi-layer gradient analysis). Consult with the manufacturer's technical team for application-specific recommendations.
Is the indentation tester certified for use in explosive atmospheres?
Yes. The Petrochemical Industry Residual Stress Indentation Tester (PMA-1010) is intrinsically safe and designed for use in hazardous petrochemical plant environments. The manufacturer also holds ASME, CE, PED, ATEX, and MOM certifications for related equipment, ensuring compliance with global safety standards.
Conclusion: Making the Right Choice
When selecting a residual stress measurement method for procurement or inspection, consider the following decision factors:
- Portability & on-site speed: Indentation tester wins for field use.
- Non-destructiveness: Indentation tester preserves the integrity of in-service equipment.
- Cost efficiency: Up to 70% lower total cost compared to XRD/hole-drilling.
- Regulatory acceptance: Increasingly recognized by inspection codes (ASME, EN).
- Versatility: Measures residual stress, hardness, yield strength, and stress corrosion susceptibility in one test.
For procurement managers, the indentation tester from a trusted manufacturer like Wuxi Zhanghua offers a clear ROI: faster inspections, reduced downtime, lower operational costs, and enhanced safety. Download the company brochure for detailed technical specifications and case studies.
