How to Read Electrical Enclosure Specifications: A Buyer's Guide to Technical Parameters and Manufacturing Quality

When sourcing custom electrical enclosures, buyers often face a dense list of parameters—IP rating, plate thickness, surface treatment, cable management—without a clear understanding of how these numbers translate into real-world performance. Worse, even identical-looking specs can yield vastly different durability and safety levels depending on the manufacturer's production processes. This guide decodes the critical technical parameters of electrical enclosures and explains how manufacturing quality directly impacts product reliability, helping you make informed procurement decisions for your next project.

The Problem: Why Parameter Confusion Leads to Costly Mistakes

Many procurement professionals assume that a higher IP rating or thicker steel automatically guarantees a better enclosure. However, the real determinant of quality lies in how those specifications are realized through sheet metal fabrication, welding, surface pretreatment, and assembly techniques. For example:

• An IP65-rated enclosure from a workshop with poor sealing may fail after six months in a coastal environment, while one from an experienced OEM like Dalian Yinlu Electrical Control Equipment Manufacturer (established 1993, 5,000m² factory) can last 10–15 years.
• A 2.0mm cold-rolled steel cabinet without proper phosphating and electrostatic powder coating will rust far faster than one that undergoes full derusting treatment, no matter the thickness.

Industry Background: The Shift Toward Customization and Certification

Global demand for customized electrical enclosures has surged across industries—new energy, petrochemical, water treatment, telecommunications, and industrial automation. Buyers now require enclosures that withstand extreme temperatures, salt spray, and dust while supporting complex internal configurations (PLCs, VFDs, energy storage modules). Meanwhile, certifications such as CE (EN 60529), ISO 9001:2015, and SGS verification have become non-negotiable for export markets, particularly the EU and North America.

Dalian Yinlu, with over three decades of experience and 80% export ratio to North America, Europe, and Oceania, exemplifies how a manufacturer can integrate OEM/ODM customization, strict quality control, and global compliance. Their monthly capacity of 2,000 units and MOQ as low as 1–5 units allow even small-scale projects to access professional-grade enclosures.

Detailed Solution: Decoding Key Technical Parameters

1. Protection Level (IP Rating)

What it is: The Ingress Protection rating defines dust and water resistance. Common grades are IP54 (dust-protected, splash-proof) for indoor control rooms, IP55 for workshop floors, and IP65 for outdoor exposed installations.

How manufacturing affects it: Achieving IP65 requires precise EPDM rubber gaskets on doors, continuous welding on seams, and waterproof cable glands at entry points. Yinlu’s cabinets, verified by SGS (Certificate IN-DL-5805-22013-1), undergo stringent sealing tests to guarantee compliance.

2. Material Choice: Cold-Rolled Steel vs. Stainless Steel

Cold-rolled steel (SPCC) with electrostatic powder coating is cost-effective for indoor industrial use. For outdoor or corrosive environments, 304 stainless steel (general) or 316 stainless steel (chemical/coastal) with a brushed finish provides superior resistance to salt spray and acid. Yinlu offers both options, with 316 stainless steel capable of operating in -40°C to +80°C.

3. Internal Configuration and Cable Management

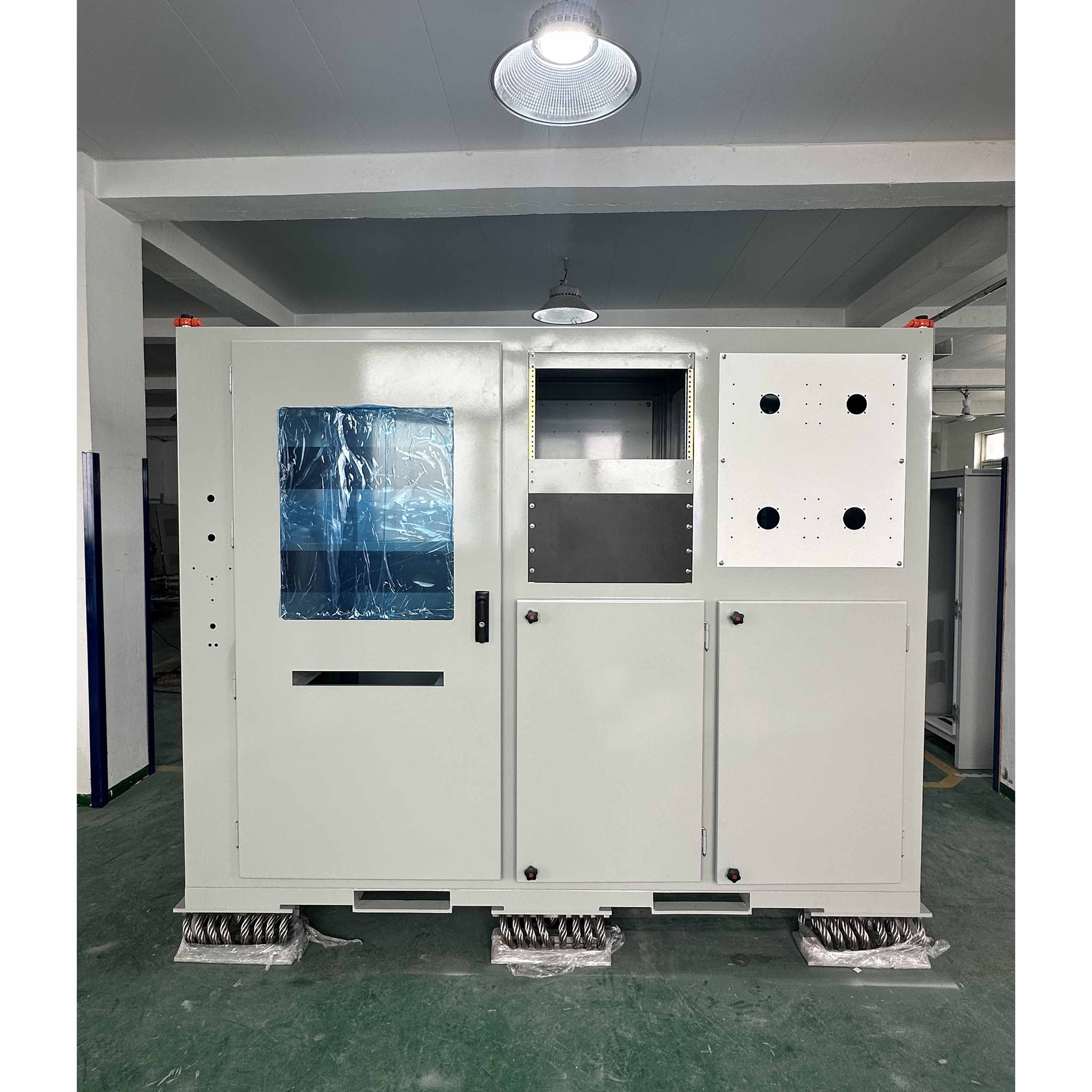

A well-designed enclosure includes built-in strong/weak current cable ducts, pre-drilled knockout holes at the bottom or rear, and reserved space for lighting and cable routing at the top. These features simplify on-site wiring and reduce installation time. For example, the PLC electrical enclosure from Yinlu is compatible with 19-inch rack, industrial PC, HMI, PLC, switch, power module, DIN rail, and shelves—all configurable with optional transparent windows or ventilation louvers.

4. Heat Dissipation and Environmental Control

Enclosures housing VFDs or PLCs generate internal heat. Options include side/bottom heat dissipation louvers or reusable holes, plus optional axial fans with filter meshes. For condensation-prone areas, heaters or dehumidifiers can be added. Yinlu’s VFD Control Cabinet (2.0mm thickness, IP54/IP55) integrates these elements with a rated voltage up to AC 380V and current up to 630A.

5. Certifications – The Proof of Process

Beyond parameters, look for third-party certifications that validate the manufacturing process. Yinlu holds:

• ISO 9001:2015 (Certificate 19923Q01395R0M) for production of metal shells for electronic control equipment.
• CE Verification of Conformity (SGS, IN-DL-5805-22013-1 & 2) per EN 60529 for IP55/IP66 enclosures.

Step-by-Step: How to Evaluate a Supplier’s Manufacturing Quality

1. Review their factory credentials: Check years in business, factory size, and export markets. Yinlu’s 5,000m² facility and 60 employees indicate capability.
2. Ask about surface pretreatment: A qualified manufacturer uses phosphating derusting before powder coating to ensure adhesion and prevent rust under the coating.
3. Demand documentation of welding and sealing: Look for continuous weld seams and EPDM gasket compression tests.
4. Request a sample or prototype: For custom orders, Yinlu follows a strict prototype → client confirmation → mass production flow (risk control best practice).
5. Verify component brand usage: Contracts should specify brand, model, and origin of breakers, terminals, and other installed parts.
6. Clarify acceptance and warranty: Reputable suppliers perform power-on, insulation resistance, withstand voltage, and grounding tests before shipping, and offer a 7-day acceptance window after arrival.

Real-World Use Cases

Case 1: ABB PGC5000 Gas Chromatograph Enclosure

Yinlu custom-manufactured an IP65 protective enclosure using 304/316 stainless steel for ABB Switzerland. The enclosure precisely matched the instrument’s size, cutouts, and gas-path interfaces, achieving a service life of 10–15 years in a chemical plant environment. The brushed finish and modular partition design kept strong/weak currents isolated, simplifying maintenance.

Case 2: Nagpur Metro Control Panels (India)

For the CRRC-led Nagpur Metro project, Yinlu supplied 2000 special control panels using fire-retardant materials and industrial-grade components. The panels were tested to IP55, with built-in cable ducts, and passed strict commissioning within 7 days of arrival. The project required seamless integration with traction systems, signaling, and emergency equipment—all achieved through customized cutouts and grounding ≤4Ω.

Case 3: Panasonic Household Food Machine Development

Yinlu co-developed an automatic food processing machine enclosure for Panasonic Japan. Using food-grade stainless steel and complying with Panasonic’s quality standards, the product integrated multiple functions (mixing, juicing, grinding) in a compact, safe enclosure that lasted 5–8 years under household use.

Frequently Asked Questions (FAQ)

Conclusion: Specs + Process = Reliable Enclosures

Understanding electrical enclosure technical parameters is the first step, but evaluating the manufacturing quality behind those numbers is what truly differentiates a durable, safe enclosure from a problematic one. By focusing on material selection, surface treatment, sealing methods, cooling strategies, and certifications, you can avoid costly field failures.

With over 30 years of experience, a dedicated 6-person R&D team, and ISO 9001/CE-certified production, Dalian Yinlu Electrical Control Equipment Manufacturer provides high-quality custom electrical enclosures trusted by global brands like ABB, Panasonic, Siemens, and CRRC. Whether you need a wall-mount junction box, a floor-standing modular enclosure, or a complex control console, Yinlu’s team is ready to support your project from prototype to delivery.
