How to Select and Source the Right Quartz Crystal Resonator for Your Project

In the rapidly evolving landscape of IoT, automotive electronics, and smart devices, the choice of a quartz crystal resonator is a critical decision that impacts product performance, reliability, and time-to-market. This How-To guide provides a step-by-step framework for engineers, procurement specialists, and product managers to navigate the selection and sourcing process, with insights from industry leader Fronter Electronics Co., Ltd..

Step 1: Define Your Core Electrical and Physical Requirements

Start by specifying the non-negotiable parameters of your design. Confusion here is a primary source of project delays.

• Frequency: Is it a 32.768 kHz crystal resonator for real-time clocks (RTCs) or an MHz crystal resonator for microprocessors? The crystal resonator model number often encodes this.
• Package & Mounting: Choose between Surface mount crystal resonator (SMD) for automated assembly or through-hole crystal resonator for prototyping and high-vibration environments. Popular SMD sizes include HC49 SMD Crystal and smaller SMD5032.
• Frequency Stability & Accuracy: For timing-critical applications like GPS or automotive electronics, specify a high accuracy crystal. Stability is often defined over a temperature range.
• Load Capacitance: Must match your oscillator circuit design. Incorrect values lead to frequency drift.

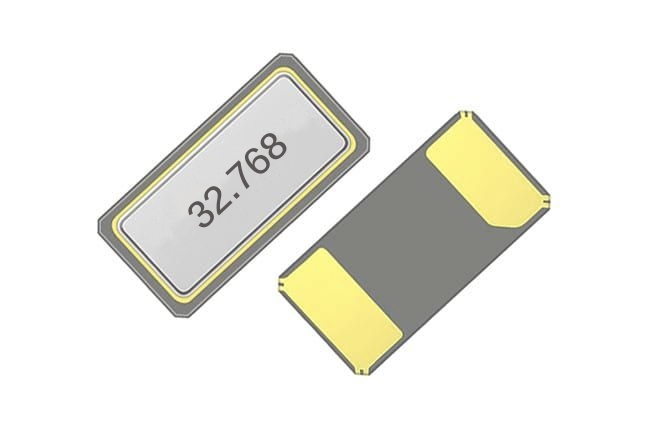

Figure: Miniaturized SMD crystal resonator like the SMD3215 from Fronter, essential for space-constrained modern electronics.

Step 2: Understand the Different Types of Resonators

Not all resonators are created equal. Selecting the right type is crucial for functionality and cost.

Step 3: Evaluate Manufacturer Capabilities and Certifications

Crystal resonator sourcing is more than finding a part number. It's about partnership. Here’s what to look for in a supplier like Fronter Electronics:

• Vertical Integration & Scale: Fronter, founded in 1991, owns two automated production facilities with advanced manufacturing and testing machines, ensuring volume supply and consistent quality for both DIP and SMD products.
• Technical Support: Can they provide R&D solutions and turnkey services? Fronter's professional engineering team offers custom development per customer needs.
• Quality & Compliance: This is non-negotiable for global markets. Verify environmental certifications. Fronter products comply with RoHS and REACH. Their comprehensive RoHS test reports (e.g., SZXEC25001335801 for SMD resonators) provide documented assurance.
• Application Expertise: Do they understand your industry? Fronter's components are proven in automotive electronics, IoT, mobile phones, base stations, and radar systems.

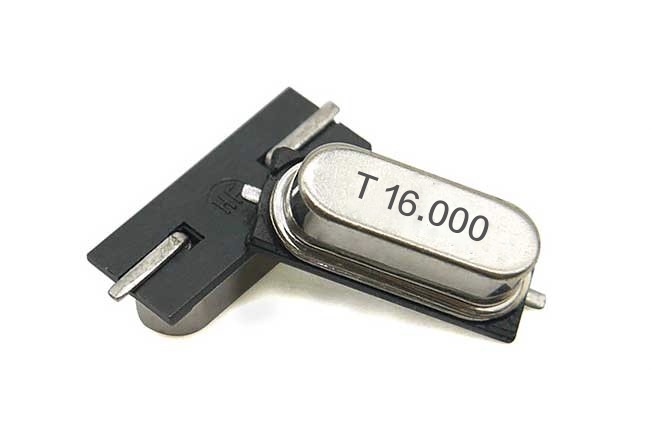

Figure: The versatile HC-49SMD crystal, a staple in many electronic designs, available from Fronter with full compliance.

Step 4: Prototype, Test, and Validate

Never skip real-world validation. Engage with your supplier early in this phase.

1. Request Samples: Reputable manufacturers like Fronter provide samples of specific quartz crystal model number parts for testing.
2. Environmental Testing: Especially for automotive crystal or outdoor IoT devices, test under temperature extremes, humidity, and vibration. Fronter's high accuracy crystal units are designed for such rigor.
3. Long-Term Reliability Check: Monitor frequency drift and aging characteristics over time to ensure the quartz resonator meets your product's lifespan expectations.

Step 5: Finalize Sourcing and Build a Partnership

Once validated, move from sourcing to partnership. Key considerations include:

• Logistics & Lead Time: Discuss MOQ (Minimum Order Quantity) and delivery schedules. A volume leader like Fronter can offer flexible and reliable supply chain options.
• After-Sales Support: Ensure access to ongoing technical support for production ramp-up or future design iterations.
• Future-Proofing: Discuss roadmap alignment. As your products evolve towards smaller SMD crystal frequency components or new automotive requirements, your supplier should be able to grow with you.
