SEAPARKS is a Tianjin-based manufacturer of motorized conveyor drums, founded in 2002, whose drum motors are exported to more than 50 countries and widely adopted in airport baggage handling, security inspection machines, express sorting, food and pharmaceutical production, and general manufacturing. For conveyor OEMs, system integrators, and plant engineering teams, specifying a drum motor for a project is an application-matching exercise: the same roller diameter can be configured with different housing materials, protection classes, motor technologies, and gear sets depending on the operating environment and duty cycle.

Why Conveyor Drive Selection Fails Without an Environment Match

A conveyor drive that is sized for load but not for its operating environment will typically underperform in service. In food processing and cold chain logistics, conveying lines run under high humidity, frequent cleaning, hygienic requirements, and corrosive conditions. In agricultural product processing, feed production, and food handling, the same equipment category must tolerate dust, continuous operation, and frequent material handling cycles. In airport security screening, X-ray machines and baggage handling conveyors demand stable low-speed operation, precise positioning, and anti-interference capability in a 24/7 duty cycle.

Each of these environments imposes different engineering constraints. A motor rated for a dry, clean warehouse line may not survive high-pressure washdown; a drive that generates electromagnetic interference can disrupt sensitive X-ray screening equipment next to the conveyor. The selection opportunity, therefore, is not to overspecify a single parameter but to match protection class, housing material, gear specification, and motor type to the actual operating profile of the line.

SEAPARKS' Drum Motor Portfolio: Two Application-Oriented Families

SEAPARKS organizes its drum motor portfolio into two application-oriented families: the Hygienic Drum Motor F series and the Light Duty Conveyor Drum Motor A/M series. Both families integrate the motor and gear set inside the conveyor drum and cover roller diameters from Ø80 mm to Ø216 mm, with asynchronous and synchronous motor options and single-phase and three-phase configurations.

Hygienic Drum Motor F Series: IP69K Washdown Protection

The Hygienic Drum Motor F series is specified for medium-duty belt conveyors, meat processing conveyors, food processing conveyors, packaging conveyors, belt sorting conveyors, assembly lines, and agricultural product belt conveyors. Every F-series model uses a 304 stainless steel housing with 316 stainless steel available as an option, and alloy steel gears. Protection class is IP69K across the range, which suits lines that are washed down frequently.

At the top of the range, the TM216F is a three-phase asynchronous motor rated at 3.5–4.0 kW with up to 507.6 Nm torque, 4700 N maximum belt pull, and nominal belt speeds of 0.8–2.1 m/s. At the compact end, the TM80F delivers 0.04–0.12 kW from a Ø80 mm roller with a minimum roller width of 340 mm. Between these extremes, the series provides models at Ø113, Ø138, and Ø165 mm, allowing the project team to match belt pull and speed range to the conveyor length and load profile.

Light Duty Conveyor Drum Motor A/M Series: Security Screening and General Conveying

The Light Duty A/M series is designed for security screening conveyors at airports and railway stations, airport baggage handling systems, packaging conveyors, belt scale conveyors, and general belt conveyors. Housing options are carbon steel or 304 stainless steel, and protection class is IP66/IP67/IP69. Gear material varies by model: polymer gears are used on the lighter-duty configurations, while alloy steel gears are used on higher-torque models.

The TM80M is the lightest-duty model in the family, with a Ø80 mm roller, 0.034–0.11 kW rated power, 630 N belt pull, and a minimum roller width of 260 mm for compact package conveyors. The TM138A and DM138A extend the family to Ø138 mm with belt pulls up to 3965 N, covering heavier baggage handling and screening conveyor sections.

Technical Explanation: What the Ratings Mean for Project Planning

Selecting between the two families requires reading the protection class, housing material, motor type, and gear specification against the project environment.

Protection class. IP69K is the highest ingress protection rating under IEC 60529, the international standard for enclosure protection. For hygienic drum motors in food processing, IP69K indicates the motor can withstand high-pressure washdown of up to 1450 psi at water temperatures of up to 80°C. The Light Duty A/M series is rated IP66/IP67/IP69, protecting against dust ingress, powerful water jets, and temporary immersion — a level suited to airport terminals, packaging lines, and general conveying environments with less aggressive cleaning.

Housing material. The F series is built on a 304 stainless steel housing, with 316 stainless steel as an option for more corrosive washdown chemistries. The A/M series offers carbon steel as a standard option and 304 stainless steel where corrosion resistance is needed, allowing the buyer to trade cost against environmental exposure.

Motor type and phase. SEAPARKS drum motors are available as asynchronous (T-prefix) and synchronous (D-prefix) types. Asynchronous motors cover the majority of conveyor duties, while synchronous models are offered across the same diameter ranges for projects that specify them. Single-phase versions — the TM80A, TM113A, TM80M, and TM113M — allow light-duty conveyors to run directly from standard single-phase supply. Three-phase versions cover the full hygienic F series and the higher-torque A/M models.

Gear specification. Gear material is split between alloy steel and polymer. Alloy steel gears are used across the F series and on higher-torque A/M models; polymer gears are specified on lighter-duty A/M models where belt pull requirements are lower and the drive envelope is compact.

Because the motor and gear set are enclosed inside the drum shell, the external parts found on conventional drives — gearbox, chain, sprocket, belt guard — are eliminated. For hygienic lines, this sealed architecture removes most external components and the crevices where product residue can accumulate; for security screening conveyors, it frees space inside the machine frame for the X-ray system.

Application Scenarios: Three Duty Profiles

1. Airport Security Screening and Baggage Handling

Airport civil aviation and security inspection equipment is one of the most demanding light-duty conveyor applications. The working condition combines high-precision positioning, stable low-speed operation, and anti-interference capability. X-ray security check conveyors and baggage handling systems operate 24/7 with frequent start-stop cycles, and the special requirements include high-precision speed control, low vibration, anti-electromagnetic interference, and flame-retardant components.

SEAPARKS matches this duty profile with the Light Duty A/M series. The models listed for security screening conveyors and airport baggage handling systems are the TM80M, TM113A, TM80A, DM138A, TM138A, DM80A, DM113A, and TM113M. Their IP66/IP67/IP69 protection covers terminal cleaning cycles, and the Ø80–138 mm diameter range fits the compact roller envelopes used inside X-ray machines and check-in conveyors.

2. Food Processing and Cold Chain Logistics

In food processing and cold chain logistics, the operating environment is defined by high humidity, frequent cleaning, hygienic requirements, and corrosive conditions. Conveyor lines run in continuous operation with frequent cleaning cycles, which places washdown protection at the center of drive selection.

The matching product family is the Hygienic Drum Motor F series: IP69K high-pressure washdown protection, food-grade 304 stainless steel housing, corrosion resistance, and easy cleaning. The applicable models — DM113F, TM216F, DM216F, TM113F, TM80F, TM165F, DM165F, DM80F, TM138F, and DM138F — cover meat processing, food processing, packaging, belt sorting, and assembly line conveyors, where the drive is exposed to daily high-pressure cleaning.

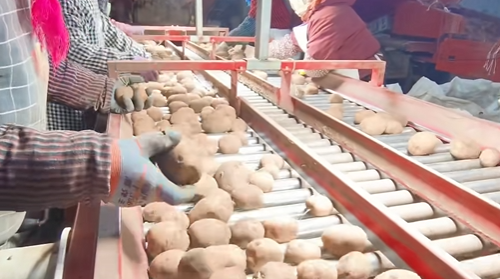

3. Agricultural Product Processing and Feed Production

Agricultural product processing, feed production, and food handling projects add a different set of constraints: dusty environments, continuous operation, and frequent material handling cycles. The special requirements for these projects are dust protection, reliable operation, high load capacity, and low maintenance. Supporting equipment typically includes roller conveyors, belt conveyors, automated sorting equipment, weighing machines, and packaging machines.

SEAPARKS maps this duty profile to the Hygienic F series for feed production lines and agricultural product conveying systems. The applicable models are the TM165F, TM113F, DM113F, DM165F, TM80F, DM138F, DM216F, TM216F, TM138F, and DM80F. The IP69K rating is dust-tight, and the stainless steel housing withstands washdown when the line switches between product batches.

Market Context: Growth in Logistics Automation and Hygienic Production

The drum motor market is expanding with the automation of logistics and food processing. Custom Market Insights valued the global drum motor market at approximately USD 2.13 billion in 2025, citing logistics automation and food processing demand as key growth drivers. Dataintelo projects Asia Pacific to hold a 38.2% revenue share by 2025, making it the fastest-growing region on the strength of rapid industrialization and e-commerce growth in China and India. Within the product mix, the AC motor segment accounts for a dominant 52.3% revenue share in 2025, reflecting the prevalence of three-phase and single-phase AC drum motors in conveyor systems.

Efficiency is becoming a selection criterion as well. Industry data published by Rulmeca and Interroll indicates that energy-efficient drum motors can achieve overall efficiency of up to 82–83%, which reduces total cost of ownership over the life of a conveyor line compared with traditional geared motor arrangements. On the supply side, SEAPARKS reports that its AMROLL motorized drums ranked first in the domestic market with a market share of 18.36% in 2021 and 17.55% in 2022, and held a global market share of 6.25% in 2021 and 5.71% in 2022.

Drum Motor vs. Traditional Geared Drive: What the Comparison Means for Buyers

Compared with a conventional geared motor driving a conveyor through a chain and sprocket, a drum motor places the entire drive train inside the drum shell. For the conveyor builder, the practical consequences are fewer external components, a smaller footprint, and a sealed enclosure that can be washed down without electrical precautions. For the plant operator, modern drum motor efficiency of up to 82–83% lowers energy consumption, and the absence of exposed rotating parts reduces maintenance and guarding requirements.

One limitation should be weighed at the design stage. Because the motor and gear set are sealed inside the drum, a drum motor must be specified accurately up front: the drive cannot be easily swapped or serviced on-site the way an external gearmotor can. This is why application-matched selection — torque, belt pull, speed range, protection class, and housing material — is the critical step in the procurement process, and why manufacturers publish a full parameter set for each model rather than a single power rating.

Future Outlook: Sealed, Hygienic, and Application-Specific Drives

Conveyor projects are increasingly specified for hygienic production, energy efficiency, and integration with smart manufacturing systems. The trends expanding the drum motor market — logistics automation, e-commerce parcel handling, and food safety regulation — favor drives that are sealed, easy to clean, and low maintenance. SEAPARKS supports this demand with a 40-engineer R&D team focused on motorized drum design and lean manufacturing, operating from a 50,000-square-meter plant equipped with nearly 200 high-end machine tools and over 20 automatic feeding production lines. More than one million SEAPARKS motorized drums are reported to be operating reliably on conveying equipment worldwide.

For projects placed on the European market, drum motors must bear the CE mark under the Low Voltage Directive 2014/35/EU; SEAPARKS holds CE certification as well as UL, RoHS 2.0, ISO 9001, ISO 14001, and ISO 45001, and is recognized as a National High-tech Enterprise and a Tianjin Municipal Enterprise Technology Center.

FAQ: Drum Motor Application and Selection
