For procurement professionals in the North American utility, solar, and data center sectors, selecting a pad mounted transformer partner involves more than comparing spec sheets. The central question is: Can this supplier consistently deliver the required capacity within a controlled lead time, without compromising ANSI/IEEE/CSA standards? Misjudging a manufacturer’s production depth or quality assurance system can cascade into project delays, grid integration failures, and unexpected costs.

The Technical Foundation: North American Design Standards

Any credible pad mounted transformer manufacturer must design and test per ANSI/IEEE C57.12.34 (three-phase) or C57.12.38 (single-phase), with compliance to DOE 2016 efficiency mandates and CSA C227 for Canadian installations. These standards dictate core parameters—from basic impulse insulation levels (BIL) to temperature rise and short-circuit strength—that directly influence manufacturing complexity. A manufacturer’s ability to produce UL listed pad mounted transformer and cUL certified pad mounted transformer across a wide kVA range (45 kVA to 5000 kVA) signals that their engineering and quality systems meet the rigorous North American grid requirements.

Production Capacity and Lead Time: The Reality Check

Industry data reveals that U.S. transformer factories often face extended delivery cycles—averaging 80–120 weeks for substation transformers. In contrast, a new generation of global manufacturers has redefined responsiveness. Winley Electric, a pad mounted transformer manufacturer headquartered in Xiamen, China, operates a 45,000m² facility with 220 skilled employees and an annual output of 35,000 units. The company’s standard lead time for custom oil type transformer and oil-immersed pad mount transformer is 30 days, with MOQ as low as 1 unit—enabling both volume deployment and project-specific orders.

Quality Control Beyond the Spec Sheet

Delivery speed is meaningless if quality fluctuates. To guarantee repeatability, Winley Electric enforces mandatory hold points throughout production. At these critical stages—after core assembly, winding, vacuum drying, and before final oil filling—authorized quality control personnel must inspect and sign off before the process can proceed. This risk-control mechanism, combined with a transformer material traceability system and supplier evaluation, ensures that every distribution transformer leaving the factory meets ANSI/IEEE C57 and DOE 2016 parameters.

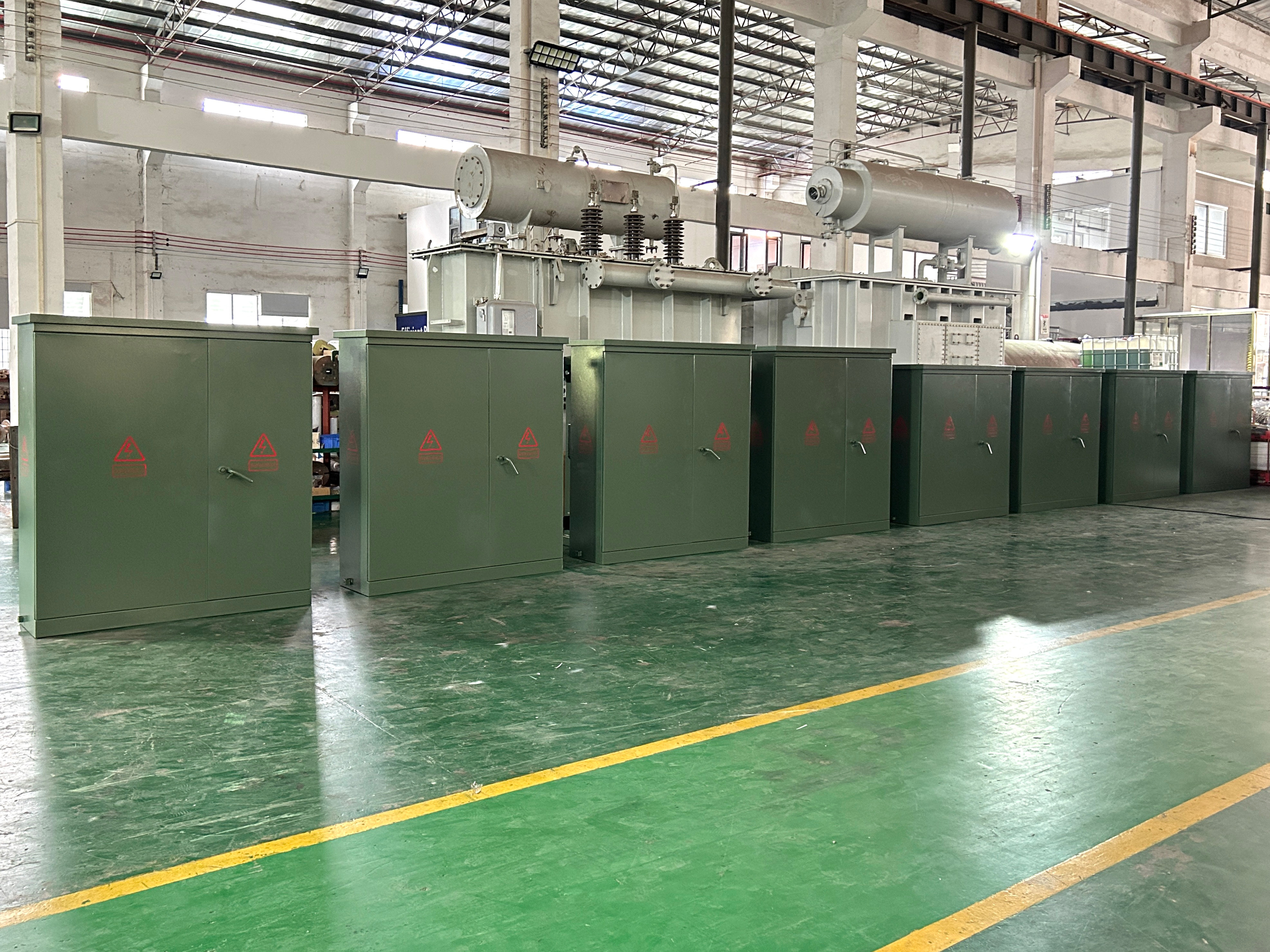

All three phase pad mounted transformer and single phase pad mounted transformer models undergo factory routine tests and, when requested, type tests including lightning impulse. Certifications such as UL (file # UL-US-2431836-0 for three-phase liquid-filled pad-mounted) and cUL (file # UL-CA-2423202-0) provide independent verification of conformity.

Market Trends Driving Supplier Scrutiny

North America’s push for grid modernization, renewable integration, and data center expansion has intensified demand for pad mounted distribution transformers. Utilities now require vendors to demonstrate not only product compliance but also manufacturing agility. The ability to supply 500kva pad mount transformer or 2000kva pad mount transformer with consistent ANSI standard pad mount transformer tolerances separates reliable partners from transactional suppliers.

When evaluating a vendor, procurement teams should examine:

• Certification breadth (UL/cUL/CSA/DOE across both single-phase and three-phase lines)
• Production hold point protocols and traceability systems
• Proven large-scale project delivery (e.g., 31 units of 2550kVA–3750kVA three-phase pad-mounted transformers completed within timeframe)
• Customization capability for enclosure type (NEMA 3R), feed type (loop/radial), and dual-voltage configurations

Looking Ahead: The Role of Agile Manufacturing

As transformer lead times globally remain volatile, manufacturers that combine vertical integration (core cutting, winding, vacuum processing in-house) with lean production systems will dominate procurement shortlists. Winley Electric’s 35-engineer R&D team, ability to customize per ANSI/IEEE/CSA/IEC standards, and flexible cooperation (OEM/ODM with UL partner authorization) position it as a strategic ally for North American buyers seeking to de-risk supply chains. With two factories in Shanghai and Guangdong, and a growing export footprint to over 60 countries, the company exemplifies how pad mounted transformer manufacturers can align technical rigor with delivery predictability—a combination that defines the next-generation power distribution supply base.

“Our focus is not just on meeting standards, but on building systems that ensure every transformer—whether 45 kVA or 5000 kVA—is produced with the same quality discipline. This gives our customers confidence in both capacity and schedule.” — Winley Electric Engineering Team
