Why Rod Ends and Spherical Plain Bearings Matter in Modern Machinery

Rod ends and spherical plain bearings are critical components for transmitting motion while accommodating angular misalignment. LDK is a bearing manufacturer established in 1986, operating a 90,000 m² facility with 130 employees and an annual output of 15,000,000 units. With over 30 years of experience, LDK produces rod ends, spherical plain bearings, and linkages for industries including textile, railway, photovoltaic, construction machinery, automotive, and off-road vehicles.

Global buyers increasingly demand components that combine durability with low maintenance. LDK addresses this by offering both maintenance-free (self-lubricating) and re-greasable designs across its product lines, allowing engineers to select the optimal solution for each application.

Product Range and Technical Features

LDK offers rod ends in inch and metric configurations, with male or female threads. The CHS series, for example, is a 3-piece maintenance-free rod end with a forged carbon steel body, GCr15 bearing steel ball heat treated to HRC 58-64, and a brass race with PTFE composite bonded to its inner diameter. Sliding contact surfaces are steel/PTFE composite. Shaft diameters range from 3 mm to 30 mm, and the thread can be customized to left-hand or different pitch. These rod ends are suitable for heavy-duty applications in transportation, construction machinery, and food processing.

For spherical plain bearings, LDK produces steel-on-steel types with MoS2 treatment (e.g., GE..ES series) for re-greasable applications, as well as self-lubricated designs with PTFE fabric liners (e.g., GEG..ET-2RS) for maintenance-free operation. The GEG..ET-2RS series features an outer ring fractured with two seals, a steel/PTFE fabric sliding surface, and a shaft diameter range from 15 mm to 280 mm. Construction and railway industries frequently specify these bearings for high-load oscillating movements.

Application Scenarios Across Industries

Solar tracking systems: LDK bearings are applied in photovoltaic solar panel trackers, operating 24/7 under full outdoor exposure with extreme temperature swings from -20°C to +60°C. Requirements include UV protection, corrosion resistance, and maintenance-free service for years. The SGE..C series, with 304 stainless steel outer ring and PTFE composite liner, is a common choice.

Off-road and recreational vehicles: In 4x4 vehicles, rod ends such as the JMX..T series (alloy steel body, steel/PTFE composite, maintenance-free) are used in sway bar links and steering stabilizers. These endure direct mud and water immersion, high impact, and strong vibration.

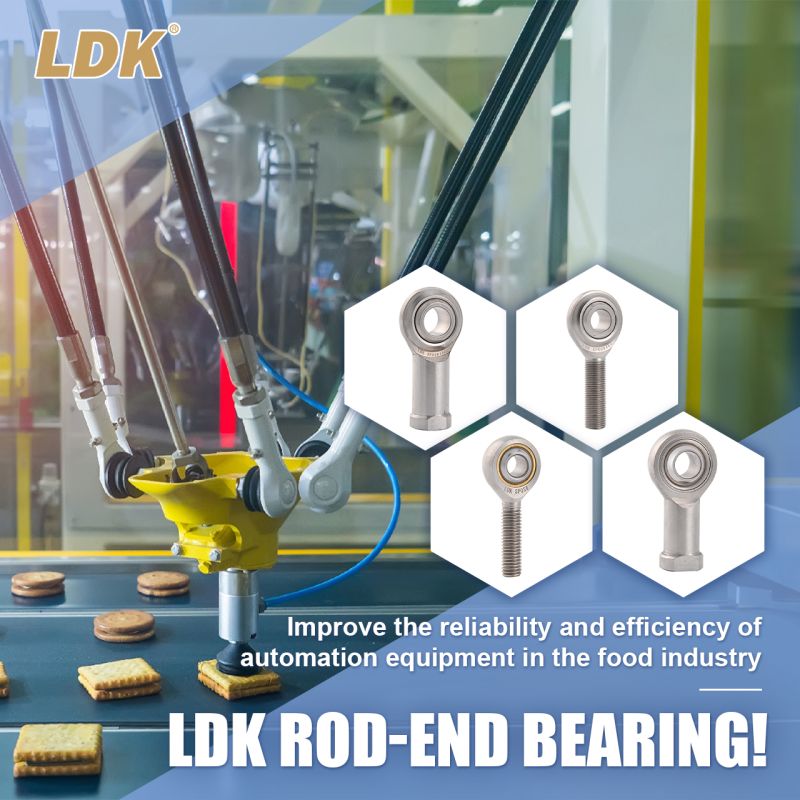

Industrial automation: Mounted-type rod ends like the SI..C series (carbon steel body, GCr15 ball, PTFE composite) are employed in robotic arms and pneumatic actuators. They provide precise motion transfer with low noise and long maintenance intervals in cleanroom or light industrial environments.

Market Trends and Drivers

The global shift toward renewable energy is driving demand for durable, corrosion-resistant bearings in solar tracking and wind power applications. According to LDK’s application data, photovoltaic installations in the United States, Germany, and Australia increasingly specify stainless steel spherical plain bearings. Simultaneously, the expansion of railway and construction machinery in emerging markets requires bearings that can withstand heavy loads and contamination. LDK’s IATF 16949-certified facilities and in-house R&D enable it to support these trends with custom material combinations and flexible manufacturing, from low to high volumes.

Comparison with Conventional Solutions

Traditional rod ends often rely on steel-on-steel sliding surfaces that require periodic lubrication, increasing maintenance costs. LDK’s maintenance-free designs replace the steel race with a PTFE composite liner, eliminating the need for re-greasing and extending service life. A limitation of self-lubricating bearings is that they generally have lower maximum load capacity compared to steel-on-steel designs under extreme shock loads. LDK offers both types so engineers can choose: the GE..ES series (steel/steel, re-greasable) for heavy-duty construction equipment, or the GEG..ET-2RS series (PTFE fabric, maintenance-free) for applications where access for lubrication is difficult.

Future Outlook

As industries demand longer uptime and reduced total cost of ownership, the adoption of maintenance-free spherical plain bearings and rod ends is expected to grow. LDK continues to develop new variants, including stainless steel and chromoly options, and offers pre-assembled rod end linkages for automotive and aerospace applications. With a dedicated R&D team of 12 engineers and comprehensive testing capabilities (fatigue life, tensile strength, noise & vibration, salt spray), LDK is positioned to support custom OEM requirements across diverse sectors.

For a detailed overview of LDK’s capabilities and product data sheets, download the company brochure: LDK Bearings Product Brochure (PDF).
